Emergency Power Supply:2.0

Heres The Update:
I Found One Of those Sterlite "Show-offs"Cases used for storing CD'S (3.69 at Wal mart )

It gave me a reason to get creative with this
I was so excited to get started on this that i forgot to take pictures as i was working on it but i decided that after i got it together not to take it a part

Will Have A Wiring Diagram Soon..........................................................

UPDATE :Sterlite "Show-offs"Case broke so i gotta find a new case to transplant my wiring into..........................................

Materials Used and Removed

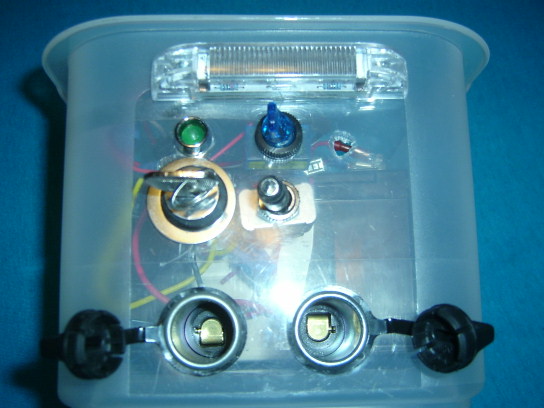

Control Side, Socket Covers On (Main Power OFF).JPG

Well i removed the push pull switch and the electrical tape used in the first version

and i added

the key switch-Got it at Atwoods Farm & Home Store (Key Switch Is a Tractor ignition Switch) $10
the green Indicator LED-Got it at Atwoods Farm & Home Store $3.00
quick disconnect- Atwoods Farm & Home Store (Trailer Wiring Section) $4
Aux Power Sockets- Wal-mart $6 ea.
Toggle Switches -Harbor Freight Tools $10

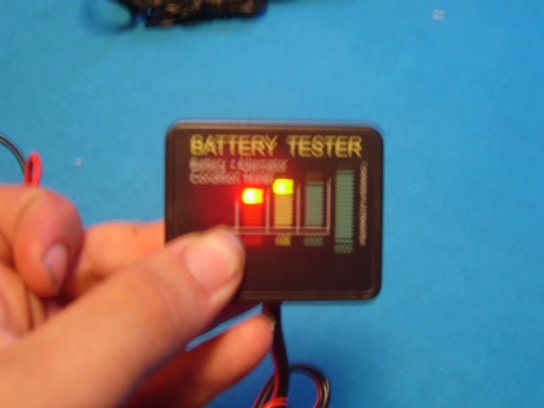

Battery/Alternator Tester-Harbor Freight Tools www.harborfreight.com/cpi/ctaf/displayitem.taf

Wire,Crimp connectors $10

In Operation

Control Side, Socket Covers On (Main Power ON).JPG

Control side (Power Off) Socket Covers Off.JPG

Control Side, Socket Covers On , Main Power ON (Outside Light On).JPG

Control Side, Socket Covers On Main Power ON (Blue Inside Light On ).JPG

The Following Images Explain Operation
