Upcycled RetroPhone Lamp
![IMG_6014.JPG](/proxy/?url=https://content.instructables.com/FPR/GHUD/KLF69F19/FPRGHUDKLF69F19.jpg&filename=IMG_6014.JPG)
I've found an old phone on a flea market the other day and decided to build a lamp out of it. It turned out pretty nicely so I want to share the process with you. Please be careful with all the tools, do not mess with electricity unless you know the safety measures and realize the dangers.
Supplies
- Old phone
- Goose neck (Microphone extension)
- LED Lamp (5cmø 5w 230v 3300K Warm-White in my case)
- 230v cord + EU plug
- 230v Switch + 230v luster terminal
- Duct tape, double-sided tape
- nice to have : glue gun, pliers, wire stripper, drill, compasses, zip ties, cutter
Put on Your Safety Glasses
![IMG_9347.JPG](/proxy/?url=https://content.instructables.com/FI6/CLLC/KLF68XT1/FI6CLLCKLF68XT1.jpg&filename=IMG_9347.JPG)
![IMG_9364.JPG](/proxy/?url=https://content.instructables.com/FFH/18MR/KLF68XV6/FFH18MRKLF68XV6.jpg&filename=IMG_9364.JPG)

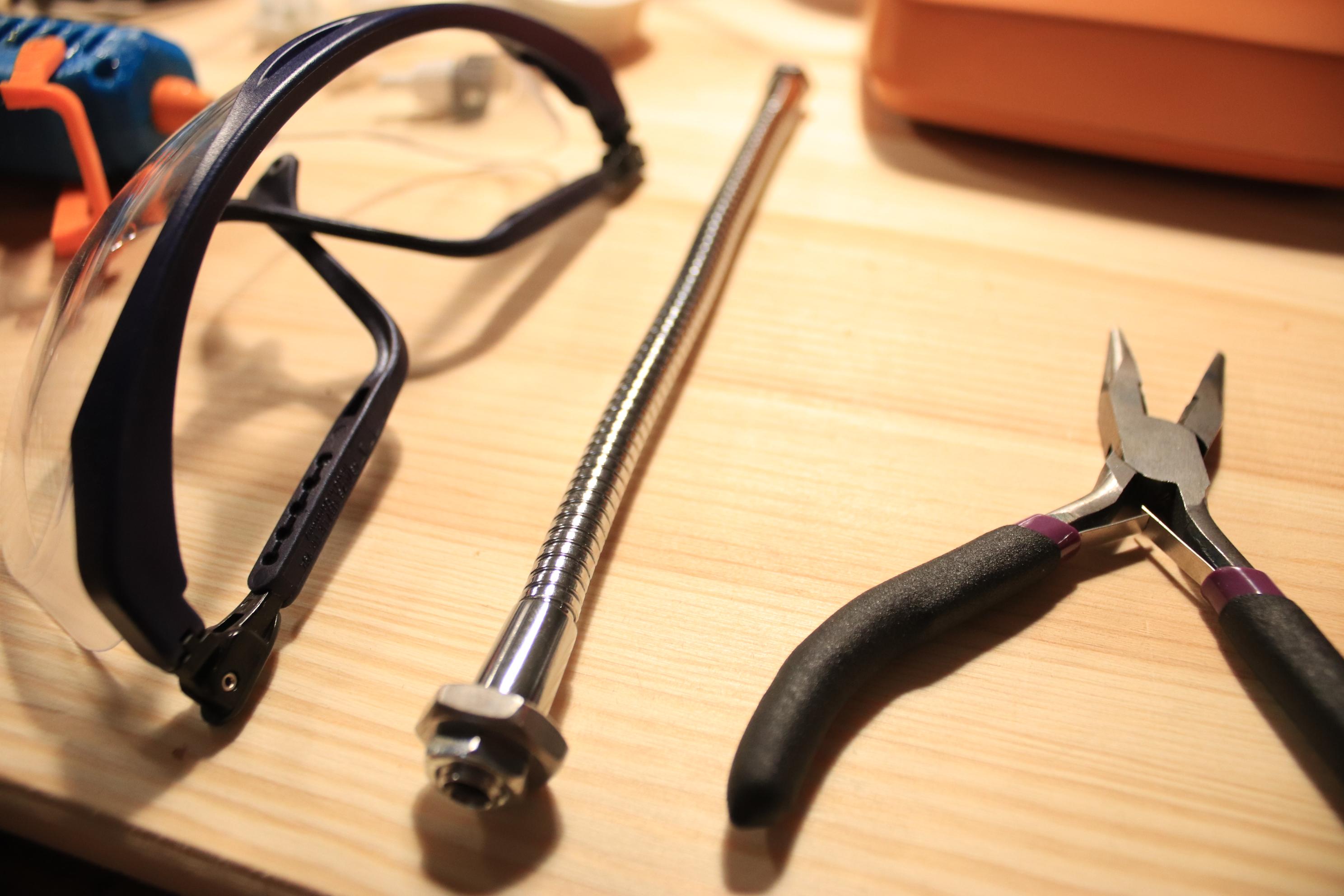

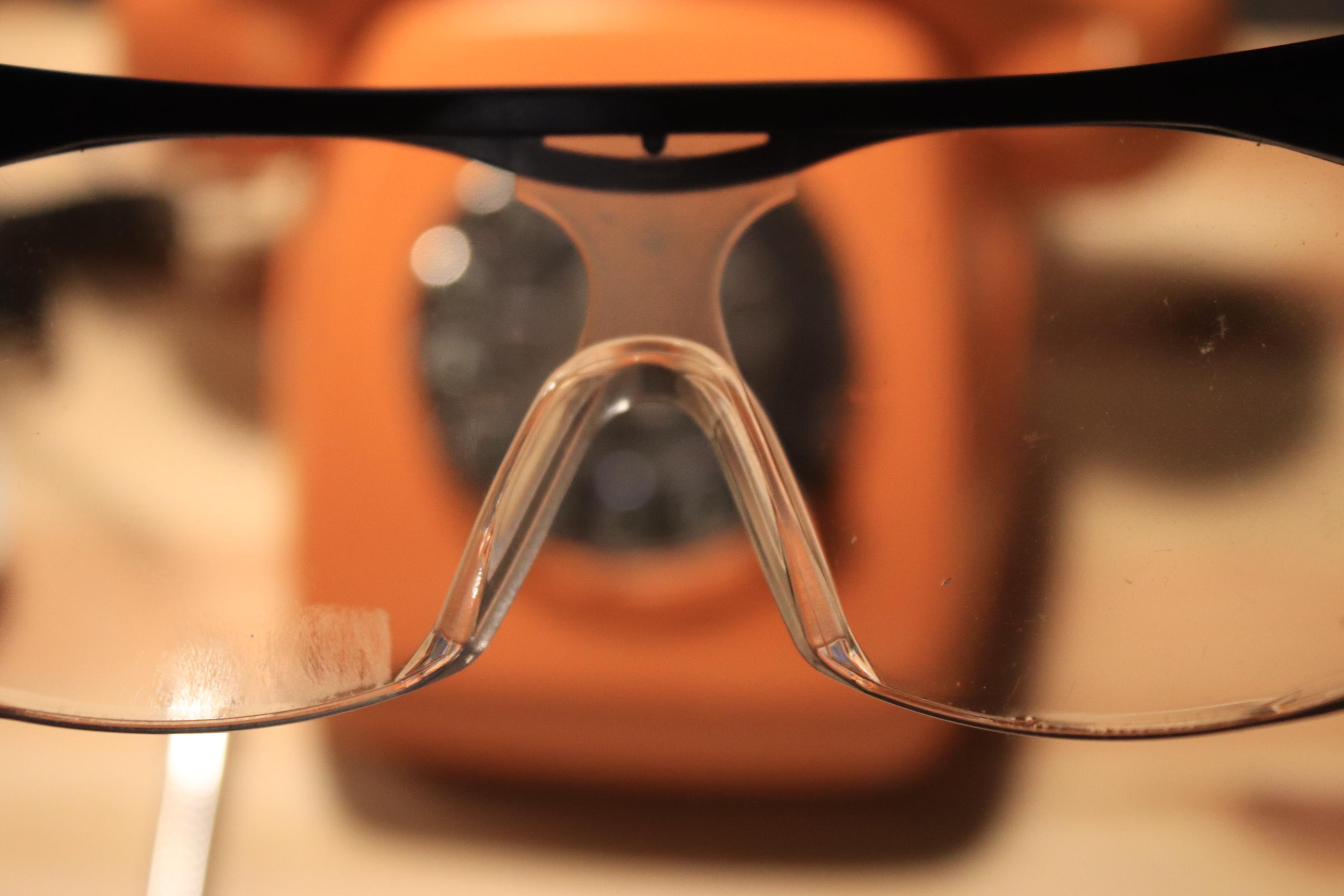

Better be safe than sorry! Besides, they look cool. At least, I hope so.
Disassemble the Phone and the Handset
![IMG_9367.JPG](/proxy/?url=https://content.instructables.com/F58/MY7U/KLF68XVC/F58MY7UKLF68XVC.jpg&filename=IMG_9367.JPG)
![IMG_9370.JPG](/proxy/?url=https://content.instructables.com/FJS/RM99/KLF68XWF/FJSRM99KLF68XWF.jpg&filename=IMG_9370.JPG)
![IMG_9375.JPG](/proxy/?url=https://content.instructables.com/F22/OMPN/KLF68XYJ/F22OMPNKLF68XYJ.jpg&filename=IMG_9375.JPG)

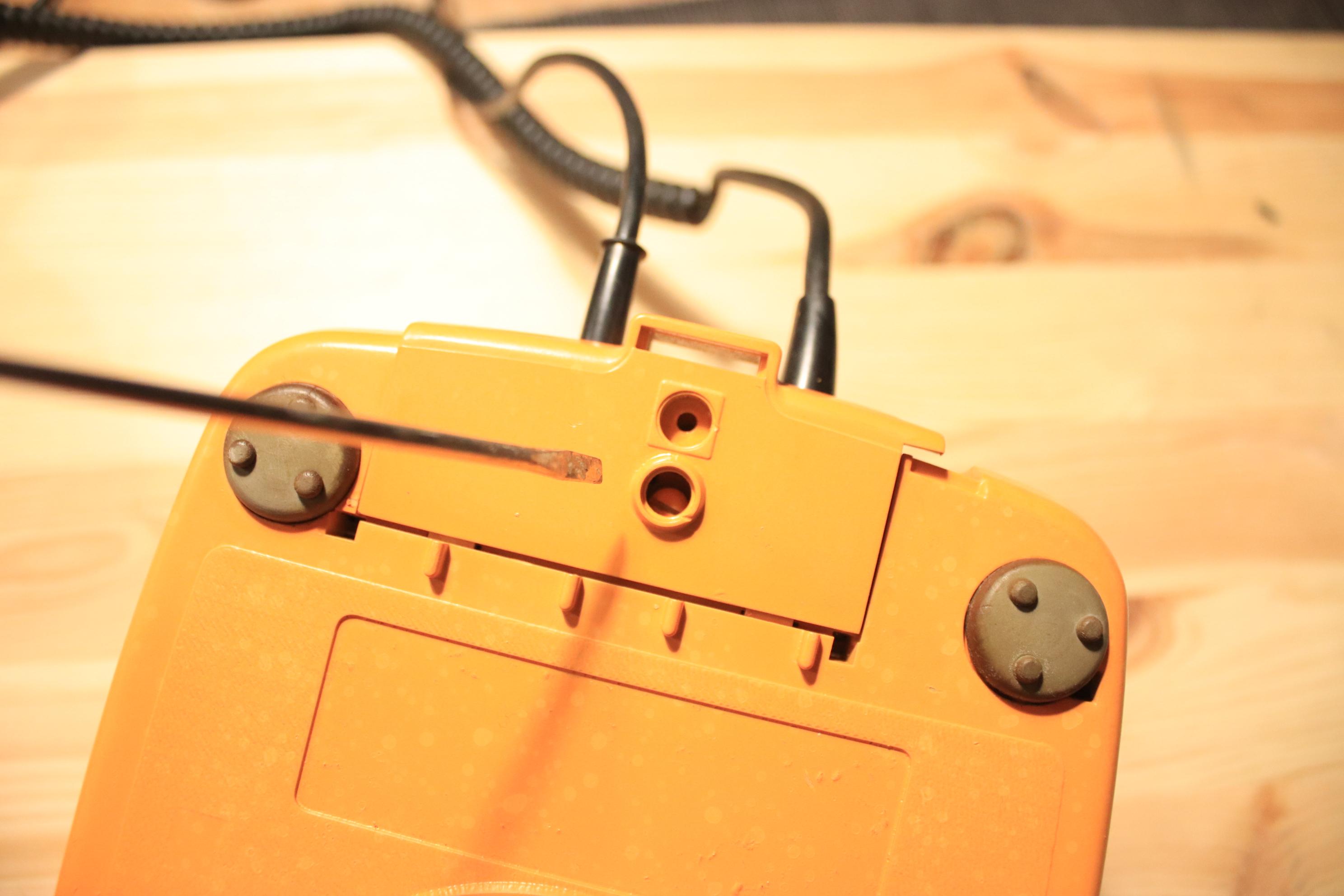

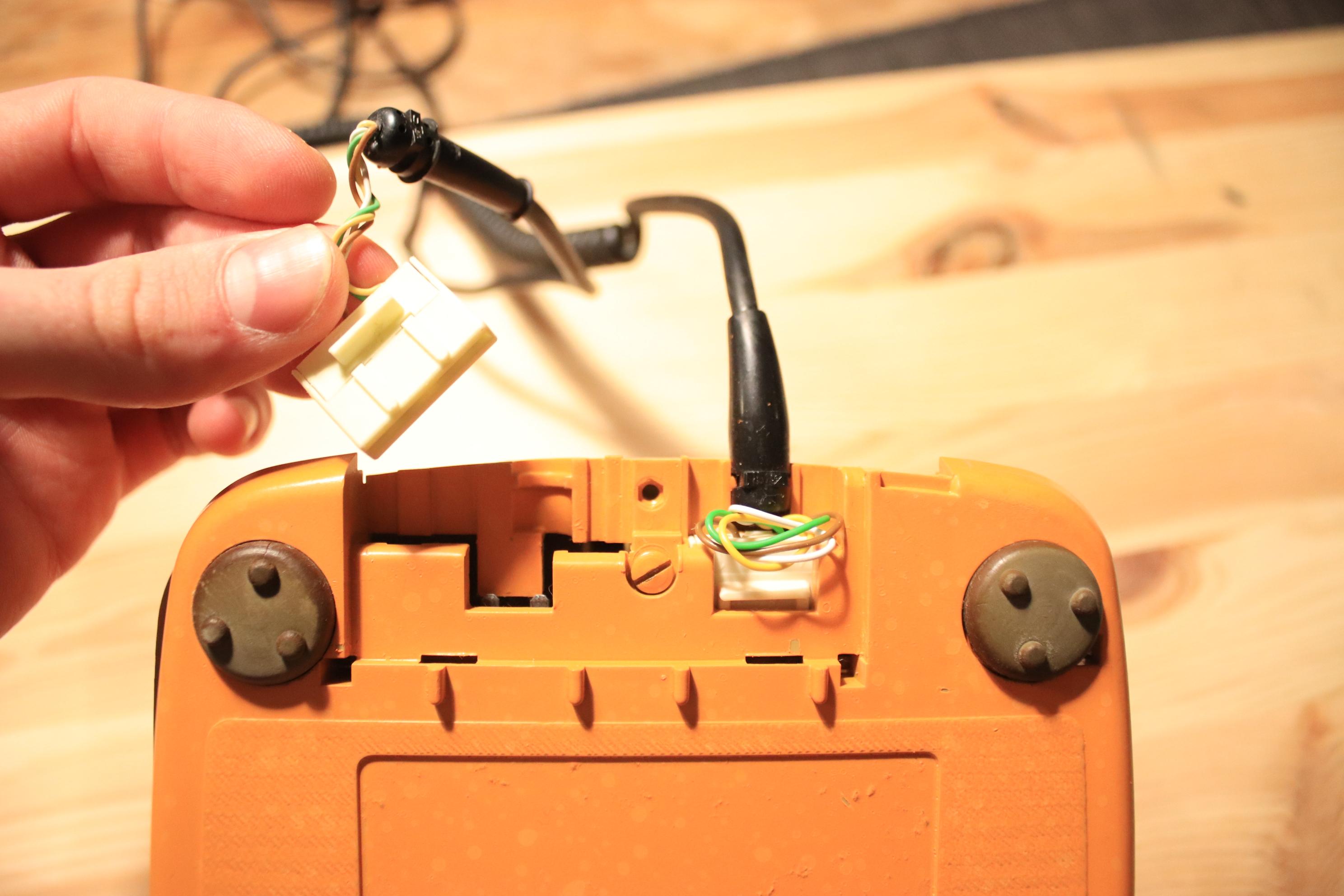

Remove the screws from the base panel, unplug the cables.
Unscrew the covers of the speaker and the microphone, remove the magnets.
Drill the Hole for the Gooseneck
![IMG_9376.JPG](/proxy/?url=https://content.instructables.com/FTP/ZR7T/KLF68XYW/FTPZR7TKLF68XYW.jpg&filename=IMG_9376.JPG)
![IMG_9352.JPG](/proxy/?url=https://content.instructables.com/F3V/7I30/KLF68XTF/F3V7I30KLF68XTF.jpg&filename=IMG_9352.JPG)
![IMG_9379.JPG](/proxy/?url=https://content.instructables.com/FZG/7FJN/KLF68XZL/FZG7FJNKLF68XZL.jpg&filename=IMG_9379.JPG)
![IMG_9382.JPG](/proxy/?url=https://content.instructables.com/FYO/0AVR/KLF68Y04/FYO0AVRKLF68Y04.jpg&filename=IMG_9382.JPG)
![IMG_9384.JPG](/proxy/?url=https://content.instructables.com/FGX/MDQN/KLF68Y0I/FGXMDQNKLF68Y0I.jpg&filename=IMG_9384.JPG)
Prepare the Hole for the LED
![IMG_9386.JPG](/proxy/?url=https://content.instructables.com/FDN/OGZM/KLF68Y0Q/FDNOGZMKLF68Y0Q.jpg&filename=IMG_9386.JPG)
![IMG_9387.JPG](/proxy/?url=https://content.instructables.com/F7J/9CJO/KLF68Y13/F7J9CJOKLF68Y13.jpg&filename=IMG_9387.JPG)
![IMG_9390.JPG](/proxy/?url=https://content.instructables.com/FF8/IOOD/KLF68Y16/FF8IOODKLF68Y16.jpg&filename=IMG_9390.JPG)
![IMG_9393.JPG](/proxy/?url=https://content.instructables.com/FEL/7IMC/KLF68Y2A/FEL7IMCKLF68Y2A.jpg&filename=IMG_9393.JPG)
![IMG_9395.JPG](/proxy/?url=https://content.instructables.com/FF7/POLO/KLF68Y3G/FF7POLOKLF68Y3G.jpg&filename=IMG_9395.JPG)
![IMG_9397.JPG](/proxy/?url=https://content.instructables.com/F7X/7183/KLF68Y4R/F7X7183KLF68Y4R.jpg&filename=IMG_9397.JPG)
![IMG_9398.JPG](/proxy/?url=https://content.instructables.com/F58/E808/KLF68Y5H/F58E808KLF68Y5H.jpg&filename=IMG_9398.JPG)
![IMG_9401.JPG](/proxy/?url=https://content.instructables.com/F5O/LWRH/KLF68Y64/F5OLWRHKLF68Y64.jpg&filename=IMG_9401.JPG)
![IMG_9404.JPG](/proxy/?url=https://content.instructables.com/FLI/QGJB/KLF68Y6K/FLIQGJBKLF68Y6K.jpg&filename=IMG_9404.JPG)
![IMG_9405.JPG](/proxy/?url=https://content.instructables.com/F1J/0J0J/KLF68Y6W/F1J0J0JKLF68Y6W.jpg&filename=IMG_9405.JPG)
![IMG_9407.JPG](/proxy/?url=https://content.instructables.com/F47/9X1U/KLF68Y83/F479X1UKLF68Y83.jpg&filename=IMG_9407.JPG)
![IMG_9409.JPG](/proxy/?url=https://content.instructables.com/F77/O40E/KLF68Y8H/F77O40EKLF68Y8H.jpg&filename=IMG_9409.JPG)
![IMG_9410.JPG](/proxy/?url=https://content.instructables.com/F3I/LTD1/KLF68Y8I/F3ILTD1KLF68Y8I.jpg&filename=IMG_9410.JPG)
![IMG_9412.JPG](/proxy/?url=https://content.instructables.com/FTW/TGXJ/KLF68Y8J/FTWTGXJKLF68Y8J.jpg&filename=IMG_9412.JPG)

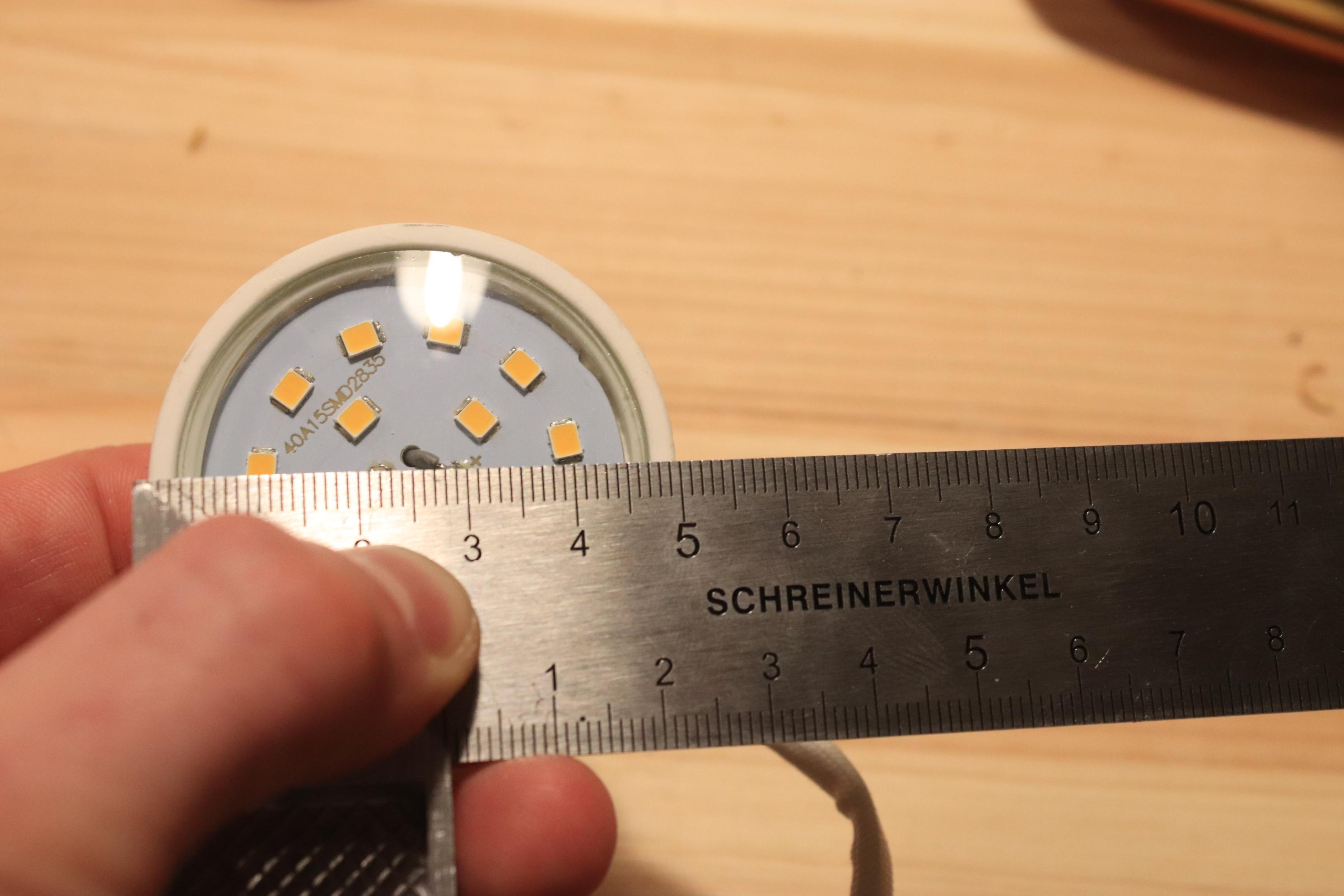

My LED has a diameter of 5cm and it fits perfectly into the speaker of the handset. Note that the speaker and the mic covers are exchangeable and since the mic cover has a bigger perforated area, it is easier to cut a hole in there.

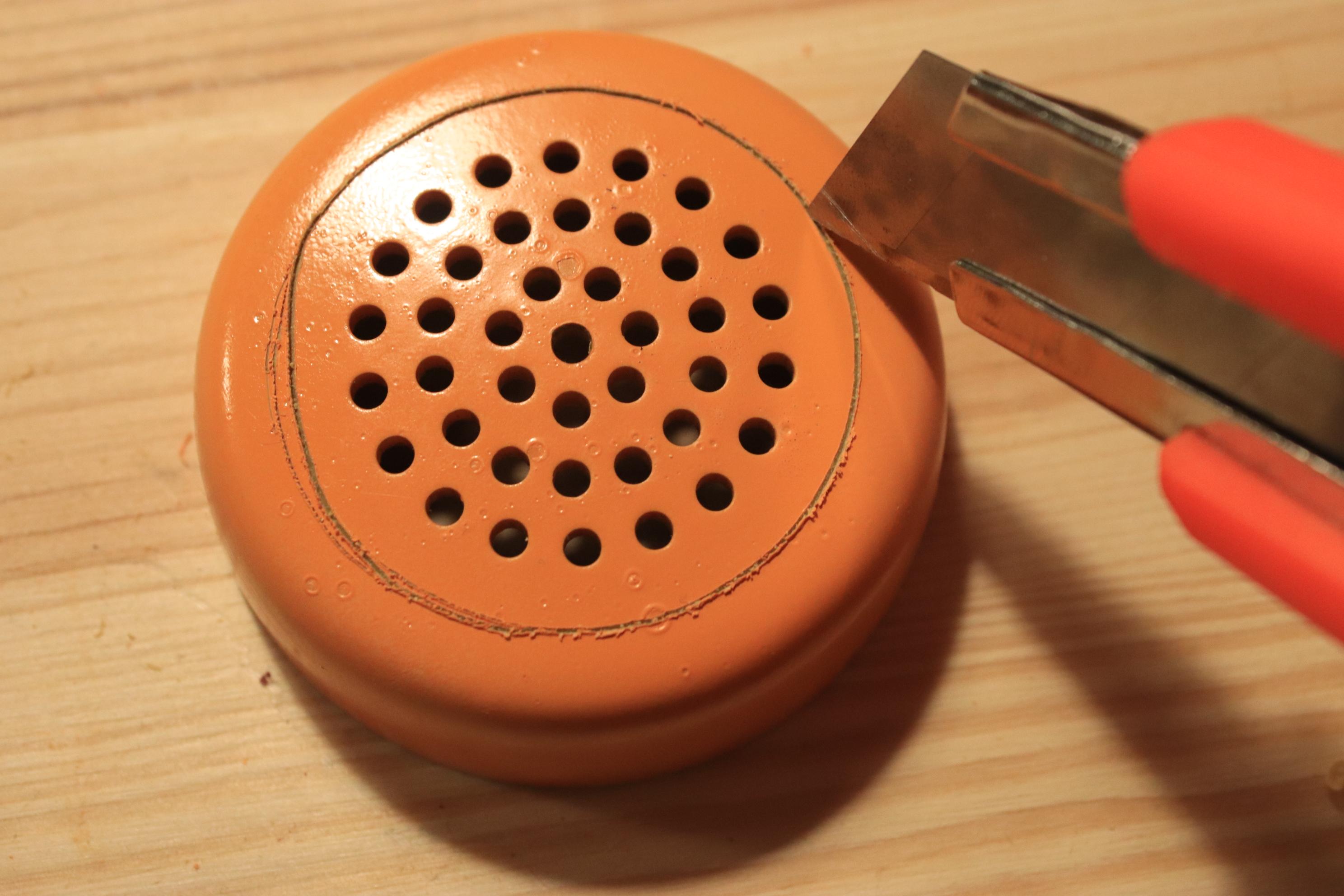

- Take a compasses and set it at around 2,3cm, set the dull end into the center hole of the mic cover and scratch a circle into the plastic
- Repeat the first step with the backside of the cover (remove the rubbery part, but do not throw it away!)
- Deepen the circle scratch with a cutter
- Drill the holes with a 10mm bit
- Cut out the plastic with a wire cutter
- Break out the rest of the plastic - if the circle scratch has been done properly, the plastic will break neatly
- Clean up the edge with a cutter and a sandpaper

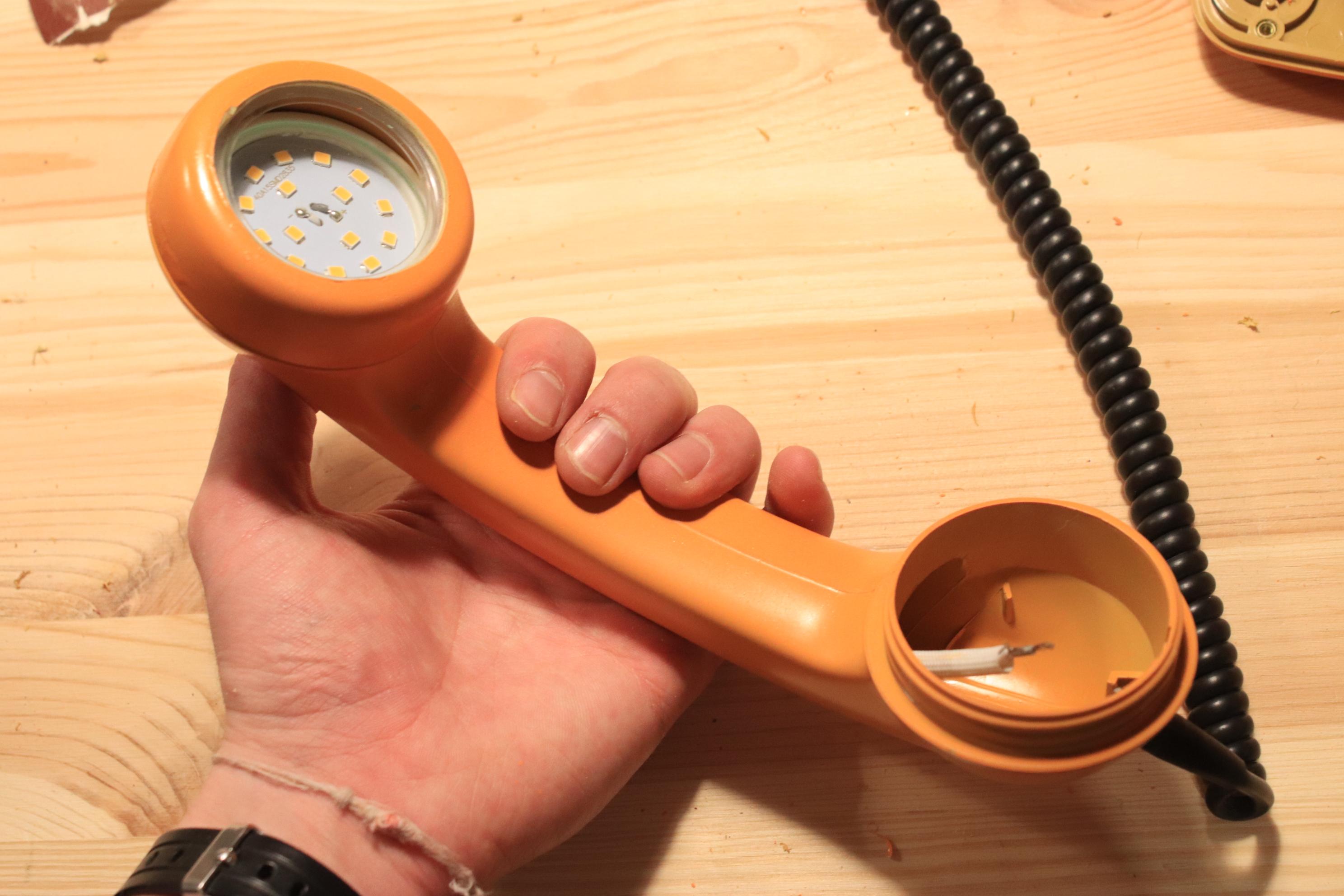

Put the LED in Place
![IMG_9415.JPG](/proxy/?url=https://content.instructables.com/FS5/1TDZ/KLF68Y8R/FS51TDZKLF68Y8R.jpg&filename=IMG_9415.JPG)
![IMG_9417.JPG](/proxy/?url=https://content.instructables.com/FW1/TA18/KLF68Y9M/FW1TA18KLF68Y9M.jpg&filename=IMG_9417.JPG)
Prepare the Wiring
![IMG_9423.JPG](/proxy/?url=https://content.instructables.com/F2F/P17V/KLF68YB0/F2FP17VKLF68YB0.jpg&filename=IMG_9423.JPG)
![IMG_9425.JPG](/proxy/?url=https://content.instructables.com/FSF/I8MO/KLF68YBT/FSFI8MOKLF68YBT.jpg&filename=IMG_9425.JPG)
![IMG_9432.JPG](/proxy/?url=https://content.instructables.com/FWS/32NR/KLF68YDZ/FWS32NRKLF68YDZ.jpg&filename=IMG_9432.JPG)

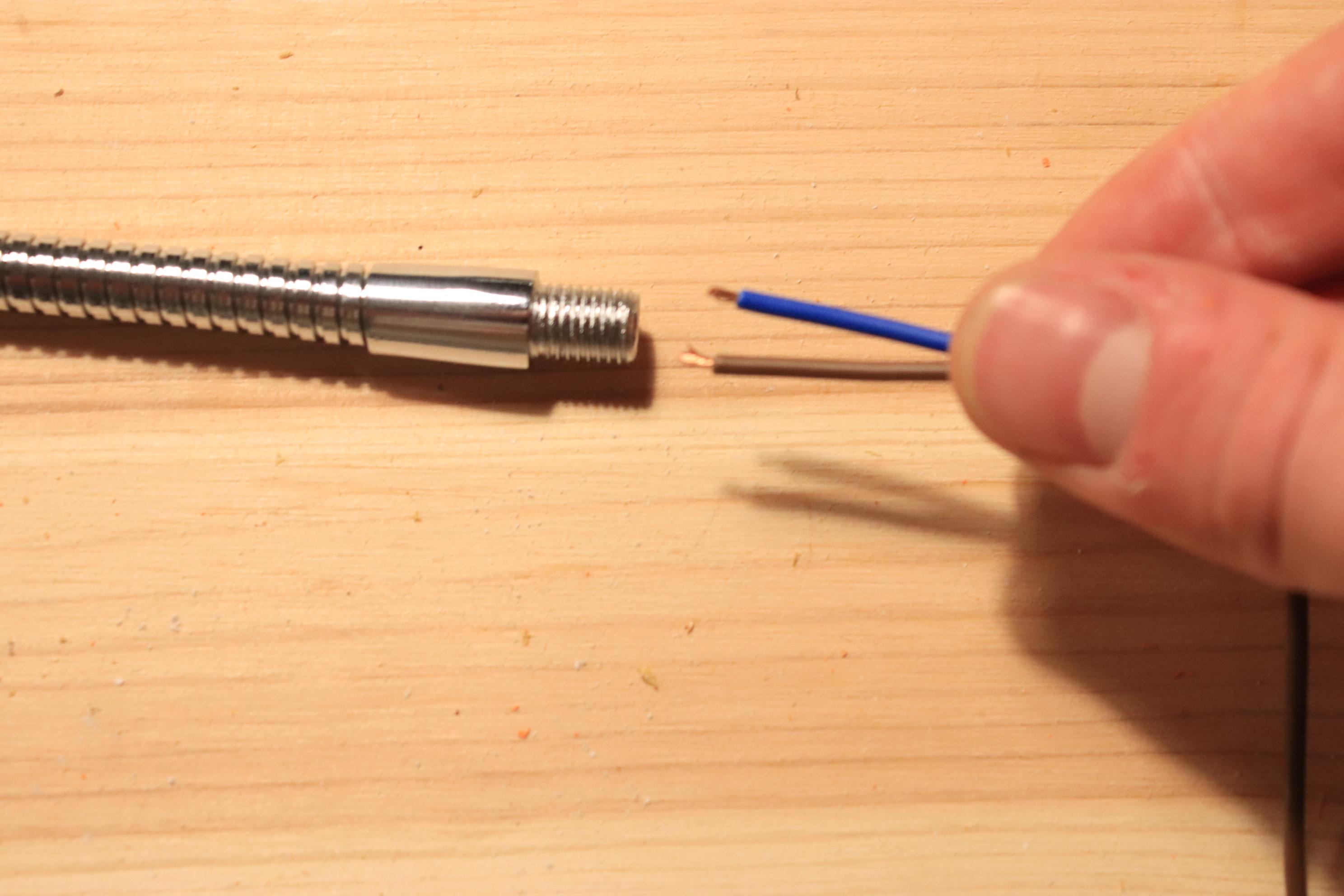

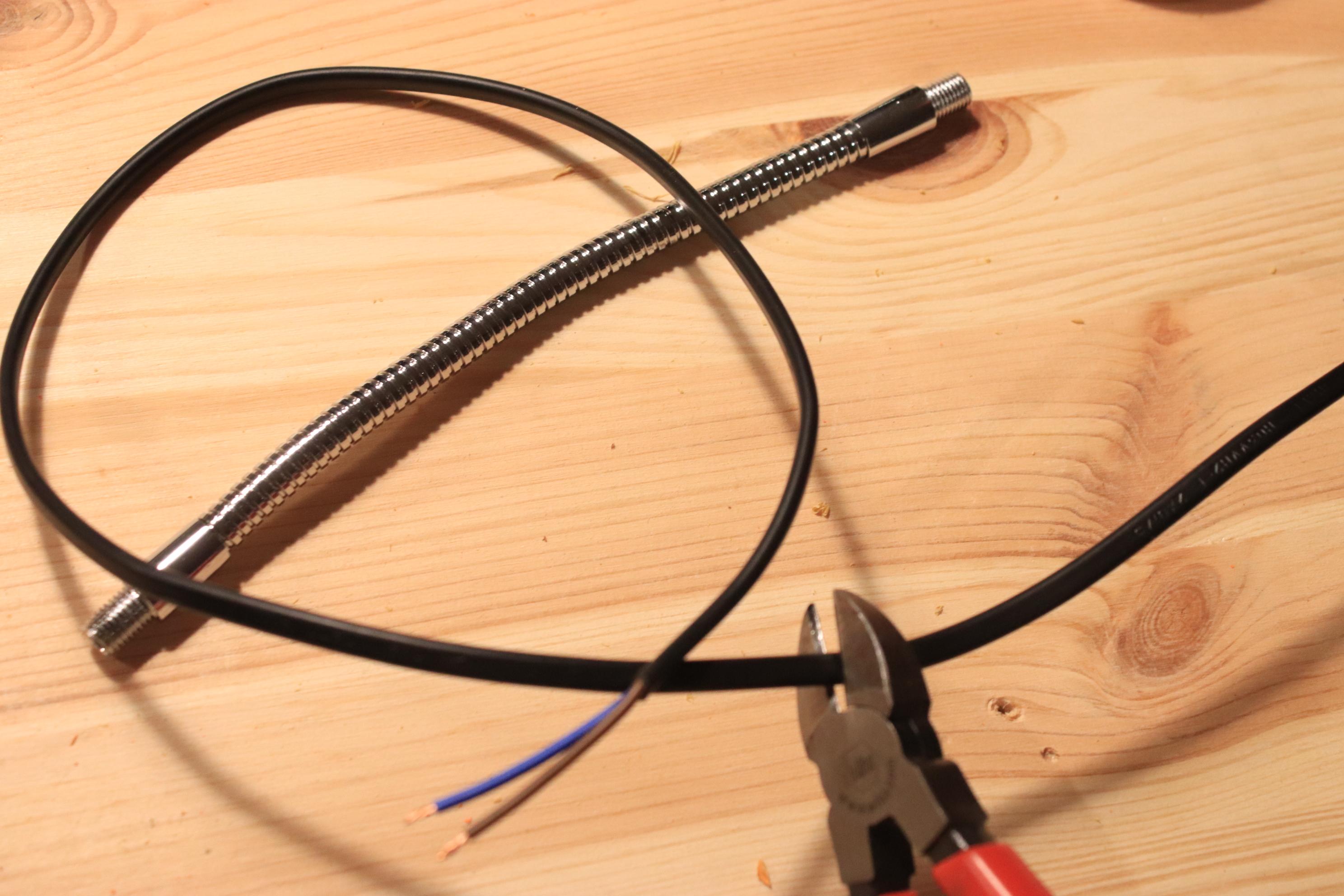

- Double the length of your gooseneck to get the right length of the power cable. In my case it's 2 x 20 cm = 40 cm. The inner diameter of the gooseneck is only 4,8mm so it's a tight fit for the cable - I decided to take off the black cover and only put the blue and brown cables.

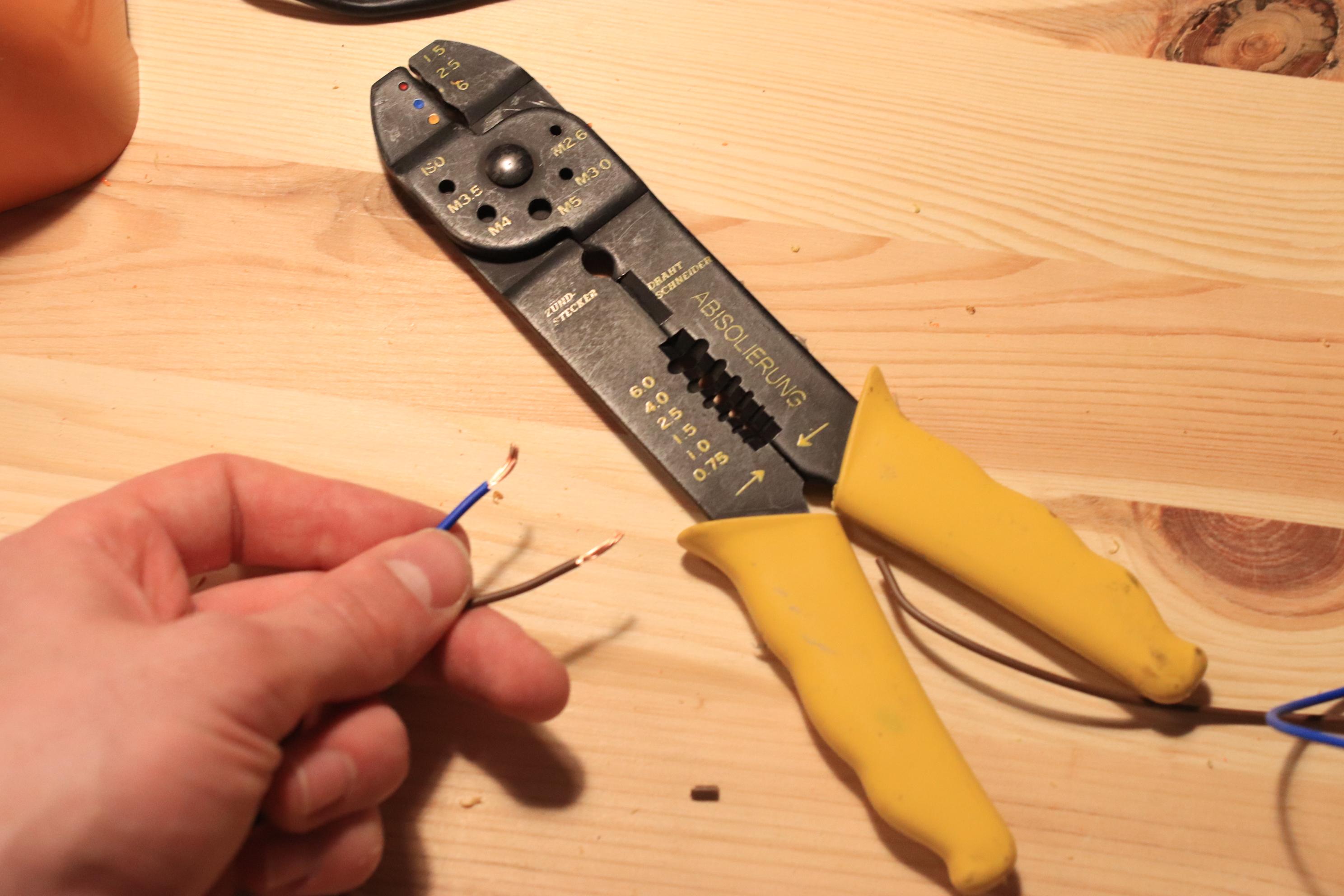

- Strip the wires from both ends for about 5mm
Put the Wires Through the Gooseneck and Into the Handset
![IMG_9426.JPG](/proxy/?url=https://content.instructables.com/FZS/WDUT/KLF68YC6/FZSWDUTKLF68YC6.jpg&filename=IMG_9426.JPG)
![IMG_9430.JPG](/proxy/?url=https://content.instructables.com/FHC/1C2J/KLF68YCX/FHC1C2JKLF68YCX.jpg&filename=IMG_9430.JPG)
![IMG_9434.JPG](/proxy/?url=https://content.instructables.com/FYW/S4BH/KLF68YEE/FYWS4BHKLF68YEE.jpg&filename=IMG_9434.JPG)

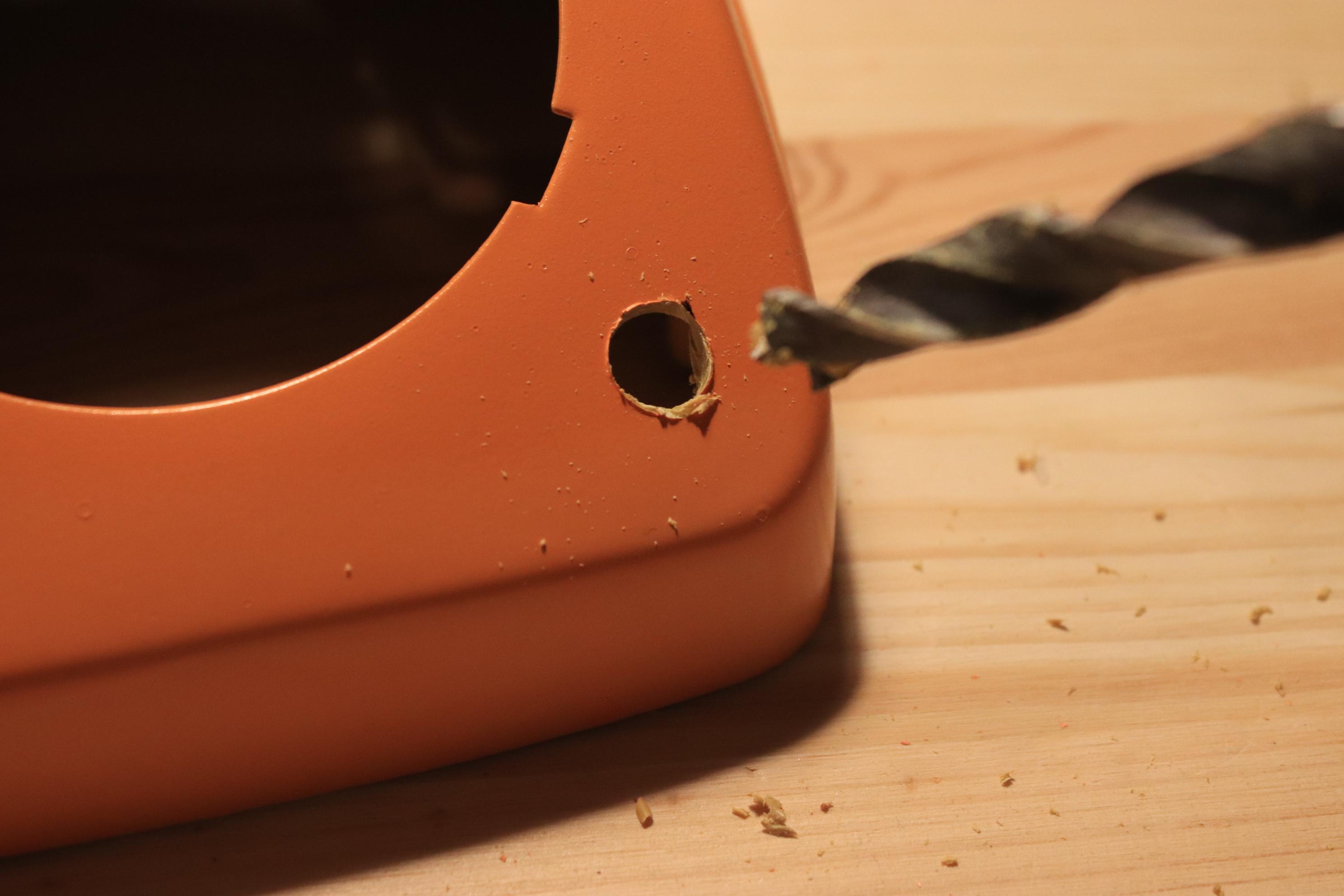

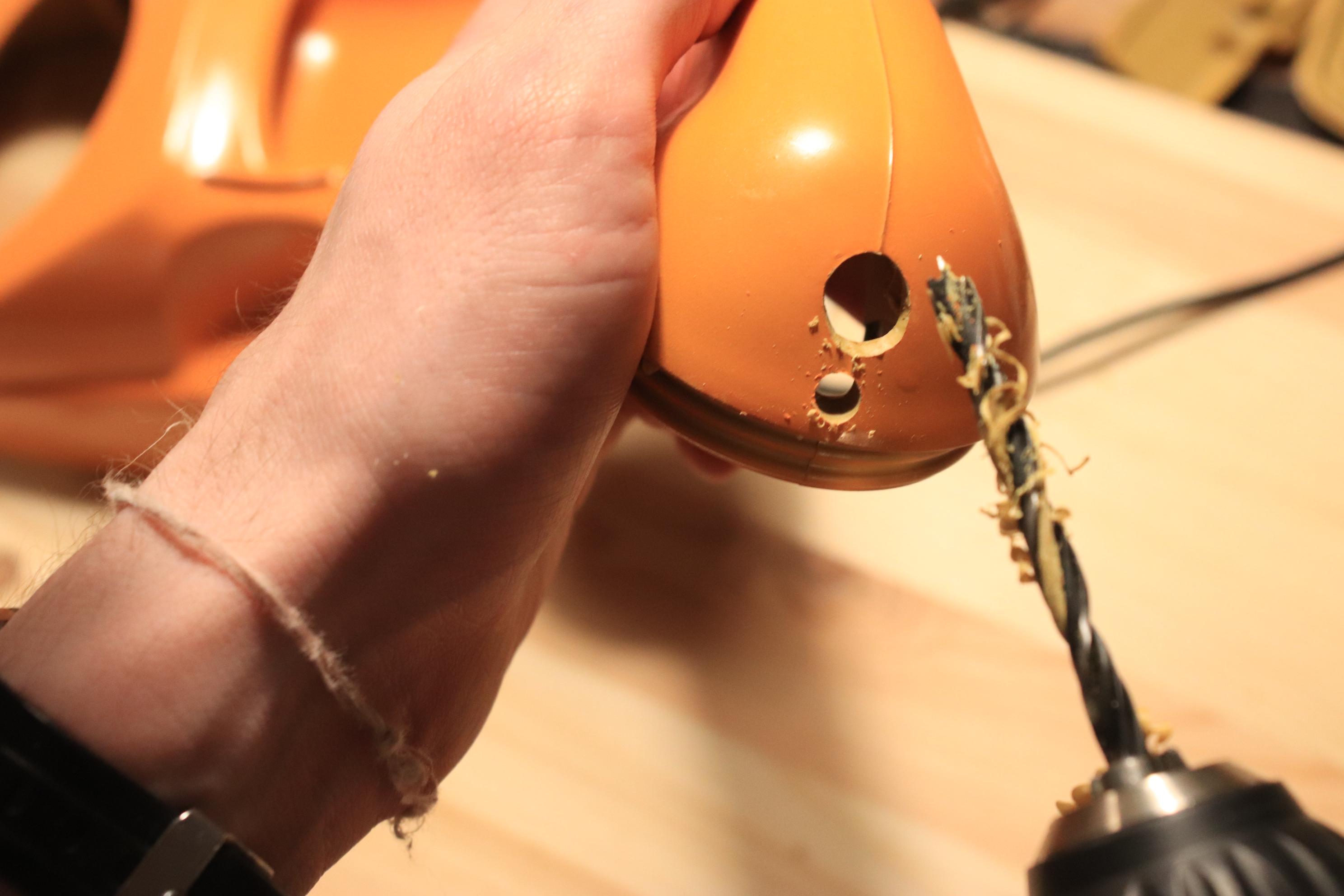

The original hole for the phone cable was a bit tight, so I had to drill through with an 8mm bit.
- OPTIONAL - Drill a second hole below the main one. This will come in handy if you'd like to wrap the original black wire around the gooseneck like I did.

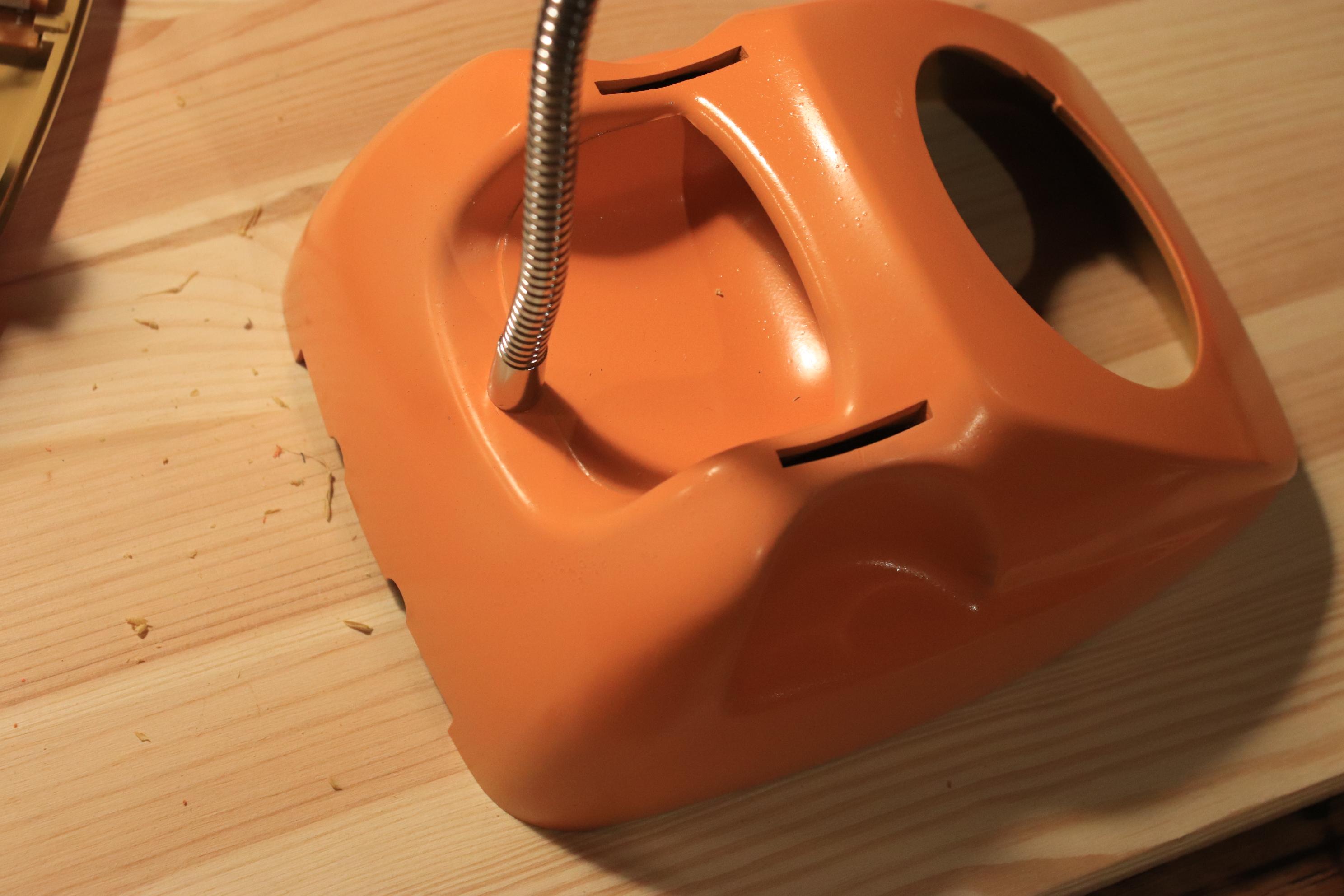

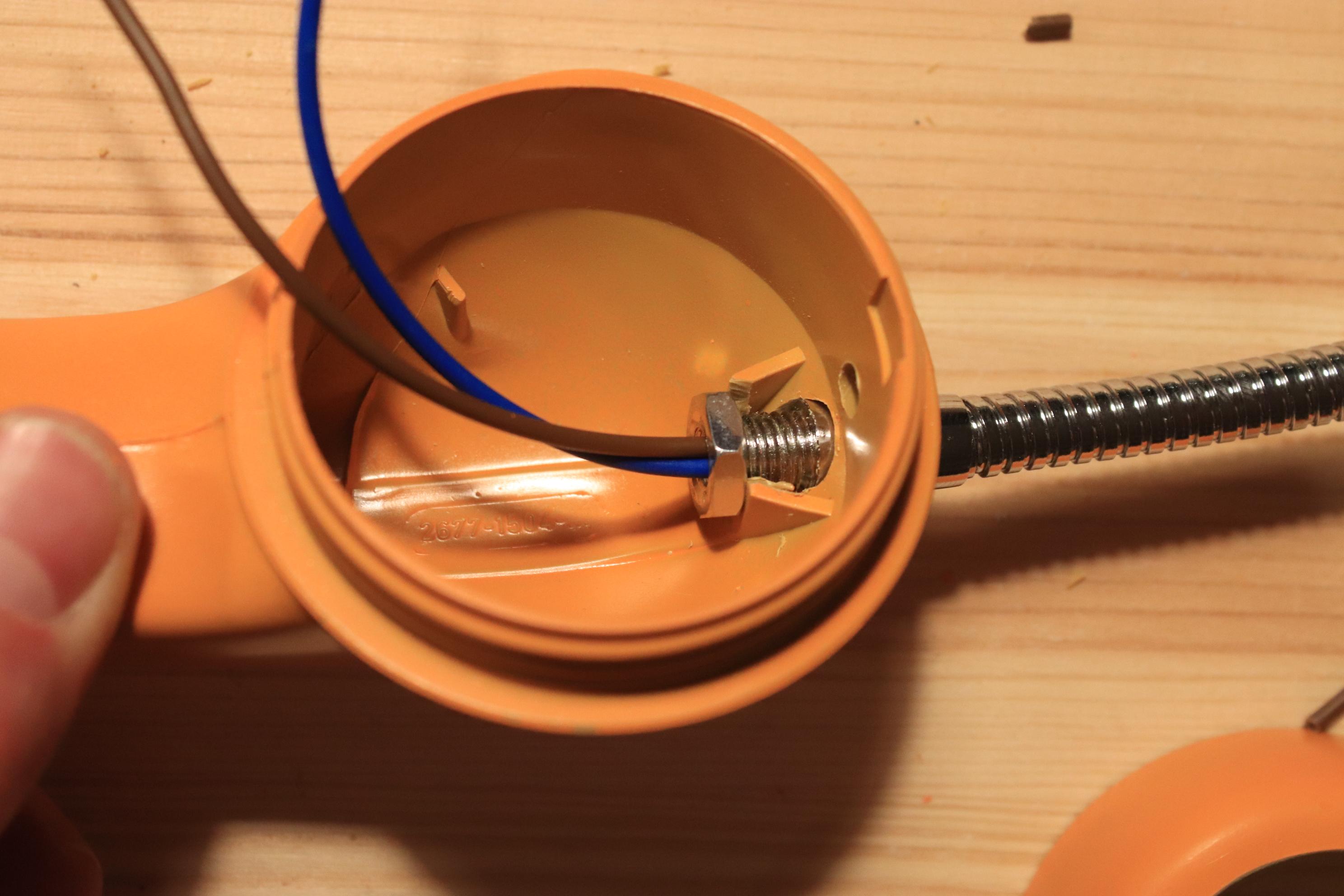

- Secure the gooseneck both in the handset and in the base with nuts.

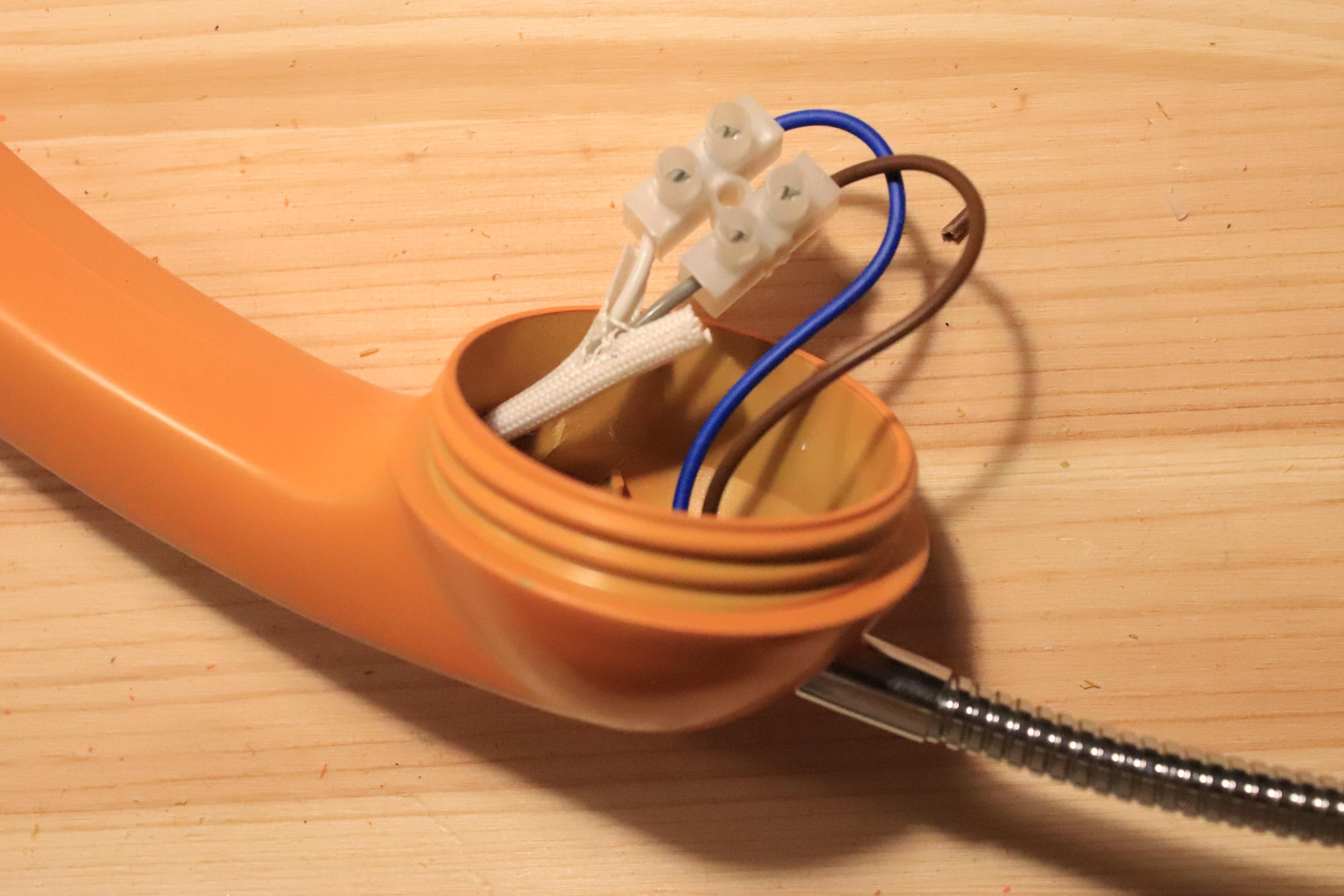

Secure the Wires With a Terminal
![IMG_9438.JPG](/proxy/?url=https://content.instructables.com/FE0/OATW/KLF68YGQ/FE0OATWKLF68YGQ.jpg&filename=IMG_9438.JPG)
![IMG_9440.JPG](/proxy/?url=https://content.instructables.com/F0I/A0GS/KLF68YI6/F0IA0GSKLF68YI6.jpg&filename=IMG_9440.JPG)
Then close the cover
Drill a Hole for the Switch in the Base
![IMG_9445.JPG](/proxy/?url=https://content.instructables.com/F6A/YA7T/KLF68YII/F6AYA7TKLF68YII.jpg&filename=IMG_9445.JPG)
![IMG_9447.JPG](/proxy/?url=https://content.instructables.com/FE3/YR6W/KLF68YIN/FE3YR6WKLF68YIN.jpg&filename=IMG_9447.JPG)

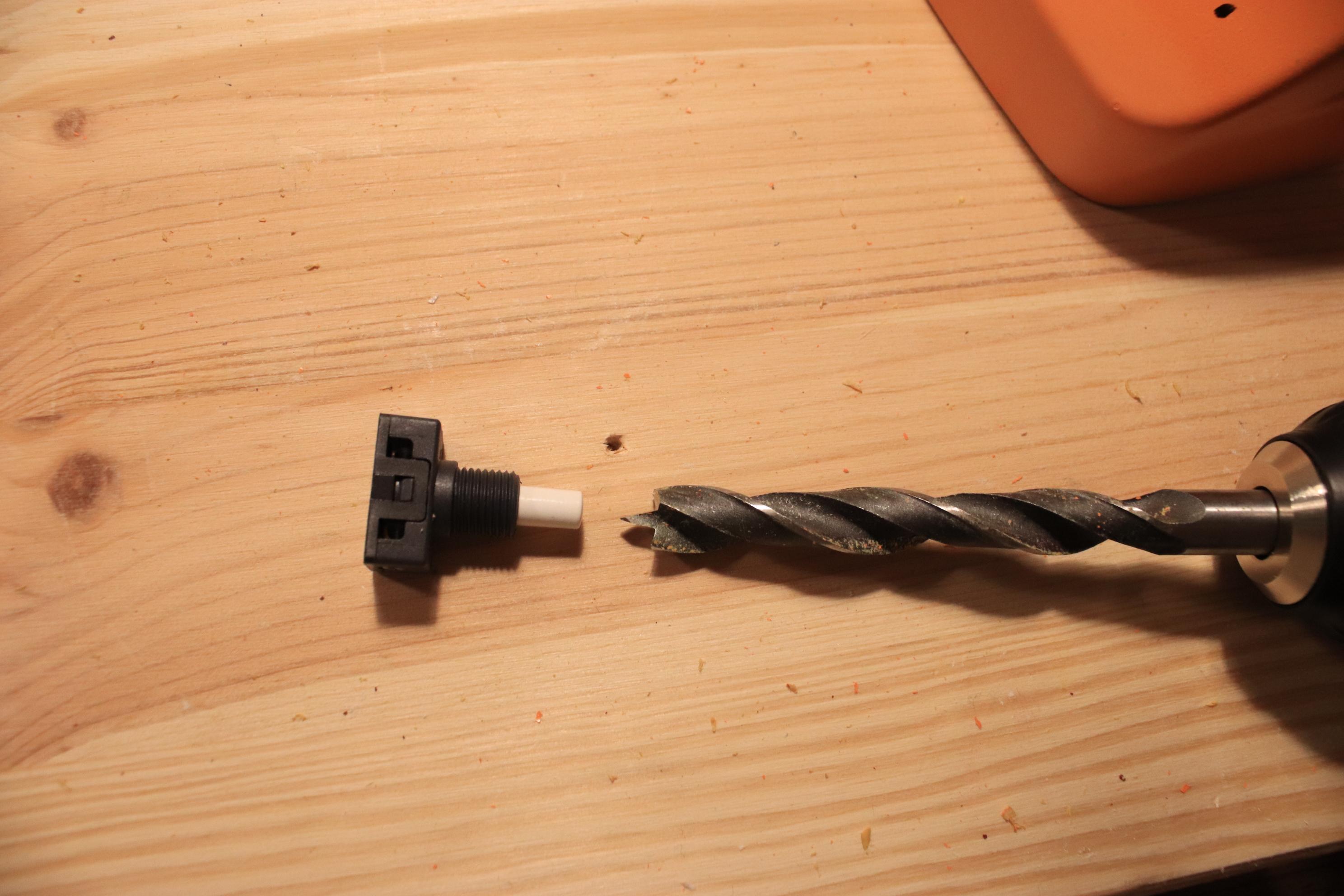

My switch has a 10mm neck = 10mm bit works great
In my opinion, this switch looks best on the right front corner, but it really doesn't matter where you put it - just make sure the cables are long enough to reach it. I learned it the hard way ;)
Wire the Switch
![IMG_9455.JPG](/proxy/?url=https://content.instructables.com/FZS/CVFE/KLF68YKE/FZSCVFEKLF68YKE.jpg&filename=IMG_9455.JPG)
![IMG_9457.JPG](/proxy/?url=https://content.instructables.com/F1G/BIQX/KLF68YKT/F1GBIQXKLF68YKT.jpg&filename=IMG_9457.JPG)

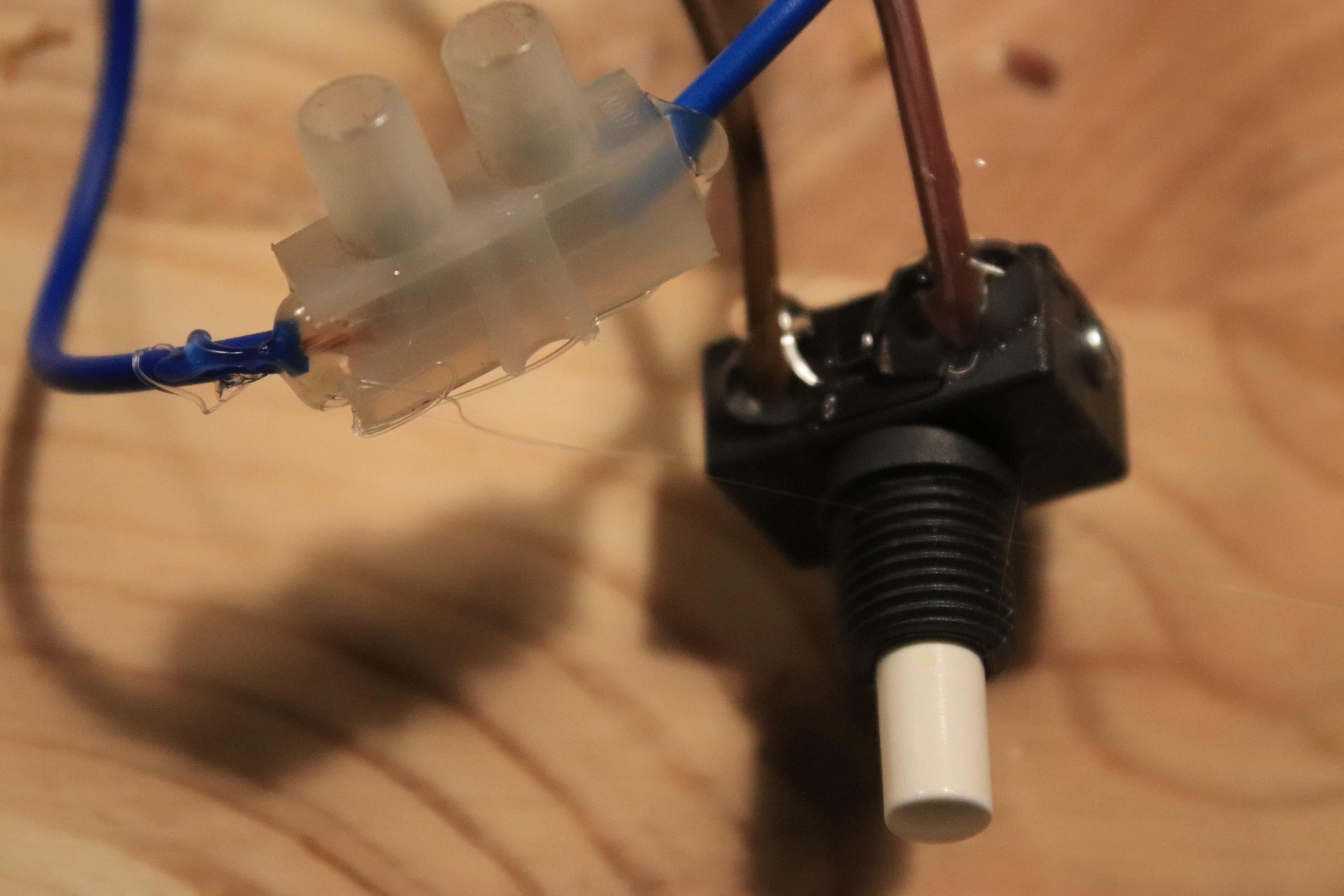

I usually put the brown wires into the switch and connect the blue cables with a terminal
Check on the Chicken - You Are Hungry and Don't Want to Burn It!
![IMG_9453.JPG](/proxy/?url=https://content.instructables.com/F0A/TMX8/KLF68YK9/F0ATMX8KLF68YK9.jpg&filename=IMG_9453.JPG)
Looks good. Back to work.
Test Drive
![IMG_9458.JPG](/proxy/?url=https://content.instructables.com/FB8/94Z3/KLF68YLE/FB894Z3KLF68YLE.jpg&filename=IMG_9458.JPG)
![IMG_9460.JPG](/proxy/?url=https://content.instructables.com/FDZ/37ZF/KLF68YM6/FDZ37ZFKLF68YM6.jpg&filename=IMG_9460.JPG)
It works!
Dirty Harry
![IMG_9461.JPG](/proxy/?url=https://content.instructables.com/FHM/QOFG/KLF68YMX/FHMQOFGKLF68YMX.jpg&filename=IMG_9461.JPG)
![IMG_9462.JPG](/proxy/?url=https://content.instructables.com/FSZ/2UE2/KLF68YNN/FSZ2UE2KLF68YNN.jpg&filename=IMG_9462.JPG)
![IMG_9463.JPG](/proxy/?url=https://content.instructables.com/FX2/CXD5/KLF68YNT/FX2CXD5KLF68YNT.jpg&filename=IMG_9463.JPG)
![IMG_9464.JPG](/proxy/?url=https://content.instructables.com/F9T/2AXM/KLF68YO0/F9T2AXMKLF68YO0.jpg&filename=IMG_9464.JPG)
![IMG_9468.JPG](/proxy/?url=https://content.instructables.com/FDH/SNLE/KLF68YP1/FDHSNLEKLF68YP1.jpg&filename=IMG_9468.JPG)

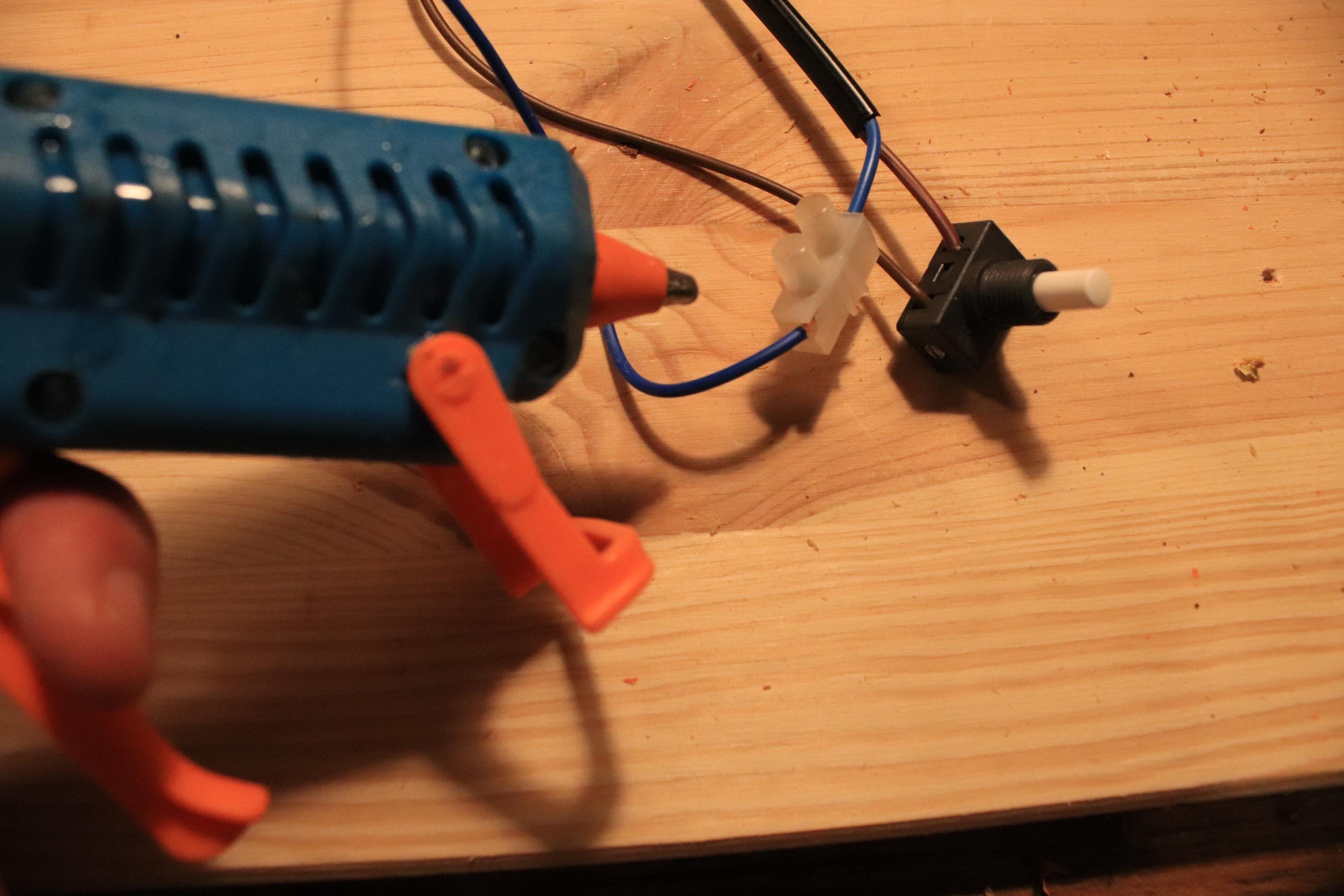

Load the glue gun and secure all the connections, wires, nuts, etc.
Almost There!
![IMG_9470.JPG](/proxy/?url=https://content.instructables.com/F3V/IW5K/KLF68YQZ/F3VIW5KKLF68YQZ.jpg&filename=IMG_9470.JPG)
Optional - Wrap the Gooseneck With the Cable
![IMG_9472.JPG](/proxy/?url=https://content.instructables.com/FPB/DFH8/KLF68YRH/FPBDFH8KLF68YRH.jpg&filename=IMG_9472.JPG)
![IMG_9475.JPG](/proxy/?url=https://content.instructables.com/F3H/RCEY/KLF68YSH/F3HRCEYKLF68YSH.jpg&filename=IMG_9475.JPG)
![IMG_9477.JPG](/proxy/?url=https://content.instructables.com/F60/JJ13/KLF68YT5/F60JJ13KLF68YT5.jpg&filename=IMG_9477.JPG)

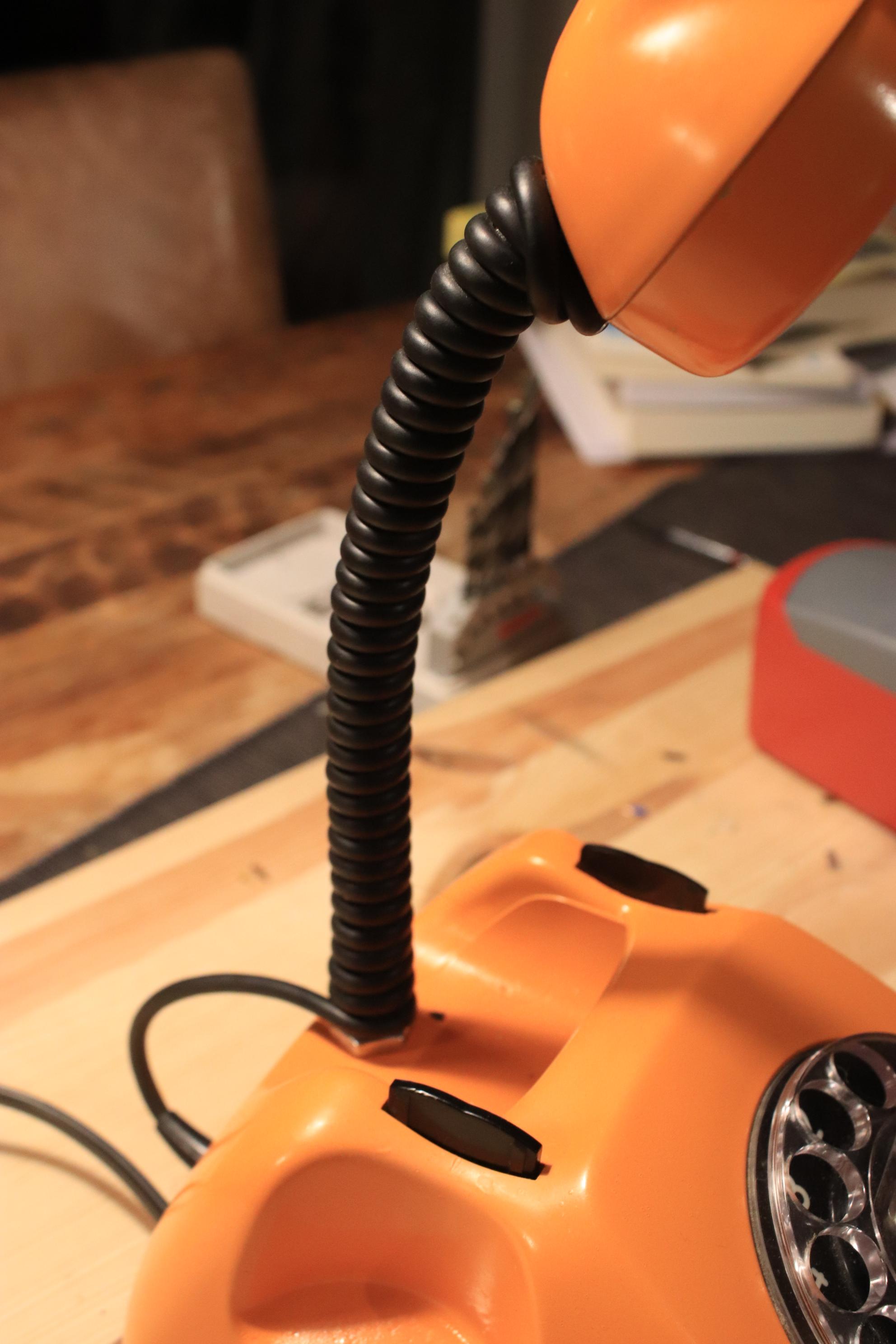

I like the look of the black phone cable more than the shiny metallic gooseneck, so I put a layer of black duct tape on the metal and then apply the double-sided tape on it. Then I tightly wrap the original black phone cable around the gooseneck.
I also realized that the white of the switch did not fit into the color scheme and painted it black.
YAY!
![IMG_6014.JPG](/proxy/?url=https://content.instructables.com/FPR/GHUD/KLF69F19/FPRGHUDKLF69F19.jpg&filename=IMG_6014.JPG)
Well done: less plastic went into the landfills and now I have a cool lamp!
If you liked the build, let me know in the comments :)
If you feel a bit too lazy to make one of these, you can get a lamp like this from my shop.
Support and feedback will be appreciated ;)
