Understanding Hydroponics

This instructable will explain household hydroponics, with the intention of growing edible flora.
In layman's terms, hydroponics is the science of growing plants without soil-- although the plants may or may not be suspended in a solid medium such as gravel, or expanded clay balls.
Soil retains minerals and nutrients, which "feed" flora, as we all know. Plant roots can't absorb dirt, however; when water passes through soil, it dissolves and collects some of the nutrient particles embedded. This "food" solution is absorbable as a liquid. As you can see, the soil itself is not an integral part of a plant's feeding cycle-- it is simply a stabilizer for the roots, and a convenient filter.

Why eliminate the soil?
Plants breathe air, just like humans. School children are taught a simple lesson: plants take in carbon dioxide, and release oxygen. The entire plant-- not just leafy material-- contributes to this process.
If not properly maintained, soil can retain too much moisture, effectively suffocating ("drowning") a plant's root system. Alternatively, if the soil doesn't contain enough moisture, the plant will be unable to absorb the nutrients it needs to survive.
The roots of a hydroponic plant have constant access to both air and water, and it can be much easier to maintain that balance since the roots are typically visible.
The average plant needs at least five things to survive. Air, water, nutrients, minerals, and light. So long as you can provide these things in plenty, your plants should stay healthy.

Growing your own food can be a rewarding experience. It's a good way to save money on pesticide-free produce, and you'll know it wasn't shipped from a third-world serf farm supporting bad business. If your hydroponic system is indoors, you can grow food during the off-season in winter, too.

That being said, there may be more efficient systems out there for the home grower. I created this instructable to inform, more than anything.
After all, if anything's worth doing, it's worth doing right. Gotta do your research, kids.

Although not necessary for the survival of a plant, substrate can help to support a plant physically and hold it upright, either by securing the root system, or by outweighing the plant itself. There are many kinds of substrates commercially available. Check your local greenhouse or hardware store. Alternatively, there are plenty to be found outdoors, especially near bodies of water.
Even simple rock can alter the PH of your system. When checking your PH balance, be sure to check it after it has circulated through your substrate.

In the moisture-rich conditions hydroponics typically provide, substrate can be generally classified into the following categories: sandy, granular, and pebbled.

Sandy environments consist of particles between .06 (fine) and 2mm (coarse) in diameter. Even coarse sand retains a considerable amount of water (except in comparison to soil), and is not generally considered appropriate for use in a hydroponic system. If you use a pump, for example, the small particle size may lead to clogging. However, it is cheap and readily available, and, when wet, is heavy enough to provide a reasonable anchor for plant roots.
There is some absorbable nutrient in sand. Typically speaking, the nutrients latent in sand culture vary widely on the substrate's color and origin. Most sand contains a large quantity of shell fragments, and thus has a high calcium content.
Black sand usually has a high magnetite content originating from volcanic rock, known for its fertility. Orange or yellow sand might be an indicator of a high iron content.
White sand tends to be very high in silica, which helps build healthy cell walls in plantlife. Diahydro, for example, is made from diatoms, a type of algae.
Sand is semi-reusable. Sterilizing it between uses can be messy. (Sand can be sterilized by boiling it in water for extended periods of time.)

Granular particles range between 2 and 4mm. This may consist of gravel, or plant mulch.
Stone gravel makes a heavy, non-biodegradable anchor for plant roots, and is highly recommended for use in hydroponic systems. Stone gravel contains very little latent plant nutrition, just like sand. There are several grades of gravel readily available to choose from.
Creek rock and Pea Gravel consist of round, shiny stones. The smooth shape of these stones allows for great aeration and root growth, although the drainage may be excessive.
Crushed rock is typically made by crushing large chunks of limestone or dolomite into smaller pieces. Crushed rock has sharper edges than creek rock, and tends to interlock better. This tighter knit makes for higher water retention, although limestone tends to weigh less. Limestone is a strong alkali. Check your PH, and balance accordingly.
Stone-based substrate is highly re-useable. It is considerably less messy than sand to boil for sterilization.
If weight is not a concern (ie: the plants you grow are not expected to reach considerable heights) you might consider using a plant mulch, such as peat mulch, cedar shavings, or coir (coconut peat). Mulches retain a high quantity of water, but also breathe very well. Mind you, they are also highly degradable, which can lead to clogged pumps, and wood shavings often contain aromatic oils which can inhibit plant growth. Mould and algae growth poses a higher risk when mulches are involved, but pose one considerable advantage over rocky substrate: they can be composted and replaced with fresh material. It does not need to be stored. I would n't suggest re-using 'em, anyway. This is especially convenient if you use hydroponic systems exclusively to start seeds, or grow during the off-season.

Pebbled substrate measures between 4 and 64mm.
Stone pebbles have the basic characteristics of creek rock. They are typically smooth, often shiny, and the gaps between the stones make for low water retention and high aeration. The shinier the stone, the worse the water retention will be. A matte or pockmarked surface indicates a porous stone, which will stay damper, longer, whilst still providing excellent aeration. Pebbles-- especially the porous variety-- can explode when heated for sterilization.

A common alternative to these substrates is mineral (rock) wool. You've probably seen it used as insulation in housing. Rock wool contains fiberglass, and it can be absorbed into the body by inhalation-- irritating eyes, skin, and lungs. It needs to be treated before it is a tolerable substrate for plant growth. Altogether, I don't recommend its use.

As I've said, you should boil your substrate between uses to sterilize it. Bacteria love warm, wet environments and will probably thrive in a hydroponic system.
Just a heads-up, here... algae loves wet and warm (and lukewarm... and cold) systems, too, and it can look unsightly. If you care about appearances, boiling your substrate between uses will discourage blossoming, but if you use grey (recycled from previous use) water you'll be fighting a losing battle.

This article discusses nutrient solutions available for hydroponic gardening.

Water alone is not enough to feed a plant. Distilled water, in particular, lacks the minerals and nutrients which make flora thrive.
In systems where the substrate is allowed to moisten and support roots, the substrate itself may be permeated with nutrients and minerals. In systems where there is no substrate, or the substrate is simply provided to support the plant physically, the water must be saturated with store-bought or homemade nutrient-and-mineral solutions.

The PH of your solution is important for the health of your flora, and the maintenance of your equipment. Your water/nutrient solution should have a final PH between 6.0 and 7.0.
These solutions usually contain varying quantities of potassium nitrate, calcium nitrate, potassium phosphate, magnesium sulfate, iron, manganese, copper, zinc, and nickel. Potassium, especially, assists with healthy root growth. Salt is an important (but often forgotten) addition to the solution, as it tends to improve the taste of the plants grown.

Store-bought liquid-soluble fertilizers are readily available at your local big-box greenhouse, nursery, or hardware store. They work well enough, but they can be expensive, or simply may not be available.

The rest of the article will discuss making your own fertile solution.

A popular, homemade recipe consisting of accessible ingredients is available at your disposal. I daresay it's not the most eco-friendly option, but it's quick and easy. For every gallon of water your system requires, add two teaspoons of Miracle Gro and 1 teaspoon of epsom salts.

I've always found semi-symbiotic relationships both fascinating and convenient.

On a controversial note, human urine can be used as a nutrient solution. Remember, the body filters everything you eat and drink, expelling toxins and retaining the essentials. If you eat something slathered in pesticides, you'll be urinating it out later. If you use that urine to grow spinach, you'll re-absorb it when you eat it. There are risks involved. Do your research.
You'll need to have a sample of your pee tested by a floraculture lab, of course, so you may need to adjust your diet. Vegans will find their urine more appropriate for plant growth than their animal-product-eating companions.
If the plants you are growing are intended for consumption, you will need to find a way to treat and sterilize your urine, making it less of a biohazard. Introducing nitrous bacteria, and diluting the solution, will help break down the ammonia prevalent in your urine. Circulating it through a biofilter will do this. Alternatively, you may be able to find an ammonia treatment in your local aquarium store.
Wanna learn how to build a biofilter? I'll get back to you on that one.

You might consider using your hydroponic system in lieu of a filter for a fish tank, hooking up a circular system filtering fish water through various substrates. There are three kinds of filter medias used in household tanks-- mechanical, biological, and chemical.
Mechanical media is used to filter out solid matter-- chunks of substrate, algae scrapings, what have you. Sponges and fibrous materials (rock wool, for example) work admirably in this fashion. Consider inserting a sponge or somesuch in each plant's drain, to reduce the risk of clogging your system, at the very least.
Biological filters are meant to encourage colonies of healthy bacteria, and control levels of ammonia, nitrites and nitrates prevalent in fish waste. Your plants will be glad to serve this function.
Chemical filters clean your water of unwanted color and odor. Unfortunately, it also excels at removing the trace elements which allow plants to thrive. You won't need it.
If you already have a fishtank, you could simply use the water you would normally siphon off and discard during cleaning, and use it to top off your hydroponics system. If your fishtank filtered, you'll have limited success with this technique.

In the meantime, consider this: a successful hydroponics system will grow plenty of plant matter, and much of it will be consumed. What little waste there is, could be recycled back into the system (accompanied by other waste matter) with the help of another animal: the worm.


VERMICOMPOSTING

Vermicomposting is a composting technique in which live worms are used to turn food waste into fertile soil. A handy by-product of the process is a nutrient-rich liquid commonly referred to as "worm tea".
Obviously, this bin won't be for composting materials from your hydroponic system exclusively-- your kitchen scraps should go in, too. Waste not, want not!

Vermicompost can be suitable for indoor and outdoor composting. If maintained properly, a good vermicompost system will not stink the same way traditional compost can. The ammonia smell we commonly associate with compost is only prevalent when the wet waste content (rotting detritus) of the bin overexceeds the dry matter (paper or plant fiber) mixed in. Worms-- red wrigglers in particular-- like to have soft, dry bedding like shredded paper or coconut fiber available to them, anyway. A stinky bin usually means unhappy worms.

There are many ways to compost in this fashion, however, for the intentions of this instructable, we will focus on the relatively uncomplicated "non-continuous" vermicompost bin.
This system is usually very small and easy to build, but if you plan on using the worm castings as well as the worm tea, you'll need to dump out the whole container after draining it. I would highly recommend transferring your worms and a small portion of the castings to another vermicompost system of any other build type, after dumping.

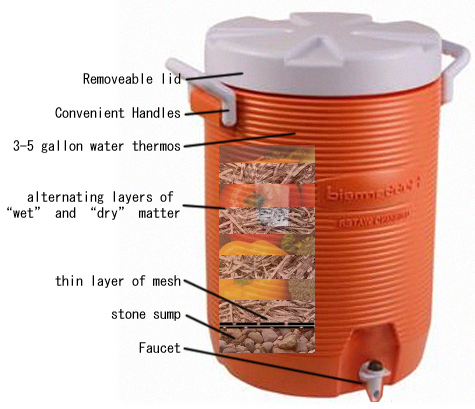

In order to harvest liquid worm tea (instead of distilling it from worm castings in a water bath) you will need a large plastic bucket with a draining tap and a lid. Plastic is nonporous, unlike wood, so it shouldn't absorb the valuable tea. That old, giant thermos football players bully their waterboys around would do the trick nicely.
Non-continuous systems like this can be very simple-- they're just an undivided container layered from the bottom up as follows: sump, bedding, worms, wet waste, dirt.
The bottom layer-- the sump-- should consist of a two-inch deep level of small stones and gravel. This area will be rife with crevices liquid can settle into, to drain at your convenience. A layer of fine mesh should be placed over this level to prevent the worms and their solid castings from falling into the sump. Mesh should not be placed between any other levels.
Worm bedding, as mentioned earlier, is typically three inches of loosely-packed shredded paper or coconut fiber. This level will help aerate the mixture, lower fragrant nitrogen levels, and allow your worms to thrive.
Your wet waste should never include meat or dairy product like cheese or yoghurt. Frankly speaking, those things stink when they decompose, which they do quickly because of their high protein content. Genuinely putrid food is toxic to worms. Beans are also high-protein, and dangerous as such. Oils and fats prevalent in animal products will cling to the skins of your wrigglers and suffocate them.
Stick to eggshells, tea bags, vegetable peels, stale/mouldy bread, coffee grounds, rotting fruit, etc. Citrus fruit is generally considered safe, but not citrus peel-- the oil found in the skins are toxic. Banana peels are usually heavily sprayed with herbicides and pesticides, so include them at your own peril. Worms are highly sensitive to poison.
Wet waste should be covered with another layer of bedding, for odor control.

As the worms eat the rotting material, add wet waste to the top level, sprinkling with shredded paper as you go. The worms will consume what they can, and then travel up out of their castings (urine and feces) and into the new feed. Continue the process until the bin is full, and most of the edible matter has been turned into castings by the worms. Drain the sump whenever your hydroponic system requires more fertilizer.
Make sure you test the water's final PH, and adjust accordingly!

In nature, plants photosynthesize white light from the sun. Sunlight is free. Use it where and when you can.
There's no reason you can't build your system outside, after all, climate permitting. Alternatively, consider placing your hydroponic system in a room with plenty of natural lighting.

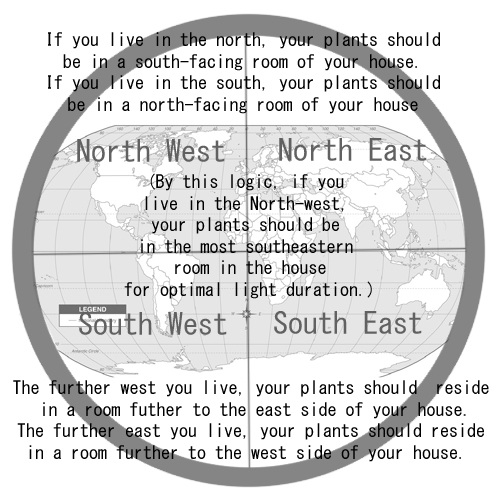

If you live in the north hemisphere, for example, your south-facing rooms typically get the most light over the course of the day. Put it there.

During the winter, even in areas where the temperature is tolerable year-round, the sun's light is weak, and plants will suffer. Besides, hydroponic systems are typically indoors where location limits proper daytime lighting to two or three hours in the middle of the season.

You can help mother nature along by using artificial light.

Artificial grow-lighting kits can be purchased in stores, or built on a budget at home. The cost will depend heavily on how many plants you plan to be lighting.
Frankly, you can expect to lay down at least $100 to light a very small area-- we're talking a meter squared, here.
Plants absorb red and blue light wavelengths efficiently, which stimulates growth. More importantly, plants absorb one more than the other. Whether you buy or build your grow lights, you should be looking for an 8-1 ratio of red and blue emitters. (8 red for every blue, not vice-versa.)
Although green lights are commonly included in standard grow light kits, they're not considered "necessary". Green light is mostly reflected, producing the vibrant color we associate with healthy leaves. Grown without green light, plants take on much darker shade-- almost black-- and rumor has it they take on different flavor characteristics. However, if energy consumption is a concern (this is a budget-saving project, after all) eliminate the green light, but not the blue or red.

LEDs are highly recommended for hydroponic projects, considering the serious advantages they hold over traditional halogen bulbs. They have much longer life-spans, produce less heat and consume less energy. For bonus eco-points, power your LEDs with solar chargers!
Consider the cost of the LEDs to be an investment towards lower energy bills (especially in comparison to operating halogen grow lights) and smaller grocery tabs.
There is one major drawback to using LED lighting, besides the cost. (Derrekito brought this up on another instructable.) The average plant absorbs is happiest absorbing red light at 600-625nm. The average red LED emits light at about 630-660nm.
LED lighting isn't perfect. I highly recommend supplementing with natural light.

I am not the person to ask about building LED grow-light systems. There are plenty of existing instructables available on the subject. Instructable's own }{itch seems to know his stuff. Look'im up.
https://www.instructables.com/id/high-power-LED-grow-lights-M.k2/

In hydroponics, water can be delivered to a plant via local irrigation, or sub-irrigation.
Local irrigation is a general term, describing the process of piping small amounts of water to individual plants. Typically this water is administered at the surface level. Drip and sprinkler irrigation works in this manner.
Sub-irrigation simply refers to any system which forces water to be absorbed from the bottom of a root system, to travel upwards-- wicking techniques partially submersing the roots or substrate of a plant are common.
Water is a valuable commodity. If you can, be eco-friendly by collecting rain or melted snow. As mentioned previously, siphoning used aquarium water from your fishtank in lieu of a filter will provide a nitrate-rich nutrient solution for your plants and the moisture they need to survive. There are lots of green alternatives to treated tap water.

Well, that's it for now. I'll add more detailed instructions and expound on the subject further, as inquiries are made. In the meantime, you folks can consider starting (or expanding on) your own projects, armed with a better understanding of the subject.
And knowing is half the battle, eh?
Have fun.
