Under $1 Repair of LED Lights

by Hurair Abab in Circuits > LEDs

1142 Views, 9 Favorites, 0 Comments

Under $1 Repair of LED Lights


Hi everyone.....

Lately while I was busy doing something, a power-cut interrupted me. Couldn't recall where the torches were. After some stumblin' and gropin' got hold of a few from the store... one worked but the other one was bad.... meaning .. I had another project at hand... No prob.. Thatz what I do...

Removing the Old Battery...


It is an AC rechargeable LED torch, unused for quite some time, went bad.. Anyway, after dissection, the battery was bad as expected. But i couldn't find battery of similar physical dimensions in the market. Still i got one, though @ $0.75 (Sunca Sealed Lead Acid, Rechargeable, 4V, 1A).

Putting the New One In...

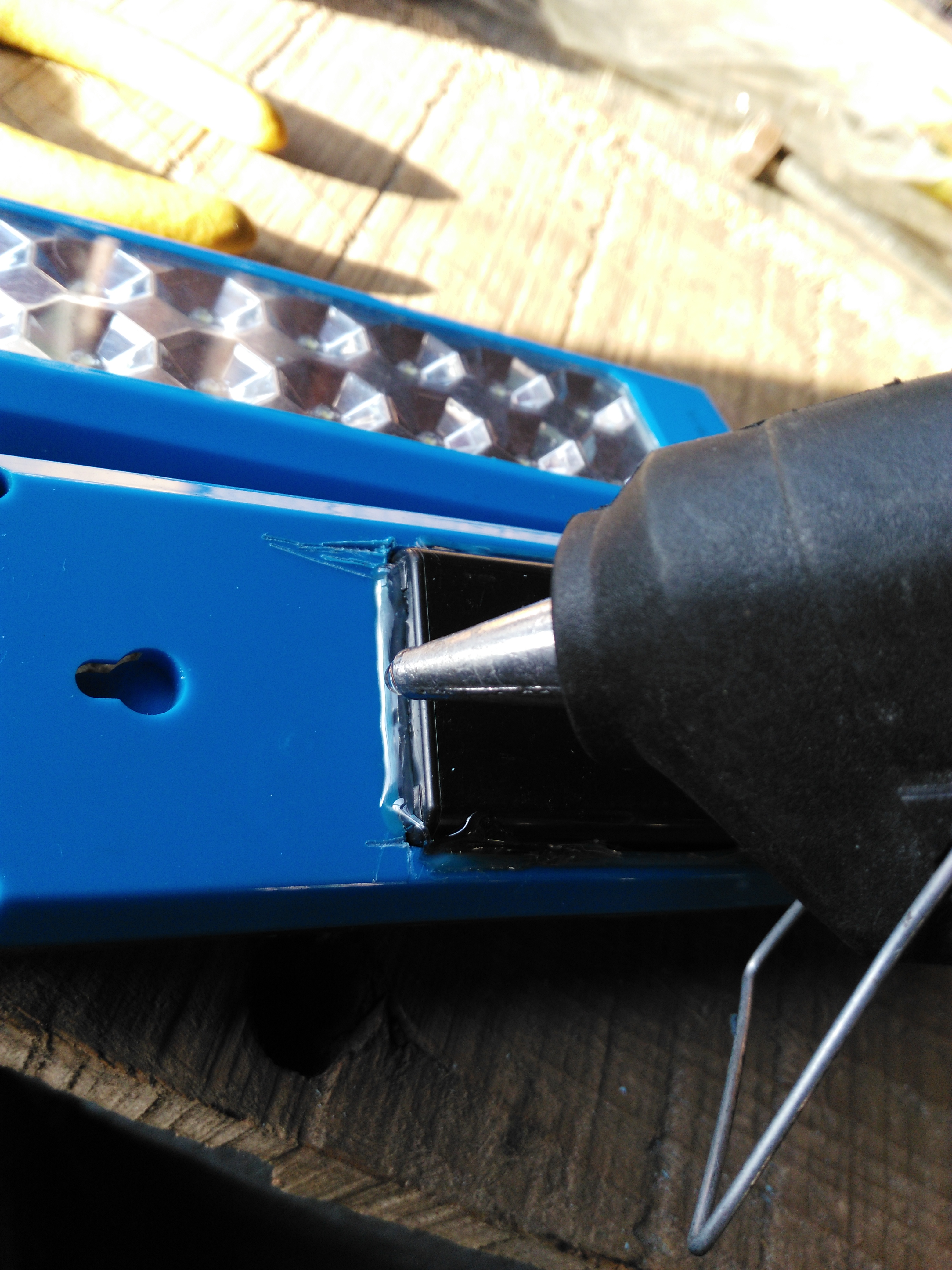

The battery which I got was similar in length but much thicker than the torch's supplied battery. I was successful in overcoming this problem by cutting a window in the torch's back side where the battery fits. It bulged out from that window as it is thicker. The gaps were filled by a glue gun.

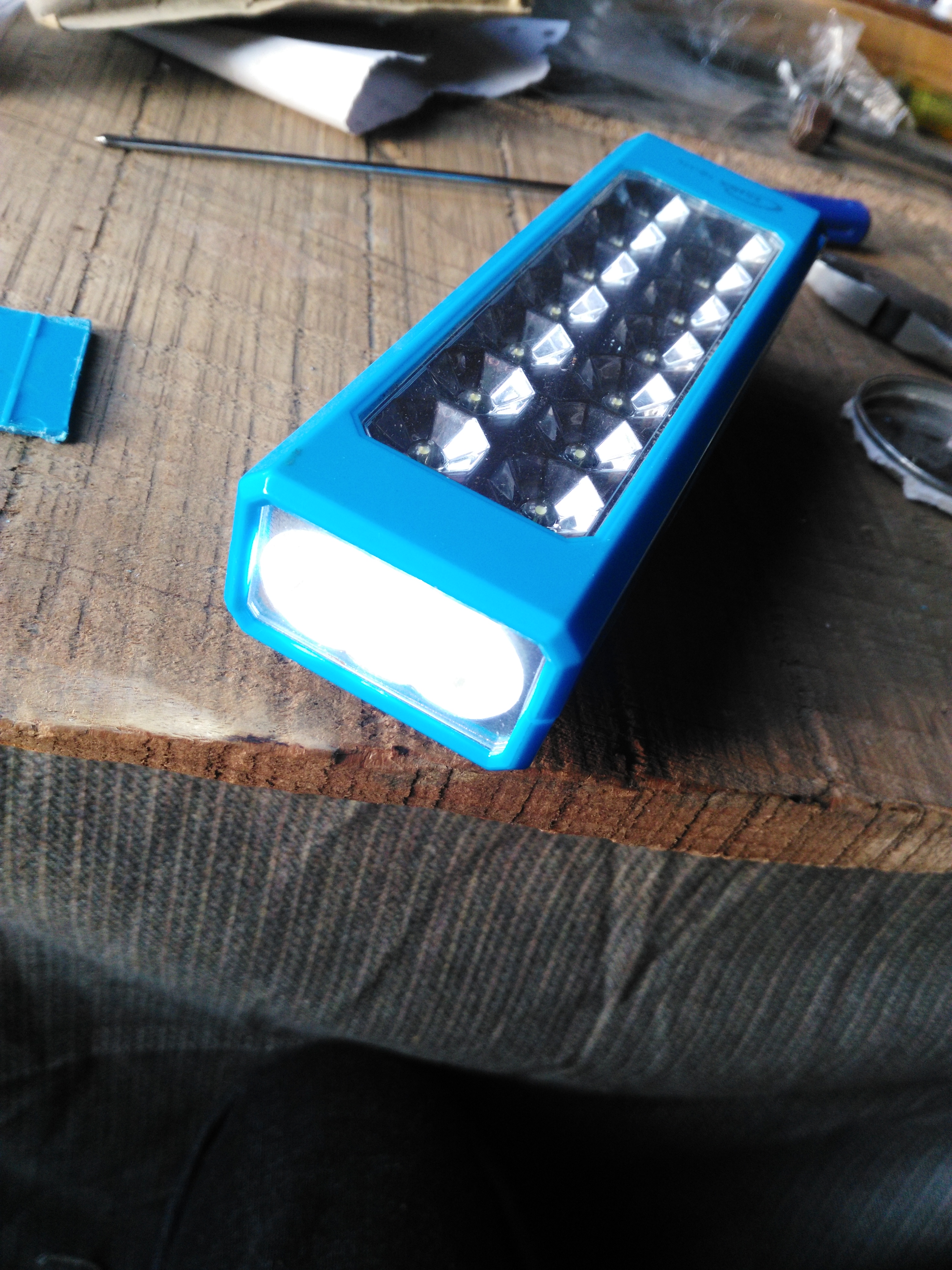

Results Are Great...


Although, the anatomy of the torch was changed quite a bit... But it got a new lease of life... it works great...
