【Unboxing and Reviewing】---K230 Visual Recognition Module

by DolphinZhang in Circuits > Sensors

4 Views, 0 Favorites, 0 Comments

【Unboxing and Reviewing】---K230 Visual Recognition Module


Yahboom K230 vision module is a high-performance, low-power embedded AI vision processing module designed for edge computing scenarios. It is designed based on the end-side AloT chip of the RISC-V architecture, with 6TOPS equivalent computing power and 1GB RAM. It can be connected to a variety of main controllers such as STM32, MSPM0, ESP32, Raspberry Pi, etc. through serial communication. Equipped with a powerful neural network acceleration engine, it supports AI vision tasks such as real-time image recognition, target detection, face recognition, and behavior analysis. It can be widely used in smart homes, maker education, programming robots, electronic design competitions and other occasions.

Supplies

Features

  1. On board 2MP camera(GC2093), 2.4-inch touch screen, microphone, RGB light, WiFi network card and other hardware resources, support TF card (32G TF card will be provided for free).


  1. Adopting Kendryte K230 chip, 1GB RAN, equivalent computing power can reach 6TOPS.


  1. Pre-installed GUI program, integrated with 30+ functions (human posture recognition, object recognition, image detection, road sign recognition, label code recognition light), users can quickly experience.


  1. Provide version host computer software on Windows, support RTSP real-time video stream monitoring, and integrate video/image processing tools, data generator, text tools and other content.


  1. Three different height brackets and 2DOF electric PTZ are available, users can fix the module on some robot can car.


  1. Supports serial communication and can be used on common development boards in the market, such as Jetson ORIN NANO SUPER, Rasberry Pi 5, Arduino, STM32, Pico, etc

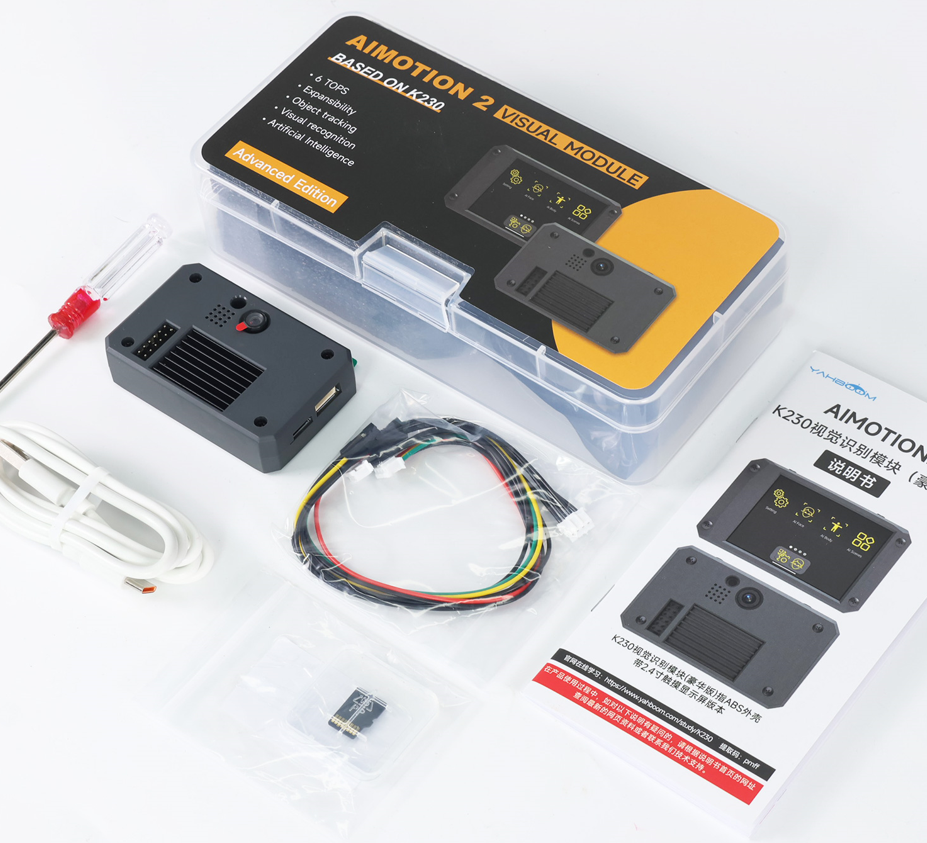

Unboxing & Shipping List

Yahboom provide 5 options for the K230 visual module to choose from, allowing users to select the most suitable option based on different usage scenarios and budgets.

Separate K230 module shipping list

K230 module *1

TF Card *1

Screw driver *1

PH2.0-4Pin cable(300mm) *1

Type-C Data Cable(1m) *1

PH2.0-4Pin to DuPont 2.54 (200mm) *1

Instruction Manual *1


With Fixed Bracket Accessory(Optional)

Fixed bracket(Fan is assembled) *1

M2*14mm Black round head screw *N

M2*8mm Black round head screw *N

M3*6mm Black round head screw *N


Angle Adjustable Bracket Accessory(Optional)

Angle adjustable bracket *1

5.5mm open-end wrench *1

Screw and nut spare pack *1

Several screws *N


Heightened Angle Adjustable Bracket Accessory(Optional)

Heightened angle adjustable bracket(Fan is assembled) *1

5.5mm open-end wrench *1

Screw and nut spare pack *1

Several screws *N


2DOF Electric PTZ Accessory(Optional)

2DOF electric PTZ(Not assembled) *1

24-channel servo driver board *1

Fixed bracket (Fan is assembled) *1

Battery pack(7.4V 2000mAh) *1

8.4V charger (2A) *1

Several screws *N

Module Hardware Layout Distribution

The module board carries a large number of commonly used components and Type-C serial communication interfaces. Can be used for robots and cars, and DIY projects based on Raspberry Pi, Jetson ORIN NANO SUPER.

About Development Environment

K230 module supports connecting to PC computers MSPM0、STM32、ESP32、PICO、Raspberry Pi, NVIDIA Jetson, RDK, etc.

Adopt MicroPython programming, and uses CanMVIDE as the development environment, which is simple and convenient to operate. The IDE prompts the function input parameters and related content, the code is free of compilation, the code can be modified and debugged online, and the code can be directly downloaded to the K230 module for operation.

Yahboom provide self-developed host computer learning tools, which integrate K230 development and learning resources, support RTSP real-time video stream monitoring, and integrate video/image processing tools, data generators, text tools and other modules.


Important Functions

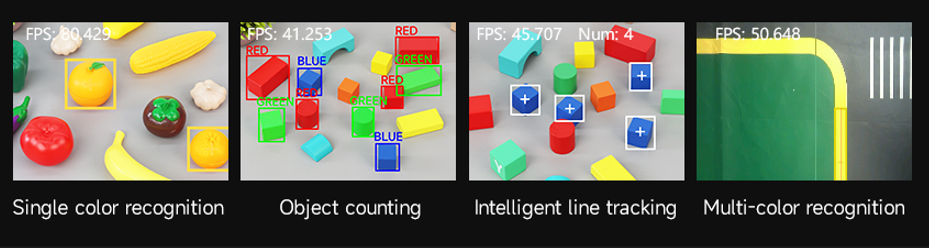

Image detection

Various forms color recognition

Code recognition

Face recognition

Human feature recognition

Other AI visual recognition function

Who Is Suitable to Buy?

Embedded AI beginners: low-cost entry-level computer vision.

Educational/experimental projects: such as school AI course teaching aids.

Summary

The K230 visual module not only inherits the advantages of K210 module. In terms of performance, functionality, and application scenarios achieved a huge leap forward. Whether for beginners, or an experienced developers, it is worth buying. It can not only be used for electronic design competitions, university laboratory teaching, robot expansion and personal DIY project. Also supports integration with ChatGPT DeepSeek and other large model API, can expand more possibilities. If you are interested in artificial intelligence And AI vision technology; The K230 visual module is your best choice.
