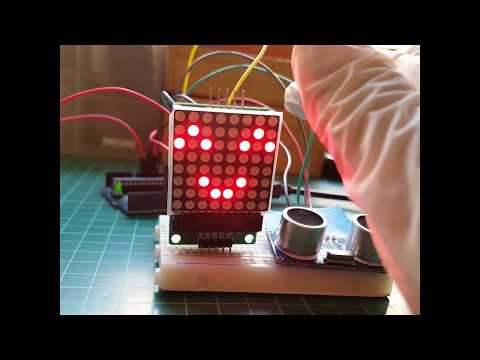

Ultrasonic Smile

This is a simple and funny project that everyone can make without problems <3.

P.S. Sorry for my bad english !!!

What do you need ?

(1) Arduino (I use an Arduino UNO)

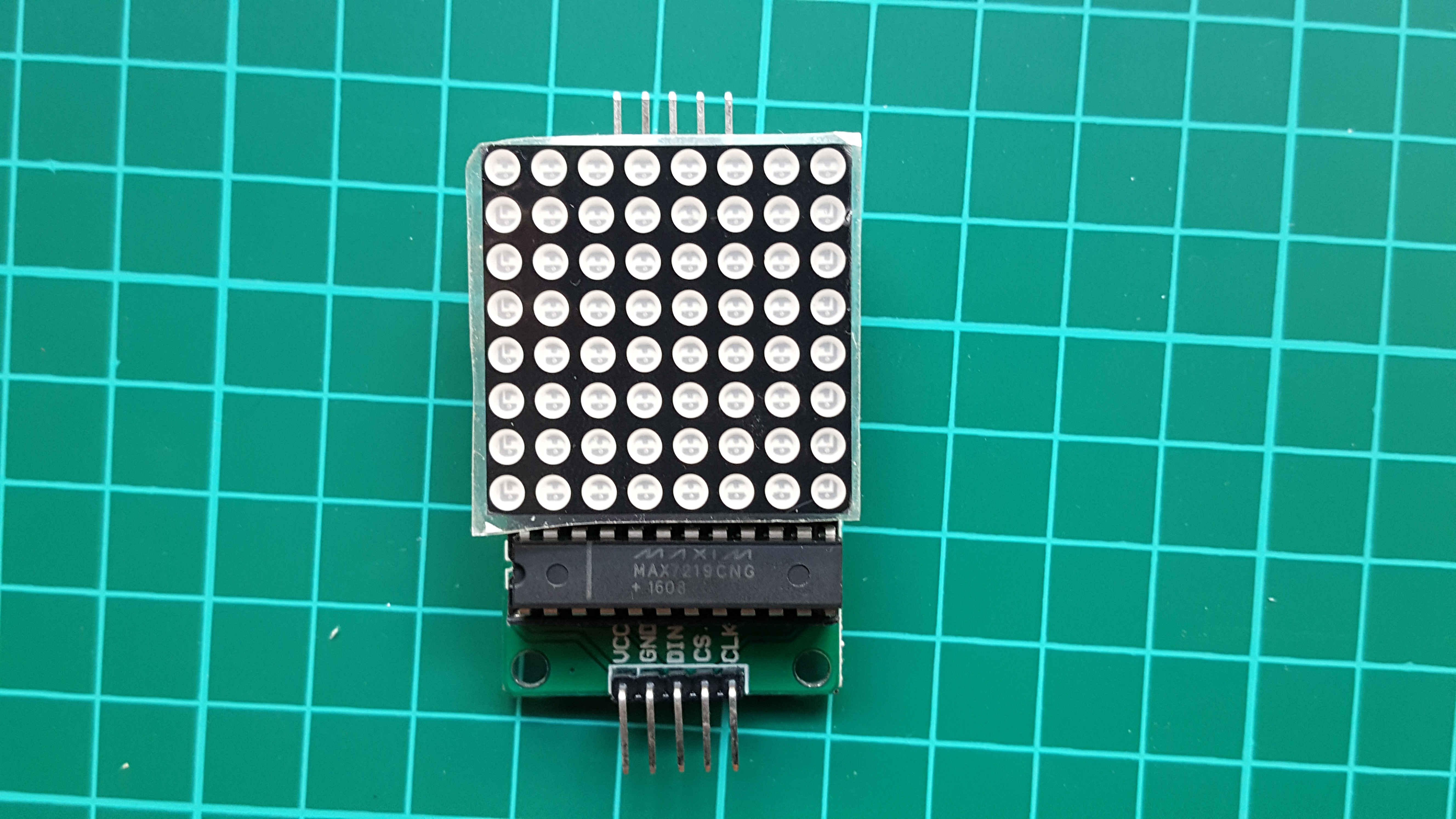

(1) Led Matrix with Max7219cng

(1)Breadboard

(1) Hc-sr04 (Ultrasonic sensor)

And..... a lot of wires :)

Look at the photo.

Led Matrix -------> Arduino :

Vcc ------>5V

Gnd ------>Gnd

Din ------>d12

Cs ------>d11

Clk ------>d10

Hc-SR04 --------> Arduino :

Vcc ------>3V

Gnd ------>Gnd

Echo ------>d8

Trig ------->d7

Run the code on your Arduino and check if it run.

WARNING : download LedControl.h in :

Arduino Ide ------> Sketch ------> Include Library --------> Manage Libraries ------> LedControl.h .
