Ultrasonic Hand Washing With Pir Motion Sensor
by Umair Workshop in Workshop > Home Improvement
599 Views, 1 Favorites, 0 Comments
Ultrasonic Hand Washing With Pir Motion Sensor
![Pir motion sensor with ultraviolet light for hand washing- uv hand washing](/proxy/?url=https://content.instructables.com/FI6/X6KQ/KKWL4X49/FI6X6KQKKWL4X49.jpg&filename=Pir motion sensor with ultraviolet light for hand washing- uv hand washing)
![uv light sensor.00_02_39_12.Still023.bmp](/proxy/?url=https://content.instructables.com/F8K/A3QE/KKRB0OOD/F8KA3QEKKRB0OOD.bmp&filename=uv light sensor.00_02_39_12.Still023.bmp)
![uv light sensor.00_04_36_19.Still029.bmp](/proxy/?url=https://content.instructables.com/FBO/5IJ6/KKRB0OOL/FBO5IJ6KKRB0OOL.bmp&filename=uv light sensor.00_04_36_19.Still029.bmp)
This ultrasonic led is automatic turn on and off by the help of pir motion sensor which by the help of sensing motion relay the led to open,it is desinged for multiple uses such as uv hand washing , currency checking, tool disinfection and etc.
Making a Box
![uv light sensor.00_00_00_00.Still001.bmp](/proxy/?url=https://content.instructables.com/F7H/PJVD/KKRB0OL7/F7HPJVDKKRB0OL7.bmp&filename=uv light sensor.00_00_00_00.Still001.bmp)
![uv light sensor.00_00_08_15.Still002.bmp](/proxy/?url=https://content.instructables.com/FQY/WGUO/KKRB0OLA/FQYWGUOKKRB0OLA.bmp&filename=uv light sensor.00_00_08_15.Still002.bmp)
![uv light sensor.00_00_10_15.Still003.bmp](/proxy/?url=https://content.instructables.com/FWE/NXBN/KKRB0OLC/FWENXBNKKRB0OLC.bmp&filename=uv light sensor.00_00_10_15.Still003.bmp)
![uv light sensor.00_00_15_10.Still004.bmp](/proxy/?url=https://content.instructables.com/FHS/G44G/KKRB0OLD/FHSG44GKKRB0OLD.bmp&filename=uv light sensor.00_00_15_10.Still004.bmp)
![uv light sensor.00_00_25_00.Still005.bmp](/proxy/?url=https://content.instructables.com/FBF/0H30/KKRB0OLE/FBF0H30KKRB0OLE.bmp&filename=uv light sensor.00_00_25_00.Still005.bmp)
![uv light sensor.00_00_26_10.Still006.bmp](/proxy/?url=https://content.instructables.com/FB5/97HR/KKRB0OLF/FB597HRKKRB0OLF.bmp&filename=uv light sensor.00_00_26_10.Still006.bmp)
![uv light sensor.00_00_29_20.Still007.bmp](/proxy/?url=https://content.instructables.com/F2F/IHOM/KKRB0OLG/F2FIHOMKKRB0OLG.bmp&filename=uv light sensor.00_00_29_20.Still007.bmp)
![uv light sensor.00_00_31_10.Still008.bmp](/proxy/?url=https://content.instructables.com/FRR/6YH7/KKRB0OLH/FRR6YH7KKRB0OLH.bmp&filename=uv light sensor.00_00_31_10.Still008.bmp)

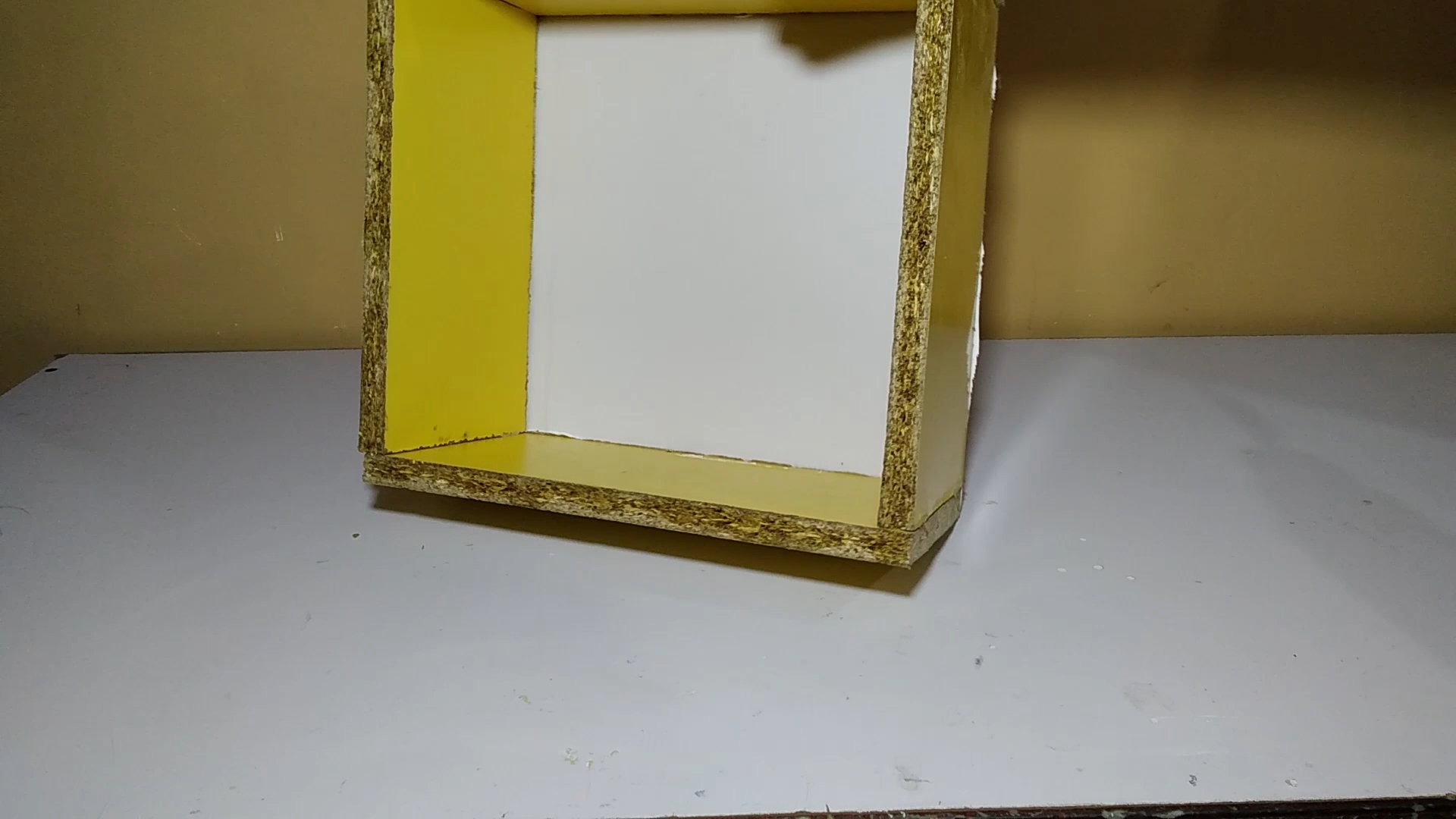

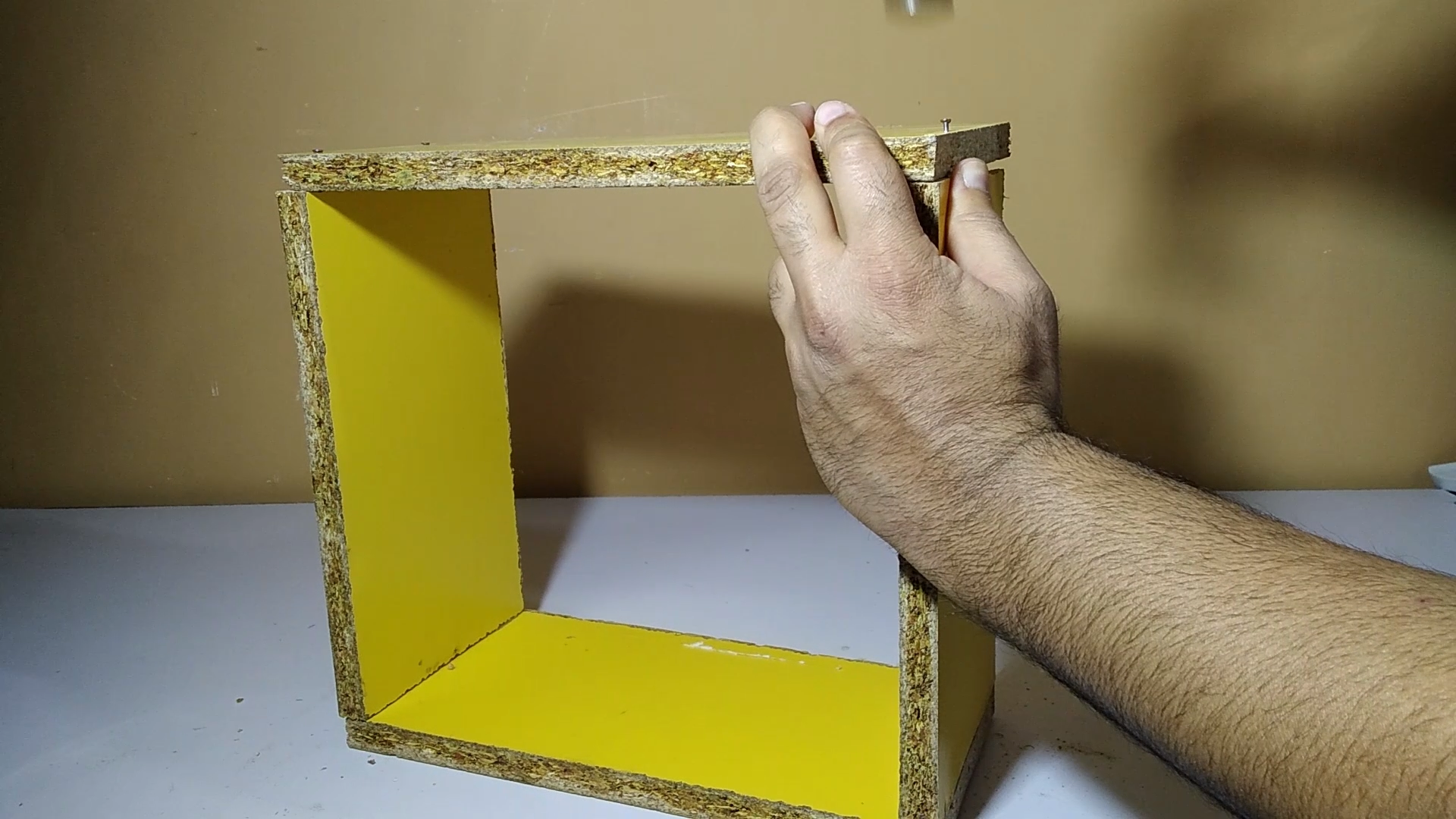

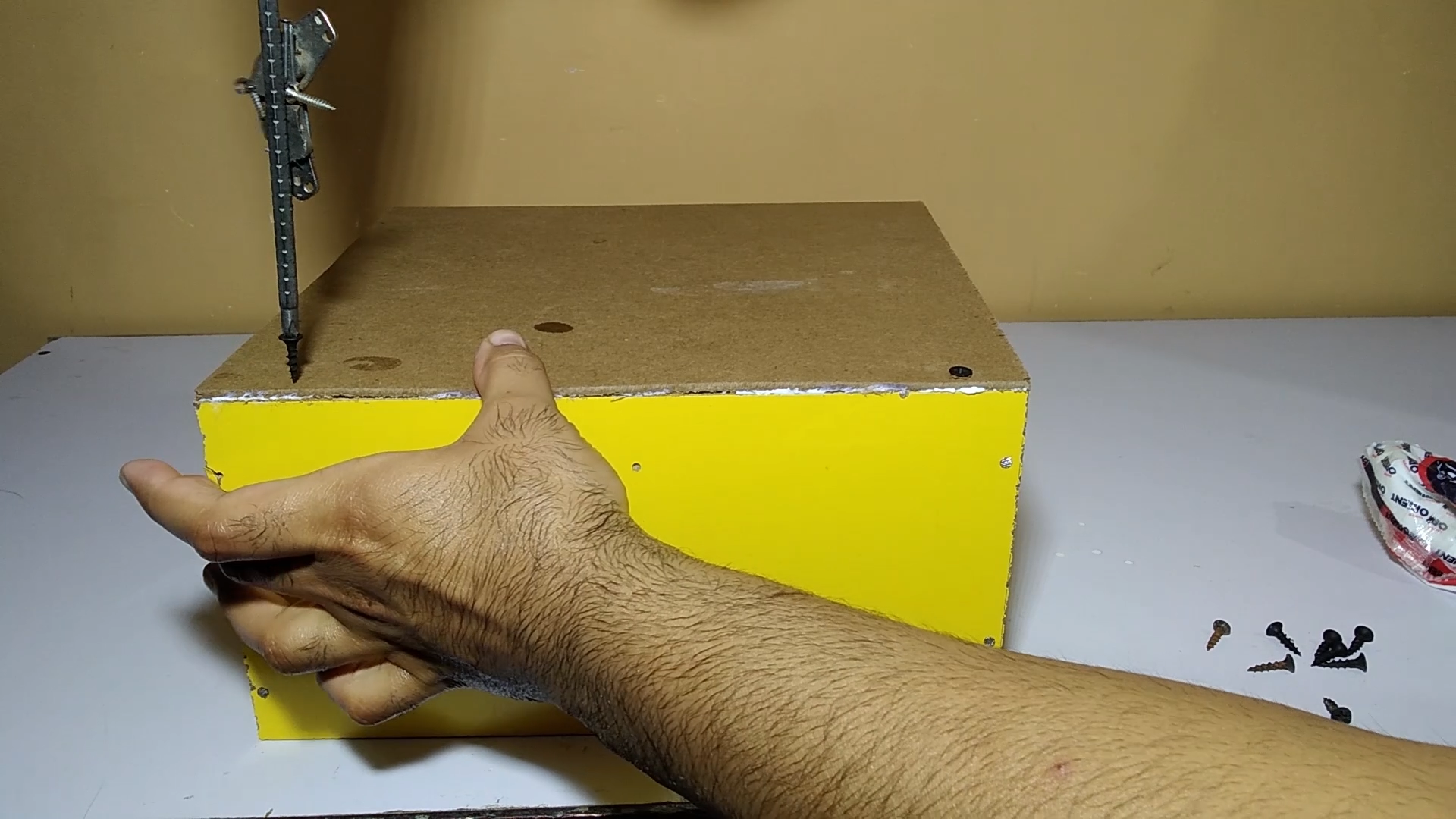

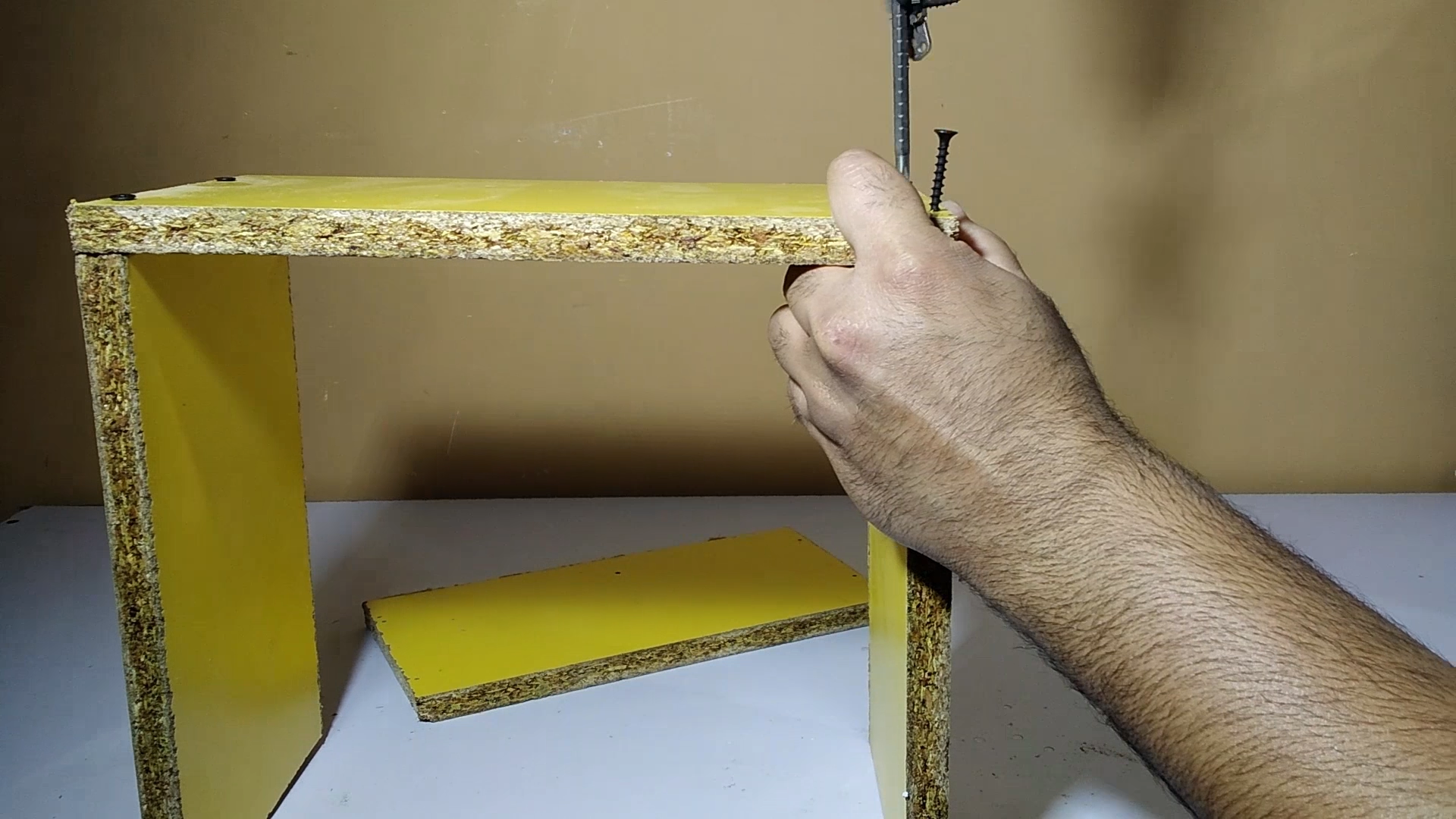

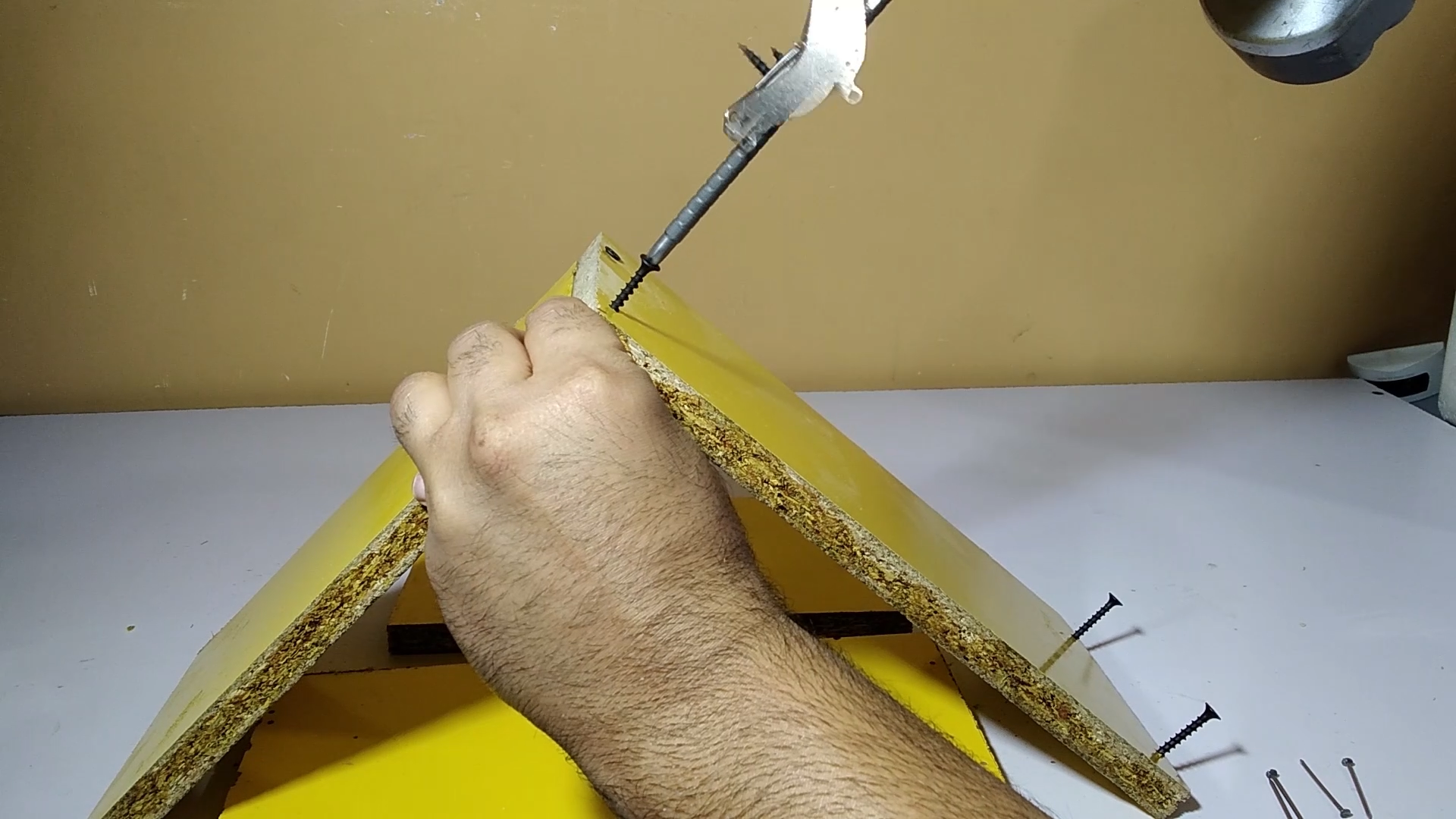

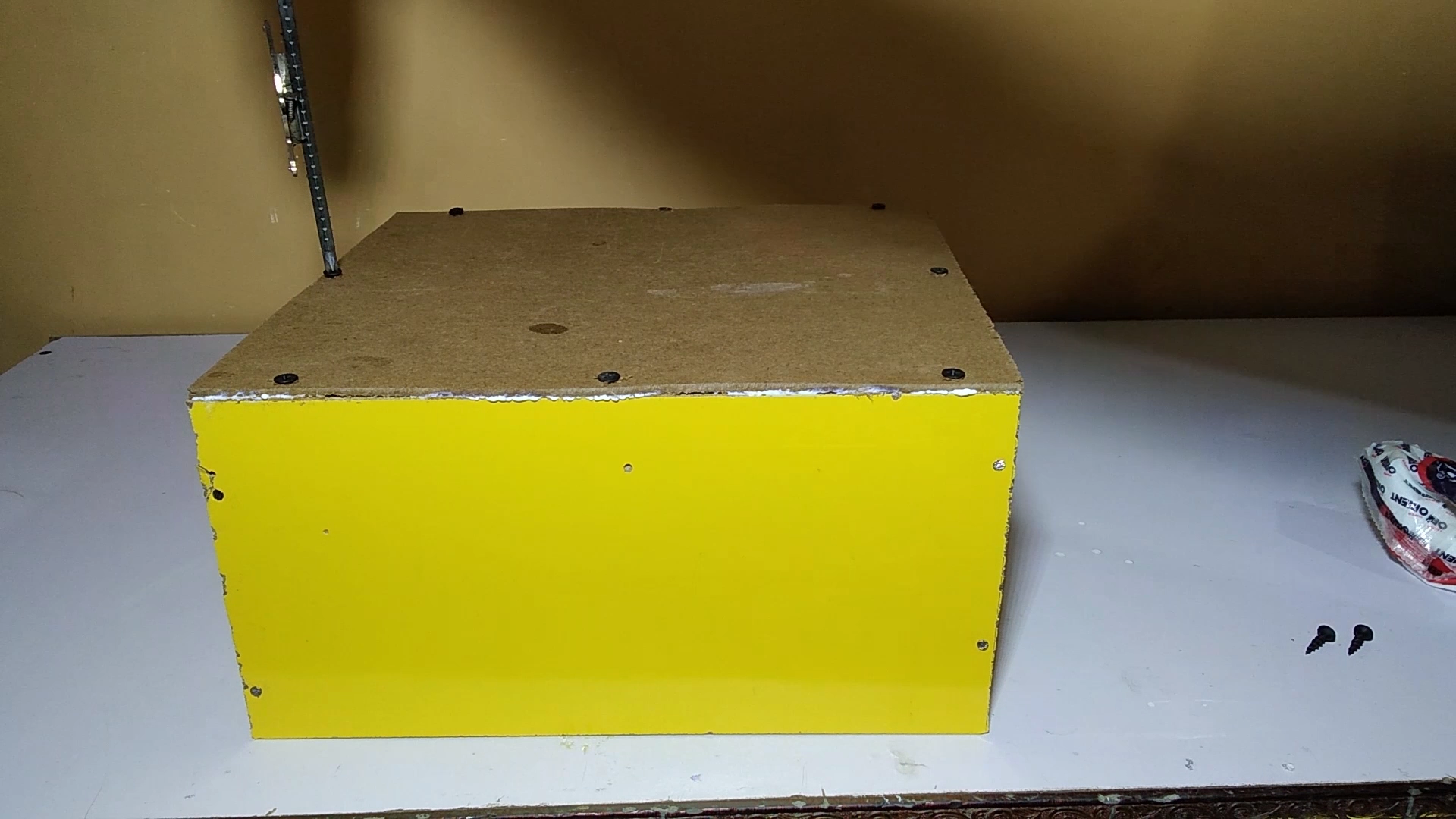

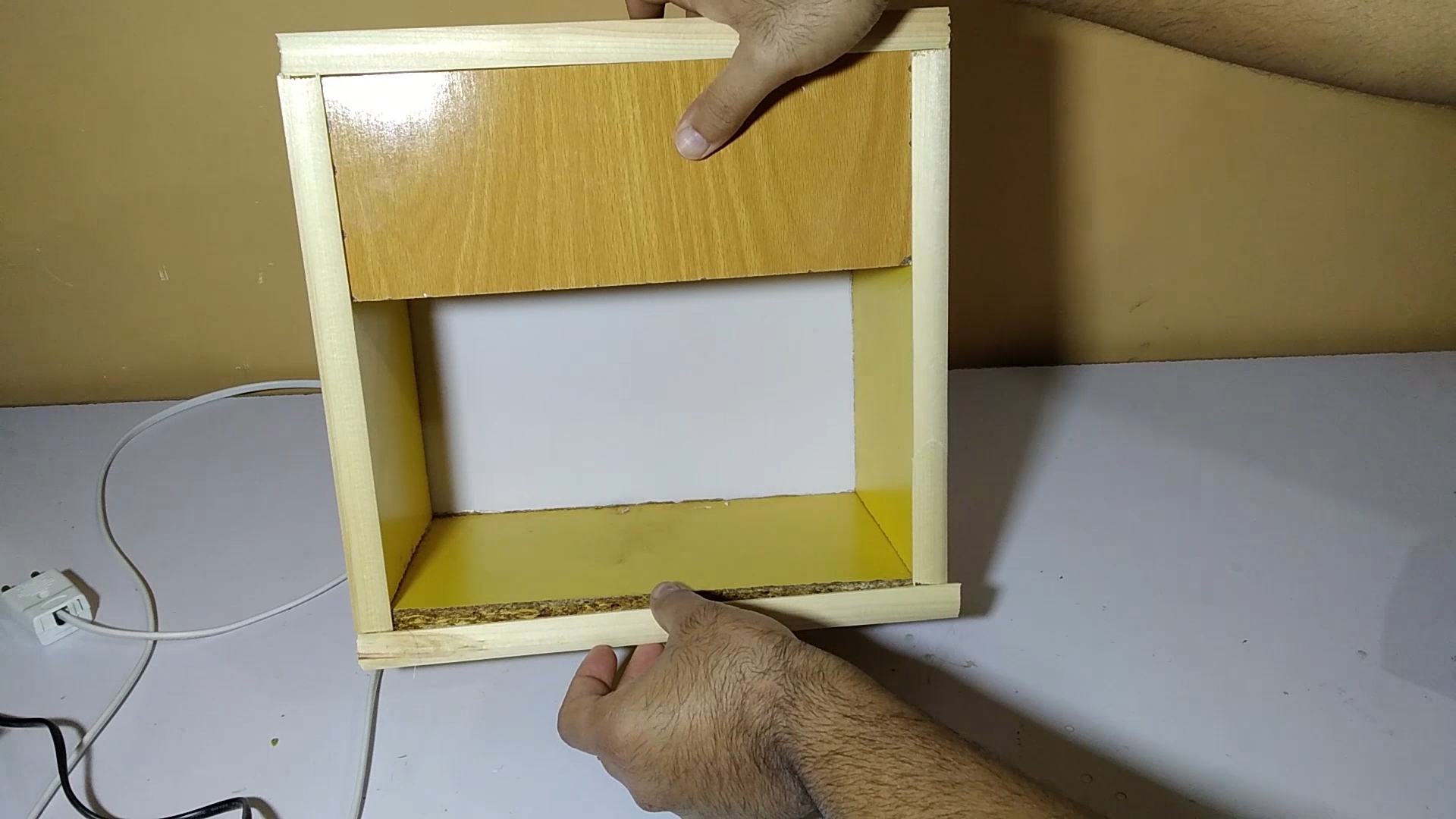

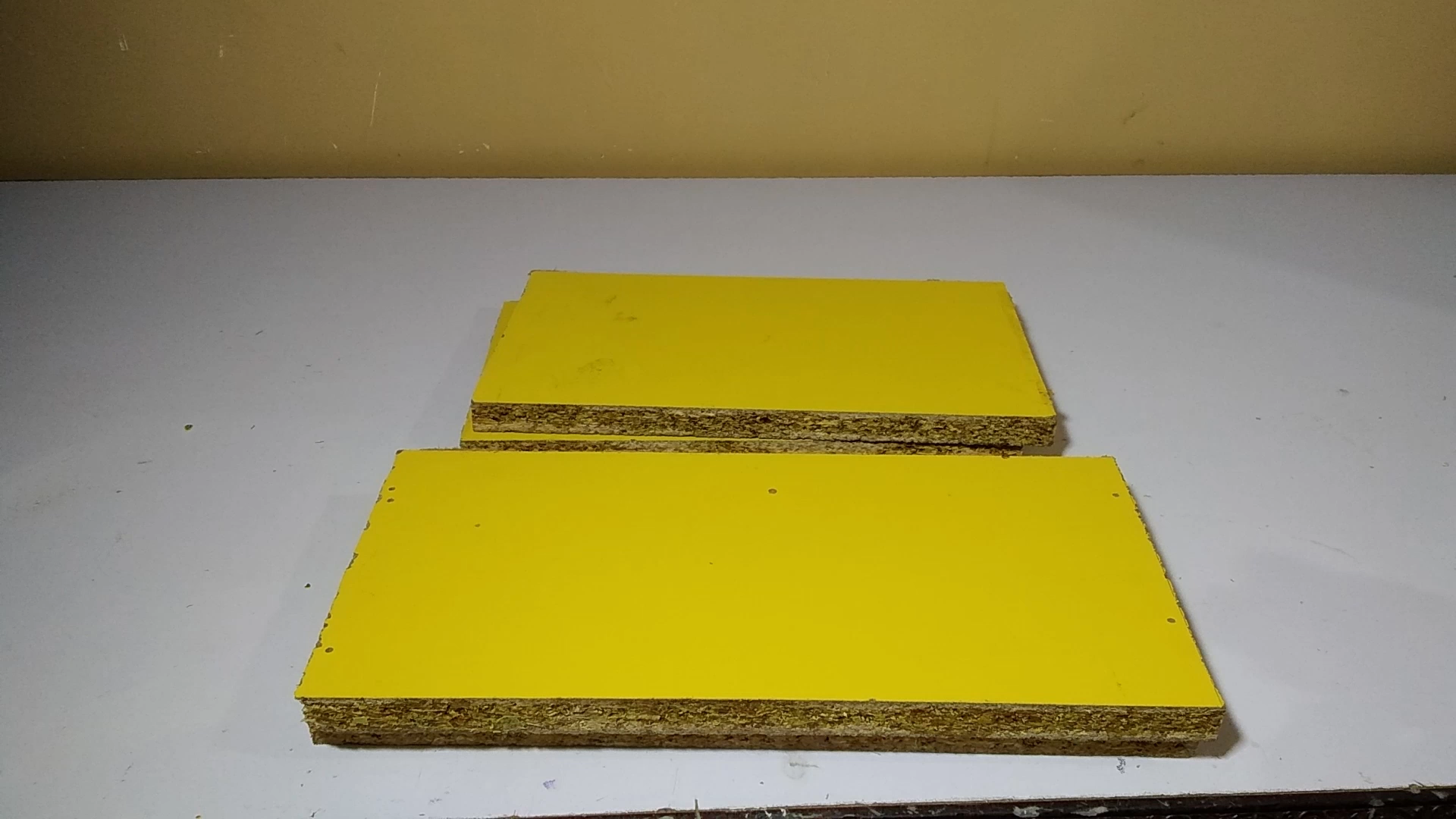

there are two mdf 12x6 inches pieces and 10x6 inches screw them together will form a rectangle shape box and covering with a plyboard to cover on the back
Electric Connection
![uv light sensor.00_00_33_00.Still009.bmp](/proxy/?url=https://content.instructables.com/FLY/N8C5/KKRB0OLI/FLYN8C5KKRB0OLI.bmp&filename=uv light sensor.00_00_33_00.Still009.bmp)
![uv light sensor.00_00_36_05.Still010.bmp](/proxy/?url=https://content.instructables.com/FM4/N5GF/KKRB0OMR/FM4N5GFKKRB0OMR.bmp&filename=uv light sensor.00_00_36_05.Still010.bmp)
![uv light sensor.00_00_48_05.Still011.bmp](/proxy/?url=https://content.instructables.com/FUZ/BTVL/KKRB0OMS/FUZBTVLKKRB0OMS.bmp&filename=uv light sensor.00_00_48_05.Still011.bmp)
![uv light sensor.00_00_54_10.Still012.bmp](/proxy/?url=https://content.instructables.com/FSO/GOIH/KKRB0ONF/FSOGOIHKKRB0ONF.bmp&filename=uv light sensor.00_00_54_10.Still012.bmp)
![uv light sensor.00_01_02_06.Still013.bmp](/proxy/?url=https://content.instructables.com/F2O/QUVF/KKRB0OO2/F2OQUVFKKRB0OO2.bmp&filename=uv light sensor.00_01_02_06.Still013.bmp)
![uv light sensor.00_01_14_20.Still014.bmp](/proxy/?url=https://content.instructables.com/FST/K60T/KKRB0OO3/FSTK60TKKRB0OO3.bmp&filename=uv light sensor.00_01_14_20.Still014.bmp)
![uv light sensor.00_01_23_01.Still015.bmp](/proxy/?url=https://content.instructables.com/FA3/LZQK/KKRB0OO4/FA3LZQKKKRB0OO4.bmp&filename=uv light sensor.00_01_23_01.Still015.bmp)
![uv light sensor.00_01_32_19.Still016.bmp](/proxy/?url=https://content.instructables.com/FM6/SI1P/KKRB0OO5/FM6SI1PKKRB0OO5.bmp&filename=uv light sensor.00_01_32_19.Still016.bmp)
![uv light sensor.00_01_41_11.Still017.bmp](/proxy/?url=https://content.instructables.com/FGZ/O5AN/KKRB0OO6/FGZO5ANKKRB0OO6.bmp&filename=uv light sensor.00_01_41_11.Still017.bmp)
![uv light sensor.00_01_47_15.Still018.bmp](/proxy/?url=https://content.instructables.com/F7E/ISIA/KKRB0OO7/F7EISIAKKRB0OO7.bmp&filename=uv light sensor.00_01_47_15.Still018.bmp)
![uv light sensor.00_01_49_07.Still019.bmp](/proxy/?url=https://content.instructables.com/FUG/A1RI/KKRB0OO9/FUGA1RIKKRB0OO9.bmp&filename=uv light sensor.00_01_49_07.Still019.bmp)
![uv light sensor.00_01_56_02.Still020.bmp](/proxy/?url=https://content.instructables.com/FVK/UPTC/KKRB0OOA/FVKUPTCKKRB0OOA.bmp&filename=uv light sensor.00_01_56_02.Still020.bmp)
![1.jpg](/proxy/?url=https://content.instructables.com/FUT/C6R0/KKWL4VQZ/FUTC6R0KKWL4VQZ.jpg&filename=1.jpg)

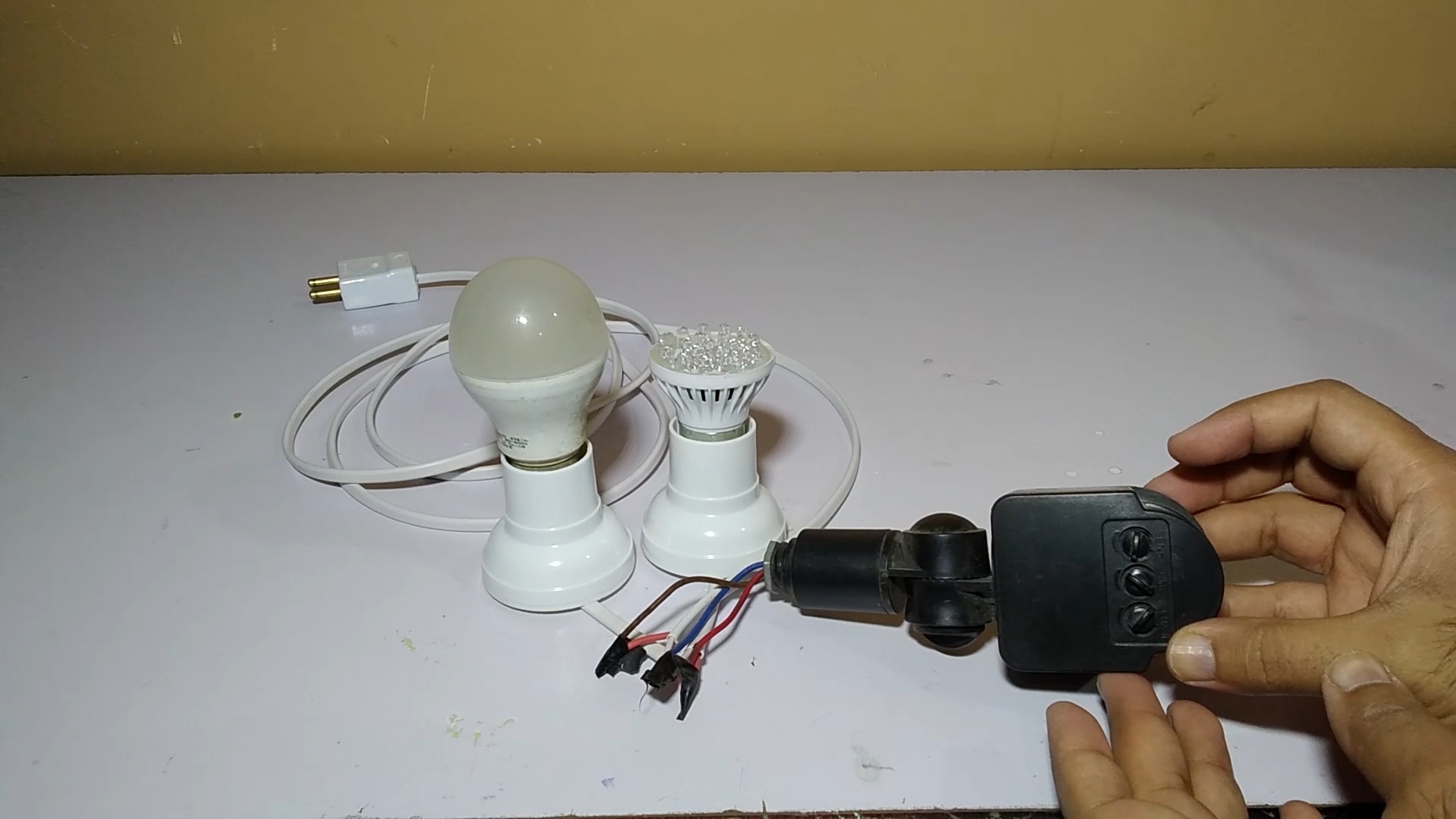

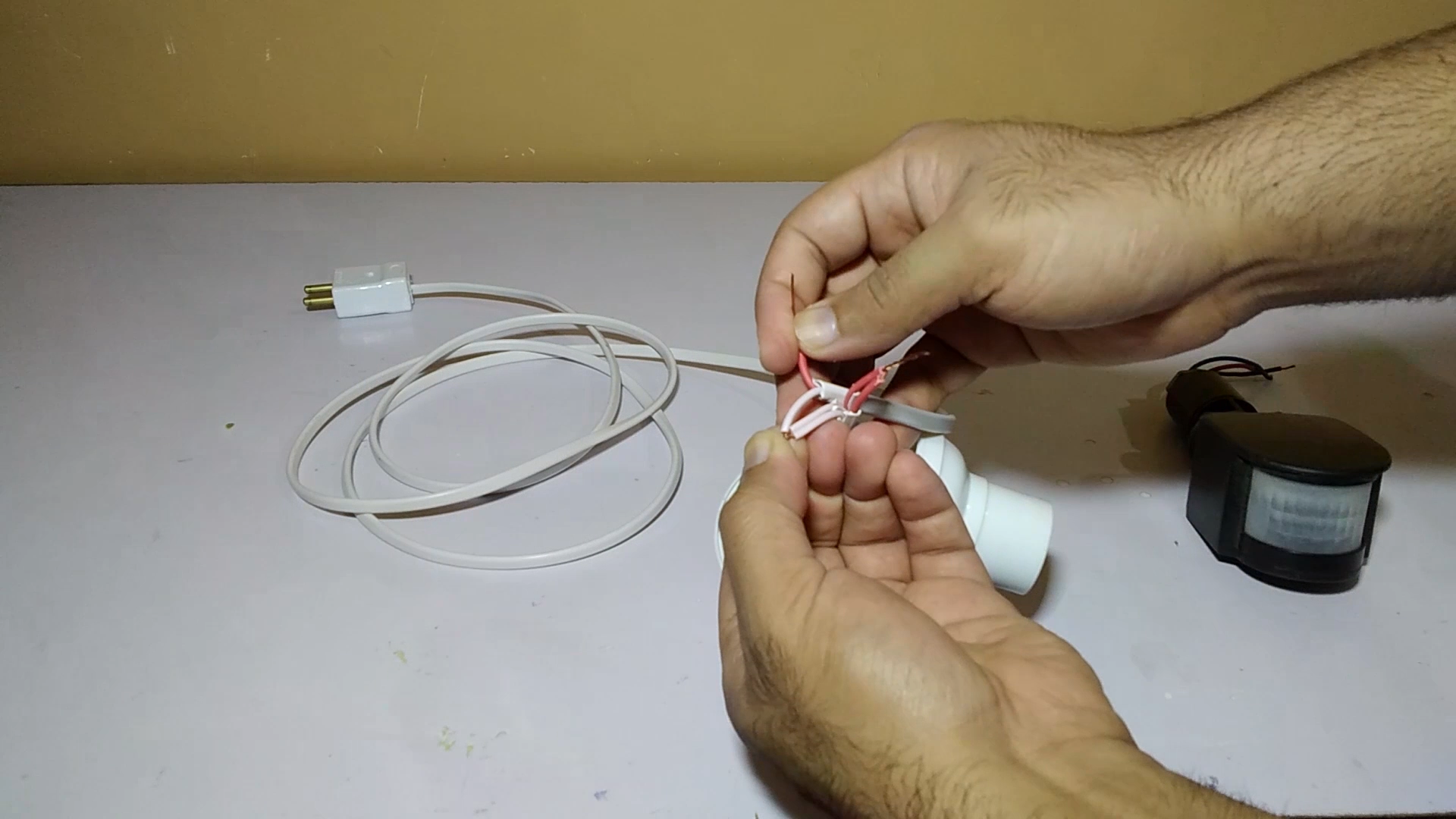

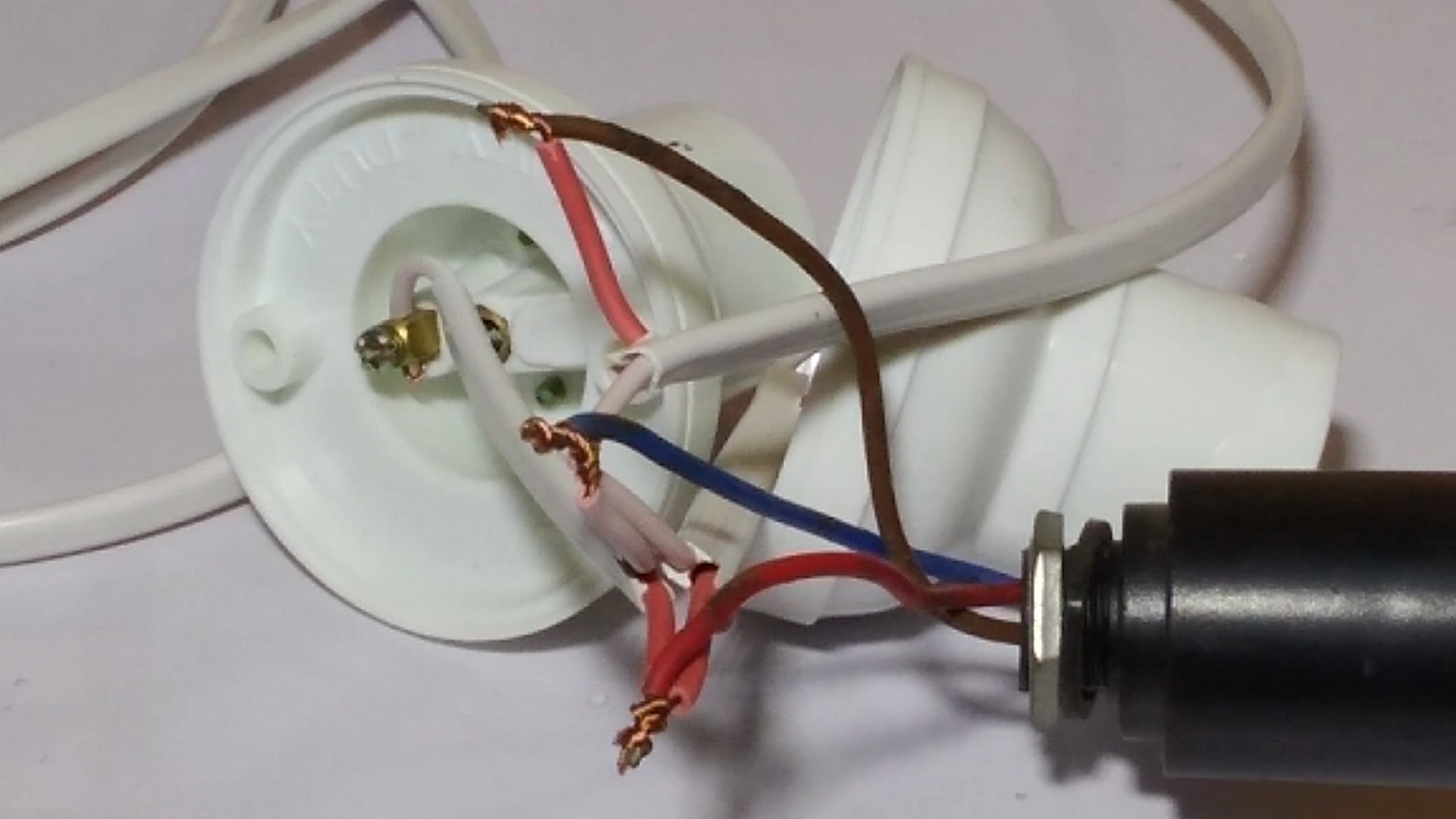

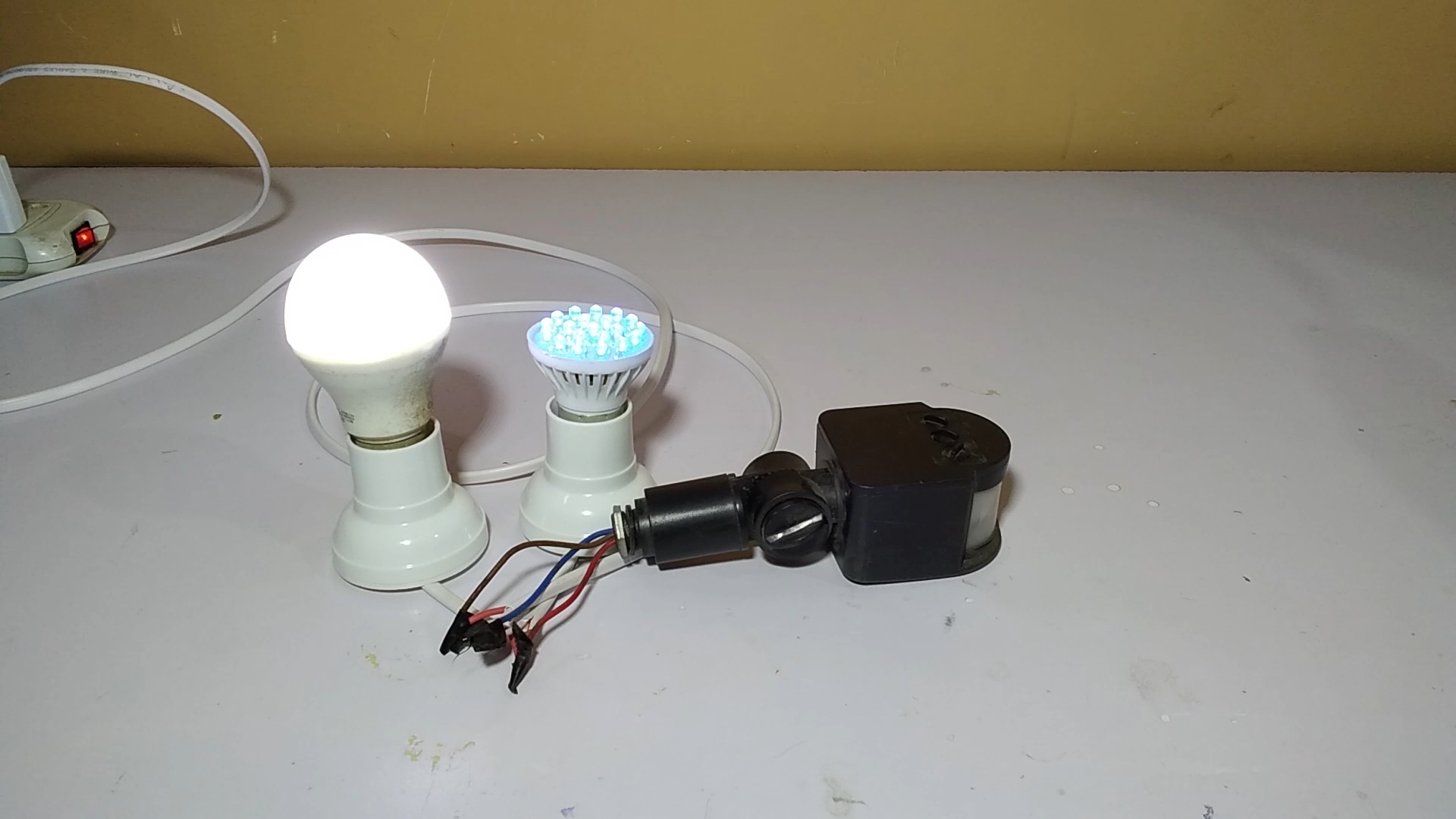

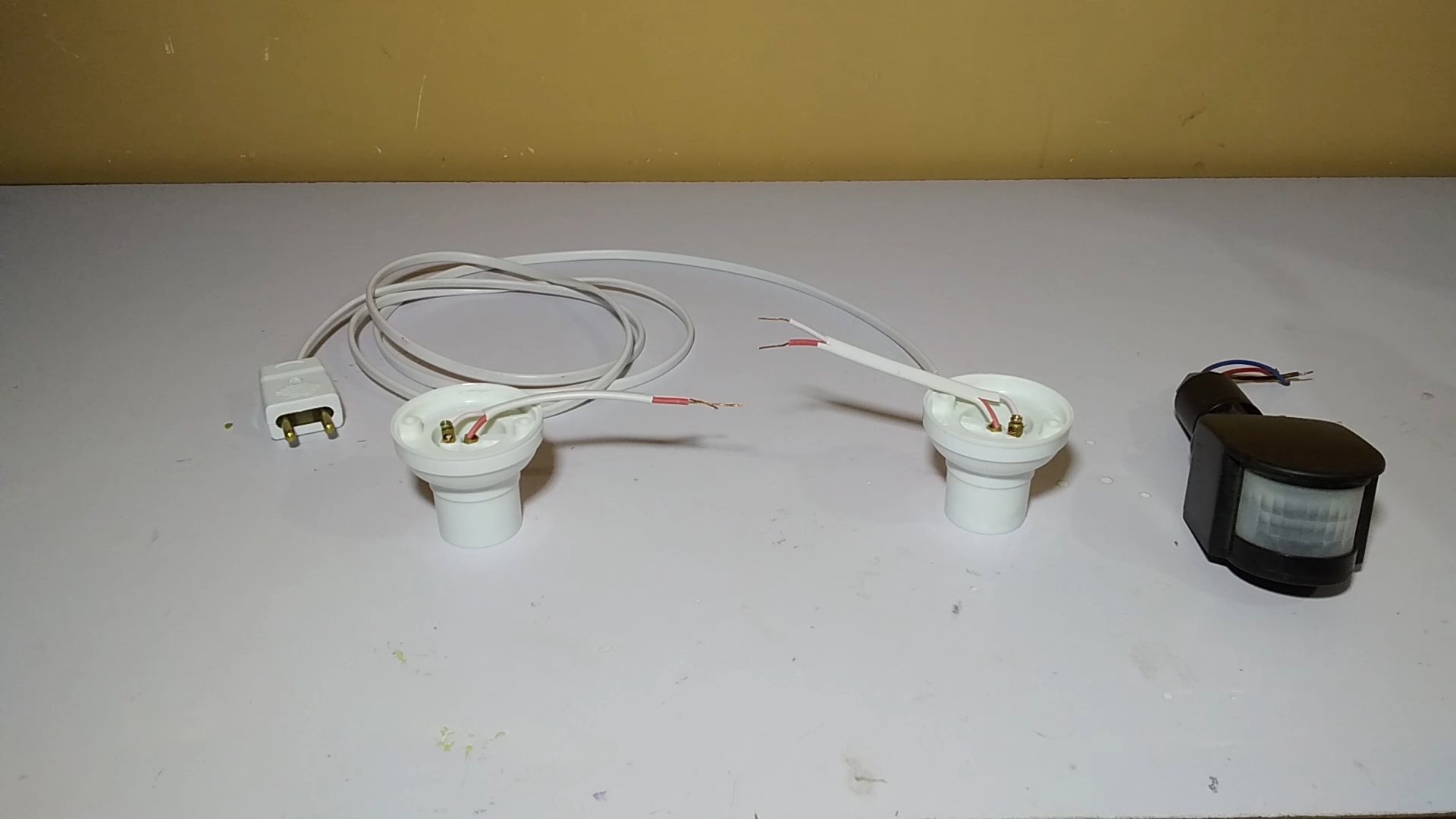

I connect two bulbs in parallel and connect it with the given wires diagram to relay the bulbs

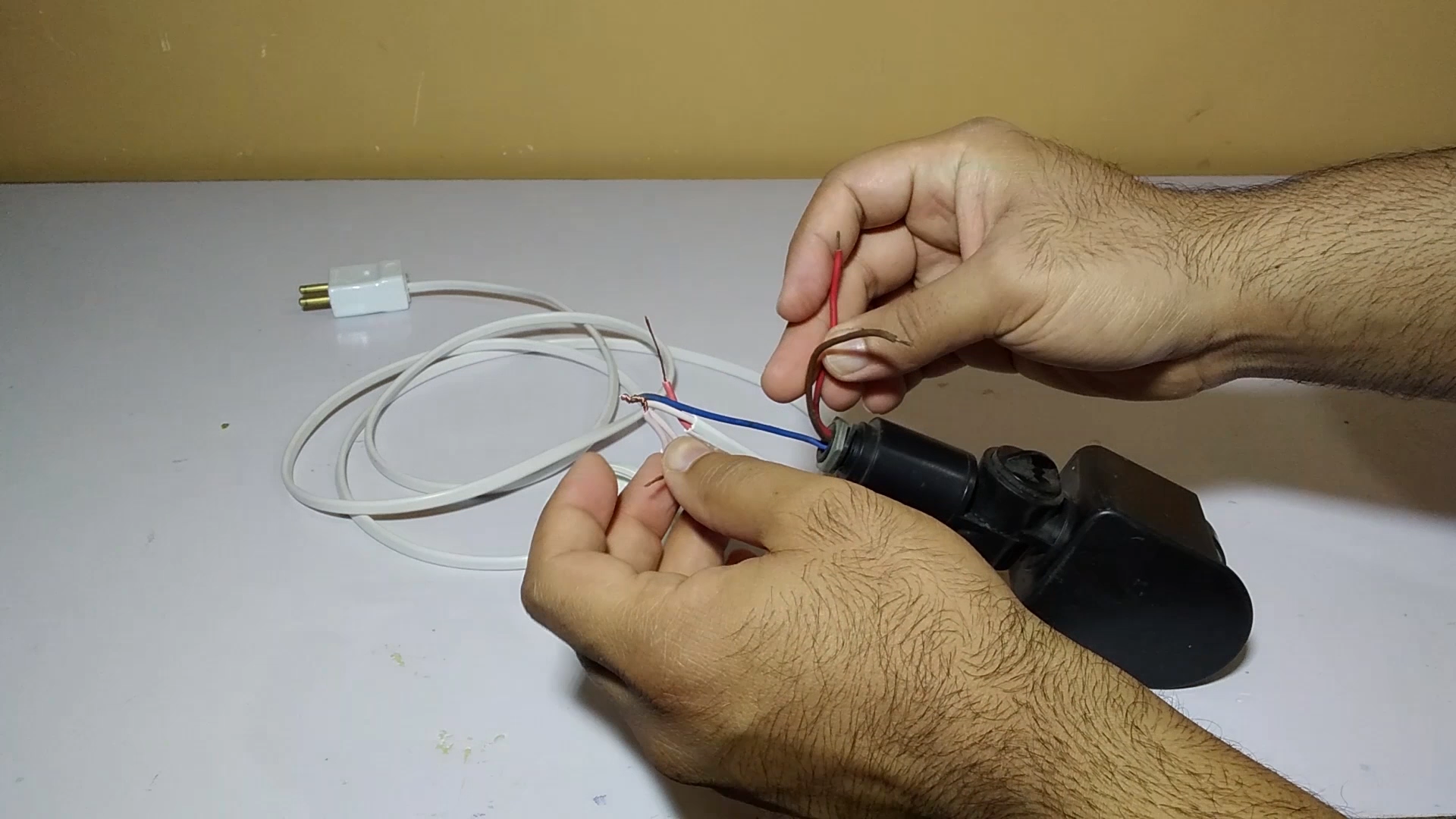

Both negative wires will be connected together but 220v power wire will go to the pir motion sensor brown wire and it's red will go to the bulb positive connection

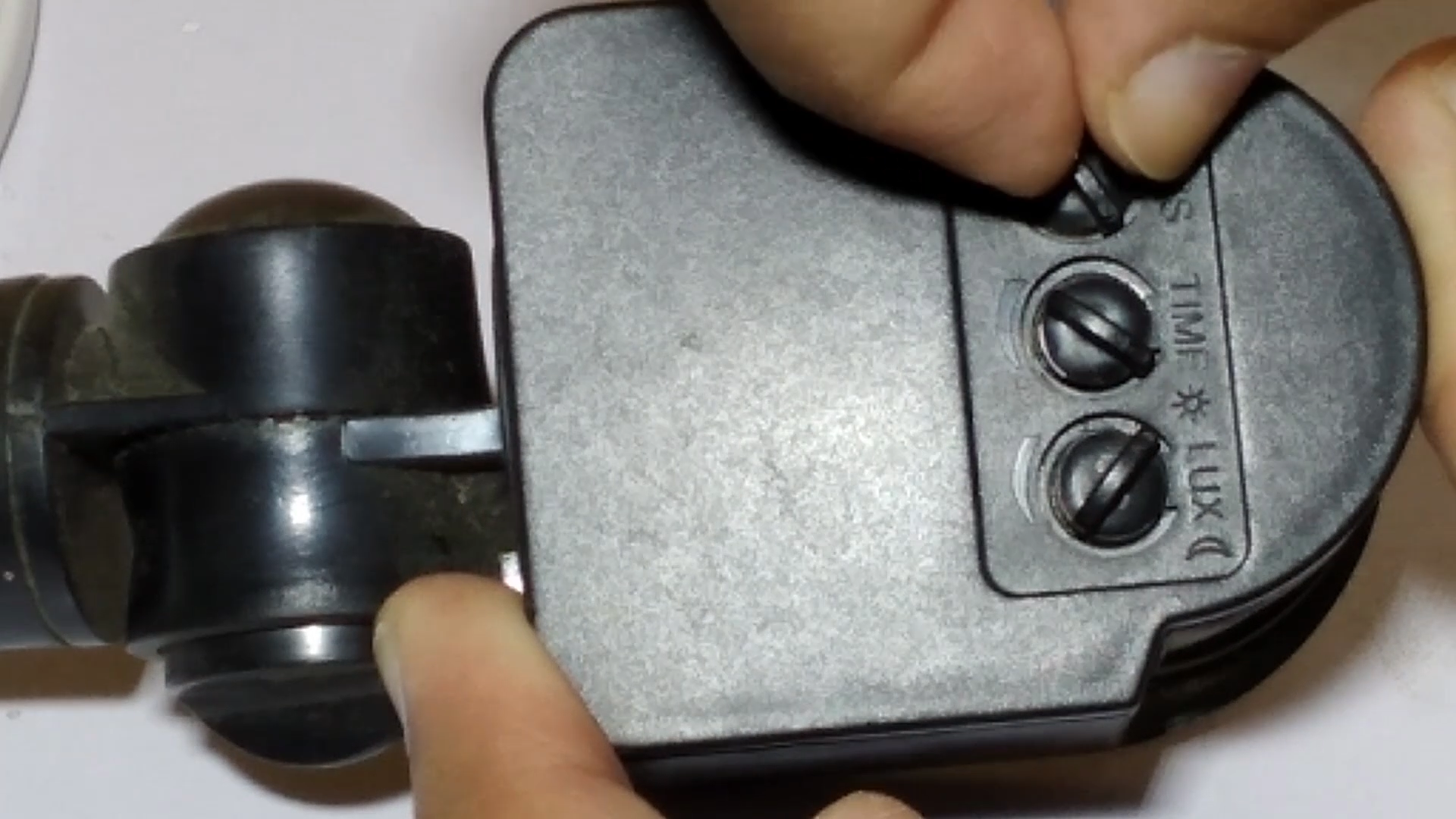

,pir motion sensor can also be adjusted to the need I set it to the lowest time and medium sensitivity
Placing Electrical Wiring in Box
![uv light sensor.00_02_20_23.Still021.bmp](/proxy/?url=https://content.instructables.com/FUZ/F9OV/KKRB0OOB/FUZF9OVKKRB0OOB.bmp&filename=uv light sensor.00_02_20_23.Still021.bmp)
![uv light sensor.00_02_28_03.Still022.bmp](/proxy/?url=https://content.instructables.com/FJM/JIYC/KKRB0OOC/FJMJIYCKKRB0OOC.bmp&filename=uv light sensor.00_02_28_03.Still022.bmp)
![uv light sensor.00_02_45_21.Still024.bmp](/proxy/?url=https://content.instructables.com/FRS/D7TL/KKRB0OOE/FRSD7TLKKRB0OOE.bmp&filename=uv light sensor.00_02_45_21.Still024.bmp)
![uv light sensor.00_02_53_12.Still025.bmp](/proxy/?url=https://content.instructables.com/FYW/K2E6/KKRB0OOG/FYWK2E6KKRB0OOG.bmp&filename=uv light sensor.00_02_53_12.Still025.bmp)
![uv light sensor.00_02_55_03.Still026.bmp](/proxy/?url=https://content.instructables.com/FSJ/USLT/KKRB0OOH/FSJUSLTKKRB0OOH.bmp&filename=uv light sensor.00_02_55_03.Still026.bmp)
![uv light sensor.00_03_36_19.Still028.bmp](/proxy/?url=https://content.instructables.com/F2X/POFD/KKRB0OOJ/F2XPOFDKKRB0OOJ.bmp&filename=uv light sensor.00_03_36_19.Still028.bmp)
![uv light sensor.00_03_14_18.Still027.bmp](/proxy/?url=https://content.instructables.com/FIF/25HM/KKRB0OOI/FIF25HMKKRB0OOI.bmp&filename=uv light sensor.00_03_14_18.Still027.bmp)

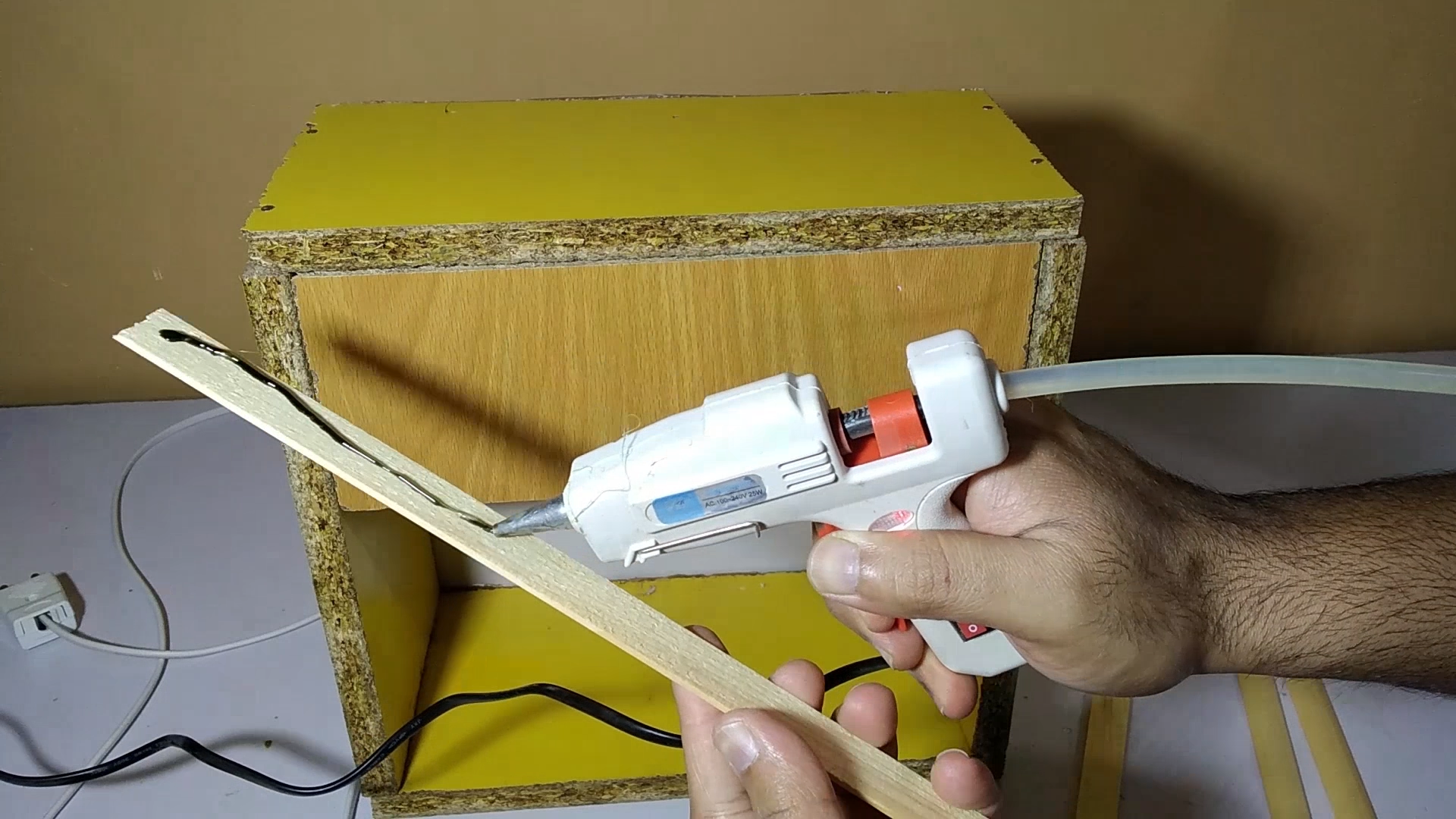

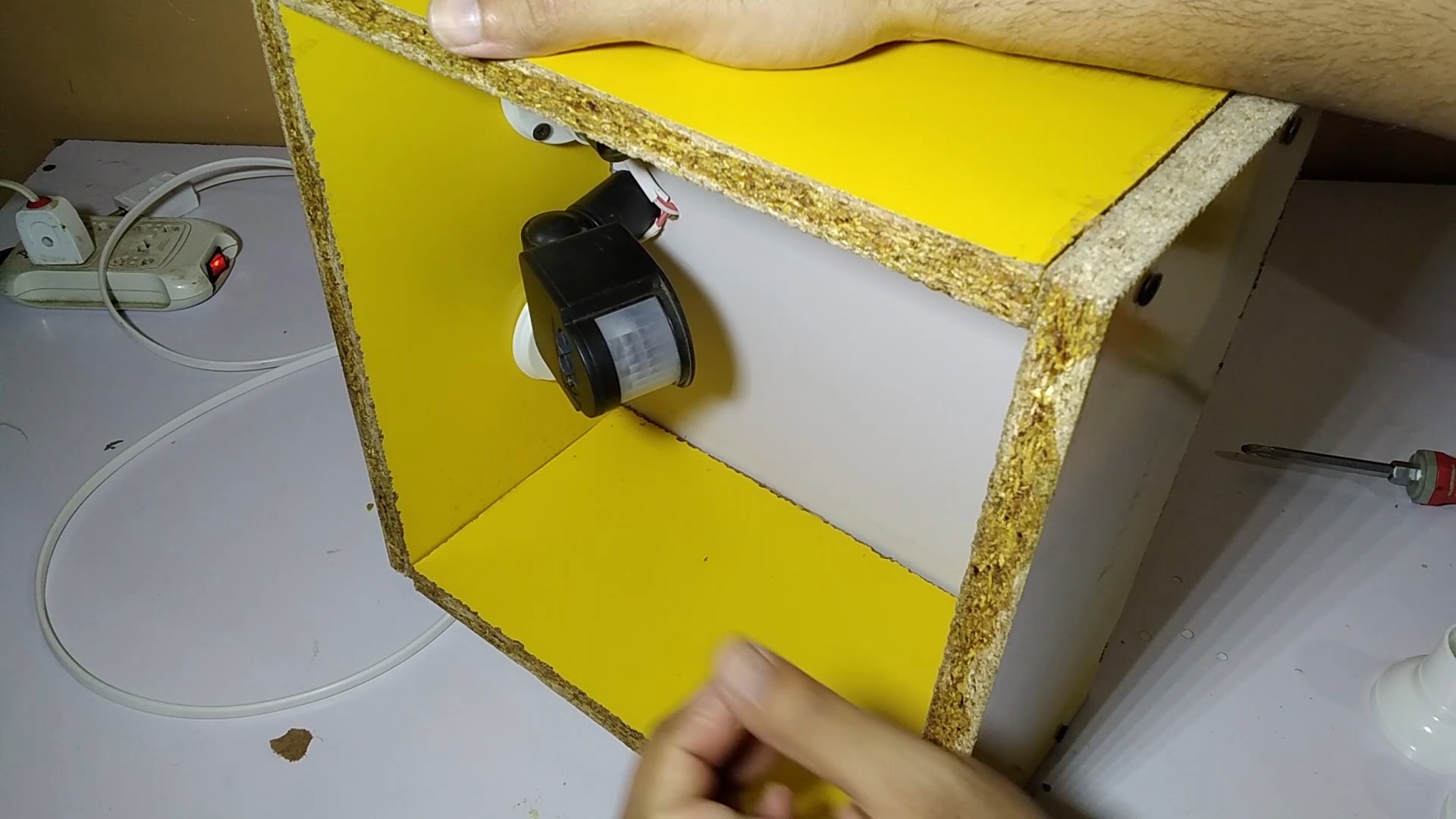

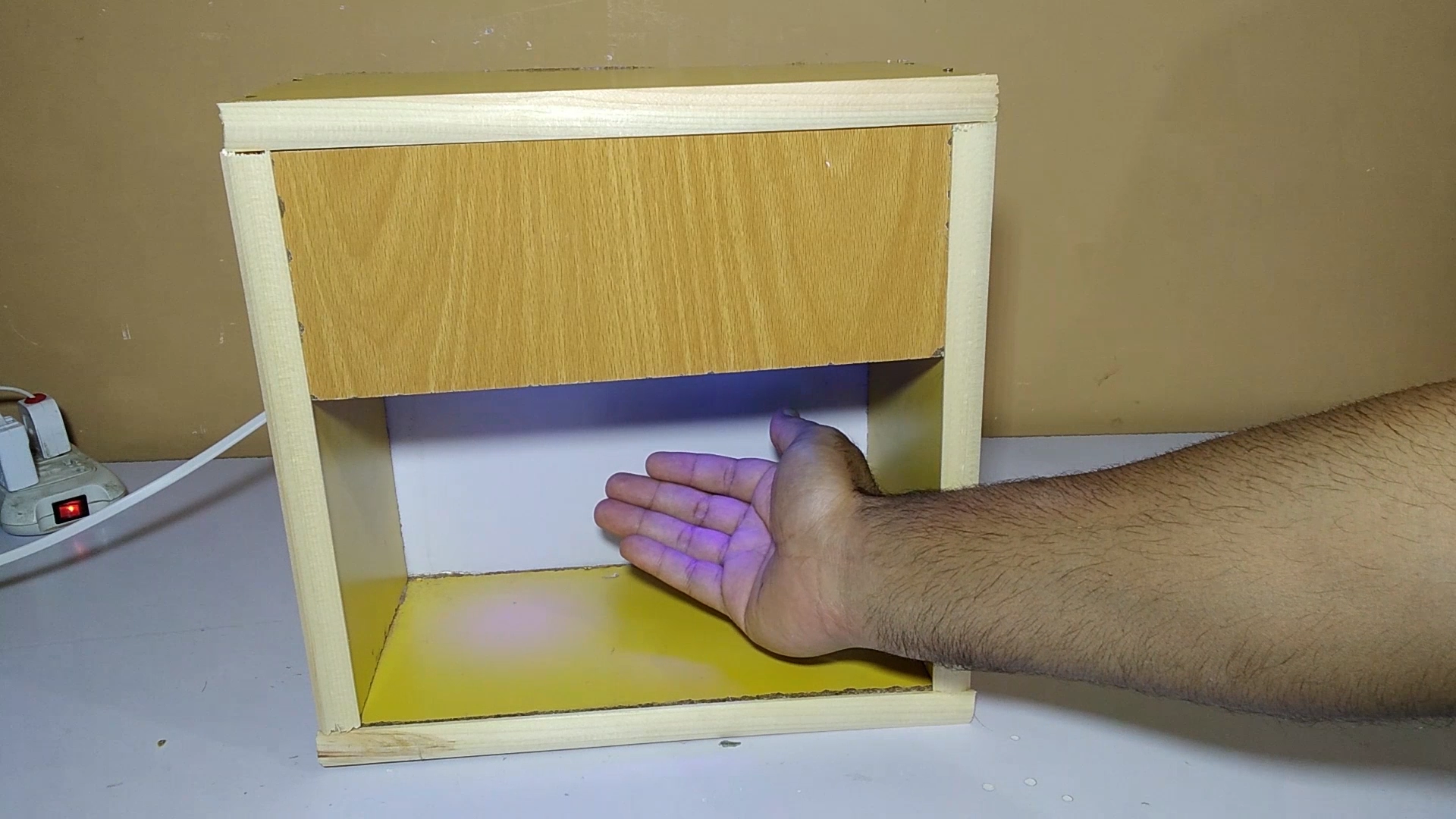

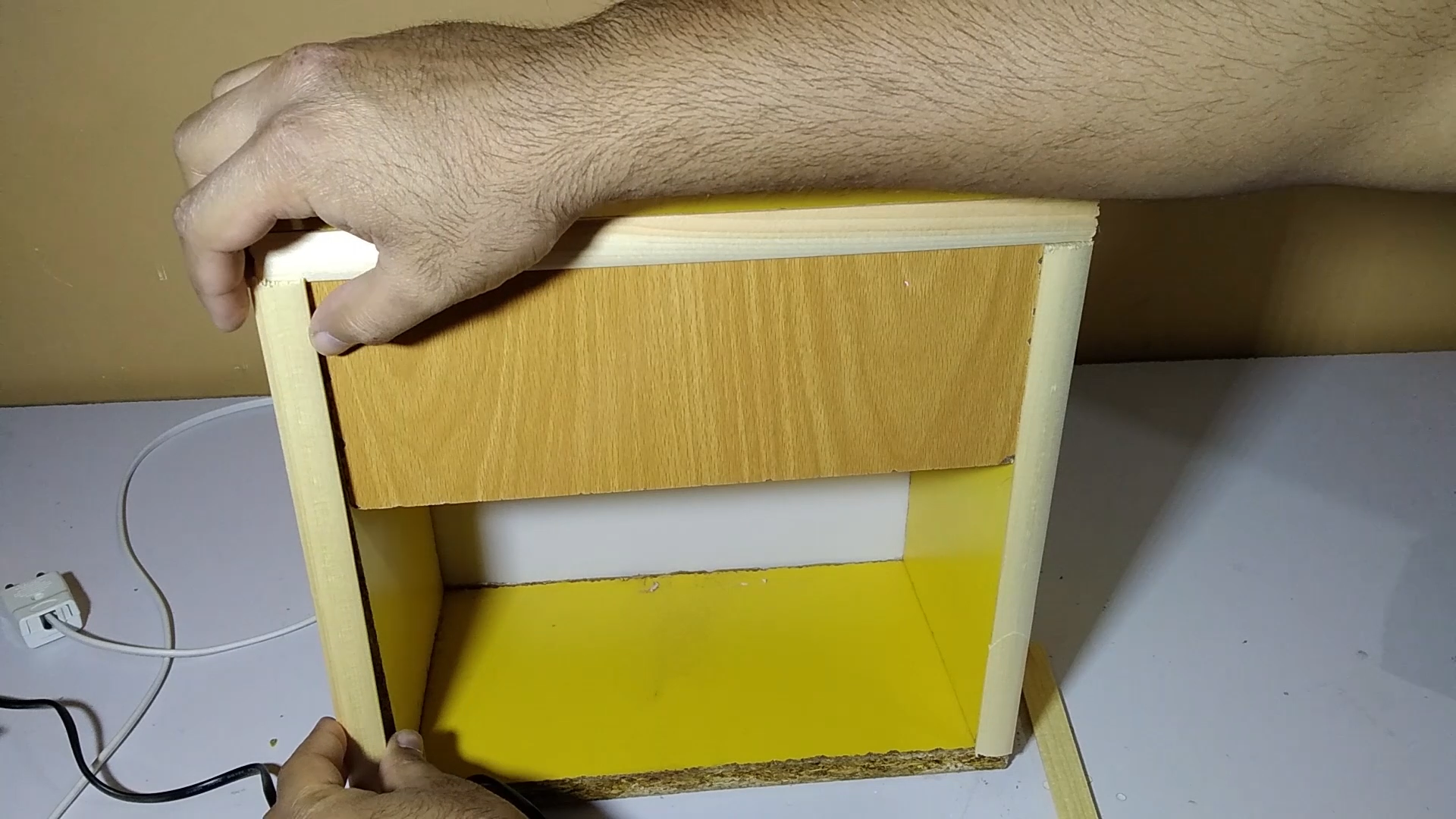

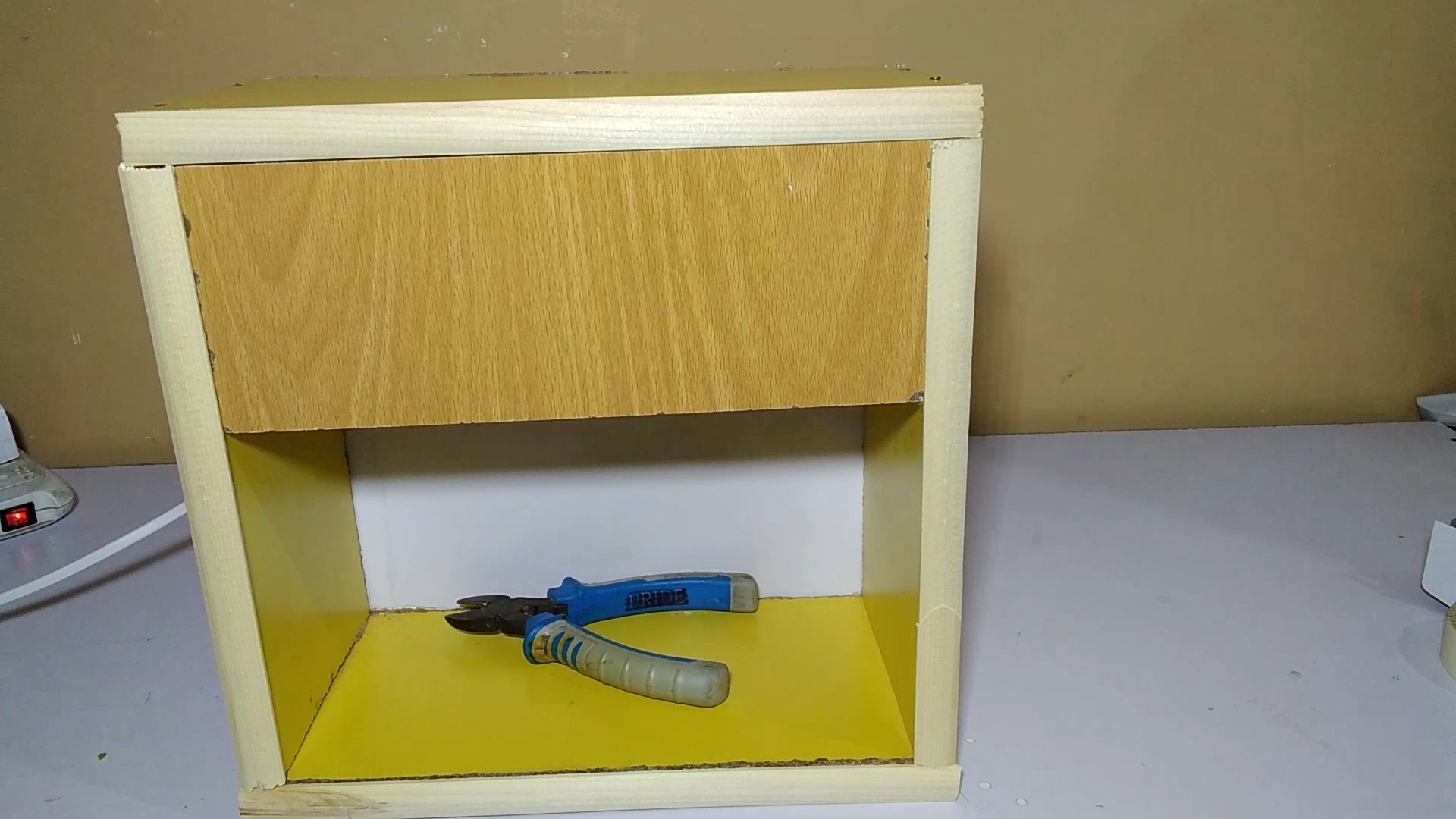

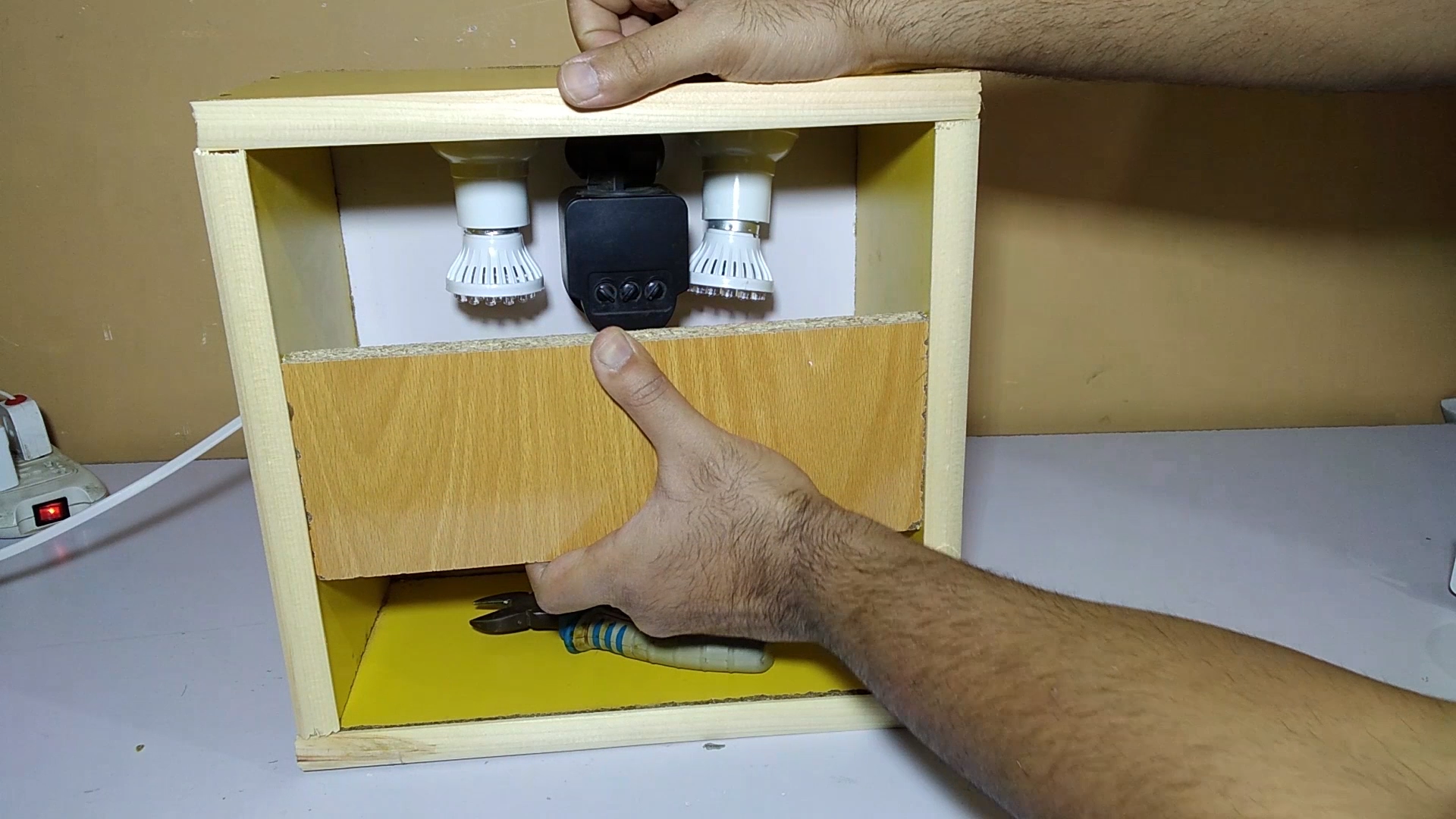

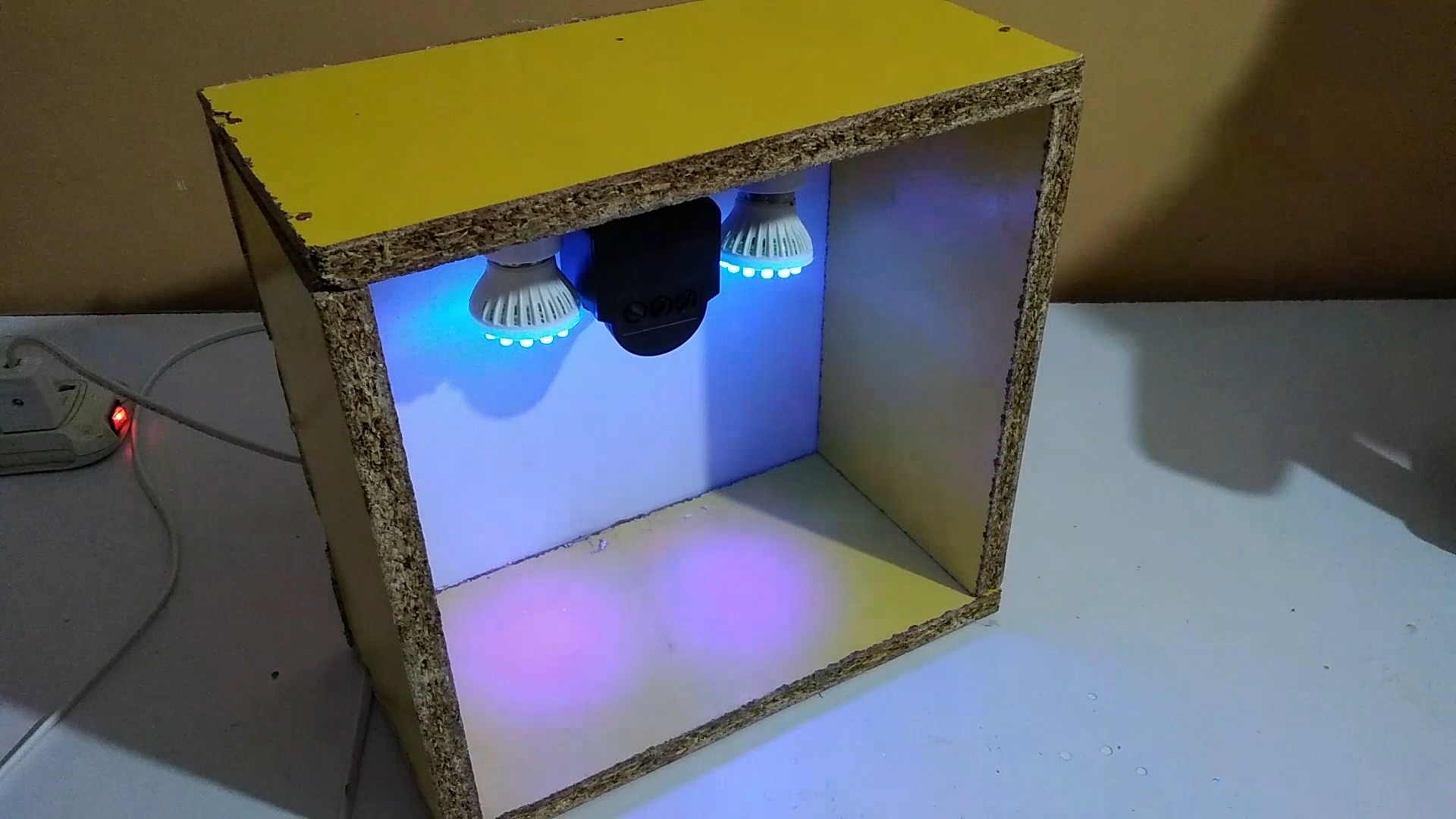

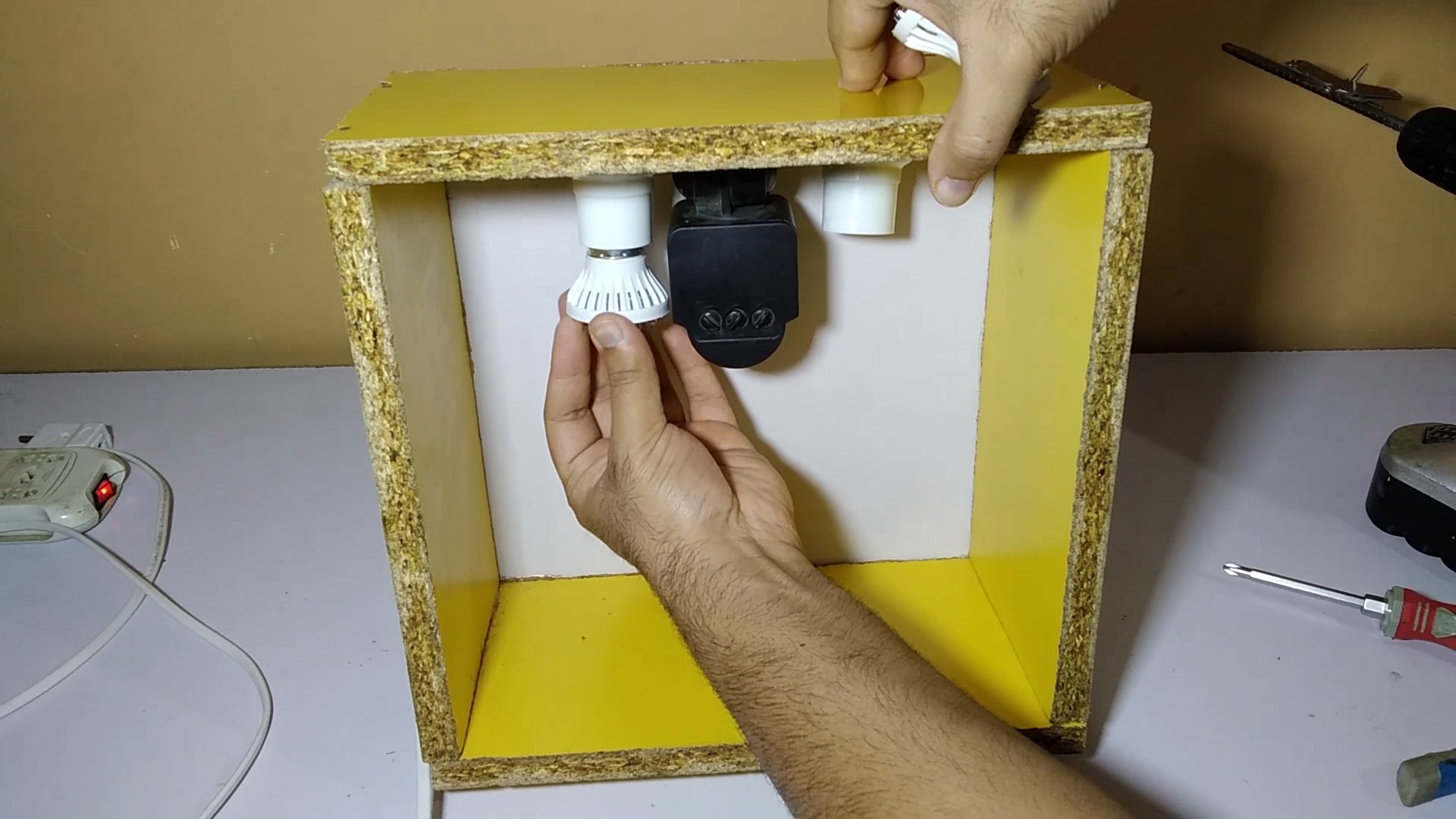

make a hole on the center top and take out the pir motion sensor base from it and screw the bulb holders on its sides and make the wiring and secure it with electrical tape , cover the edges with wood covering and place the 4'' x 11.50'' mdf piece to hide the electrical wiring , now if I place my hands under the pir motion sensor it will turn on the uv led and If I want to make it work for longer I can change the setting just by sliding down the mdf board down and set it ,it can be useful in uv hand washing ,currency checking and tool sterilization.
if you want to see in more details you can watch the video ,if you liek this project please give a vote for this instructables .
