Ultimate Workshop Stool

Well this is my Workshop stool made from a single 2x4 of 12 feet long

Wach the video

It has

• Built in vise
• BenchDogs
• Magnetic strip
• Extension support for mittersaw

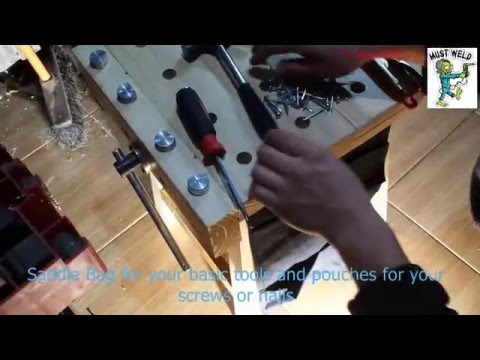

• Saddle Bag For tools and screws

It takes about 1 day to built and some scrap from my shop

i think the most difficult part is the end of the vise to make the ACME screw turn it taka about 2 hours to figure ot what i was doing XD

The aproximated cost of the project was $20 USD and some scrap pipe

Im glad to hear your comments

Sorry for the bad english it is not my native language.

The vise have a 5/8 ACME Screw with a ACME screw coupler inserted by pressure into 3 layers of 3/4 inch plywood

The tubing on the sides of the screw prevent prom rolling the moving part theay are 5/8 diameter

The handle have a welded knob witha a hole to put the handle also a machined washer screwed to the wood this pull out the moving part when you untwist the screw

The bench dogs are made form aluminium 1 inch on the superior part and 3/4 inch on the inferior part also I milled onse side flat to make the grip to the atached pice

This Extension suport is just one of the pieces of the top splited in hal and with 2 5/8 tubing

The saddle bag are made from scrap cloth

I always said ultimate in my projects , At least for me when I get out for ideas to adding atachments to my multitool creations
