Ultimate STEM Electronic Maze - digital guide

Unleash Your Creativity and Master Technology with the Ultimate Electronic Maze!

Calling all tech enthusiasts, aspiring programmers, and DIY aficionados! Prepare to embark on an electrifying journey that combines the thrill of an immersive maze with an unparalleled learning experience in technology, programming, laser cutting, and DIY making from scratch.

Here's why our Electronic Maze is the perfect platform to expand your knowledge and skills:

1. STEM at Your Fingertips: Our Electronic Maze is not just an adventure—it's a playground of technological wonders. Get hands-on experience with cutting-edge technologies, including sensors, microcontrollers, and interactive electronics. Learn how to manipulate these components to create a dynamic and responsive maze environment.
2. Unlock the World of Programming: Dive headfirst into the world of coding as you explore the intricacies of our Electronic Maze. Discover the power of programming by designing custom algorithms and logic to control the maze's behavior. From simple commands to complex decision-making processes, you'll unleash your coding prowess and witness your commands come to life.
3. Laser Cutting Mastery: Experience the art of precision with laser cutting. Learn the fundamentals of CAD (Computer-Aided Design) and unleash your creativity as you design intricate patterns and structures. Witness the transformation of raw materials into beautifully crafted maze elements, all under the guidance of our expert instructors.
4. From Idea to Reality: Immerse yourself in the exciting realm of DIY making from scratch. Our Electronic Maze provides the perfect canvas for you to bring your ideas to life. From brainstorming concepts to prototyping and final assembly, you'll experience the thrill of turning your imagination into tangible creations.
5. Lifelong Skills for Success: In an increasingly tech-driven world, mastering technology, programming, and DIY making is a valuable asset. By immersing yourself in our Electronic Maze, you'll acquire skills that are highly sought-after in various industries. Boost your problem-solving abilities, critical thinking, and creativity while having a blast in an interactive learning environment.

Project guide can be purchased here: https://payhip.com/AmbitiousProjects

See part list for all required off-the shelf components.

Using files from the project guide order PCB and laser cut parts.

Cut out other wood parts

Project guide assembly sections:

1. Assembly of Maze
2. Assembly of Base
3. Centring of Servos
4. Servo Brackets
5. Sound System
6. Light system

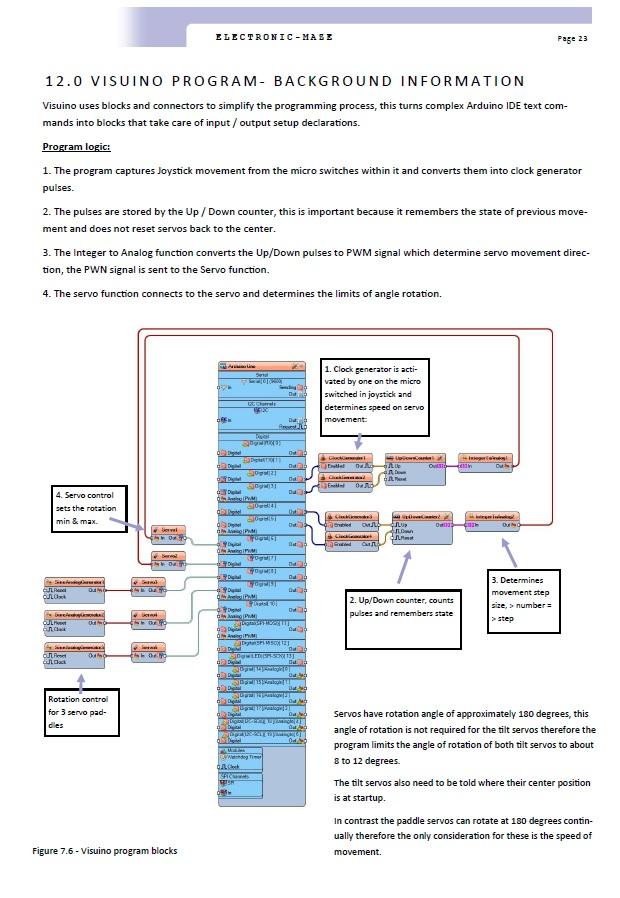

Visuino uses blocks and connectors to simplify the programming process, this turns complex Arduino IDE text commands into blocks that take care of input / output setup declarations.

Program logic:

1. The program captures Joystick movement from the micro switches within it and converts them into clock generator pulses.

2. The pulses are stored by the Up / Down counter, this is important because it remembers the state of previous movement and does not reset servos back to the center.

3. The Integer to Analog function converts the Up/Down pulses to PWM signal which determine servo movement direction, the PWN signal is sent to the Servo function.

4. The servo function connects to the servo and determines the limits of angle rotation.

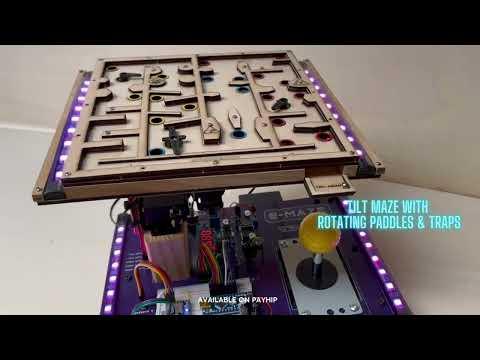

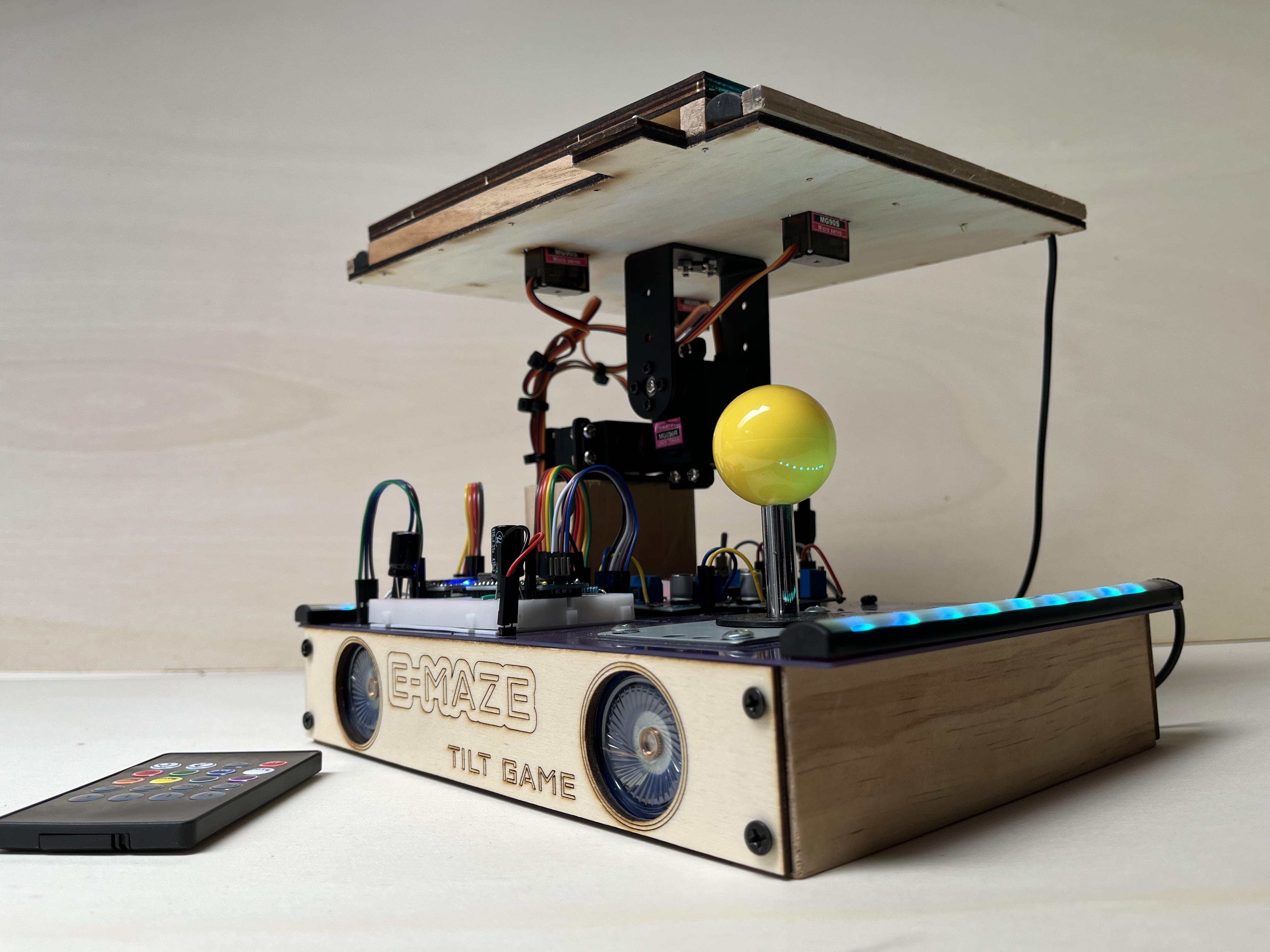

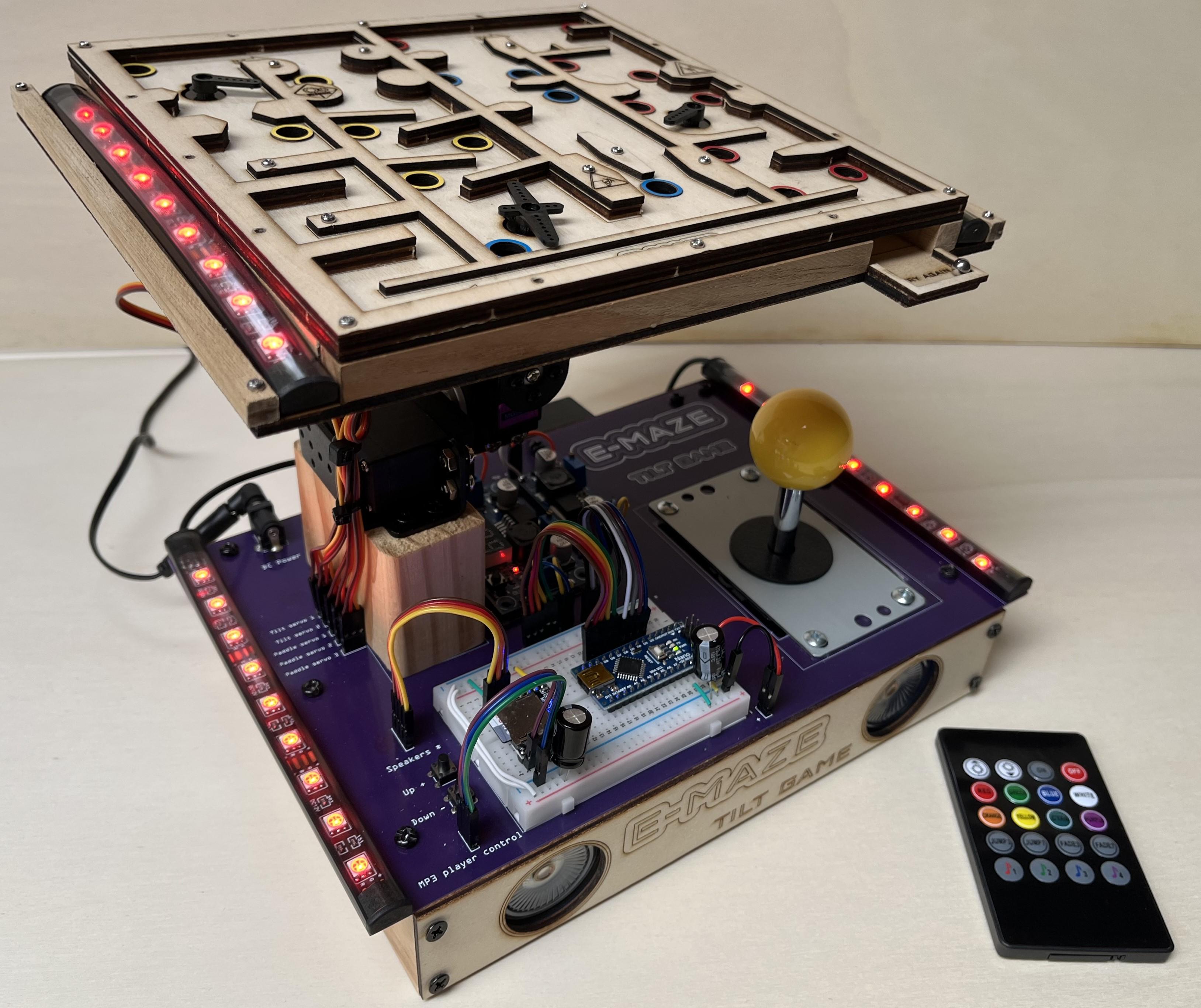

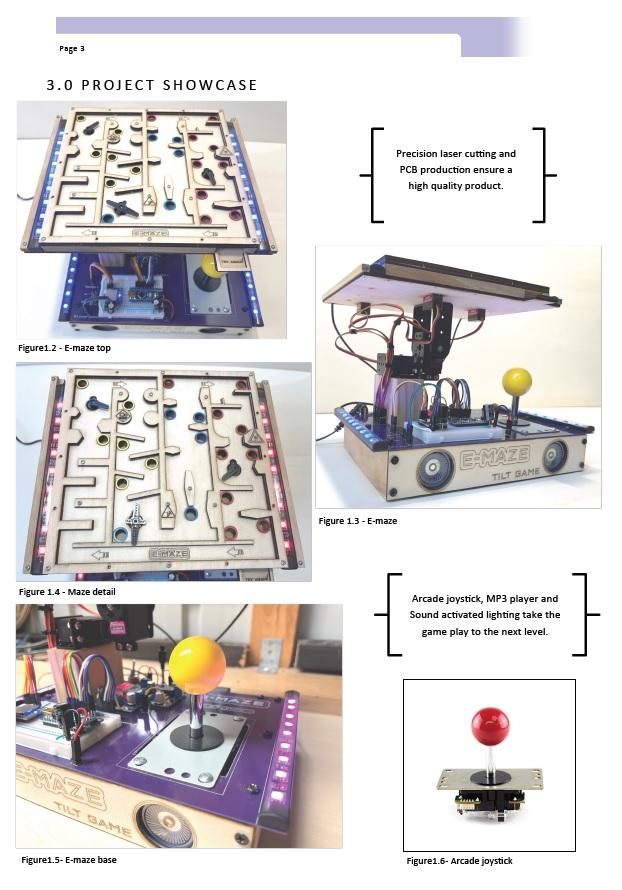

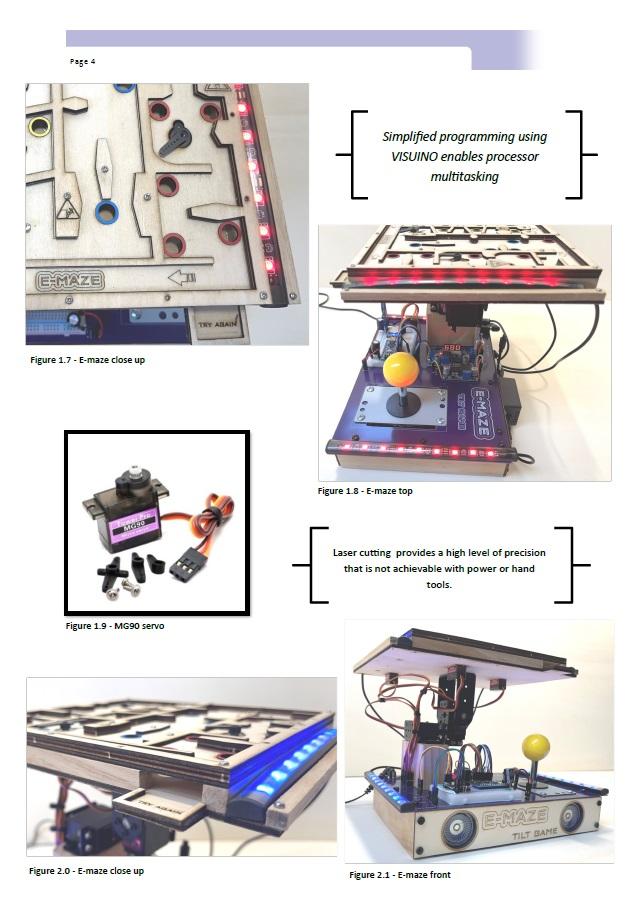

Project showcase, see attached images.

Prepare to embark on an electrifying journey.

Buy now and get building!

Project guide can be purchased here: https://payhip.com/AmbitiousProjects
