HELLO ALL
IN THIS PROJECT WE ARE GOING TO BE MAKING A SMART DISINFECTANT BOX USING ARDUINO to DISINFECT ANY OBJECTS LIKE CASH AND PEN , MOBILE PHONE ETC....
WHY I DID THIS PROJECT
- WE ARE DISINFECTING OBJECTS USING SPRAY OR ANY OTHER HARMFUL MATERIALS AND POLLUTING THE WORLD
- BY USING SPRAYS WE THROW THE METAL BOTTLE AND IT MAY HARM THE ENVIRONMENT
SO LETS GO IN MAKING THE PROJECT. PLS SEE THE IMAGES IN THE BELOW GIVEN FILE.
Supplies
![AC210-UV-CL-5-2.jpg](/proxy/?url=https://content.instructables.com/F2Z/OWLG/LO01VBJ8/F2ZOWLGLO01VBJ8.jpg&filename=AC210-UV-CL-5-2.jpg)
![ARDUIO.jpg](/proxy/?url=https://content.instructables.com/F1X/930G/LO01VBJ9/F1X930GLO01VBJ9.jpg&filename=ARDUIO.jpg)
![breadboard-power-supply-module-3-3v-5v-solderless-bread-board-mb102.jpg](/proxy/?url=https://content.instructables.com/FNE/ISD3/LO01VBJA/FNEISD3LO01VBJA.jpg&filename=breadboard-power-supply-module-3-3v-5v-solderless-bread-board-mb102.jpg)
THE SUPPLIES ARE VERY COMMON . THE ITEMS ARE
- ARDUINO UNO

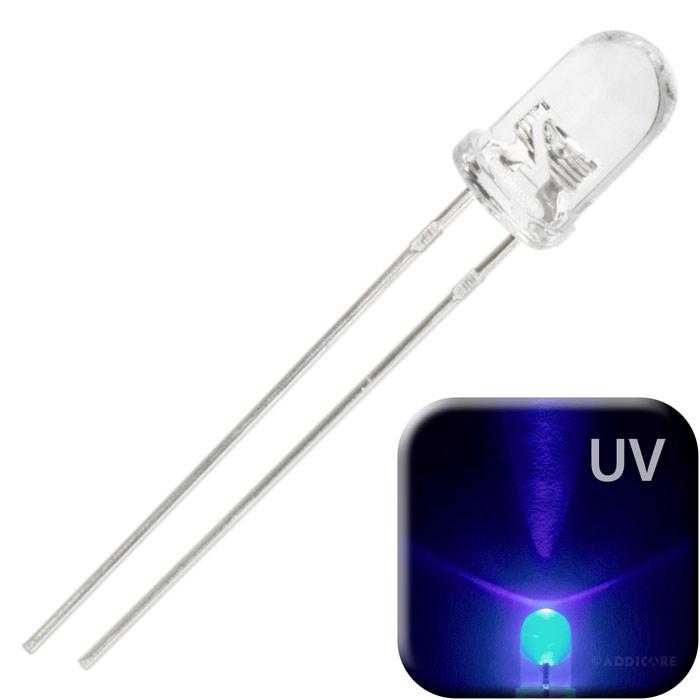

- UV LAMP
- BREADBOARD POWER SUPPLY
- PUSH BUTTON MODULE
- BUZZER
ALL THE ITEMS TOGETHER COSTED RUPEES 1600 OR JUST 19 DOLLARS IN US
ABOUT THIS PROJECT
![US REGIONS94.jpg](/proxy/?url=https://content.instructables.com/FGG/R7BO/LO01VBRY/FGGR7BOLO01VBRY.jpg&filename=US REGIONS94.jpg)
ABOUT UV
- UV IS A NON CHEMICAL APPROACH TO DISINFECT OBJECTS
- IT CAN KILL 99.9% PATHOGENS, BACTERIAS AND GERMS
ABOUT UV REGIONS
It’s a part of the electromagentic spectrum. Ultraviolet rays are classified into 3 different wave lengths
• UV-C from 100 nanometers (nm) to 280 nm
• UV-B from 280 nm to 315 nm
• UV-A from 315 nm to 400 nm
THE STRONGEST RAYS ARE PRODUCED Y THE UV -C REGION
APPLICATIONS OF UV
U-V Rays are used in different devices such as:
- •Water Purifiers
- •Diary processing ETC.....
LETS JUMP IN MAKING THIS PROJECT
MAKING IT
![uvhelmet_box_circuit_PMO8Wda2ut.png](/proxy/?url=https://content.instructables.com/FXI/4VPY/LO01VBUL/FXI4VPYLO01VBUL.png&filename=uvhelmet_box_circuit_PMO8Wda2ut.png)

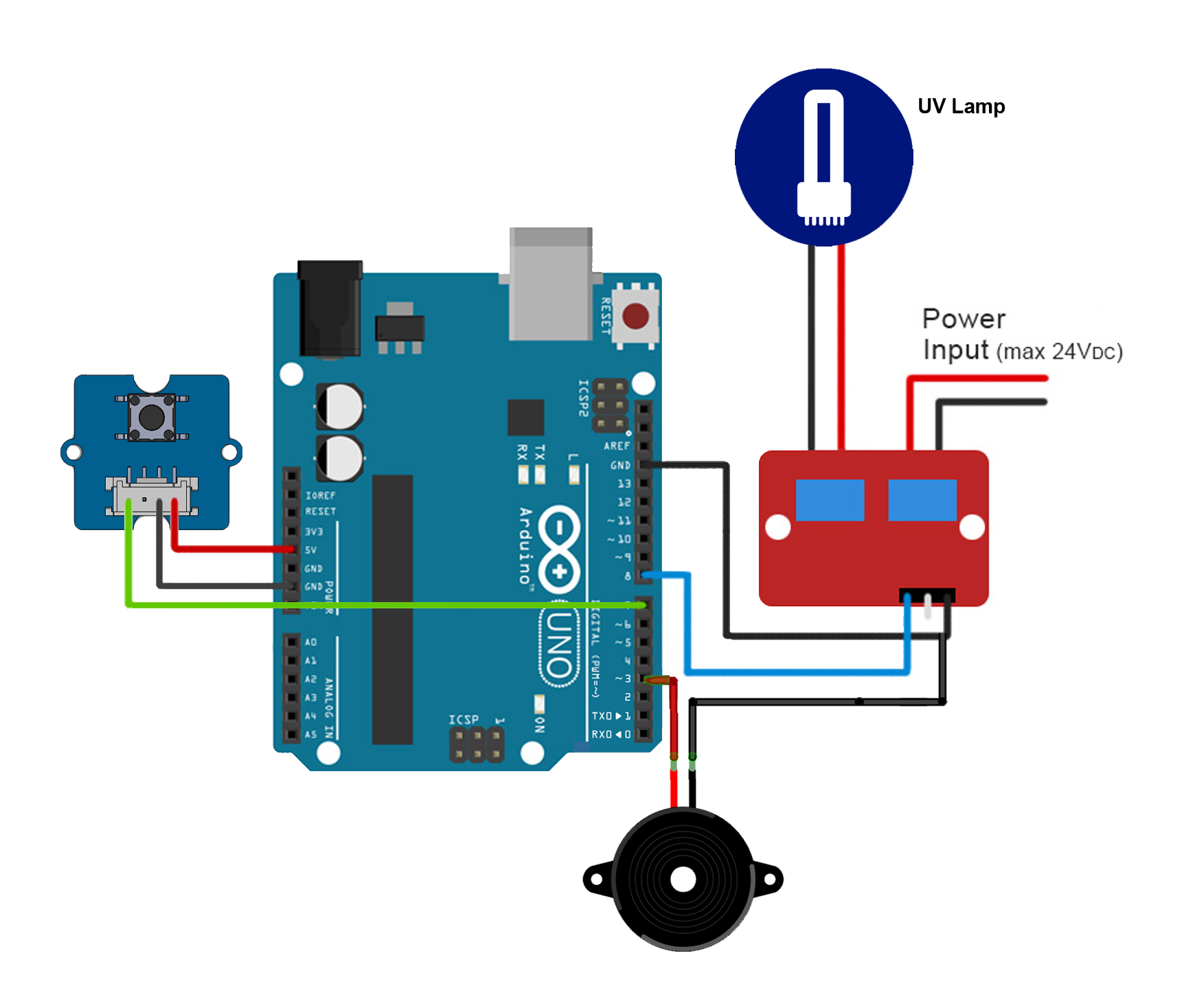

PLS GO THROUGH THE CIRCUIT AND MAKE THE CONNECTIONS PROPERLY. THE CIRCUIT IS MADE WITH TINKERCAD . PLS COMPLETE THIS STEP. I HAVE UPLOADED THE CODE BELOW PLS NOTE
Downloads
WORKING PRINCIPLE
![UV CARES PROJECT](/proxy/?url=https://content.instructables.com/FIU/7QDB/LO01VC0X/FIU7QDBLO01VC0X.jpg&filename=UV CARES PROJECT)

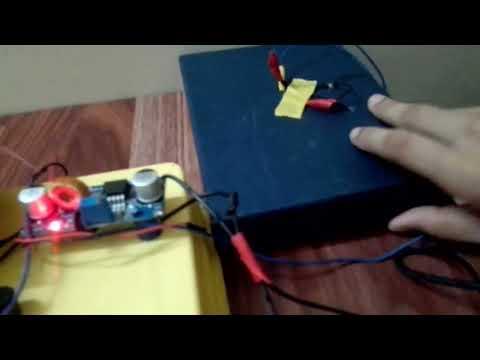

When the button is pressed , the system turns on. The UV LED starts glowing. The rays from the UV LED disinfects the object placed inside the chamber. It has a automatic cut off and the buzzer alarms when the sterilization process is over. I HAVE UPLOADED THE WORKING VIDEO PLS MAKE SURE TO WATCH IT
CONCLUSION
Due to its user friendly approach and the low cost involved, this appliance/project can be implemented successfully for everyday use.
COST EFFECTIVENESS
The product’s cost estimates around 1400-1500 rupees and has high durability which makes it affordable by common man.
IMPROVISATION IDEAS
• The system can be added 555 timer (integrated circuit). Using this, the users can set time for the disinfection.
• The lid sensor can be added to the lid of disinfection box. This ensures that the disinfection process only happens when the lid is closed.
• It can be powered by solar.
HOW THE PROJECT CAN BE USED
FOR TWO YEARS THE WORLD WAS SHOCKED WITH COVID 19 AND WE TOOK PRECAUTIONS LIKE WEARING MASK . BUT WE DID NOT TAKE ANY PRECAUTIONS OF DISINFECTING PUBLIC THINGS LIKE NOTES WHICH ARE CIRCULATED ALL OVER AND VIRUS CAN SPREAD. THIS DEVICE CAN DISINFECT NOTES AND MOBILE PHONES . IT IS A USER FRIENDLY DEVICE.
