USBASP Programming a ATMega328P With an 8MHz Internal Clock

by WWC in Circuits > Microcontrollers

16903 Views, 17 Favorites, 0 Comments

USBASP Programming a ATMega328P With an 8MHz Internal Clock

We will be programming a bootloaded ATMega328P with an Arduino sketch, In the Arduino IDE, but using an USBASP programmer not the Arduino board.

This similar to USBASP Bootloading.

You can use a breadboard for this or use something like what is used in this Instructable

For a great tutorial about programming a bread boarded chip, see Ladyada's.

My Hardware

My USBASP and my AVR target board.

How Is This Programmed?

These things seem daunting at first, but after you understand them then it's a piece of cake.

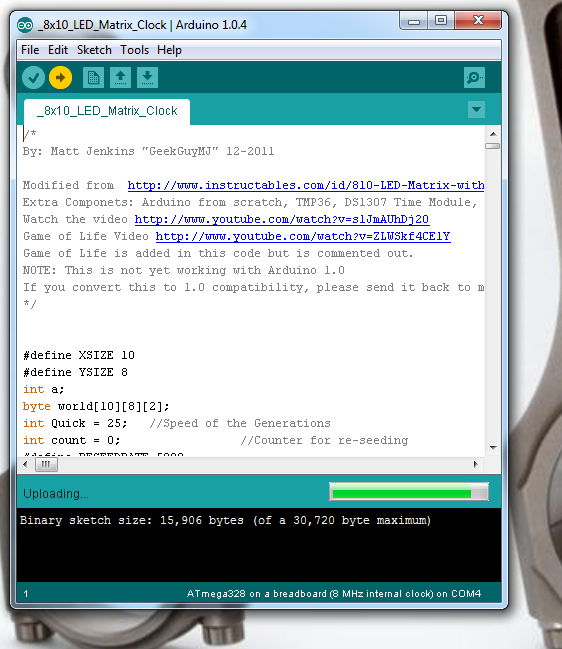

Please follow along with the pictures to see the programming procedure.
