USB Tiny Tools - Screwdriver
![IMG_8290.jpg](/proxy/?url=https://content.instructables.com/F4B/BF7C/JACTQFKU/F4BBF7CJACTQFKU.jpg&filename=IMG_8290.jpg)
![USB Tiny Tools - screwdriver](/proxy/?url=https://content.instructables.com/FC0/OCJZ/JACTUKNF/FC0OCJZJACTUKNF.jpg&filename=USB Tiny Tools - screwdriver)
This Instructables shows how to reuse old USB battery pack power some tiny tools.
Why?
![IMG_8269.jpg](/proxy/?url=https://content.instructables.com/FU9/AT2O/JACTQFKJ/FU9AT2OJACTQFKJ.jpg&filename=IMG_8269.jpg)
I found many old USB battery pack when I tidy up my room. It mostly come from gift and souvenir. Their capacity often very low, and mostly only can output 500 mA, It is hard to treat it as a backup battery for the current mobile. But I think the old USB battery still can power a bunch of tools.
The first tool I would like to make is a tiny screw driver. When I repairing my gadgets, I need to screw in and out tens of screws, but I don't want the high torque of a normal electric screwdrivers hurt the tiny screws. So I want to make a tiny screwdriver to help me the screwing work.
Prepration
![IMG_6017.jpg](/proxy/?url=https://content.instructables.com/FCB/MYGP/JACTQFK9/FCBMYGPJACTQFK9.jpg&filename=IMG_6017.jpg)
![IMG_8266.jpg](/proxy/?url=https://content.instructables.com/FPM/7AI1/JACTQFKH/FPM7AI1JACTQFKH.jpg&filename=IMG_8266.jpg)
![IMG_8271.jpg](/proxy/?url=https://content.instructables.com/F81/NCXW/JACTQFKL/F81NCXWJACTQFKL.jpg&filename=IMG_8271.jpg)
![IMG_8267.jpg](/proxy/?url=https://content.instructables.com/FMW/S82U/JACTQFKI/FMWS82UJACTQFKI.jpg&filename=IMG_8267.jpg)
![IMG_8270.jpg](/proxy/?url=https://content.instructables.com/FL9/FZG5/JACTQFKK/FL9FZG5JACTQFKK.jpg&filename=IMG_8270.jpg)

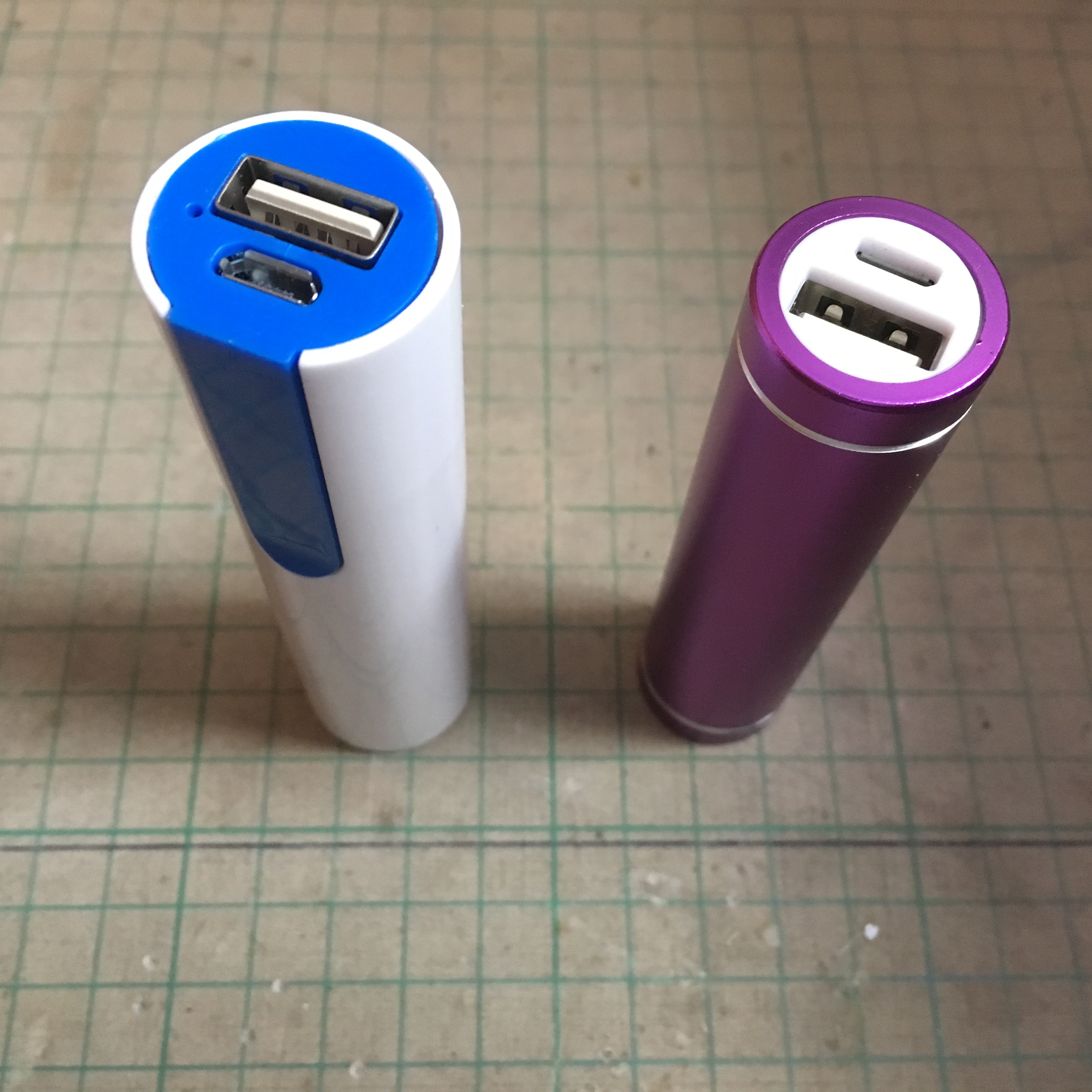

USB Battery Pack
Don't buy a new one, just find some in your drawers.
Interchangeable screwdriver set
something like this: https://detail.tmall.com/item.htm?id=520149044454

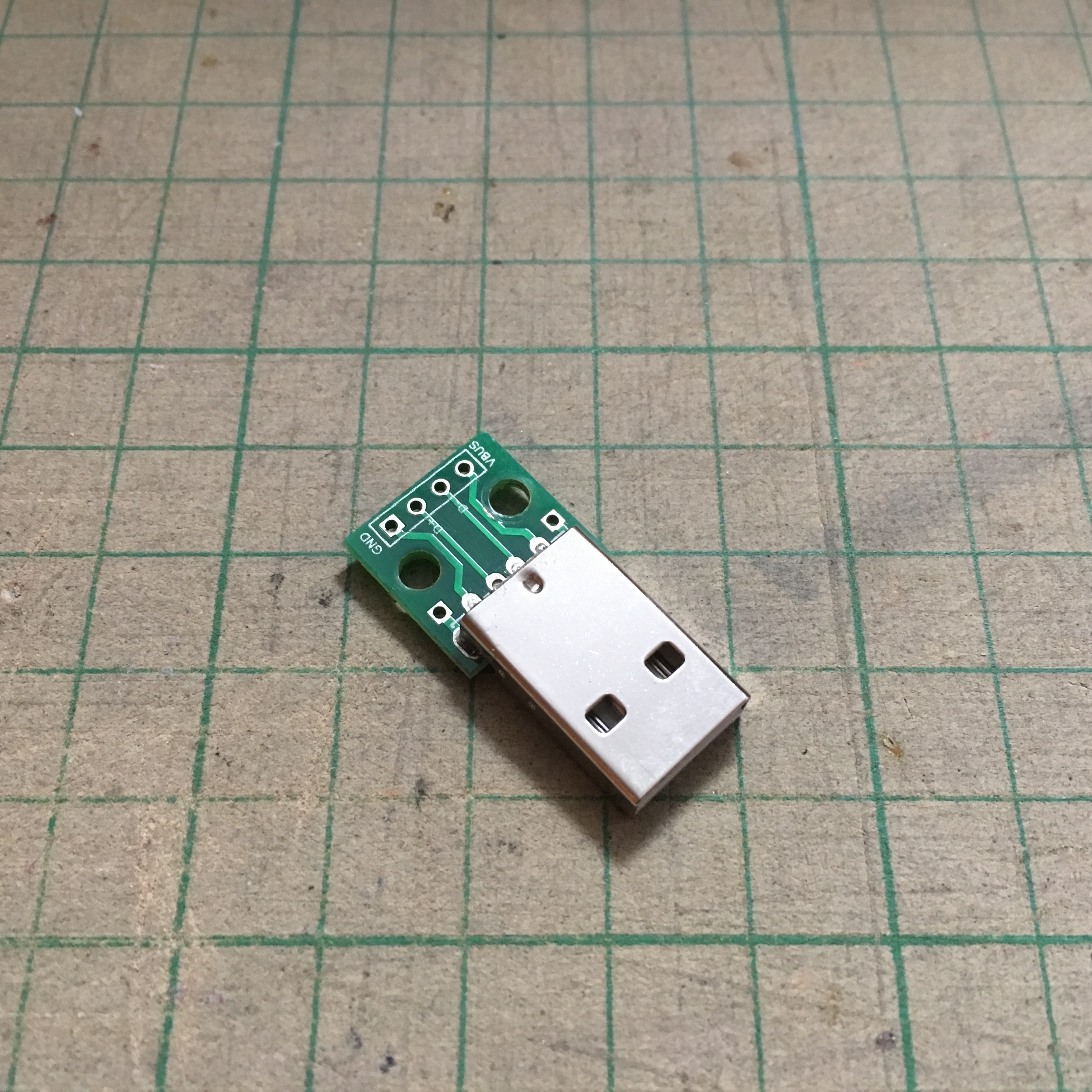

USB Type A male break out board
For getting USB power.

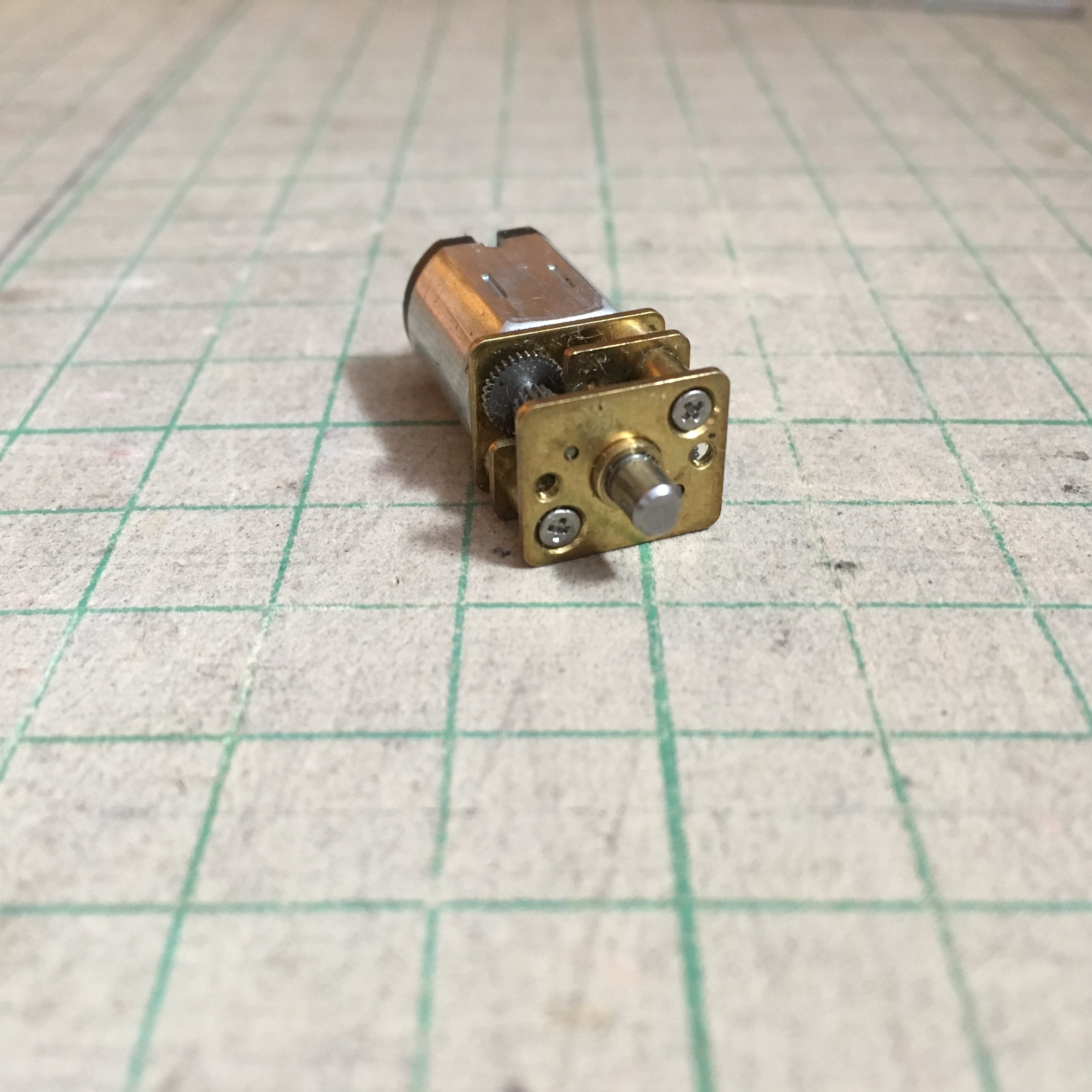

N20 Micro Metal Geared motor
1:298 gear, 3mm or 4mm D shape Axle.
Axle Shaft Coupler
The size depends on your screwdriver set adapter and motor Axle.

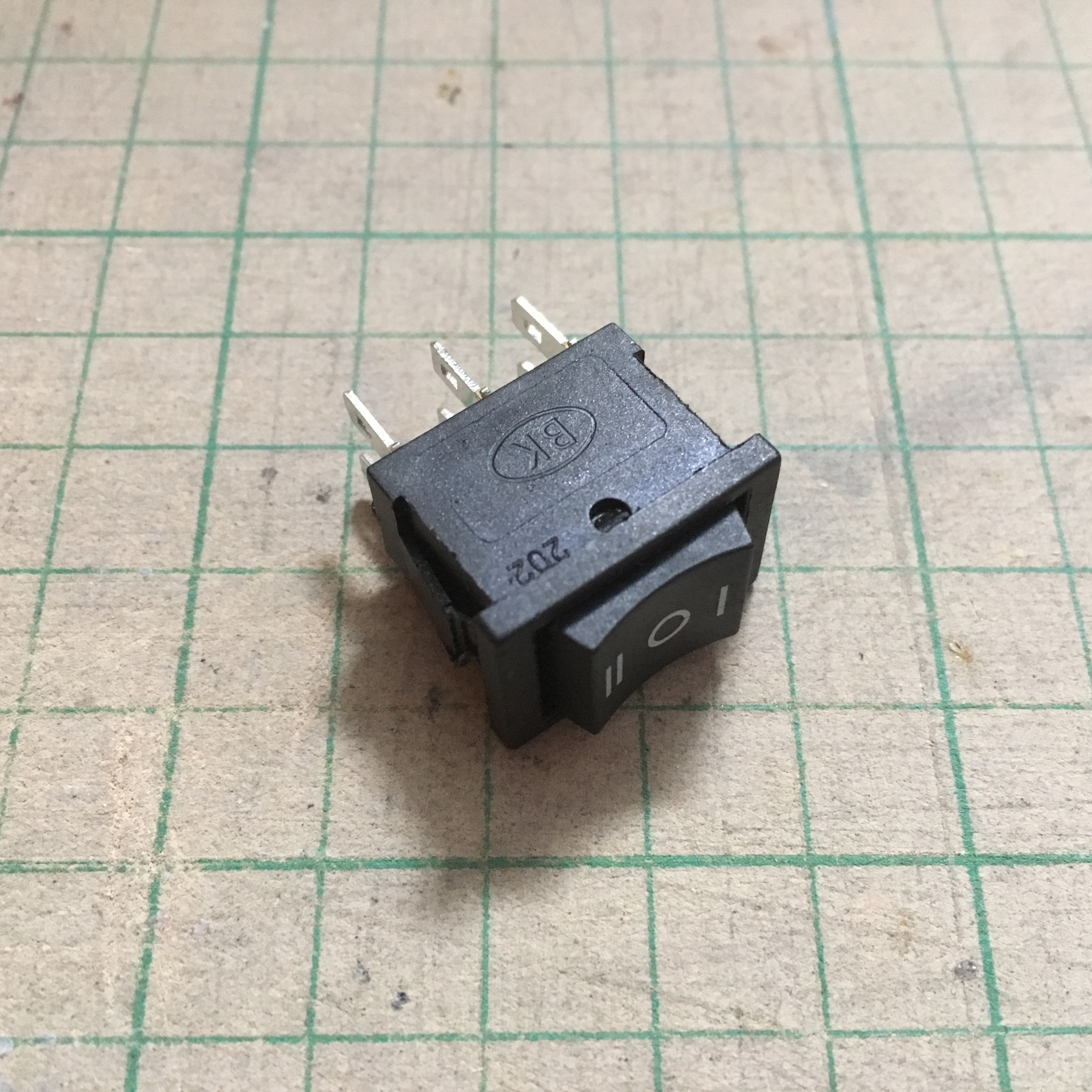

6 feet 3 files ship switch
For switching motor rotation direction.
Screws
2 M3 x 6 mm screw for fixing USB breakout board; 6 M3 x 8 mm screw for assembling the case.

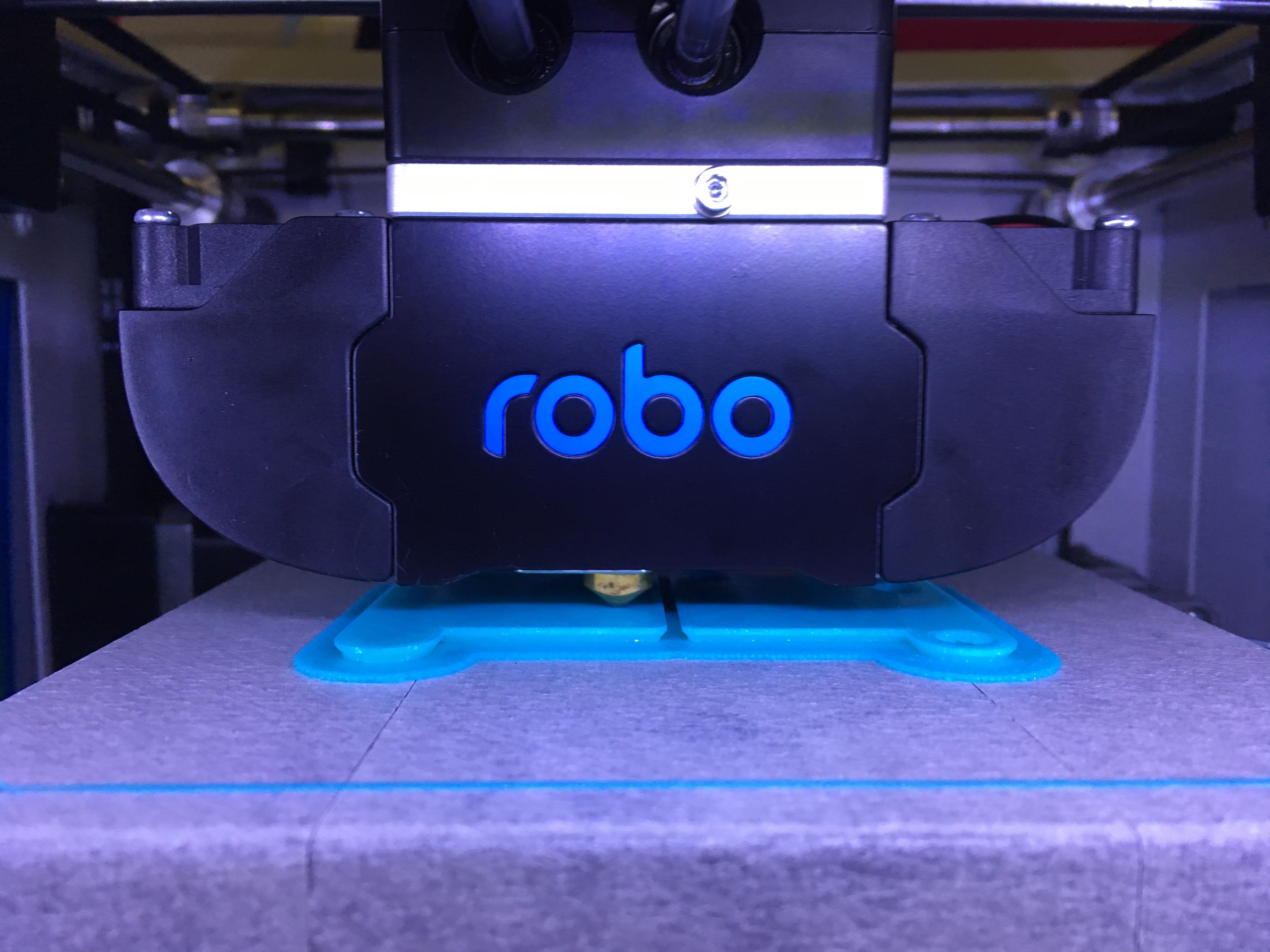

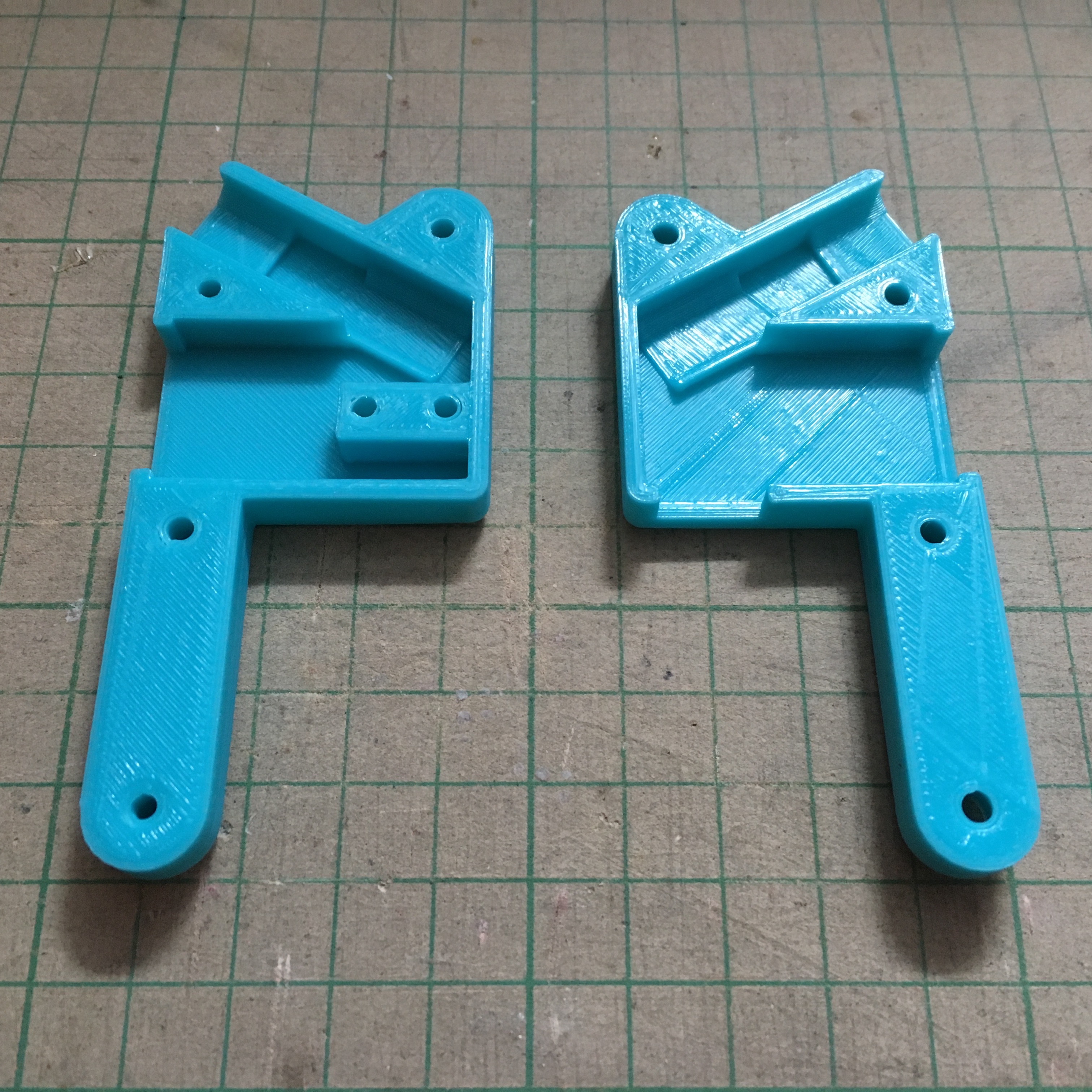

3D Print the Case
![IMG_8253.jpg](/proxy/?url=https://content.instructables.com/FAX/123J/JACTQFKC/FAX123JJACTQFKC.jpg&filename=IMG_8253.jpg)
![IMG_8264.jpg](/proxy/?url=https://content.instructables.com/F1R/7GLT/JACTQFKD/F1R7GLTJACTQFKD.jpg&filename=IMG_8264.jpg)
Just print both side, a and b, with your 3D printer default normal or low quality setting is good enough.
Patch Screwdriver Adapter
![IMG_6018.jpg](/proxy/?url=https://content.instructables.com/FJ6/P1WK/JACTQFKA/FJ6P1WKJACTQFKA.jpg&filename=IMG_6018.jpg)
![IMG_6019.jpg](/proxy/?url=https://content.instructables.com/F0B/AMFO/JACTQFKB/F0BAMFOJACTQFKB.jpg&filename=IMG_6019.jpg)
![IMG_8272.jpg](/proxy/?url=https://content.instructables.com/F30/5J9I/JACTQFKM/F305J9IJACTQFKM.jpg&filename=IMG_8272.jpg)

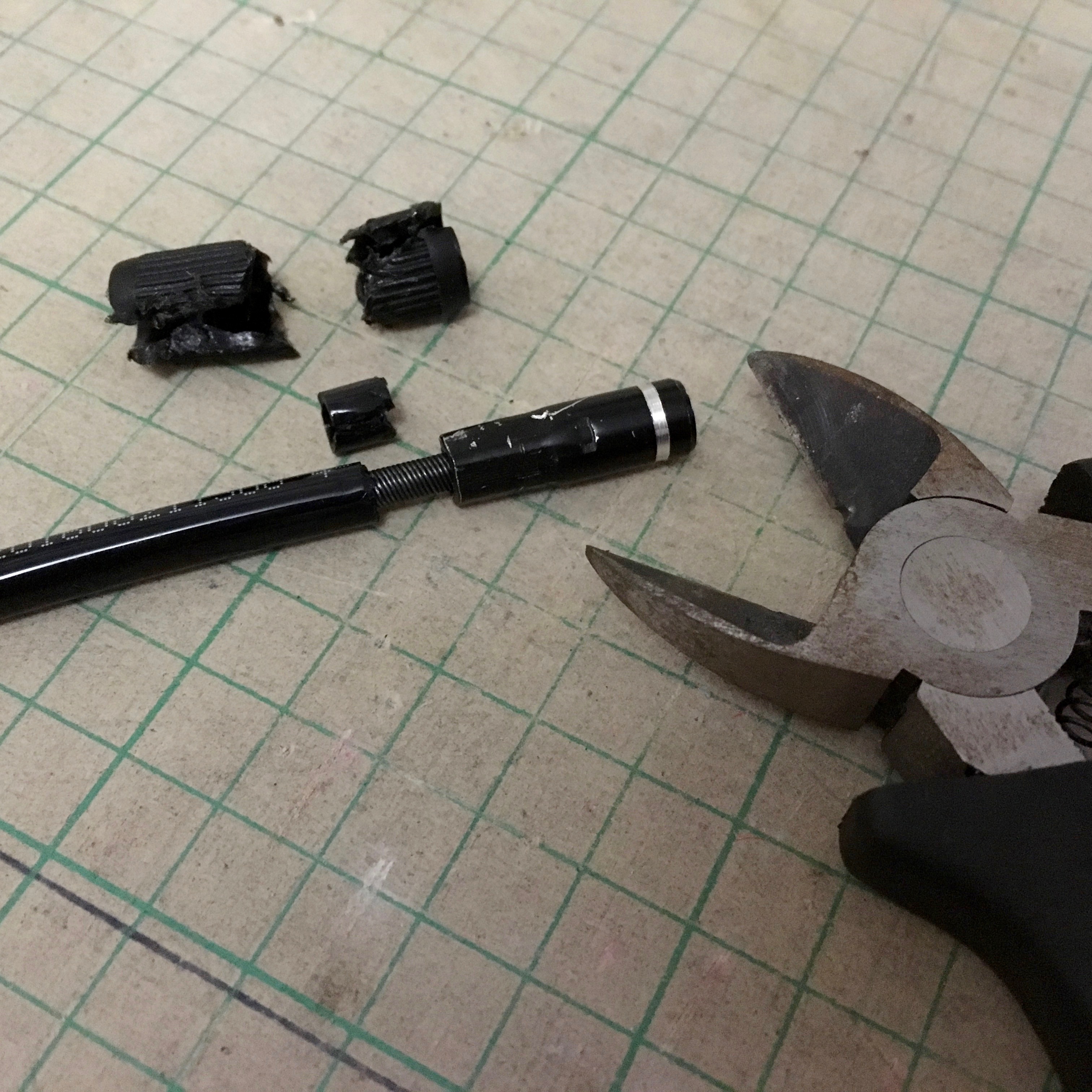

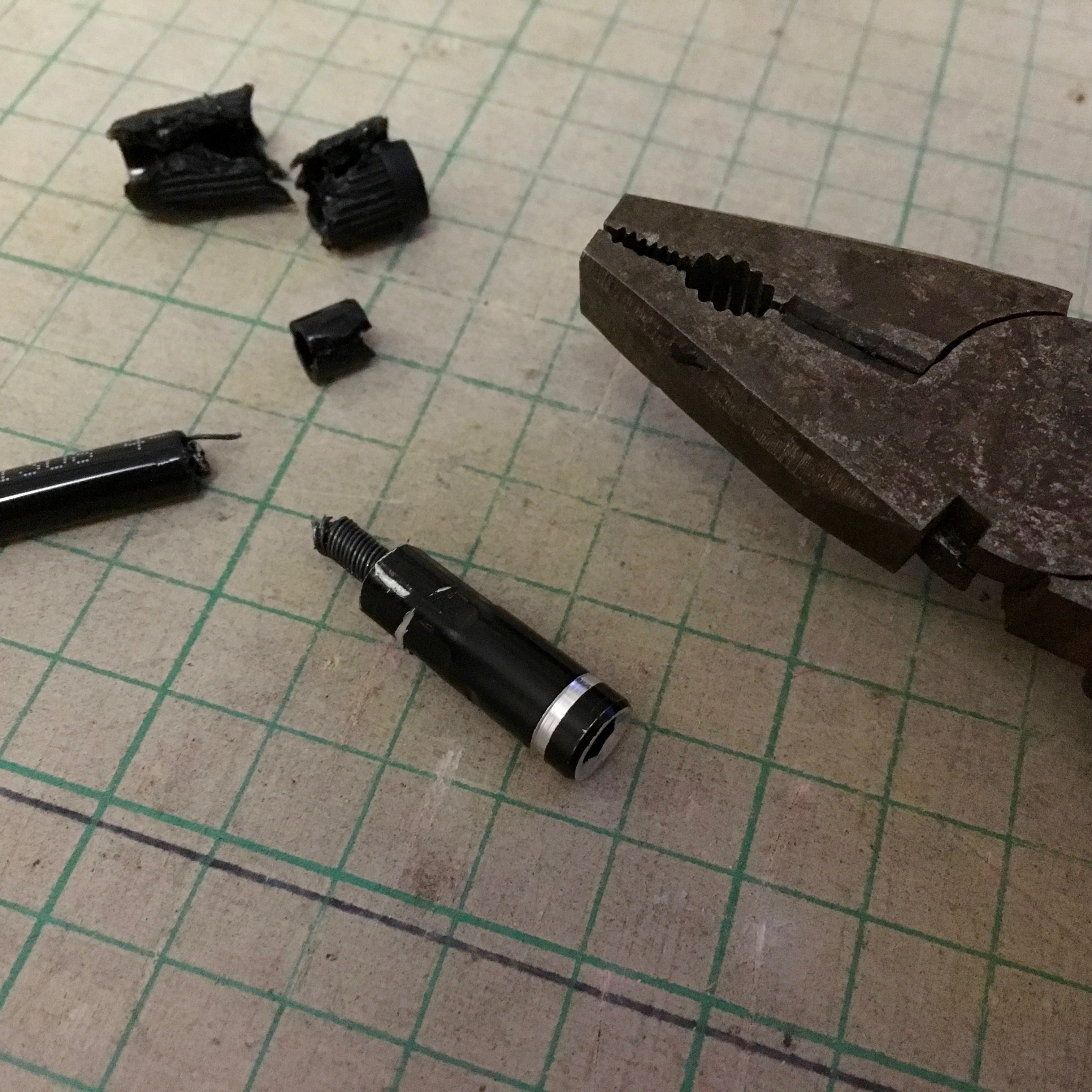

Cut the screwdriver adapter and connect it to the axle shaft coupler.
Connect Motor
![IMG_8265.jpg](/proxy/?url=https://content.instructables.com/F39/XYVW/JACTQFKG/F39XYVWJACTQFKG.jpg&filename=IMG_8265.jpg)
Connect the other side of axle shaft coupler to the Motor.
Soldering Work
![IMG_8273.jpg](/proxy/?url=https://content.instructables.com/FV3/3K9Q/JACTQFKN/FV33K9QJACTQFKN.jpg&filename=IMG_8273.jpg)

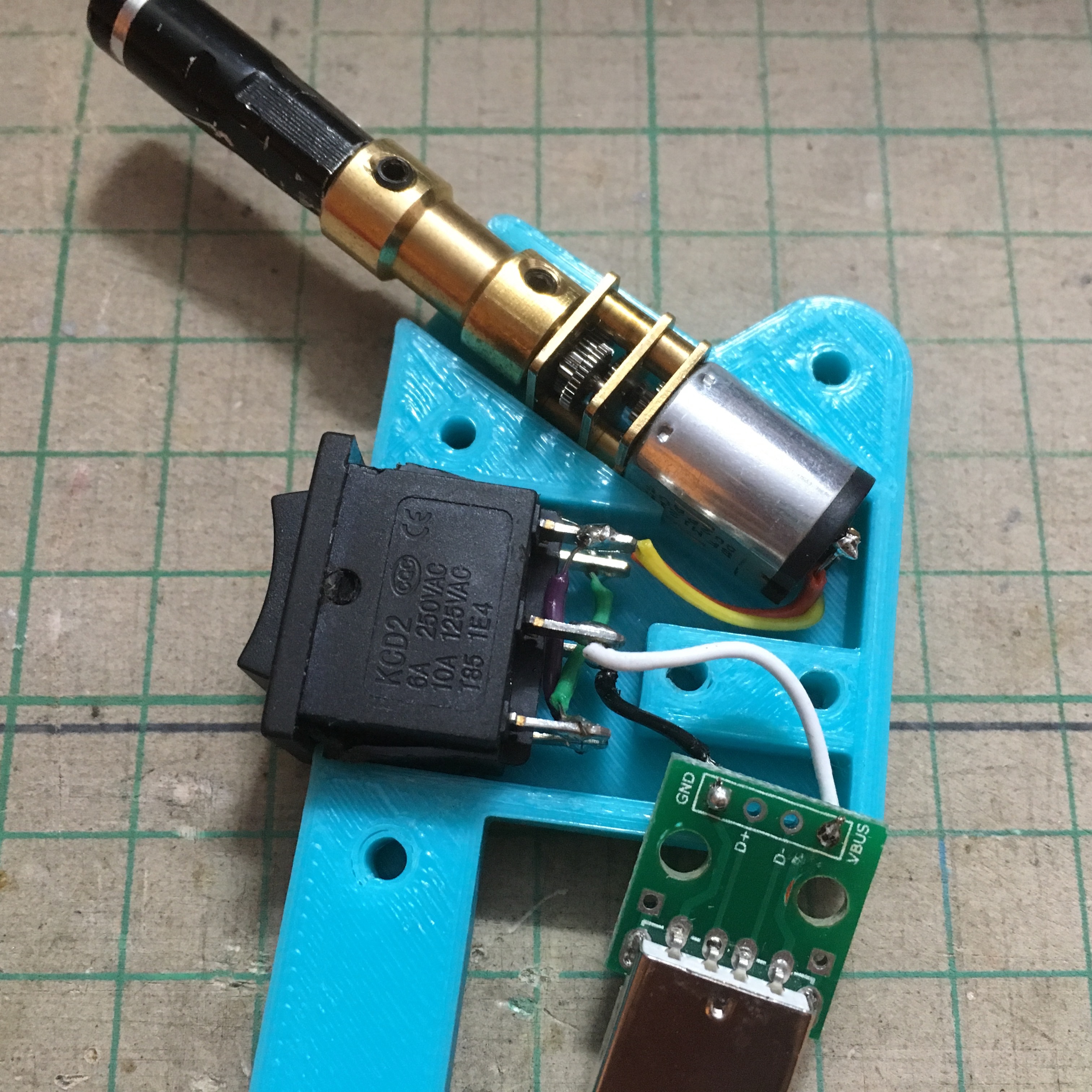

- Connect USB power to the ship switch middle feet
- Cross connect left and right side feet of ship switch to make a motor direction control circuit
- connect motor to the ship switch right side feet
Assembly Component
![IMG_8274.jpg](/proxy/?url=https://content.instructables.com/FDA/1JF5/JACTQFKQ/FDA1JF5JACTQFKQ.jpg&filename=IMG_8274.jpg)
![IMG_8275.jpg](/proxy/?url=https://content.instructables.com/FZ5/22GK/JACTQFKR/FZ522GKJACTQFKR.jpg&filename=IMG_8275.jpg)
- Put the motor and ship switch into the case side a.
- Screw in the USB break out board with 2 M3 x 6 mm screws.

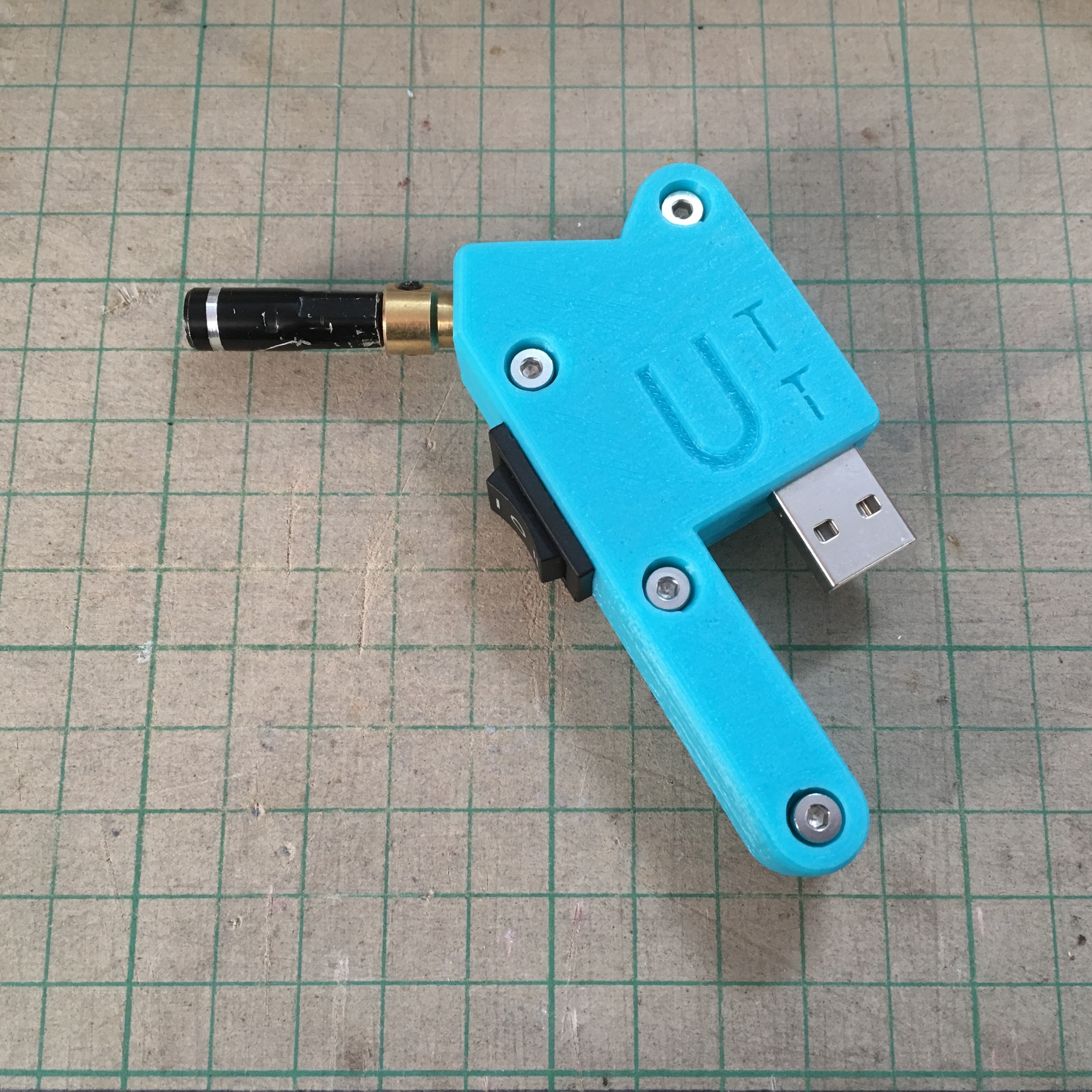

Assembly Case
![IMG_8276.jpg](/proxy/?url=https://content.instructables.com/F7P/E6S0/JACTQFKS/F7PE6S0JACTQFKS.jpg&filename=IMG_8276.jpg)
![IMG_8314.jpg](/proxy/?url=https://content.instructables.com/FTB/IPLR/JACTV92B/FTBIPLRJACTV92B.jpg&filename=IMG_8314.jpg)
- Put case side b on the side a.
- Screw in 4 M3 x 8 mm screws.

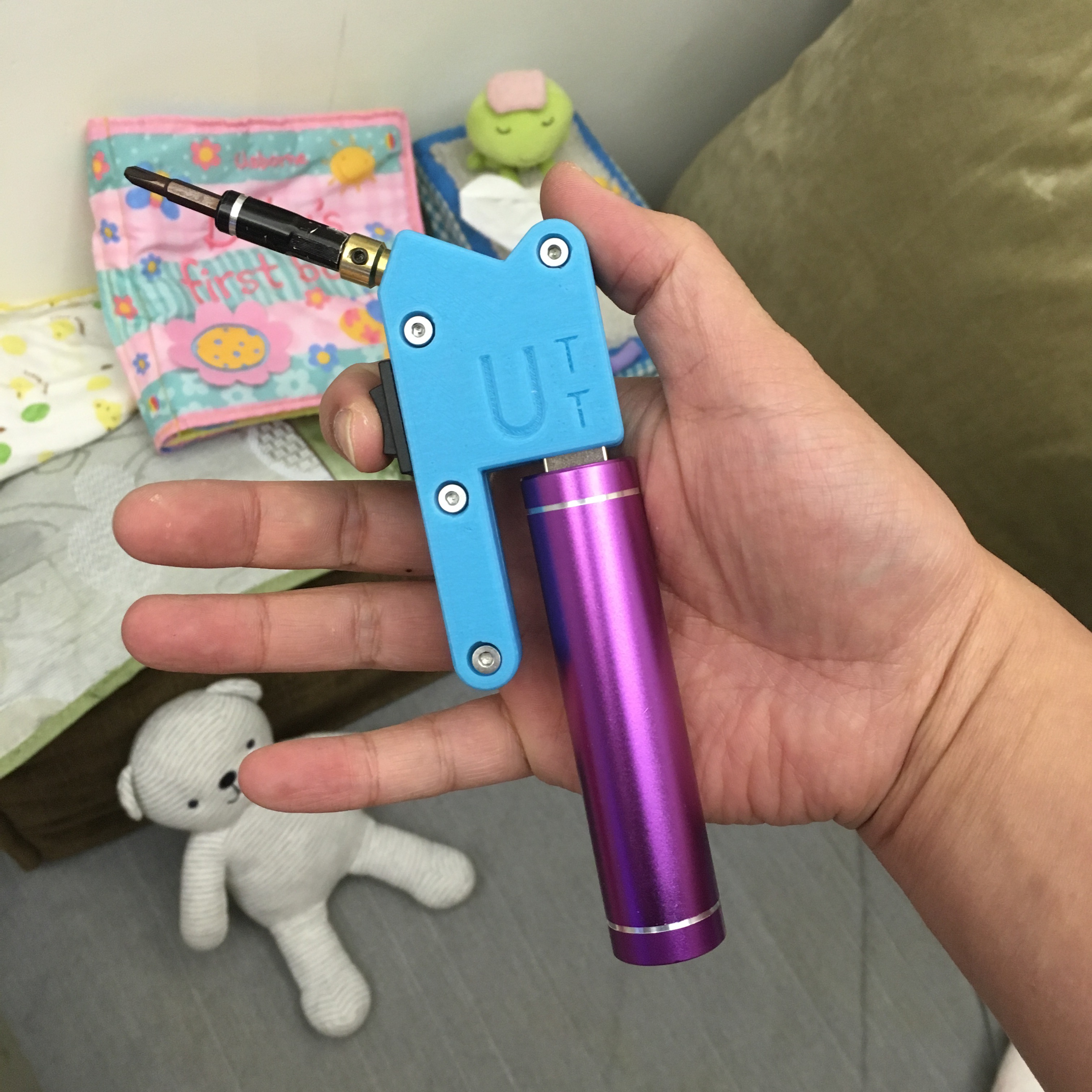

Plug USB Power
![IMG_8288.jpg](/proxy/?url=https://content.instructables.com/FJS/EW3L/JACTQFKT/FJSEW3LJACTQFKT.jpg&filename=IMG_8288.jpg)
![IMG_8316.jpg](/proxy/?url=https://content.instructables.com/FHY/UIFC/JACTV93X/FHYUIFCJACTV93X.jpg&filename=IMG_8316.jpg)
You may:
- Direct connect the tiny screwdriver to the USB battery pack.
- If the battery too big, you may connect with a USB extension.
- If you do not have a battery pack, you may connect it to a USB power adapter
Happy Fixing!
Now you have a tool help you screw in and out tens of screws!
