USB Spy Shirt

..................................................................................................................................................................................

I always thought it would be cool to have a button camera on my shirt so I could secretly record whatever I wanted to. I mean the possibilities are endless: gathering evidence, blackmail, private investigation, blackmail, research, blackmail.

Unfortunately, some of those little cameras cost up to $300. So whats a broke engineering student to do, you ask? Why not whip something up from some of the stuff I already have.

Materials

1. Laptop
2. Laptop bag

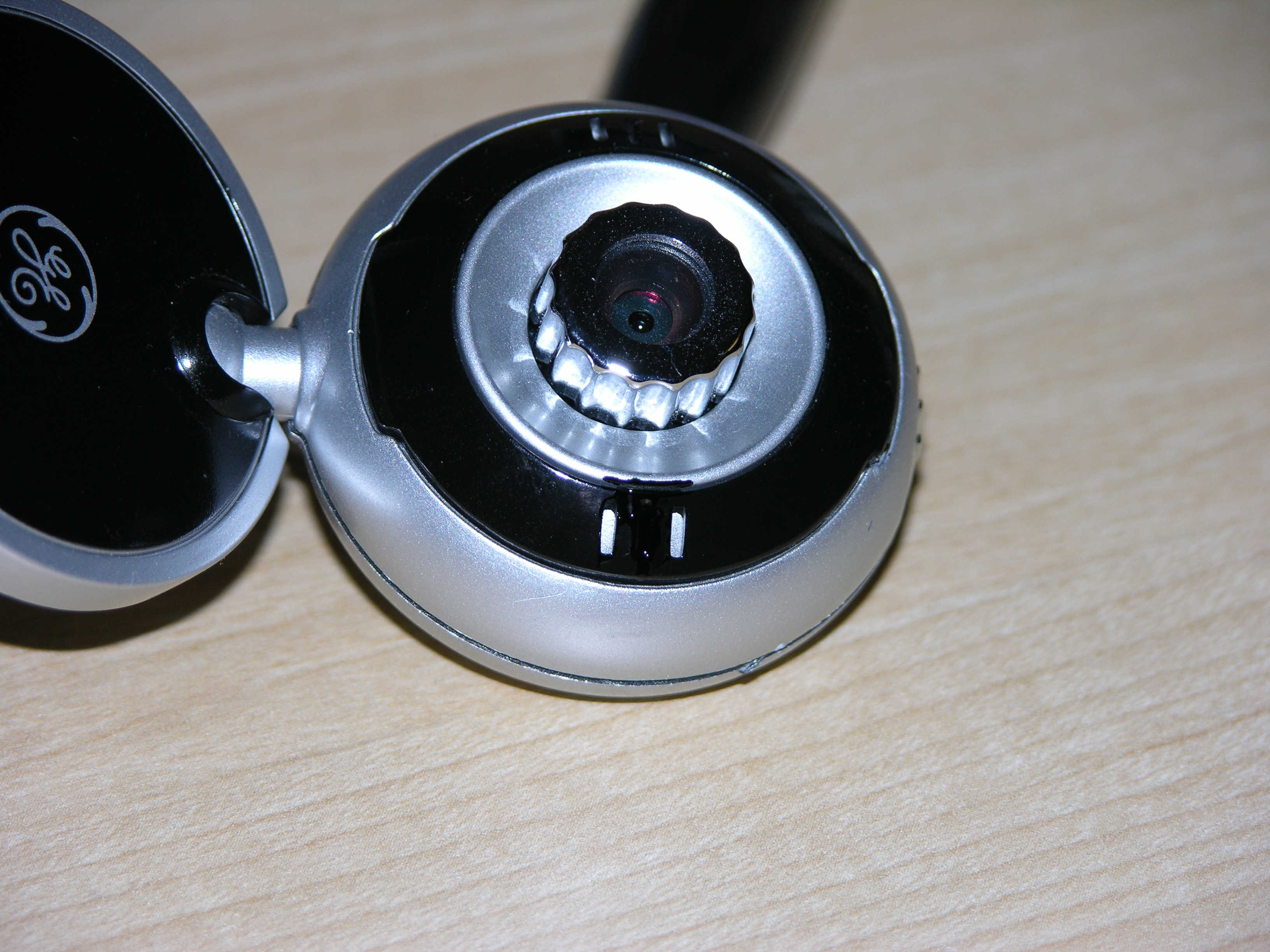

3. Laptop USB camera, the smaller the better, and it should have at least a 4 foot cord. I used the GE camera shown in the picture below.
4.Shirt with black buttons. (A dark color shirt is best)
5. Scissors or a knife

Prepare the Camera

To prepare the camera you must remove all nonessential parts in order to slim down size.

For my camera this included removing the plastic case and the clip. Without those pieces the final camera size was down to about an inch square and a centimeter tall. Try to get the size of your camera as small as possible so it can be easily hidden.

Prepare the Shirt

Find the button location that will provide the best vantage point for the camera. For my shirt it was the first button under the collar button.

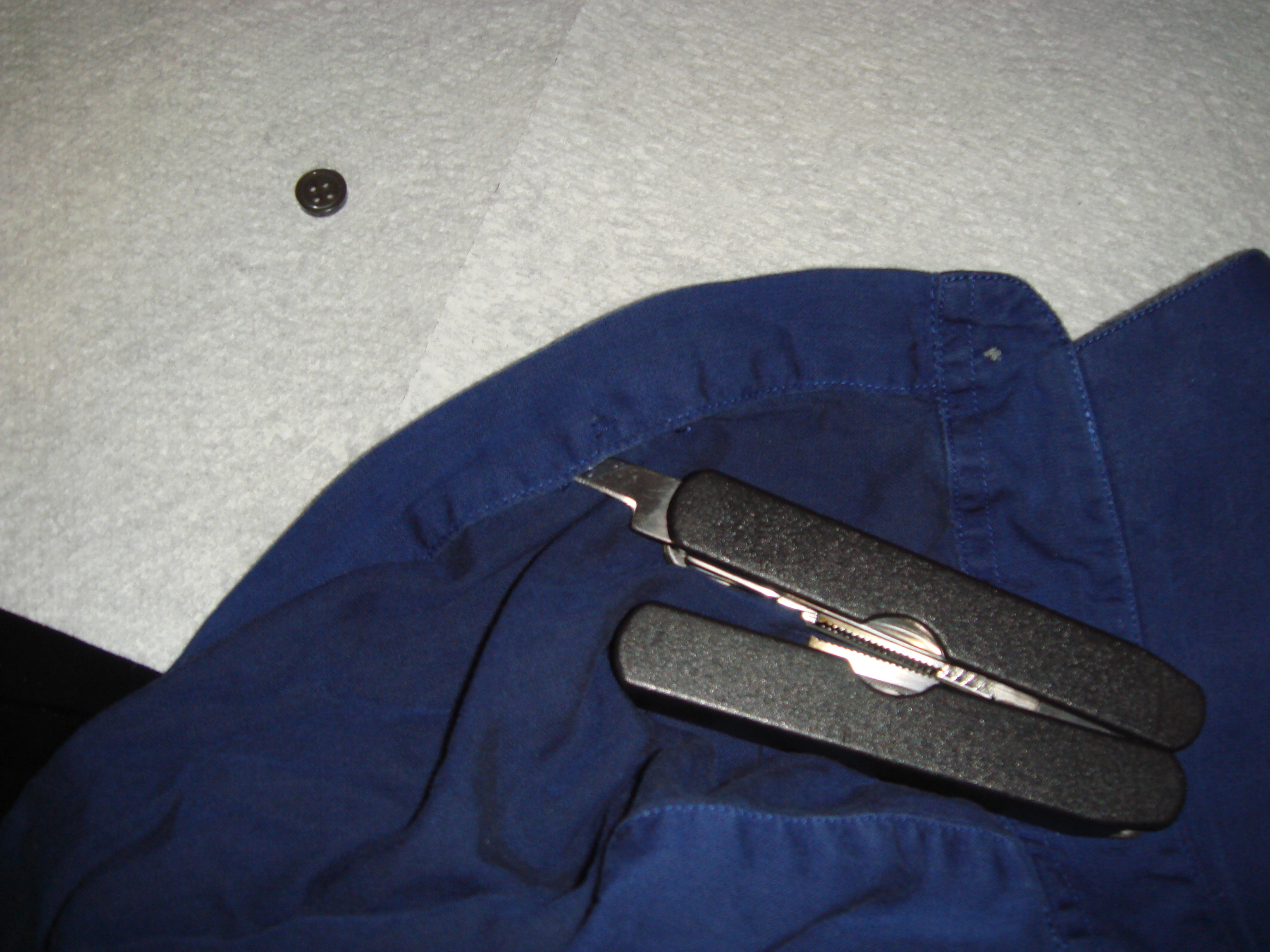

Cut off that button. On the inside of the shirt cut a hole through the hemming, this will provide an area for the camera to rest. Then cut another hole for the lens of the camera to stick through. The hole in the hemming is so that the USB cord can be woven around the buttons.

Combine the Camera and the Shirt

If it is possible for you to fit the USB plug around the buttons inside the hem, then all you need to do is push the plug down through the hem and cut a hole at the bottom for the plug to come out of.

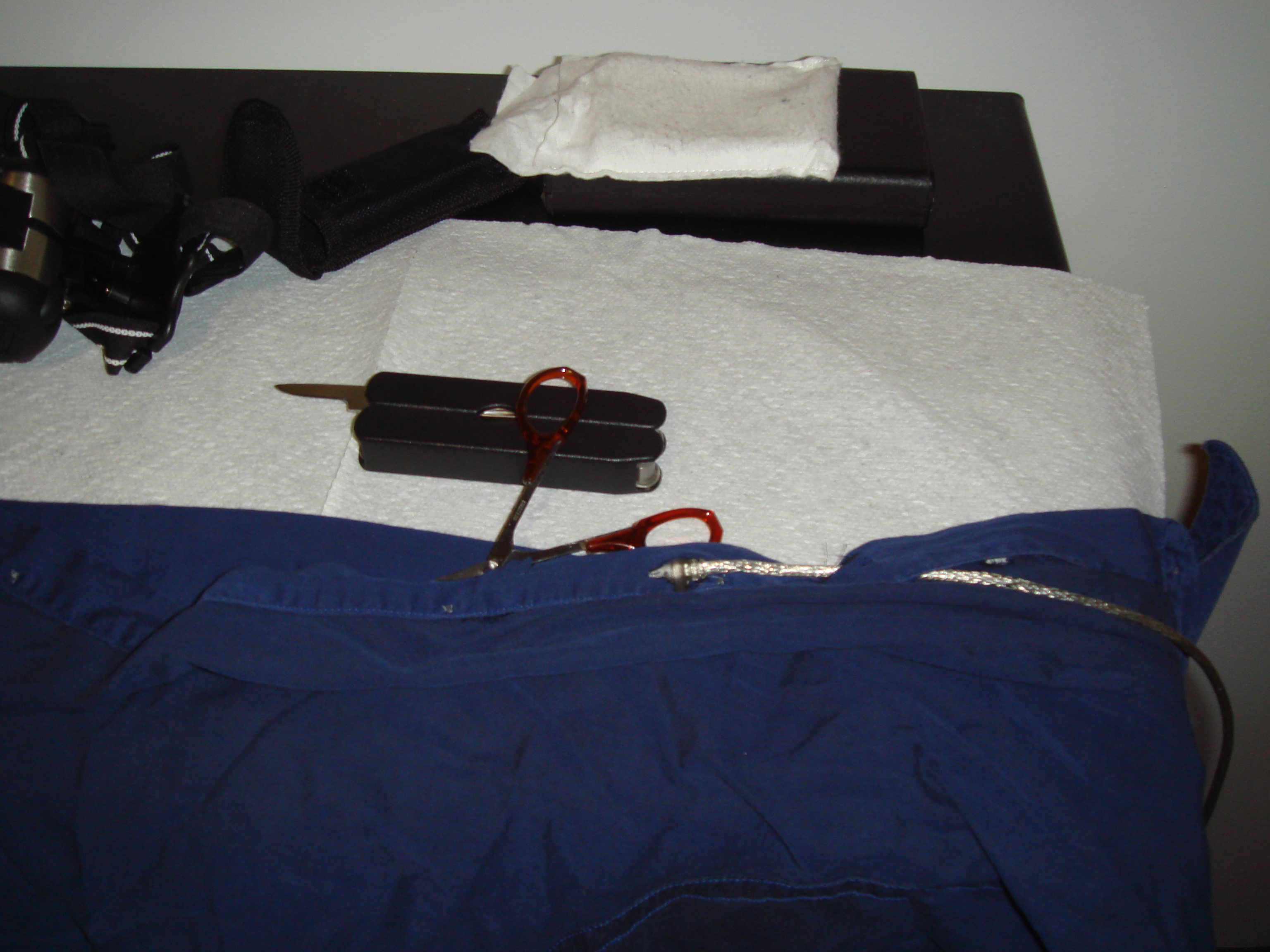

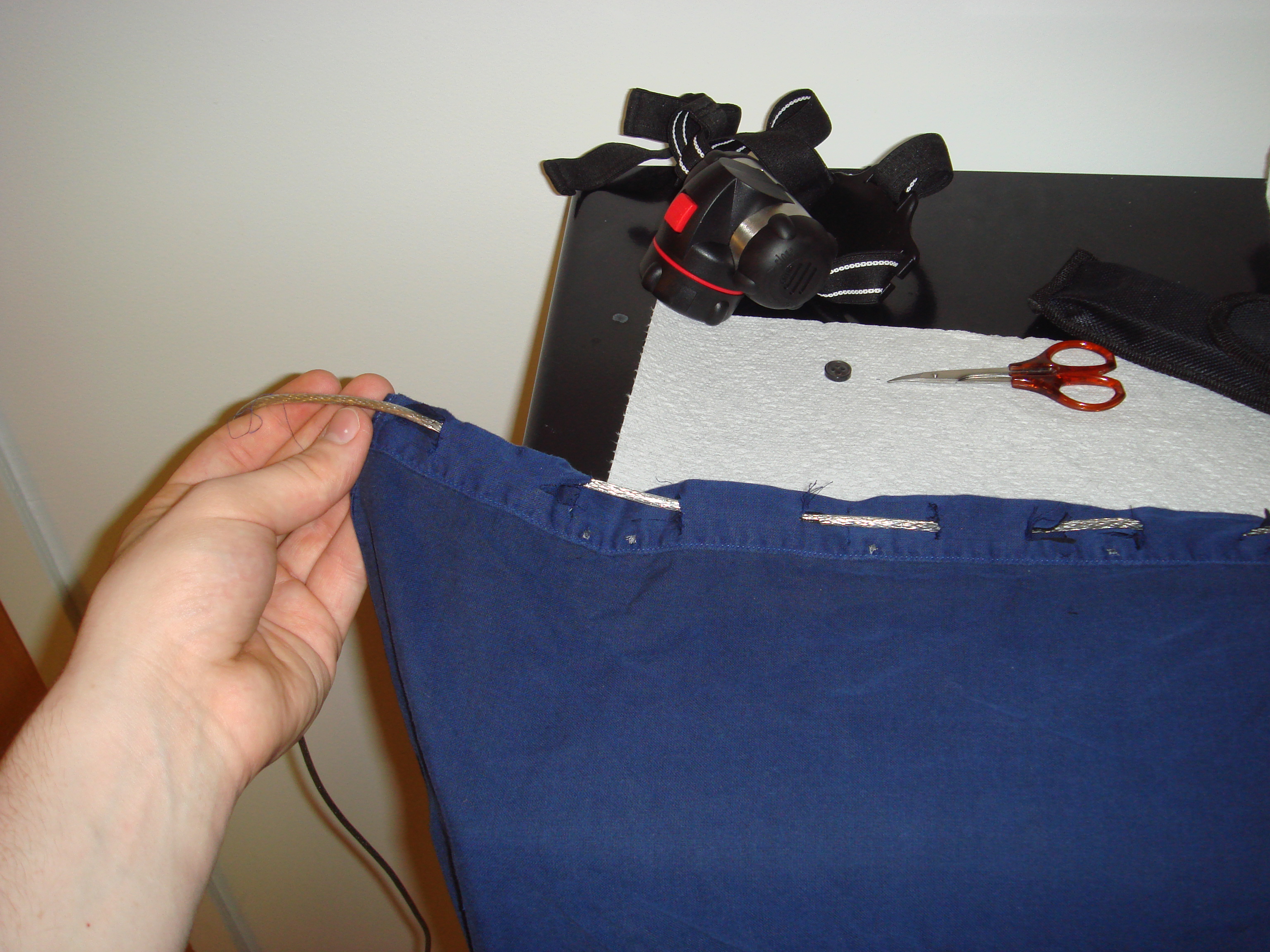

Otherwise you can either sew the cord to the inside of the shirt, or cut holes in the hem around the buttons, and weave the cord in and out.

Once the entire length of cord is through the shirt.

Add the Laptop and the Bag

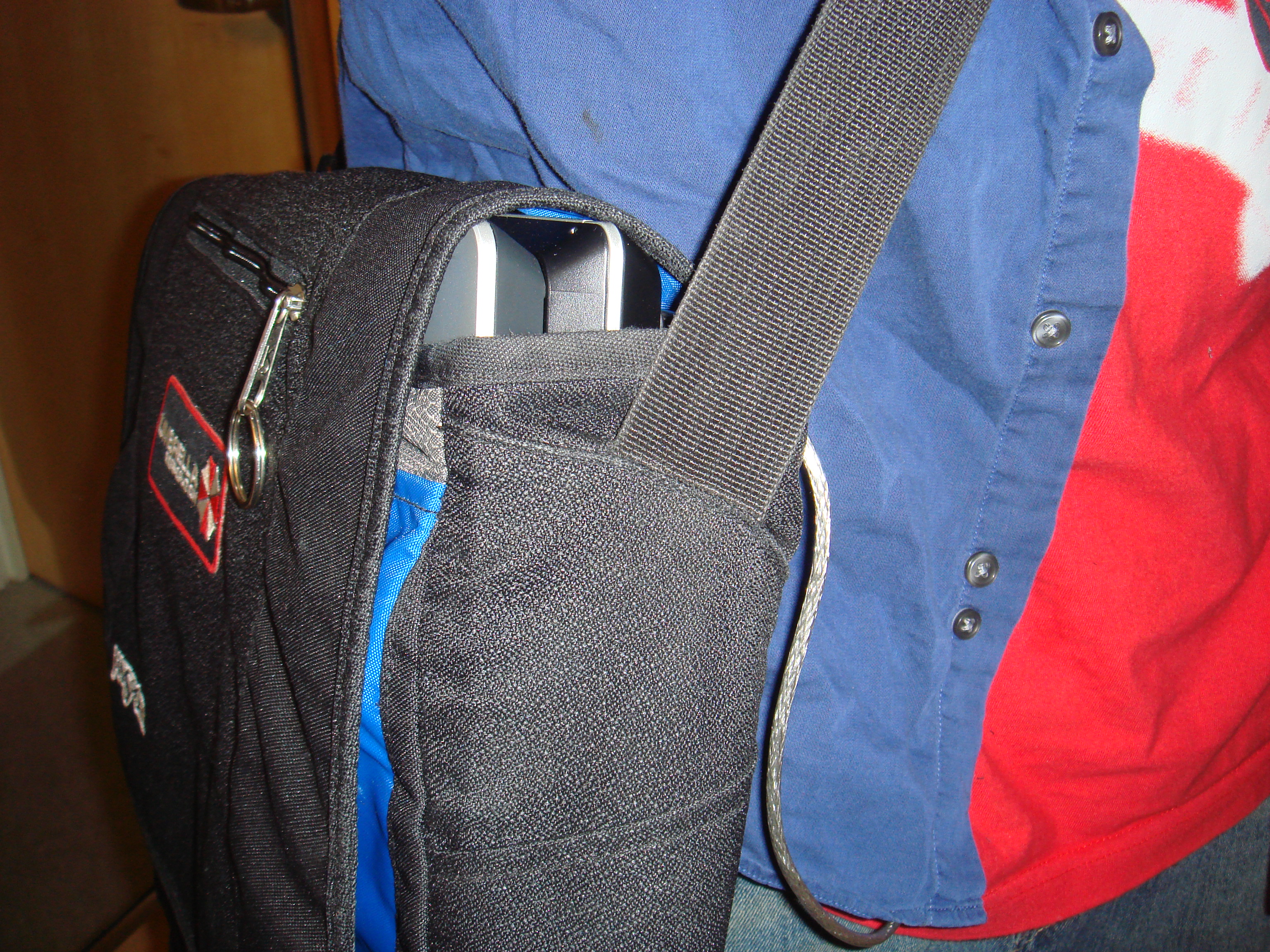

I choose this light messenger bag instead of the padded one that came with my laptop because it provides better air circulation. Remember: The laptop is going to be turned on inside the bag so if your laptop runs particularly hot, you might be at risk of overheating.

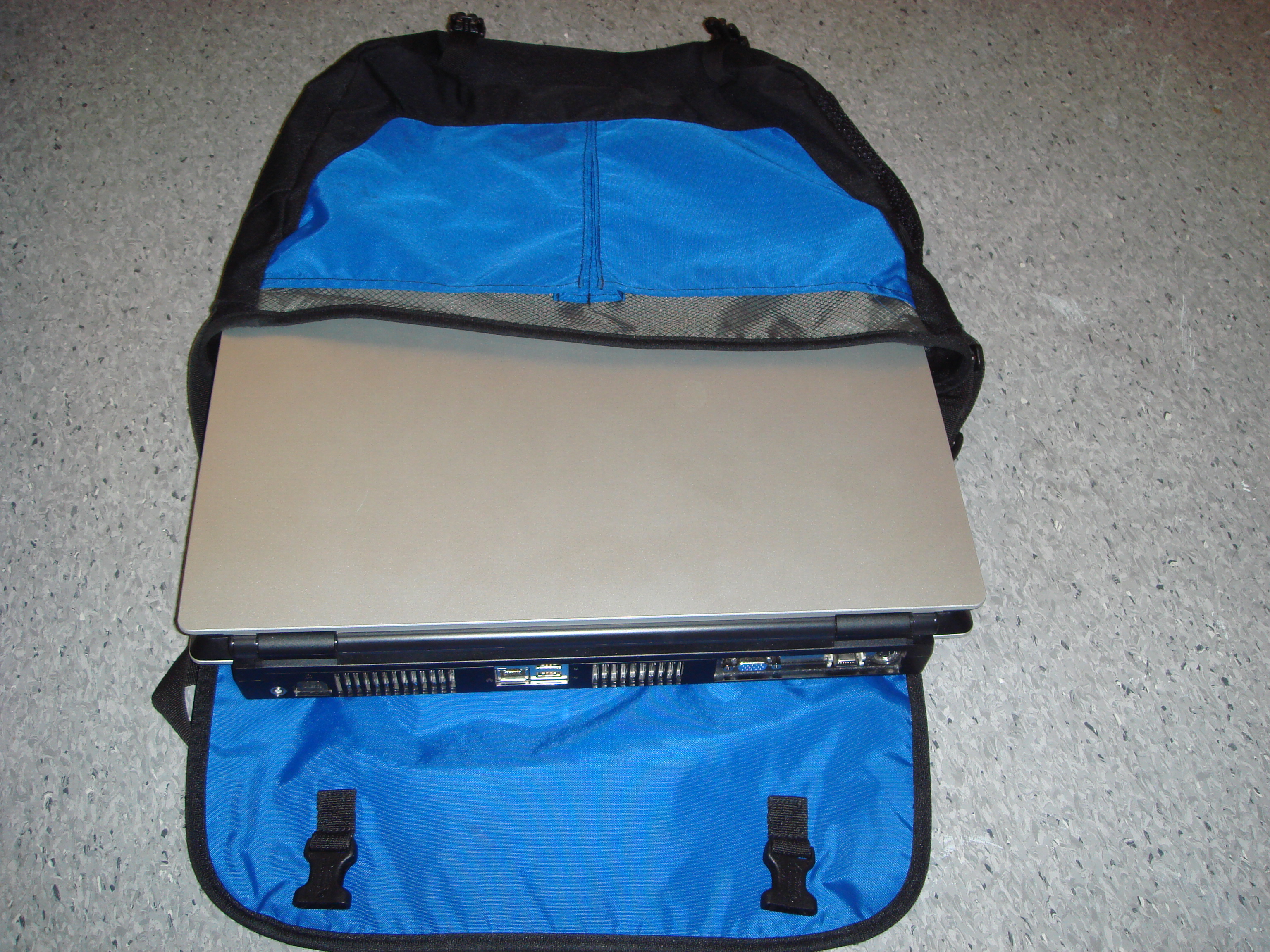

Place the laptop in the bag with the USB ports facing the side closest to where the cord comes out of your shirt.

Record

Use a camera recording software such as vision gs to capture video from your USB spy shirt.

Possibilities

The possibilities for this project are vast.

The most interesting thing I can can think of right now would be to use my schools wifi network to wirelessly broadcast the signal online. It could then be used like a live video blog where people see everything going on in my life.
