USB Powered Keyboard Light

by Arduinonator in Circuits > USB

2447 Views, 9 Favorites, 0 Comments

USB Powered Keyboard Light

2013-03-04 22.10.06.jpg
  You will need:
- A regular male USB  x1
- A 5mm bendy straw  x1
- A 5mm  white  LED   x1
- 270 ohm resister       x1
- scrap wires
 Tools:
- Soldering iron
- Glue gun
- Electrical tape
- Heat shrink tubing
- Scissors
- Hobby knife

Step 1

2013-03-04 21.03.21.jpg
2013-03-04 21.04.00.jpg
2013-03-04 21.07.58.jpg
 Get the USB, and peel the rubber off the USB with a hobby knife.

Step 2

2013-03-04 21.10.10.jpg
2013-03-04 21.53.56.jpg
Strip the wire down to just the black and red wire.
And solder onto pieces on the red and black wire.
Remember to heat shrink the wires.

Step 3

2013-03-04 21.23.39.jpg
2013-03-04 21.59.12.jpg

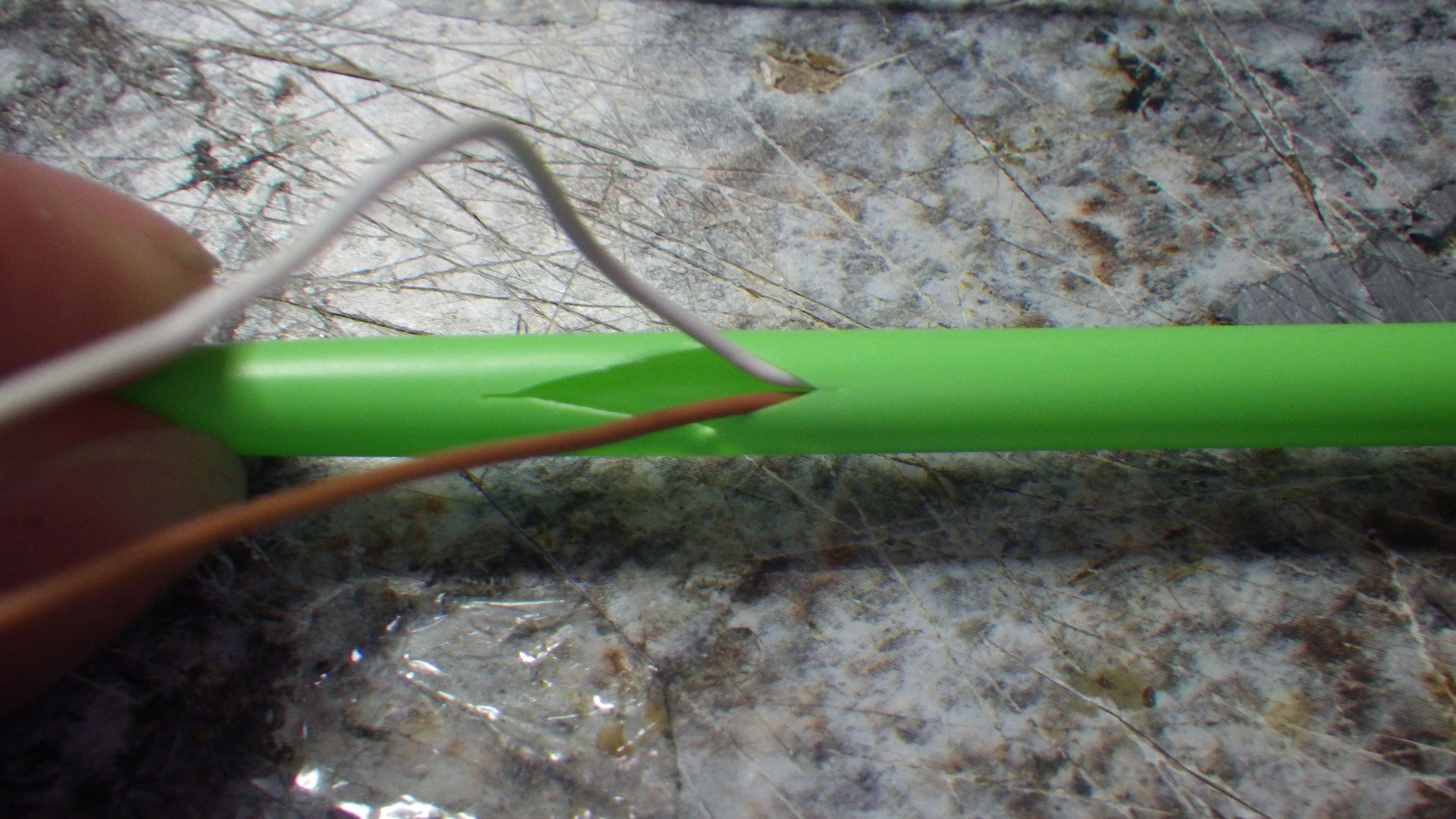

Get a straw out and make a hole in it three cm from the bottom.
Then push the wires you just soldered in the hole.

Step 4

2013-03-04 21.18.46.jpg
2013-03-07 16.20.56.jpg
2013-03-04 22.06.08.jpg

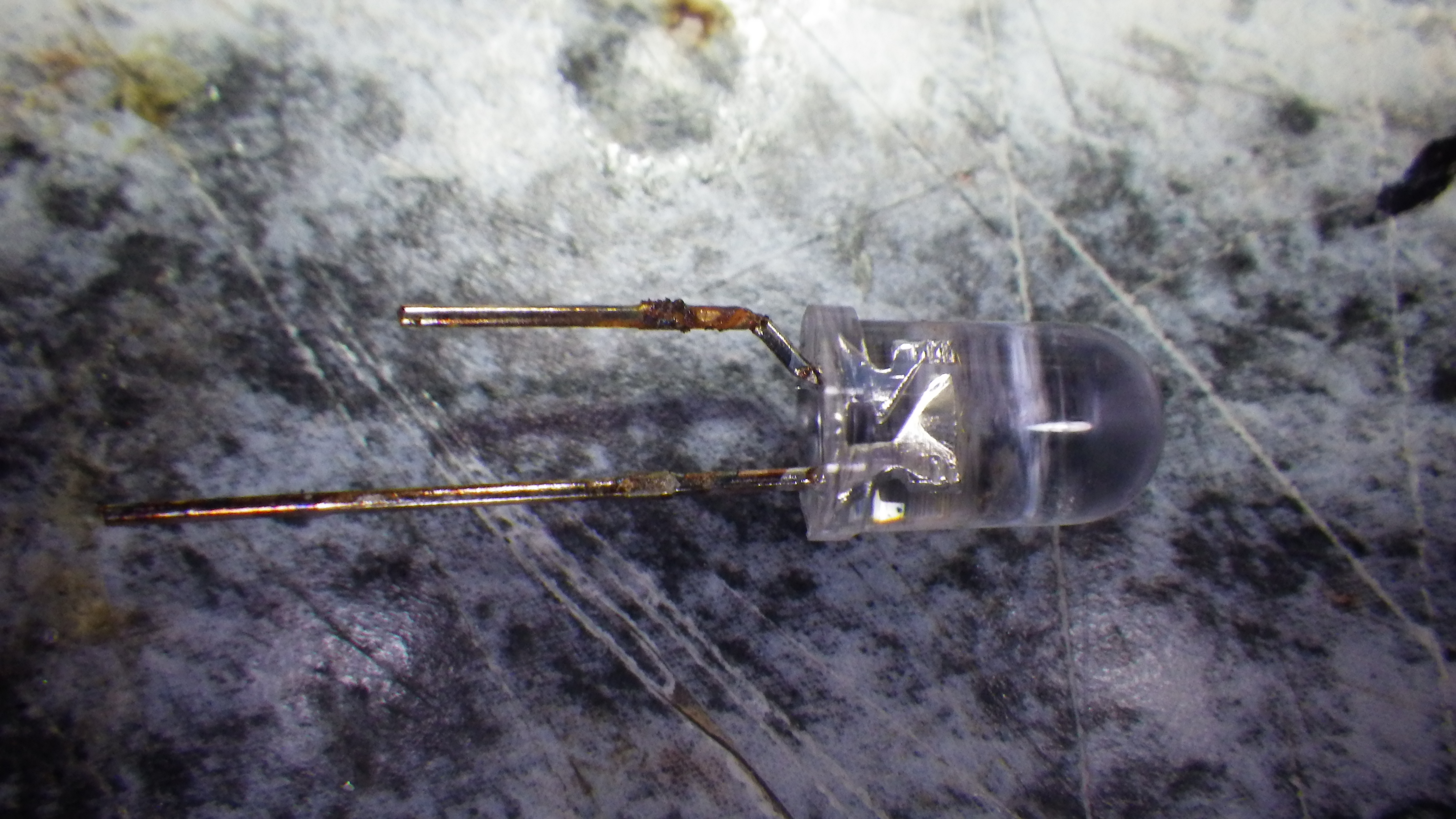

Solder a 270 ohms resister in series on one of the legs on the LED.
Now solder the Led to the wires.
The long tap shoud connect to the black wire, and the short to the red.
Remember to heat shrink the solder joints.
And test the light.

Step 5

2013-03-04 22.08.33.jpg
2013-03-04 22.09.15.jpg
2013-03-04 22.10.06.jpg
Now fasten the straw to the USB and the LED with the glue gun.
Also wrap some electrical tape around the hole where the wires are pushed through.

Now type in the dark: )
