USB Power Port in Your Car

This instructable I will show you how I used a cheap USB power supply that plugs into the 12v cigarette lighter in your car and turned it into a factory looking USB power slot.

The purpose of my build was to facilitate charging my phone that that I mount on the corner of the windscreen while driving. Since there is no power supply on that corner, the charging cable was draped across the steering wheel and was a bit untidy.

For my phone, a 1Amp charger was enough, but you can use any that fits.

For this mod you will need :
Material:
A 12 v plug in USB charger 1A or greater
Fuse splice kit to suit your vehicle
Additional 2Amp fuse
Insulated wire - 16-18gauge

Of course you need a car preferably with a blanked switch housing where you want your power supply. Mine is a 3rd generation 4 runner.

Tools:
Small screwdriver
Soldering iron and solder
Dremel - engraving and sanding bit, cutting wheel
Spanner -10mm
Drill- 1/16drill bit
Hot glue gun

First - take apart the USB power supply. The one I got had one small screw at the front and a metal band at the back.

Undo the front screw and put aside the face plate.

Undo the metal band , open the housing and take the board out. There is usually a spring or fuse connected to the + terminal. The negative terminal are the metal straps that compress in the outlet if the plug were used as it should.

Remove the switch blank from the car and put aside.

Using the face plate as a template, measure up against the switch blank for fit.

Use the USB circuit behind the blank to check for fit.

Once determining it can work, mark out cuts on the face plate so it mounts on the back of the switch plate.

Cut USB faceplate so it fits snug against the back of the switch blank.

Trim the blank where needed, but keep within the outer raised edge of the blank, keep in mind where the faceplate mounting screw goes.

Mark out the opening for the USB, led light if you have one and the faceplate mounting screw. The faceplate acts as a stencil , so it should be easy .

I screwed the face play to the back of the switch for ease, but you can remove it after marking.

Using the dremel trim out the plastic from the back. Do not go straight through , but get as close to it as you can.

Drill out holes for the led and faceplate screw.
Remember the head of the screw is small so keep the tolerance tight.

Mount plastic backing to the faceplate and trim housing to allow it to fit behind the switch blank.

Offer it up for fit on the car.

Once everything fits , put the USB board in the plastic housing ,

Solder wire from the ground (-) the springy bands or the - terminal on the board. I removed the springs altogether and went straight to the board

Solder wire to the (+) terminal on the USB board. The pointy end of the charger.

Reassemble the housing with the switch blank in place.

Using the fuse splitter - install the 2amp fuse on the tap.

Find the accessory fuse on the inside fuse panel. You can u do the battery terminals , but it's not really necessary.

Connect the (+) wire from the charger to the fuse splitter . Do not plug in to the fuse box !!

Connect the (-) wire to ground - any bolt or score that firmly tightens to the body of the car will do. You may need to have spare wire to reach an inconspicuous place, I used the bolt just under the fuse panel.

Make sure there are no exposed wires on the (+) connection!!!!

Find the accessory (acc) fuse. With the keys out of the ignition, pull the fuse and install it in the fuse splitter.

Plug the splitter in place on the fuse panel.

Double check your wiring, once your comfortable - adda bit of hot glue to stick the housing to the back and seal up the wiring coming out of the USB housing.

Turn the ignition to acc- your USB should work. If it doesn't - check the wiring .

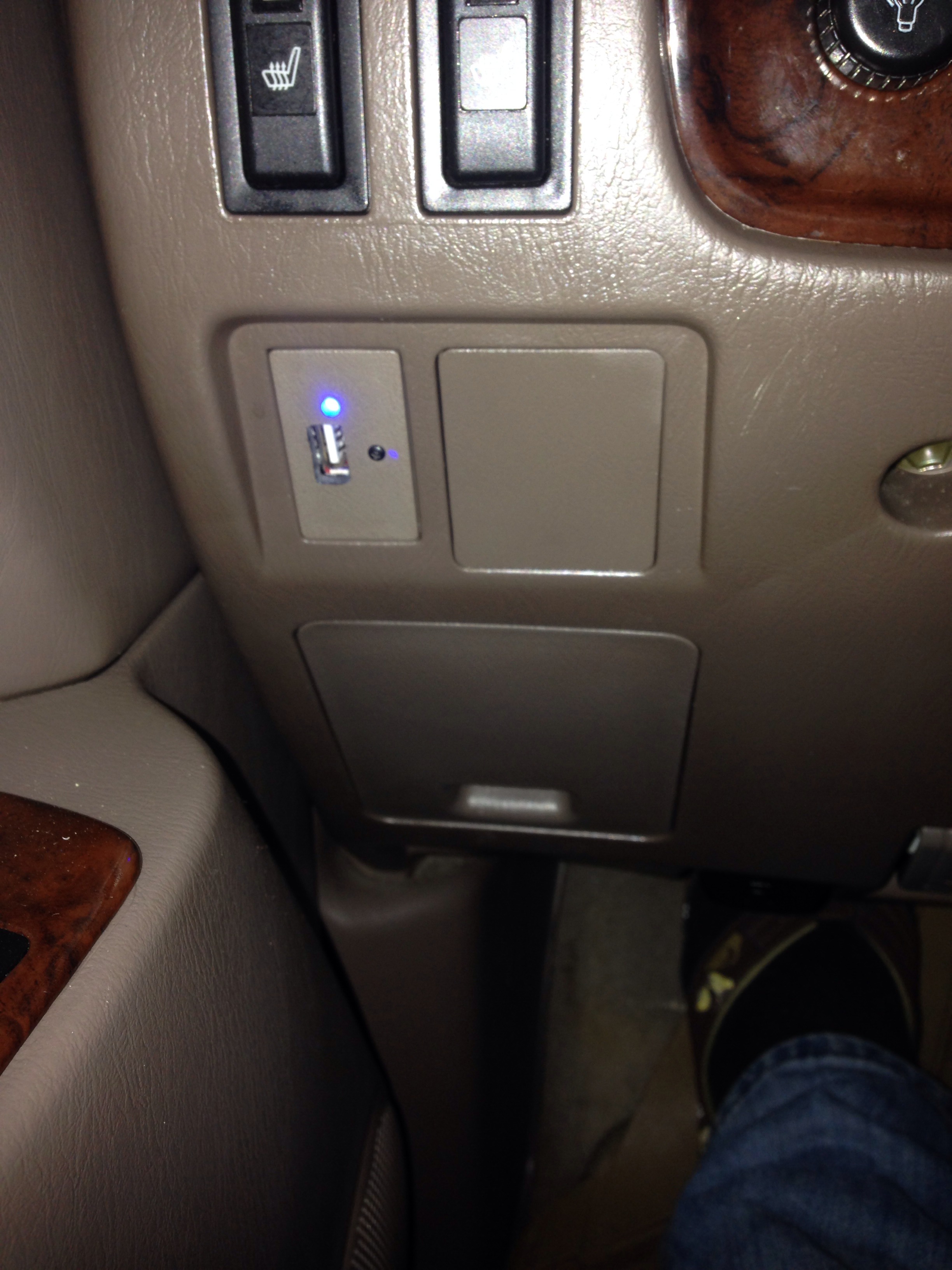

If it does - pop in the USB switch blank and enjoy your work!

:)

Disclaimer : I am not responsible for any damages caused by doing this mid - intended or otherwise. Proceed at your own risk!
