USB Power Bank

Welcome to my instructable!

Today i will show you how I made USB Power Bank.

It holds anywhere to 7000-16000mAh ,which depends on batteries you'r using. Capacity for C type batteries

This small device can be used to power any small gadget which use 5v USB input like those small rc quad copters and rc cars.

Module i'm using is USB step-up booster ,which boosts anywhere form 0.9V ~ 5V and can output stable 5V dc voltage. This will not charge your phone! For that application please use different kind of module.

Anyway back to project!

I started by ordering these parts :

1. Mini Control DC-DC 0.9V-5V to 5V 600mA USB Boost Step-up Power Supply Module
2. Battery Clip Holder Case Box For 2 x C Size R14 Battery w/ 6" Wire Lead
3. 85x58x33mm Waterproof Cover Clear Plastic Electronic Project Box Enclosure CASE
4. I used switch as well

I used tools as :

1. Soldering iron & soder
2. Drill & drill bits
3. Hot glue gun
4. Screwdriver
5. Razor knife

I started by modifying battery holder and project box to fit each other.

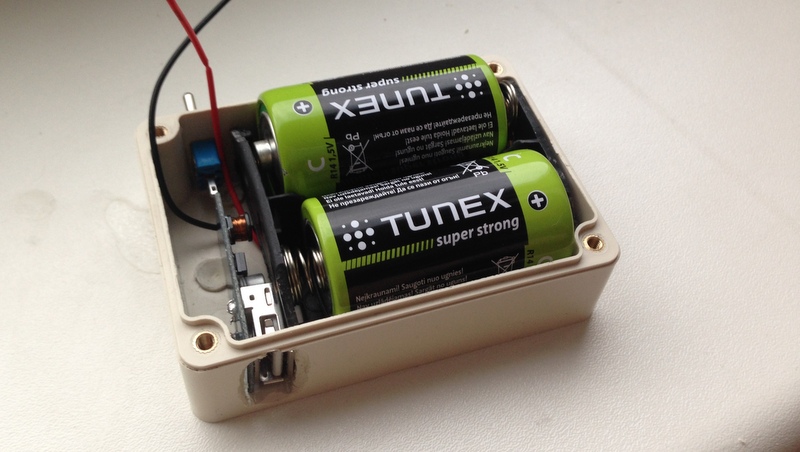

Then i placed parts in project box and arranged them in order which they fit best.

Soldering is pretty straight foward.

Just solder positive to positive and negative to negative ,just remember to add switch between one of those wires so you can turn power bank on and off.

After soldering all parts together you can put in batteries and close project box and your done!

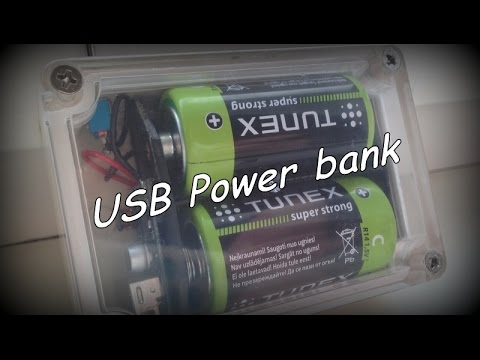

This is how my project turned out , I'm pretty happy with result and it definitely dose what it's made for.

I hope you'r will as well!

Thanks for reading my instructable!
