USB Macbook Charger

As i am traveling a lot for work and also volunteering in Africa i was looking for a device so i could use my macbook in remote areas without electricity.

As the only battery i carry with me on those trips is my powerbank, it would be ideal to use it also to give some power to my laptop.

Another point i also wanted is keeping the macbook charged on the airplane, and on most planes you have only a USB port at your disposition.

- 1 plastic project box Aliexpress 5 Pcs DIY 100x60x25mm Plastic Electronic Project Box

- DC connector 5.5*2.1

- USB male to DC cable

- Magsafe2 cable

- some wire

- LM2577 DC-DC Adjustable Step-up Power Converter Module

- Soldering Iron

Total cost +/- 20$

Drill 2 holes in the box for the connector and the macbook cable

Solder the wires to the LM2577

I also put some tape on the back of the LM 2577 to fix it in the enclosure

As i wanted to know the output voltage of the device on the go, i installed also a small volt meter.

Solder the wires, from the DC plug to the input side of the LM module

From the Macbook cable to the output of the LM module, add some heat shrink to avoid any short circuits

I used some hotglue to fix the cable

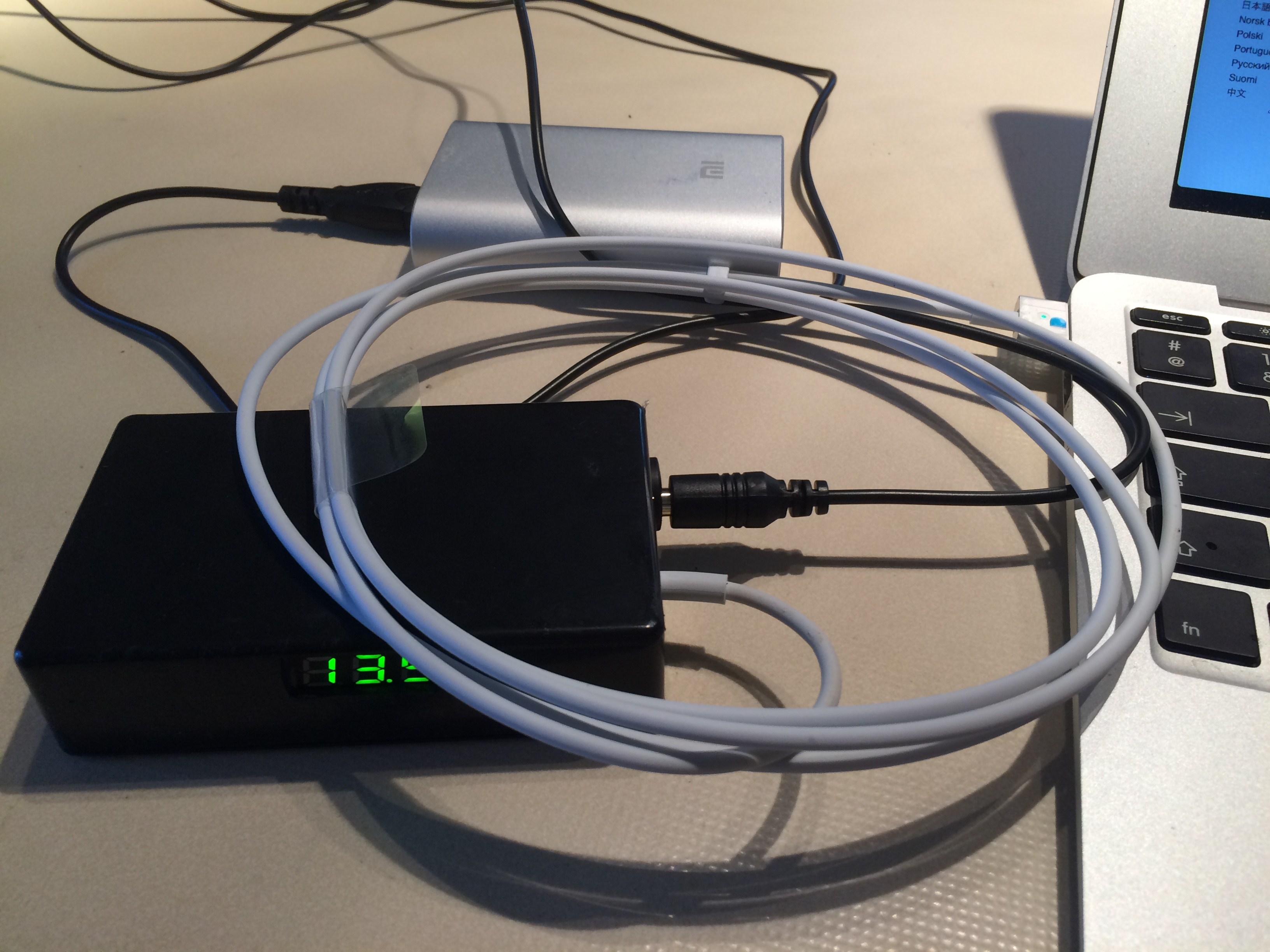

Now enjoy your build, it's working very good.
