USB Flashlight

by msolek in Circuits > USB

21284 Views, 55 Favorites, 0 Comments

USB Flashlight

_mini-wmplayer 2007-10-24 20-49-18-53.jpg

Casing

_mini-wmplayer 2007-10-24 20-47-59-07.jpg
_mini-wmplayer 2007-10-24 20-48-01-26.jpg

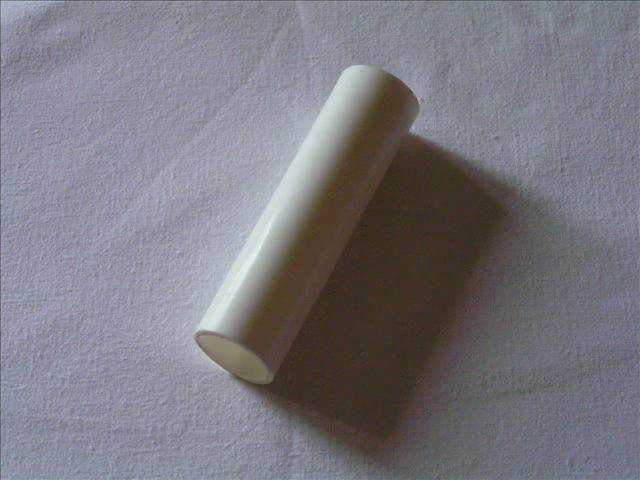

Cut 10 cm. tube, 3 cm width.

Cap

_mini-wmplayer 2007-10-24 20-48-05-65.jpg
Find bootle cap, make hole and mount bulb, - (port USB ! Max. 2,5W !!! )

Glass and Lid

_mini-wmplayer 2007-10-24 20-48-10-70.jpg
Make front Glass and back lid, use old cd or dvd

Cable

_mini-wmplayer 2007-10-24 20-48-22-40.jpg

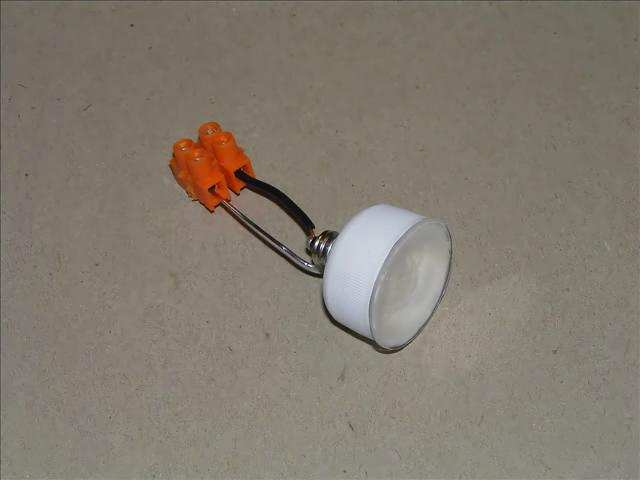

Mount bulb with cable, like this.

USB Cable

_mini-wmplayer 2007-10-24 20-48-24-75.jpg
Prepare USB cable, red and black

Back Lid

_mini-wmplayer 2007-10-24 20-48-33-17.jpg
Make back lid and cable knot

Folding

_mini-wmplayer 2007-10-24 20-48-35-78.jpg
_mini-wmplayer 2007-10-24 20-48-39-75.jpg
_mini-wmplayer 2007-10-24 20-48-49-06.jpg
_mini-wmplayer 2007-10-24 20-48-45-84.jpg
Fold all together

Visual Effect

_mini-wmplayer 2007-10-24 20-48-57-46.jpg
_mini-wmplayer 2007-10-24 20-49-00-60.jpg
_mini-wmplayer 2007-10-24 20-49-03-04.jpg
Paint your USB Flashlight

The End

_mini-wmplayer 2007-10-24 20-49-18-53.jpg
_mini-wmplayer 2007-10-24 20-49-09-89.jpg
_mini-wmplayer 2007-10-24 20-49-12-42.jpg

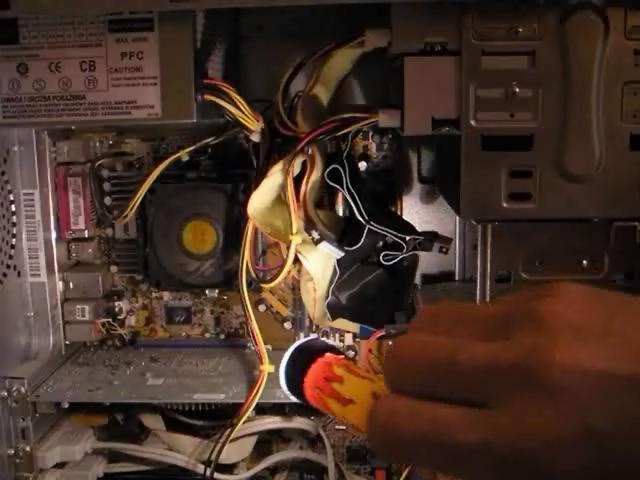

All right with my computer ??, probably yes, the windmill goes round ; )
