2 Pin Plug Changed to USB Port. (USB Charge Mosquito Racket)

The AC plug changed to USB port.

In my case 2 pin plug damaged. i remove the old plug . then add a USB port .

Features:

Charge mosquito racket via laptop or mobile charger using USB cable.

Easy to charge ,no need to hang it the plug.

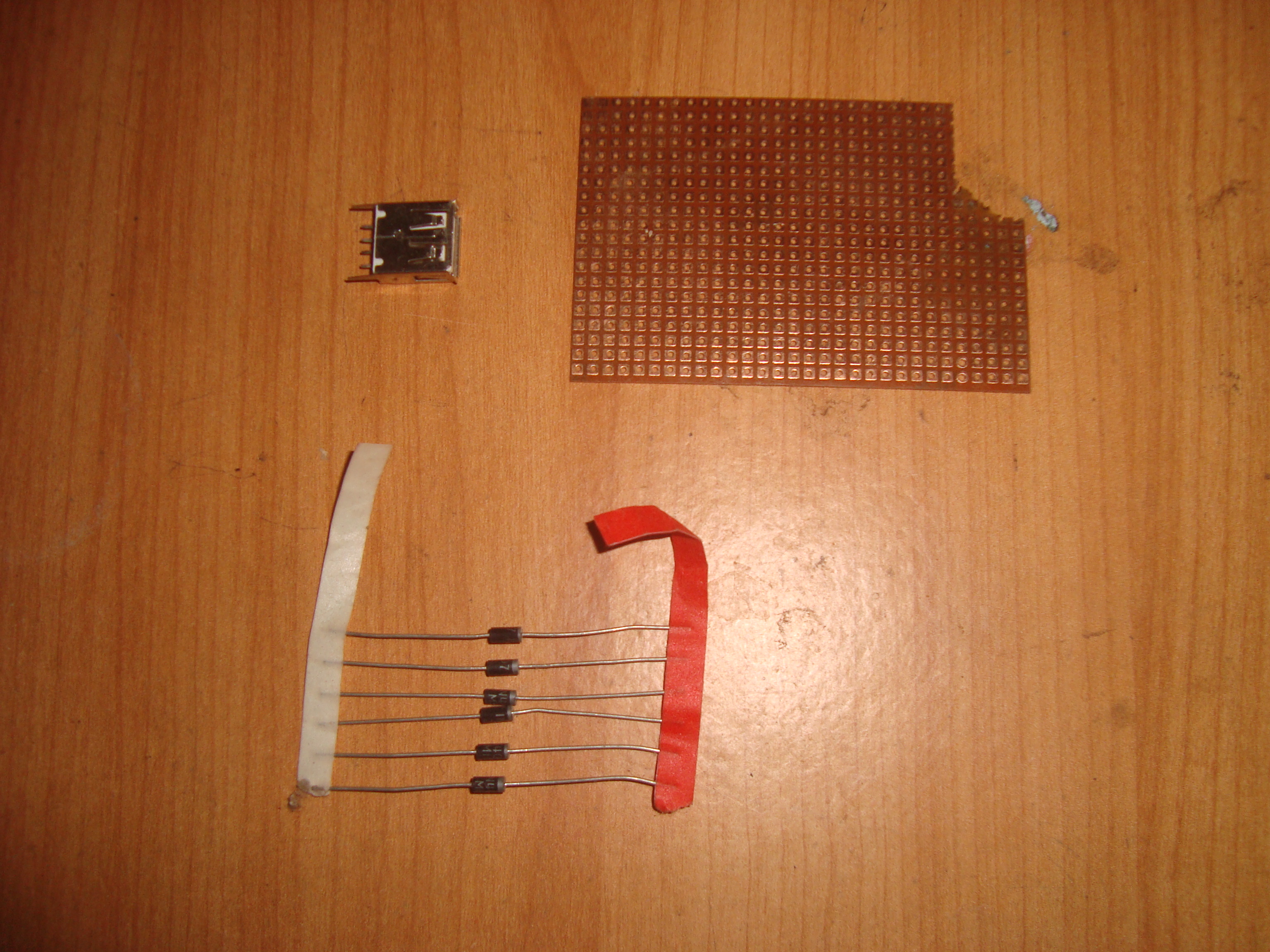

1. USB port -1

2. IN4001 -1

3.PCB -1

Measure and cut the shape you want.

Soldering the connections.

positioning the battery and USB port PCB appropriate positions.

close and screw it.

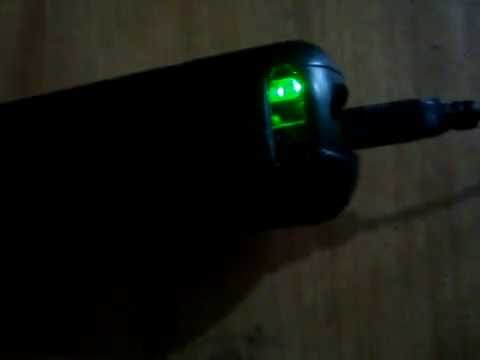

Connect the USB cable to the rack and check it.
