Two Transient Clap Switch Circuits

by Molted in Circuits > Electronics

10171 Views, 4 Favorites, 0 Comments

Two Transient Clap Switch Circuits


Transient Clap Switch Circuit is the circuit which turns ON with a clap sound. The output remains ON for some time and then turns OFF automatically.

The time of activity can be controlled by varying the value of capacitance of Capacitor. More the capacitance, more is the time for which the output remains ON.

A condenser microphone is used as a sensor. The trigger can be clap/snap or any other sound capable of activating the circuit.

Here, I will show you two different ways to make transient clap automated circuit :

  • Using 555 Timer IC
  • Using Transistors

Circuit Diagram

clap 555 cd.jpg
clap trans cd.jpg

These are the circuit diagrams for making circuit using :

  • 555 Timer IC
  • Transistors

Components

clap 555 comp.jpg
clap trans comp.jpg

These are the Components Required for making circuit :

1. Using 555 Timer IC

• 555 Timer IC

• Condenser Microphone

• Transistor: BC547

• Resistors: 100K, 47K, 1K, 330Ω

• Capacitor: 10 μF

• LED

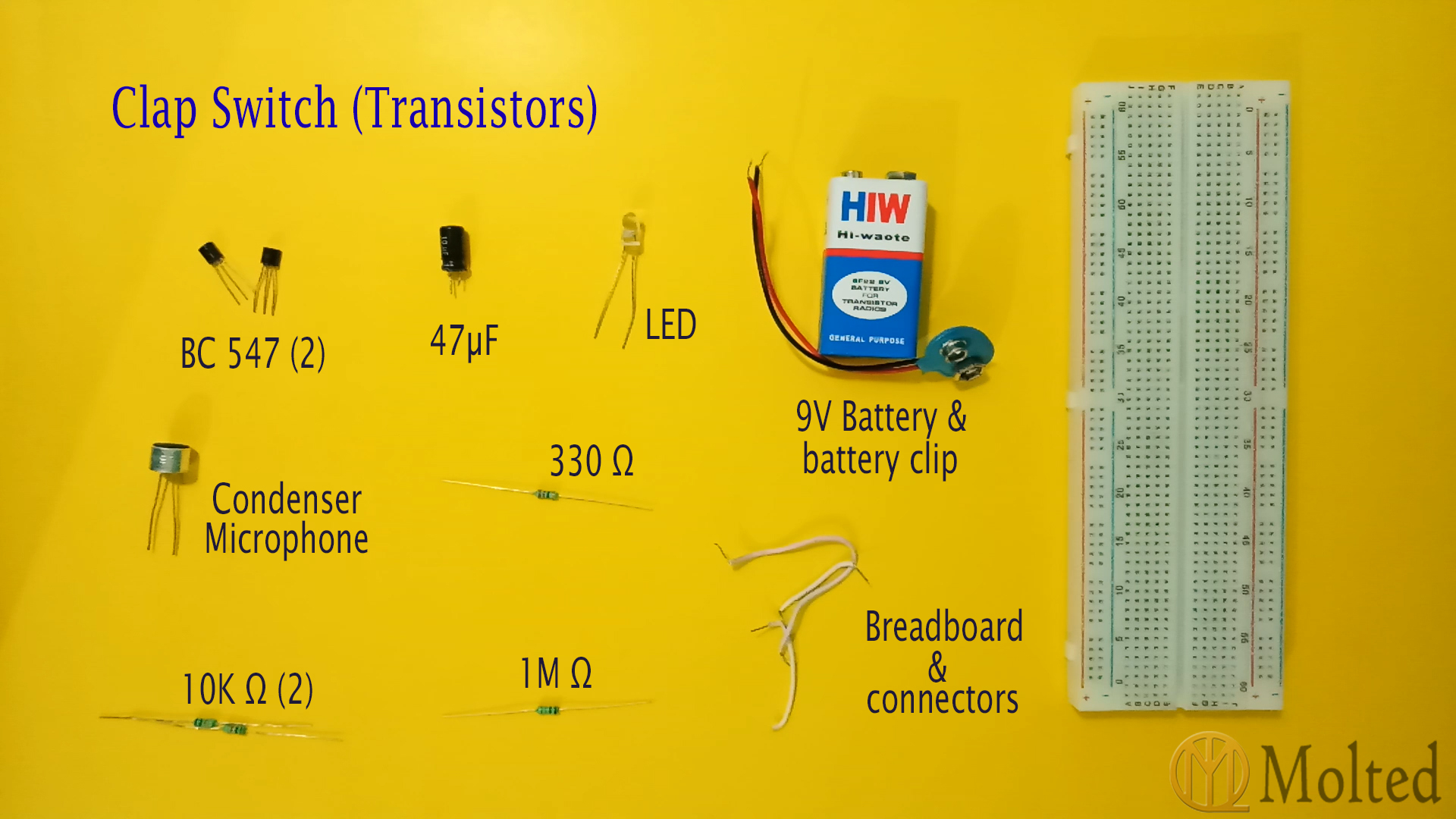

2. Using Transistors

• Transistors: BC547 (2)

• Condenser Microphone

• Resistors: 1M, 10K (2), 330 Ω

• Capacitor: 47 μF

• LED

Other Requirements:

• Battery: 9V and battery clip

• Breadboard

• Breadboard Connectors

Step-by-step Tutorial

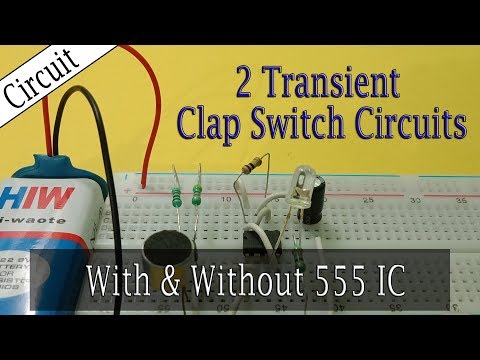

Two Transient Clap Switch Circuits || Step-by-step Tutorial
