Two Seater Walkway Seat
by kennotechrepairsfixes in Workshop > Furniture
473 Views, 5 Favorites, 0 Comments
Two Seater Walkway Seat
![20201031_235844.jpg](/proxy/?url=https://content.instructables.com/FM9/E9MK/KGXP4OTY/FM9E9MKKGXP4OTY.jpg&filename=20201031_235844.jpg)
![20201031_235811.jpg](/proxy/?url=https://content.instructables.com/FMX/Y7DL/KGXP4OUY/FMXY7DLKGXP4OUY.jpg&filename=20201031_235811.jpg)
I hope u will enjoy this two seater walkway seat done under 3hours u can even do much better its easy
Supplies
Materials
Wood,nails and gum.
Tools
Benchclamp, Jack plane , chisel,and saw.
Wood,nails and gum.
Tools
Benchclamp, Jack plane , chisel,and saw.

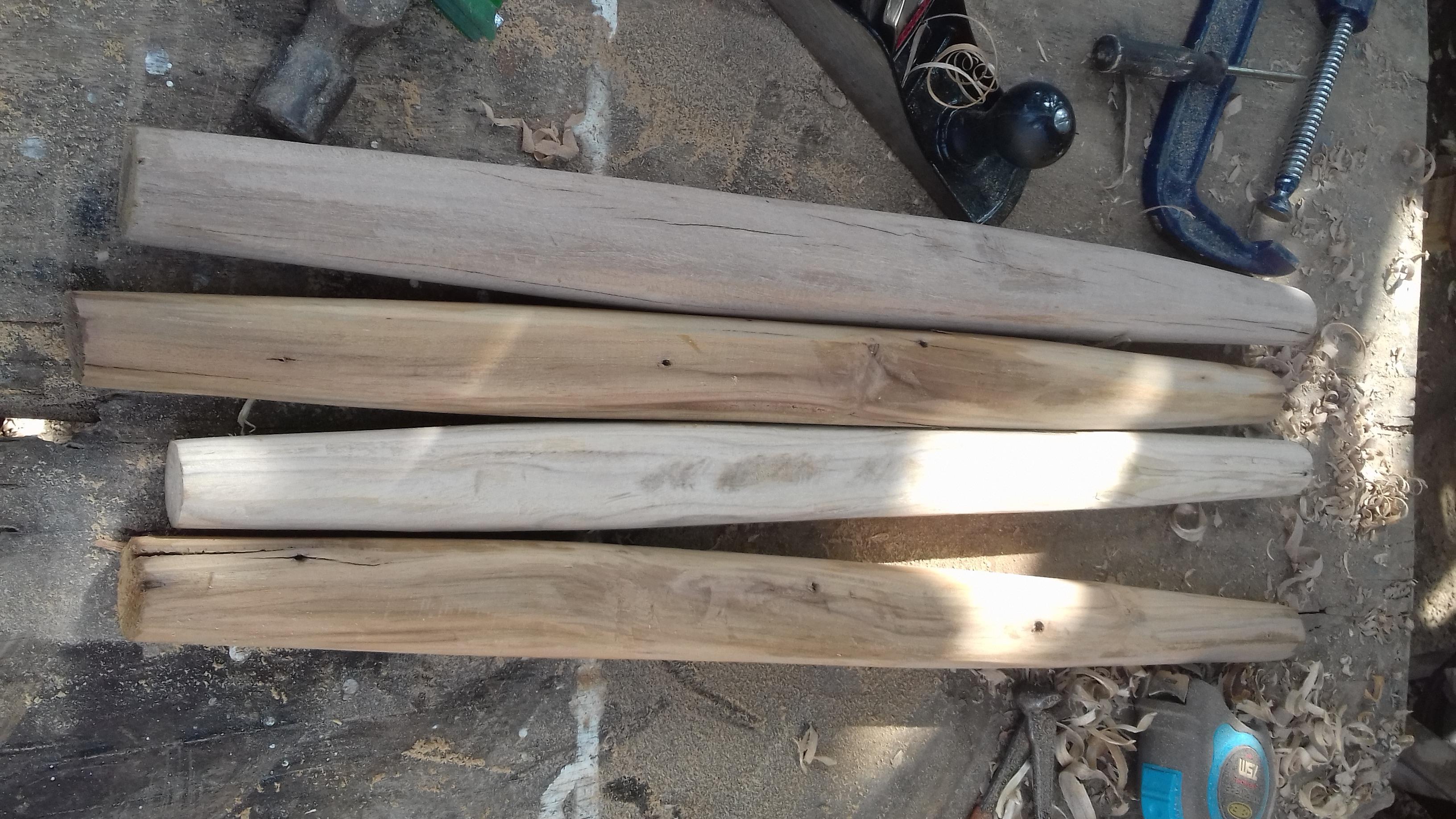

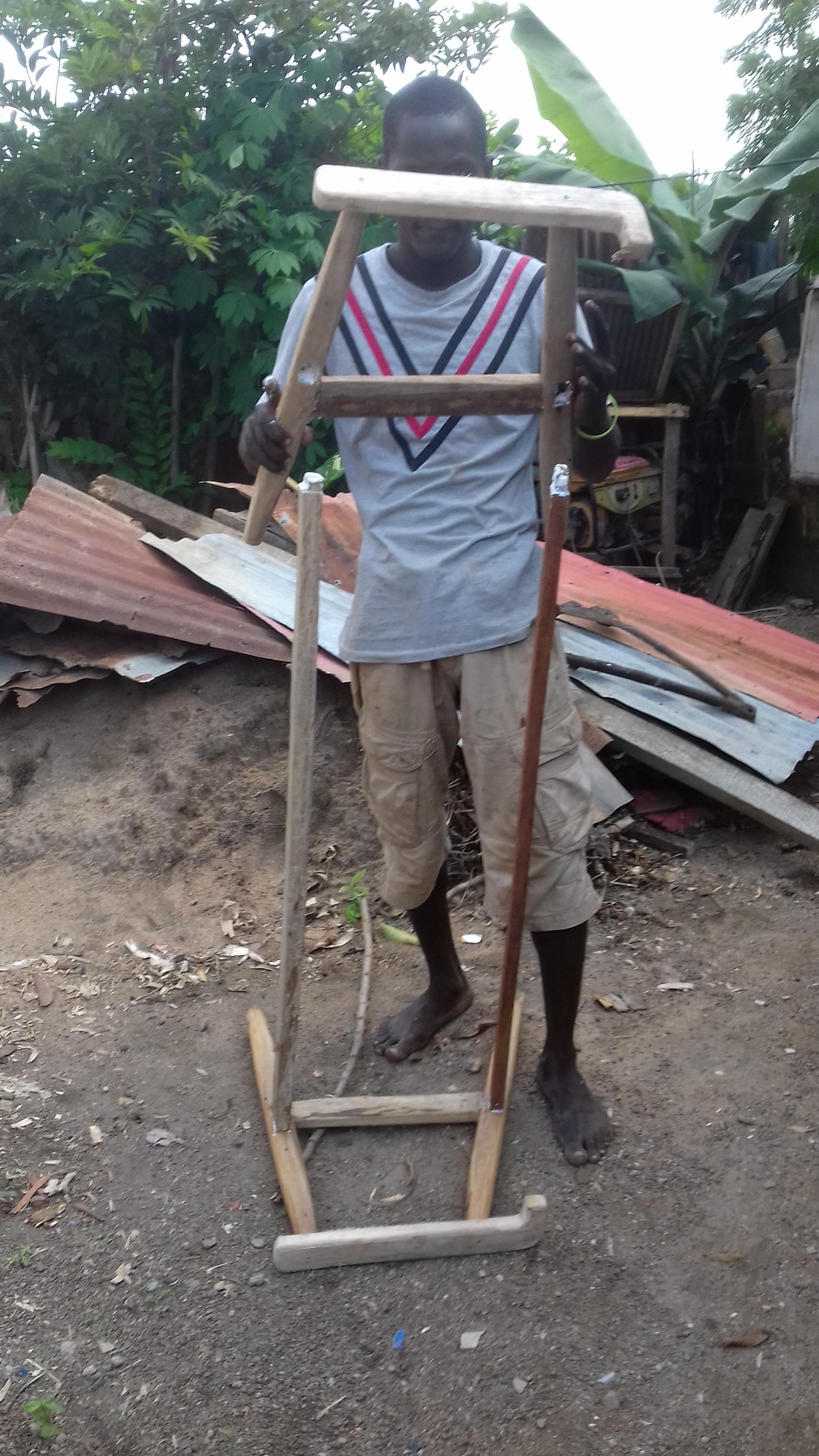

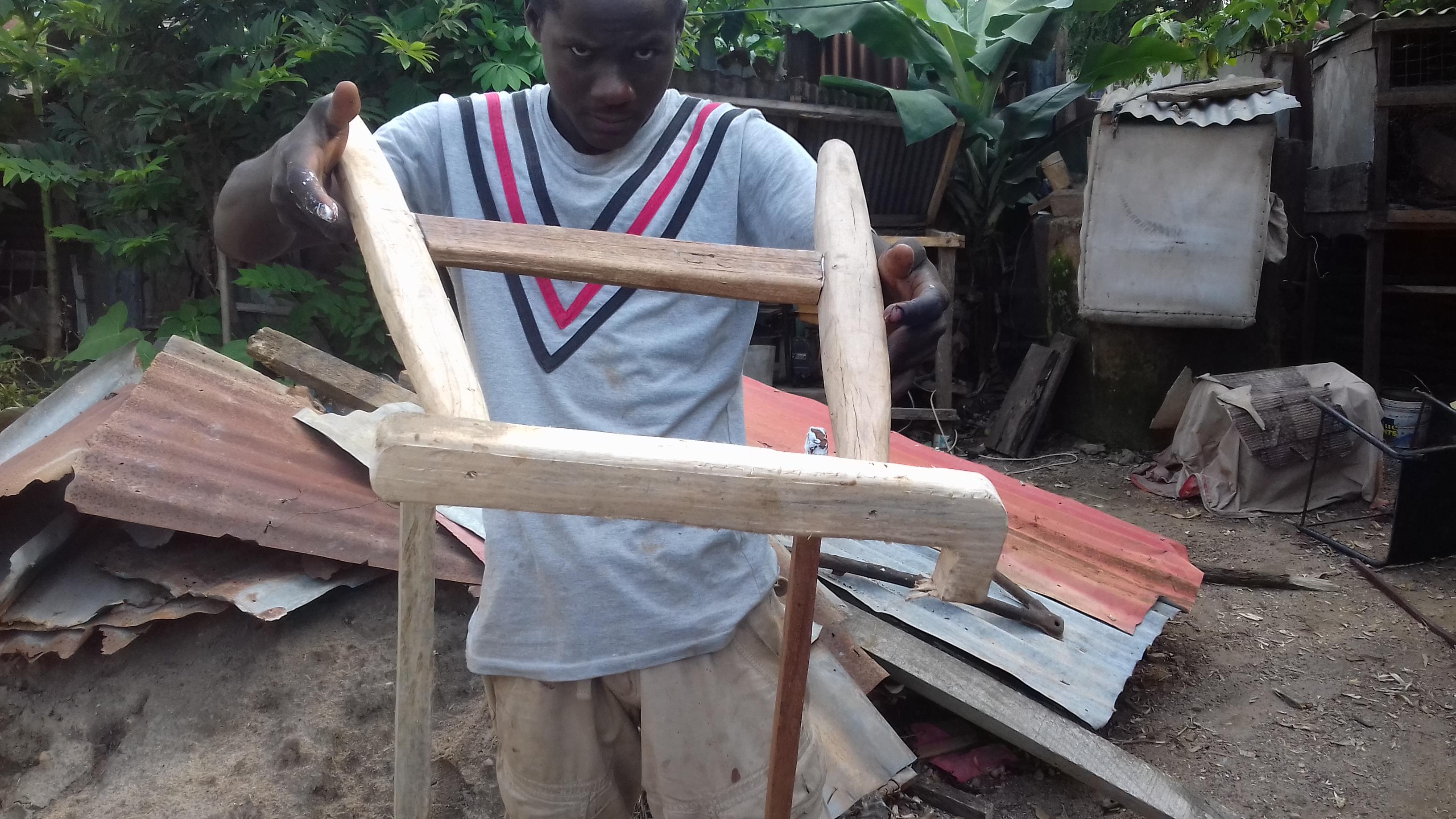

Preparing the Legs
![20120129_170947.jpg](/proxy/?url=https://content.instructables.com/F1L/E9ED/KGXP4990/F1LE9EDKGXP4990.jpg&filename=20120129_170947.jpg)
![20120129_172851.jpg](/proxy/?url=https://content.instructables.com/F8F/3JPZ/KGXP49ET/F8F3JPZKGXP49ET.jpg&filename=20120129_172851.jpg)
![20120129_230730.jpg](/proxy/?url=https://content.instructables.com/FB3/0VN0/KGXP4P0I/FB30VN0KGXP4P0I.jpg&filename=20120129_230730.jpg)
![20120130_231509.jpg](/proxy/?url=https://content.instructables.com/FV1/S197/KGXP49GZ/FV1S197KGXP49GZ.jpg&filename=20120130_231509.jpg)
![20120130_003213.jpg](/proxy/?url=https://content.instructables.com/F63/ZIRF/KGXP49N7/F63ZIRFKGXP49N7.jpg&filename=20120130_003213.jpg)
![20120130_231516.jpg](/proxy/?url=https://content.instructables.com/FFF/OB5Q/KGXP49NG/FFFOB5QKGXP49NG.jpg&filename=20120130_231516.jpg)
I wanted the chair legs to have a pointed and rounded ends , so I use jack plane to get the shapes (length of the legs 2ft) I also want it to have A structure so i cut the hand rest ( at16 cm & middle vertical section at 14cm ) note mortise & tenon allowance include.so after setting them down and getting the exact location of where each piece would be I mark it and do the tennon and mortise joint with chisel , securing it with gum and nail.
JOINING the Right and the Two Legs Together
![20120130_232147.jpg](/proxy/?url=https://content.instructables.com/FK9/TZHZ/KGXP4BDE/FK9TZHZKGXP4BDE.jpg&filename=20120130_232147.jpg)
![20120130_232121.jpg](/proxy/?url=https://content.instructables.com/FHC/611L/KGXP4BHN/FHC611LKGXP4BHN.jpg&filename=20120130_232121.jpg)
![20120130_232133.jpg](/proxy/?url=https://content.instructables.com/FFL/YGO0/KGXP4BQ0/FFLYGO0KGXP4BQ0.jpg&filename=20120130_232133.jpg)
Since it's two seater and I want the total length of the chair to be 40cm , I make the two joiner wood front and back 42cm ( tennon and mortise allowance included).

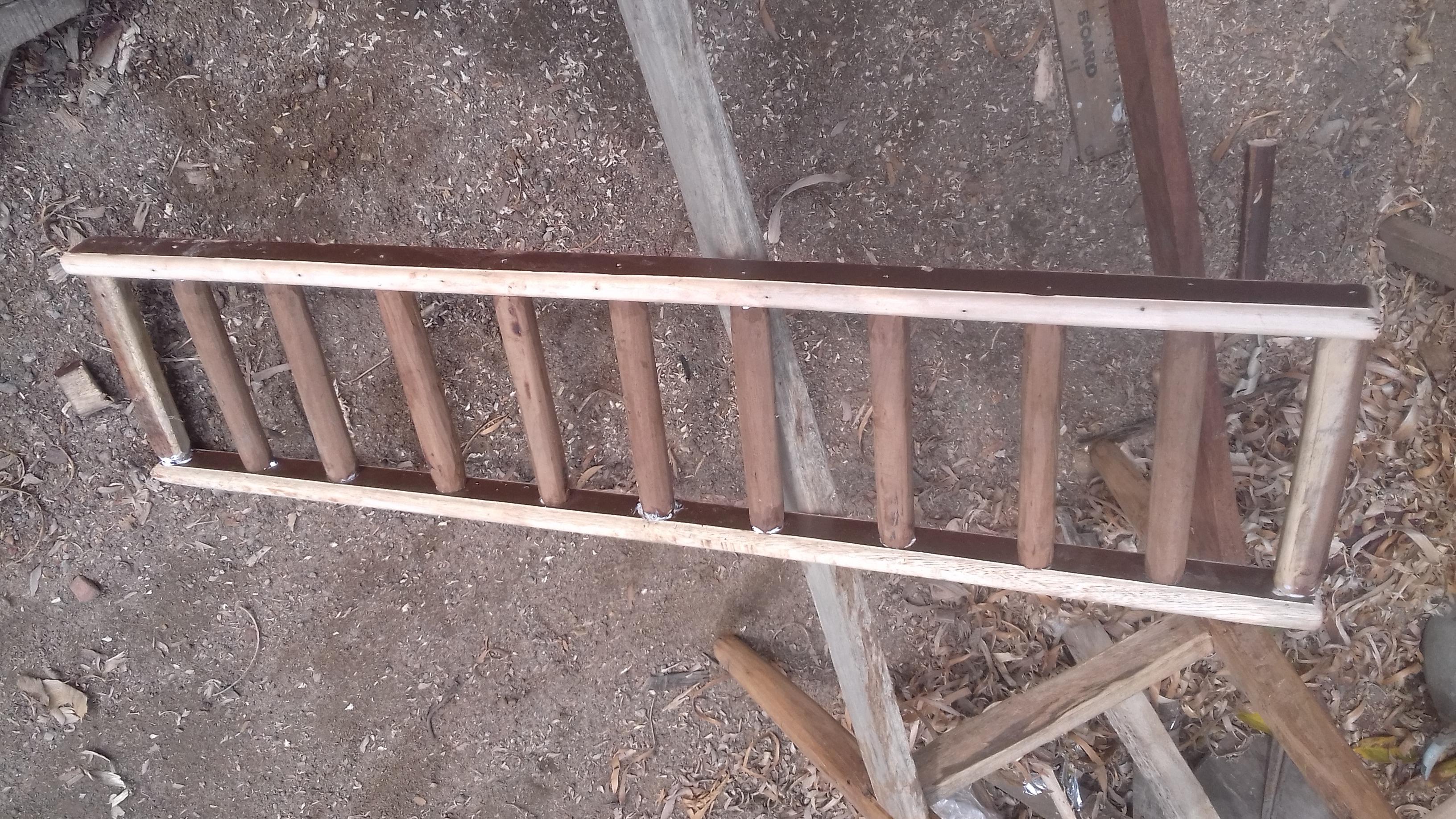

Preparing the Back Rest
![20120131_015304.jpg](/proxy/?url=https://content.instructables.com/FGB/1NX4/KGXP4EXI/FGB1NX4KGXP4EXI.jpg&filename=20120131_015304.jpg)
![20120131_155044.jpg](/proxy/?url=https://content.instructables.com/FA0/RZAQ/KGXP4F6Q/FA0RZAQKGXP4F6Q.jpg&filename=20120131_155044.jpg)
![20120131_174332.jpg](/proxy/?url=https://content.instructables.com/FJ0/KLSS/KGXP4FBQ/FJ0KLSSKGXP4FBQ.jpg&filename=20120131_174332.jpg)
![20120131_181224.jpg](/proxy/?url=https://content.instructables.com/FOQ/VVAU/KGXP4FDQ/FOQVVAUKGXP4FDQ.jpg&filename=20120131_181224.jpg)
Since I want the design to be simple , I chose the ladder like structure using the jack plane to turn a long rectangle wood to a round one then cutting them into pieces to make ladder then attaching the ladder structure to the back of the chair with 13 mm screw or nail.
Making and Laying the Seating Platform
![20120201_010023.jpg](/proxy/?url=https://content.instructables.com/FRL/94WV/KGXP4KV2/FRL94WVKGXP4KV2.jpg&filename=20120201_010023.jpg)
![20120201_011216.jpg](/proxy/?url=https://content.instructables.com/F5H/76WW/KGXP4KX5/F5H76WWKGXP4KX5.jpg&filename=20120201_011216.jpg)
![20120201_020348.jpg](/proxy/?url=https://content.instructables.com/FJQ/L8K1/KGXP4KYD/FJQL8K1KGXP4KYD.jpg&filename=20120201_020348.jpg)
I decide to lay the seating area horizontaly so I cut each piece 4cm wide and 12cm long Times nine pieces, I set the pieces with gaps btw them and secure them with nails.
Coating With Polyuethane
![20201031_155129.jpg](/proxy/?url=https://content.instructables.com/FQE/OPUA/KGXP4N0Z/FQEOPUAKGXP4N0Z.jpg&filename=20201031_155129.jpg)
![20201031_154946.jpg](/proxy/?url=https://content.instructables.com/FNP/8CV3/KGXP4N3G/FNP8CV3KGXP4N3G.jpg&filename=20201031_154946.jpg)
![20201031_235811.jpg](/proxy/?url=https://content.instructables.com/F5W/CRI5/KGXP4N44/F5WCRI5KGXP4N44.jpg&filename=20201031_235811.jpg)
I want to maintain the natural colour of the wood so after sanding I coat it with polyuethane to give it a shinning look.
