LED Flasher

by somashekarn in Circuits > Electronics

1173 Views, 11 Favorites, 0 Comments

LED Flasher


Maker:Somashekar.n.

Place:Banjarapalya E4D maker space.

Materials:

1.2N3904 transistors x2

2.10µf caps x2

3.Red LEDs x2

4.470Ω resistors x2

5.100kΩ resistors x2

6.Assorted jumpers

7.A breadboard

8.9V battery

9.9V battery clip

the Schematic Diagram.


Follow the schematic diagram for this circuit.

Insert the Transistors and Resistors.


Fix the 2 transistors in your .Then insert the wire to the transistor to the breadboard negative side.

connect the 2 100kΩ resister to the breadboard as shown in the image.

Then you connect the 2 470Ω resister to the breadboard as shown in the image.

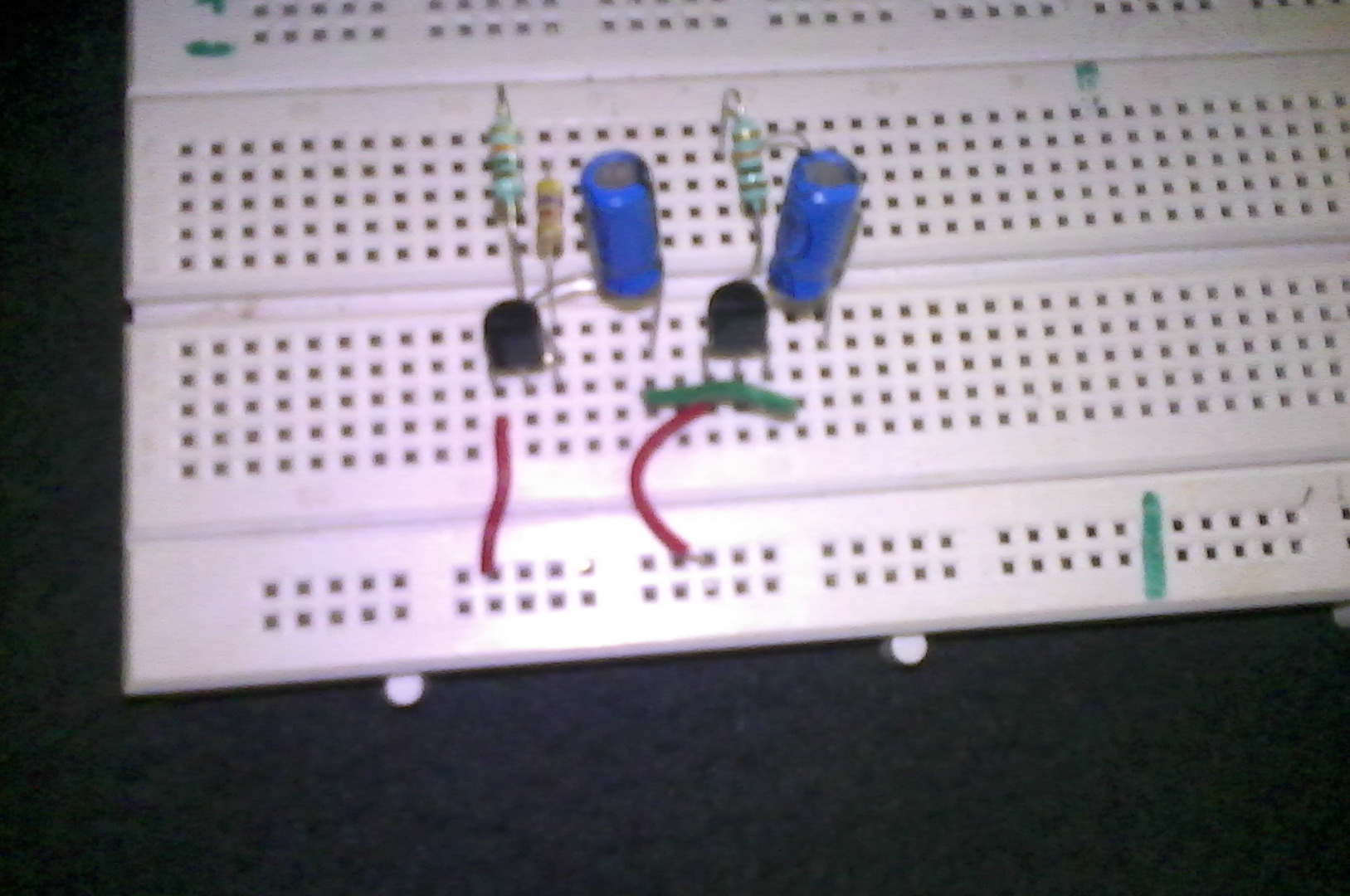

Insert the Capacitor.


Insert the 2 capacitors as shown in the picture. Put the negative side of the caps on a free rail on the breadboard.

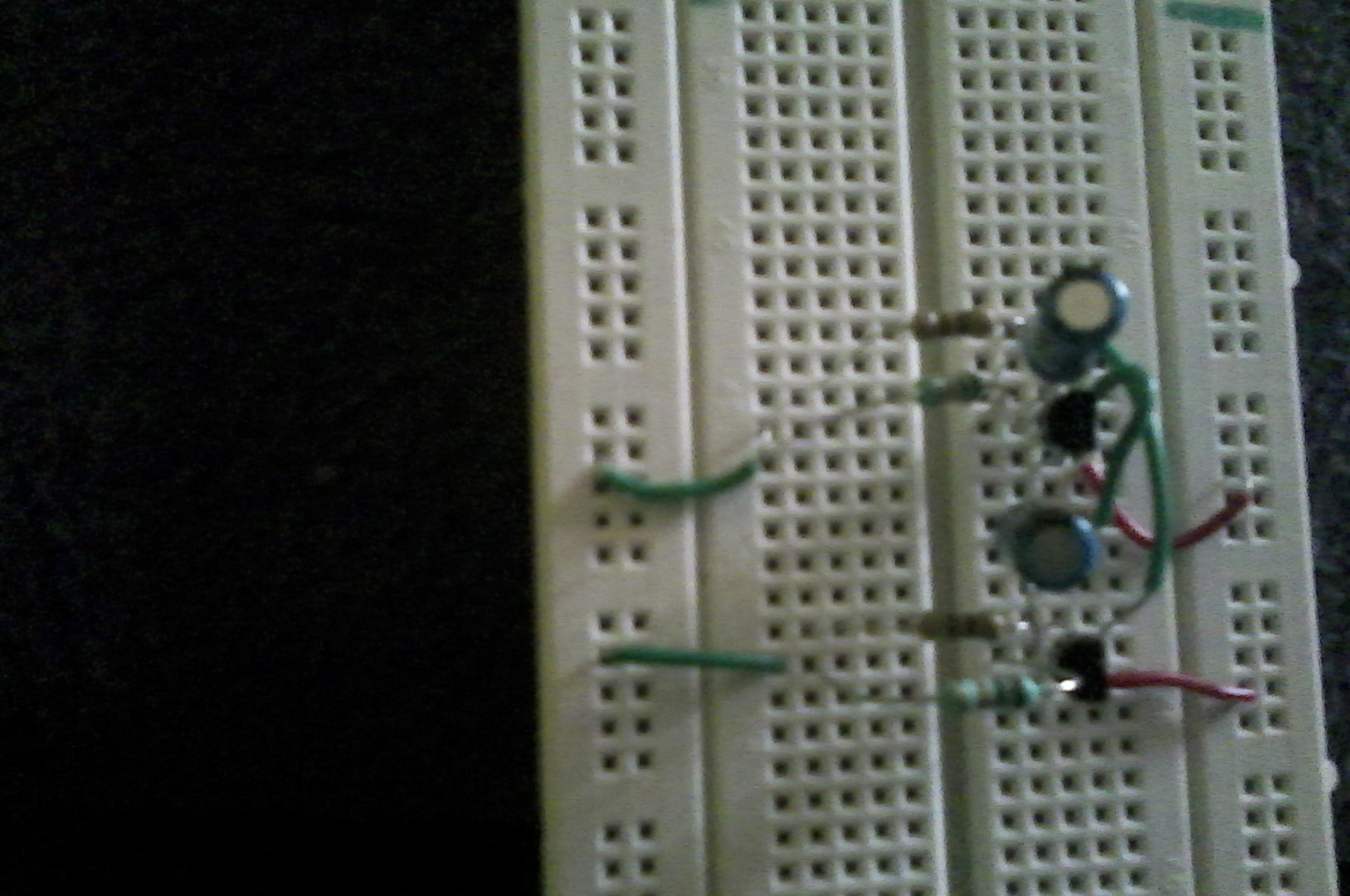

Fix the jumper wire and LED as shown in the image.

Connect the Battery.


Last and finally connect the battery to the breadboard.as shown in the image.

You Can Put Both Side


You can put both side LEDs.and you can put straw upon the LEDs.it look like nice.
