Twisty Toy
![twisty toy 4.gif](/proxy/?url=https://content.instructables.com/F9S/O8SW/KKY0NCI8/F9SO8SWKKY0NCI8.gif&filename=twisty toy 4.gif)
![twisty_toy_1054.jpeg](/proxy/?url=https://content.instructables.com/FHF/9KWC/KKY0NDRA/FHF9KWCKKY0NDRA.jpg&filename=twisty_toy_1054.jpeg)
![IMG_1021D.JPG](/proxy/?url=https://content.instructables.com/F9P/0QXK/KKY0NCDY/F9P0QXKKKY0NCDY.jpg&filename=IMG_1021D.JPG)
![twisting1](/proxy/?url=https://content.instructables.com/F0L/9K39/KKY0NV5B/F0L9K39KKY0NV5B.jpg&filename=twisting1)

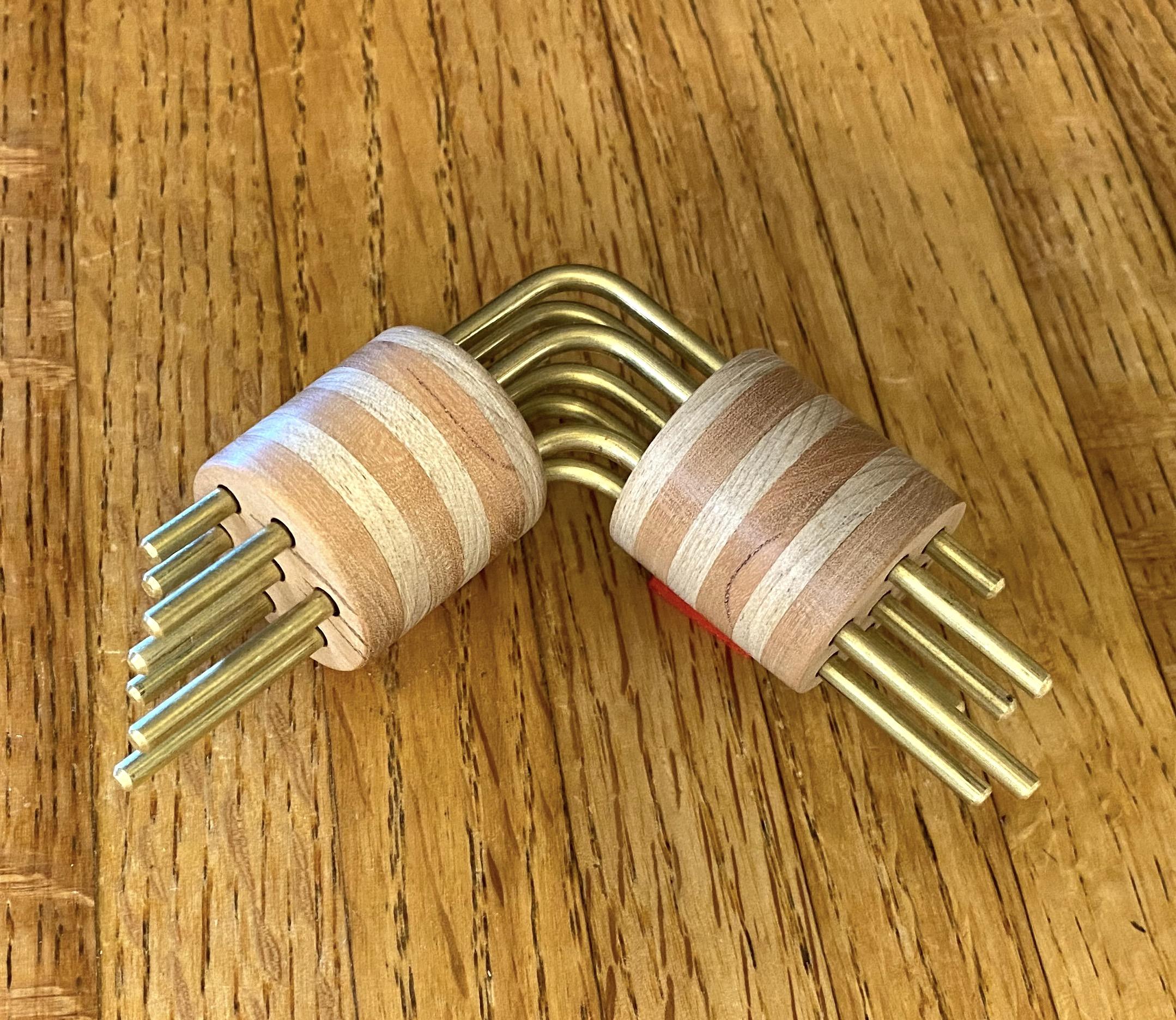

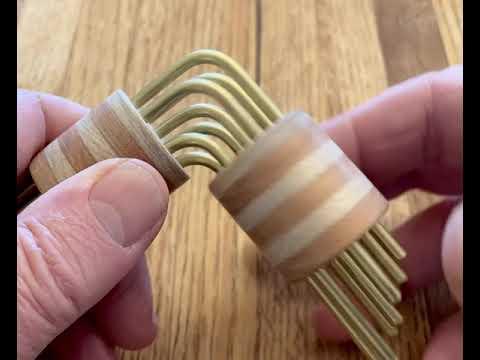

I designed this simple twisty toy based on an epicyclic bar angular transmission. It's a cool little fidget toy that looks like it shouldn't turn. Works well as a stress reliever!
You can make this toy with either a wood lathe, or a 3d printer, or a laser cutter.
Supplies
Hardwood like maple and cherry
1/8" brass rod
3/8" dowel
CA glue, wood glue
Easy Build With 3D Printer
![IMG_1033.JPG](/proxy/?url=https://content.instructables.com/FGW/Y1WD/KKY0NCEB/FGWY1WDKKY0NCEB.jpg&filename=IMG_1033.JPG)
![IMG_1035.JPG](/proxy/?url=https://content.instructables.com/FYF/C7U8/KKY0NCEC/FYFC7U8KKY0NCEC.jpg&filename=IMG_1035.JPG)
![IMG_1036.JPG](/proxy/?url=https://content.instructables.com/FN8/BNK1/KKY0NCEF/FN8BNK1KKY0NCEF.jpg&filename=IMG_1036.JPG)
![IMG_1031D.JPG](/proxy/?url=https://content.instructables.com/FAK/C37N/KKY0NCE5/FAKC37NKKY0NCE5.jpg&filename=IMG_1031D.JPG)
![IMG_1037.JPG](/proxy/?url=https://content.instructables.com/F3Z/0D9V/KKY0NCEI/F3Z0D9VKKY0NCEI.jpg&filename=IMG_1037.JPG)
![IMG_1041D.JPG](/proxy/?url=https://content.instructables.com/FDM/81DD/KKY0NCEJ/FDM81DDKKY0NCEJ.jpg&filename=IMG_1041D.JPG)
If you have access to a 3d printer then the easy version of the Twisty Toy is 3d printed. The files are included. 3d print the two barrels and clean/drill the holes with a 9/64" bit so that the brass rods insert and turn easily. Cut seven 5 inch long 1/8" diameter brass rod pieces and bend them 90 degrees in the middle. Then insert all of them into one of the barrels first; and one by one into the second barrel. Nice little puzzle right there! To make the toy permanent and prevent the barrels from slipping off you can use CA-glue to glue a couple of short stops onto the two center brass rods. That's it. You are ready to fidget during your next Zoom meetings!
Build With Laser Cutter
![IMG_1043.JPG](/proxy/?url=https://content.instructables.com/FCO/7U4W/KKY0NCEK/FCO7U4WKKY0NCEK.jpg&filename=IMG_1043.JPG)
![IMG_1044.JPG](/proxy/?url=https://content.instructables.com/F0G/NGUH/KKY0NCEL/F0GNGUHKKY0NCEL.jpg&filename=IMG_1044.JPG)
![IMG_1047.JPG](/proxy/?url=https://content.instructables.com/FBN/MO1W/KKY0NCEM/FBNMO1WKKY0NCEM.jpg&filename=IMG_1047.JPG)
![IMG_1052D.JPG](/proxy/?url=https://content.instructables.com/FHL/HZO3/KKY0NCZ4/FHLHZO3KKY0NCZ4.jpg&filename=IMG_1052D.JPG)
![IMG_1048D.JPG](/proxy/?url=https://content.instructables.com/FK1/CC33/KKY0NCZ3/FK1CC33KKY0NCZ3.jpg&filename=IMG_1048D.JPG)
![IMG_1022D.JPG](/proxy/?url=https://content.instructables.com/FI5/8KW6/KKY0NCDZ/FI58KW6KKY0NCDZ.jpg&filename=IMG_1022D.JPG)
![IMG_1098.jpeg](/proxy/?url=https://content.instructables.com/FFF/QPRB/KKY0NSPY/FFFQPRBKKY0NSPY.jpg&filename=IMG_1098.jpeg)

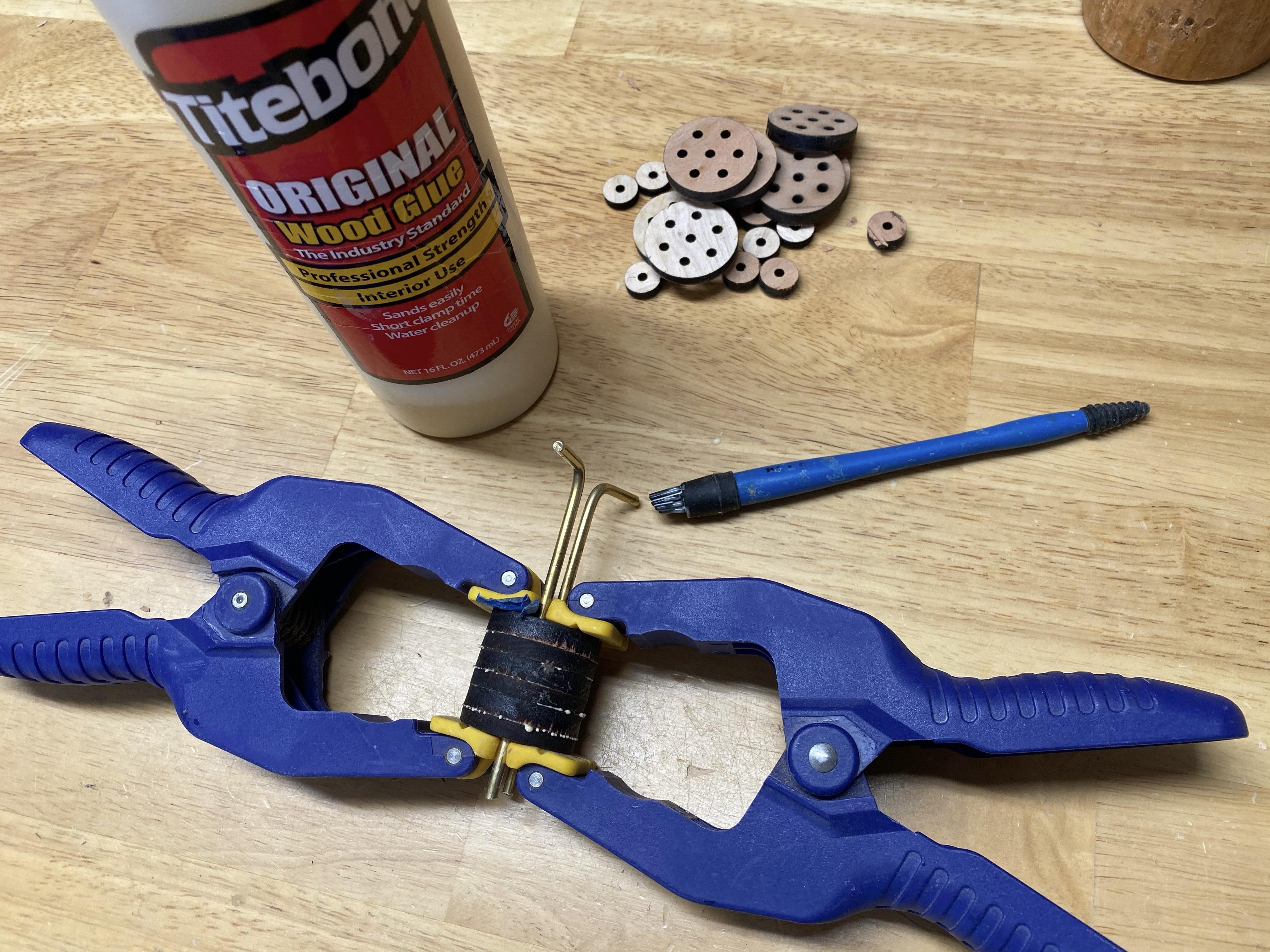

The prettier version uses wood barrels. I laser-cut a number of 3 to 5 mm thick cherry and maple disks (file attached) and then stacked and glued them into two 1-inch tall barrels. While gluing align the disks with two or three brass rods and check that the stack is straight up - not skewed. When the glue has dried, clean and redrill the 7 holes with a 9/64" drill bit so that the 1/8" brass rods turn easily. Make the brass angles as described in the previous step. Then trim, sand, and polish the outside of the barrels on a lathe (or drill press). I also made some spacers and end stops from a 3/8" maple dowel to CA-glue onto the center brass rods.
Downloads
Other Ways to Make the Twisty Toy
![IMG_0949D.JPG](/proxy/?url=https://content.instructables.com/FLZ/5DLR/KKY0NCDV/FLZ5DLRKKY0NCDV.jpg&filename=IMG_0949D.JPG)
![twisting2](/proxy/?url=https://content.instructables.com/FIL/EH18/KKY0NV6L/FILEH18KKY0NV6L.jpg&filename=twisting2)
Without a laser cutter or 3d printer you can make the barrels on a lathe and drill the holes with your drill press. It should be obvious how to do this. The spacers and stops can be made from a 3/8" dowel.
For variety you can make bigger versions of the toy, or versions with fewer brass rods.
Cool animations of the underlying mechanical linkage are here:
Epicyclic Bar Angular Transmission
(Edit 2/21/2021) I just learned that this is also called a Hobson’s Joint, and I found this cool video of a Lego build:
Anyways, I'm still amazed that the toy actually turns! Enjoy!
