Tutorial How to Use LORA SX1278 RF433

by mybotic in Circuits > Arduino

10011 Views, 4 Favorites, 0 Comments

Tutorial How to Use LORA SX1278 RF433


In this tutorial we will teach you how to make LORA-SX1278 RF433 to communicate with each other.

Supplies

All the components you need in this project is:

1. 2x Arduino UNO

2. 2x LORA-SX1278 RF433

4. Jumpers

Step 1 : Assemble the Circuit

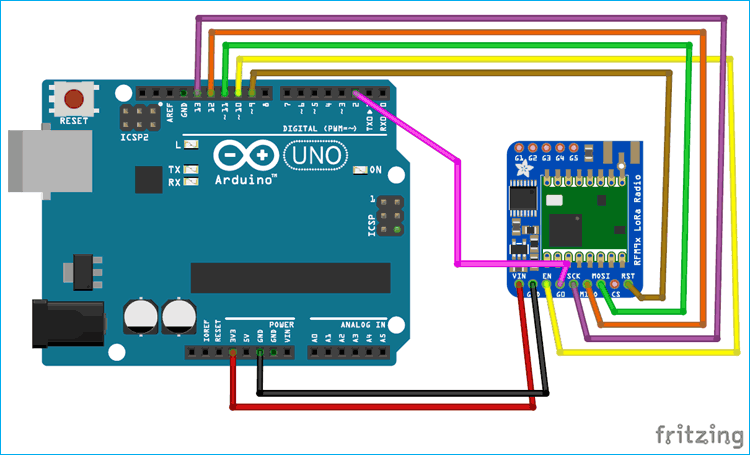

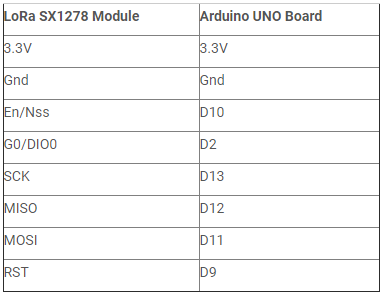

By referring to the schematic diagram and pin number, assemble the circuit. Make 2 same circuit for this project. The first circuit as transmitter and the other one as receiver.

Step 2: Upload Coding

code receiver.PNG

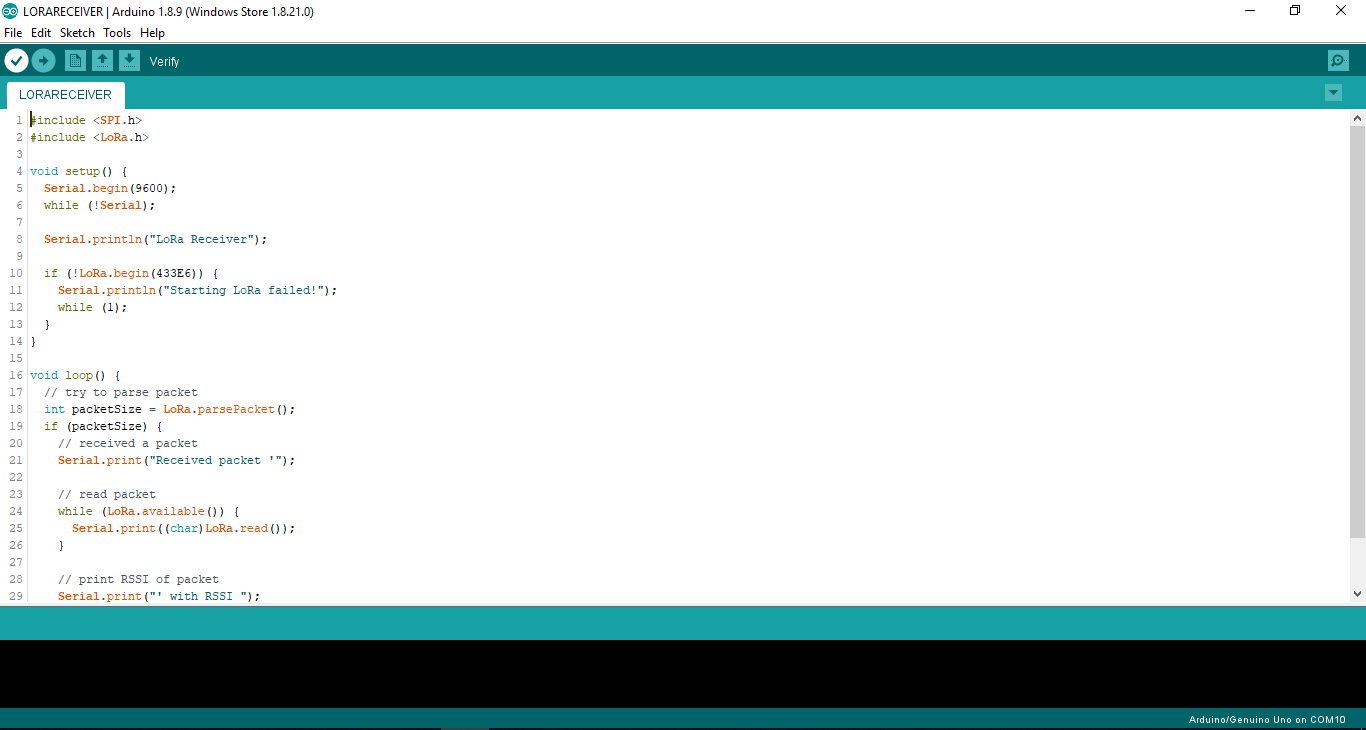

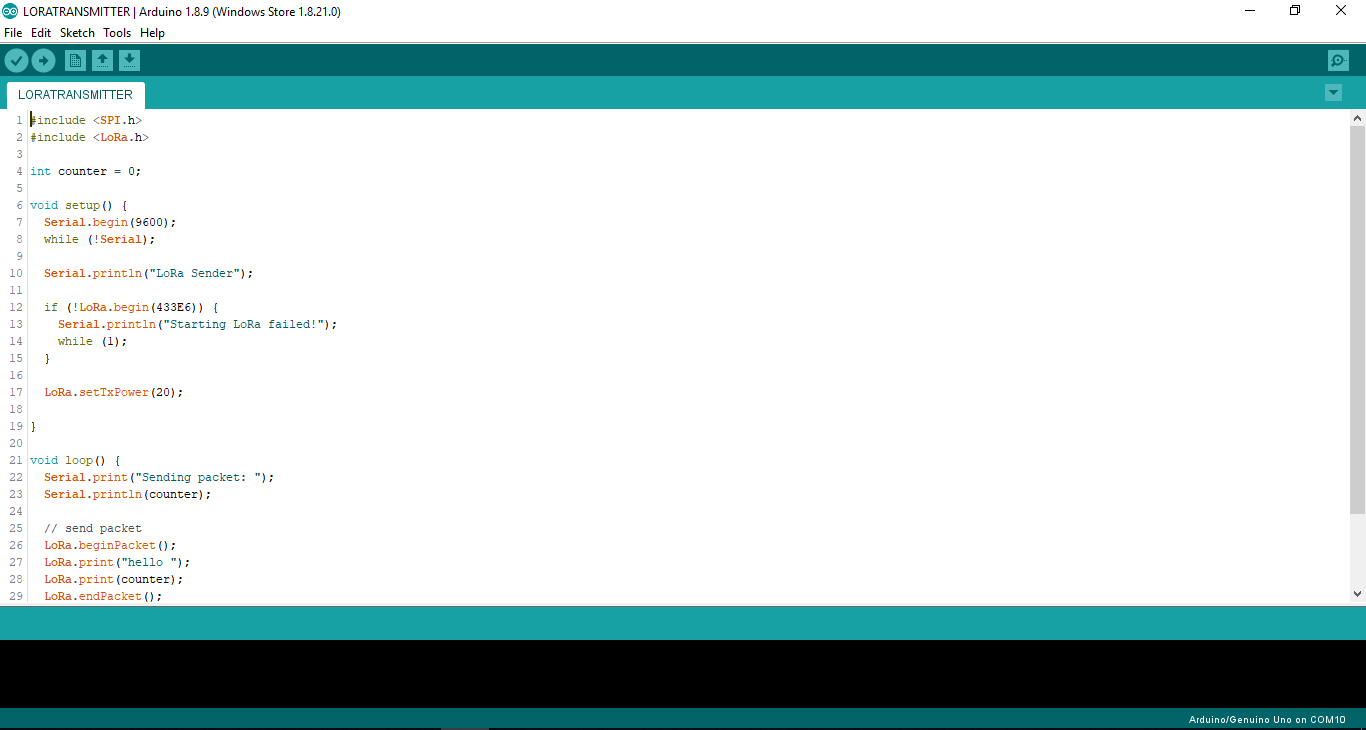

code transmitter.PNG

Upload the coding for the transmitter and receiver.

Downloads

LORATRANSMITTER.rar
LORARECEIVER.rar

Step 3: Complete Your Project

Tutorial How To Use LORA SX1278 RF433

Now you have all the "ingredients" needed to complete this project. We have made the step-by-step on how to complete this project in youtube. You can also refer to circuit diagram that we put to make sure you connect to correct place that you should.
