Magnetic Switch Door Alarm Sensor, Normally Open, Simple Project, 100% Working, Source Code Given

Description:

Hi guys, I'm going to make tutorial about MC-18 Magnetic Switch Sensor Alarm that operates in normally open mode.

• Switch Type: NO(normal Close type), the circuit is Open normally, and, circuit is connected when magnet is near.
• The reed switch is an electrical switch operated by an applied magnetic field.
• Designed for use with alarm systems. Great for use in family and factory window, door. etc

Specification:

• Product Name : Door Magnetic Switch
• Switch Type : NO (Normally Open)
• Contact Capacity : 0.5A(Maximum Switch Current)
• Switch Voltage : 100V
• Rated Power : 10W
• Breakdown Volt : DC 200V
• Operating Distance : 15-25mm
• Cable Length : 20cm/7.9"
• Each Size(Approx) : 23 x 14 x 7mm /0.9" x 0.55" x 0.28"(L*W*H)
• Color : White
• Housing Material : ABS
• Weight : 7g
• Package Content :1 Pair x Door Magnetic Switch

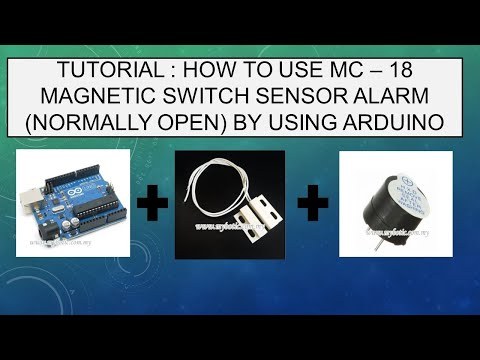

MC-18 MAGNETIC SWITCH SENSOR ALARM (NORMALLY OPEN, NO)

5V BUZZER- PCB MOUNT

ARDUINO UNO REV3 COMPATIBLE (CHINA OFFICIAL VERSION) + USB CABLE

ARDUINO 40P BREADBOARD MALE TO MALE JUMPER WIRE (MALE-MALE, 20CM)
