Turn Off the Lights
This are the steps to make a looping game. Where LED buttons turn on and off at different rates. Its and endless loop that causes the last button to be turn off to restart the off buttons and maintaining that button off for the sequence period. Follow the steps to create your own game.
Materitals
6 LED buttons (click here)
RedBoard
22Gauge wire
Resisters
Breadboard
Soldering
Soldering Breadboard (click here)
Laser Cutter
Wood (soft)
Calipers
Glue
Clampers
Soldering gun
Step 1 Make a Box
Laser Cut a Box with the file attached
Downloads

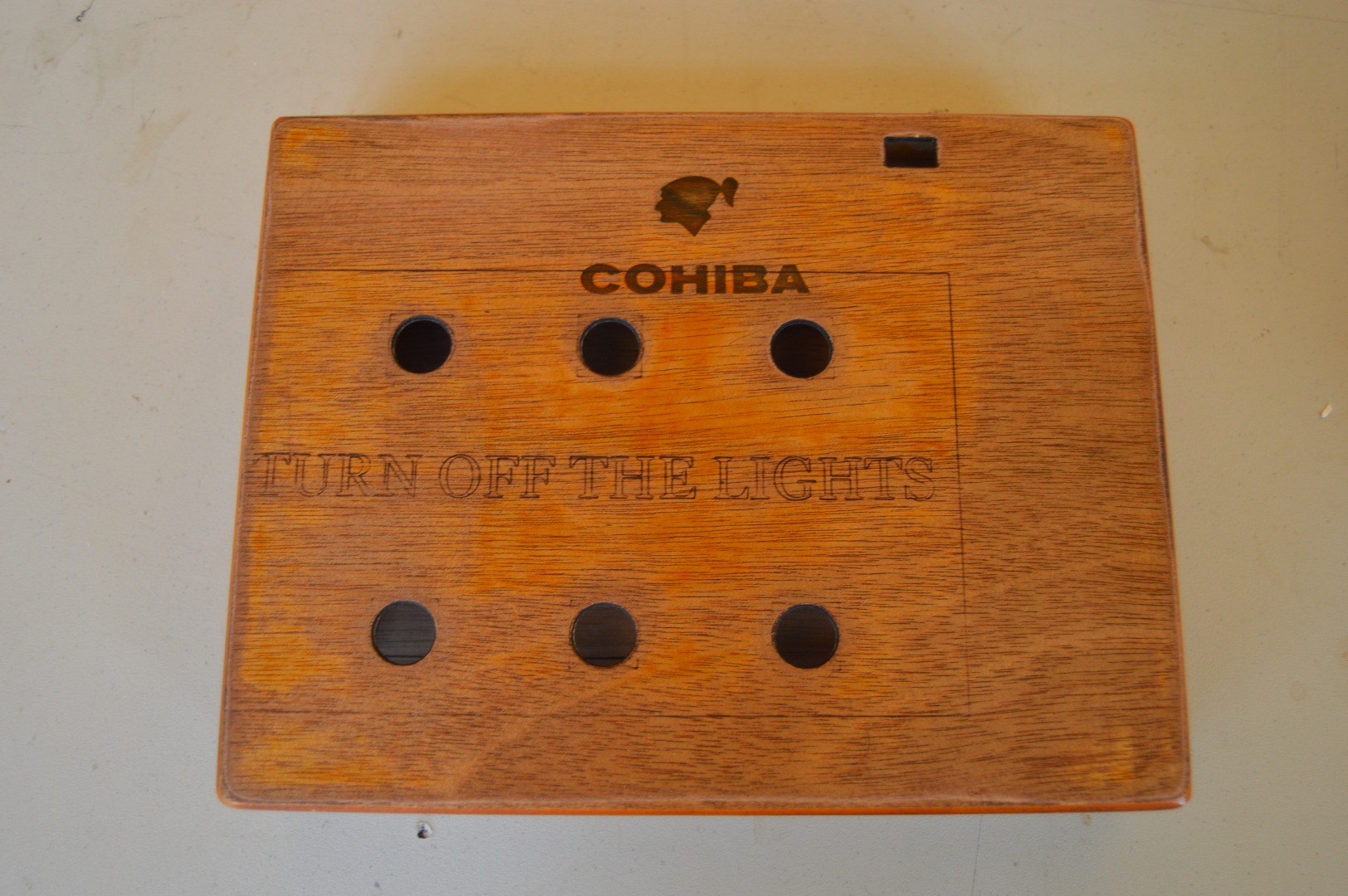

Laser Cut the Holes for Buttons
The data sheet for the LED buttons is attached.
Connect wires to the buttons
Downloads
Soldering Wire
22 gauge wire
Resisters
Soldering
Soldering Breadboard (click here)

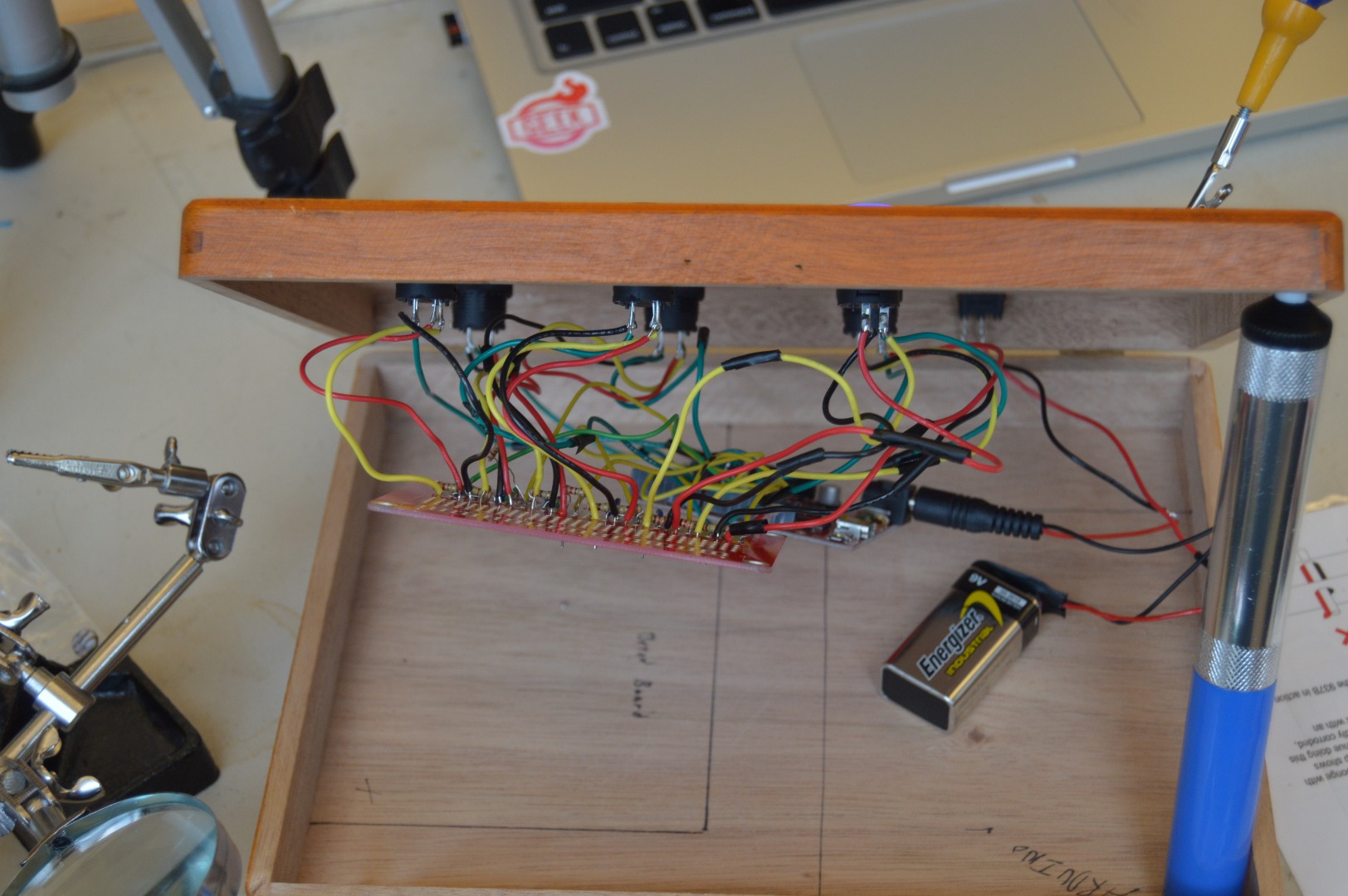

Solder your wires that you have in your regular board to the solderable breadboard that will go inside the box. Transfer everything exactly the same with all the wires and resisters.
Power

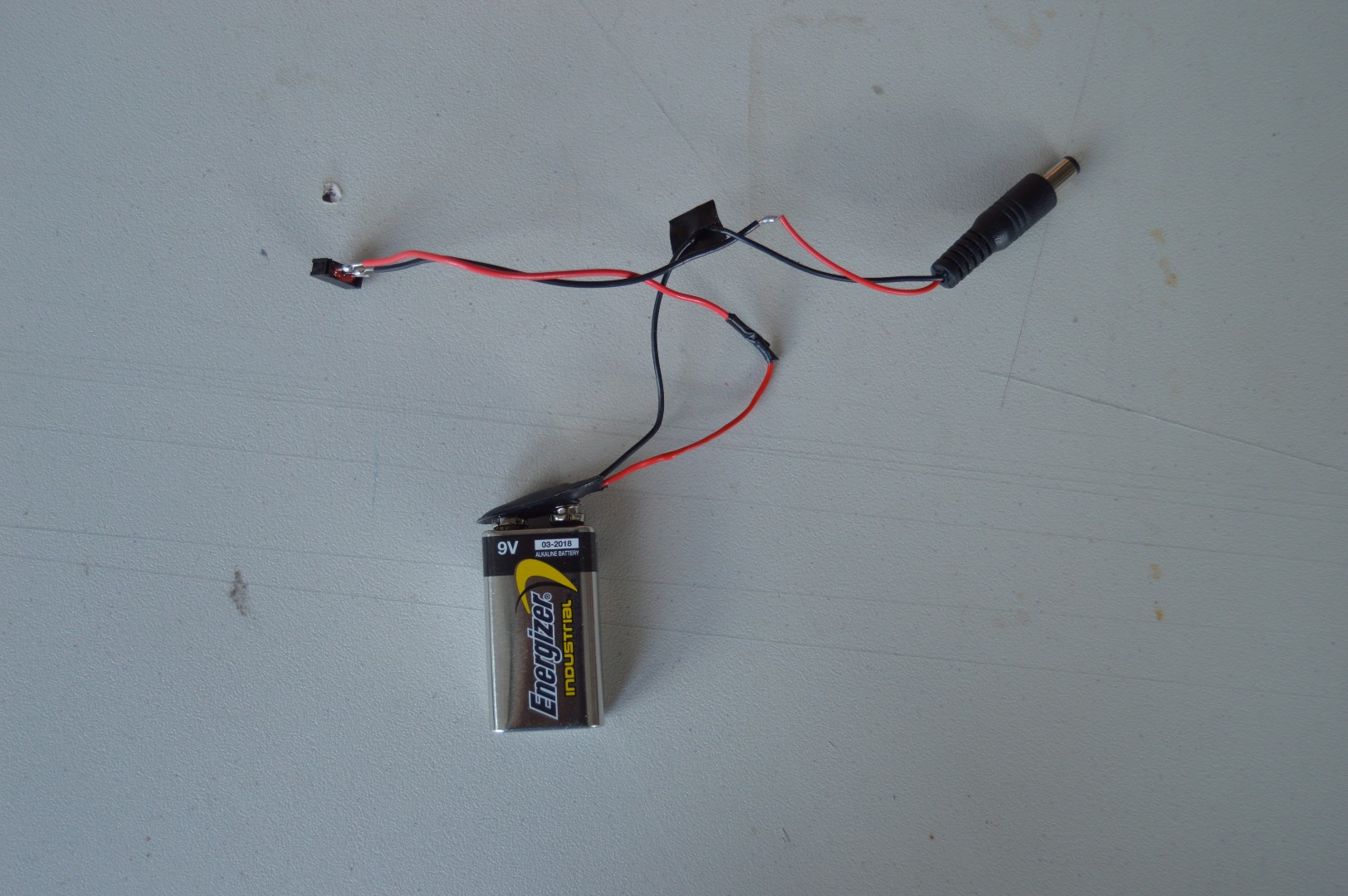

Using a 9v jack connector. Cut it to access the red and black wire and connect it to an on/off switch as shown in one of the images above.
Downloads

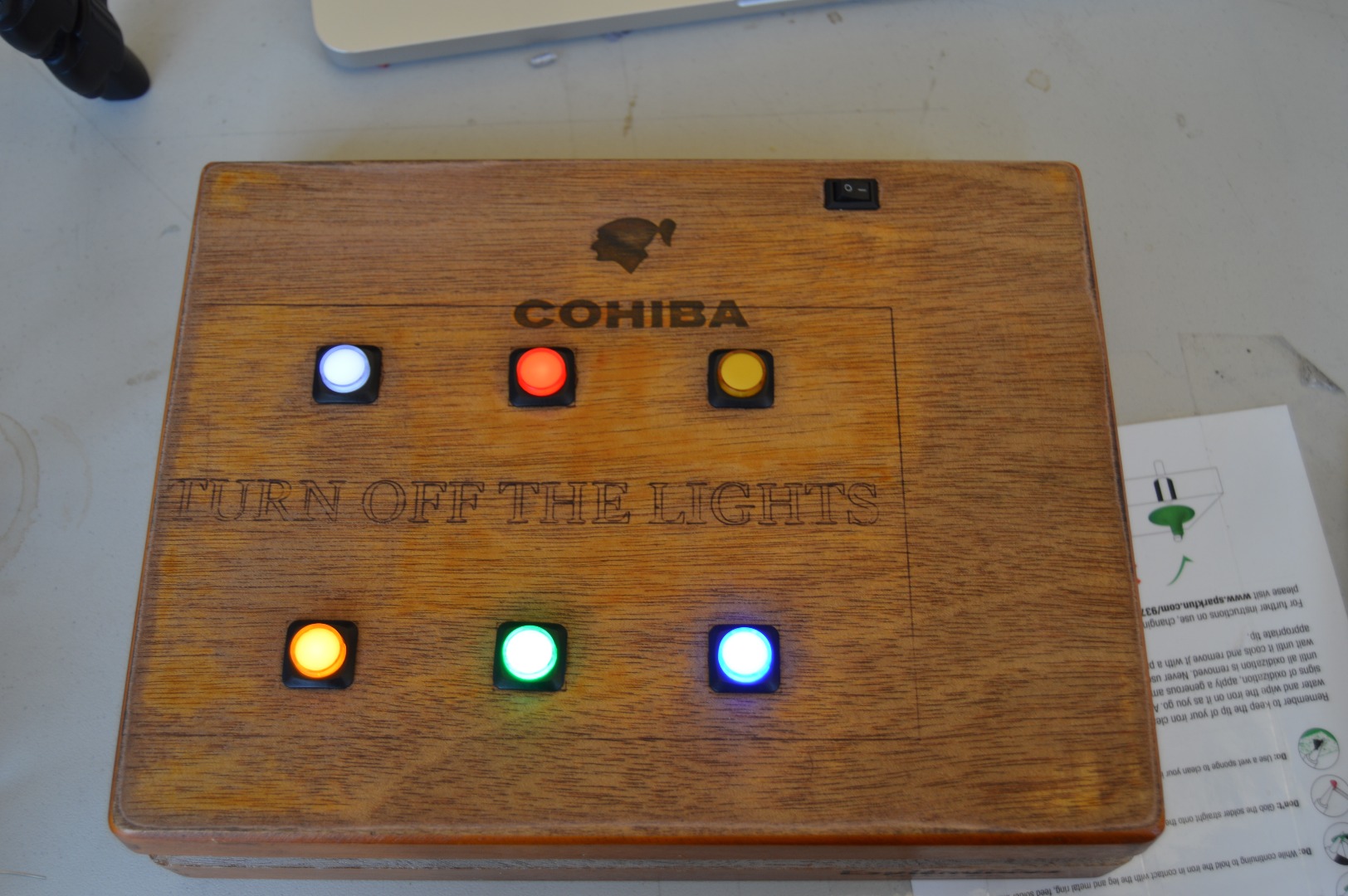

Finish Product
After uploading the arduino code into the redboard. Turn on the button and play the game. TurnOfftheLIghts. Since this game is an endless game the only way to TurnOfftheLights is to turn off the power.
(CODE COMING SOON)
