Turn Cut Scraps Into Useable Pieces - With Nesting Software

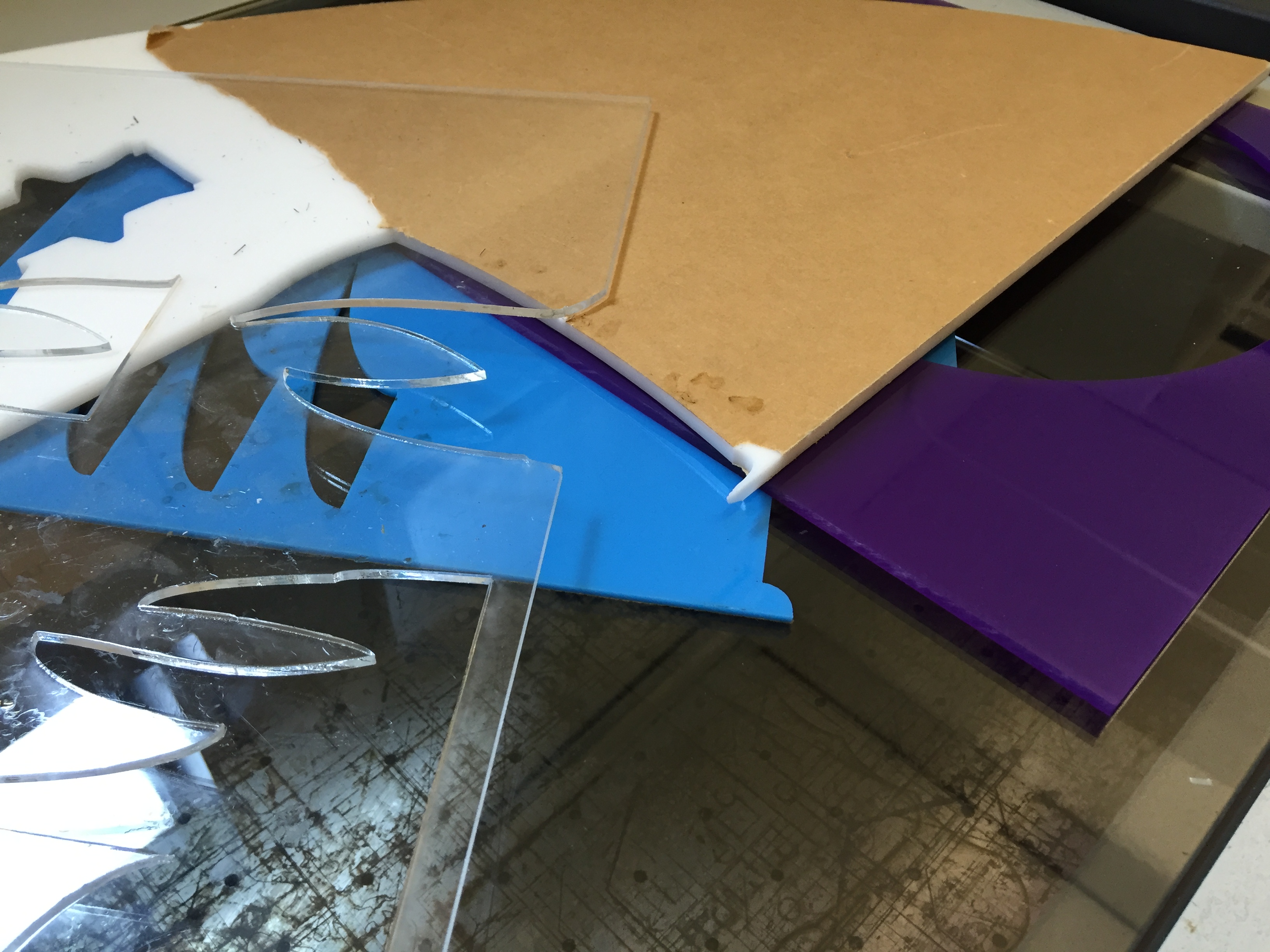

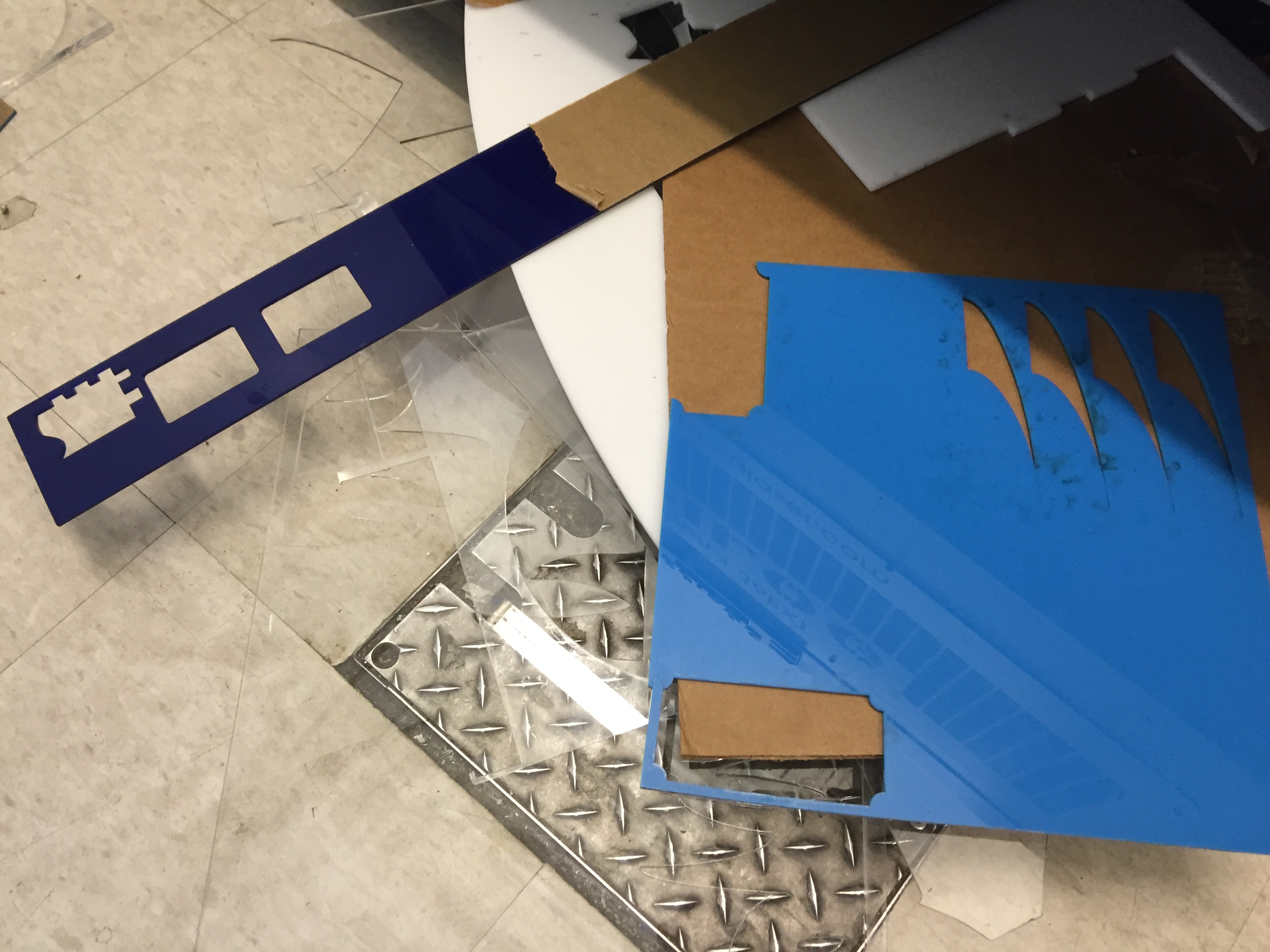

Wasting material seems like a fact of life for laser cutting. Every cut room has a pile of oddly shaped expensive acrylic, and wood leftovers. We all TRY to use the leftovers, but it's easy to be off just a bit and end up needing a new sheet anyway.

We thought it'd be great to be able to really use those leftover pieces.

Zotebook, the iPad app that turns rough sketches into precise drawings, has a built in fabrication tool that will arrange shapes to maximize material use, and can even fit new files into leftover cut pieces.

Here's is a quick overview of how it works.

The fabrication tool is in the a tab at https://zotebook.io

With an account with Zotebook, after you login, all the are files that have been created are in both:

My Sketches, where you can download STL, PDF or SVG files

and

Fabrication, which uses the nesting software.

Go to "Fabricate."

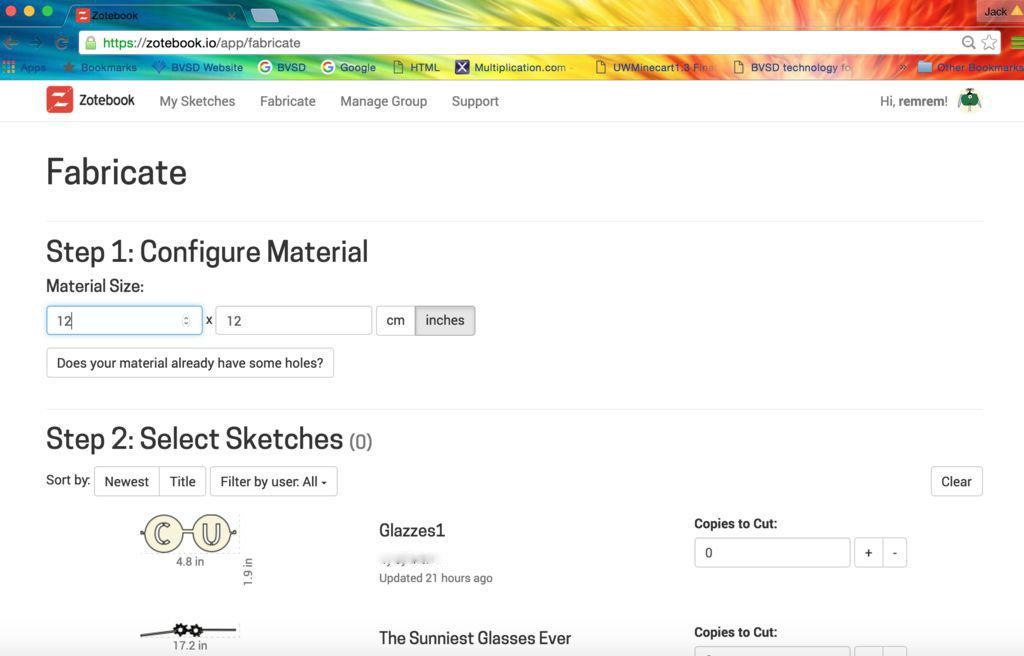

Before selecting which files to cut, select the overall dimensions of the leftover piece.

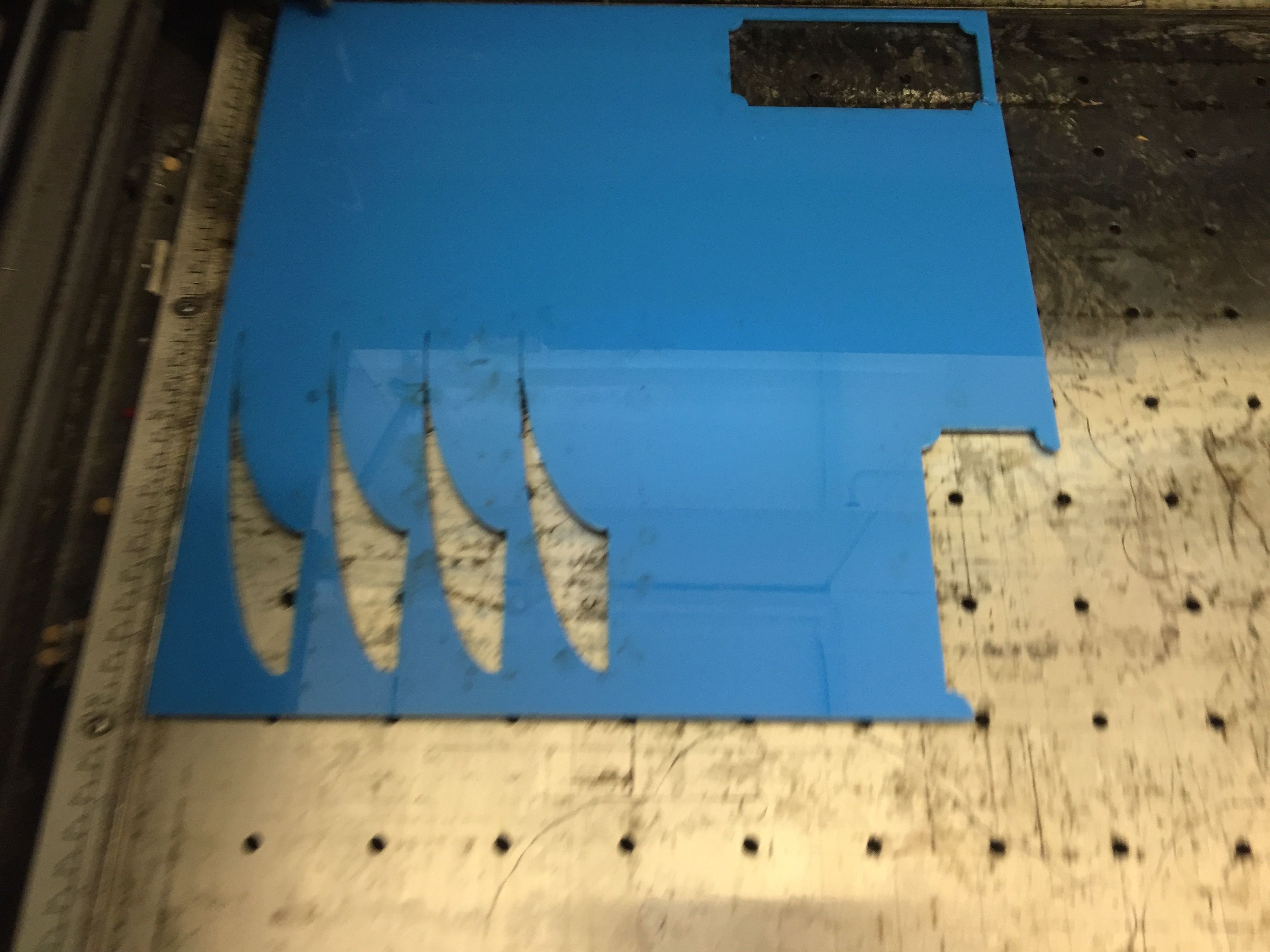

This used piece of blue acrylic is 12 inches by 12inches.

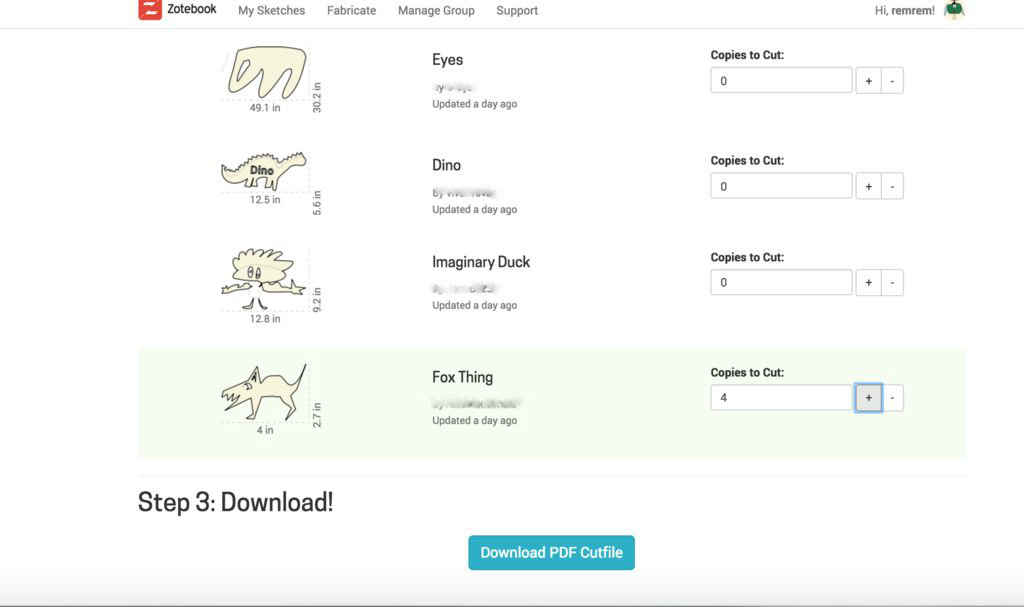

Select the files to be cut.

Here, 4 copies of the foxes.

And download the pdf file.

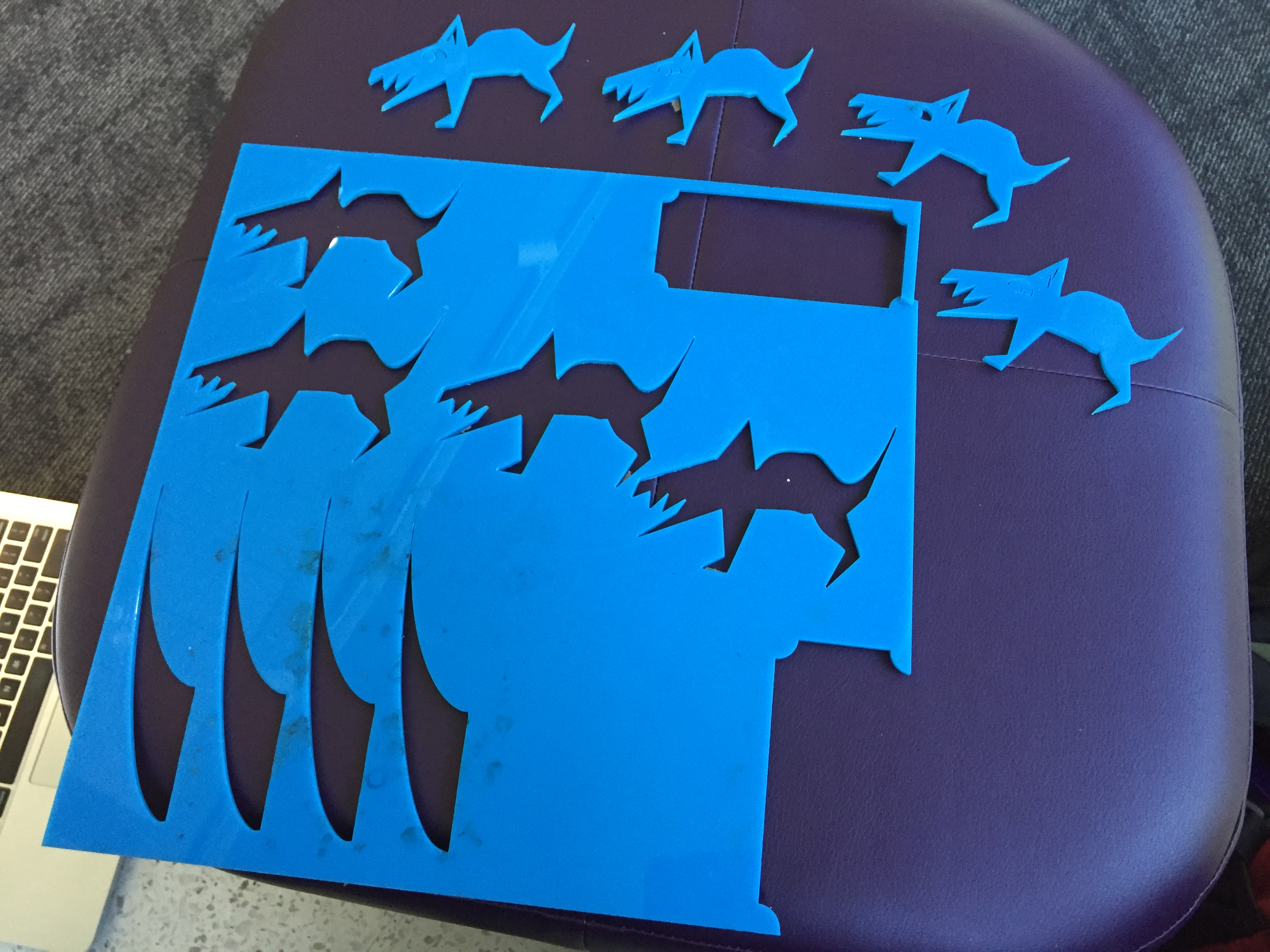

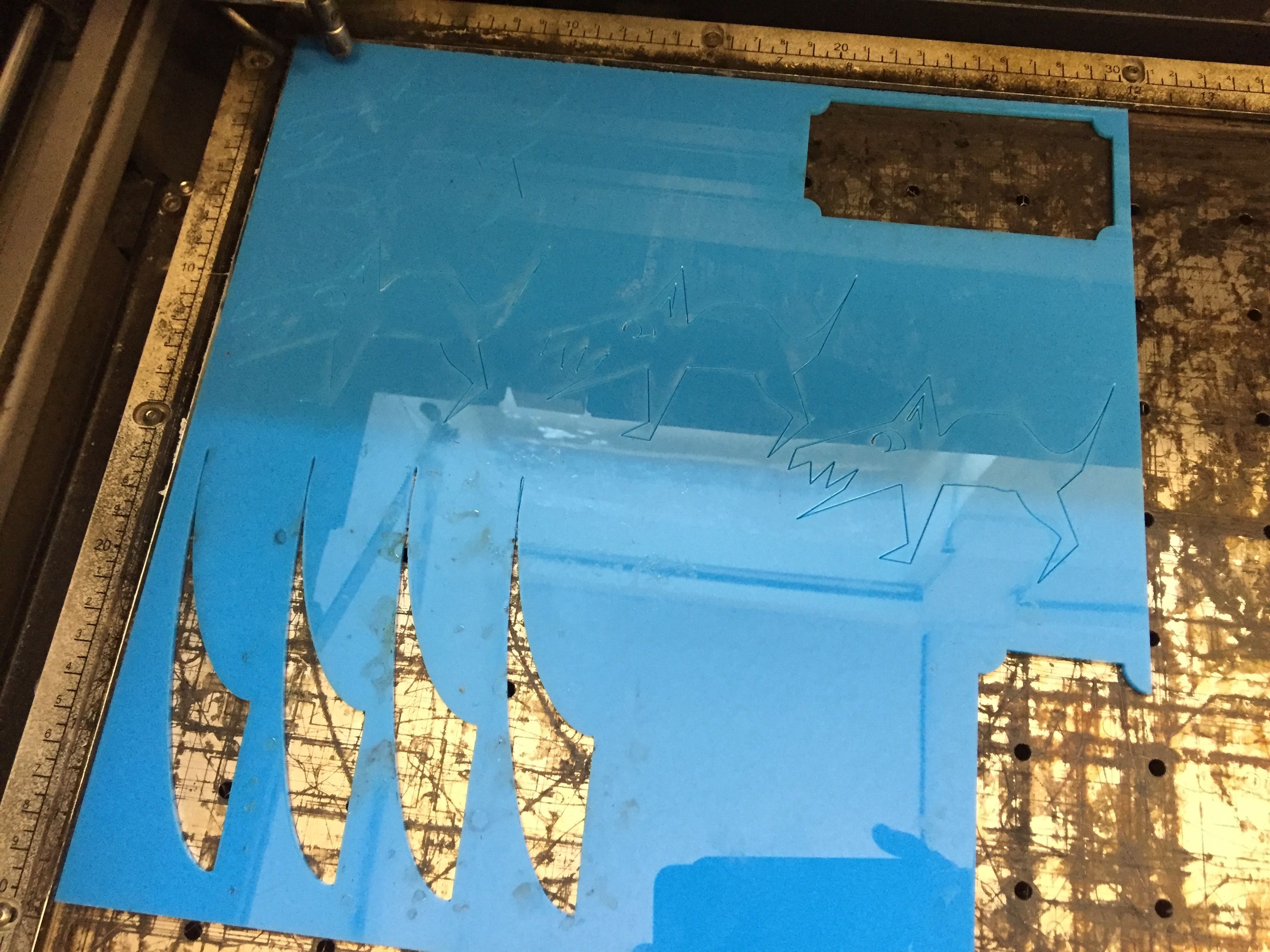

Notice I didn't have to think about the files fitting, the foxes automatically fit in between previous cuts.

Just skip the "Does your shape have holes?" and "fabricate" will put your pieces in place on a full sheet.
