TurbineOne - Basic Wind Turbine That Anyone Can Make

This is my first working practical wind turbine. I really love green projects and renewable energy stuff. Last year I've made a small modification on an old PC fan to convert it into a small wind turbine. It had enough output power to light an LED. It was a huge project for me at that time because I 've always wanted so much to get even little power from wind ...UK.

The huge number of people on instructables who successfully built different sizes and shapes of practically working wind turbines has motivated me to build my own next level wind turbine to have higher scale of power output.

That 's where TurbineOne came from.

TurbineOne is my first practical power generating wind turbine DE.

I named it TurbineOne because I intend to build many other turbines.

I 'll explain how I built it in the next steps.

I know, when it comes to technical appeal ,engineering calculations or technology practices TurbineOne is not very awesome.

Believe me, I'm not so handy when it comes to mechanics and using power tools.

Please make good comments and productive criticism.

Here is my Channel on Youtube:

AeroArduino

Thank you for spending time reading my instructable.

You can read this article in Arabic Language From Here :

يمكنك قراءة هذه المقالة باللغة العربية من هنا

http://arabic-embedded-egypt.blogspot.com.eg/2016/02/turbineone.html

يمكنك قراءة هذه المقالة باللغة الإنجليزية من هنا

You can read this post in English from here :

http://embedded-egypt.blogspot.com/2016/02/turbineone-basic-wind-turbine-that.html

Permenant Magnet Motor

This is the most important piece of equipment for your wind turbine DE.

Actually, it was the first thing I started to look for when I decided to build my own wind turbine.

I thought to buy a DC motor from any hardware store who sells this kind of motors as a spare part for any appliance and I thought to get them from eBay

( e.g dishwasher , blender ... etc ) .

If you couldn't find an old motor, you still have the option to buy a new one.

Amazon DE , Amazon FR, Amazon UK , Amazon CA , Amazon ES , Amazon IT , eBay , Banggood , FlipKart India , Lazada, aliexpress

Then I found an old blender motor that has a permanent magnet inside it.

The basic idea of this instructable evolves around that generator. When you have a DC motor, it can be used as a motor as well as a generator.

I used a 120V 2500rpm DC motor from Amazon.

The motor generates electricity when it is turned by hand.

I measured the output and found to be nearly 14 Volts on the Voltmeter.

If you don't have an old motor to use as a generator you can buy a new one from Amazon Here or from eBay Here.

I bought it from Amazon for another project and used it as a generator and it worked perfect.

This wind turbine is 100% recycled. I got all parts from scrap and used stuff.

It took me a long time to collect some of the materials used for building it, but you can just buy them or be lucky to find them easier than I did.

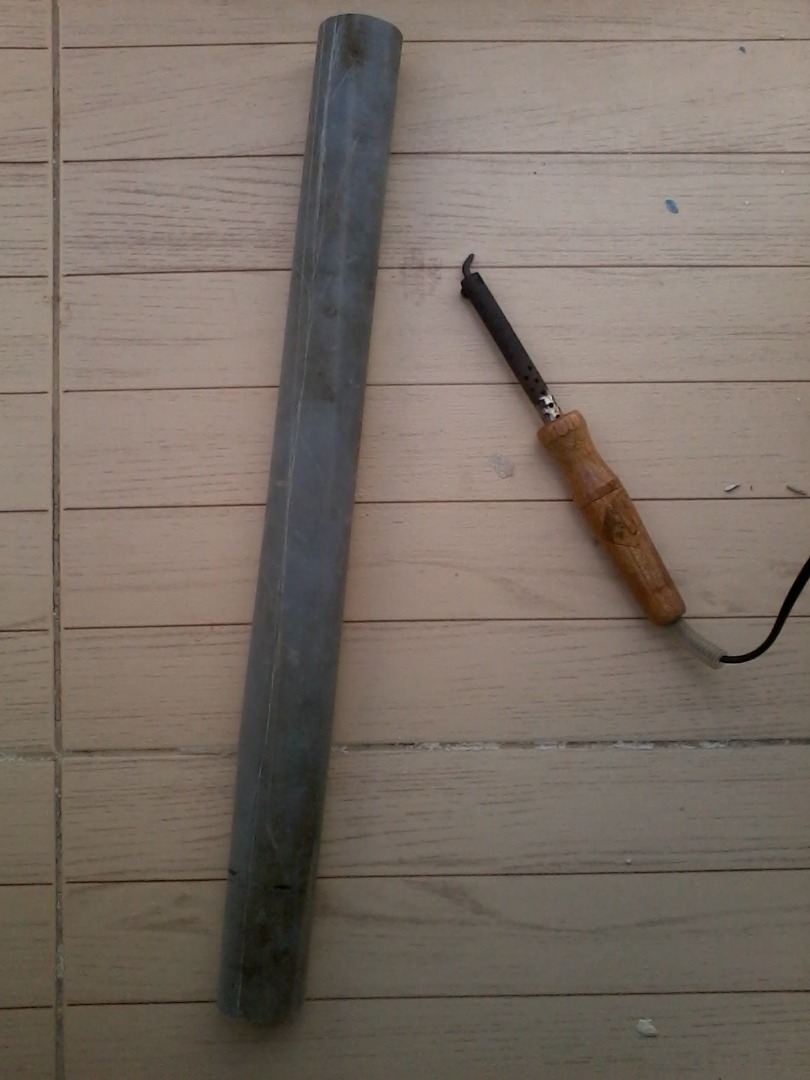

PVC pipe --------- > I found an old PVC pipe of suitable length to be used as turbine blades. ... UK

Amazon UK, Amazon DE, Amazon FR, Amazon ES, Amazon IT, or eBay

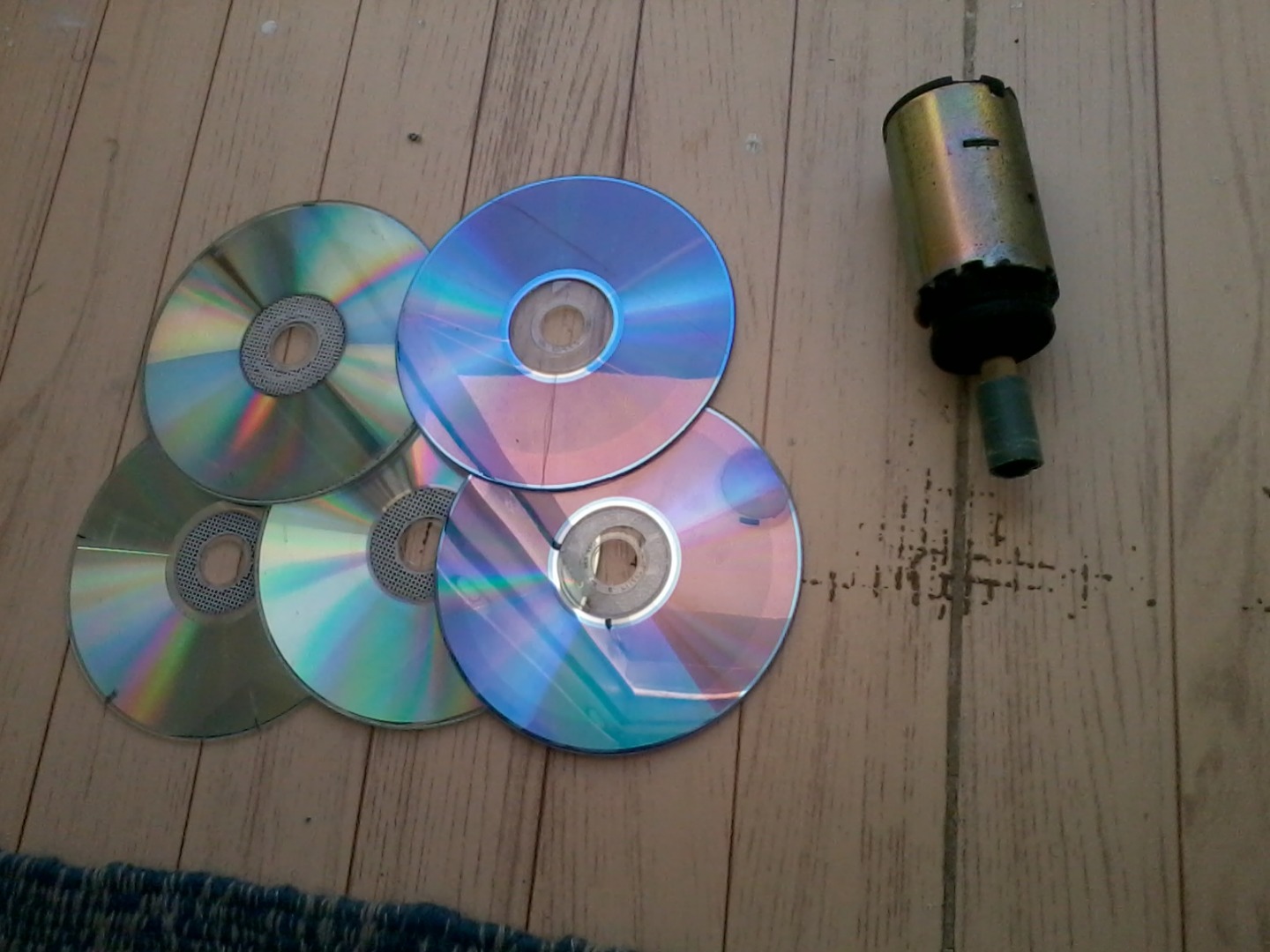

5 CD roms ------- > I used old CD Roms and DVD as wind turbine hub.
I found out that CDs is thicker than DVDs.

Fax paper plastic roll ----- > used as a coupler between CD roms and motor shaft. .. UK


Some screws.

Some wires.

Old metallic rod used as a tower

Plastic tie raps

Amazon UK, Amazon DE, Amazon FR, Amazon ES, Amazon IT, Banggood or eBay , Aliexpress

I added this instructable to the Leftovers contest because it is made of 100 % up-cycled and old leftover stuff.

If you like it , please vote for me.

This project is made using fairly power tools. Please be careful when using these stuff.

- Saw

Amazon UK, Amazon DE, Amazon FR, Amazon ES, Amazon IT,Banggood or eBay . Aliexpress

- Screw Driver

Amazon UK, Amazon DE, Amazon FR, Amazon ES, Amazon IT, Banggood or eBay , Aliexpress

- Sand paper

Amazon UK, Amazon DE, Amazon FR, Amazon ES, Amazon IT, Banggood or eBay , Aliexpress

- Pliers

Amazon UK, Amazon DE, Amazon FR, Amazon ES, Amazon IT, Banggood or eBay , Aliexpress

I started by the turbine hub.

Cut the plastic fax tube to 5 cm long .

I put the plastic tube around the motor rotating shaft.

Use the sand paper in cdrom center to make the plastic tube fit into it.

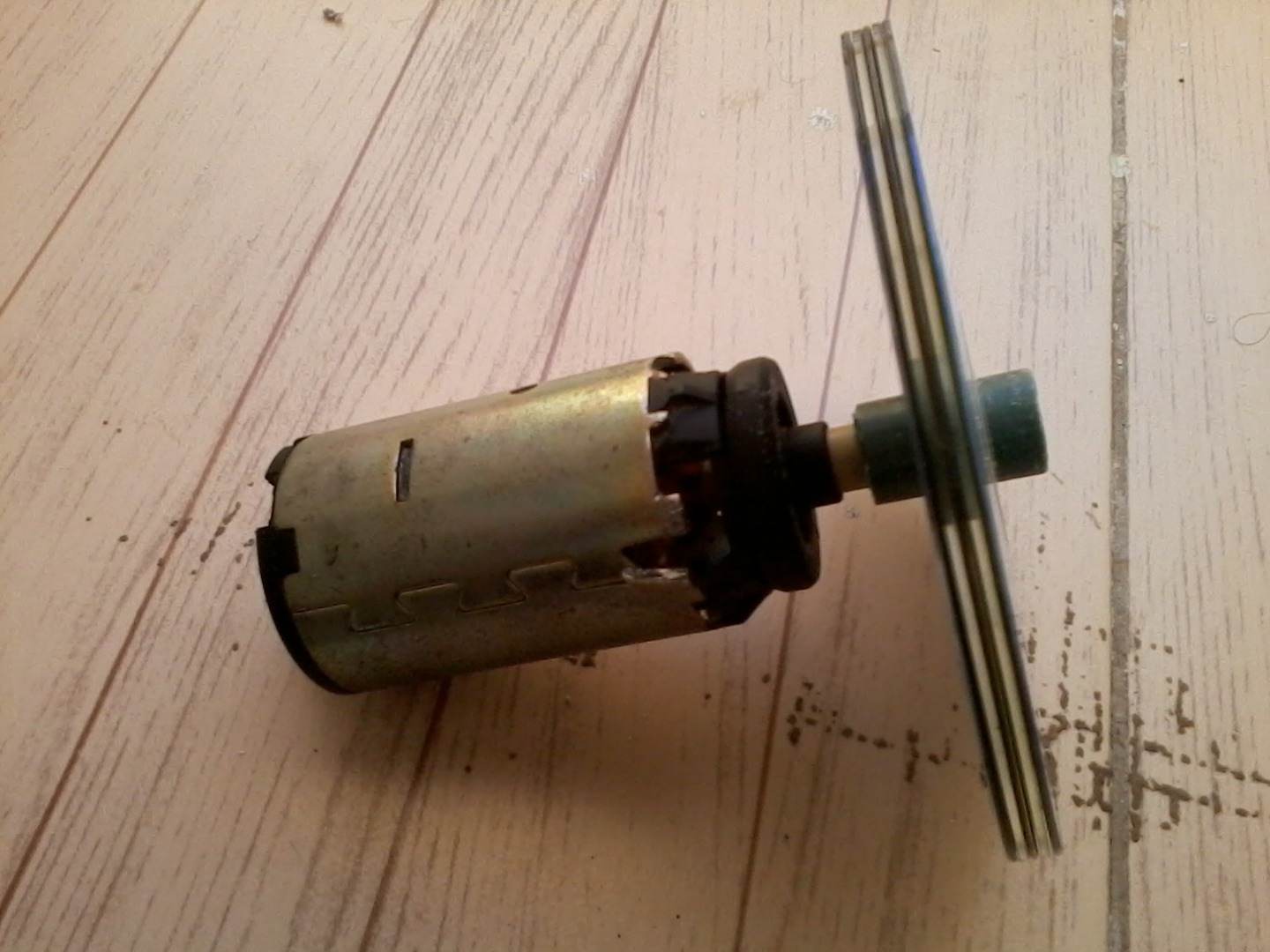

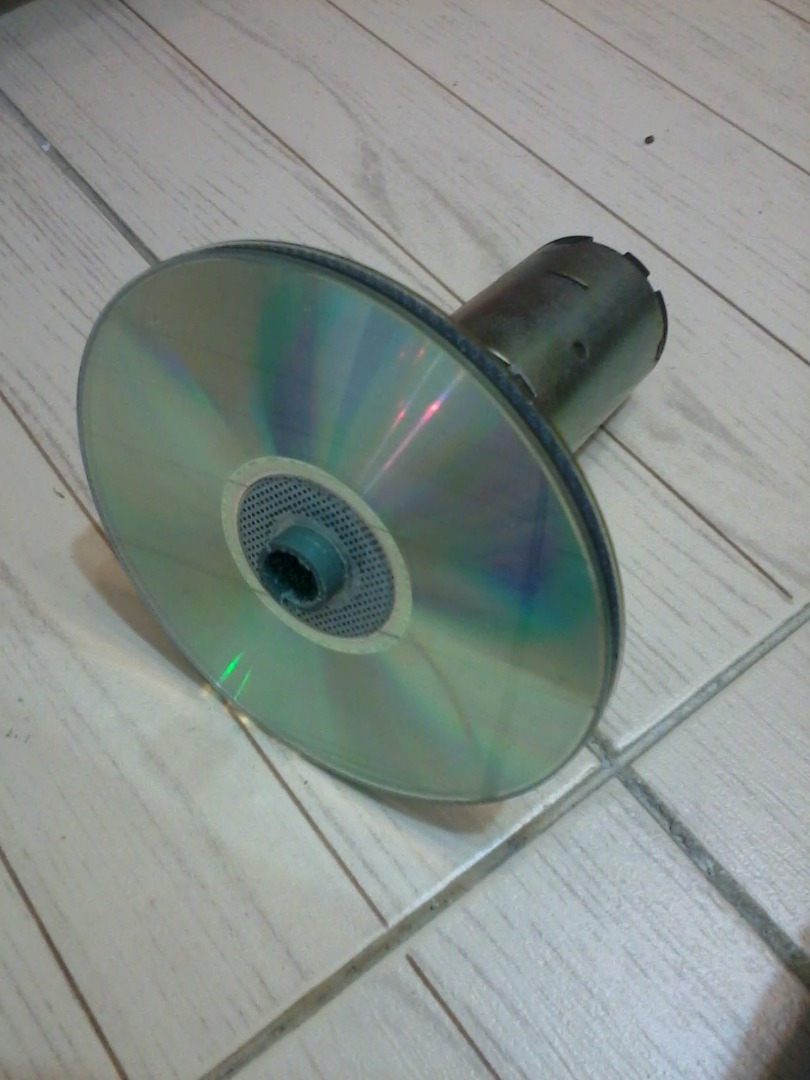

Put CDroms and DVDs around the plastic pipe and motor shaft.

I wanted to cut the turbine blades into the usual turbine blades shape.

I really liked the idea of using PVC pipe as a fan blade. I got this idea from the internet.

But when I got the old PVC pipe I stated by drawing the fan blade on a template to draw it on the PVC pipe.

Then I couldn't get the tools to cut pipe in the fine shape of the fan blade.

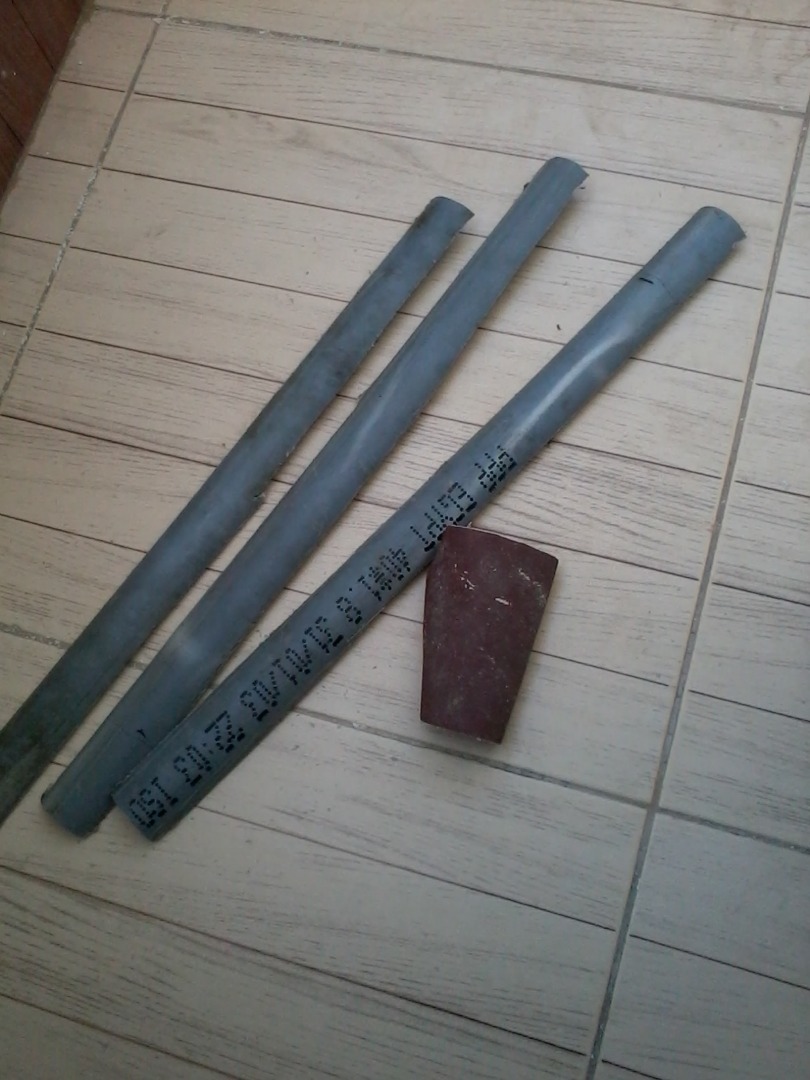

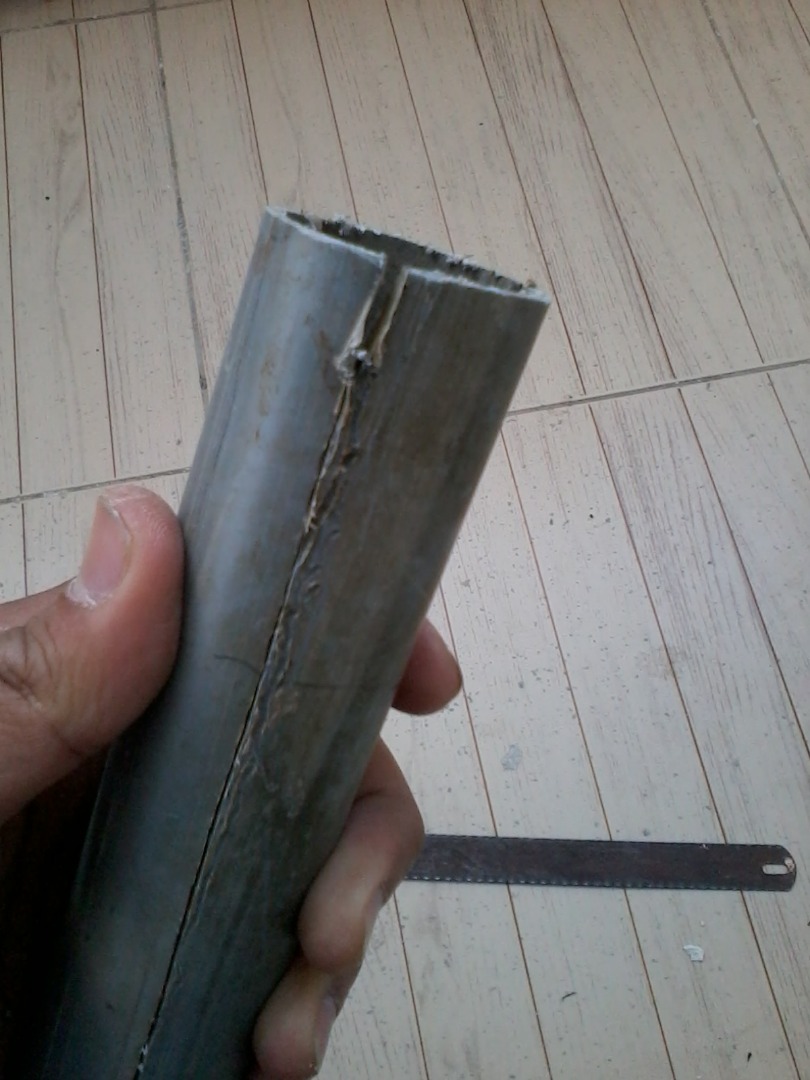

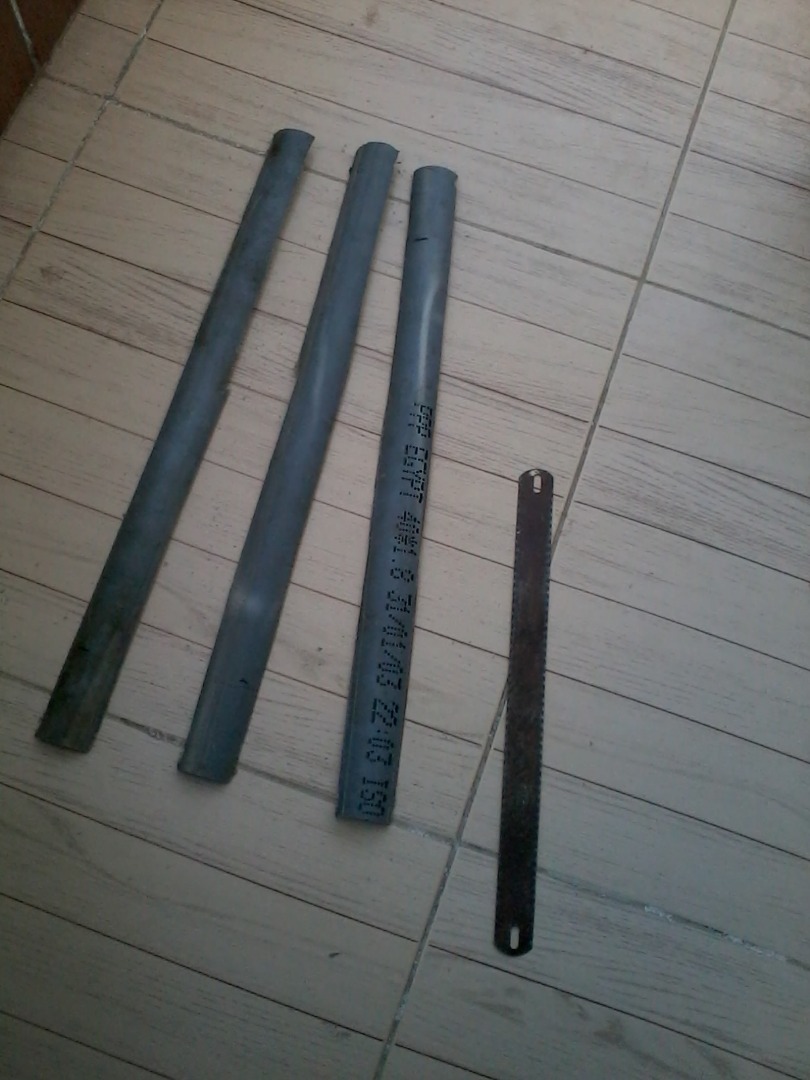

So I've chosen to make the easy way and cut the PVC pipe into straight three equal pieces using hot soldering iron.

But how are these pieces going to generate rotational motion from the wind.

I decided to install each blade on the hub so it becomes nearly perpendicular to the hub and the round shape of the pipe does the rest.

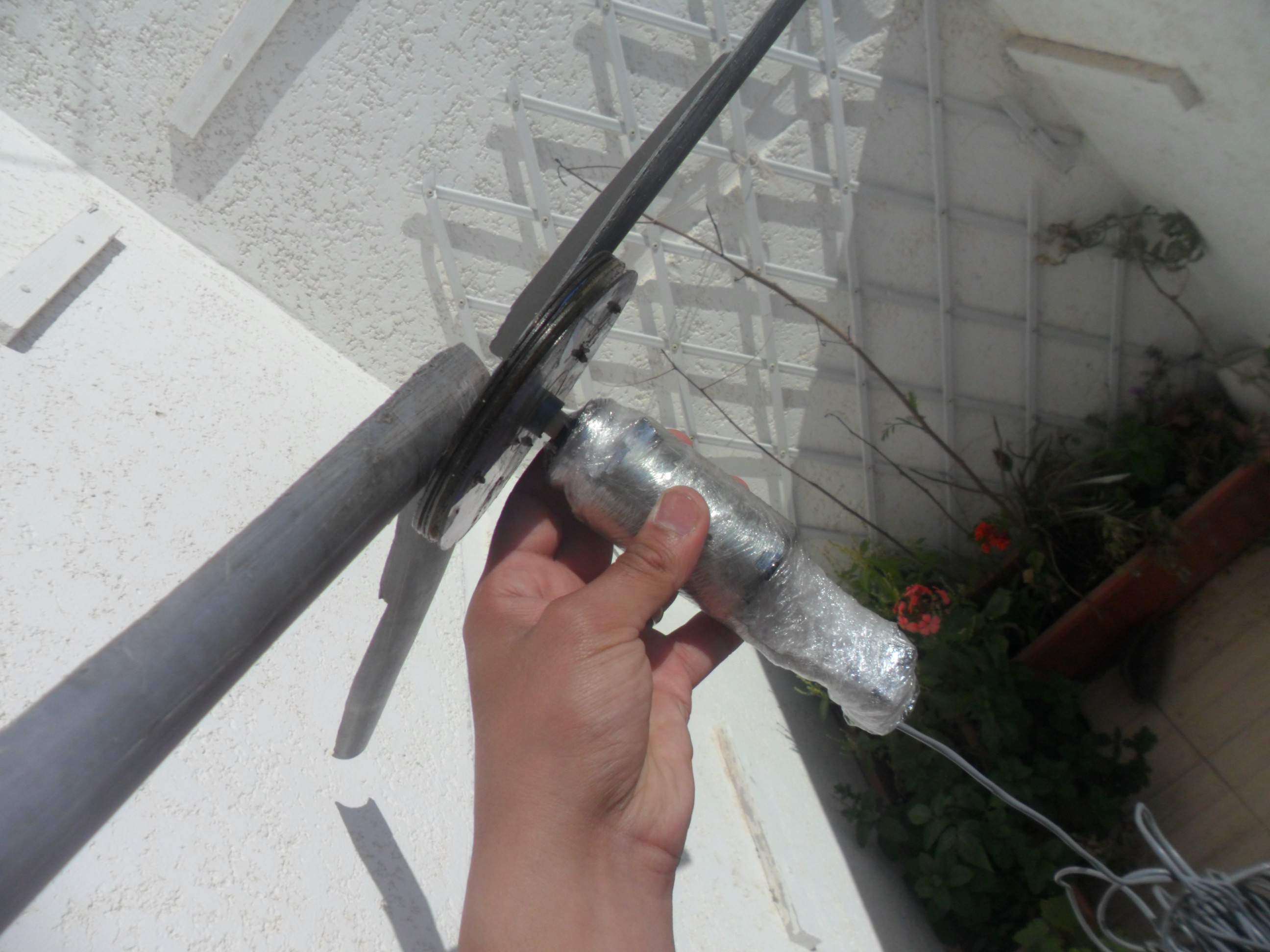

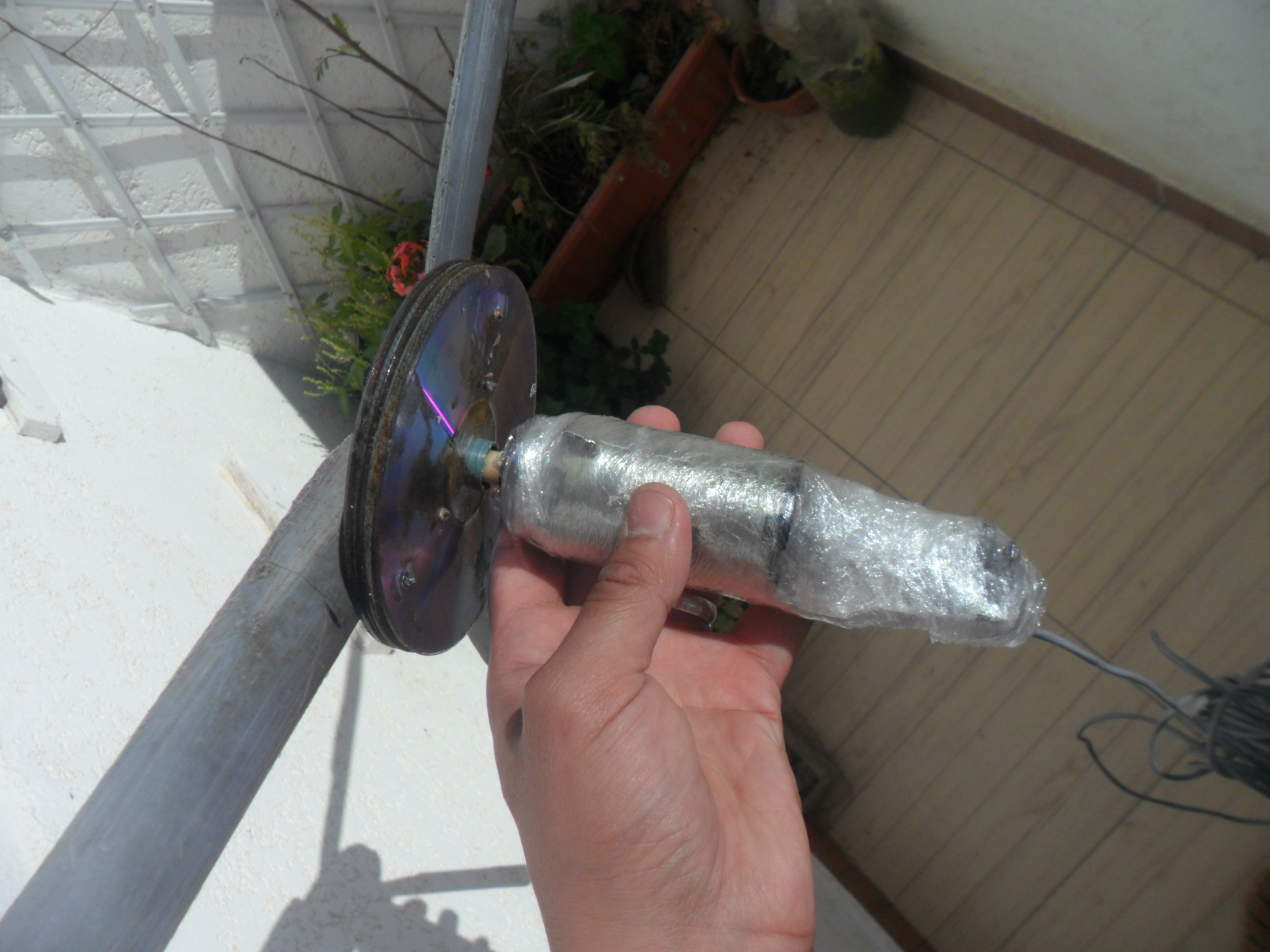

I installed the hub around the motor and secured them together using the fax paper plastic tube.

Then I cut the extra piece of plastic from the small plastic tube.

I drilled the metallic tube to install screws to fix the two tubes together.

I installed the turbine with its pole on the roof of my apartment.

It really rotates when the wind is fairly blowing.

TO DO :

I 'll make a battery charging circuit and connect a sealed Lead-Acid battery to make a steady supply power source.
