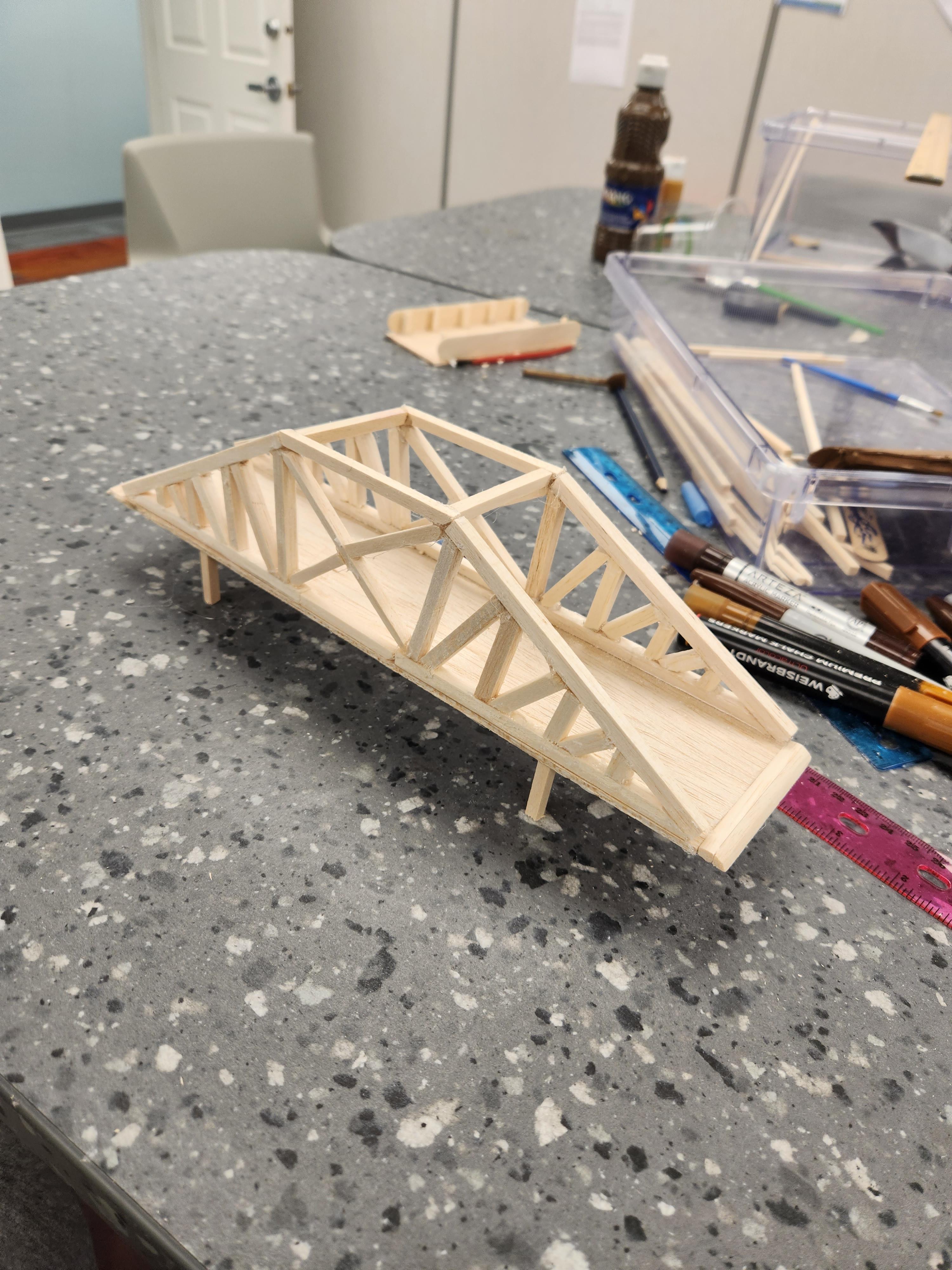

Trust the Truss Bridge
![20230606_094450.jpg](/proxy/?url=https://content.instructables.com/FVL/3KVH/LIOKVRUI/FVL3KVHLIOKVRUI.jpg&filename=20230606_094450.jpg)
![IMG_4170.jpg](/proxy/?url=https://content.instructables.com/F3D/GLR2/LIOKVSEZ/F3DGLR2LIOKVSEZ.jpg&filename=IMG_4170.jpg)
![IMG_4222.jpg](/proxy/?url=https://content.instructables.com/FDN/99GU/LIOKVSKK/FDN99GULIOKVSKK.jpg&filename=IMG_4222.jpg)

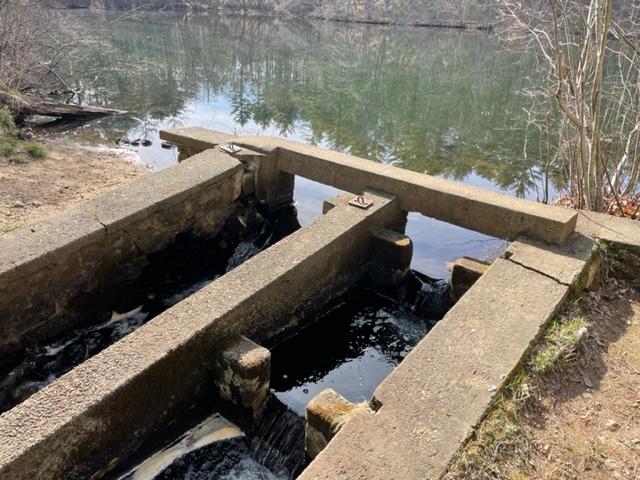

The goal was to develop a bridge design to help the elderly and disabled cross a fish ladder in a nature preserve.
Supplies
![20230518_103513.jpg](/proxy/?url=https://content.instructables.com/FE5/PVPI/LIOKVSAQ/FE5PVPILIOKVSAQ.jpg&filename=20230518_103513.jpg)
- balsa wood
- hot glue
- saw
- sandpaper
- ruler

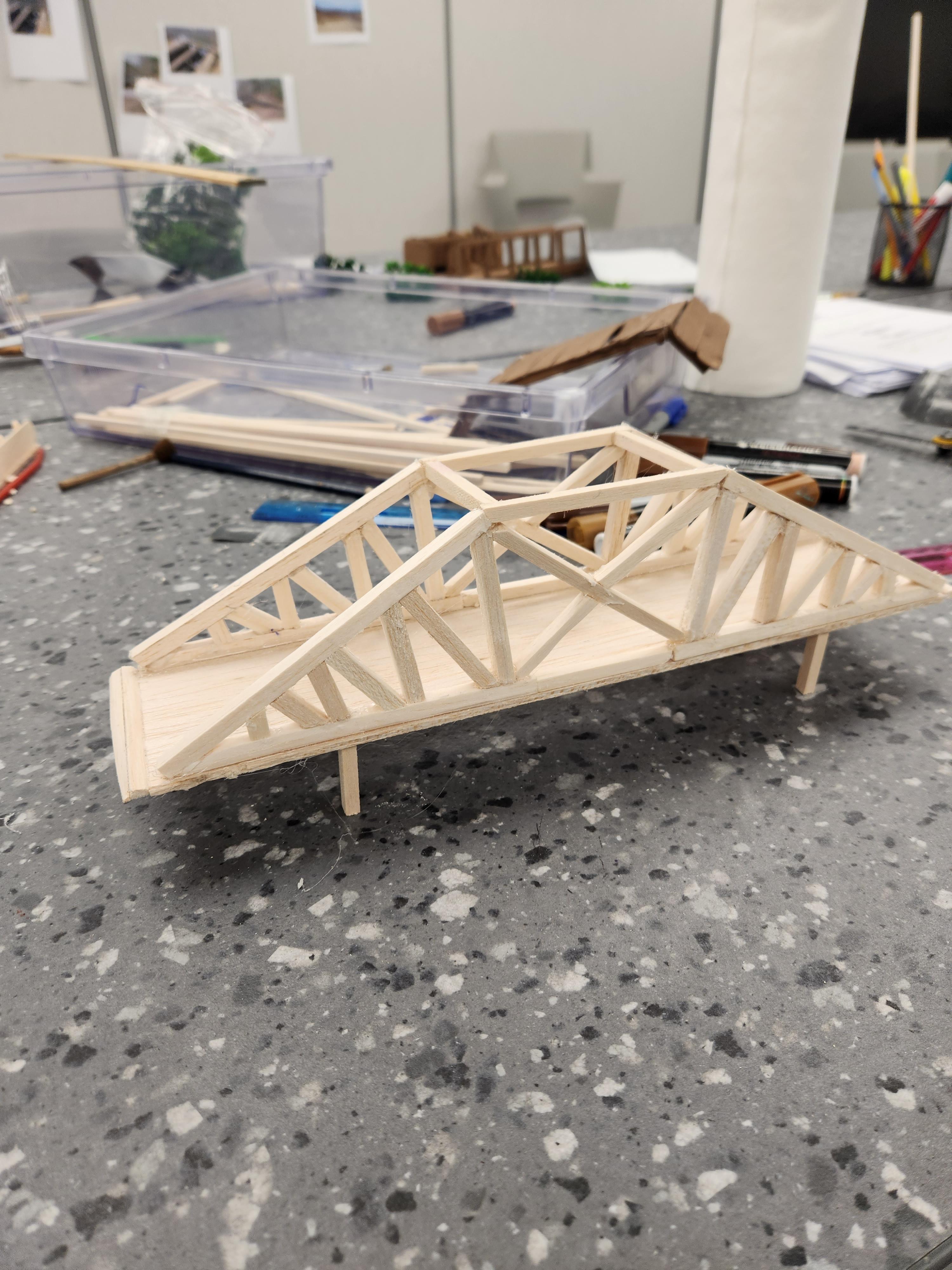

Designing My Model
![20230518_103827.jpg](/proxy/?url=https://content.instructables.com/FCZ/TEBB/LIOKVTDX/FCZTEBBLIOKVTDX.jpg&filename=20230518_103827.jpg)
![IMG_4311.jpg](/proxy/?url=https://content.instructables.com/F9L/7DD6/LIOKVTGG/F9L7DD6LIOKVTGG.jpg&filename=IMG_4311.jpg)
![20230519_103836.jpg](/proxy/?url=https://content.instructables.com/FX0/35MN/LIOKVTK5/FX035MNLIOKVTK5.jpg&filename=20230519_103836.jpg)
![20230606_094455.jpg](/proxy/?url=https://content.instructables.com/FL0/IDAG/LIOKVTLR/FL0IDAGLIOKVTLR.jpg&filename=20230606_094455.jpg)
- Measured a piece of balsa wood
- Made a V-Shape
- Then made trusses by cutting and gluing balsa wood to fit in the V shape
- Then I copied that basic design 3 times for a total of 4
- I added them on to a floor/base piece
- I added extra support - beams going across the top and middle to make it stronger
- I sanded some of the pieces
Conclusion
In this project, I discovered a lot about the engineering process. Engineering is all about solving problems. I tried to solve the problem of the elderly and disabled crossing the fish ladder. I learned that I like using my hands and designing. Building the trusses was the most challenging part.
