Triangle Robot
![IMG_20200531_105529-01.jpeg](/proxy/?url=https://content.instructables.com/FFP/BPZ9/KDEJ0BT7/FFPBPZ9KDEJ0BT7.jpg&filename=IMG_20200531_105529-01.jpeg)
![Triangle robot](/proxy/?url=https://content.instructables.com/FN8/W0E6/KDN3N6CJ/FN8W0E6KDN3N6CJ.jpg&filename=Triangle robot)
Hi All,
In this instructable, I will share, how to make a simple robot at home with a dc geared motor. This project can be used to introduce simple robotics to kids
What Do We Need ?

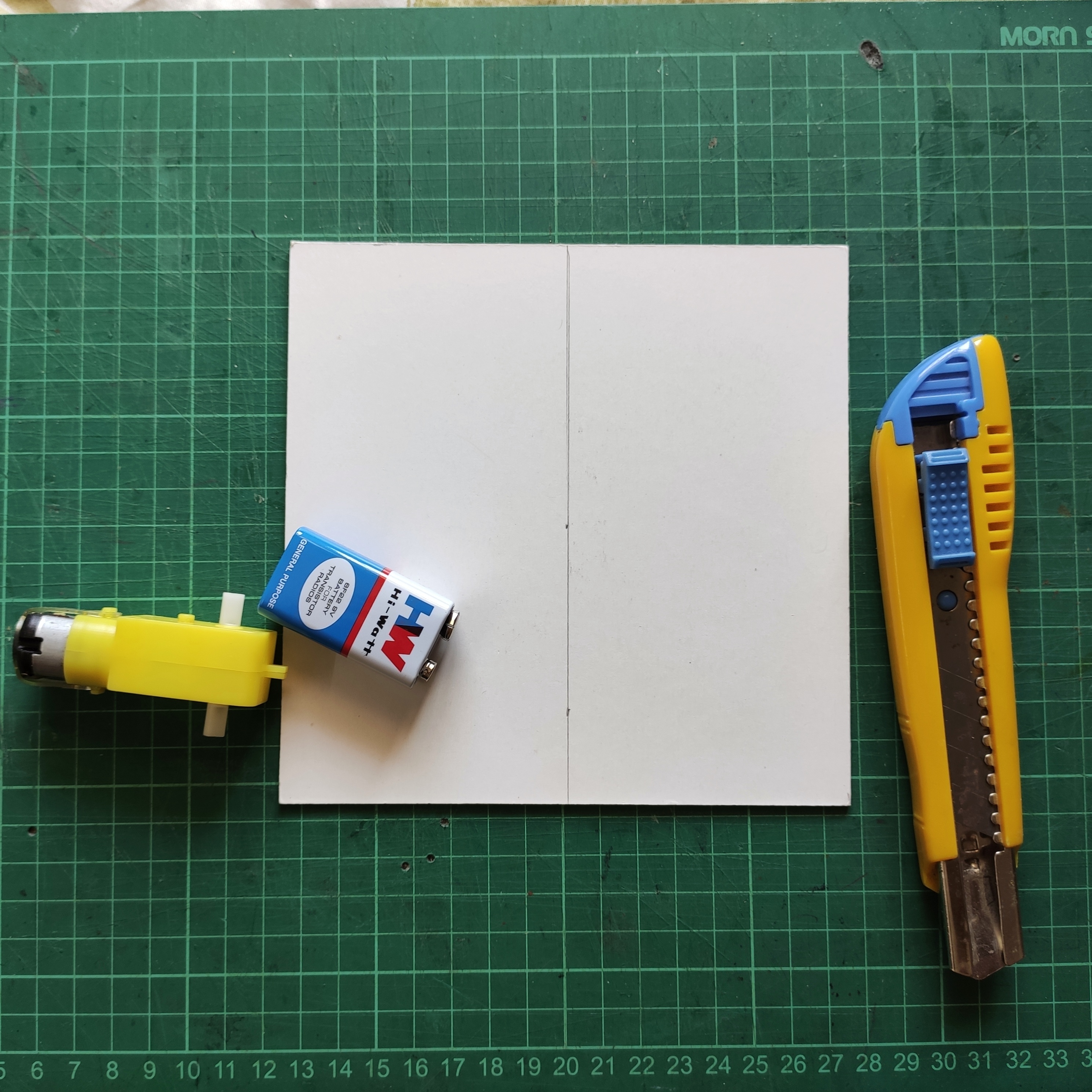

![IMG_20200530_143818-01.jpeg](/proxy/?url=https://content.instructables.com/FIP/QB36/KDEJ0BPS/FIPQB36KDEJ0BPS.jpg&filename=IMG_20200530_143818-01.jpeg)
- DC geared motor
- 9V Battery and connector
- Cardboard
- Popsicle sticks
- Skewer or toothpicks
- Superglue
- Cutter
- Soldering iron
Prepare : Cardboard
![IMG_20200530_145113_1-01.jpeg](/proxy/?url=https://content.instructables.com/F7H/13ZV/KDEJ0BPW/F7H13ZVKDEJ0BPW.jpg&filename=IMG_20200530_145113_1-01.jpeg)
- We need 4 equilateral triangles with 8cm sides and a rectangle with 5cm x 8cm
- I have used box cardboard, which is thick
- Drill holes on the triangle at 1cm from each corner
Prepare : Popsicle Sticks

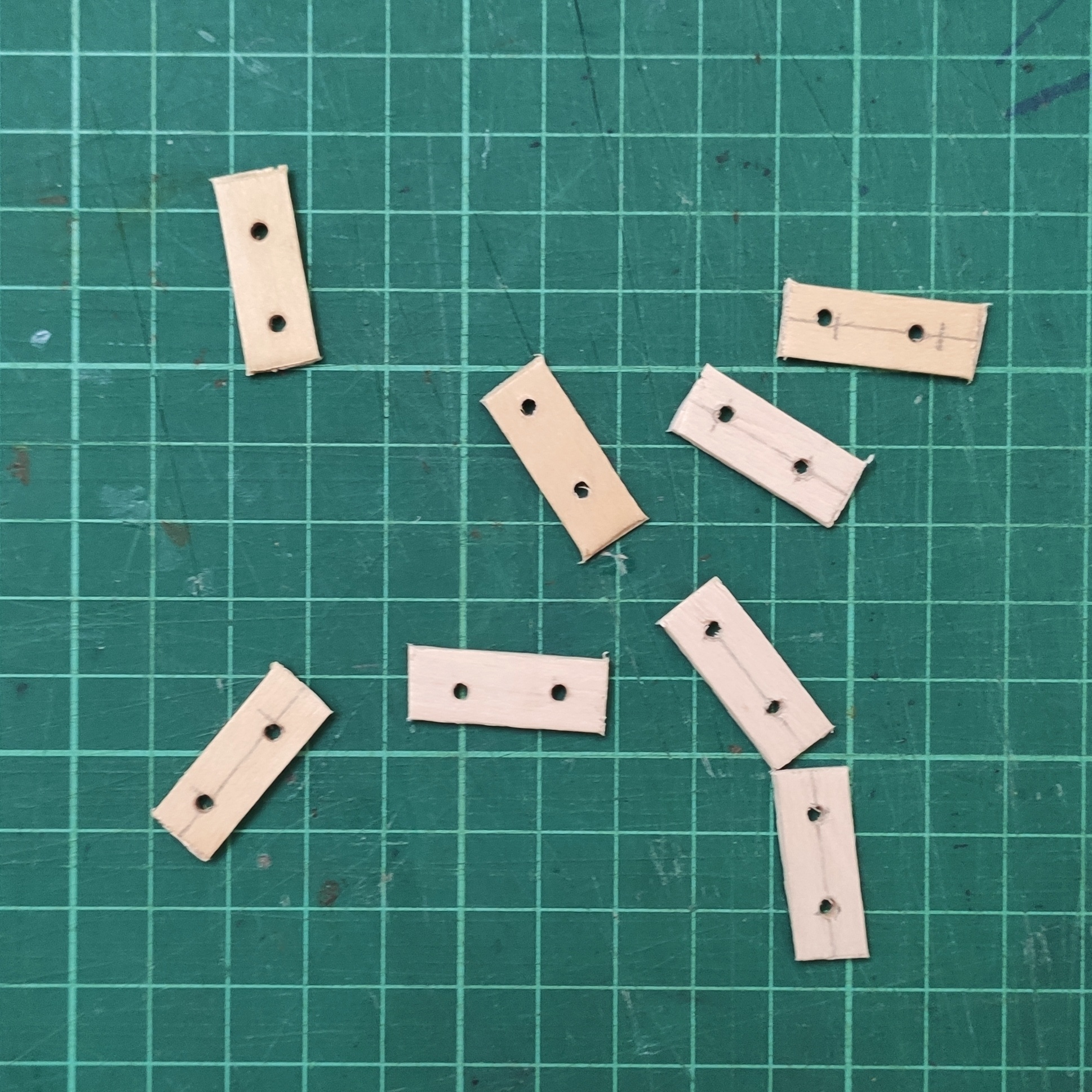

![IMG_20200530_155036-01.jpeg](/proxy/?url=https://content.instructables.com/FZZ/YLZF/KDEJ0BQ2/FZZYLZFKDEJ0BQ2.jpg&filename=IMG_20200530_155036-01.jpeg)
![IMG_20200530_160215-01.jpeg](/proxy/?url=https://content.instructables.com/FL0/XT4N/KDEJ0BQC/FL0XT4NKDEJ0BQC.jpg&filename=IMG_20200530_160215-01.jpeg)
- Cut 6 pieces popsicle sticks of 2.5cm in length each ( cut few extras, just in case )
- Drill a hole 0.5 cm from the edges
- Glue toothpicks on popsicle sticks, on one hole only
- Let this dry for few hours, donot rush
Body
![IMG_20200530_152549-01.jpeg](/proxy/?url=https://content.instructables.com/FKM/4MPP/KDEJ0BQT/FKM4MPPKDEJ0BQT.jpg&filename=IMG_20200530_152549-01.jpeg)
- Superglue two triangles and rectangle as shown
- Add support to avoid the triangles bending or moving away from the intended position
Assembly

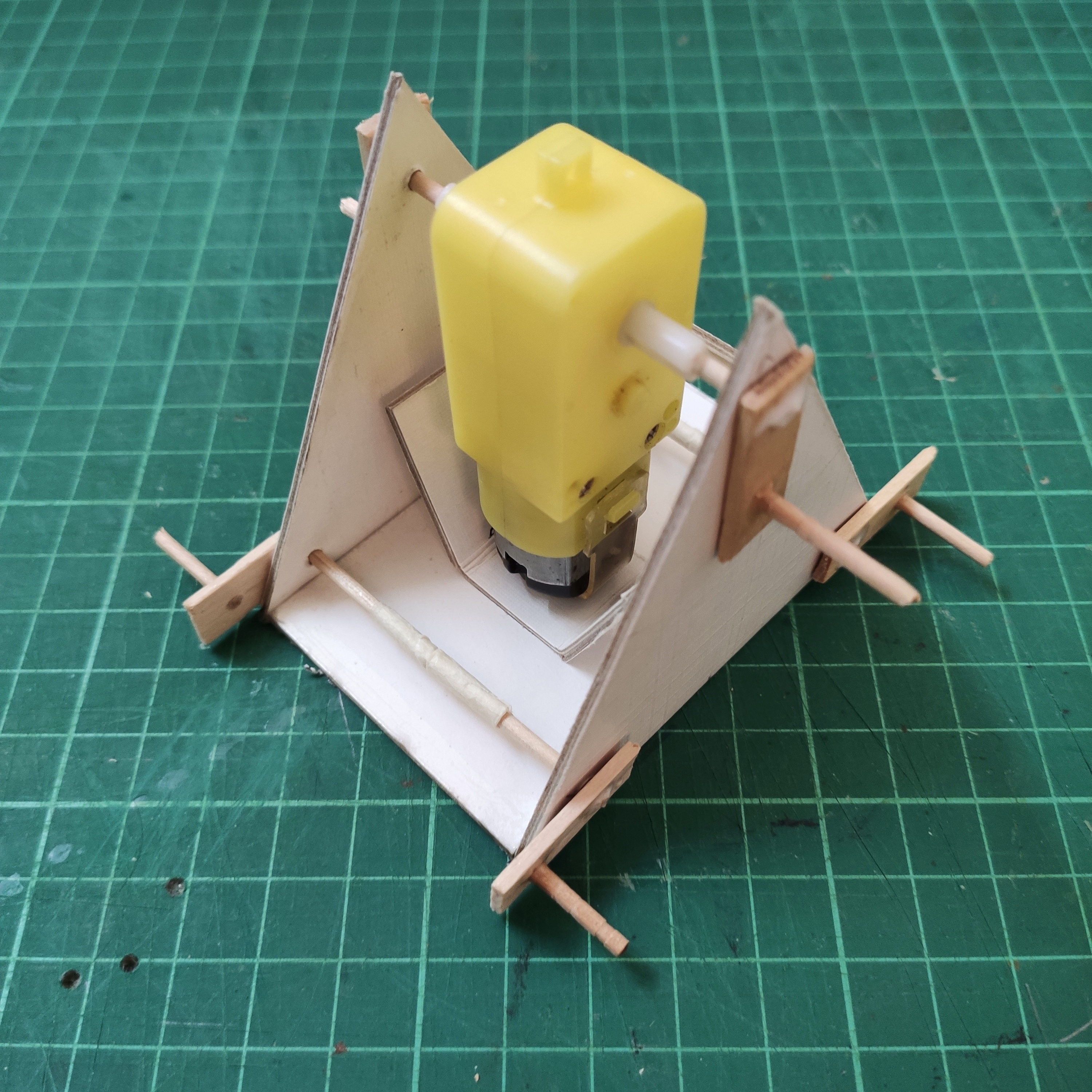

![IMG_20200530_160512-01.jpeg](/proxy/?url=https://content.instructables.com/FL5/WHDE/KDEJ0BR3/FL5WHDEKDEJ0BR3.jpg&filename=IMG_20200530_160512-01.jpeg)
![IMG_20200530_165201-01.jpeg](/proxy/?url=https://content.instructables.com/FI5/KB4D/KDEJ0BRP/FI5KB4DKDEJ0BRP.jpg&filename=IMG_20200530_165201-01.jpeg)
![IMG_20200531_104026-01.jpeg](/proxy/?url=https://content.instructables.com/FC5/YAT4/KDEJ0BSE/FC5YAT4KDEJ0BSE.jpg&filename=IMG_20200531_104026-01.jpeg)
- Superglue two toothpicks on the motor
- Fix the motor in the body, such that the toothpicks can move easily
- Add toothpicks rails, all these should be easy to move, with minimum wobble and friction
- Add the popsicle arms as shown, all arms should make an equilateral triangle to match the holes on the triangle
- Glue the arms in place and leave it to dry
- Make sure you stick the rails and arms not the cardboard
Testing

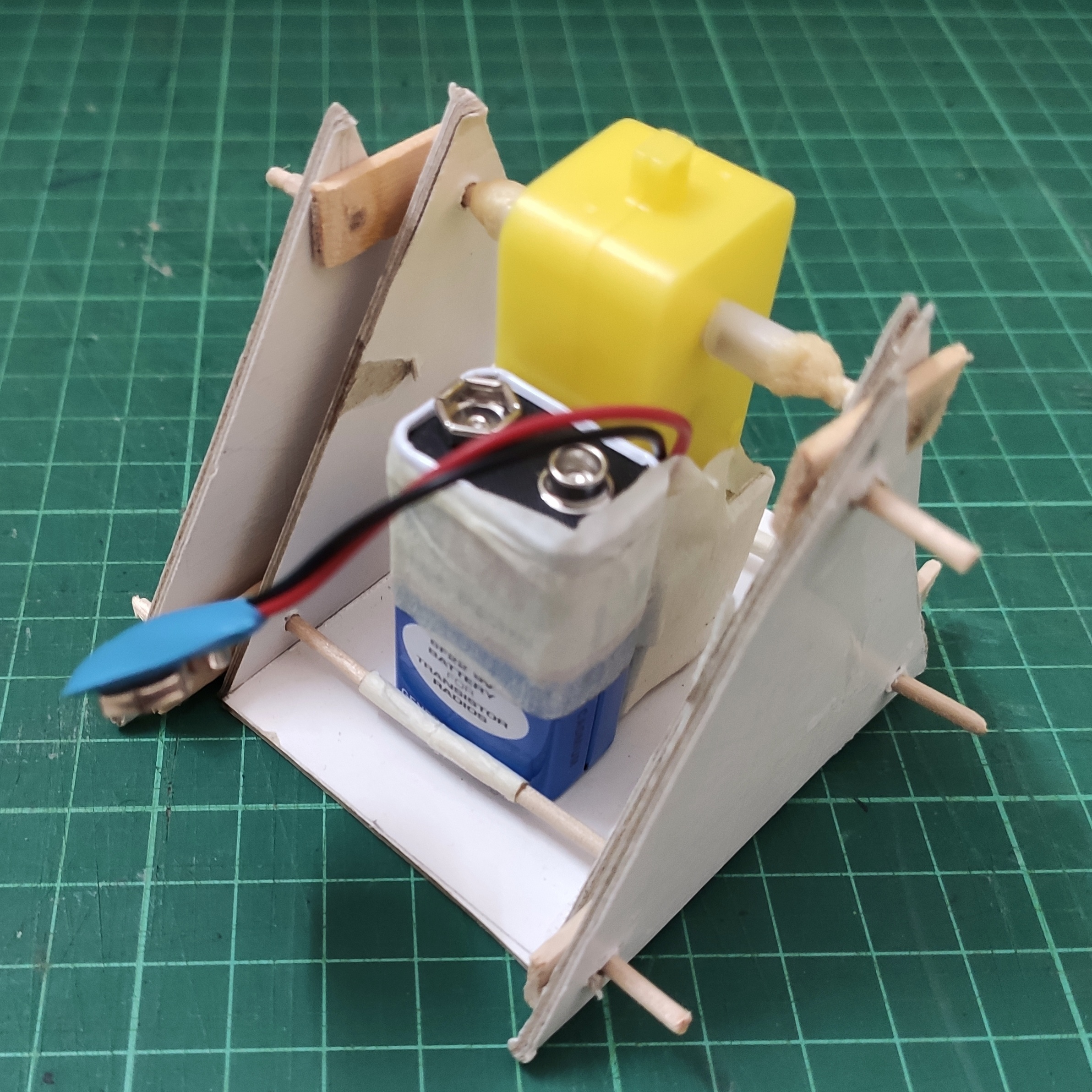

![IMG_20200531_105529-01.jpeg](/proxy/?url=https://content.instructables.com/FFP/BPZ9/KDEJ0BT7/FFPBPZ9KDEJ0BT7.jpg&filename=IMG_20200531_105529-01.jpeg)
- Add battery and test
- Give it to your kid to play
Note
- Make sure that the cardboard does not get stuck with the toothpicks rails or arms
- There may be friction between rails and carboard
- Replace battery based on motor
