Tremper

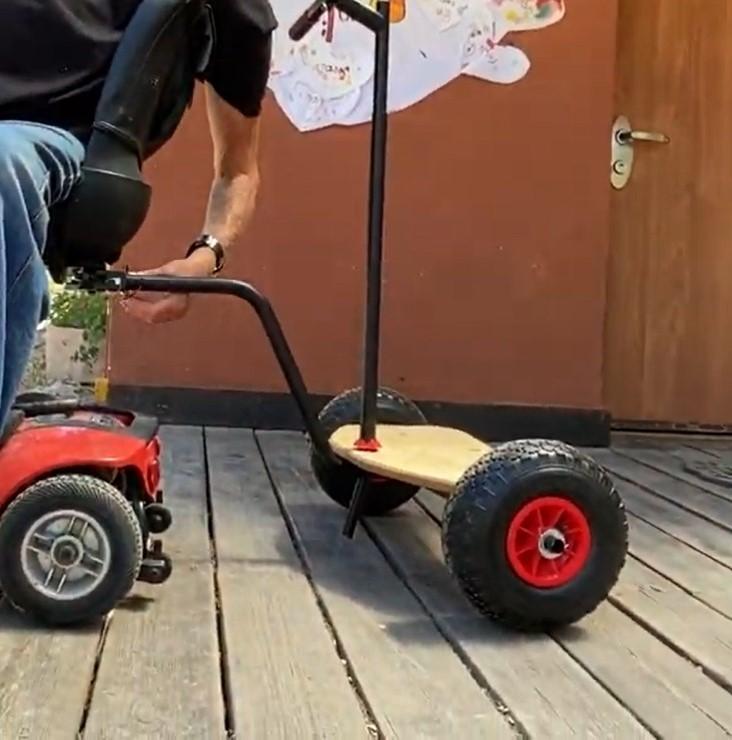

motorised scooter add-on for kids to ride on- riding up to 2 kids at a time ages 3-6 .

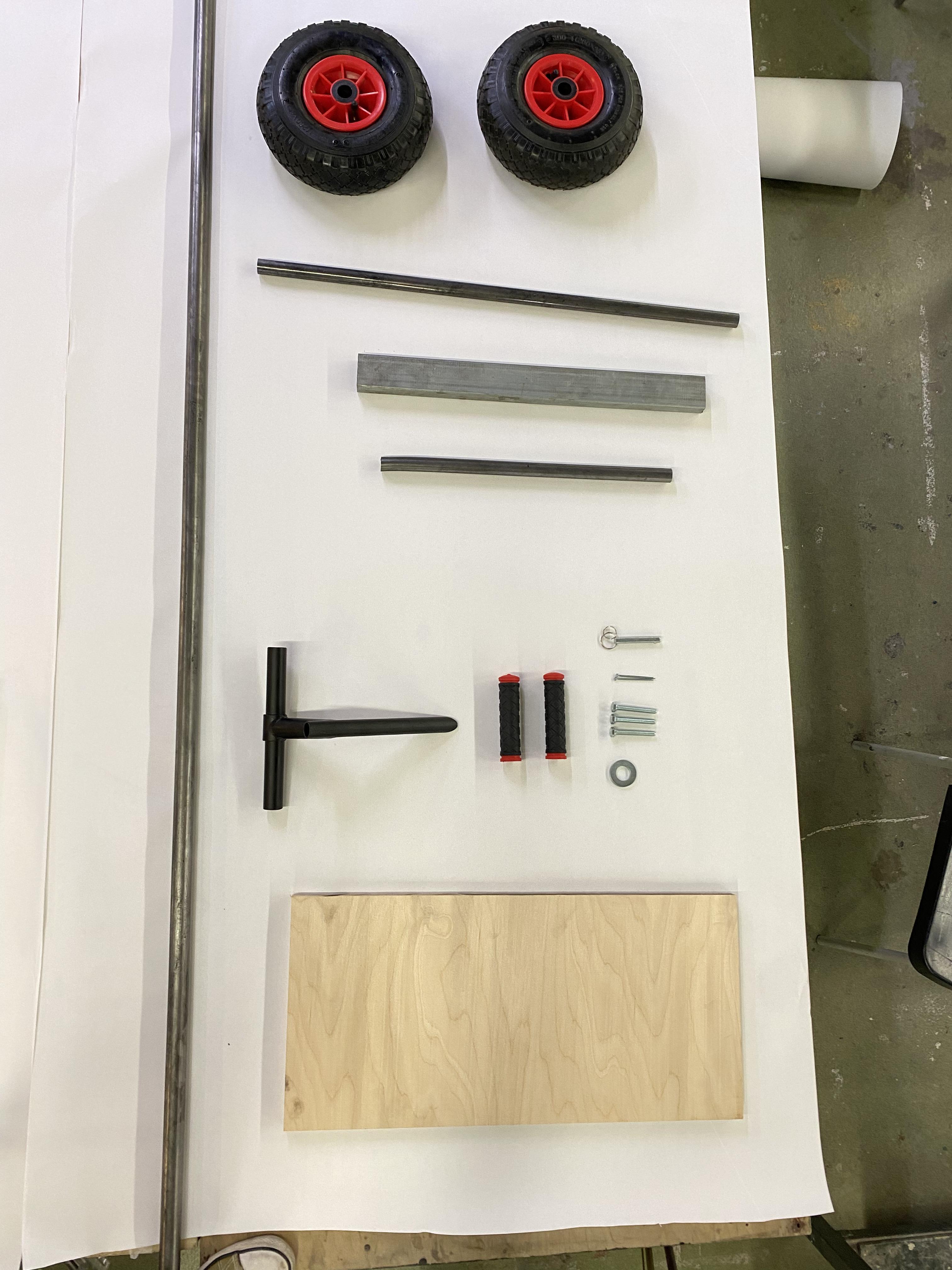

Made from a metal construction and a wooden surface.

Construction- 25 mm diameter metal tube

Handlebar stand 25 mm diameter \ 500 mm length

Rectangle profile 50 x 26 diameter \ 350 mm length

Wheel axis 19 mm diameter 568 mm length + 150 mm stabilizing foot

Wooden plater 480 mm length \ 320 height

Ready made handlebar - 25 mm diameters

Ready made handle grip

Ready made wheels 300 mm diameters

3 Screws 8 mm width 8 mm length

Ball pin head lock 10 mm

Metal chain, for Ball pin head lock

Use 25 mm tube, Bend to 30 degrees after 400 mm

Then bend another 30 degree to 435 mm height

Use rectangle profile After 30 mm cut window of 30 mm height and 40 mm spacing - repeat on both edges, Cut off top flap

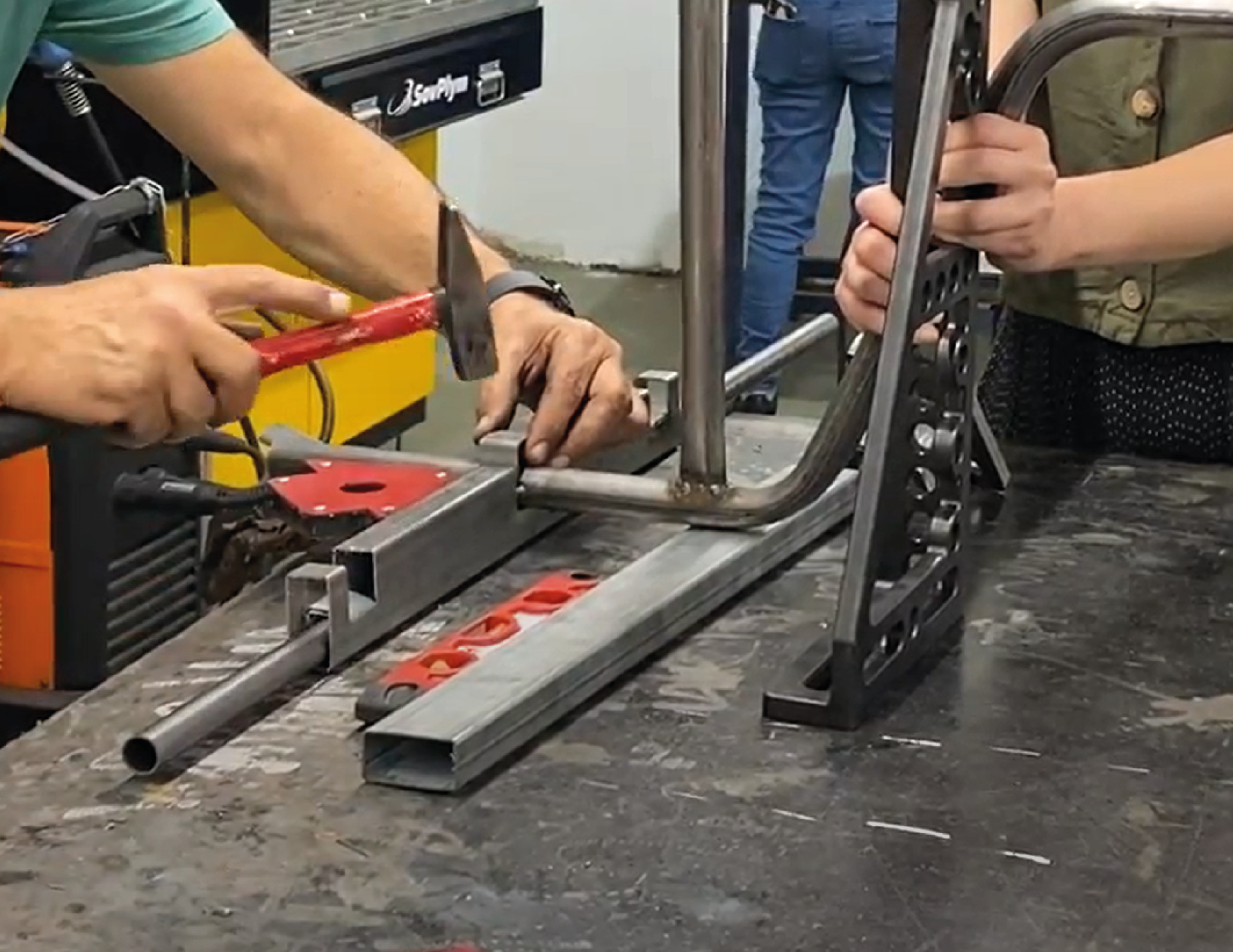

Bend flaps on top of the other and weld

Cut window of 30 mm length in middle length of rectangle profile

Place bottom tube construction in the middle window of the metal profile place cut window to lock construction and weld together.

19 mm diameter tube 120 mm length

Weld stabilizing foot to bottom construction tube 30 mm from bottom curve

Use 25 mm diameter tube 500 mm length

Weld 35 mm from bottom curve of construction tube

Drill 4 mm hole 10 mm from edge of both side of wheel axis tube(for wheel stopper)

Drill 8 mm hole 90 mm from each edge of metal construction and wheel axis tube (for screws)

Drill 8 mm hole parallel to bottom tube construction screw holes (for screw)

Drill 8 mm hole 20 mm from edge of bottom tube construction (for screw)

Drill 10 mm hole 20 mm from edge of top tube construction- for ball pin head lock

Drill 4 mm hole 30 mm from edge of top tube construction- for stopper

Drill horizontally two 4 mm hole 36 mm from edge of top tube construction 10 mm from each other- for chain for Ball pin head lock

Wooden plater 480 mm length 320 mm width

Drill 30 mm hole 25 mm from front edge- surface, for Handlebar stand

Cover for base handlebar

Cover for back construction tube edge

Cover for wheel axis edge x2

Cover for stabilizing foot
