'Tree-Nex' - Woodworking With Natural Forms (UPDATED)
The more I'm working with wood, the more I'm loving it and the more I feel deep admiration & respect for it.
Respect for the ease to work it, even with basic tools.
Respect for it's enormous variation - every piece of wood is unique and not two pieces are the same, even in the same species.
Respect for it's natural shape, it's curves & texture.
Respect for the warmth of the product - woodworking is almost therapy. To me.
Wood has it all, and it's almost a shame we're cutting it into planks & mathematicly correct designs, cutting through forms & fibres.
A few months ago I felt I had to change course.
So this winter I surfed on the wave of minimal interference, guided by natural forms.
This I'ble is just a glimpse on my journey in what I started to call 'Tree-Nex' ;) - using wood like it comes from the trees, benefiting from it's natural shapes.
In Tree-Nex not the skill is the most important - like in classic woodworking - but the creativity of the woodworker.
There are poor woodworkers, but no poor Tree-Nex-ers.
No big tools are required, you can do everything with basic tools. Keeping budgets low.
In Tree-Nex you're building your own pieces & connections. No standards from the market, the trees will give you all you need & the forests will become your shopping mall.
Back to basics, again.
Respect for the ease to work it, even with basic tools.
Respect for it's enormous variation - every piece of wood is unique and not two pieces are the same, even in the same species.
Respect for it's natural shape, it's curves & texture.
Respect for the warmth of the product - woodworking is almost therapy. To me.
Wood has it all, and it's almost a shame we're cutting it into planks & mathematicly correct designs, cutting through forms & fibres.
A few months ago I felt I had to change course.
So this winter I surfed on the wave of minimal interference, guided by natural forms.
This I'ble is just a glimpse on my journey in what I started to call 'Tree-Nex' ;) - using wood like it comes from the trees, benefiting from it's natural shapes.
In Tree-Nex not the skill is the most important - like in classic woodworking - but the creativity of the woodworker.
There are poor woodworkers, but no poor Tree-Nex-ers.
No big tools are required, you can do everything with basic tools. Keeping budgets low.
In Tree-Nex you're building your own pieces & connections. No standards from the market, the trees will give you all you need & the forests will become your shopping mall.
Back to basics, again.
Getting Supplies
In contrast to classic woodworking you'll not play the role of tax payer 'pay, pay, pay till you can't no more, and then pay a bit more' to buy that wood, but you'll be a beaver, searching for branches and hauling them to your kingdom.
Before you'll get to work you'll have to learn seeing. Most people look, but they don't see.

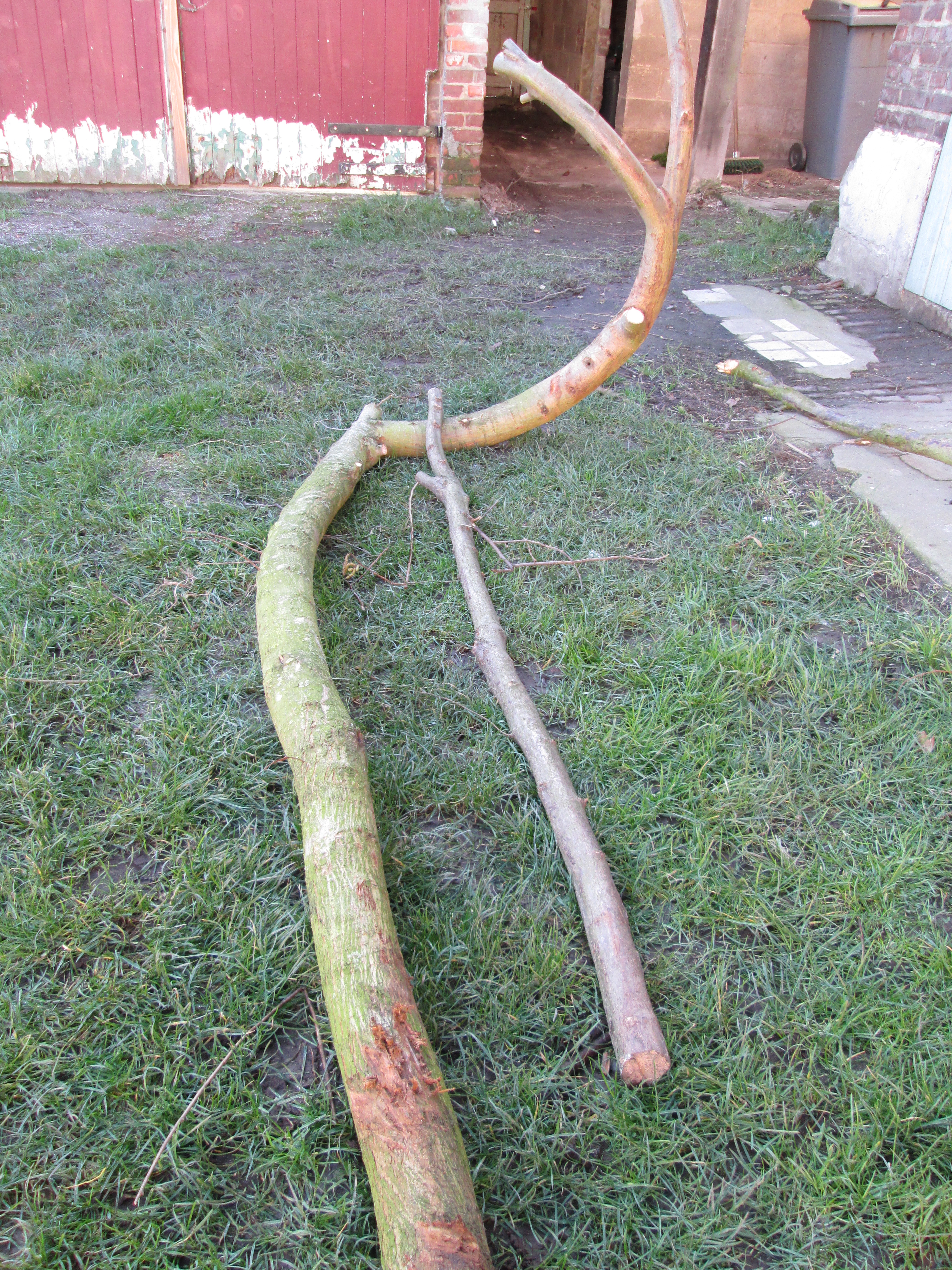

I want you to look closely to nature. You'll be searching specific branches, specific shapes, that kind of curve, that elbow, that nice burl. Or you'll just discover nice branches and find a use for it. Called creativity.
Common sense: stay away from private property, protected areas etc.
Ask owners & guards for permission if you can harvest what you discovered.
Don't cut more then you need and harvest respectfully.

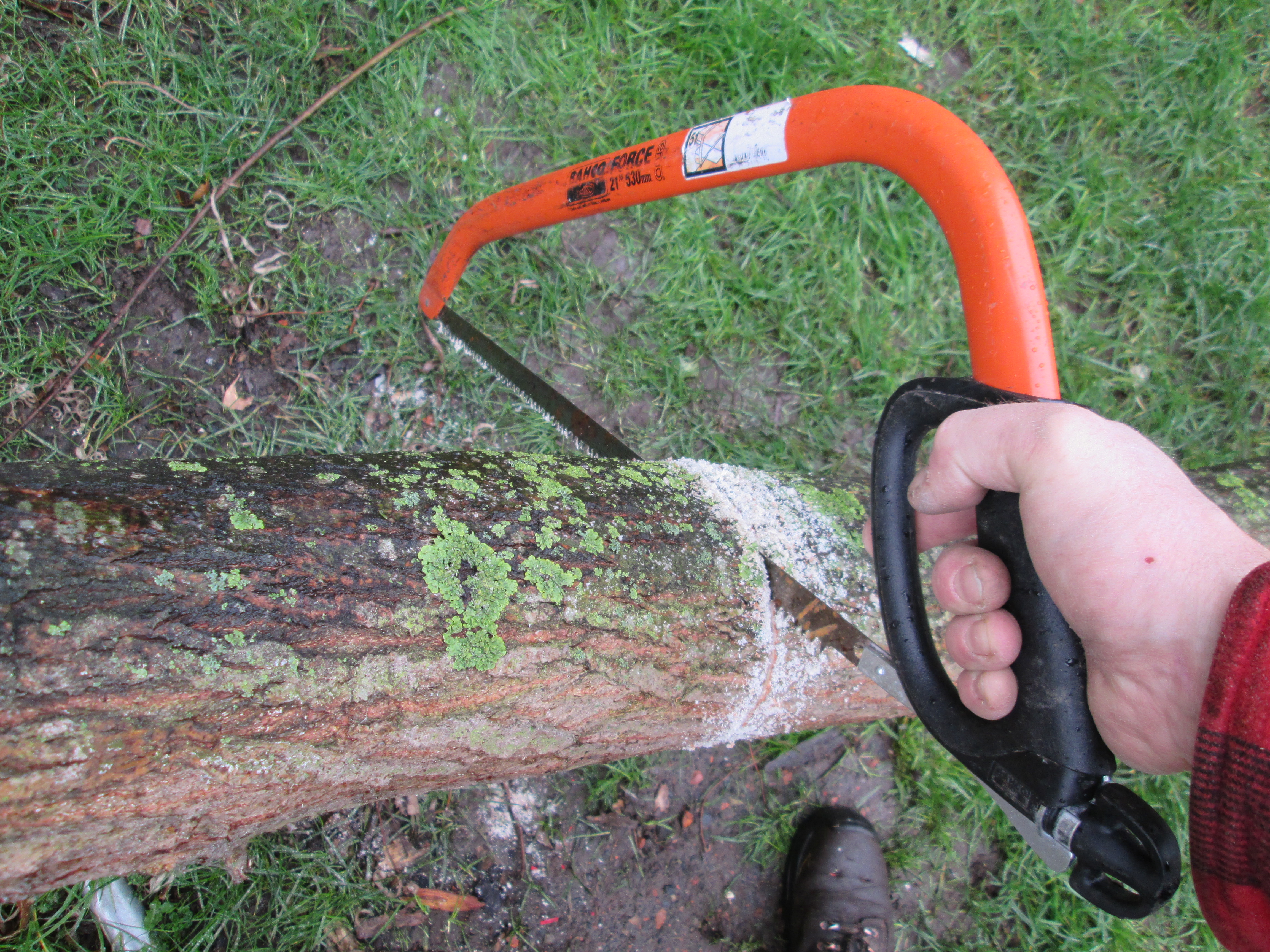

Pay attention to the wounds you made. Here's an example how I harvest natural elbows to make my boomerangs.
Before you'll get to work you'll have to learn seeing. Most people look, but they don't see.
I want you to look closely to nature. You'll be searching specific branches, specific shapes, that kind of curve, that elbow, that nice burl. Or you'll just discover nice branches and find a use for it. Called creativity.
Common sense: stay away from private property, protected areas etc.
Ask owners & guards for permission if you can harvest what you discovered.
Don't cut more then you need and harvest respectfully.
Pay attention to the wounds you made. Here's an example how I harvest natural elbows to make my boomerangs.
Exit Bark

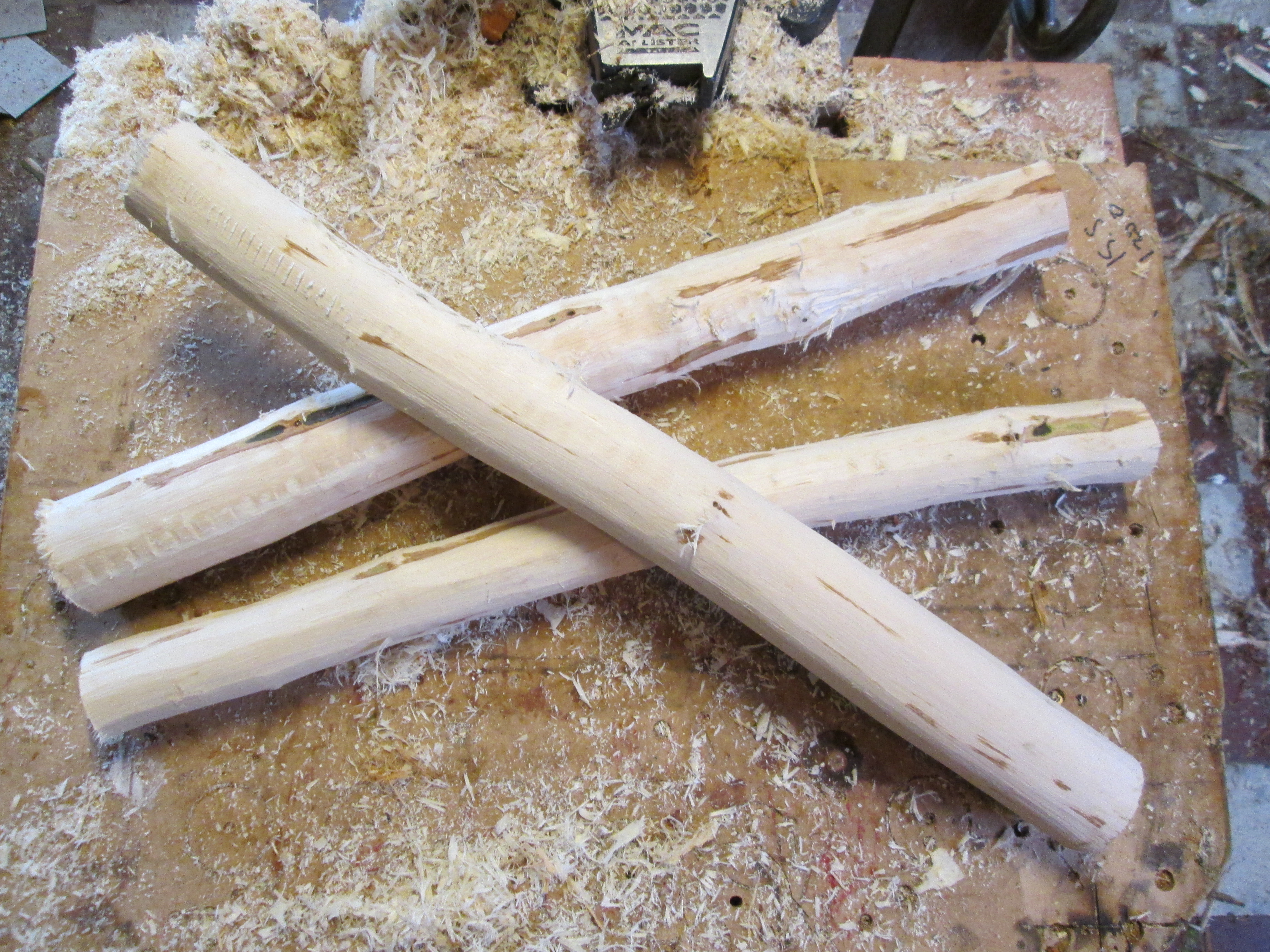

De-barking is needed to let the wood dry and to take full profit of the beauty of it.

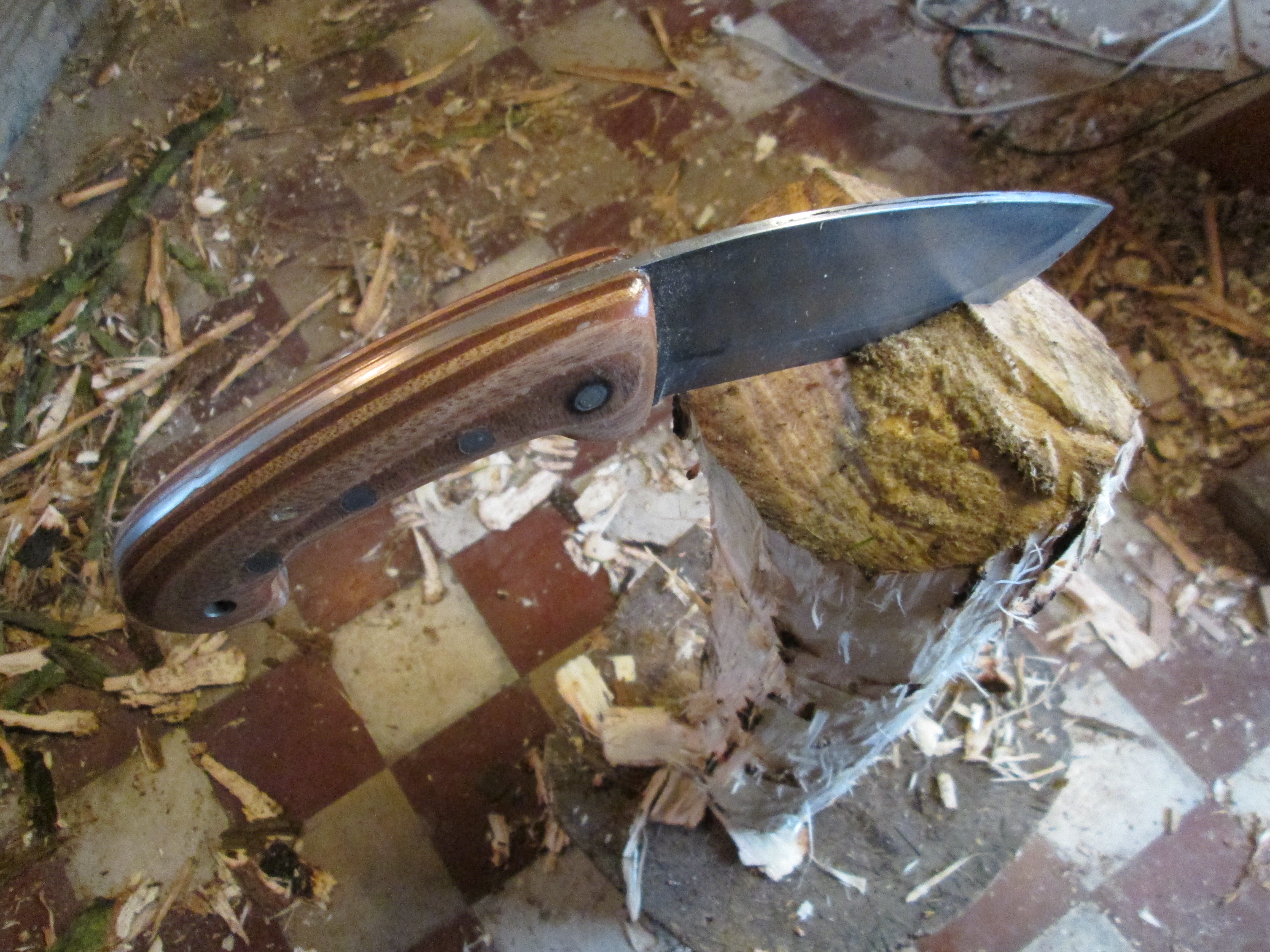

You can do this with a knife or hatchet, or you can build a nice tool to get it all easier & faster.
It took me only a half day to prepare all those branches you see on the picture.
Let the bark dry in a well ventilated area. It's a great firestarter.
You can do this with a knife or hatchet, or you can build a nice tool to get it all easier & faster.
It took me only a half day to prepare all those branches you see on the picture.
Let the bark dry in a well ventilated area. It's a great firestarter.
The Art of Wooden Plugs
Plugs are essential stuff in Tree-Knex. You can use steel bolts, of course - sometimes you just don't have the choice - but wooden custom plugs are perfect in 90% of the cases.
I'm using hard(er) wood to make them. Oak or beech are perfect. You need straight-grained species.

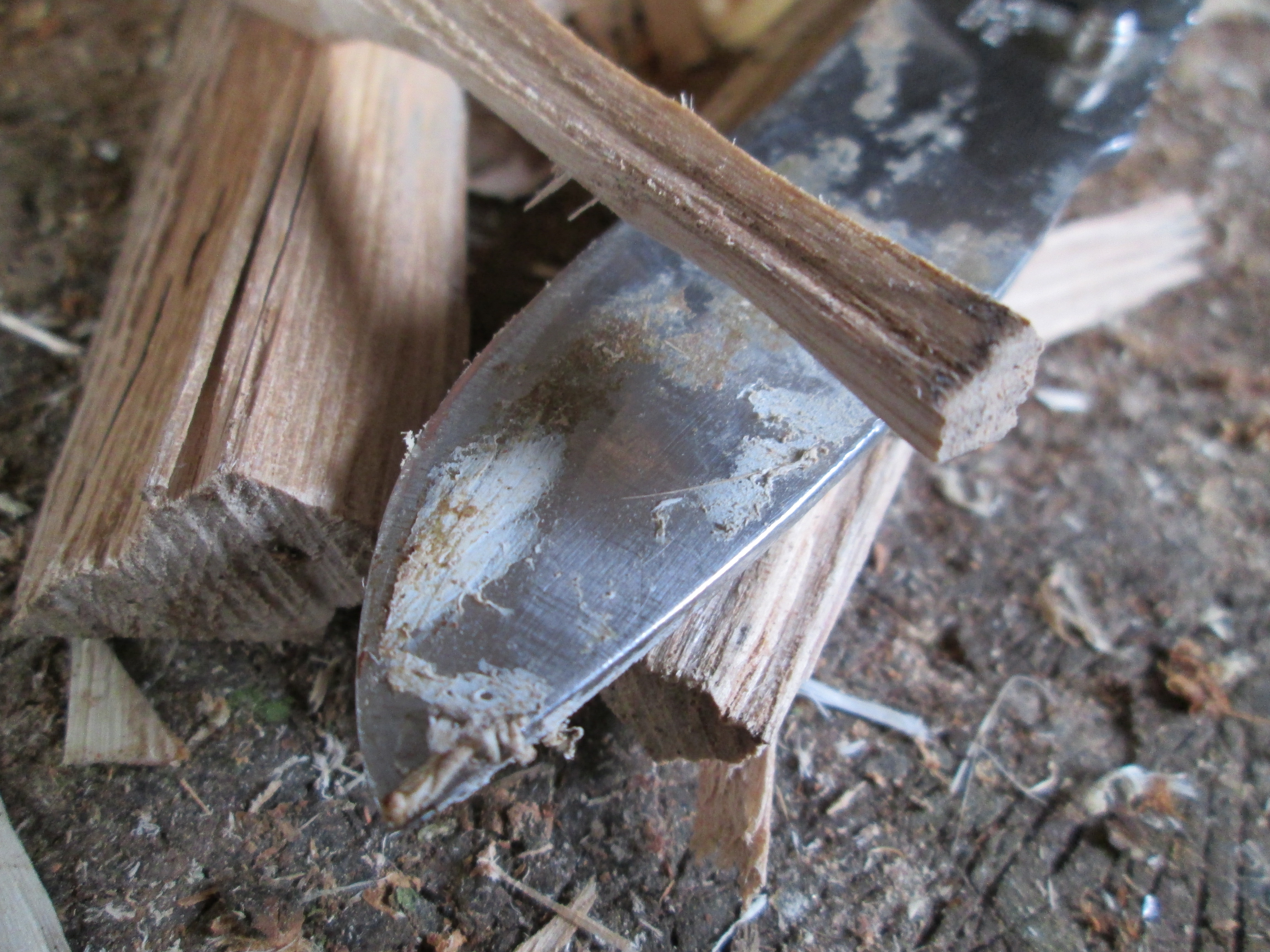

Cut a log into fries with a hatchet & use a knife to shape it to the diameter you need.
Don't make them too smooth, let them raw - they'll stay better in place.

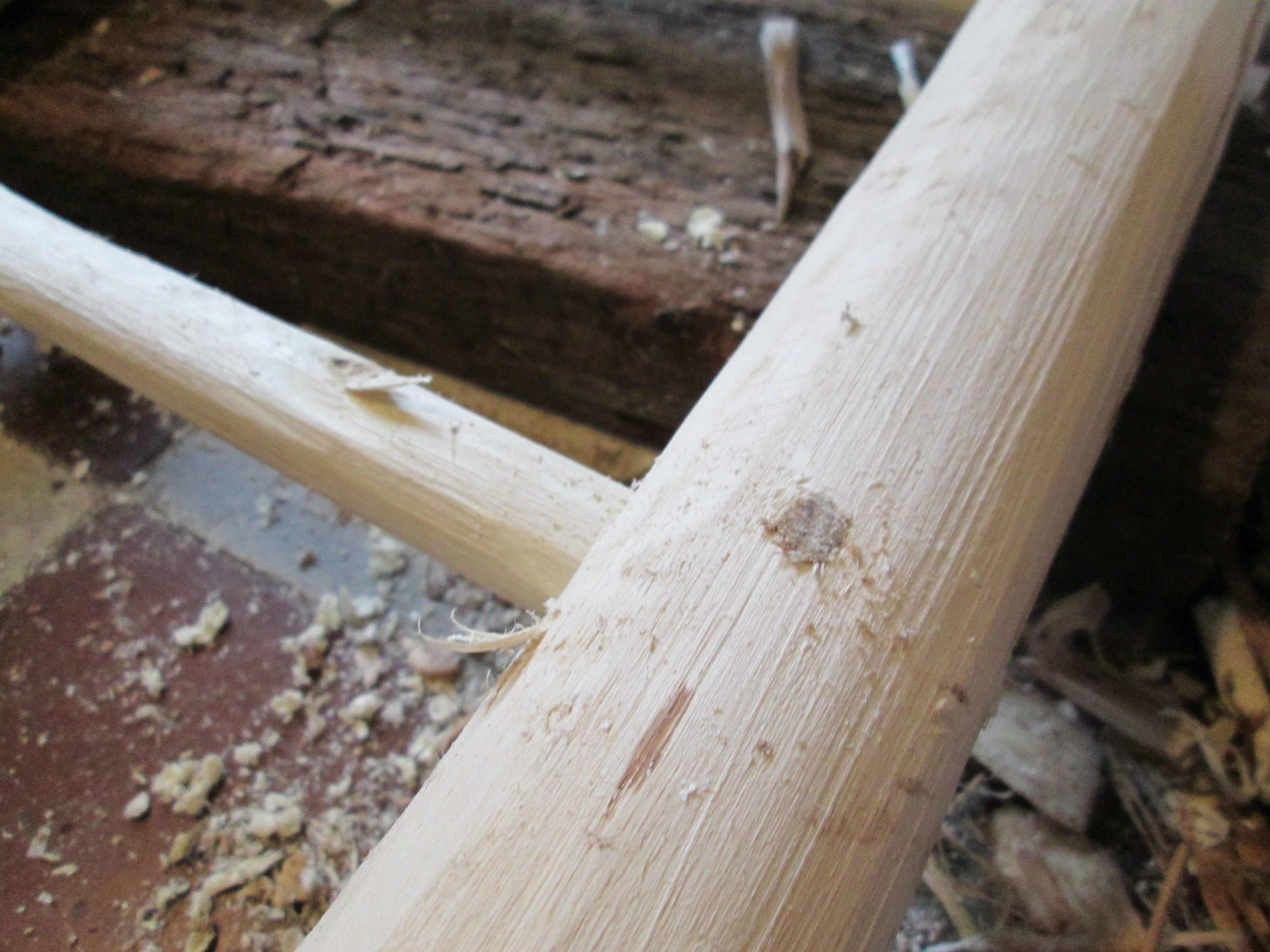

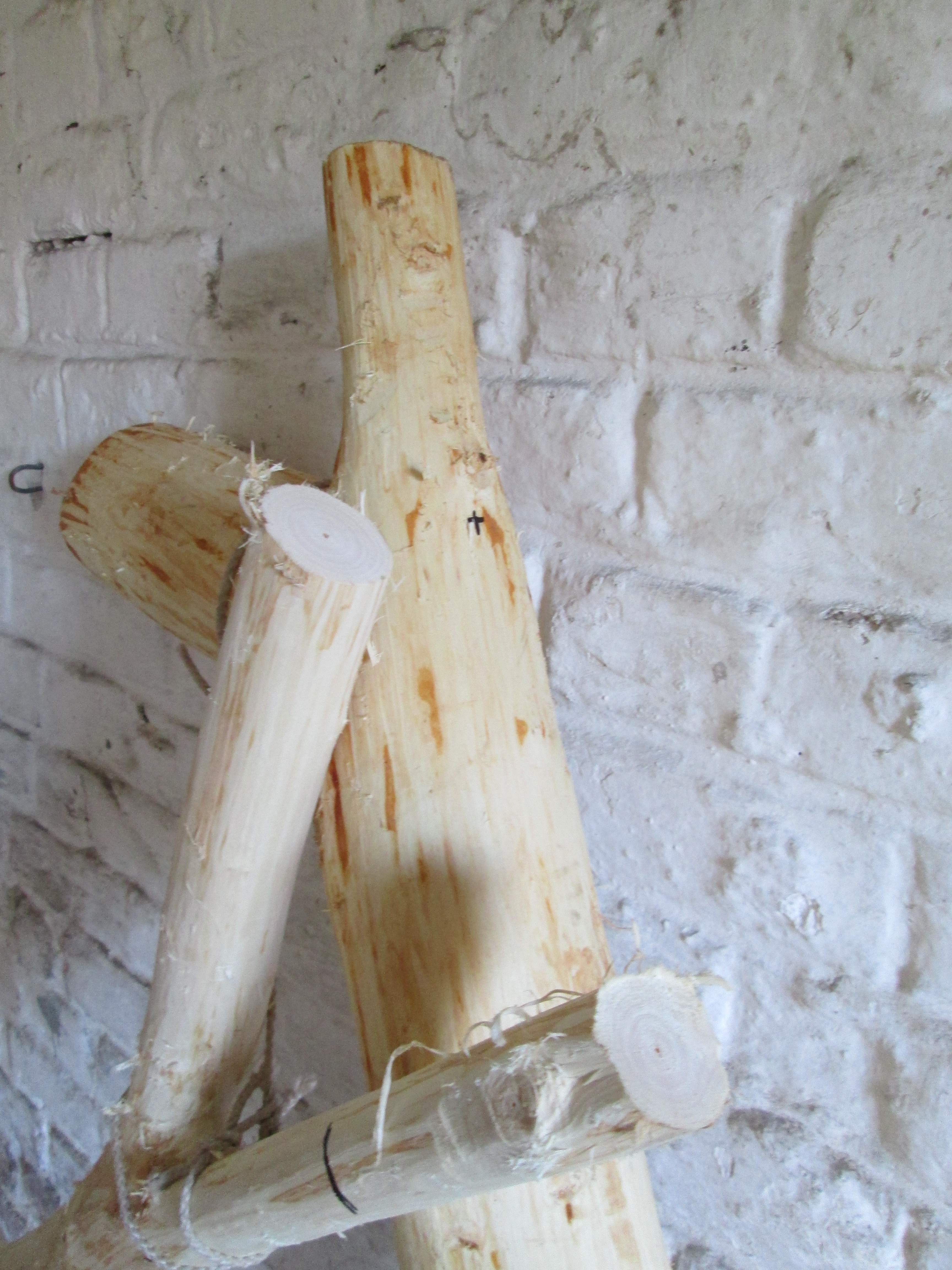

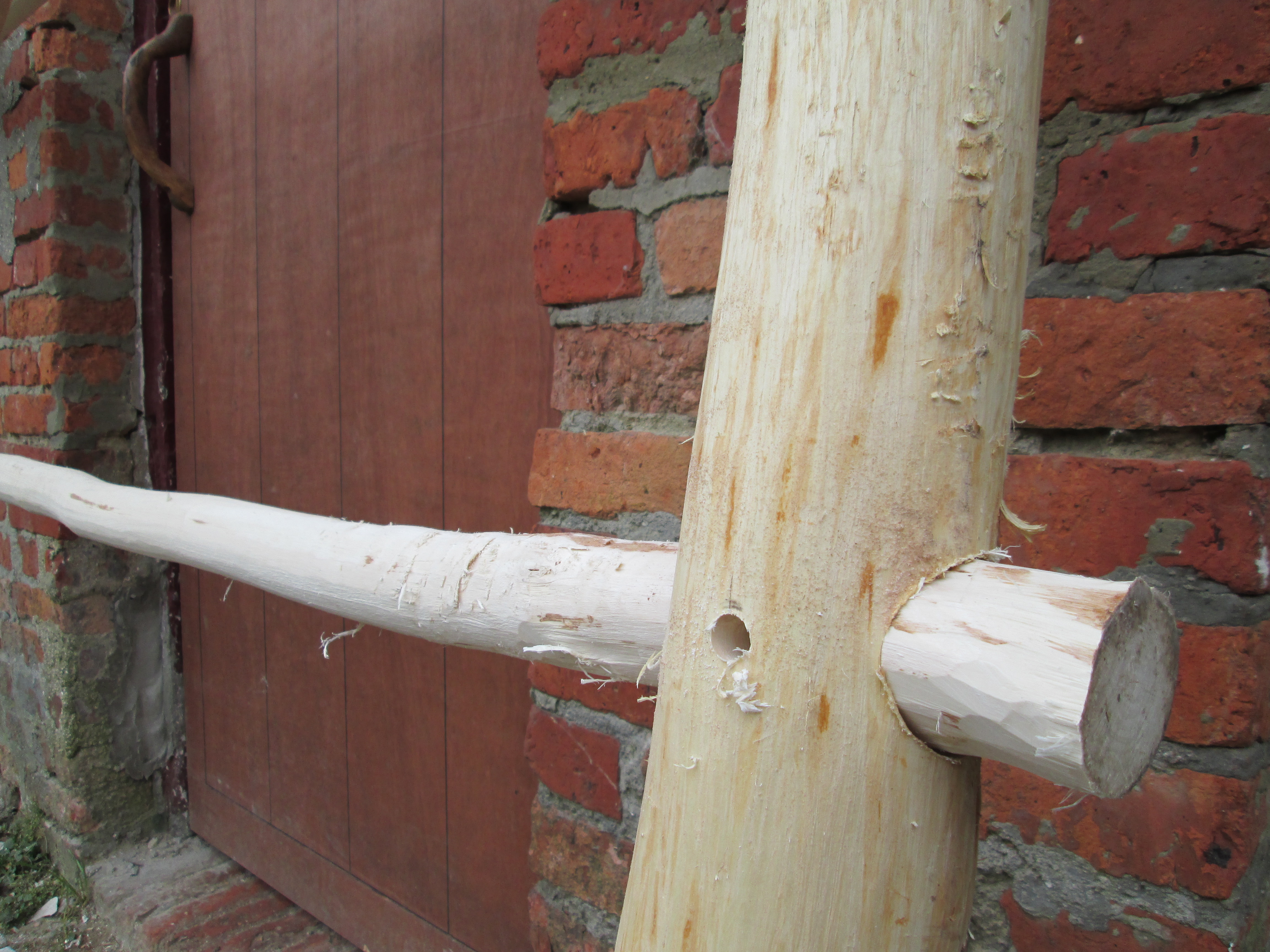

Drill a hole straight through the two pieces you put together and jam the plug in.
Cut the excess with a saw.
Nice & smooth. You're done.
Wanna use some glue? Use some glue. Make it stronger.
I'm using hard(er) wood to make them. Oak or beech are perfect. You need straight-grained species.
Cut a log into fries with a hatchet & use a knife to shape it to the diameter you need.
Don't make them too smooth, let them raw - they'll stay better in place.
Drill a hole straight through the two pieces you put together and jam the plug in.
Cut the excess with a saw.
Nice & smooth. You're done.
Wanna use some glue? Use some glue. Make it stronger.
Mini Workshop 1: Make a Simple Ladder
This is a very nice & rewardful thing to make.
There are two versions: the parallel-style & the piramid-style.
Supplies for both are the same: two large branches & a lot of small stuff (1/3 diameter of the large).

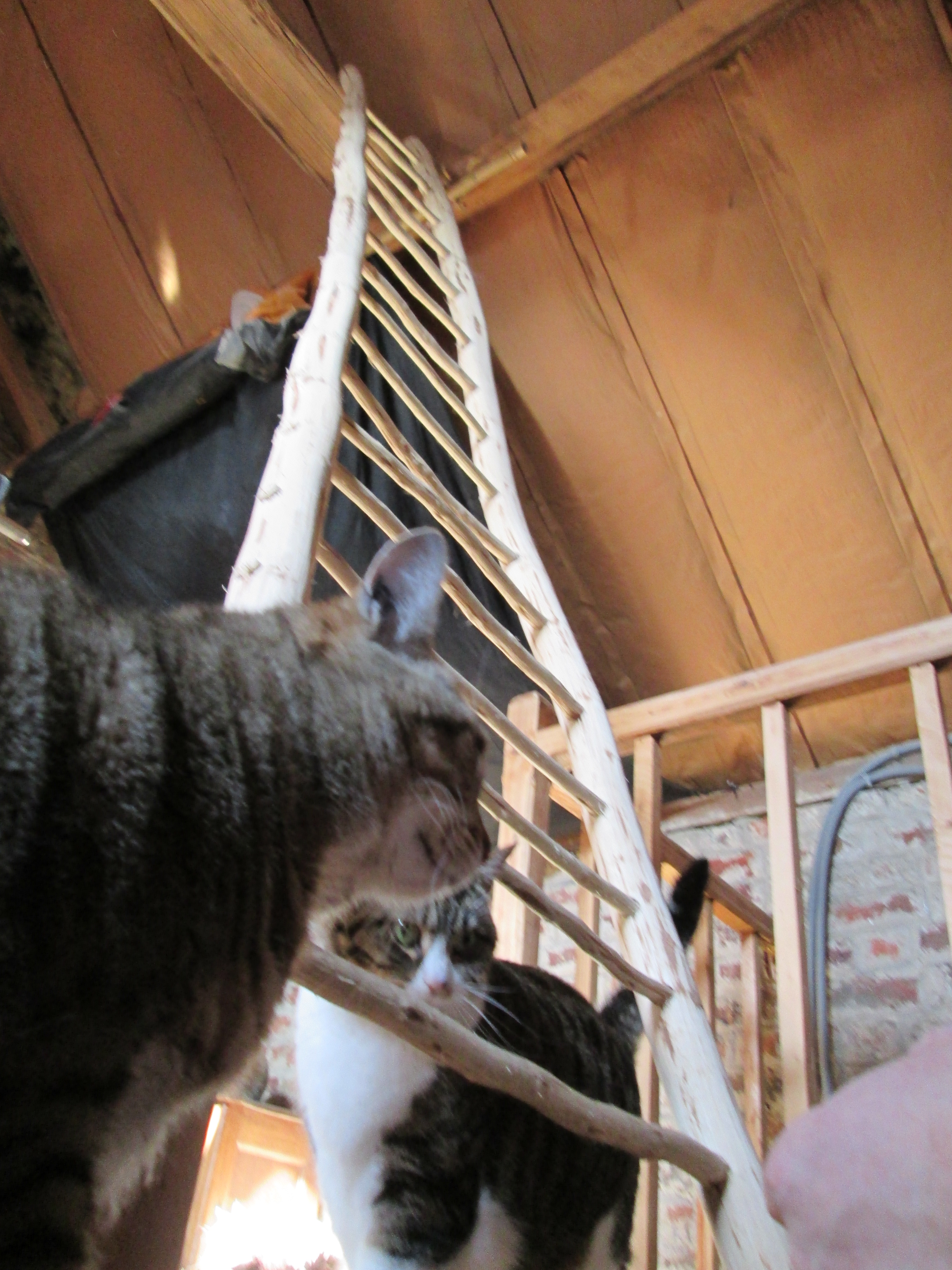

Note: these ladders are pure decorative. They are perfect for cats, or to hang towels on in the bathroom.
If you want a human-proof ladder you'll have to pimp up diameters. Same method.
Let's start with the difficult one
1. get those branches
2. place them in the position you want (you can clamp them temporarly to a plank)
3. drill the highest & lowest holes - respect the right angles
4. smash the higest & lowest step in place
5. put those plugs
6. drill the other holes
7. smash the other steps in place & plug them
8. cut the excess
The easy one
1. two branches
2. clamp them together & drill all the holes at once
3. smash the higest & lowest step in place & plug them
4. you know how to do the rest
Congrats. You made your first Tree-Nex project.
There are two versions: the parallel-style & the piramid-style.
Supplies for both are the same: two large branches & a lot of small stuff (1/3 diameter of the large).
Note: these ladders are pure decorative. They are perfect for cats, or to hang towels on in the bathroom.
If you want a human-proof ladder you'll have to pimp up diameters. Same method.
Let's start with the difficult one
1. get those branches
2. place them in the position you want (you can clamp them temporarly to a plank)
3. drill the highest & lowest holes - respect the right angles
4. smash the higest & lowest step in place
5. put those plugs
6. drill the other holes
7. smash the other steps in place & plug them
8. cut the excess
The easy one
1. two branches
2. clamp them together & drill all the holes at once
3. smash the higest & lowest step in place & plug them
4. you know how to do the rest
Congrats. You made your first Tree-Nex project.
Mini Workshop 2: Build a 'rocket'
'Rockets' are the base of many great projects and they are simply useful on their own.
The first thing I build 'Tree-Nex-style' was this wooden tripod. It opened the world to me.
To build one you need one bigger branch and one smaller - 1 to 3 ratio if we talk cross-sections.
It's easy as peeing in a fire
1. Cut the big one the length you want.
2. Plane it if necessary.
3. Measure the circumference.
4. Divide by the number of legs.
5. Mark the spots.

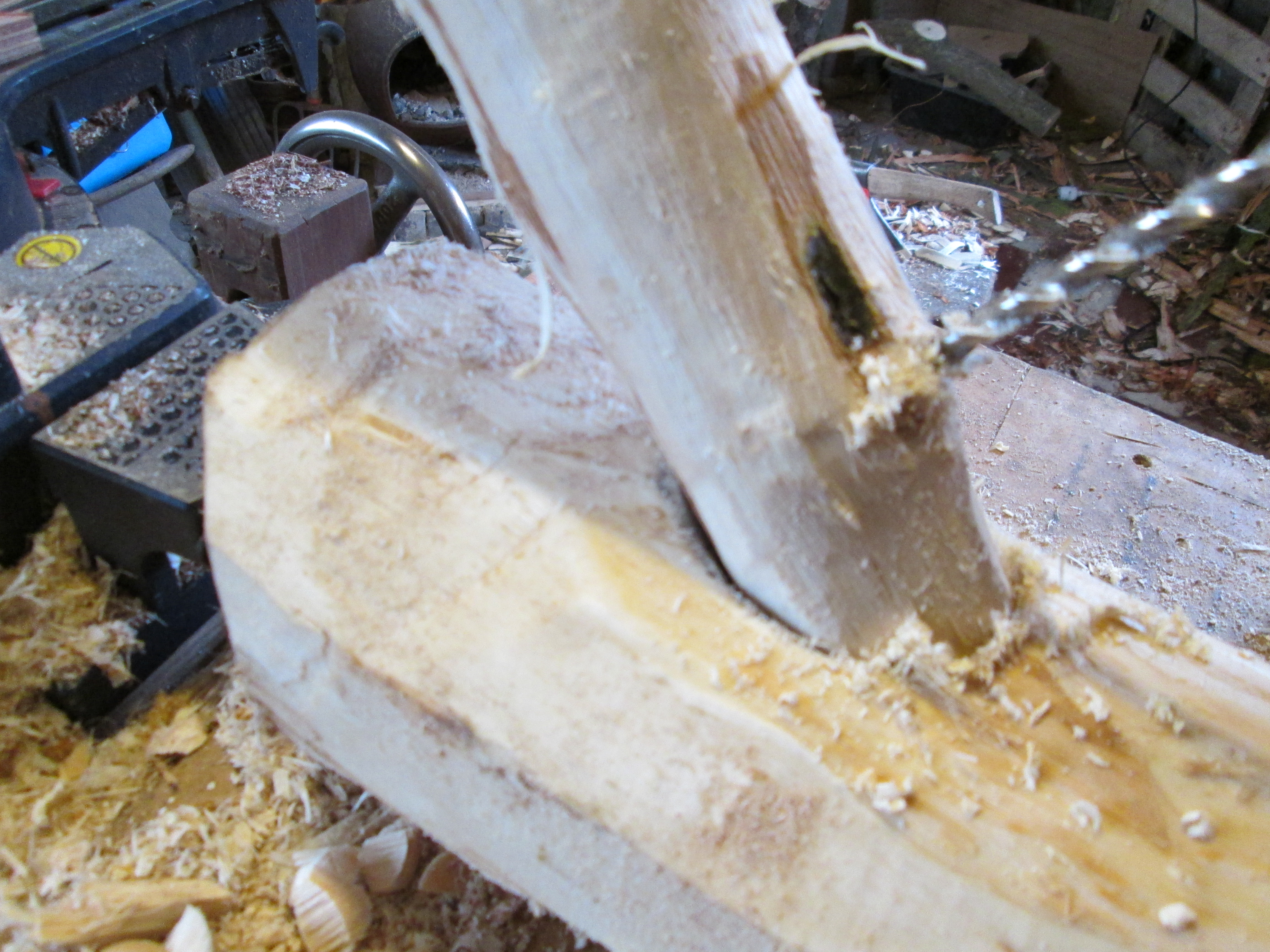

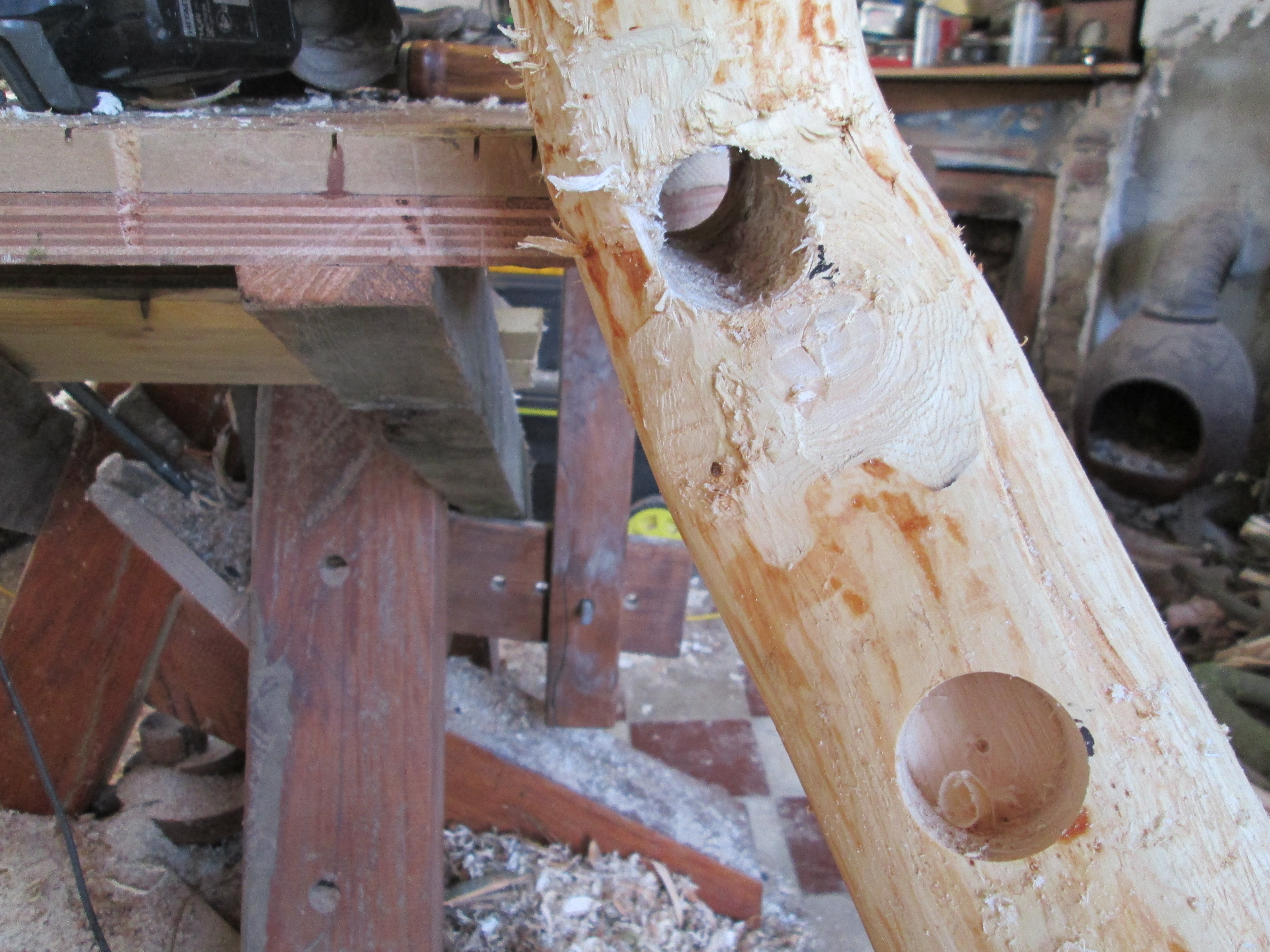

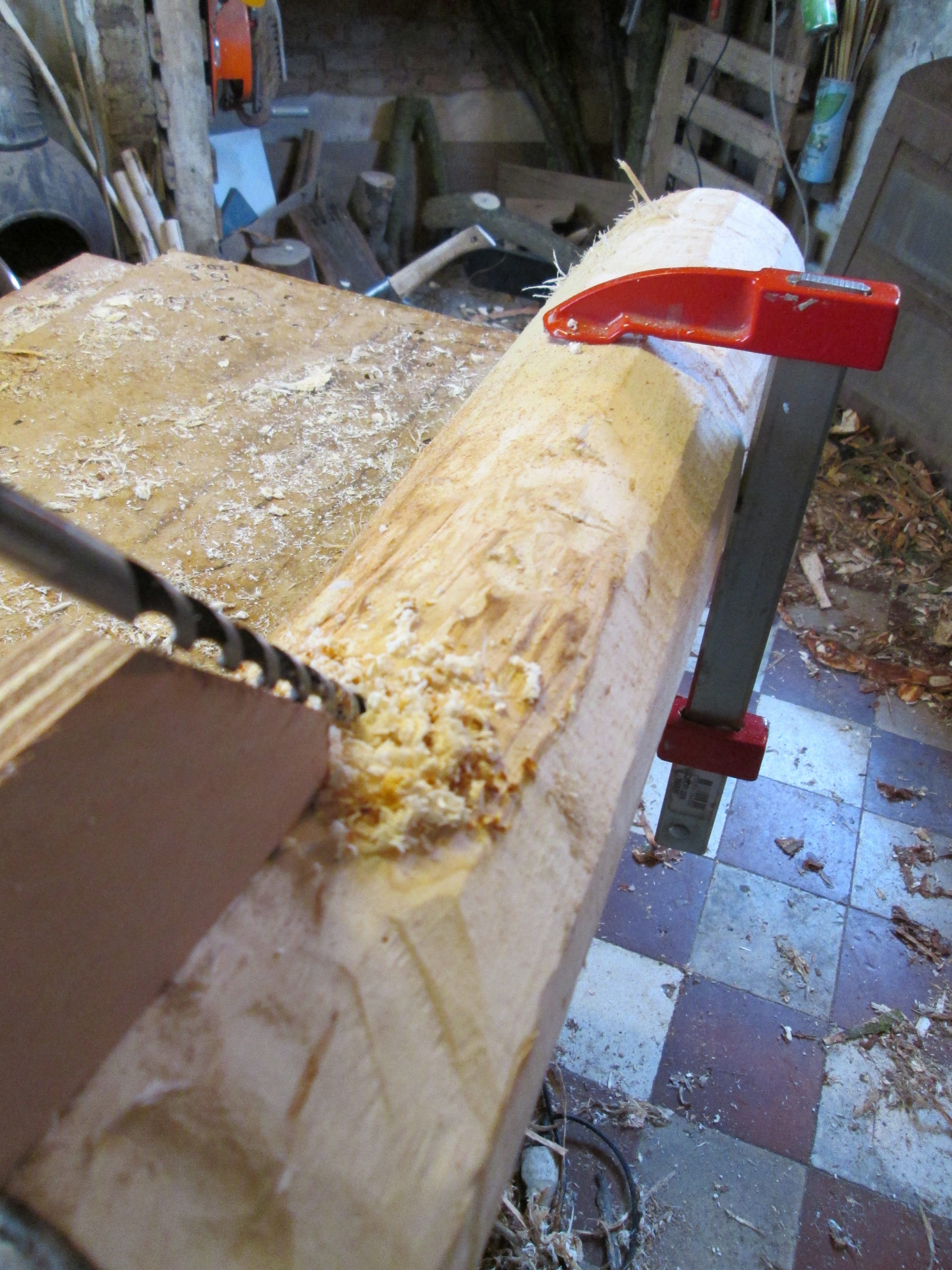

6. Take a long drill & use it in a 45° angle.

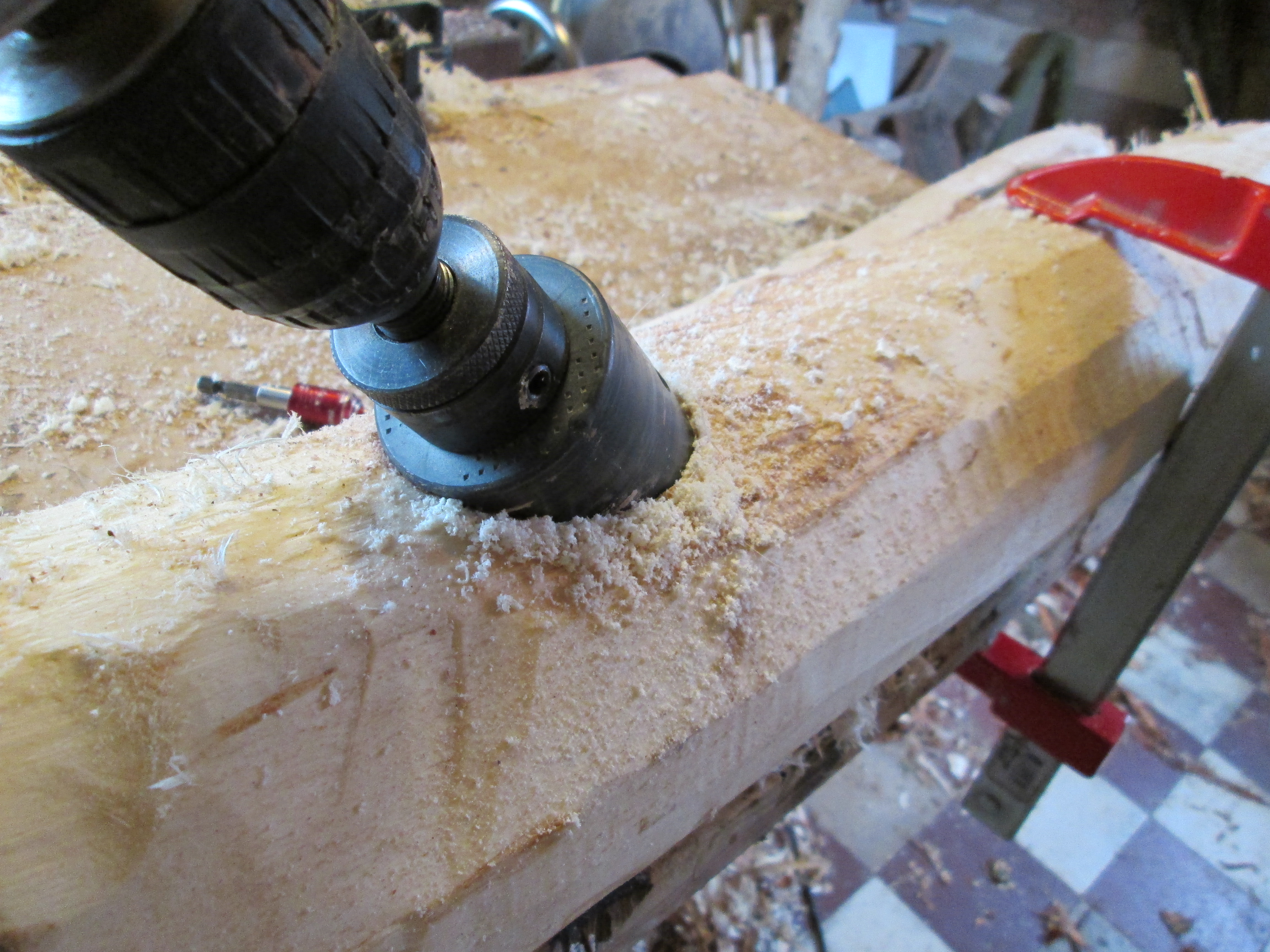

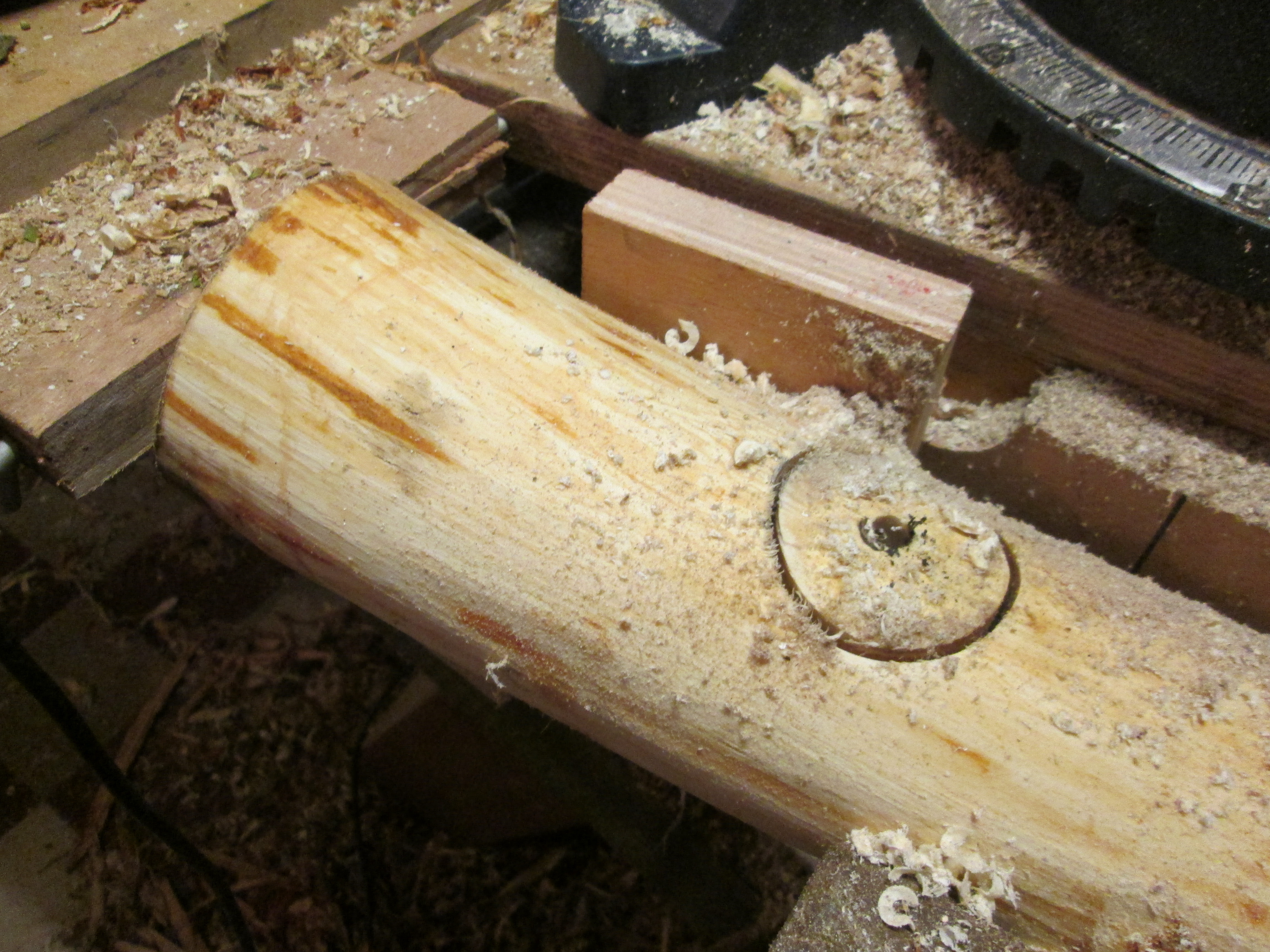

7. Take a clock drill with the same diameter as the legs & use it.

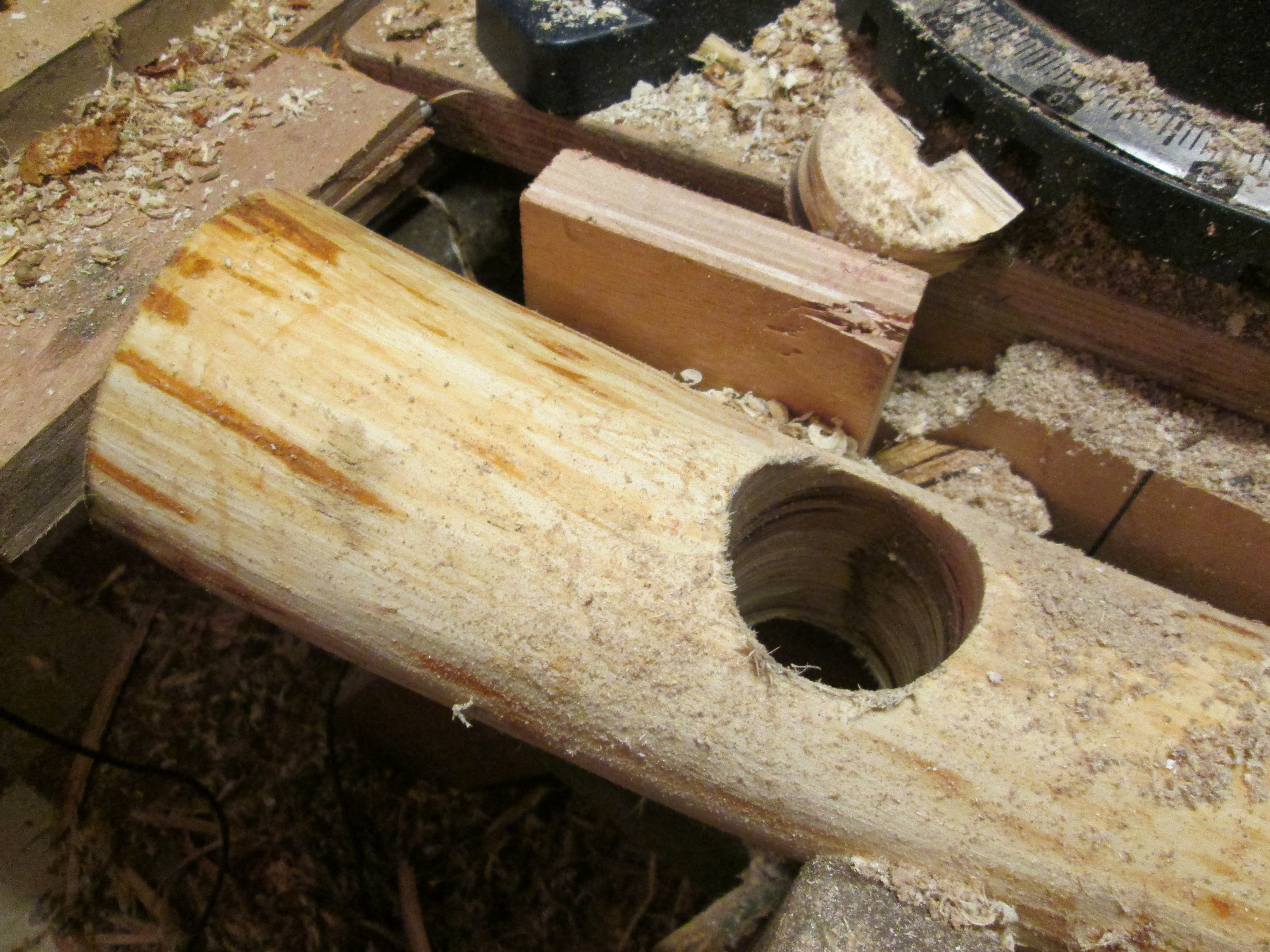

8. Drill to the middle of the piece & remove the core with a chisel.
9. Repeat.
10. Insert every leg - the more it's tight, the better
11. Pre-drill the screw-zones.

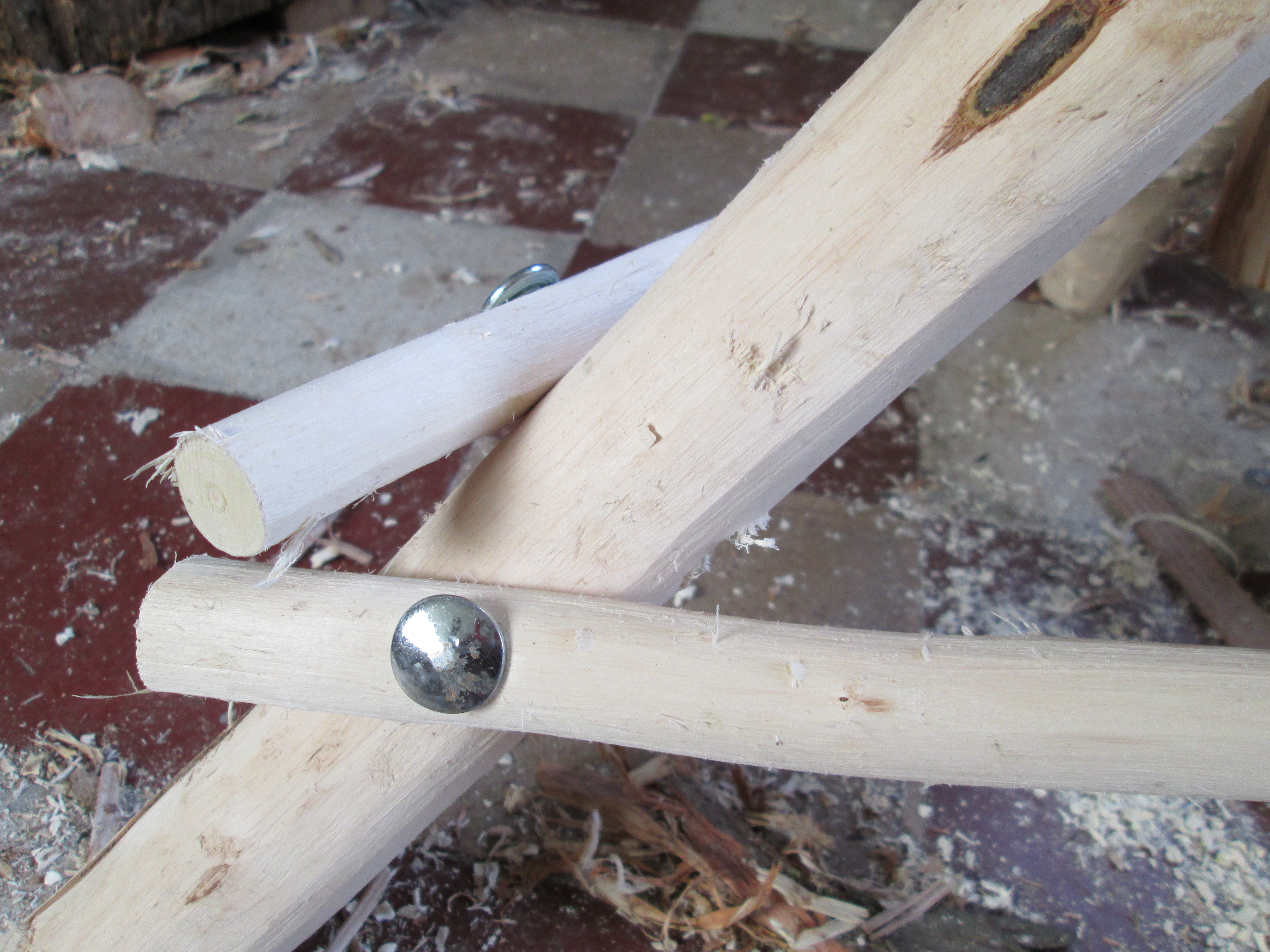

12. Use long screws to get it all well solid - or poor some glue in the leg-holes.
13. You can reinforce the whole by adding smaller sections to link the legs one to another.
14. Adjust the length of the legs to get it all levelled.

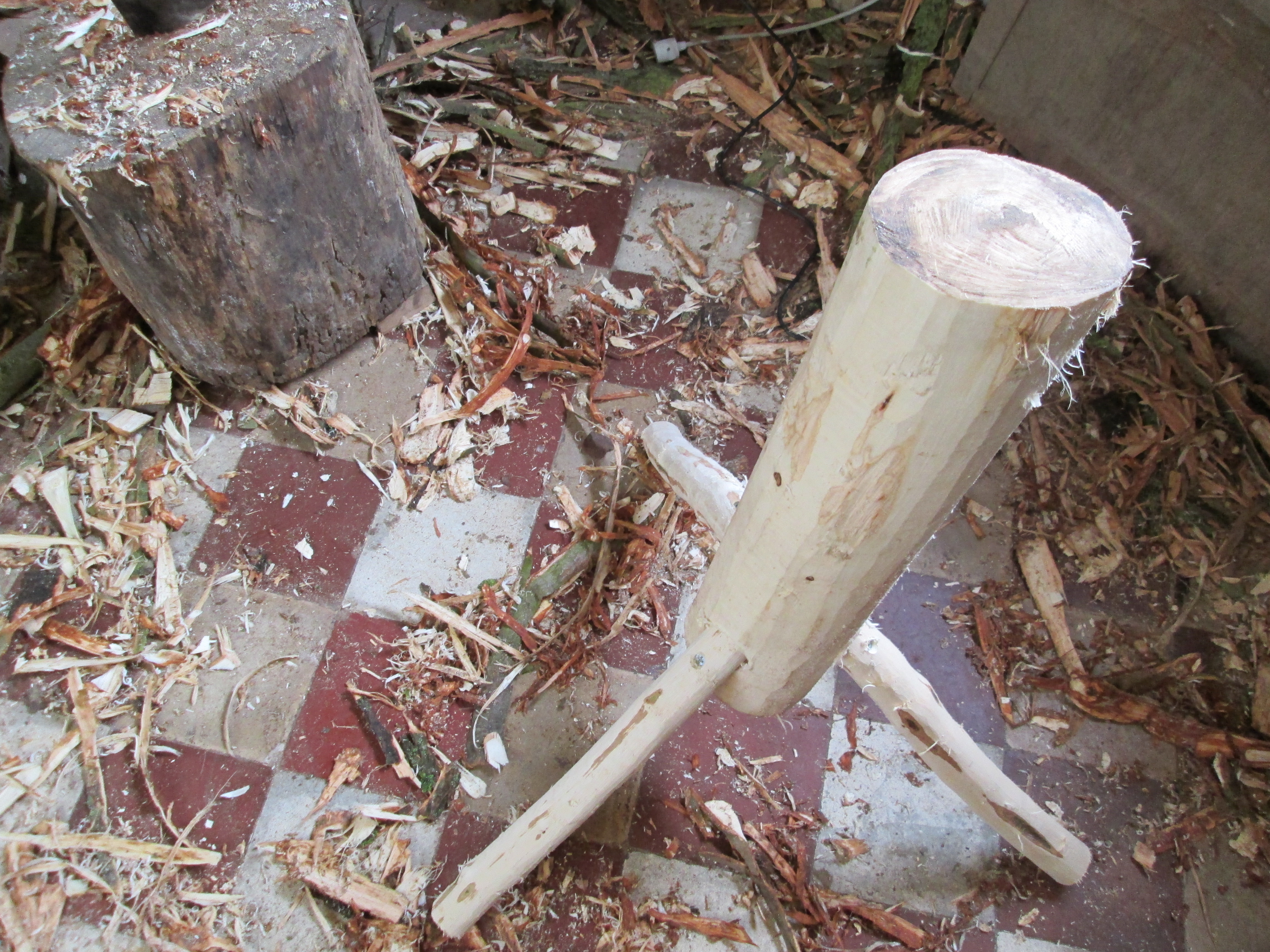

Congrats, you just made your first rocket.

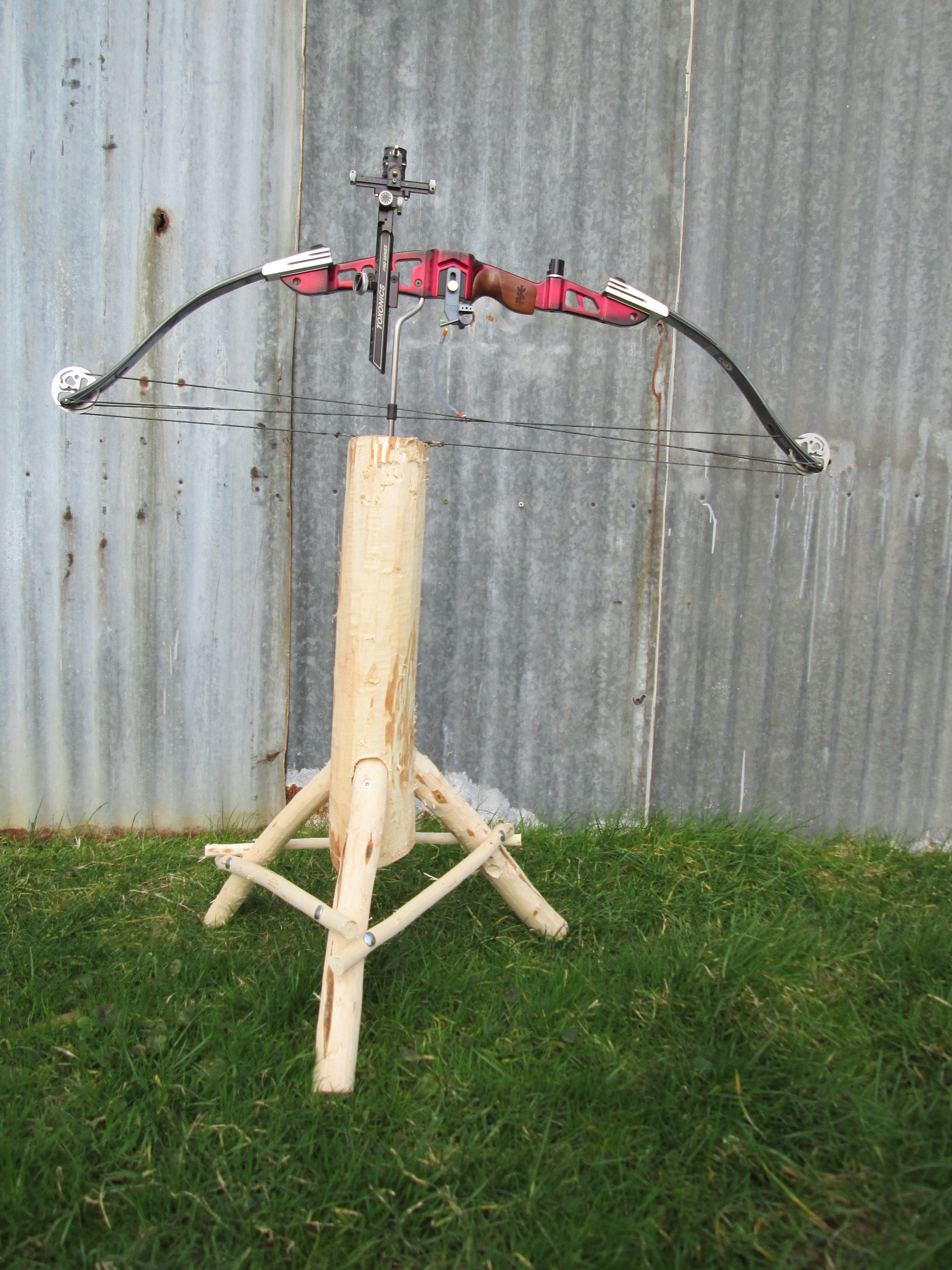

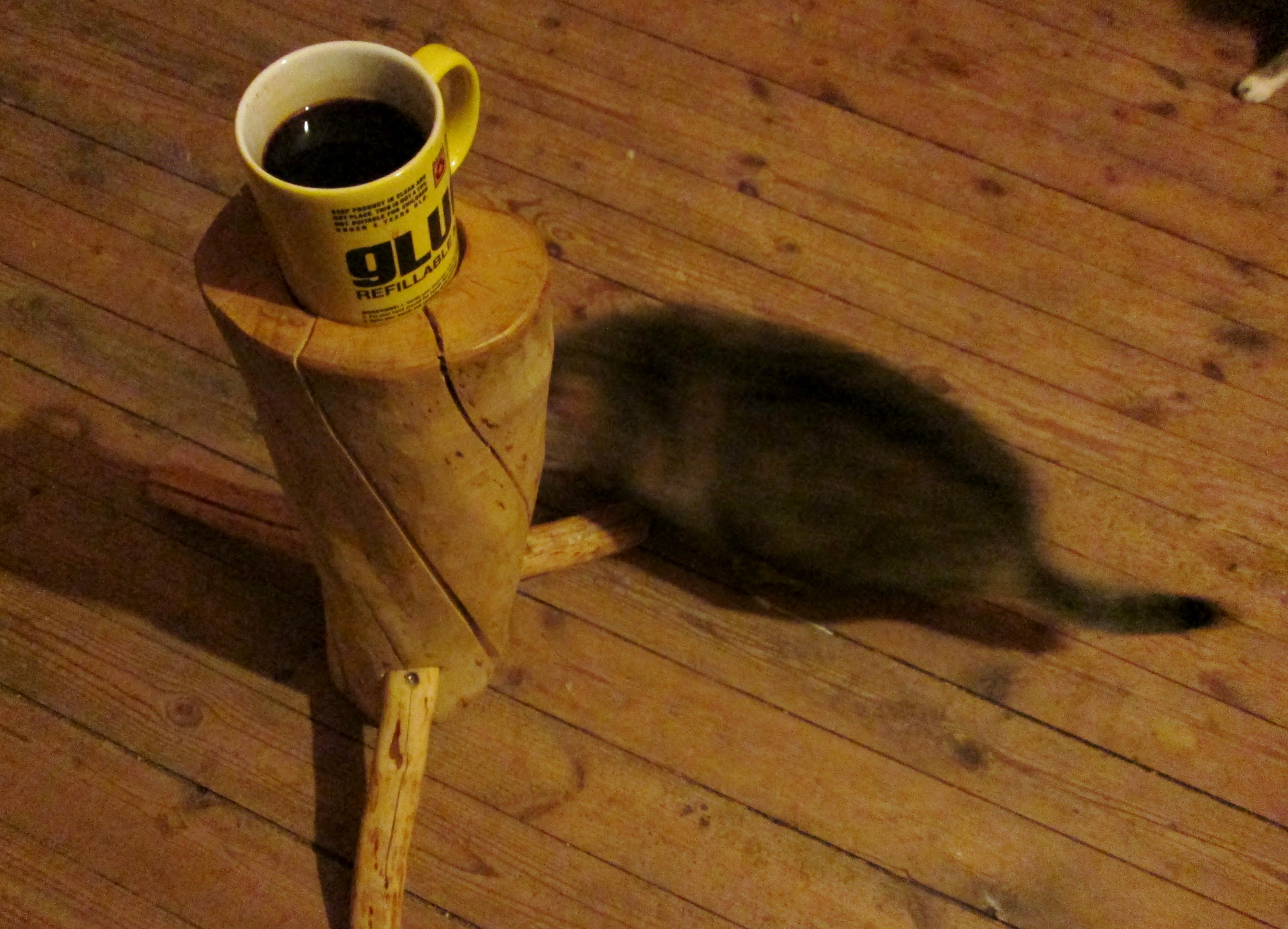

What is it good for? Many things, as you see. I made a stand-up for my bow and a mug-holder, for example.
The first thing I build 'Tree-Nex-style' was this wooden tripod. It opened the world to me.
To build one you need one bigger branch and one smaller - 1 to 3 ratio if we talk cross-sections.
It's easy as peeing in a fire
1. Cut the big one the length you want.
2. Plane it if necessary.
3. Measure the circumference.
4. Divide by the number of legs.
5. Mark the spots.
6. Take a long drill & use it in a 45° angle.
7. Take a clock drill with the same diameter as the legs & use it.
8. Drill to the middle of the piece & remove the core with a chisel.
9. Repeat.
10. Insert every leg - the more it's tight, the better
11. Pre-drill the screw-zones.
12. Use long screws to get it all well solid - or poor some glue in the leg-holes.
13. You can reinforce the whole by adding smaller sections to link the legs one to another.
14. Adjust the length of the legs to get it all levelled.
Congrats, you just made your first rocket.
What is it good for? Many things, as you see. I made a stand-up for my bow and a mug-holder, for example.
Workshop 3: Make a Gym-rig
Needs: one ladder, two rockets, a straight branch and a hoop.
Ladder: you know how to make one (size: measure your body without the legs)
Rockets: you can do it, but make it high enough (5 feet will do the job)
Assemble and you're done.
Make it the way you can disassemble it later. It's rather uncomfortable to move.
If you're really in the mood you can make the weight from wood as well.
Just two big logs and a solid beam. I'm working on it!
Ladder: you know how to make one (size: measure your body without the legs)
Rockets: you can do it, but make it high enough (5 feet will do the job)
Assemble and you're done.
Make it the way you can disassemble it later. It's rather uncomfortable to move.
If you're really in the mood you can make the weight from wood as well.
Just two big logs and a solid beam. I'm working on it!

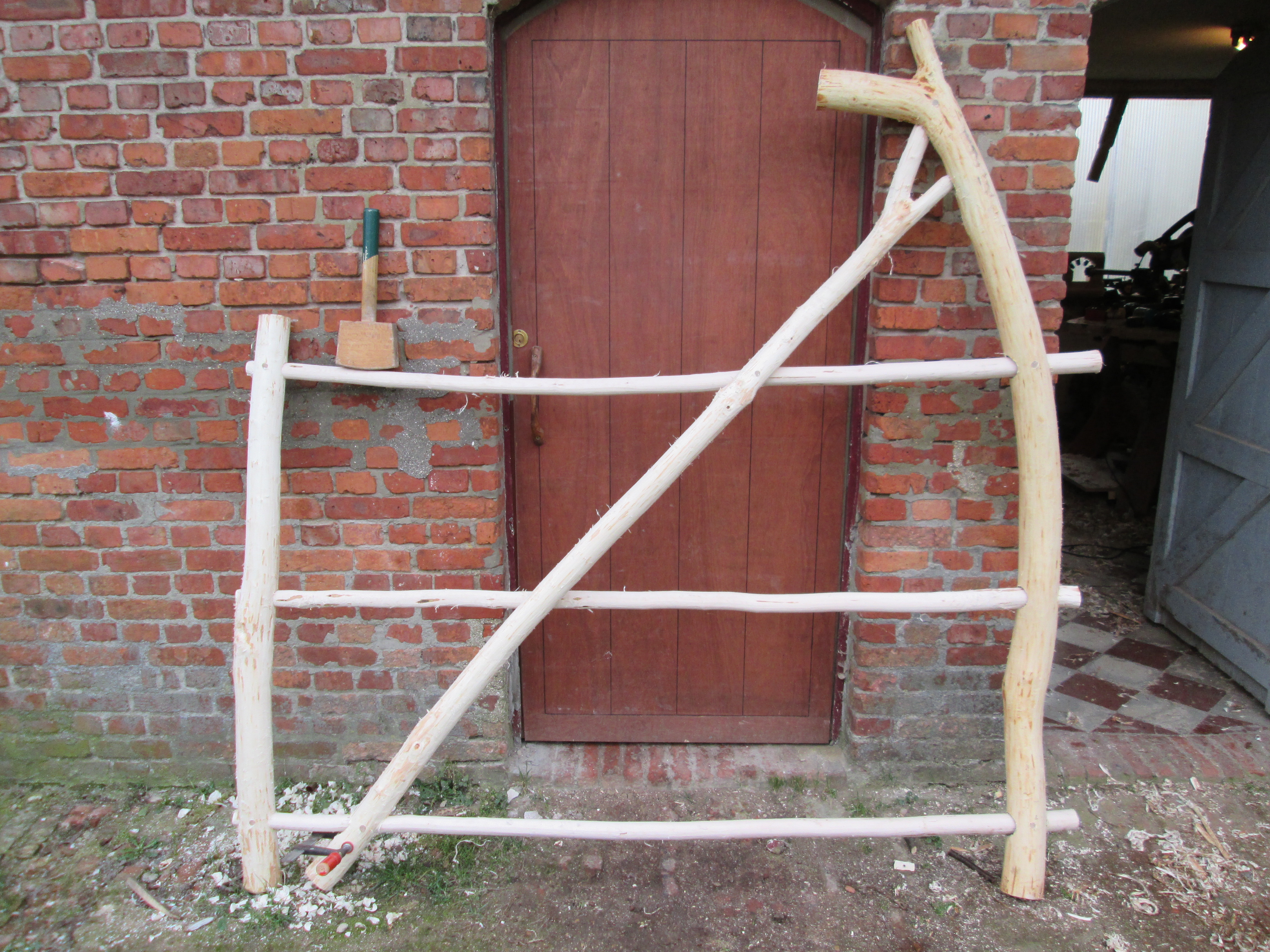

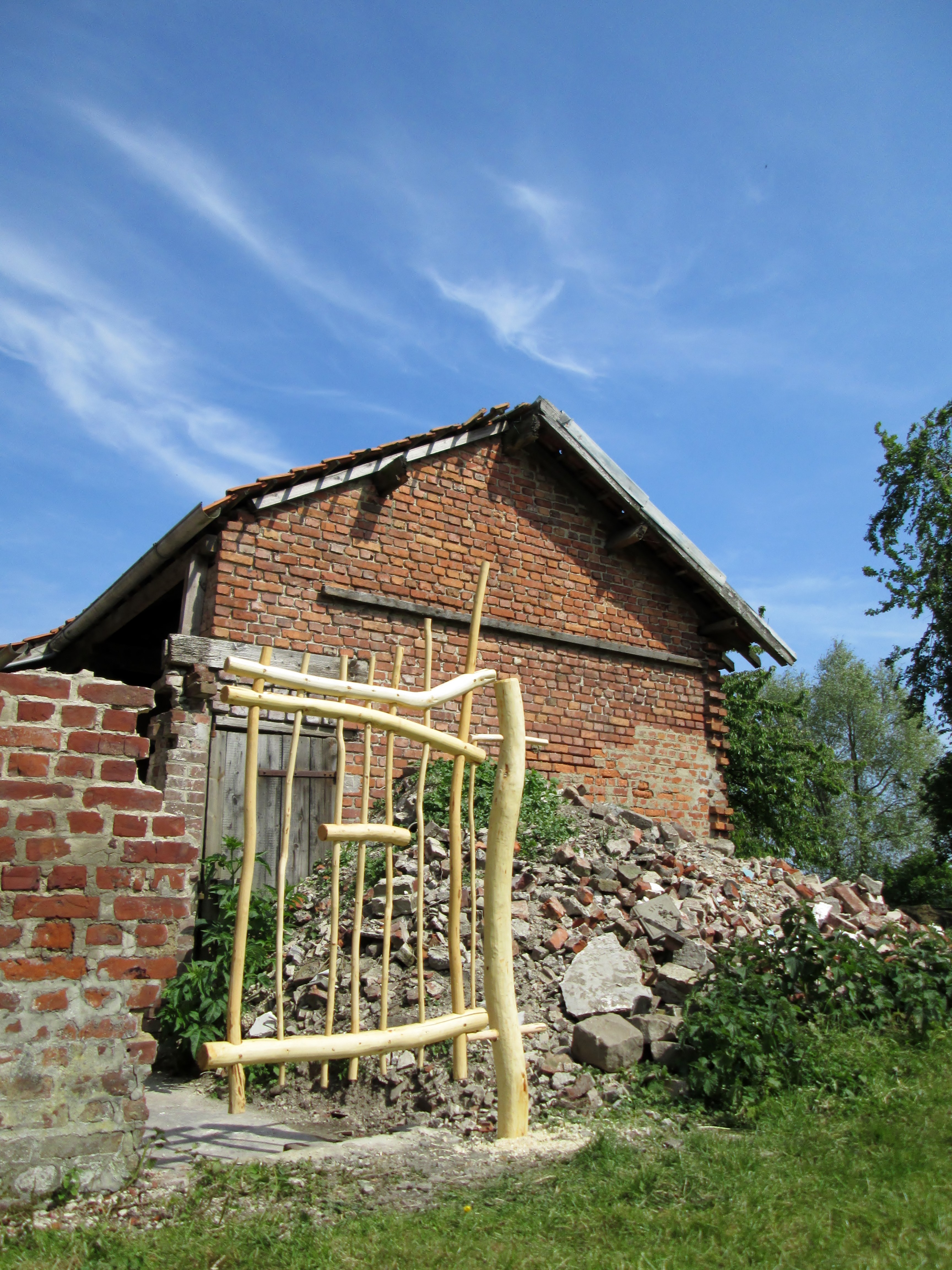

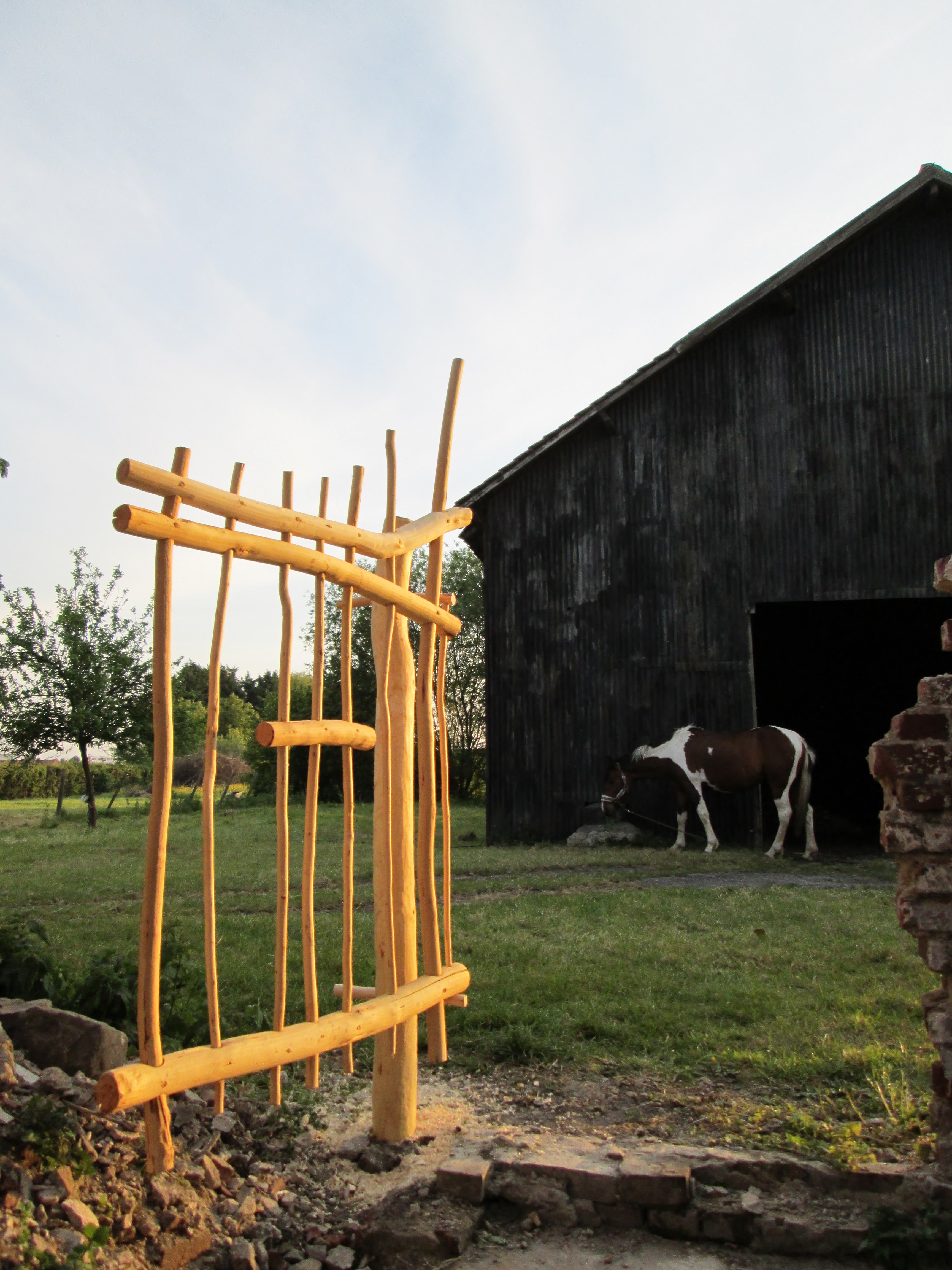

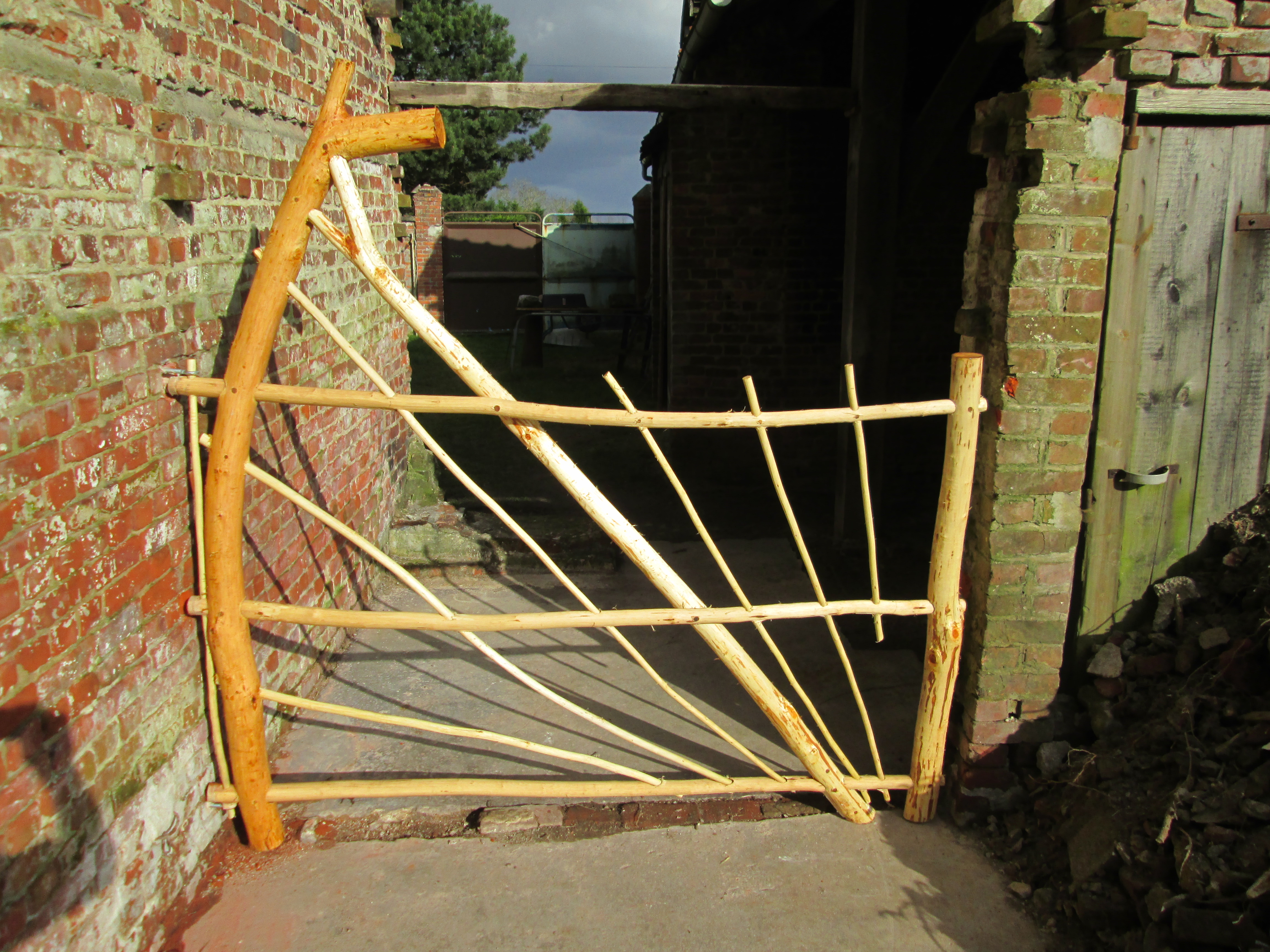

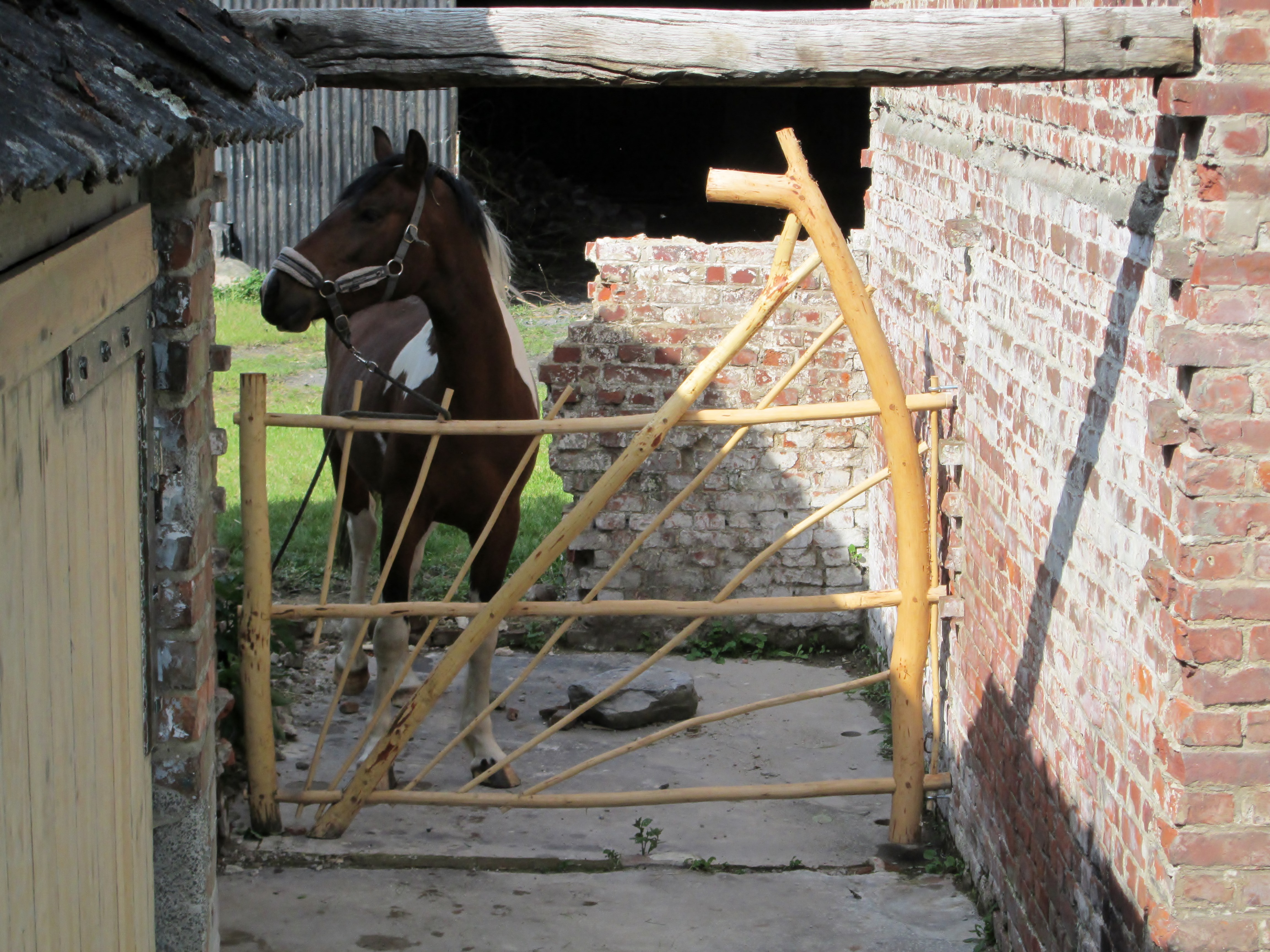

Workshop 4: Make a Garden Gate
You've got a garden?
You've got the vibes?
Why not making a full wood gate?
If you're looking for a different woodworking challenge: this is it!
From tree to fixed gated: three days.
Benefiting time: one generation - at least.
Why not have a walk through the pictures? Instructions in the pics.
You've got the vibes?
Why not making a full wood gate?
If you're looking for a different woodworking challenge: this is it!
From tree to fixed gated: three days.
Benefiting time: one generation - at least.
Why not have a walk through the pictures? Instructions in the pics.

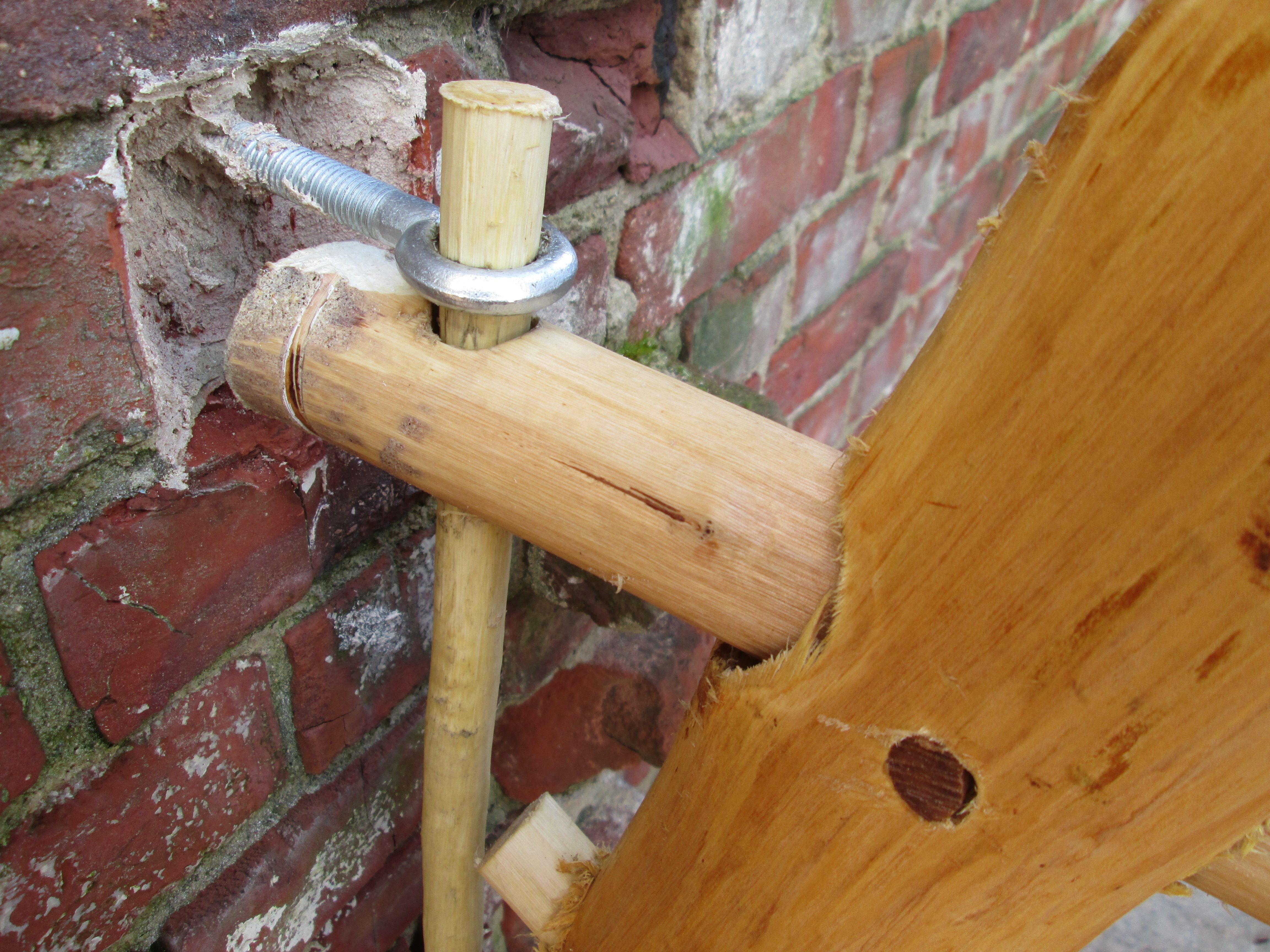

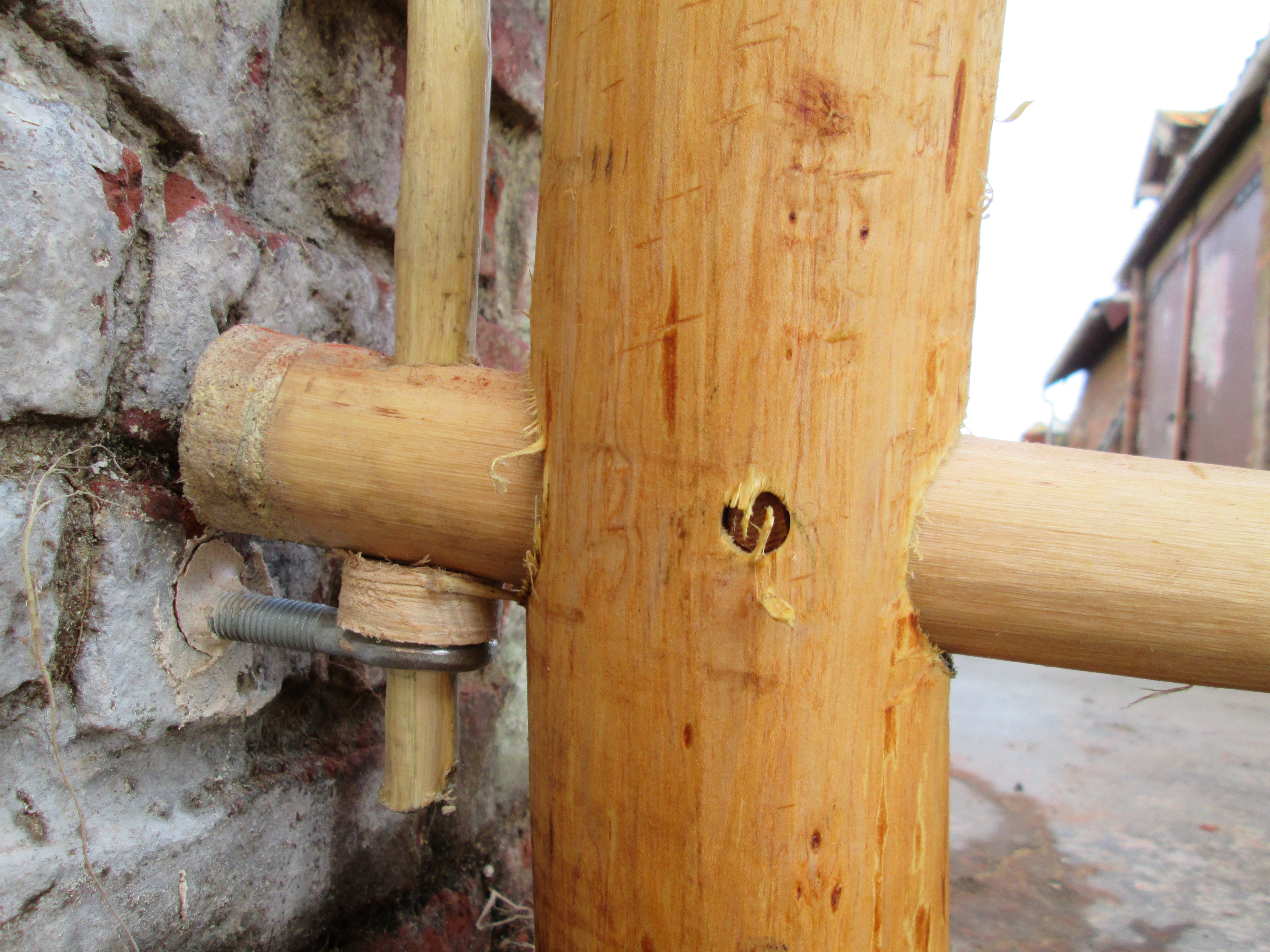

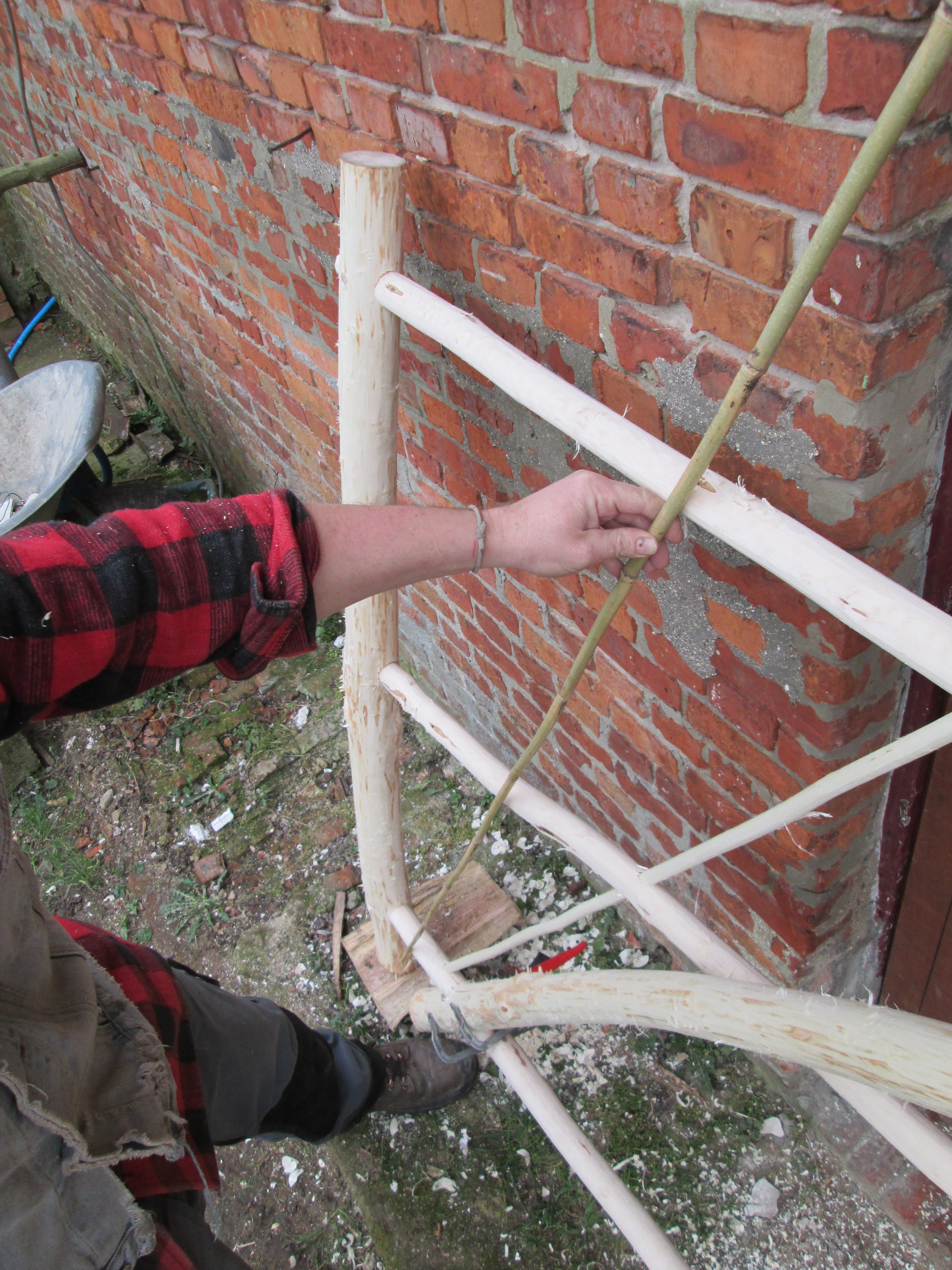

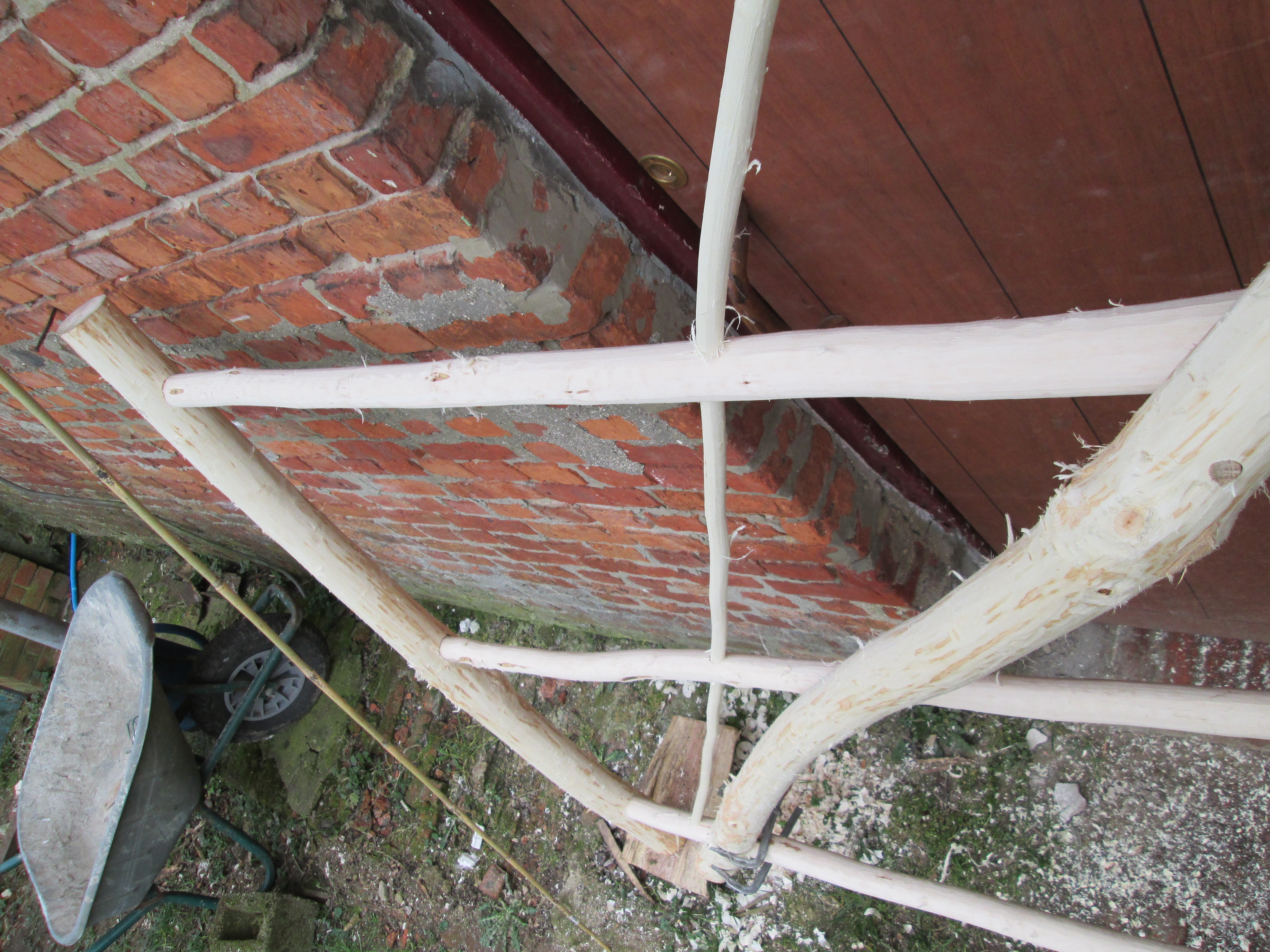

UPDATE: Fixing a Small Garden Gate
I made a smaller gate for a friend, and just for fun I wanted to know what it would look like once fixed.

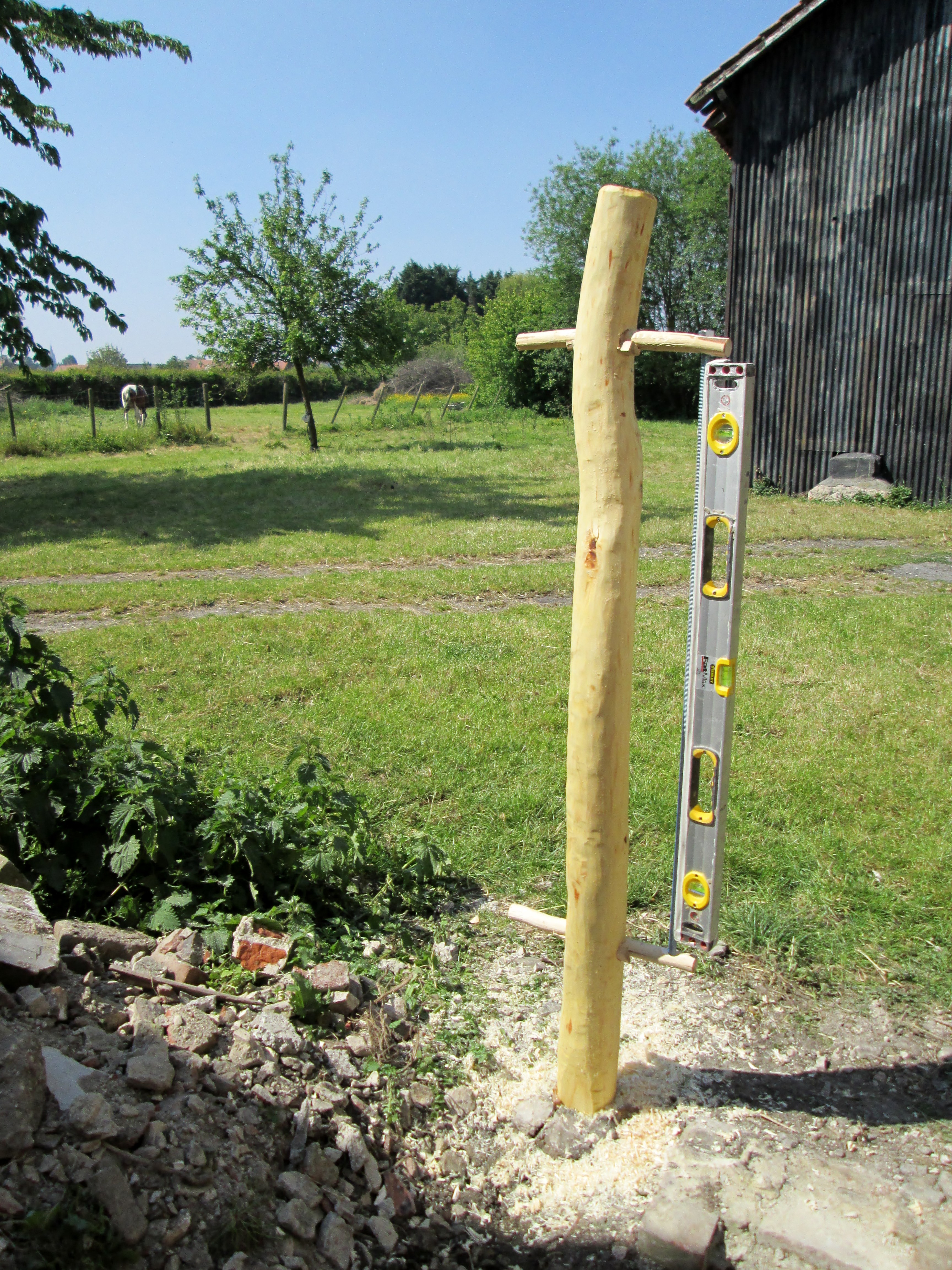

- Anchor a big pole in the ground.
- Measure the distance of the wooden pivot pole from the gate.
- Drill two holes in the anchored pole.
- Add smaller (pre-drilled) poles in the holes.

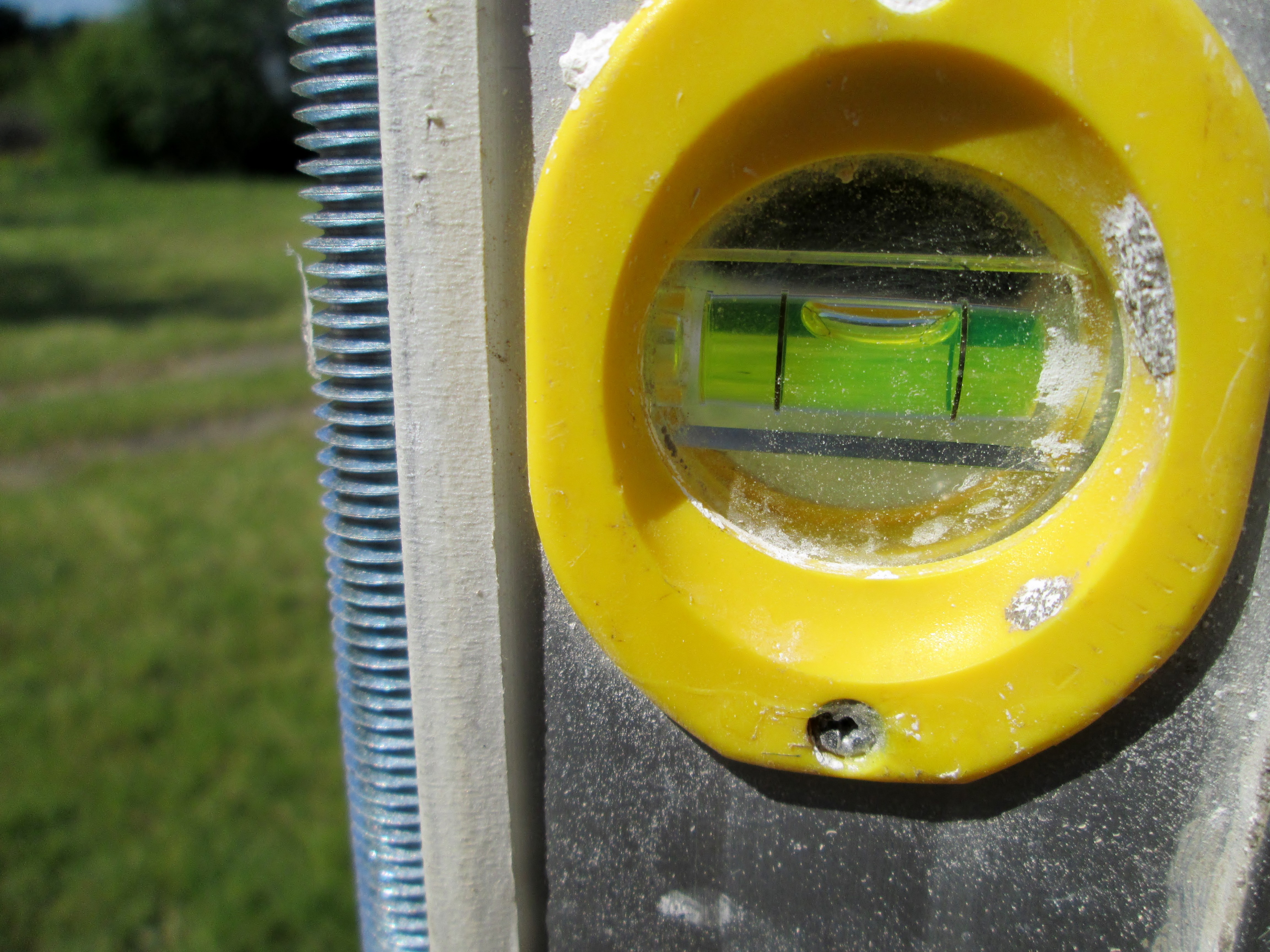

- Use wedges & a hammer to get it all leveled.
- Add your gate.
- Cut off all the excess & oil.
- That's it: a full natural pivoting system!
Don't Be Affraid to Think Bigger
It doesn't stop with gates & fences, of course.
You can go as far as you want. Tree-Nex is based on modularity.
To build a box you need a few frames (like a ladder, but wider).
To build a house you need a lot of bigger frames, correctly assembled.
Use that imagination & creativity. Come up with something special!
You can go as far as you want. Tree-Nex is based on modularity.
To build a box you need a few frames (like a ladder, but wider).
To build a house you need a lot of bigger frames, correctly assembled.
Use that imagination & creativity. Come up with something special!
Endless Possibilities!
In the same spirit of this Tree-Nex project I already made a few other projects that unconsciously must have lead me to this, I guess.
There was my natural elbow boomerang and in the same style the dreamcatcher and zombie stopper - all based on natural elbows - and I'm still into kuksa's & mugs. No publicity, only to show you the endless possibilities of using natural shapes.
Call it Tree-Nex, call it natural wood woodworking, call it whatever you want. I just hope I've transmitted a bit of my enthousiasm to a few of you to leave the beaten tracks of classic woodworking.
Thanks for watching, and thanx to everyone following me. I didn't say thank you to all of you individually but know that I'm really, really honored.
Peace.
Can't wait to see those 'I made it'-buttons appear in the comment-zone ;)
There was my natural elbow boomerang and in the same style the dreamcatcher and zombie stopper - all based on natural elbows - and I'm still into kuksa's & mugs. No publicity, only to show you the endless possibilities of using natural shapes.
Call it Tree-Nex, call it natural wood woodworking, call it whatever you want. I just hope I've transmitted a bit of my enthousiasm to a few of you to leave the beaten tracks of classic woodworking.
Thanks for watching, and thanx to everyone following me. I didn't say thank you to all of you individually but know that I'm really, really honored.
Peace.
Can't wait to see those 'I made it'-buttons appear in the comment-zone ;)
