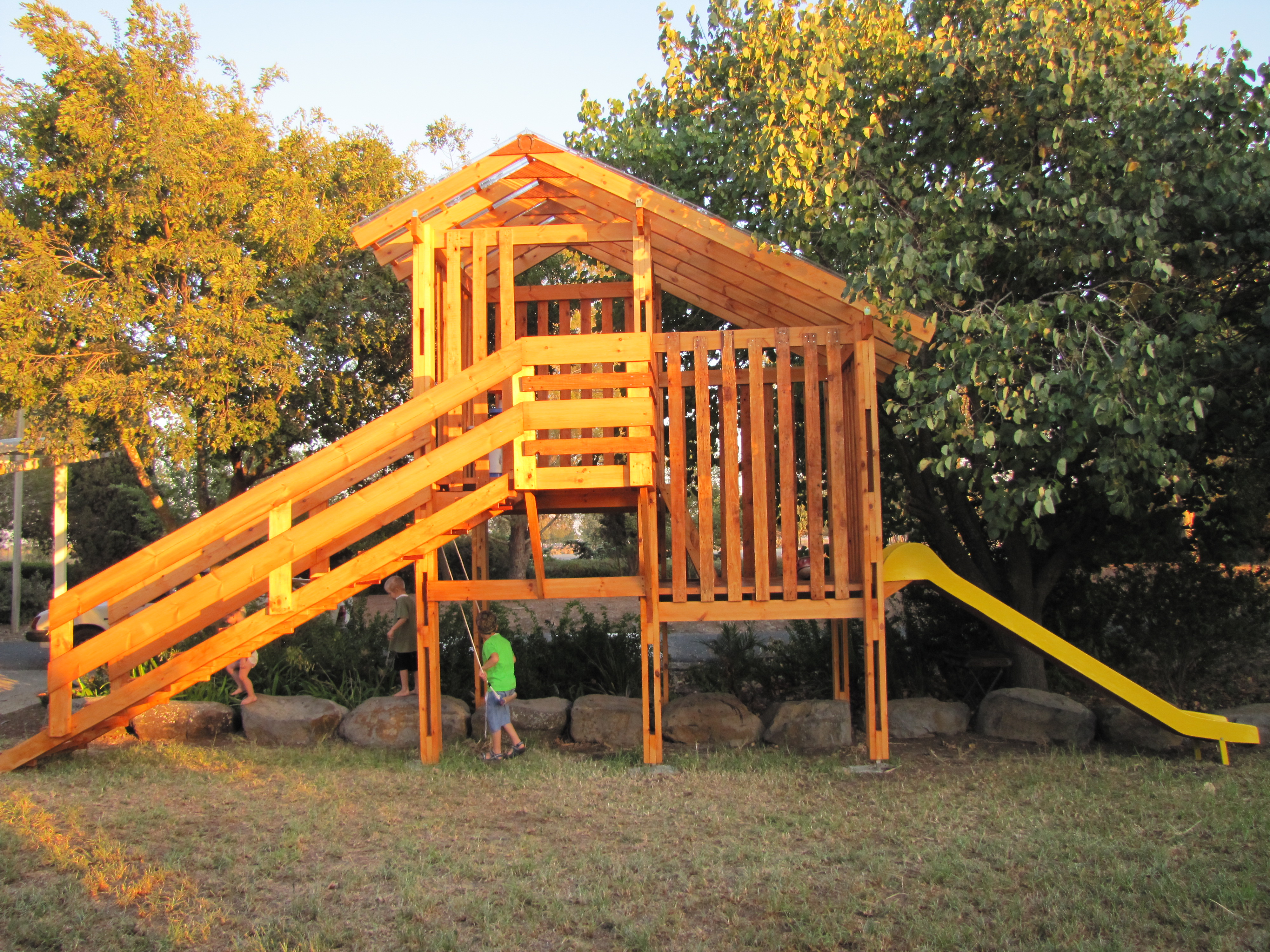

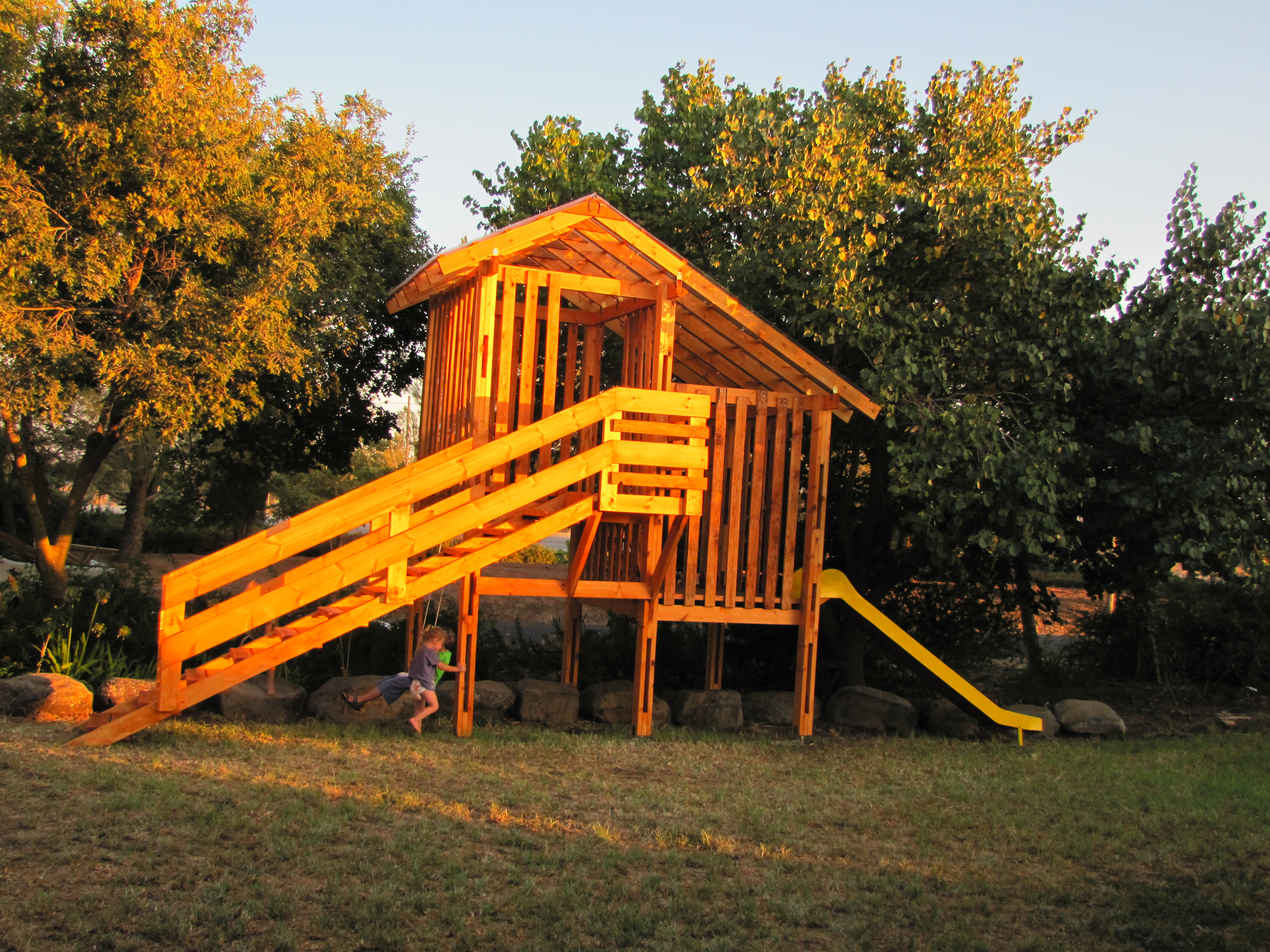

Tree House
One day my sister called me and said: I have two used large wooden crates, I want to build from it a tree house for my children, can you help me?
As a designer I was glad for the opportunity and immediately sat down and started to design and plan how to make these two boxes into one unique and beautiful tree house.
I have made several designs versions and we chose one of them together me and my sister.
For a better understanding how it will be look like at the end. I did a simulation and I placed it in a picture I took out at my sister backyard.
Recycled Materials
These are the boxes that my sister found.

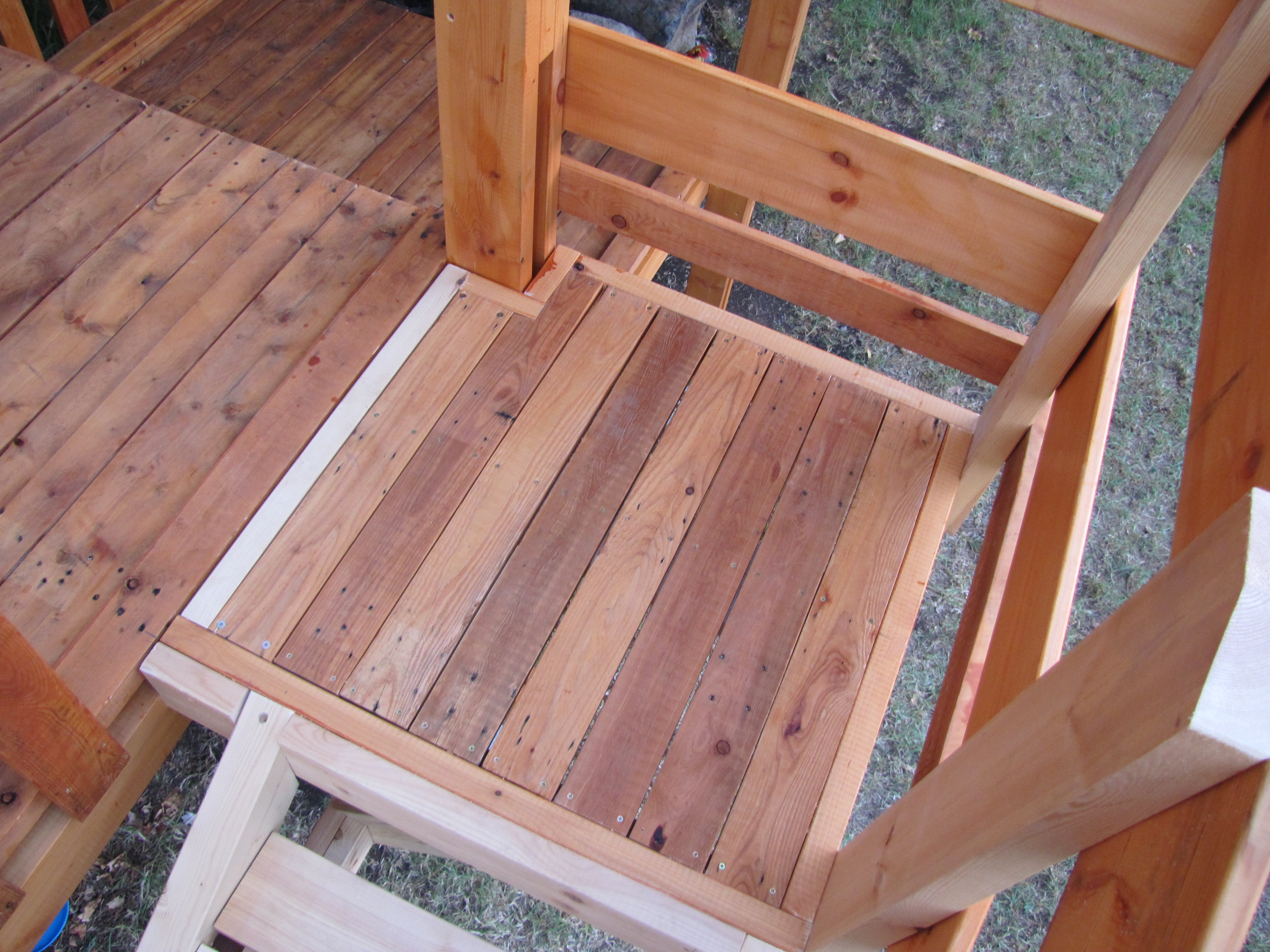

The wooden pallets have become the floors of the structure.
The rest of the recycled material used after sanding and pinting for the walls of the house.
Beautiful savings !

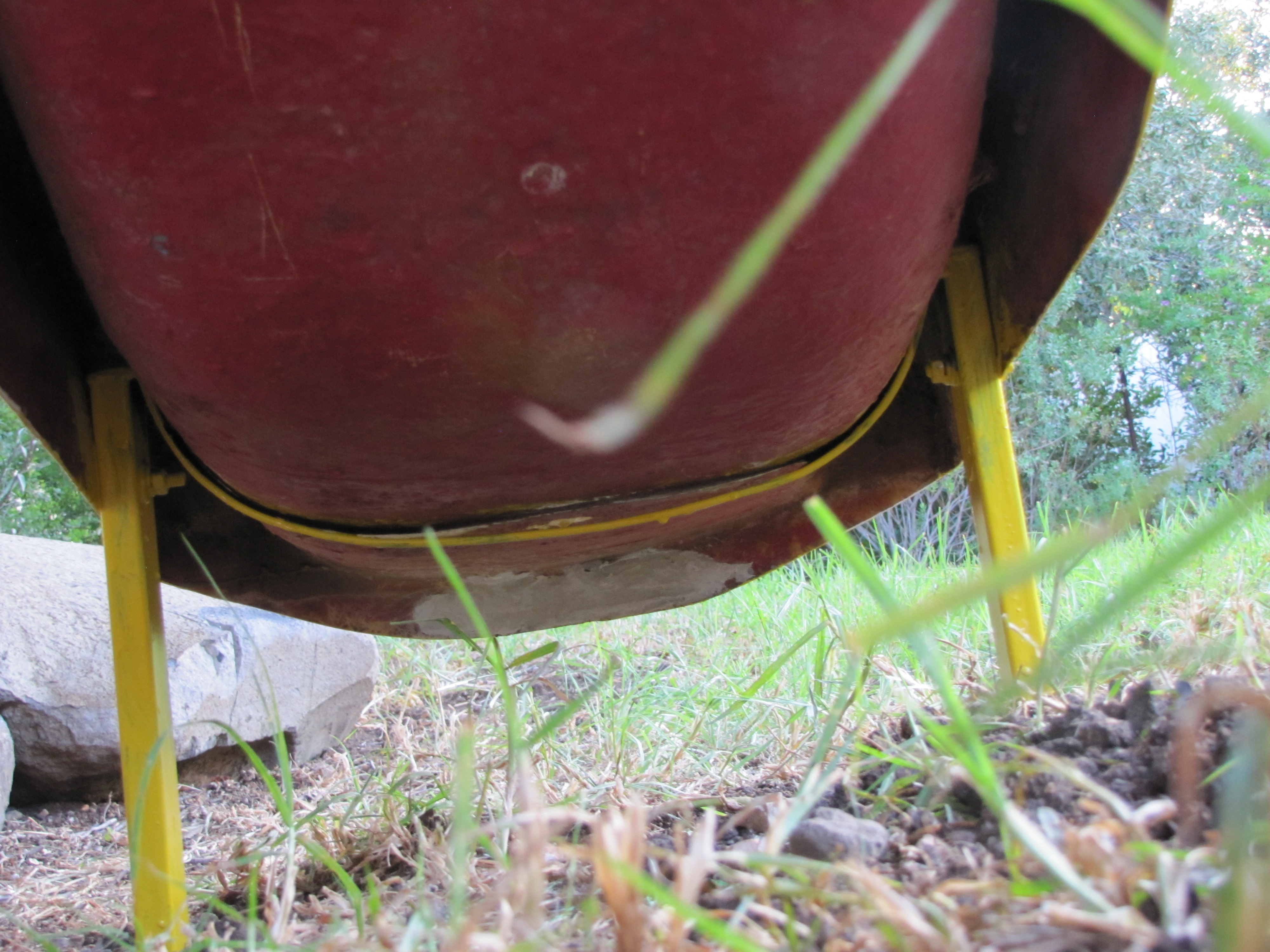

Slide

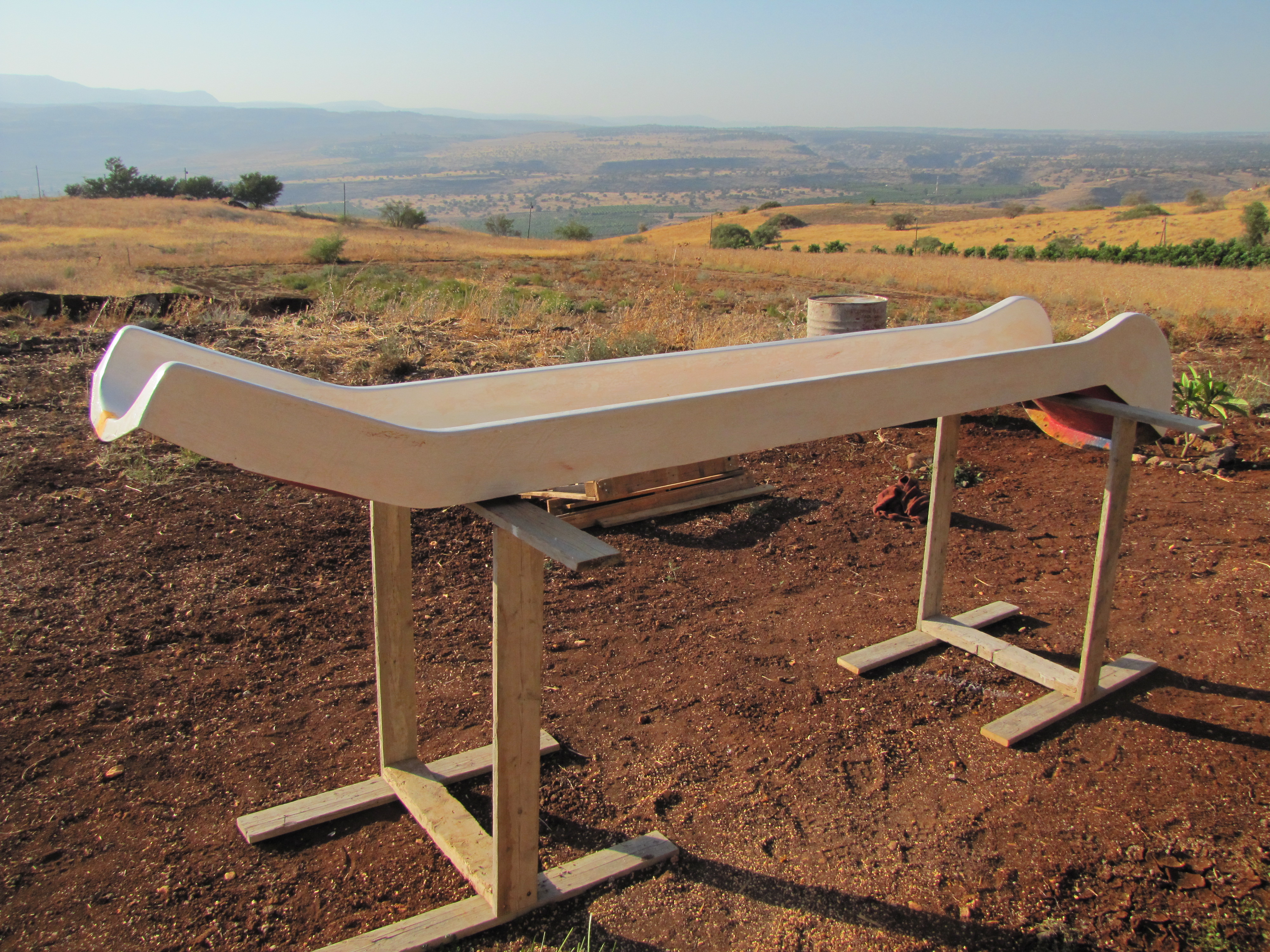

During the planning I found an abandoned old slide, I asked the owner if I could take it ...
As you can see he had no problem to give it away.

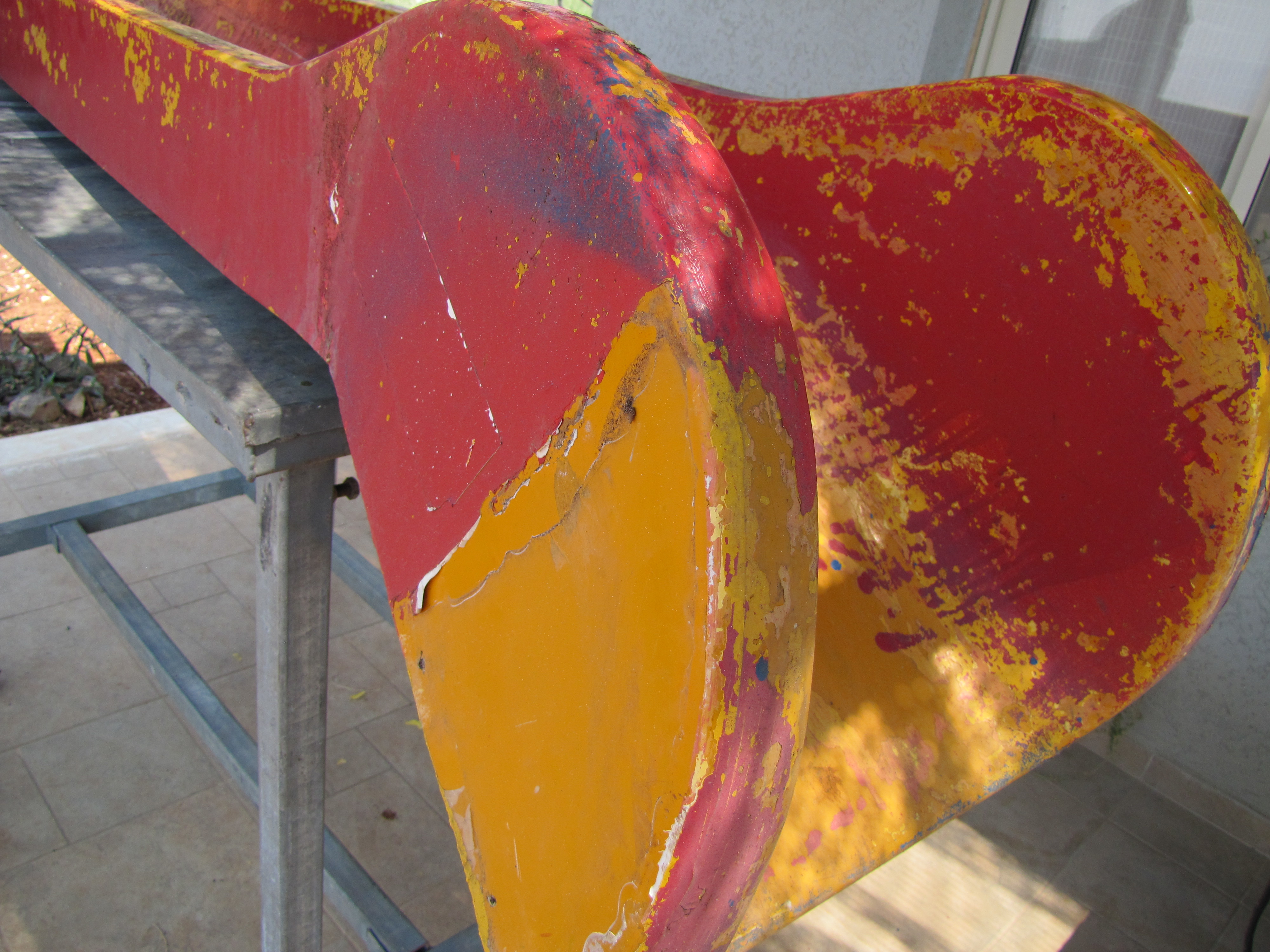

I removed the old paint, repaired fractures and painted it .
great !!
We have another part of the puzzle :)

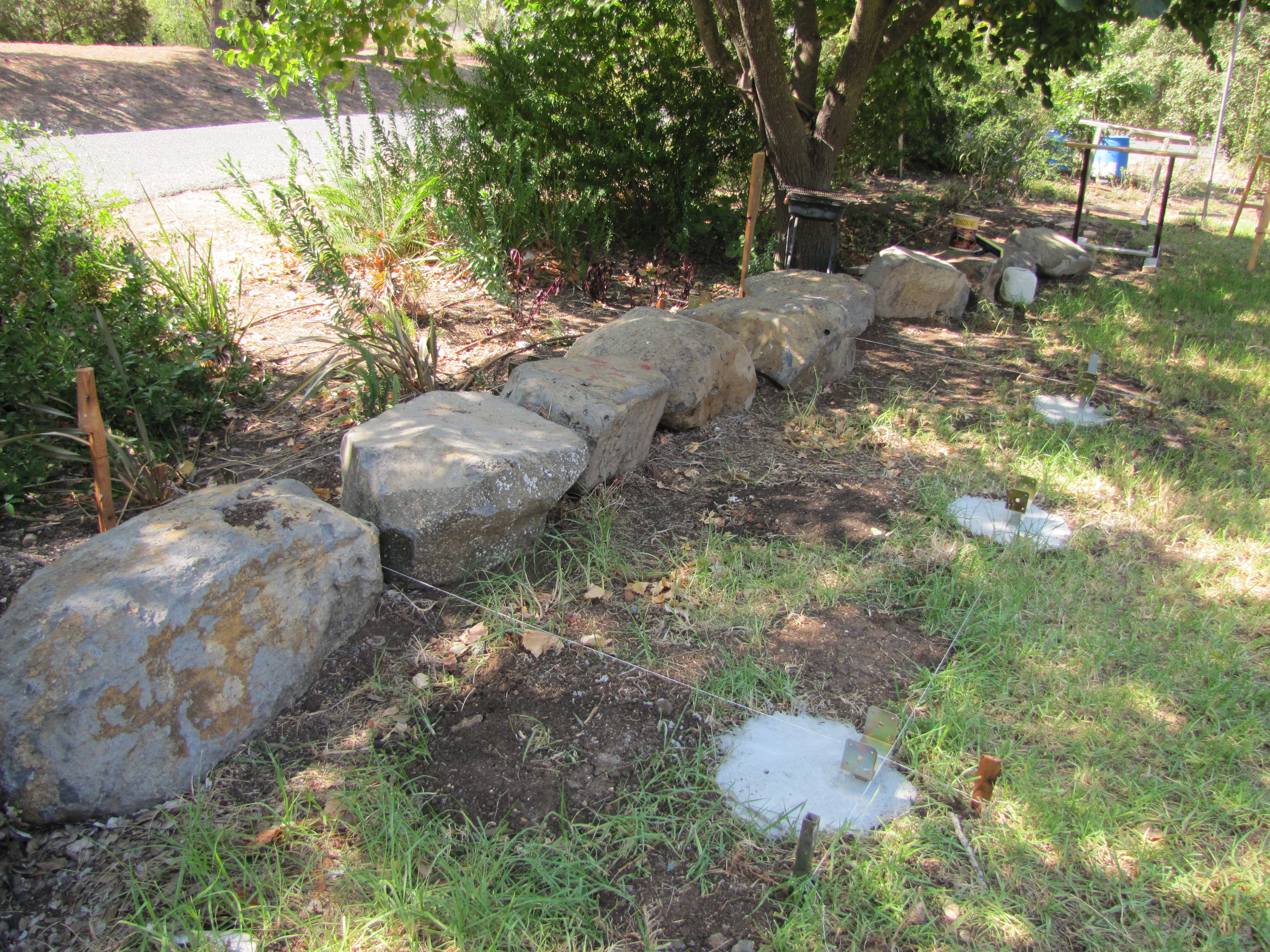

Measuring the Area and Laying the Foundations

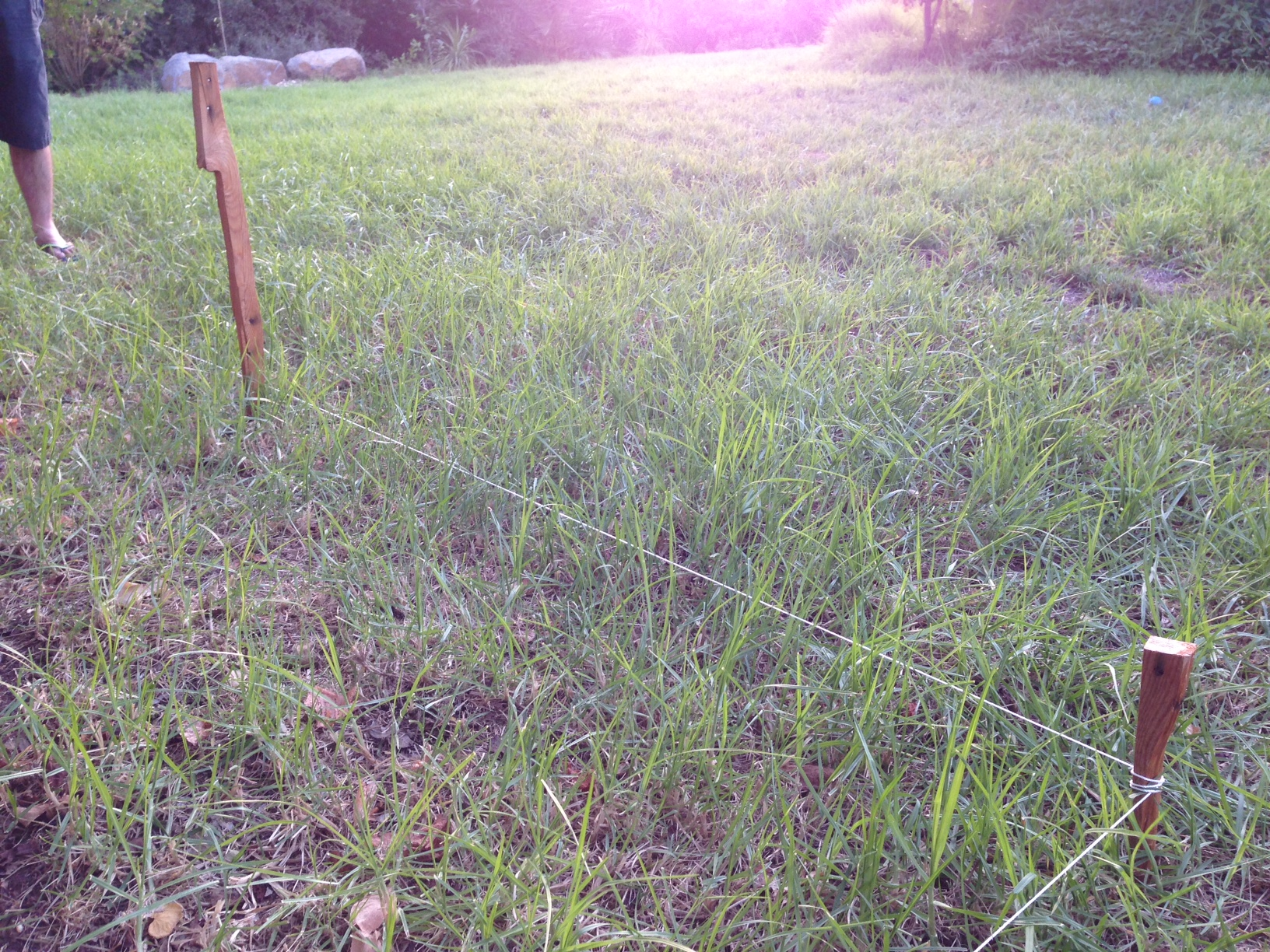

We measured and marked the locations of the legs according to the size of the pallets and the design.
Six holes dug in the ground at a depth of about 50 cm.

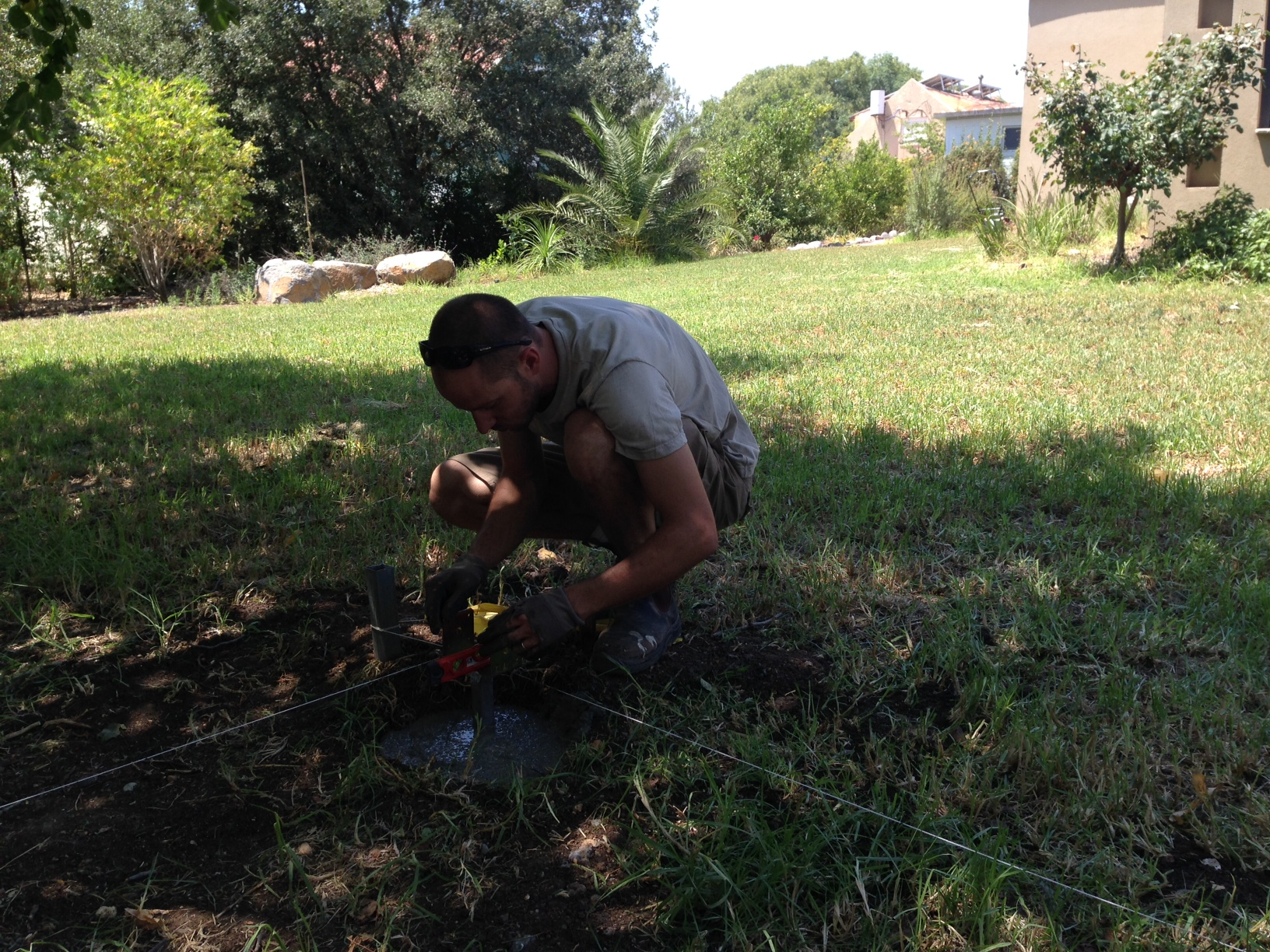

Then we poured the concrete and stabilized the metal bases.
We used a spirit level and thred to align the bases In relation to others.
Then We waited 24 hours to the concrete dries...

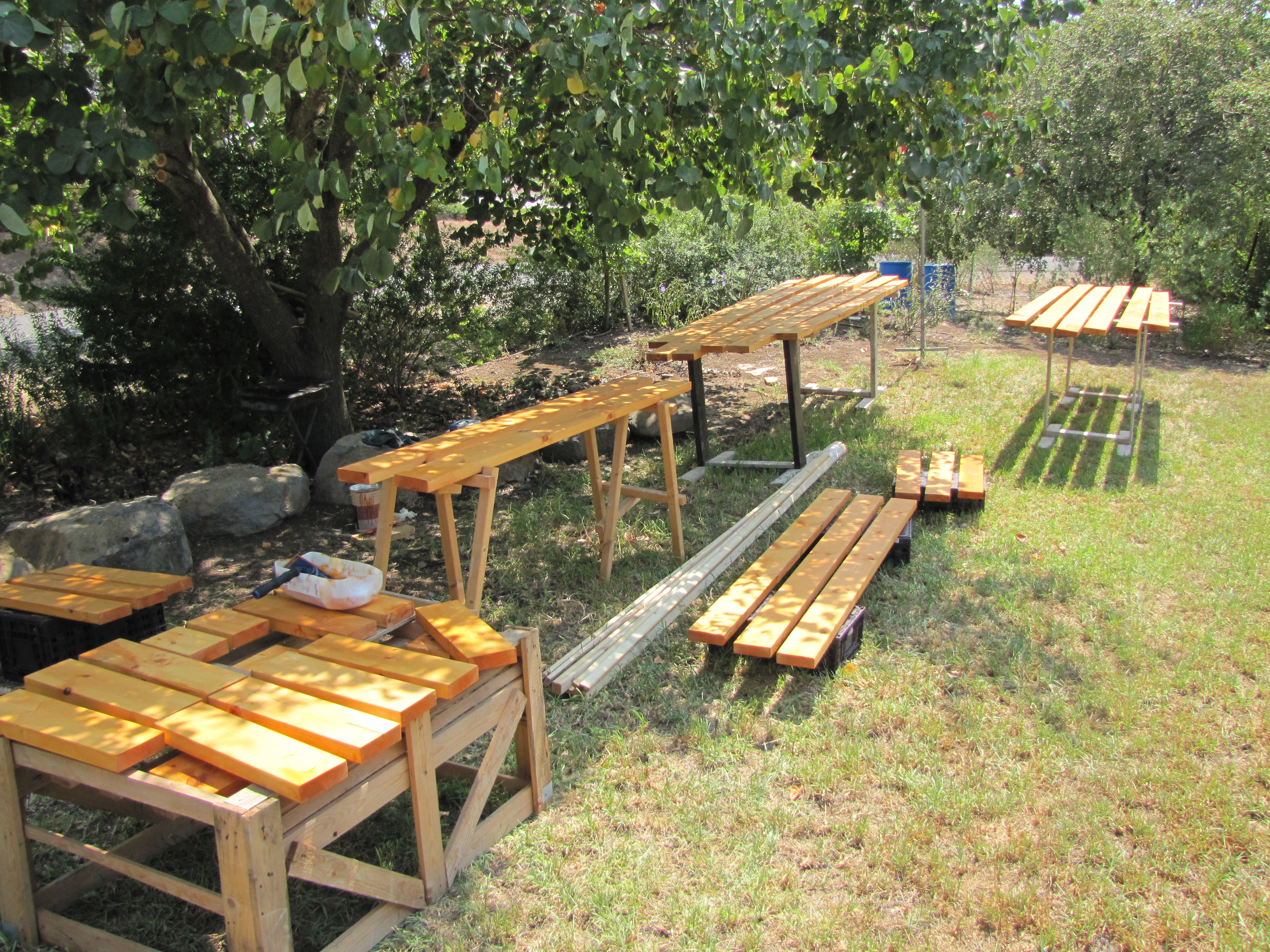

Materials
1. We ordered materials - Pine wood , Mainly 50x150 mm
2. We cut the desired dimensions and we painted most of it.

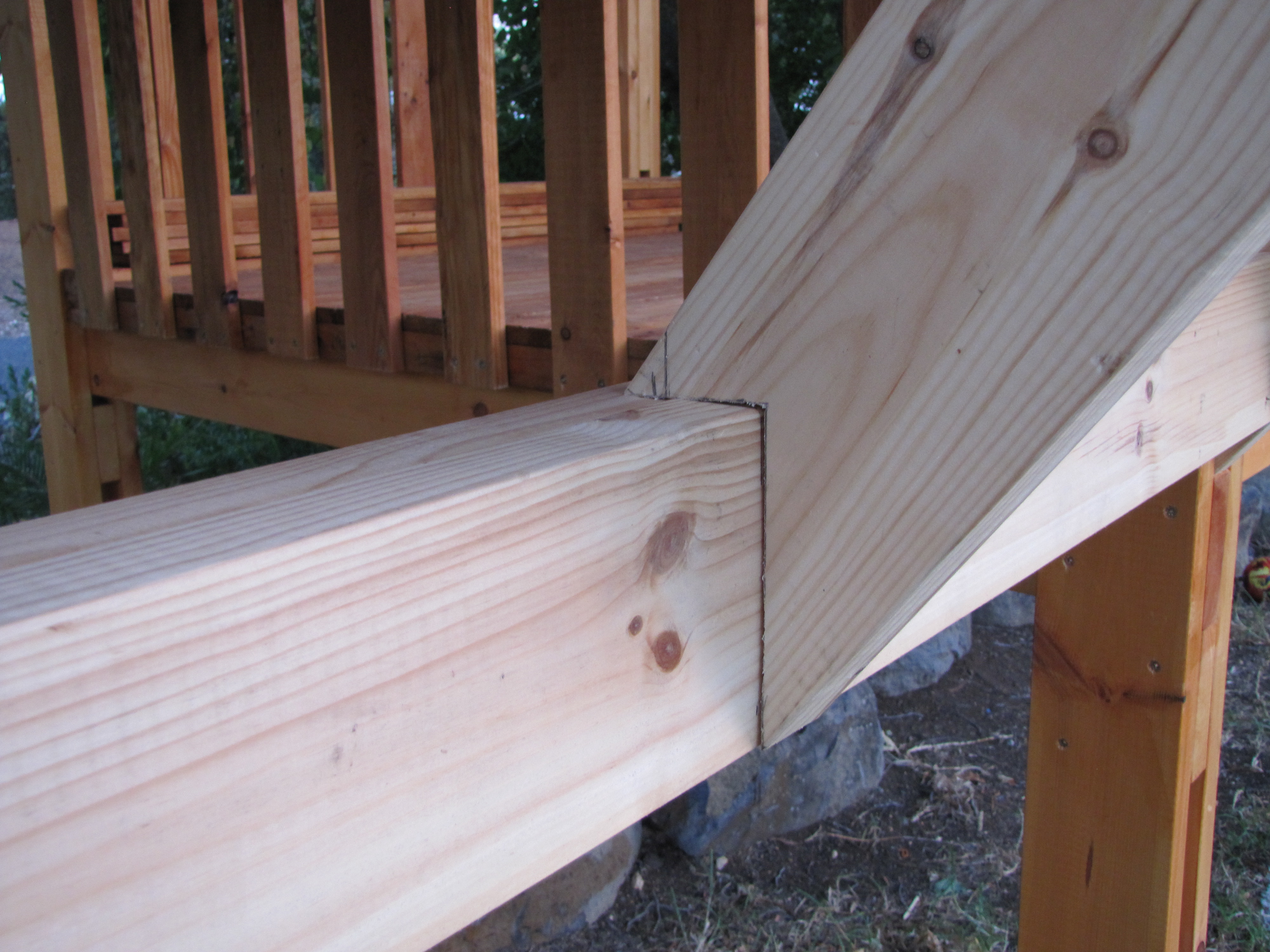

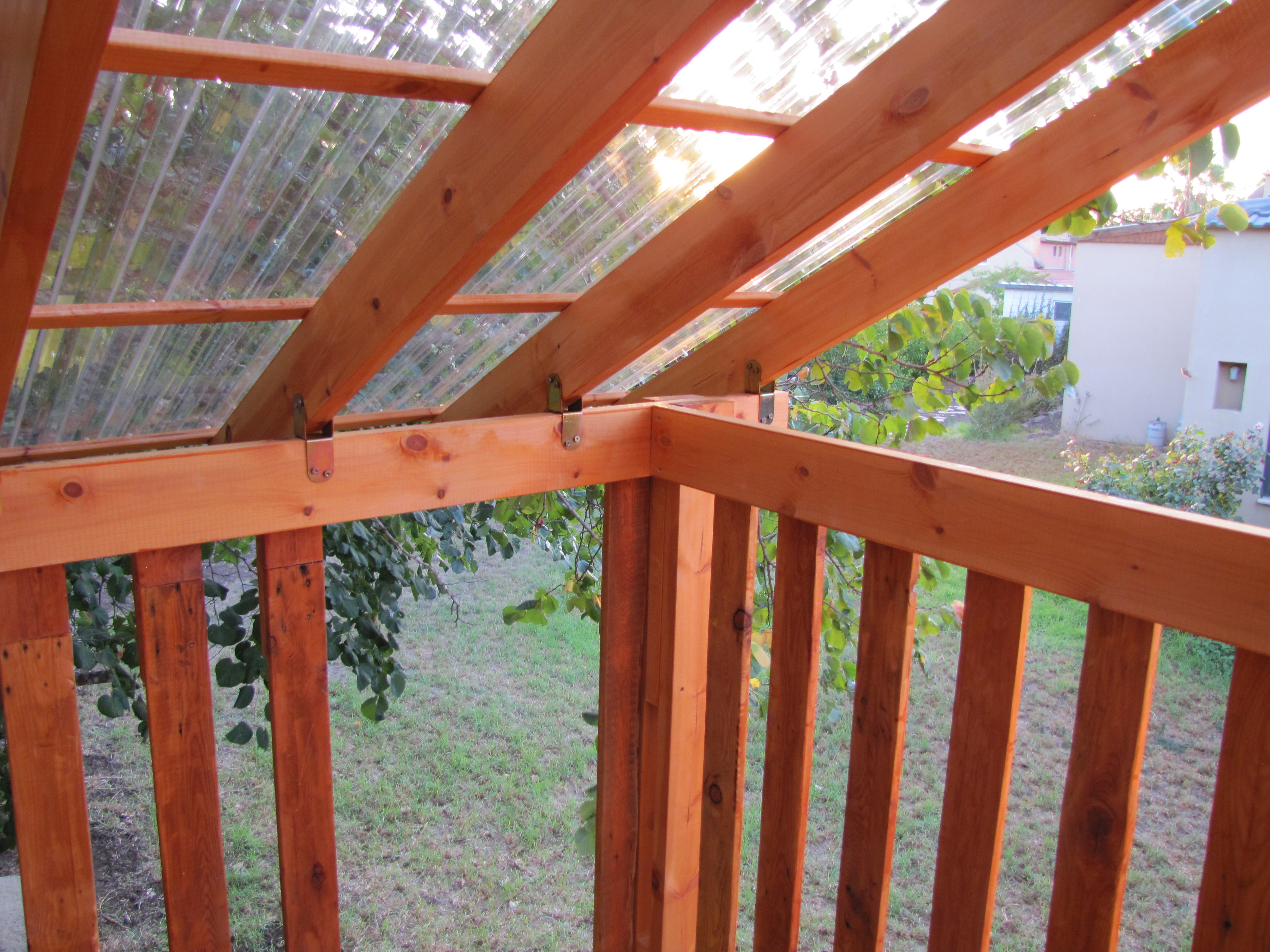

Construction Process

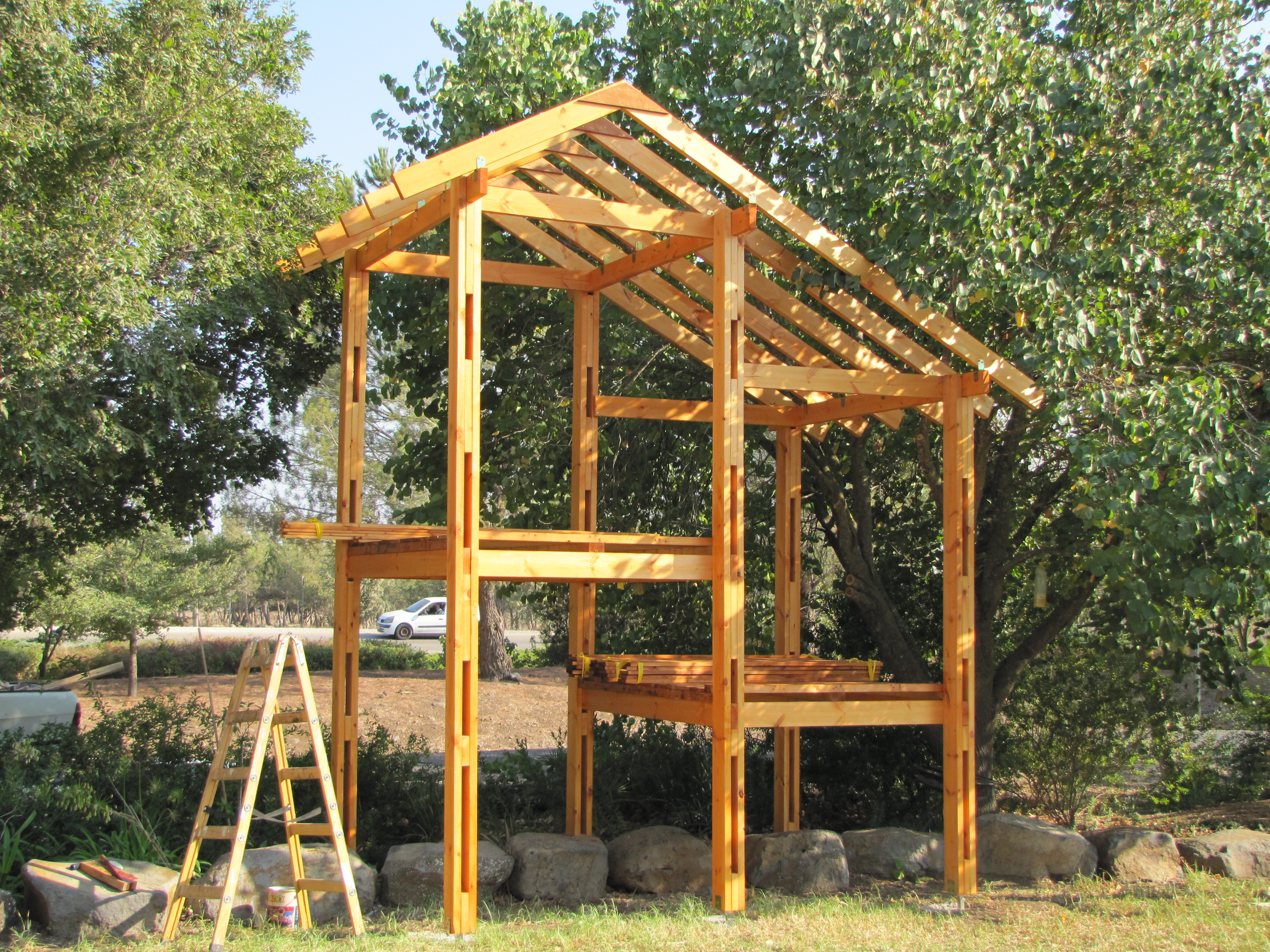

In These pictures you can see the progress of construction.

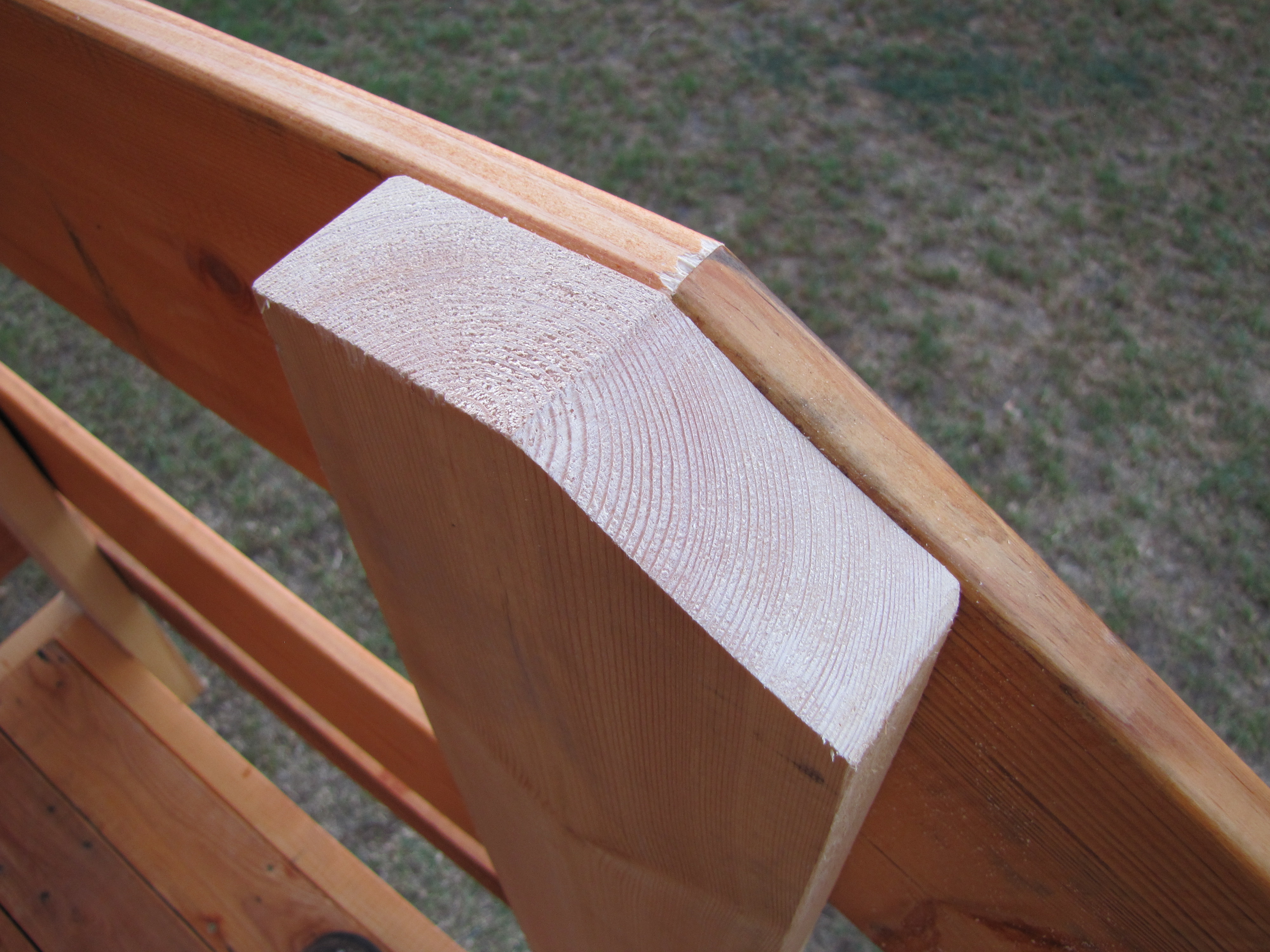

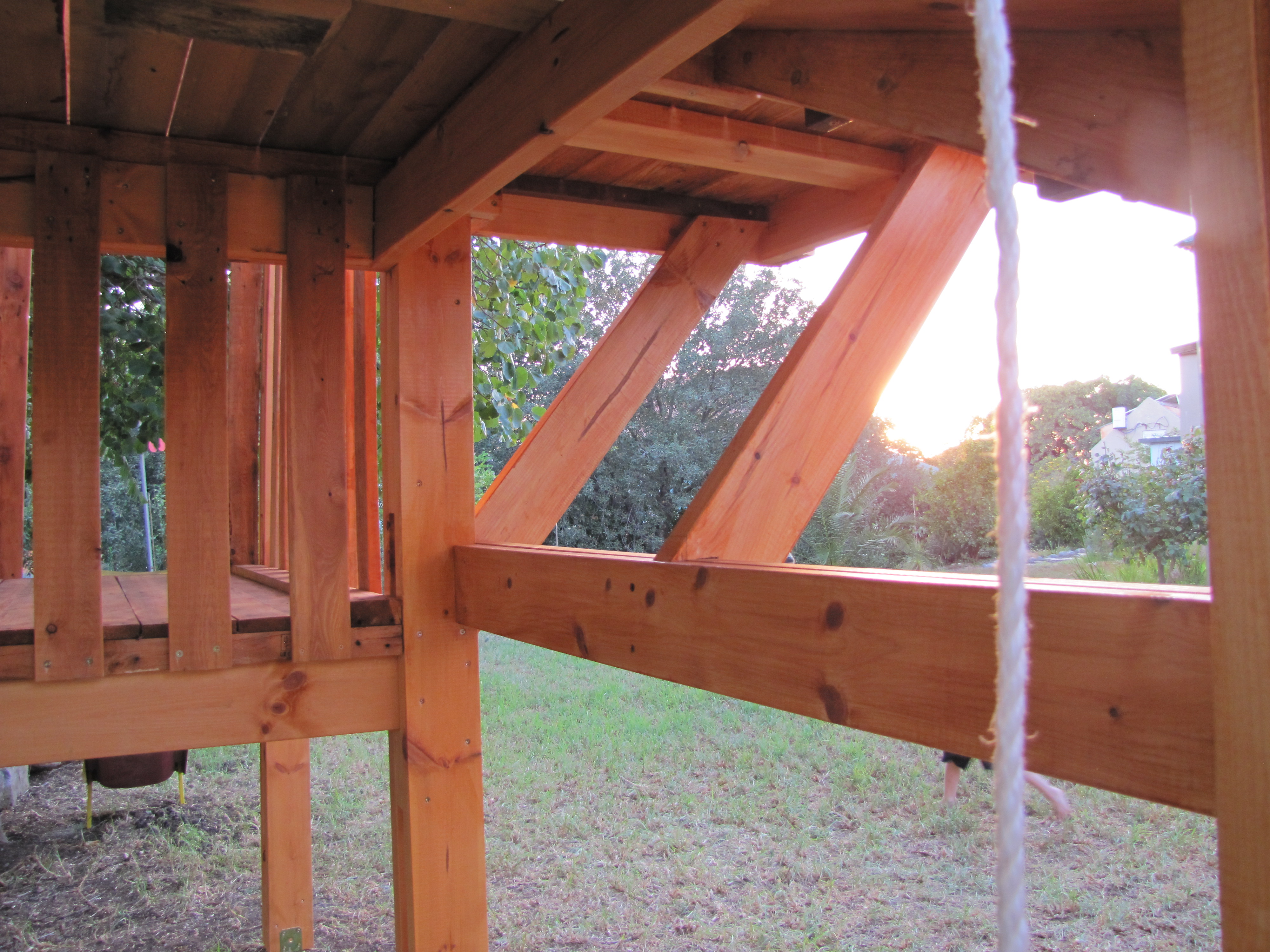

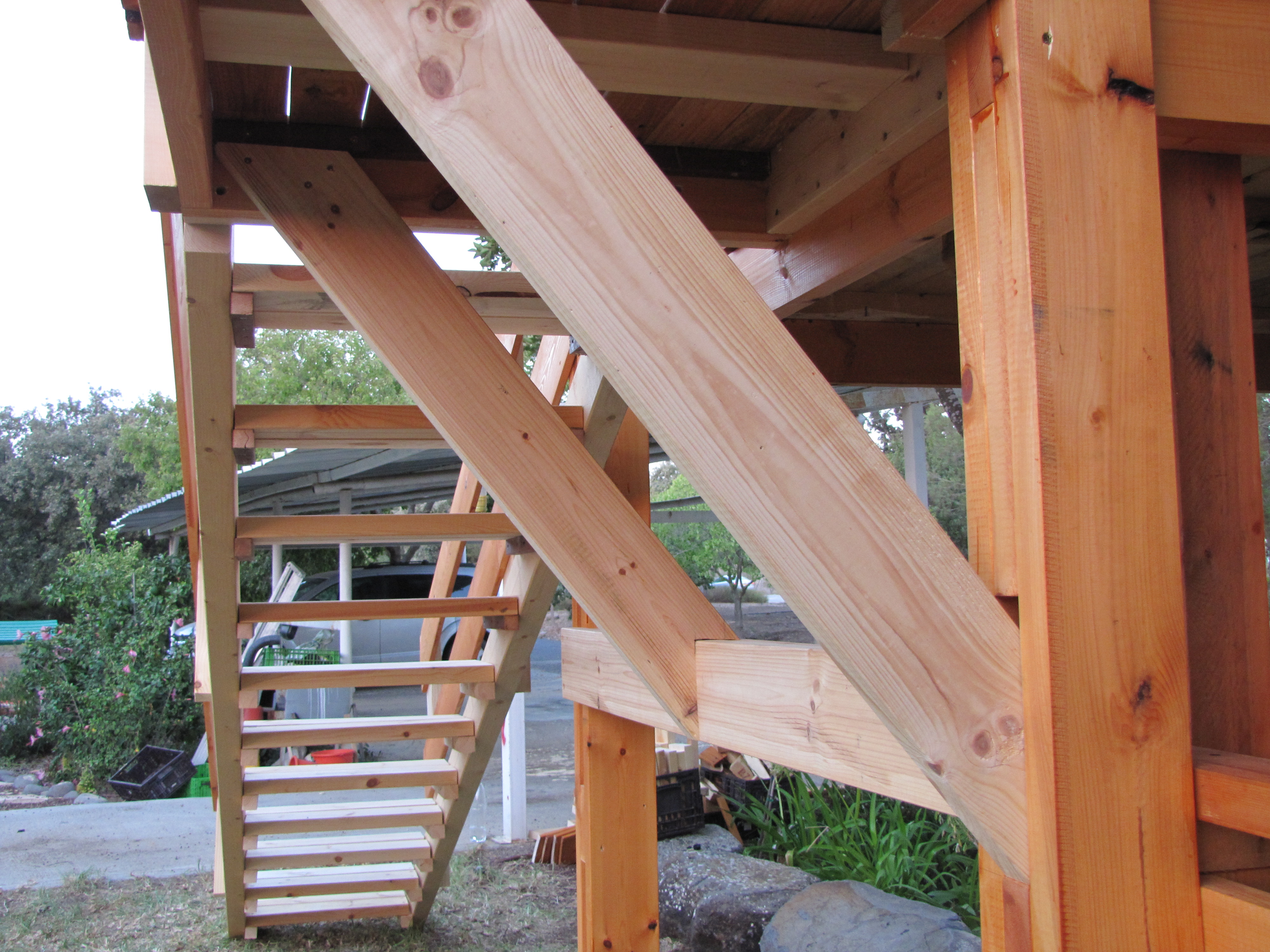

Details
Drawings and Tools
All size are in mm.
Tools i use:
Drill Impact driver: https://amzn.to/2W1IJHZ
Orbit Sander: https://amzn.to/2VXk9rS
Angle grinder: https://amzn.to/2T2P3x7
Circular saw: https://amzn.to/2FbnCxo
Jig saw: https://amzn.to/2XQ8nS2
L-Square
Pencil
Tape meter
Protective glasses
Gloves
Breathing mask
Ear protectors
-----------------------------------------------
