The usual war between humans and pesky insects has no end. These animals that ruin our summer outdoors are a problem.

I present to you a famous trap for flies and mosquitoes revisited by me.


First of all, I used recycled material and in 2 hours I built it in the garage

no problem.

DESCRIPTION OF OPERATION

The fly attracted by the light is sucked into the fan and falls into the bottom of the jar. In the bottom of the jar, which is actually the lid, I put some honey. Honey sticks flies and doesn't let them escape and acts as bait.

Supplies



1 tin coffee can with lid

4 PCB spacers diameter 4, 4 cm long

8 M4 screws

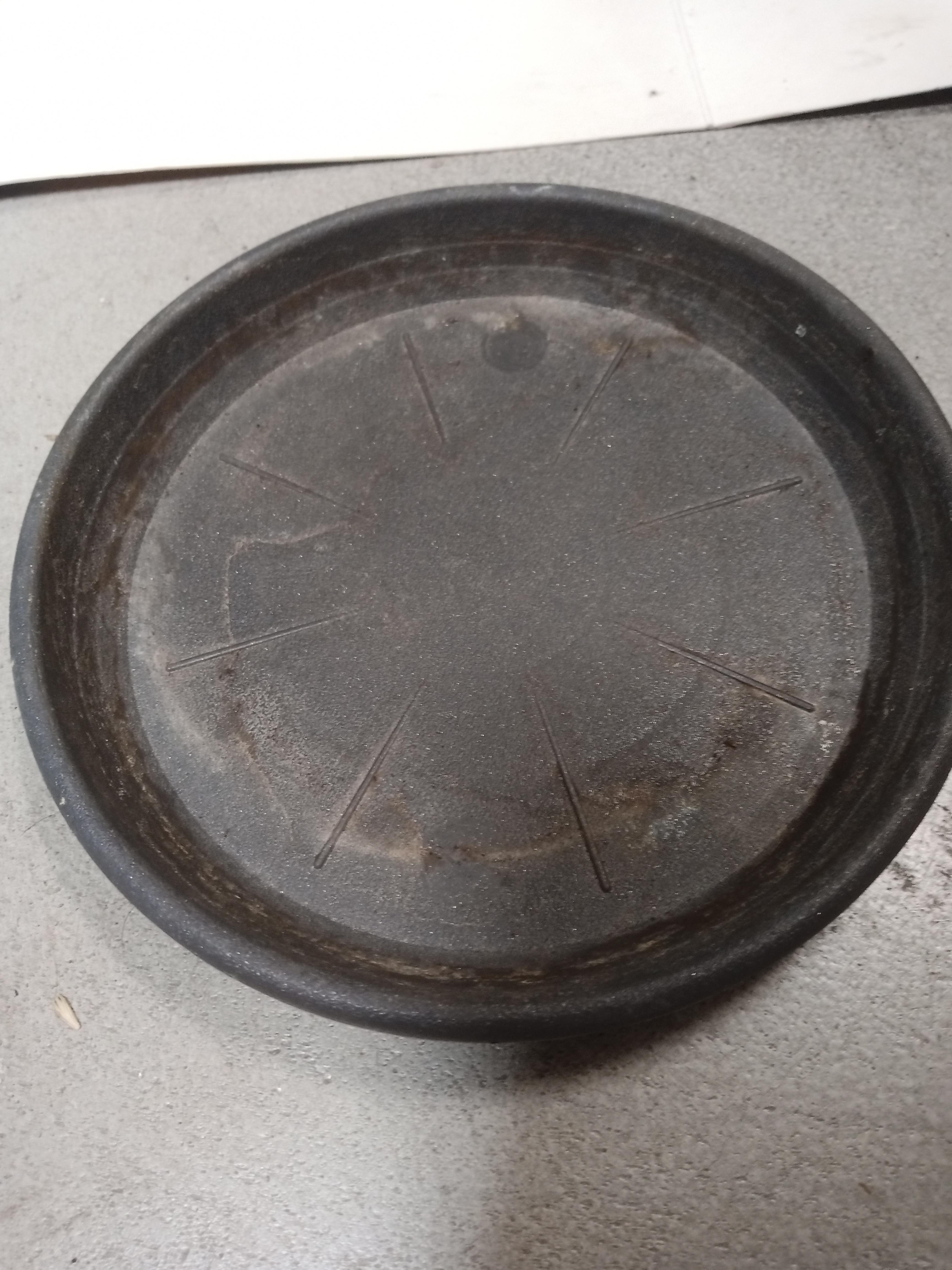

1 under pot

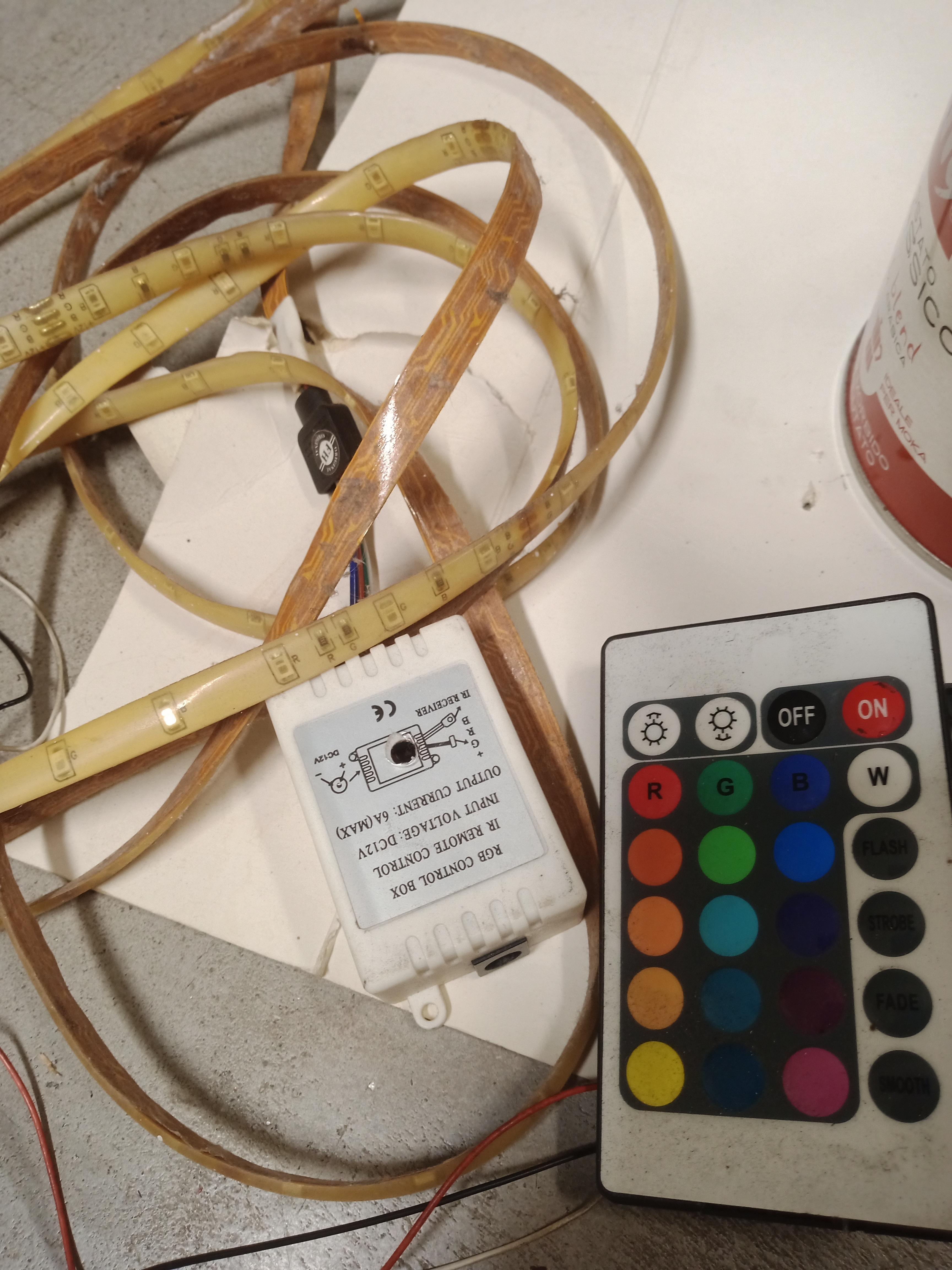

1 RGB LED strip with receiver (I had it at home, it was old)

1 computer fan

1 fine wire mesh


Tools

work gloves

Safety goggles

Screwdrivers

Scissors

hot glue

electric welder

screwdriver drill

drill bits

We Cut the Jar


Mark the hole of the PC fan in the center of the jar and the 4 screws that fix it with a felt-tip pen.

Make a hole in the center of the jar and widen it with fine scissors at the mark.

Drill the 4 holes for the screws

Slit for Air Outlet


Open a slot at the base of the jar towards the cap of about 6x4 cm

Fan Assembly


From inside the jar, apply the fan by passing the screws of appropriate length to pass the jar fan and screwing onto the spacers.

Proceed with another hole to thread the fan wires

Drill the Holes in the Saucer.


Now mark and drill the holes in the saucer where the spacers will be screwed.

Glue the RGB Receiver


In the saucer glue the RGB receiver after removing it from the plastic shell and soldering the + and - wires of the fan. The power socket must be facing a previously drilled hole.

Final Assembly


Glue a piece of led strip and screw everything

The Final Result


The final result satisfies me a lot, above the garden table in the evening it makes a good impression.

I hope you enjoyed my fly and mosquito trap
