Train Themed Bedtime LED Reading Light

by jmengel in Circuits > LEDs

1479 Views, 5 Favorites, 0 Comments

Train Themed Bedtime LED Reading Light

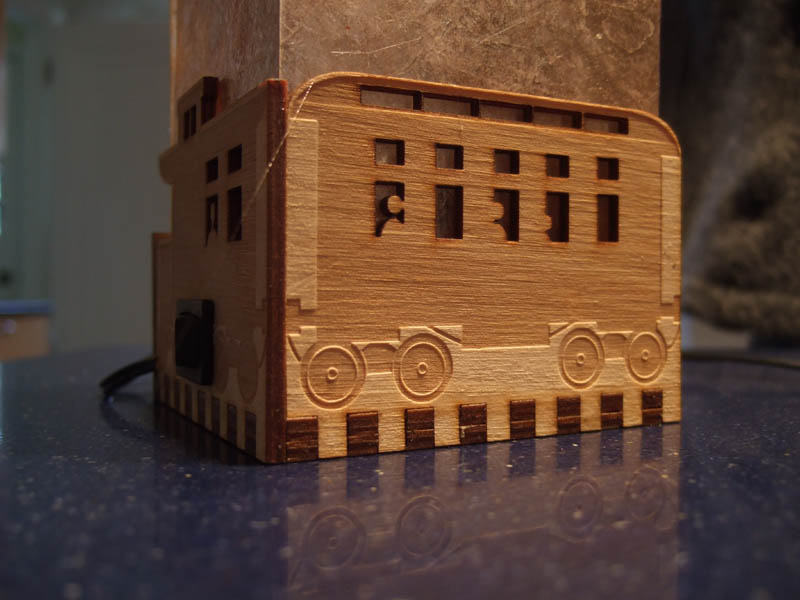

Our son loves to read books at bedtime, but the overhead lights in his room are not quite conducive to a cozy bedtime reading atmosphere.  A table lamp would be too easy for him to knock over and take up too much room, so in response, I drew up the pictured design for a small wooden LED bedtime reading light.  The light is built out of 1/8" birch plywood laser cut with the outlines of various train cars and cut to hold an LED star and heatsink as well as a switch, LED driver, and a hole for the power plug.  I had planned to make a paper or wood veneer shade suggestive of clouds or smoke from the train as shown in the black and white artwork, but since I found some old mica sheets I had laying around I used them instead (see pictures).   The light casts a bright wash of illumination up onto the ceiling and fills the room with a good bedtime glow that allows comfortable reading but lets sleepy eyes droop.

I used an old warm white Philips Rebel LED star I had sitting around but I recommend using a more efficient Cree XPG star (LEDSupply.com).  Power is provided to the driver by a 12VDC wall wart supply with 500mA rating that I picked out of my junk bin.  A switching supply would be preferred to cut down on vampire power losses. The driver is the venerable "13557" driver from DealExtreme.  The switch is just a SPDT rocker that I had sitting around as well.  The mica was also sitting around, but can be found online fairly easily.  The low temperatures of the LEDs make the mica unnecessary and if I hadn't been looking for a use for the mica I would have stuck with the original plan for a paper shade.
