Trailer Dolly
![IMG-0141.jpg](/proxy/?url=https://content.instructables.com/FWZ/QW61/L0NV1TUG/FWZQW61L0NV1TUG.jpg&filename=IMG-0141.jpg)
I have recently decided to make a trailer dolly to move my jet ski trailer. It is very simple to make using an old bed frame and some other metal parts.
Supplies
Tools.
-welder
-angle grinder
Supplies
-bed frame
-two smallish wheels
-2 long bolts and 6 nuts
-steel pipe
-two square pipes that fit into each other.
-a trailer ball and nut.
The Base
![IMG-0106.jpg](/proxy/?url=https://content.instructables.com/FGX/DBHM/L0NV1NFE/FGXDBHML0NV1NFE.jpg&filename=IMG-0106.jpg)
![IMG-0105.jpg](/proxy/?url=https://content.instructables.com/F94/GURB/L0NV1NFF/F94GURBL0NV1NFF.jpg&filename=IMG-0105.jpg)
I cut a small piece of a bed frame about 1ft long and welded the two bolts to either end.
The Handle
![IMG-0108.jpg](/proxy/?url=https://content.instructables.com/FQR/DN2D/L0NV1NMG/FQRDN2DL0NV1NMG.jpg&filename=IMG-0108.jpg)
![IMG-0111.jpg](/proxy/?url=https://content.instructables.com/FC7/U48P/L0NV1NT1/FC7U48PL0NV1NT1.jpg&filename=IMG-0111.jpg)
Next, I cut two pieces of pipe, 1 ft, and 4ft, and welded them together to create the handle. I then welded that to the base.
The Pipe
![IMG-0134.jpg](/proxy/?url=https://content.instructables.com/FW5/LDDW/L0NV1NWT/FW5LDDWL0NV1NWT.jpg&filename=IMG-0134.jpg)
![IMG-0138.jpg](/proxy/?url=https://content.instructables.com/FFI/OVQ4/L0NV1P5V/FFIOVQ4L0NV1P5V.jpg&filename=IMG-0138.jpg)
![IMG-0139.jpg](/proxy/?url=https://content.instructables.com/FAN/HEBK/L0NV1P5W/FANHEBKL0NV1P5W.jpg&filename=IMG-0139.jpg)

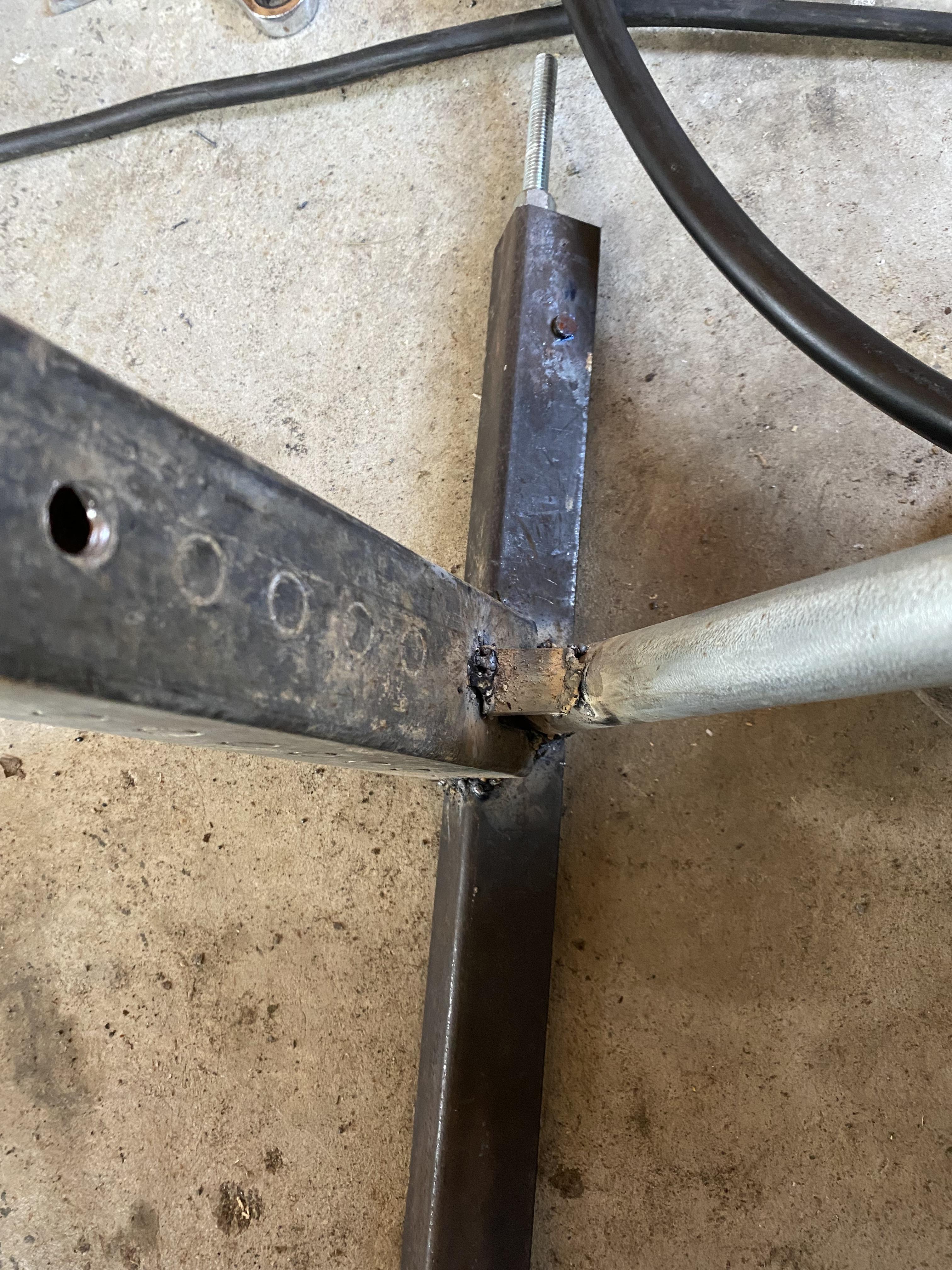

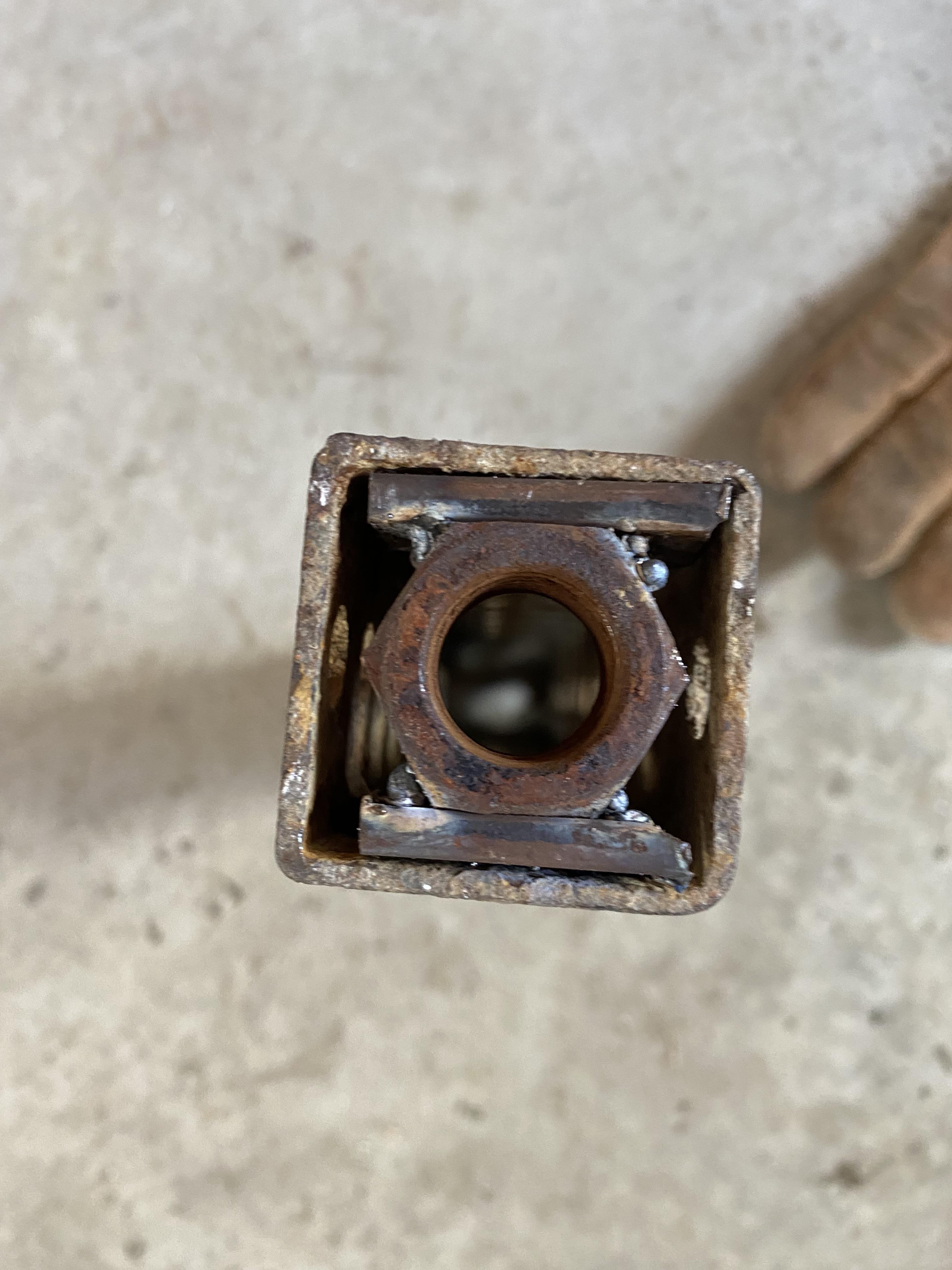

Sorry for the bad picture, but basically I cut at an angle to the middle of the bigger pipe, and then welded that to the base. Then I welded the nut inside the smaller pipe. The smaller pipe can be adjusted for bigger or smaller trailers. I just used a screw to hold it up.
Final Step
![IMG-0140.jpg](/proxy/?url=https://content.instructables.com/FT4/OYS3/L0NV1TNZ/FT4OYS3L0NV1TNZ.jpg&filename=IMG-0140.jpg)
![IMG-0137.jpg](/proxy/?url=https://content.instructables.com/F1C/7WK3/L0NV1RCJ/F1C7WK3L0NV1RCJ.jpg&filename=IMG-0137.jpg)
Finally, I added the wheels. I put one nut all the way at the end, then the wheel, then two more nuts to lock it in place. and it finished. Enjoy
