Traffic Lights Using ATOM Matrix ESP32
by RonFrtek in Circuits > Arduino
179 Views, 1 Favorites, 0 Comments
Traffic Lights Using ATOM Matrix ESP32
In this Tutorial we are going to make a Traffic Lights using ATOM Matrix ESP32.
What You Will Need
- ATOM Matrix ESP32 More info
- Visuino program: Download Visuino
Start Visuino, and Select the Atom Matrix Board Type

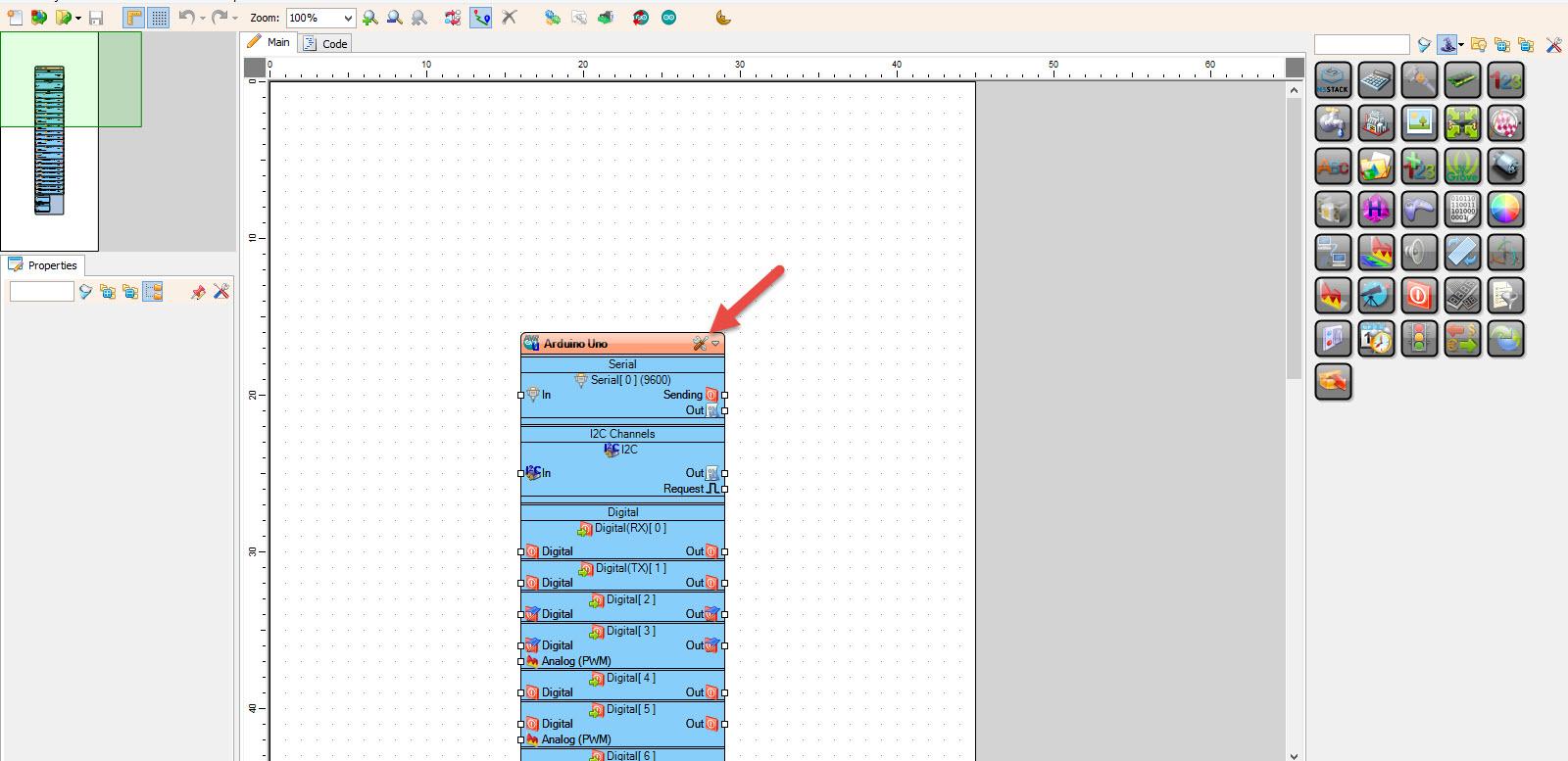

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Atom Matrix" as shown on Picture 2
In Visuino Add Components
- Add "Clock Generator" component
- Add "Counter" component
- Add "Integer Multi Source" component
- Clock "Demux(Multiple Output channel Switch)" component
- Add "Color Value" component
- Add "Color Multi Source" component
In Visuino Set Components
- Select "M5 Stack ATOM Matrix" board and in the properties window expand "Modules">"RGB Matrix">"Elements" and click on the 3 dots button
- In the "Elements" window drag "Fill Screen" to the left side
- Close the "Elements" window
- Select "ClockGenerator1" and in the properties window set "Frequency" to 0.3
- Select "Counter1" and in the properties window set "Max>Value" to 3 and "Min>Value" to 0
- Select "ClockDemmux1" and in the properties window set "Output Pins" to 4
- Double click on the "ColorValue1" and in the Elements window drag "Set Value" to the left side and in the properties window set "Value" to ClRed
- in the Elements window drag another "Set Value" to the left side and in the properties window set "Value" to clYellow
- in the Elements window drag another "Set Value" to the left side and in the properties window set "Value" to clGreen
- in the Elements window drag another "Set Value" to the left side and in the properties window set "Value" to clYellow
- Close the Elements window
In Visuino Connect Components
- Connect "ClockGenerator1" pin [Out] to "Counter1" pin [In]
- Connect "Counter1" pin [Out] to "IntegerMultiSource1" pin [In]
- Connect "IntegerMultiSource1" pin [0] to "ClockDemmux1" pin [Select]
- Connect "IntegerMultiSource1" pin [1] to "ClockDemmux1" pin [In]
- Connect "ClockDemmux1" pin [0] to "ColorValue1" > "Set Value1" pin [In]
- Connect "ClockDemmux1" pin [1] to "ColorValue1" > "Set Value2" pin [In]
- Connect "ClockDemmux1" pin [2] to "ColorValue1" > "Set Value3" pin [In]
- Connect "ClockDemmux1" pin [3] to "ColorValue1" > "Set Value4" pin [In]
- Connect "ColorValue1" pin [Out] to "ColorMultiSource1" pin [In]
- Connect "ColorMultiSource1" pin [0] to "M5 Stack ATOM Matrix" > "Fill Screen1" pin [In]
- Connect "ColorMultiSource1" pin [0] to "M5 Stack ATOM Matrix" > "Fill Screen1" pin [Clock]
Generate, Compile, and Upload the Arduino Code
In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.
Play
If you power the ATOM Matrix module The Display will start to show the Traffic Lights.
Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu
