Traffic Intersection

traffic intersection

By: Marc Newman-Simoneau

what I coded was a traffic intersection using 12 LEDS, many jumper wires and resistors.

Arduino Uno

jumper wires

12 or more led's

220 ohm resistors

breadboard

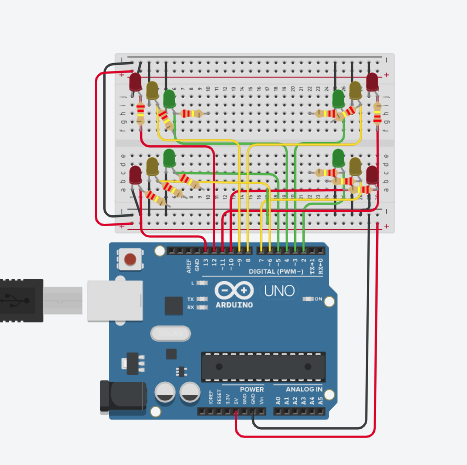

in this step I will share my code and wiring diagrams

code for reference

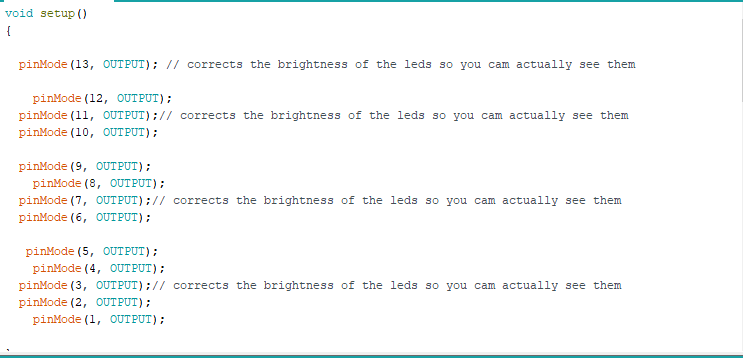

void setup()
{

pinMode(13, OUTPUT); // corrects the brightness of the leds so you cam actually see them

pinMode(12, OUTPUT);

pinMode(11, OUTPUT);// corrects the brightness of the leds so you cam actually see them

pinMode(10, OUTPUT);

pinMode(9, OUTPUT);

pinMode(8, OUTPUT);

pinMode(7, OUTPUT);// corrects the brightness of the leds so you cam actually see them

pinMode(6, OUTPUT);

pinMode(5, OUTPUT);

pinMode(4, OUTPUT);

pinMode(3, OUTPUT);// corrects the brightness of the leds so you cam actually see them

pinMode(2, OUTPUT);

pinMode(1, OUTPUT);

}

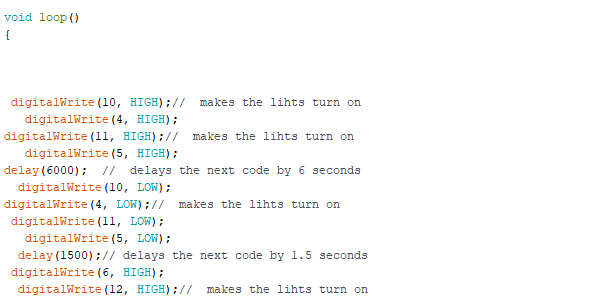

void loop() {

digitalWrite(10, HIGH);// makes the lights turn on

digitalWrite(4, HIGH);

digitalWrite(11, HIGH);// makes the lights turn on

digitalWrite(5, HIGH);

delay(4000); // delays the next code by 6 seconds

digitalWrite(10, LOW);

digitalWrite(4, LOW);// makes the lights turn off

digitalWrite(11, LOW);

digitalWrite(5, LOW);

delay(1500);// delays the next code by 1.5 seconds digitalWrite(6, HIGH);

digitalWrite(12, HIGH);// makes the lights turn on

digitalWrite(2, HIGH);

digitalWrite(8, HIGH);

delay(3000); // delays the next code by 6 seconds

digitalWrite(6, LOW);

digitalWrite(12,LOW);// makes the lights turn off

digitalWrite(2, LOW);

digitalWrite(8, LOW);

delay(2000);

digitalWrite(7, HIGH);

digitalWrite(3, HIGH);// makes the lights turn on

digitalWrite(9, HIGH);

digitalWrite(13, HIGH);

delay(4000); // delays the next code by 6 seconds

digitalWrite(7, LOW);

digitalWrite(3, LOW);// makes the lights turn off

digitalWrite(9, LOW);

digitalWrite(13, LOW);

delay(3000); // delays the next code by 6 seconds

digitalWrite(6, HIGH);

digitalWrite(12, HIGH);

digitalWrite(2, HIGH);// makes the lights turn on

digitalWrite(8, HIGH);

delay(2000); // delays the next code by 6 seconds

digitalWrite(6, LOW);

digitalWrite(12,LOW);

digitalWrite(2, LOW);// makes the lights turn off

digitalWrite(8, LOW);

}

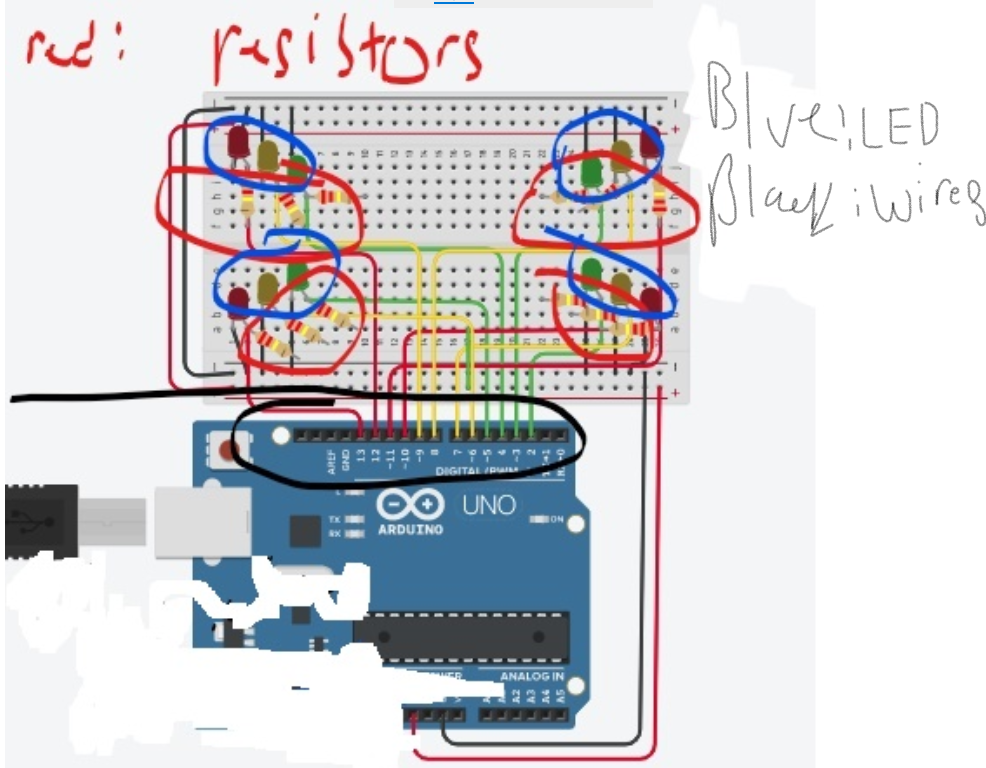

this is my wire diagram labeled as best i could because i could not write well with the editor and 3d paint

my main problems were that the buttons wouldn't work for me, one of the days the port wouldn't read and the rest were mainly wiring problems on my part like putting them in the wrong pins. those were the technical problems .

the other difficulties were just on my part

https://www.amazon.com/eBoot-Pieces-Emitting-Diode...

leds 5.99 for 100

https://www.amazon.ca/Quimat-Multicoloured-Solderl...

jumper wires 9.99 for 65

https://www.amazon.ca/Arduino-Development-Microcon...

arduino uno 3 for 13.29

https://www.amazon.ca/Breadboard-Solderless-Protot...

bread board 3 for 10.99

https://www.sparkfun.com/products/10969

resistors 500 for 7.95

total price : 54.37

tax included
