Traction Control PCB

TC (Traction control) is a PCB designed and assembled by members of PUT Motorsport - a Formula Student team from Poznań University of Technology. Our goal is to create a functioning racing car in order to participate in competitions all around the world - thus our PCB’s need to be well thought of and carefully created with the highest precision and standards.

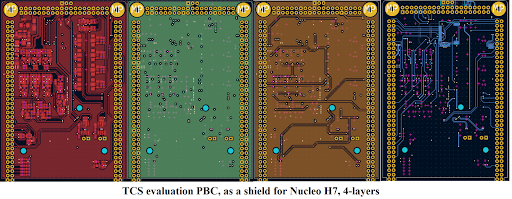

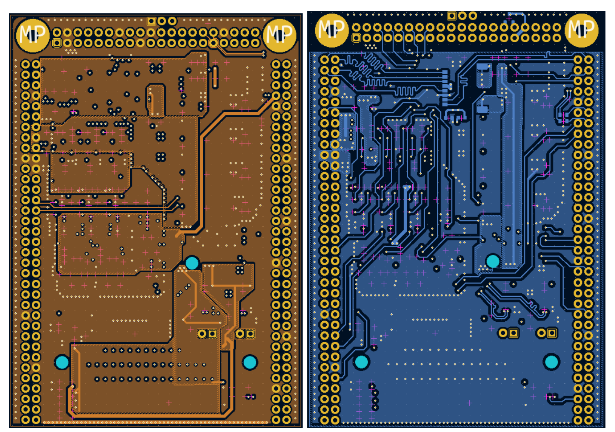

The brain of the project and main computational force of the board is an STM32H743ZIT6 MCU on Nucleo 144 Development Board. Rest of the components can be found in our github repository(https://github.com/orgs/PUT-Motorsport).

Main features of the board are:

- wheel speed measurement

- inertia measurement

- analog measurements of various car variables

- monocoque and water radiator temperatures

- water pressure

- rear suspension travel

- motor resolver

- CAN interface

- brake light control

- ready to drive sound buzzer control

TC is one of the most important boards of the car. First of all it is responsible for controlling the brake light and ready to drive sound buzzer which are two components required by the competition rules necessary for safe operation on the track. But the main task of traction control is to regulate surface slip of the wheels. In order to achieve that, TC uses many equations and indicators such as slip ratio in order to estimate the state of the car and based on that sends appropriate commands to the frequency inverter using a dedicated CAN bus. It is also responsible for logging data to a SD card for later analysis and publishing data to the CAN bus of the entire car for other devices to use it.

Our car uses CAN bus for device communication. TC sends different frames containing valuable data such as car state, suspension position, cooling water temperature and pressure and wheel speeds.
