Toy Hacking

by Nestworks in Circuits > Assistive Tech

14015 Views, 161 Favorites, 0 Comments

Toy Hacking

Toy Hack Step by Step Guide.001.jpg
Toy Hack Step by Step Guide.002.jpg
NESTWORKS Toyhack Instructions [English]

ALL CHILDREN LEARN BEST THROUGH PLAY. BUT NOT ALL TOYS ARE CREATED EQUAL.

TOY HACKING IS A WAY TO HAVE FUN LEARNING ABOUT MAKING AND HACKING WHILE DOING SOMETHING GOOD FOR LESS FORTUNATE KIDS AT THE SAME TIME.

Here you can find step by step instructions on how to hack a remote controlled toy car and create a new remote controller that is also playable by children who are physically challenged. Watch our instructional video. The Step by Step Guide shown here is also available as a PDF.

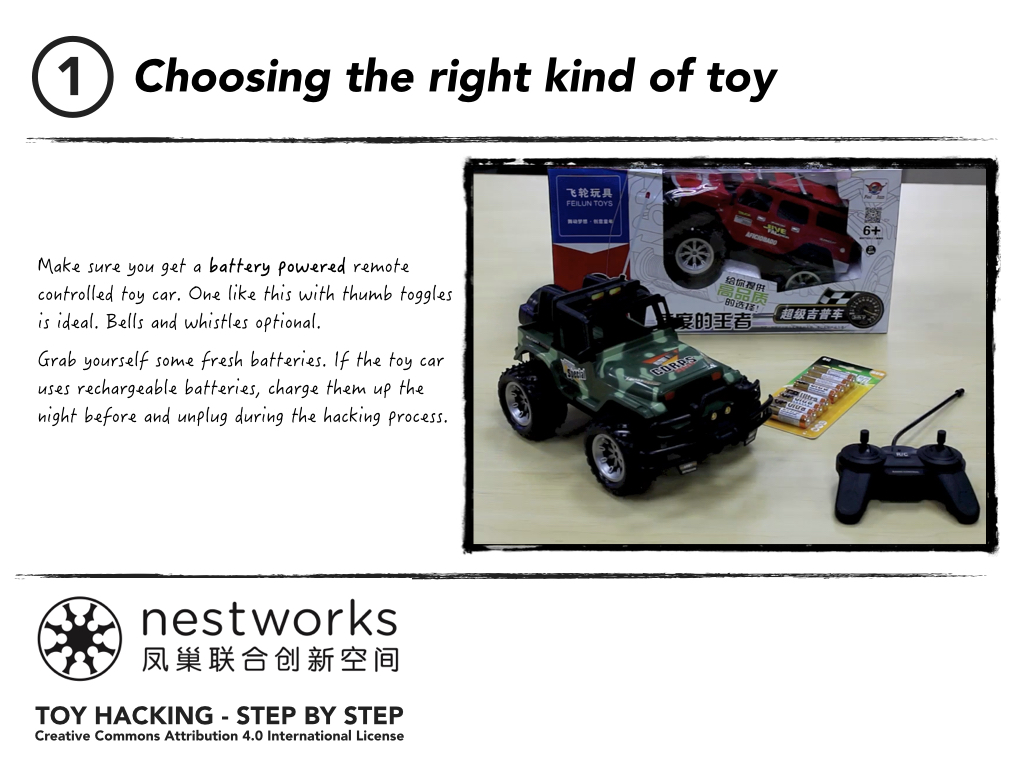

Choosing the Right Kind of Toy

Toy Hack Step by Step Guide.003.jpg

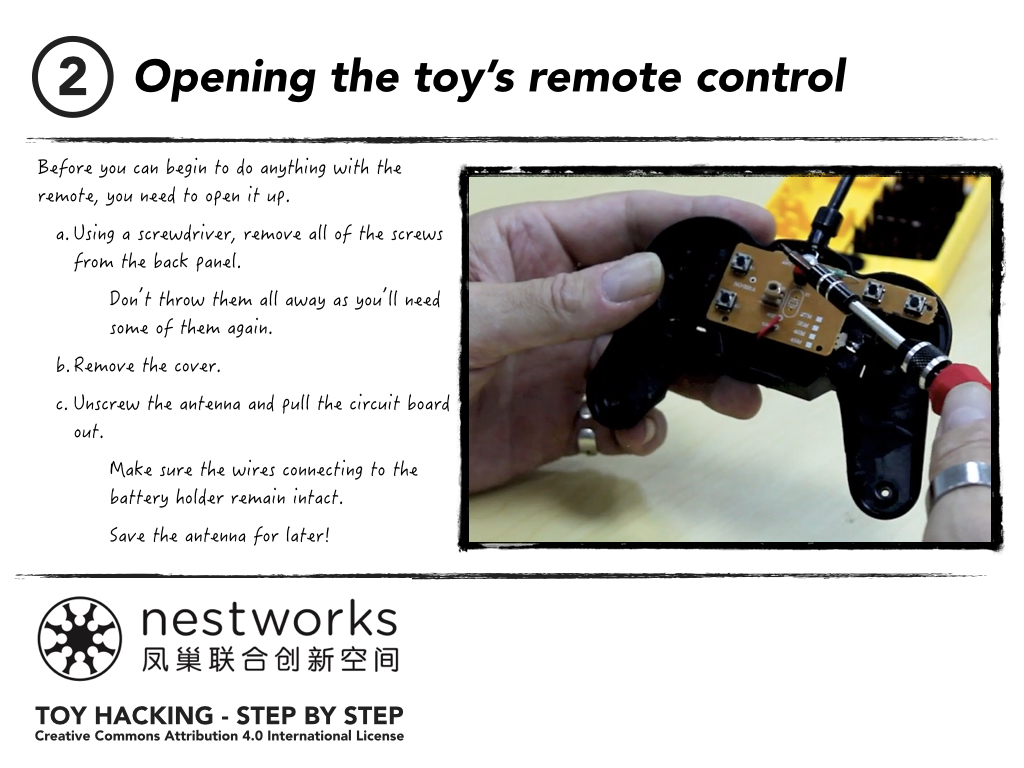

Opening the Toy's Remote Control

Toy Hack Step by Step Guide.004.jpg

Getting to Know the Circuitry

Toy Hack Step by Step Guide.005.jpg

Testing With the Multimeter

Toy Hack Step by Step Guide.006.jpg

Preparing the Wires

Toy Hack Step by Step Guide.007.jpg

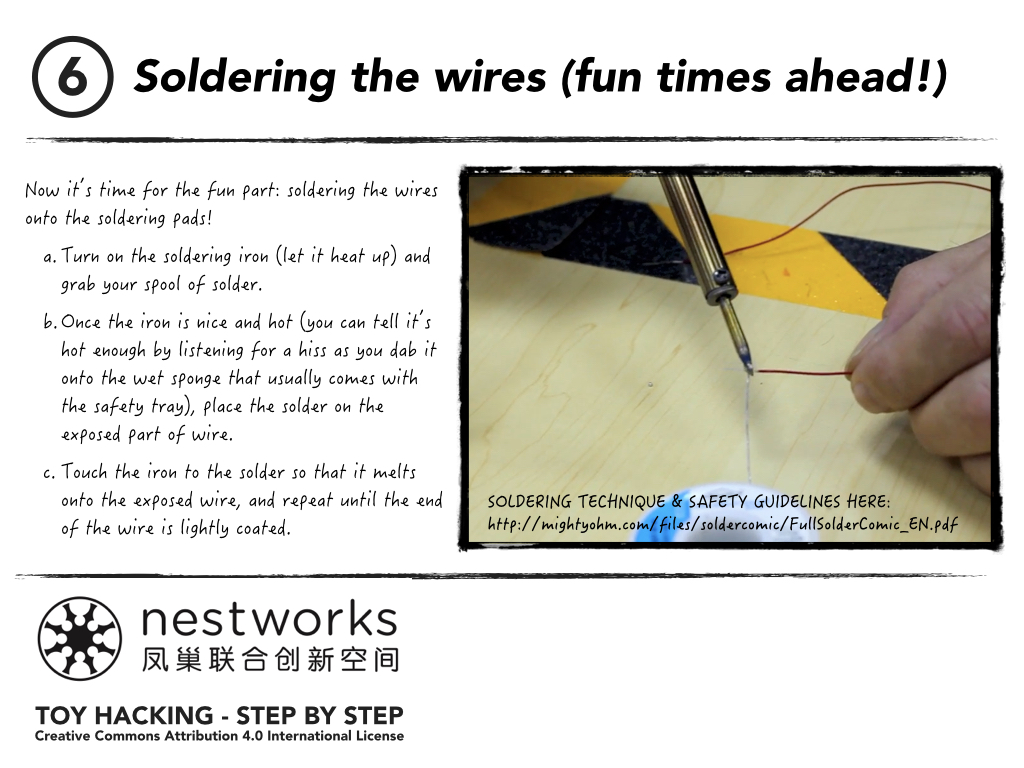

Soldering the Wires (fun Times Ahead!)

Toy Hack Step by Step Guide.008.jpg
Toy Hack Step by Step Guide.009.jpg
Toy Hack Step by Step Guide.010.jpg

Testing Your Soldering Handiwork

Toy Hack Step by Step Guide.011.jpg

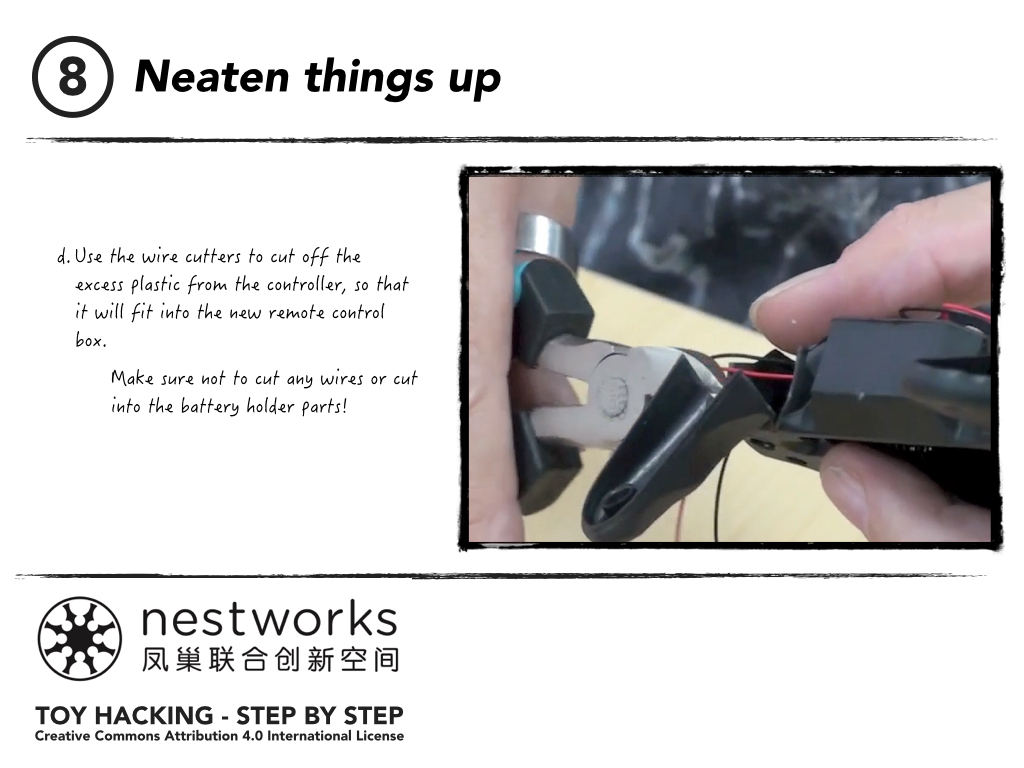

Neaten Things Up

Toy Hack Step by Step Guide.012.jpg
Toy Hack Step by Step Guide.013.jpg
Toy Hack Step by Step Guide.014.jpg
Toy Hack Step by Step Guide.015.jpg

The Buttons

Toy Hack Step by Step Guide.016.jpg
Toy Hack Step by Step Guide.017.jpg

Soldering the Buttons

Toy Hack Step by Step Guide.018.jpg
Toy Hack Step by Step Guide.019.jpg

Assembling the Remote Control Box

Toy Hack Step by Step Guide.020.jpg
Toy Hack Step by Step Guide.021.jpg
Toy Hack Step by Step Guide.022.jpg

Testing Out the Remote

Toy Hack Step by Step Guide.023.jpg
Toy Hack Step by Step Guide.024.jpg

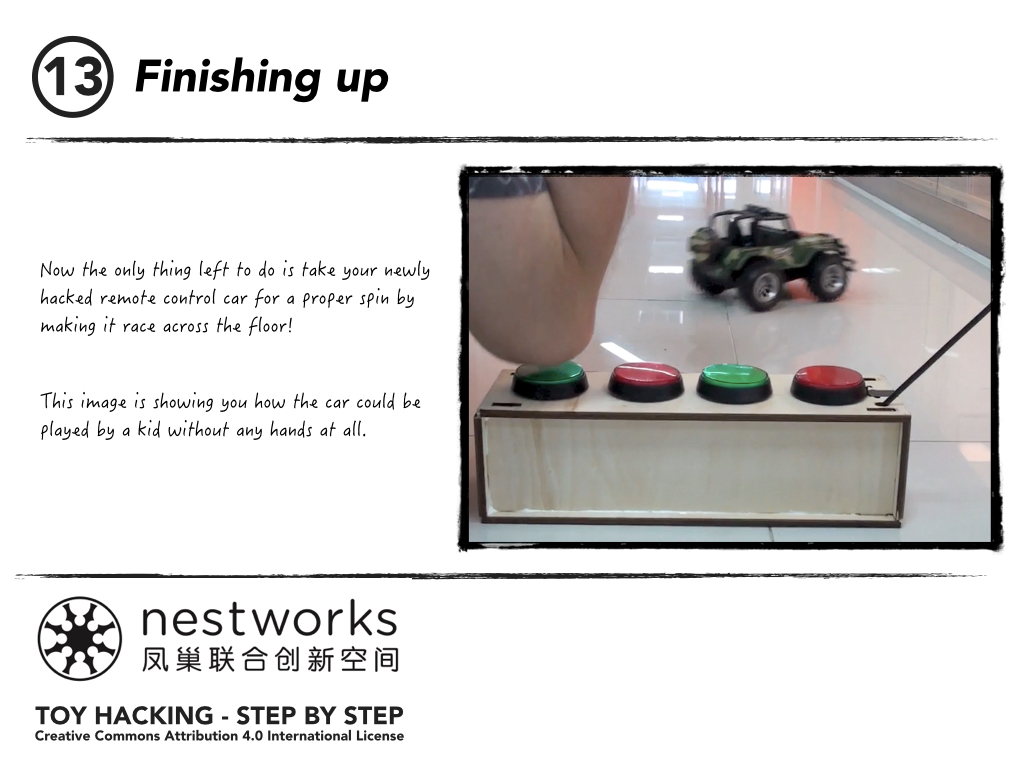

Finishing Up

Toy Hack Step by Step Guide.025.jpg
Toy Hack Step by Step Guide.026.jpg
Toy Hack Step by Step Guide.027.jpg

What Next?

Toy Hack Step by Step Guide.028.jpg
Toy Hack Step by Step Guide.029.jpg

Shout Outs!

Toy Hack Step by Step Guide.030.jpg

Special thanks to those who collaborated in the making of the Nestworks Toy Hack Instructional Video:

Lutz (of the hands in the video) and Drink (laser cutter extraordinaire) from DF Robot/Mushroom Cloud Makerspace, Shanghai

Jonathan (cameraman of immense patience) from Shanghai American School

Toy Hacking came to Shanghai thanks to Marianne from NYU Shanghai who turned us onto DIYAbility.org whose toy hacking in NYC inspired ours

About Nestworks:

Nestworks is a social enterprise based in Shanghai. We are a platform to facilitate the development of new technologies, such as smart hardware, software, or wearable tech, that improve the lives of the elderly and disabled. We spur on the development of these assistive tech products or services by connecting thinkers and doers, and helping them to tap into China’s makers and collaborative manufacturing communities. Visit the Nestworks website here to find out more.
