Touch Sensing Flashlight
by John_Singleton_ in Circuits > Electronics
3579 Views, 51 Favorites, 0 Comments
Touch Sensing Flashlight

Make a LED light turn on when you touch metal plates. No buttons or switches needed.
What You Need

What you need-
Metal Plates( I used 4)
Wires (idk how many)
Led
NPN transistor (any)
2 resistors (I don't know what ratings they are)
Knife Box
1 9volt battery
Metal Plates( I used 4)
Wires (idk how many)
Led
NPN transistor (any)
2 resistors (I don't know what ratings they are)
Knife Box
1 9volt battery
Wire the Resistors

Attach two wires onto both sides of the 2 resistors.
Take It Off

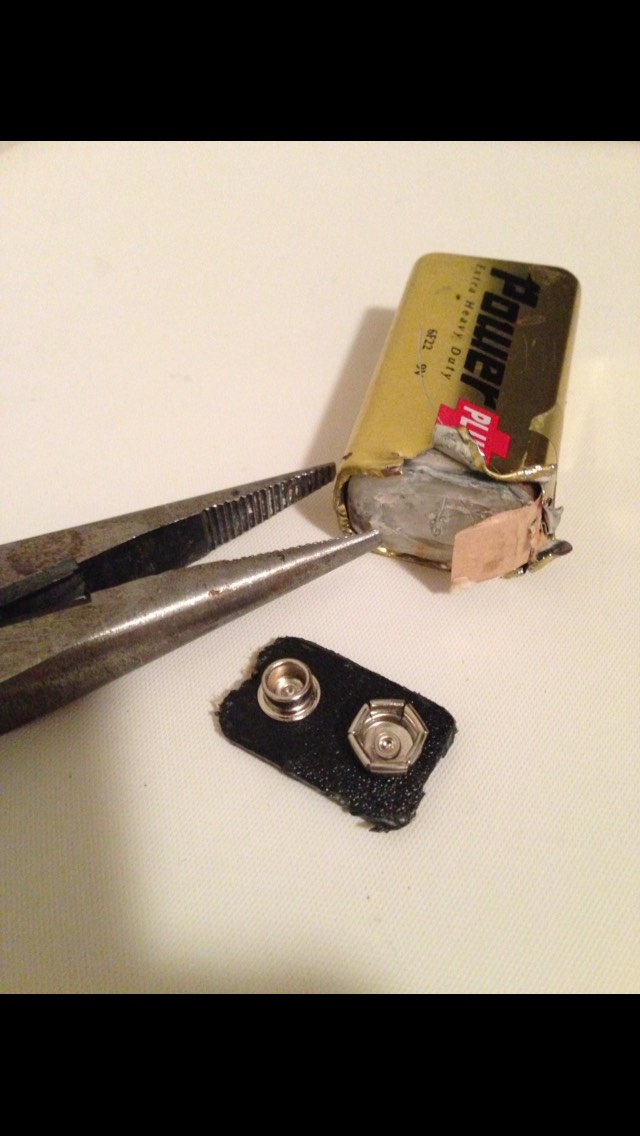

Take the top of the 9 volt battery off.

Attach two wires on each terminal on the 9volt battery's top that we just took off.

Attach the transistor and LED as shown. The circuit diagram will be on the last step of the project.

Attach the two resistors wires together and then attach one of the wires to the Transistor wire that is connected to the positive side of the 9 volt battery's top.

Attach 2 bigger wires to the 2 wires that are left from the circuit.

Tape the circuit in the box.

Make a small hole for the led.

Attach a 9volt battery to the clip.

Close your box and put the two bigger wire ends through a hole at the top that you can make. Test your light.

Tape the metal plates to the box and put the two wires touching two different plates. I did this twice to make 4 metal plates.

It's all done! Now touch the plates and you will complete the circuit with your own hand! Hope you liked the project :)
The Diagram

This is the diagram I made this project off of.
