Total Wireless Power Bank
![Diy easy wireless power bank at home](/proxy/?url=https://content.instructables.com/FCT/UXC1/JS5CF3BA/FCTUXC1JS5CF3BA.jpg&filename=Diy easy wireless power bank at home)
Hi
In this project, I have made the power bank with no switches. There are no charging ports on the power bank. It charges wirelessly and transmits wireless power to charge your mobile. This project involves lots of small parts and I have included all the steps involved in this project sequentially. I hope you will love to make one on your own.
Two 4000 MAh Batteries for the Power Bank
![power bank 1.jpg](/proxy/?url=https://content.instructables.com/FRN/CCS1/JS5CF3KU/FRNCCS1JS5CF3KU.jpg&filename=power bank 1.jpg)
I have used 4000 mAh Lipo batteries for collecting the charge in power bank.
Connecting Two Charge Modules in Parallel With Charge Receiver
![li-ion charger boards.jpg](/proxy/?url=https://content.instructables.com/FUS/LVPM/JS5CF3GZ/FUSLVPMJS5CF3GZ.jpg&filename=li-ion charger boards.jpg)
![connecting output parallel to input of charger boards.jpg](/proxy/?url=https://content.instructables.com/FG0/PRW7/JS5CF3E5/FG0PRW7JS5CF3E5.jpg&filename=connecting output parallel to input of charger boards.jpg)
![charge receiver board.jpg](/proxy/?url=https://content.instructables.com/FG4/T096/JS5CF3OR/FG4T096JS5CF3OR.jpg&filename=charge receiver board.jpg)

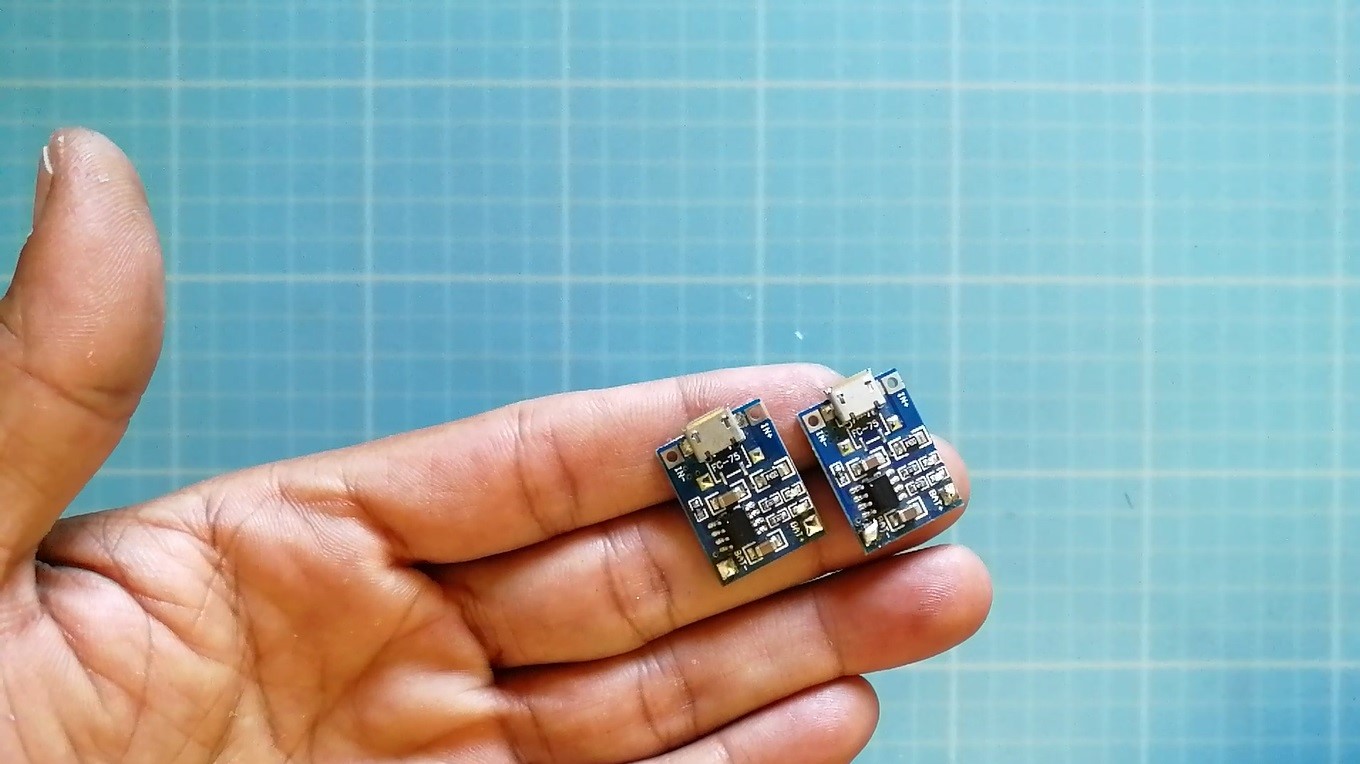

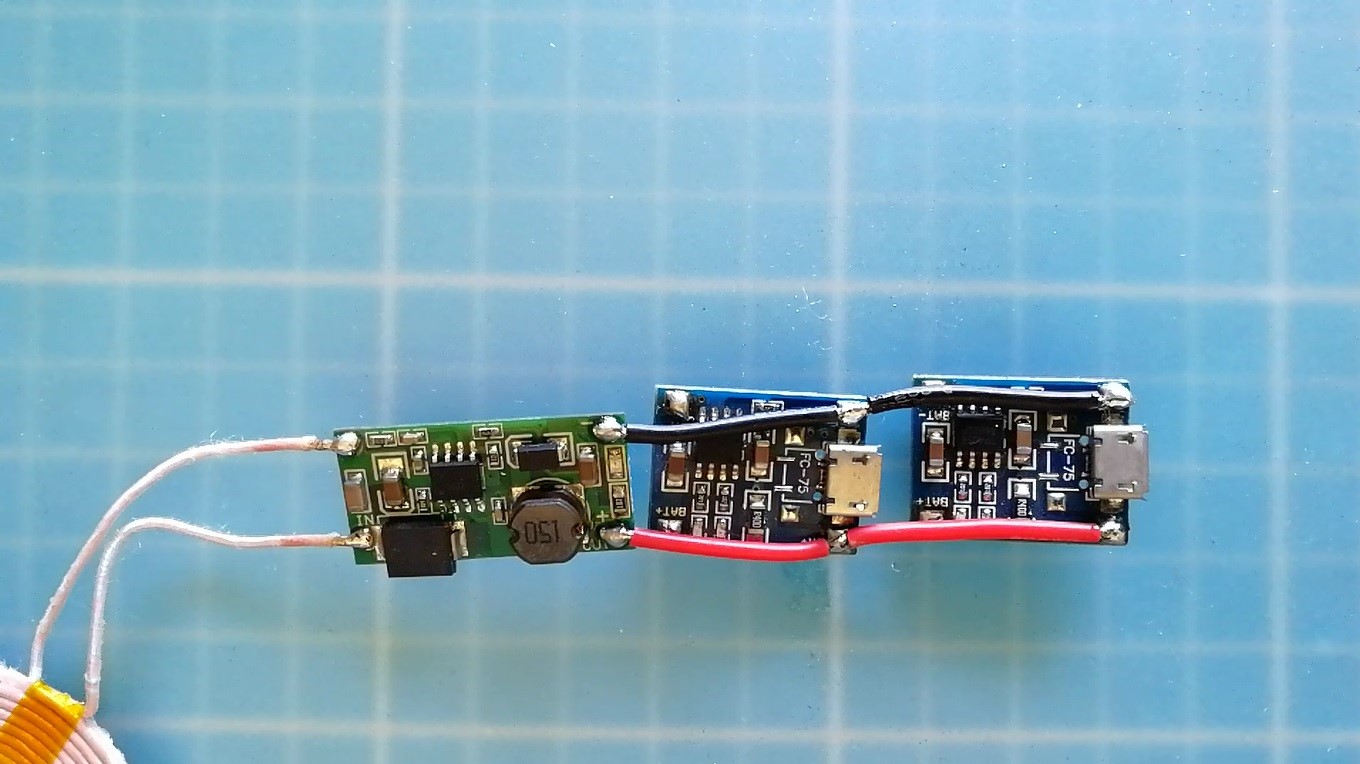

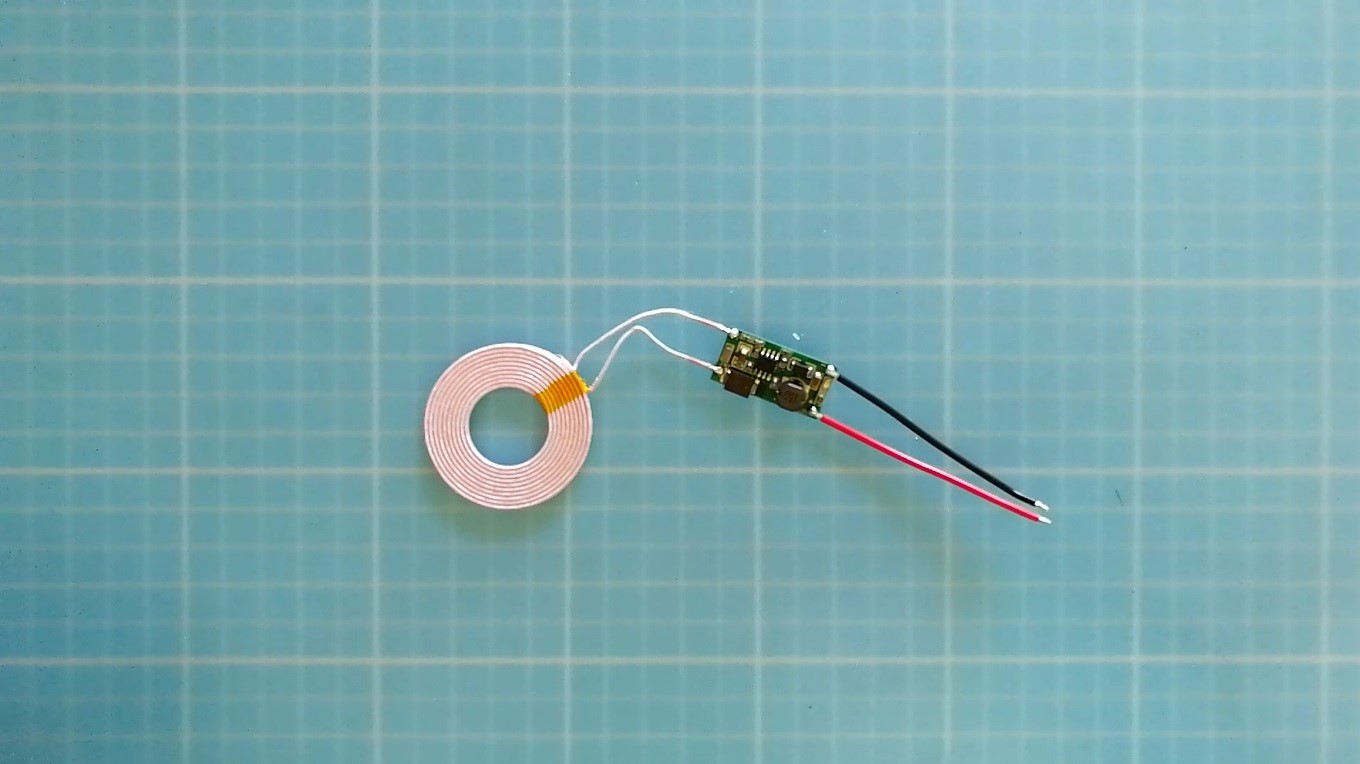

I have connected two charge receiver boards in parallel to boost the charging current to 2 amps to charge the batteries. I have also added charge receiver board in parallel to the input of BMS boards. This board will receive power form wireless charging plate made for it and it would be charging the batteries. The set comes with Tx and Rx. It charges batteries at about 2 Amp.
Connecting Output of Charging Boards in Parallel and Adding Batteries + Charge TX Board
![connecting output of charge controllers in parallel.jpg](/proxy/?url=https://content.instructables.com/FWT/2DMV/JS5CF3OU/FWT2DMVJS5CF3OU.jpg&filename=connecting output of charge controllers in parallel.jpg)
![connecting battery to charge boards all parallel.jpg](/proxy/?url=https://content.instructables.com/FVU/DLAD/JS5CF3OT/FVUDLADJS5CF3OT.jpg&filename=connecting battery to charge boards all parallel.jpg)
![connected charge tx to battery in parallel.jpg](/proxy/?url=https://content.instructables.com/FRS/QZ75/JS5CF3OS/FRSQZ75JS5CF3OS.jpg&filename=connected charge tx to battery in parallel.jpg)

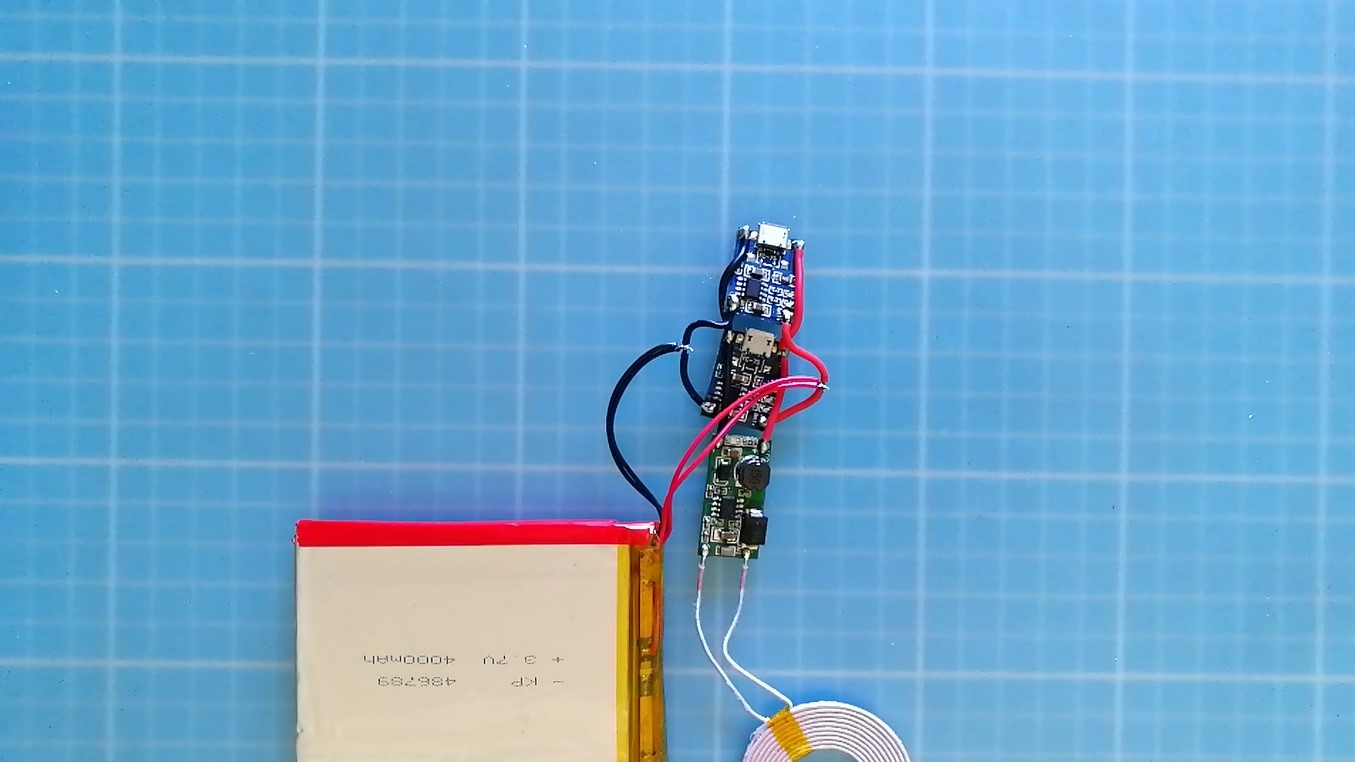

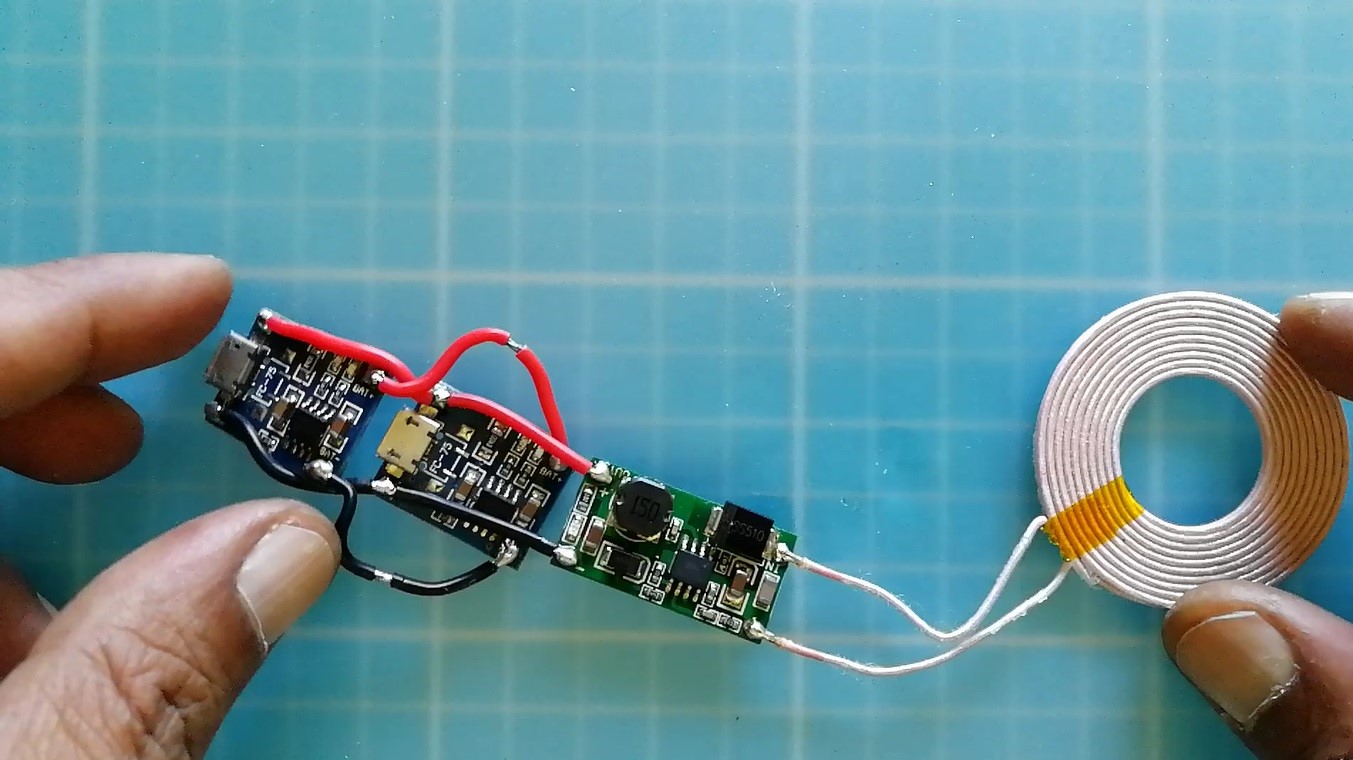

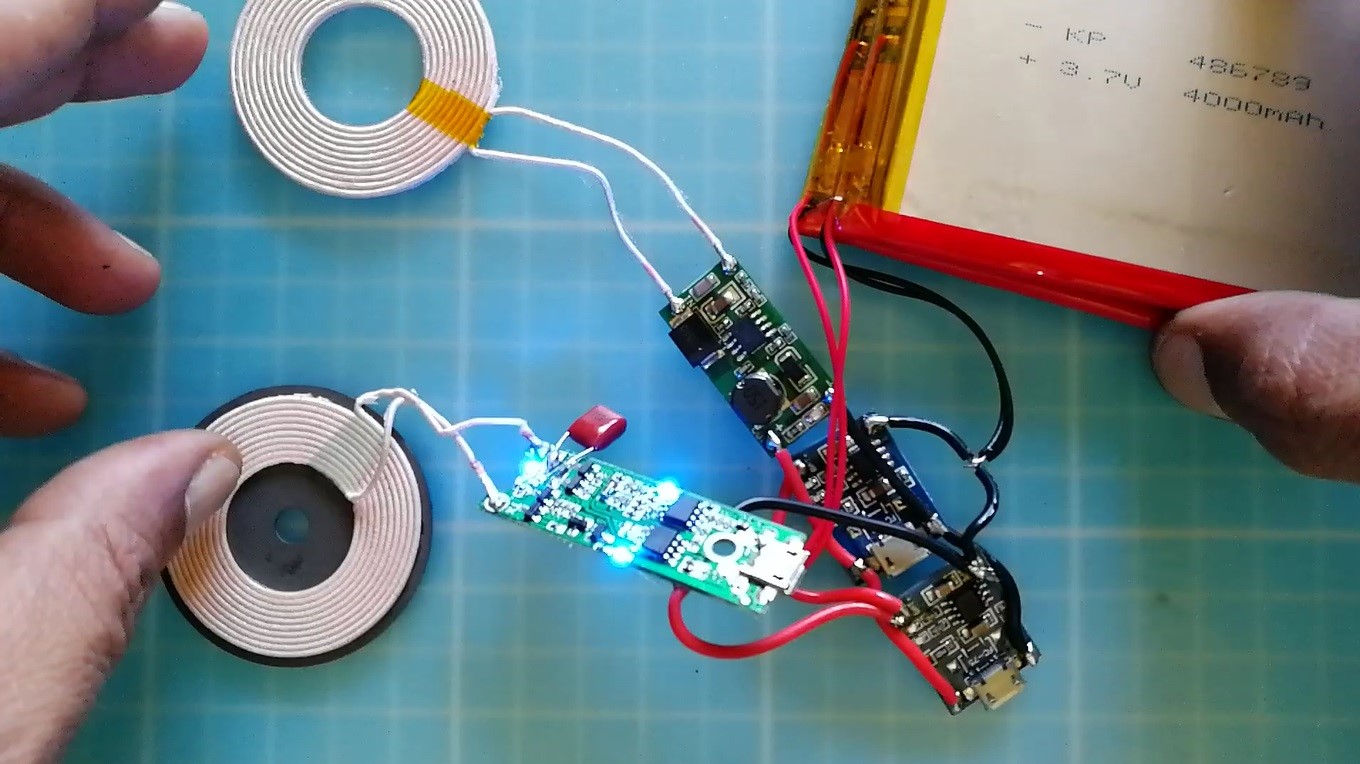

I have connected batteries in parallel to the output of BMS boards. Transmitter board with the coil is also connected to the output of the batteries. This board is capable of delivering Qi wireless charger standard output wirelessly to any phone with wireless charge functionality. Just with the input of the battery voltage of 3.6v. to 5v. the output will be 5v wireless Qi standard. Max charging current for the phone is about 1 Amp typical.
Making Charge Plate for Power Bank Charging
![connections for base plate tx to charge power bank wirelessly.jpg](/proxy/?url=https://content.instructables.com/FG4/SDNX/JS5CF3EZ/FG4SDNXJS5CF3EZ.jpg&filename=connections for base plate tx to charge power bank wirelessly.jpg)
![micro usb port breakup board.jpg](/proxy/?url=https://content.instructables.com/F6Q/UQOB/JS5CF3JQ/F6QUQOBJS5CF3JQ.jpg&filename=micro usb port breakup board.jpg)
![charge module to charge batteries of powerbank wirelessly tx board.jpg](/proxy/?url=https://content.instructables.com/FX3/S312/JS5CF3O9/FX3S312JS5CF3O9.jpg&filename=charge module to charge batteries of powerbank wirelessly tx board.jpg)

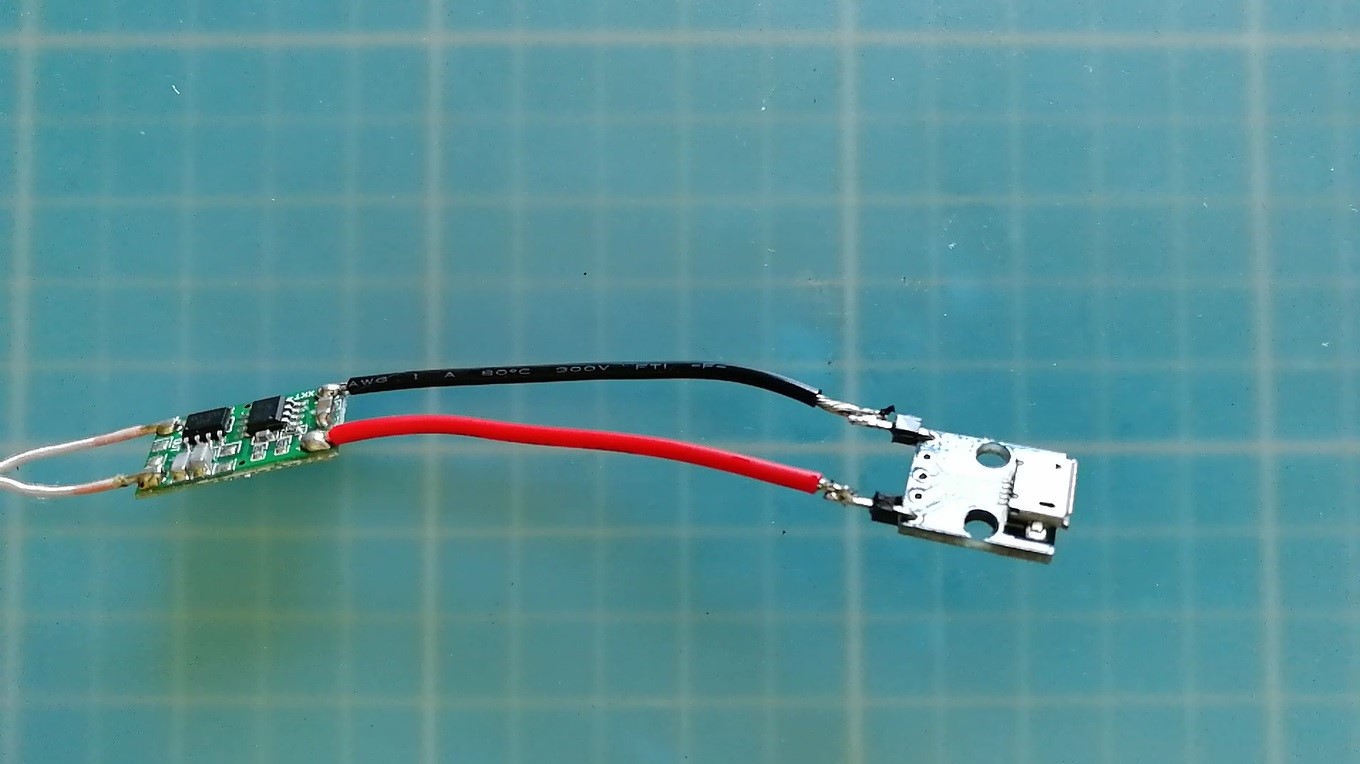

I have used a micro USB port breakup board. A charge TX board is connected to micro USB port output as shown in the figure.
Testing Wireless Charge Functionality of Charging the Bank
![testing pwerbank wireless charging functionality.jpg](/proxy/?url=https://content.instructables.com/FRR/FRZ1/JS5CF3MN/FRRFRZ1JS5CF3MN.jpg&filename=testing pwerbank wireless charging functionality.jpg)

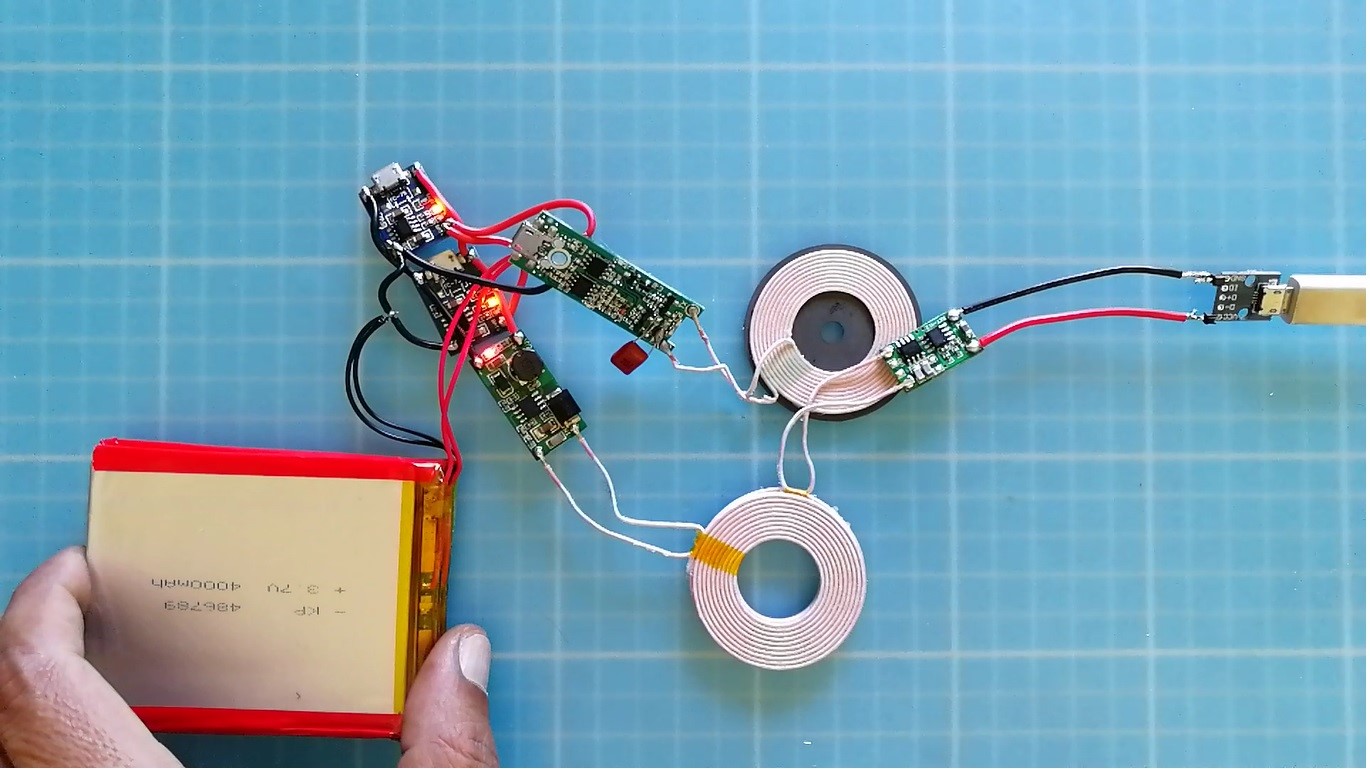

I have connected the regular phone charger to the input of micro USB port we connected to the TX board in the previous step. Then placed a charge receiver coil on to the charge TX coil and voila the batteries started charging wirelessly.
Fixing Power Bank Charge Transmitter Circuit in Empty Shell
![powerbank charge tx in old fantasy charger base.jpg](/proxy/?url=https://content.instructables.com/FU9/G5LW/JS5CF3M7/FU9G5LWJS5CF3M7.jpg&filename=powerbank charge tx in old fantasy charger base.jpg)
![total setup working except box.jpg](/proxy/?url=https://content.instructables.com/FHK/O1GI/JS5CF3MO/FHKO1GIJS5CF3MO.jpg&filename=total setup working except box.jpg)

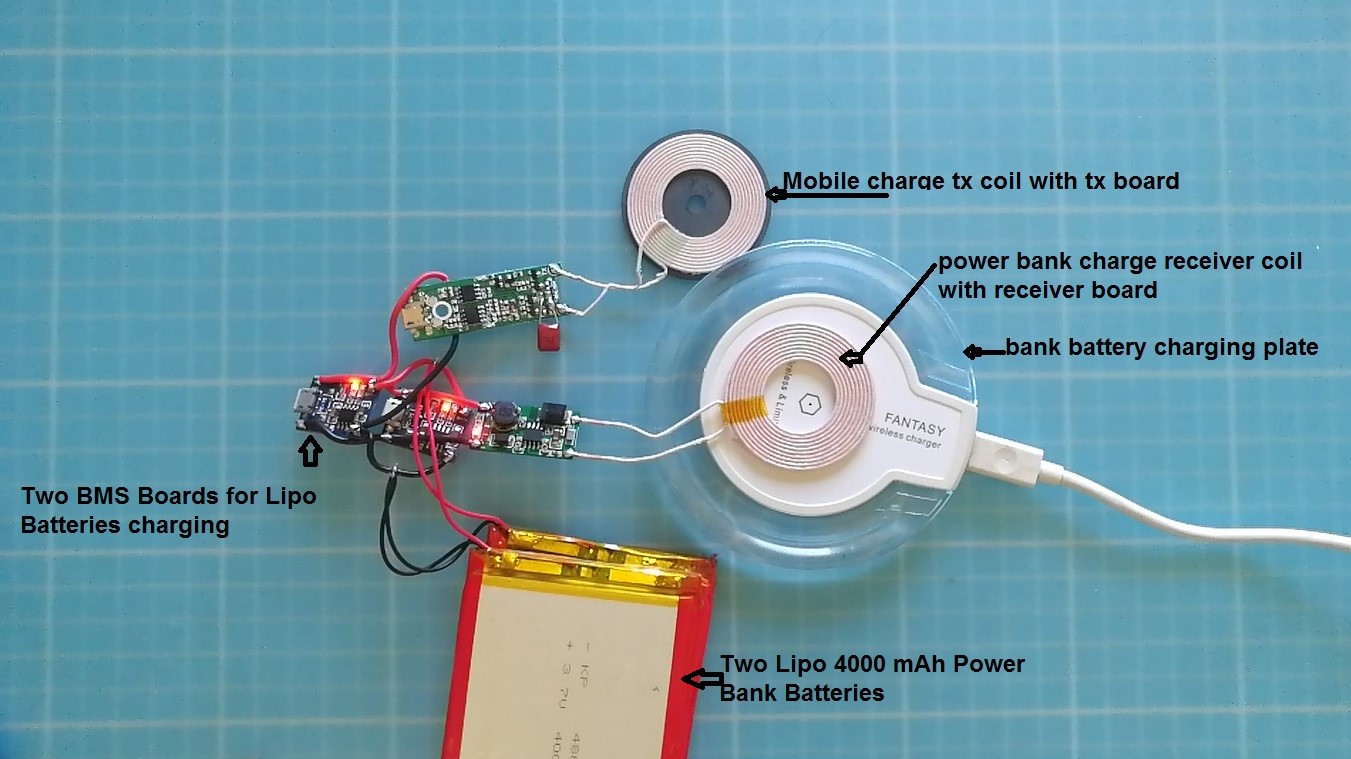

I have fixed power bank charging circuit into the empty shell of old wireless charger base plate. This will charge our power bank wirelessly. Note here that wireless charge receiver and charger 2Amp is a combo circuit board and it can work with each other only it's not universally compatible with Qi wireless charge system.
Stuffing Everything Into a Plastic Transparent Box
![Box for power bank.png](/proxy/?url=https://content.instructables.com/FN8/PSQ1/JS5CF3NS/FN8PSQ1JS5CF3NS.png&filename=Box for power bank.png)
![Power bank charged with wireless plate.jpg](/proxy/?url=https://content.instructables.com/FX3/CI97/JS5CF3LA/FX3CI97JS5CF3LA.jpg&filename=Power bank charged with wireless plate.jpg)

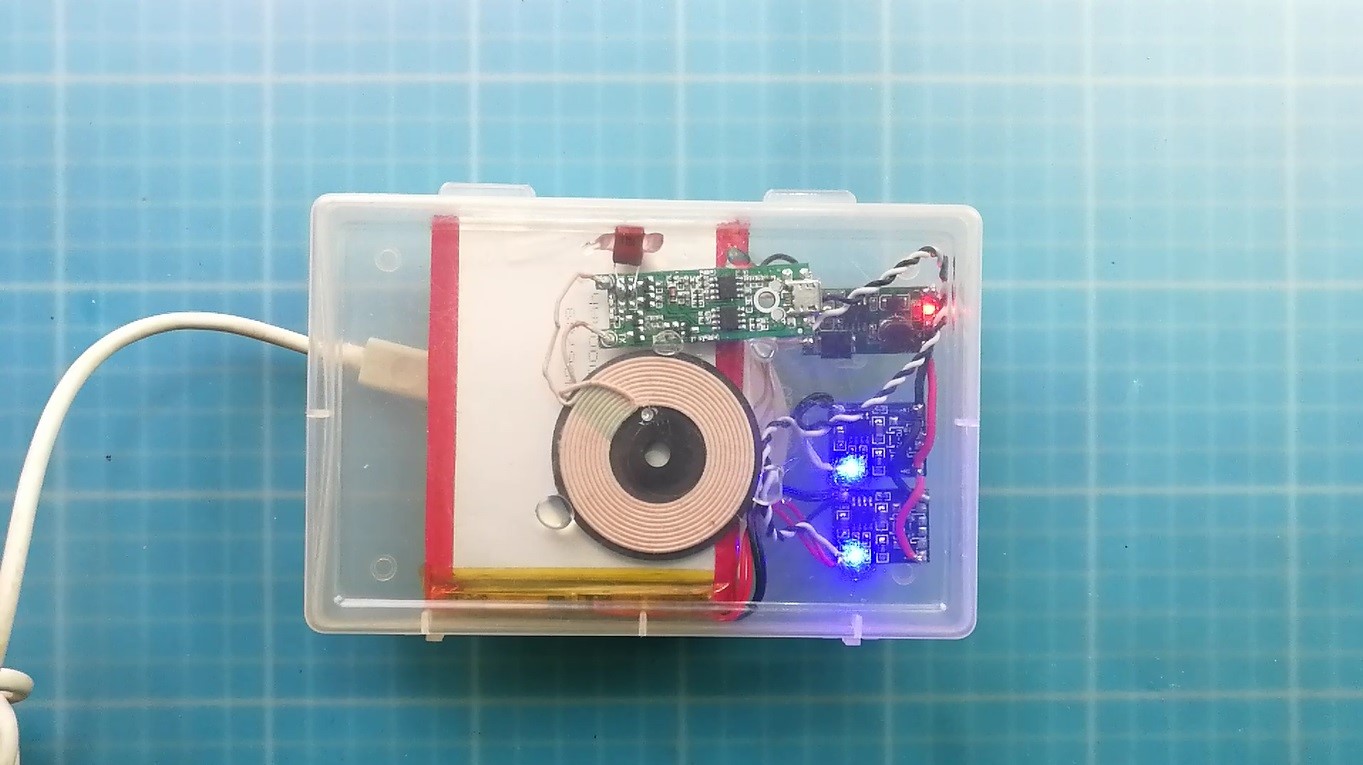

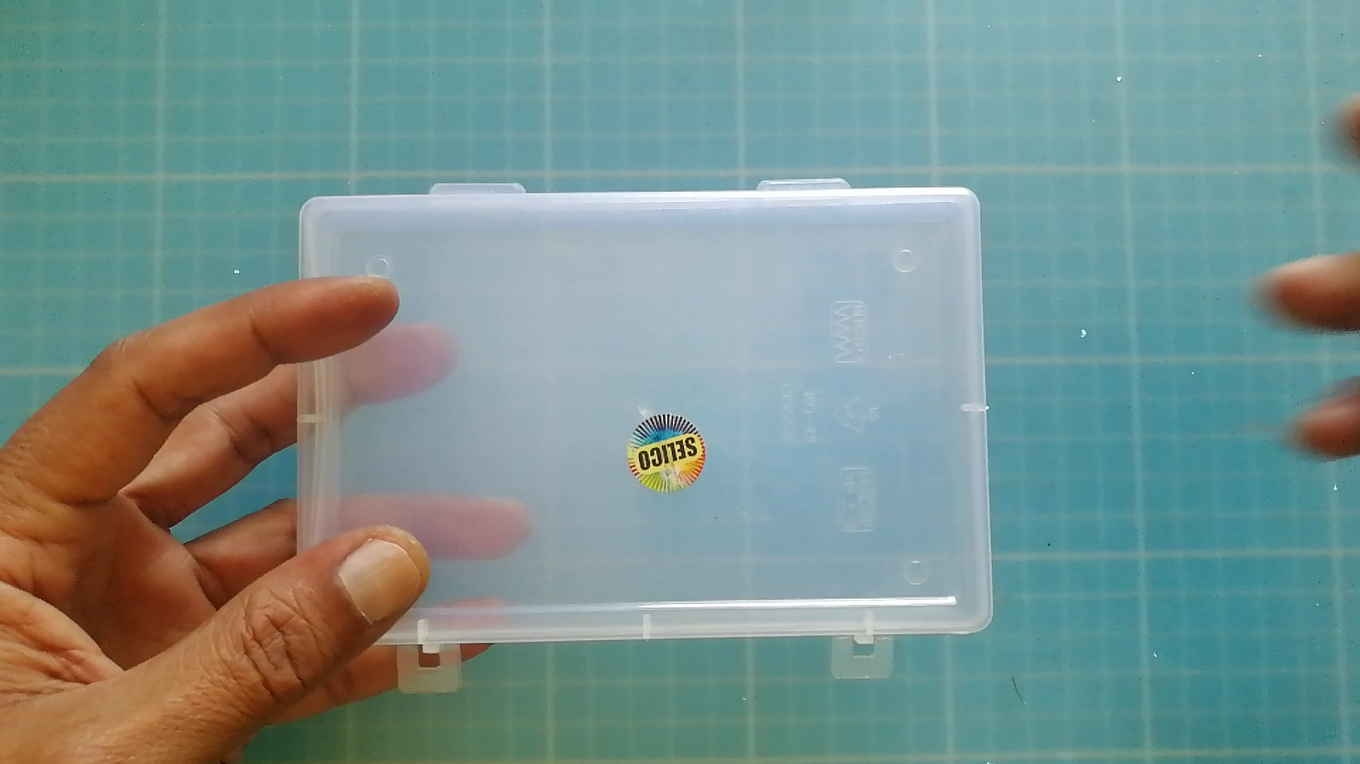

Our assembly tested earlier is stuffed up into the empty plastic box which will be our wireless power bank. Sadly though I do not have access to the 3D printer yet but you can print a customized plastic shell for the same. See I have placed the power bank on to the charging dock and both the blue LEDs are showing that the power bank is fully charged and is ready to be used for charging any wireless compatible phone. I have not used any switch as it's not required because charging circuit board does not drain power in reverse and charge dissipator board cuts off power after one minute if it does not find any wireless device in its vicinity.
Wireless Power Bank Charging the Phone
![wireless bank charging phone wirelessly.jpg](/proxy/?url=https://content.instructables.com/FXI/HBXC/JS5CF3MP/FXIHBXCJS5CF3MP.jpg&filename=wireless bank charging phone wirelessly.jpg)

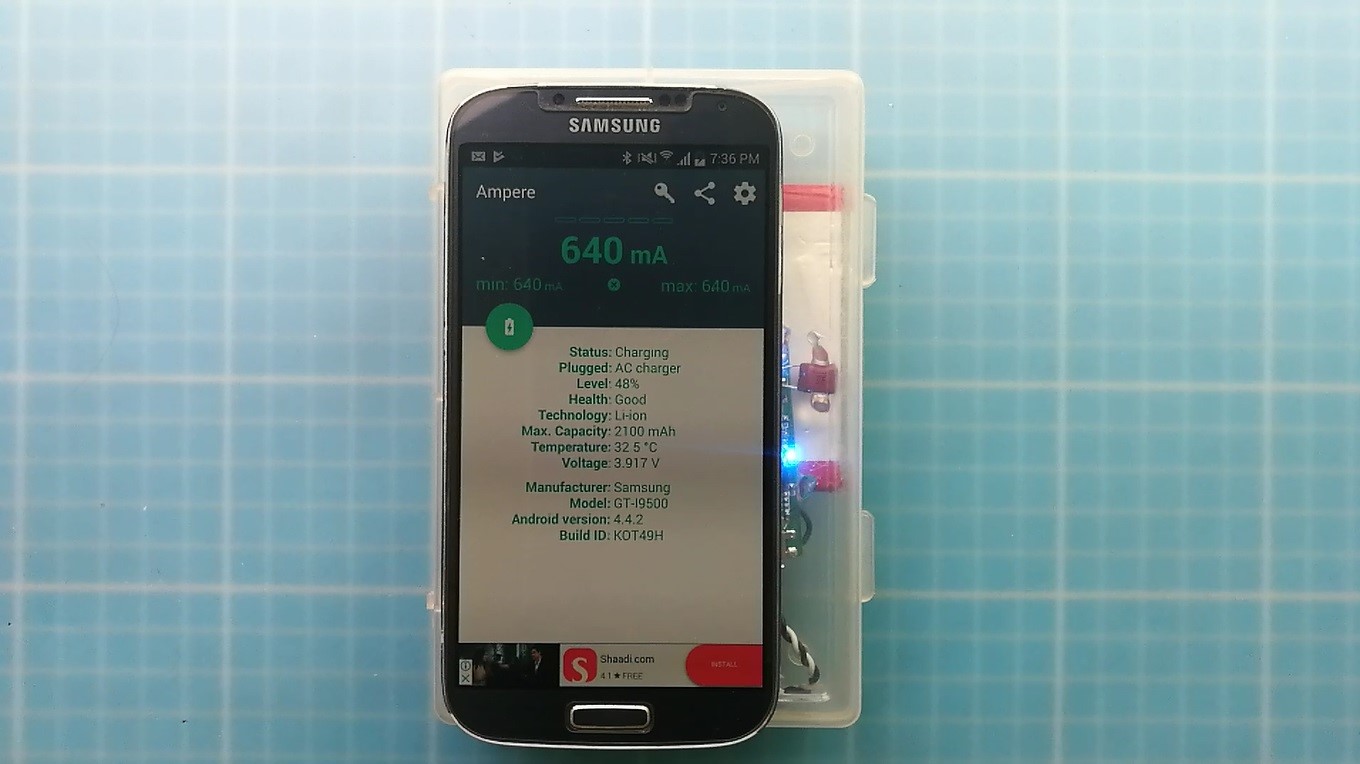

See I launched the ampere app on my wireless charge capable mobile and the app shows that the wireless power bank is charging the phone at about 640mAh and the peak current goes up to 1 Ampere which is quite decent according to me.
I hope you loved this instructable and are tempted to making one for your self. Thanks for your time reading this instructable.
