Tools Cabinet With Rolling Door

I was lucky enough to find a wooden cabinet with a perfectly front rolling door in the dumpster,

I decided it would be the basis for my tool cabinet.

After a long time in which I stored my tools in tool boxes, I decided that it was time to arrange them so that they would hang in front of my eyes and I would not have to spend much time looking for them.

Sometimes I even forgot that I had a certain tool because of the mess in the toolboxes.

Today most of my work is done at home and so I do not need to take the tools to other places so this is an excellent solution for me.

Now I just open the tool cabinet and immediately start working.

Hope you will like this project, and if you have any comments,
I'd be happy if you write in the comments below.

Thank you!

Sort by Categories

First I cleaned and sealed holes in the closet, and took down the Formica coating that was cracked and began to peel off.

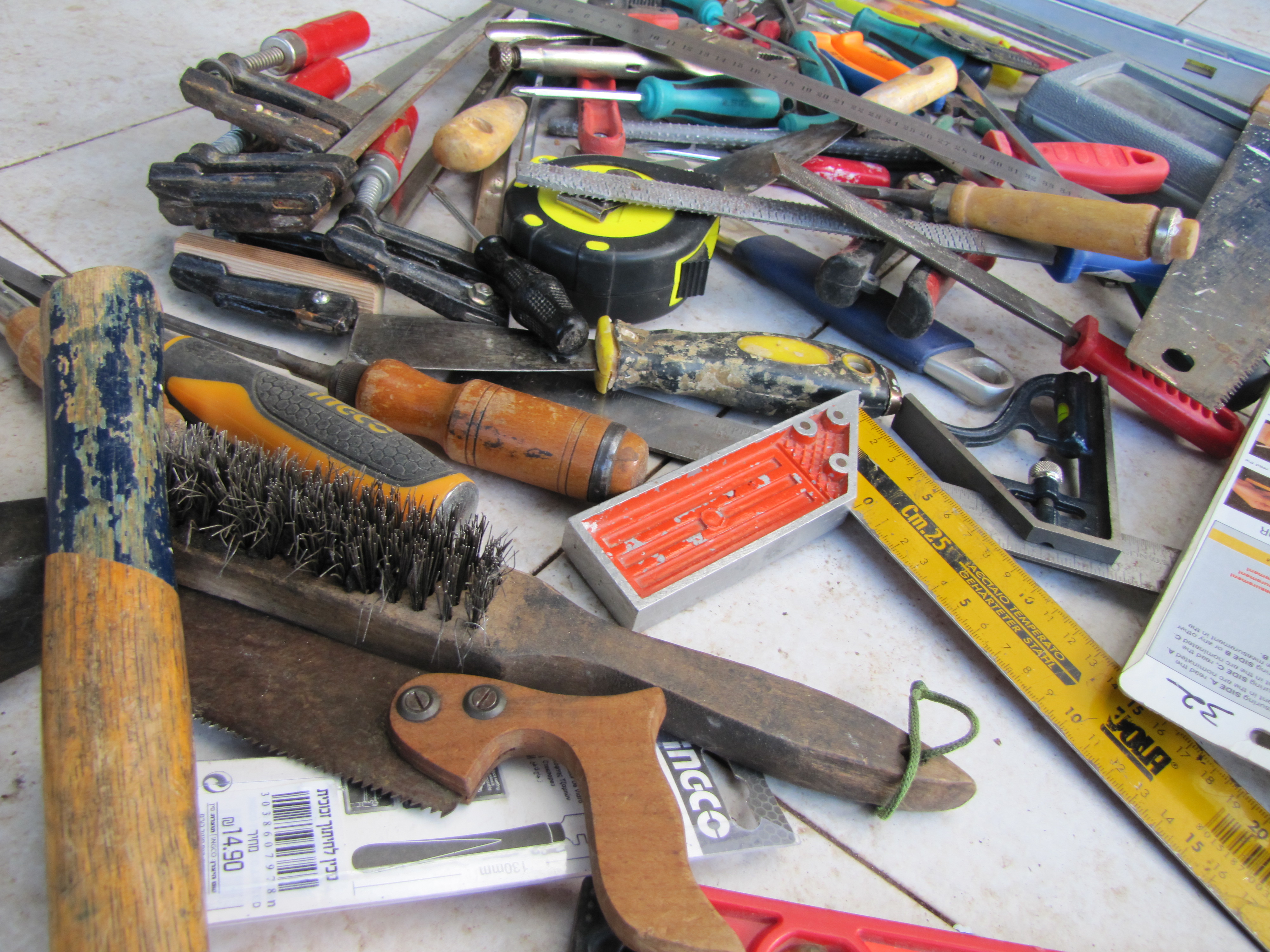

I took all the tools out of the boxes to see the variety of tools and sorted them into categories according to technology:

wood, metal, measuring tools, screwdrivers and so on.

Methods for Hanging the Tools

I used several different methods for hanging the tools:

1. Wood sticks - Drill and insert , I like this method because you can change places in the future.

2. Nails - good for Tools with a narrow built-in hole.

3. Screws - good for tools that tend to fall, The tip of the screw prevents them from falling.

4. Magnets - good for attaching metal tools So they will not move, rulers for example.

Wood Sticks

I bought wooden sticks 8 mm thick.

I held each tool against the back of the cabinet and marked in pencil the locations for the drilling.

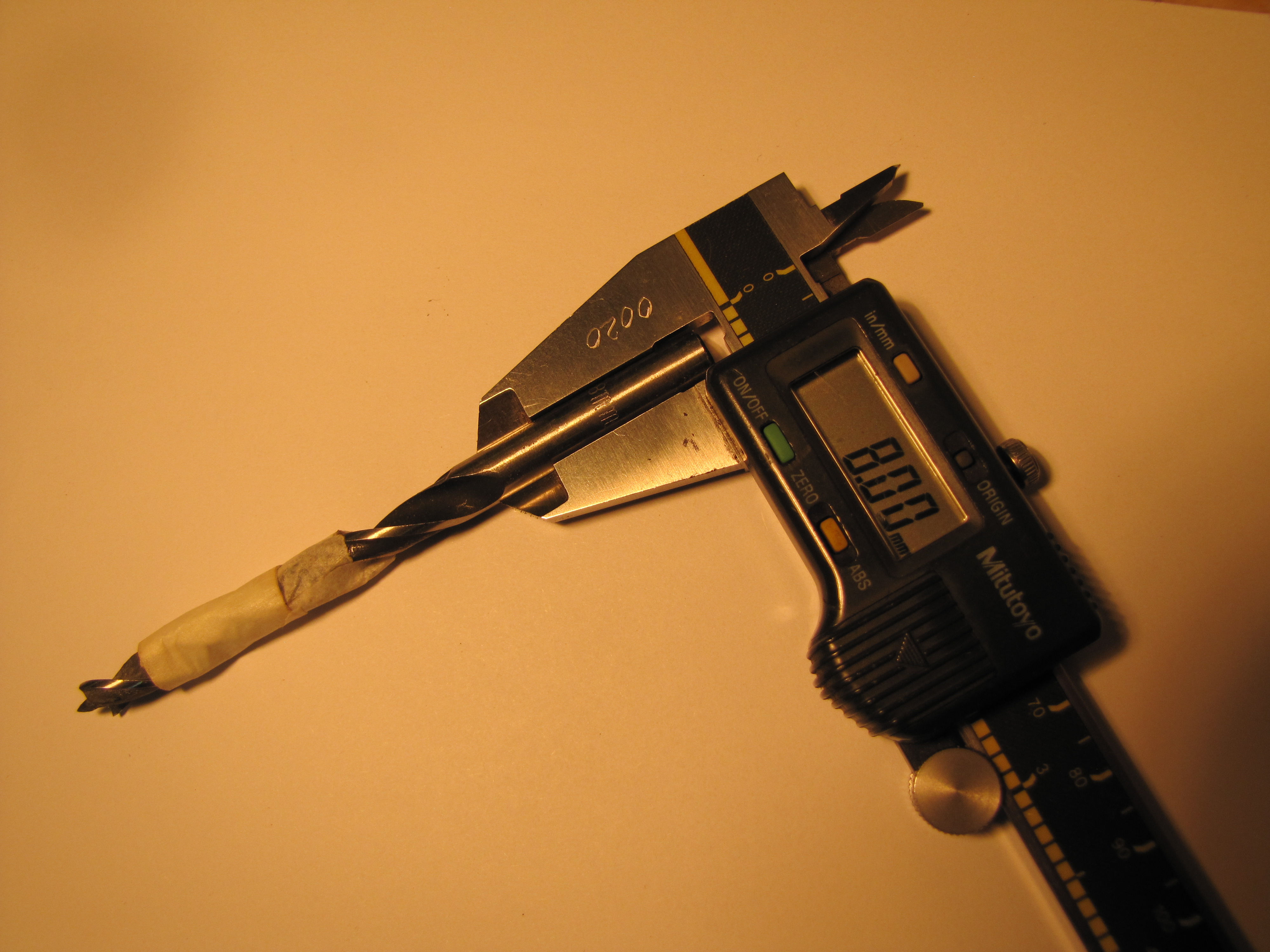

I drilled with an 8 mm drill marked with a masking tape the desired depth for drilling.

I sawed the wooden sticks 4-5 cm long, I smoothed the edges and tapped them with a hammer.

Tight tolerance keeps them in place without moving, in the future if I want to change locations I can just pull them out, or saw them.

Hanger for Screwdrivers and Chisels

I made a shelf with holes and grooves for screwdrivers and chisels.

At first I arranged all the Screwdrivers and chisels on the table and measured the gaps between them and the diameter of each one.

I took a wooden profile (20x40 mm) and marked it for drilling, I cut the edges at a 45-degree angle so there was room for a screw to hold it to the cabinet.

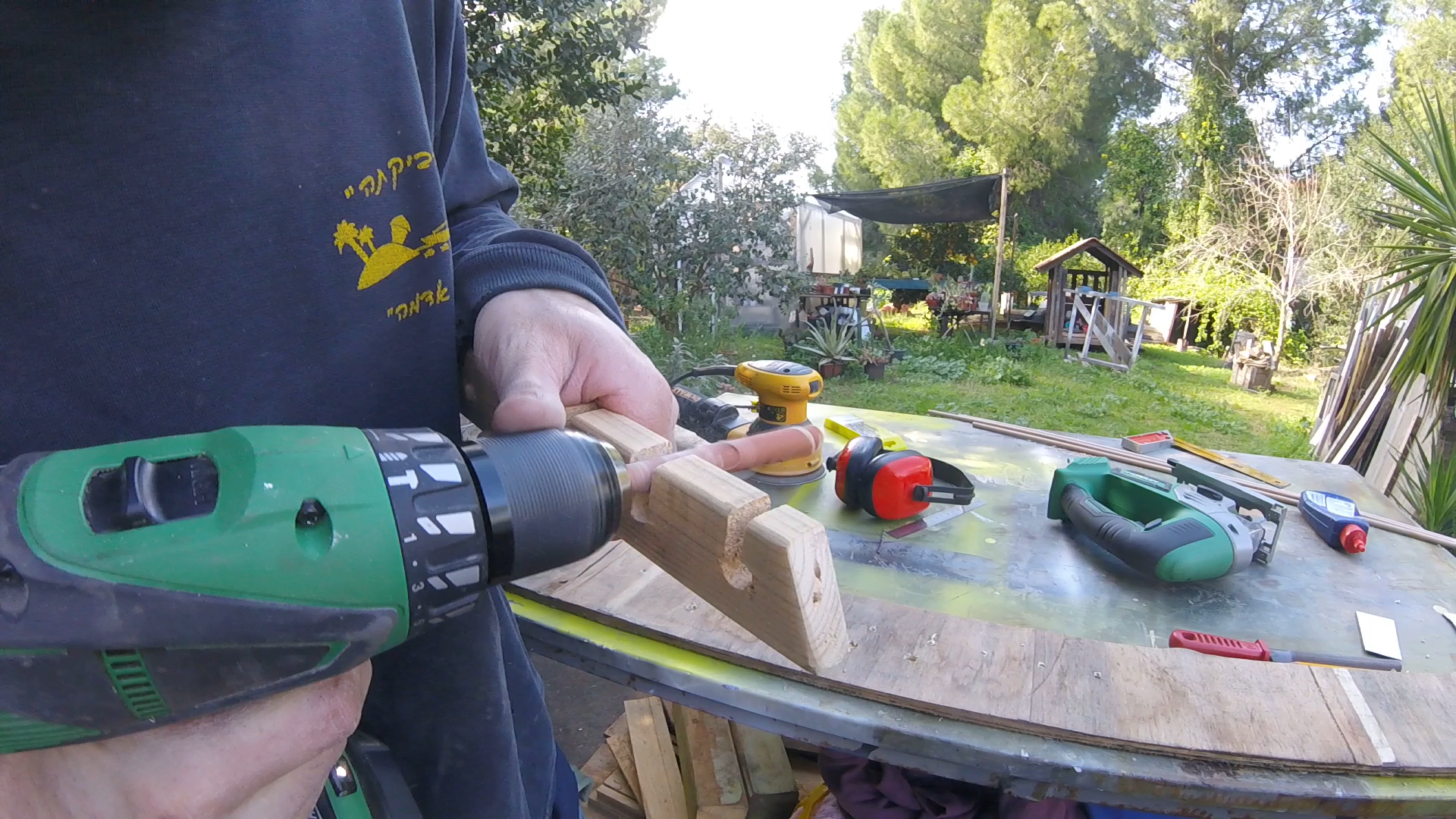

I drilled 10 mm holes for all the tools

and to the chisels I also opened a groove with my Jig-Saw.

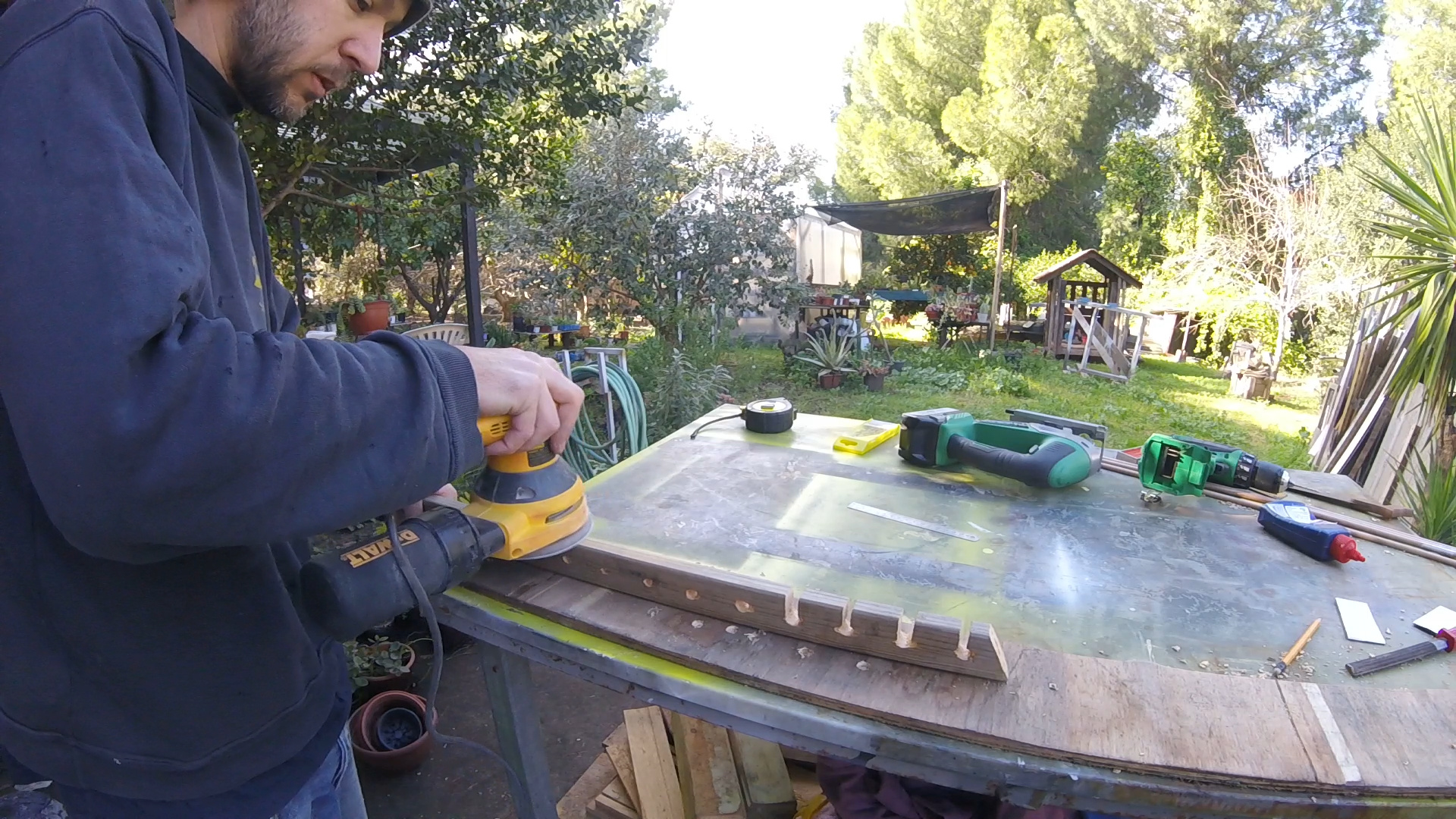

Then I sand everything with Orbit Sander.
