Hi everyone, I tried to make a simple box for storage of my tools, I used scrap pieces of wood that I have.

Supplies

I used

  • scrap wood
  • Clamp
  • Glue
  • Scroll saw.
  • Air brad Nailer

Box Frame

WhatsApp Image 2023-01-22 at 2.16.24 PM.jpeg
WhatsApp Image 2023-01-22 at 2.16.22 PM.jpeg
WhatsApp Image 2023-01-22 at 2.16.23 PM.jpeg
WhatsApp Image 2023-01-22 at 2.16.24 PM.jpeg
WhatsApp Image 2023-01-22 at 2.16.21 PM (6).jpeg
WhatsApp Image 2023-01-22 at 2.16.25 PM.jpeg
  • First step:

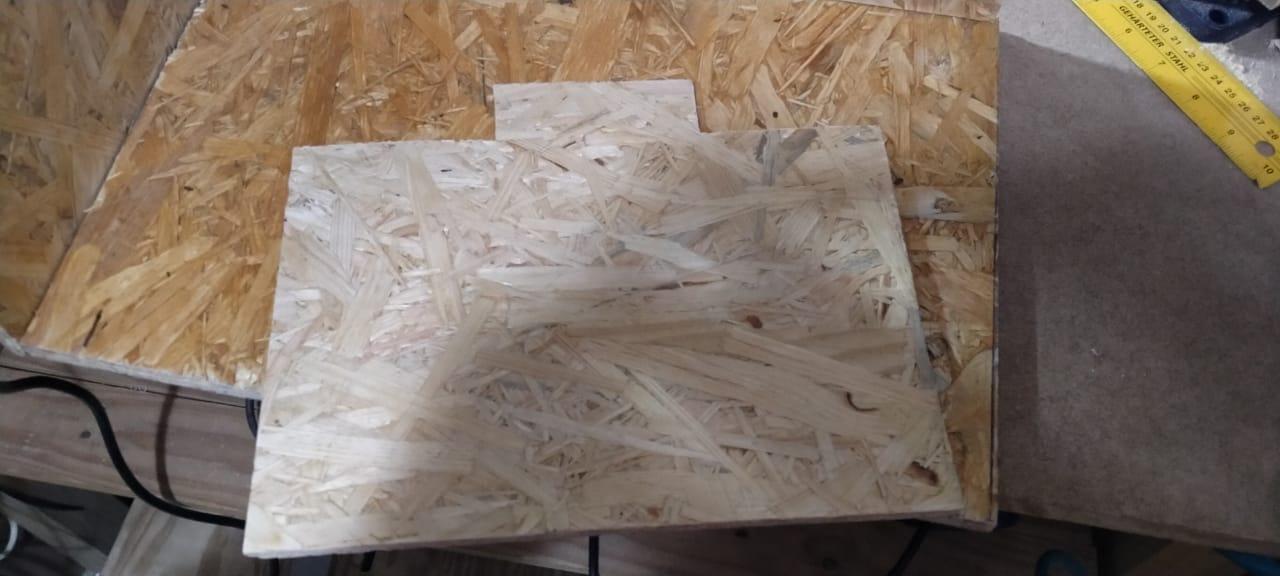

I cut 5 wood pieces, base 45*30 cm, 2 side 30*35, 2 sides 45*35 cm.

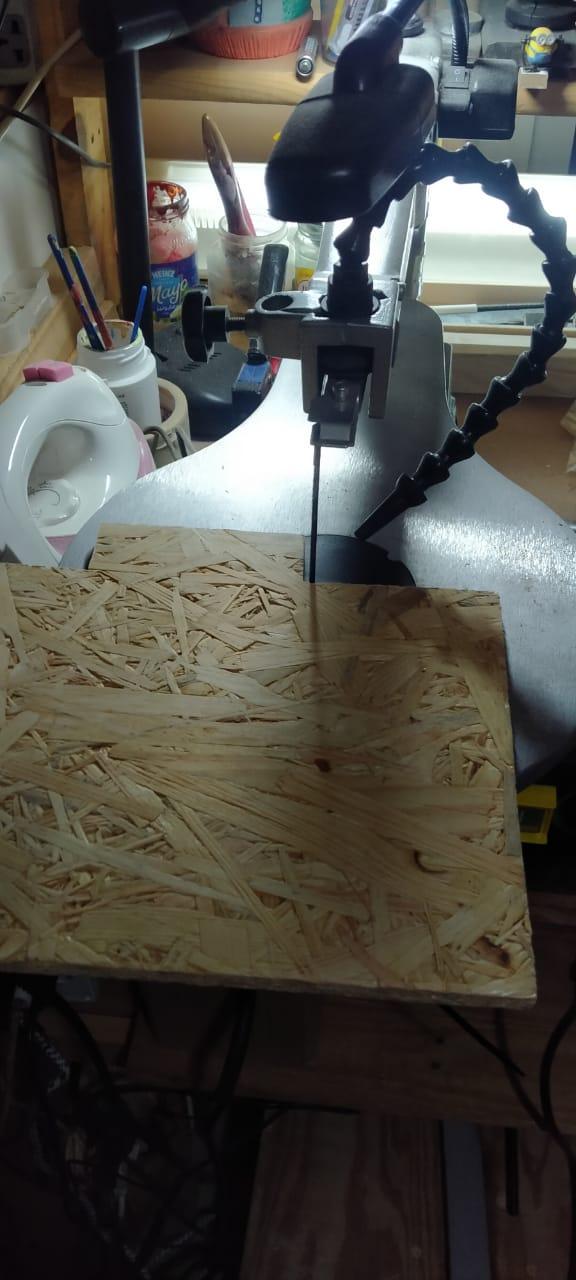

I shaped 2 sides with a scroller saw to be a box hand later.

Connect Sides

WhatsApp Image 2023-01-22 at 2.16.26 PM.jpeg
WhatsApp Image 2023-01-22 at 2.16.20 PM (4).jpeg
WhatsApp Image 2023-01-22 at 2.16.29 PM.jpeg
WhatsApp Image 2023-01-22 at 2.16.21 PM (1).jpeg
WhatsApp Image 2023-01-22 at 2.16.20 PM (3).jpeg
WhatsApp Image 2023-01-22 at 2.16.27 PM.jpeg
  • Second step:

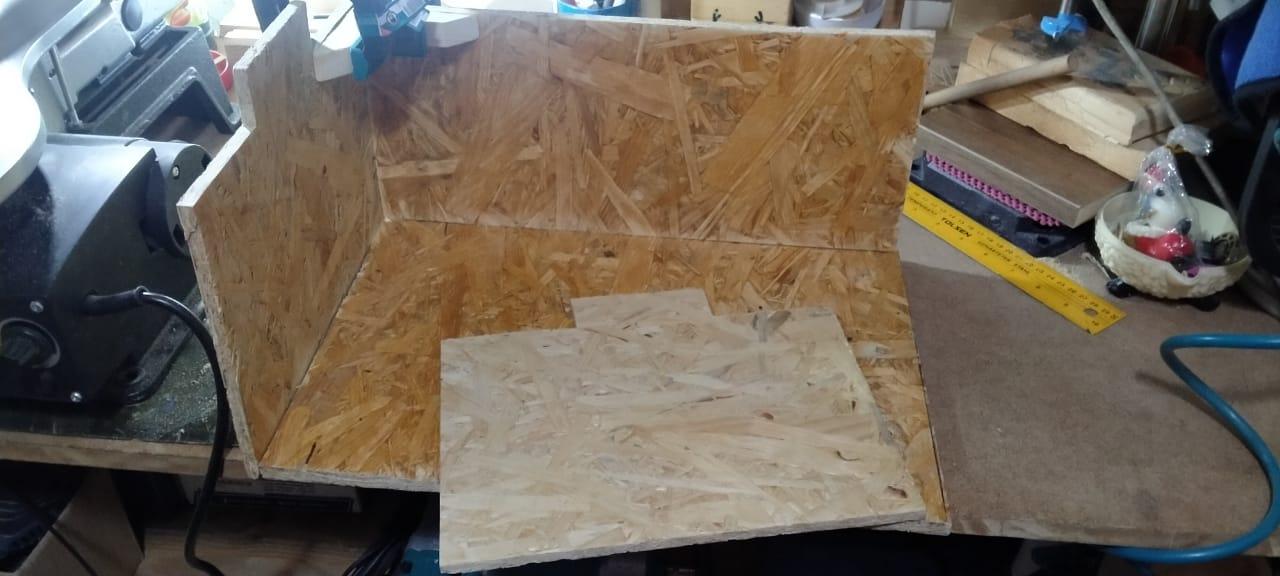

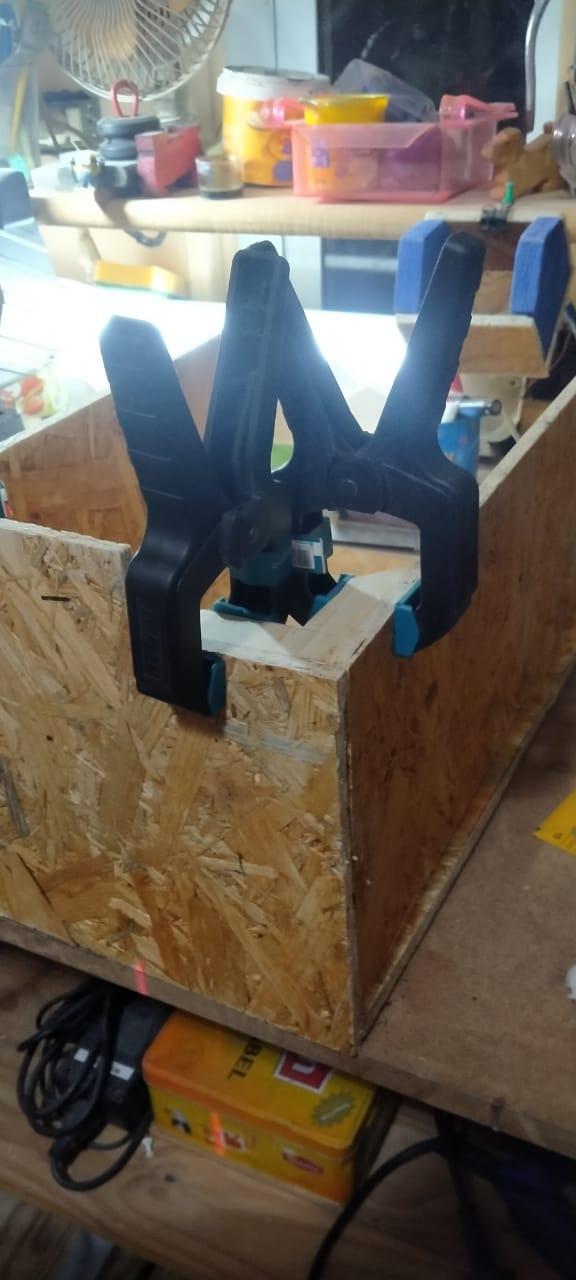

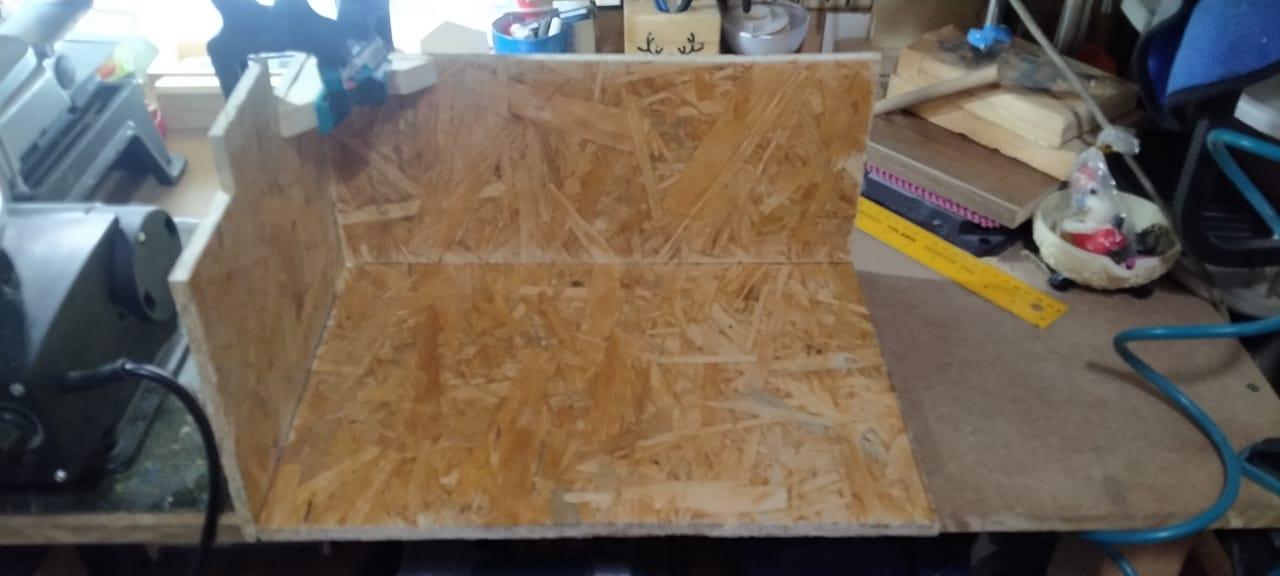

I used a clamp with joint JIG to joint sides with an air Nailer.

Support Corners

WhatsApp Image 2023-01-22 at 2.16.20 PM.jpeg
WhatsApp Image 2023-01-22 at 2.16.18 PM (1).jpeg
  • Third step:

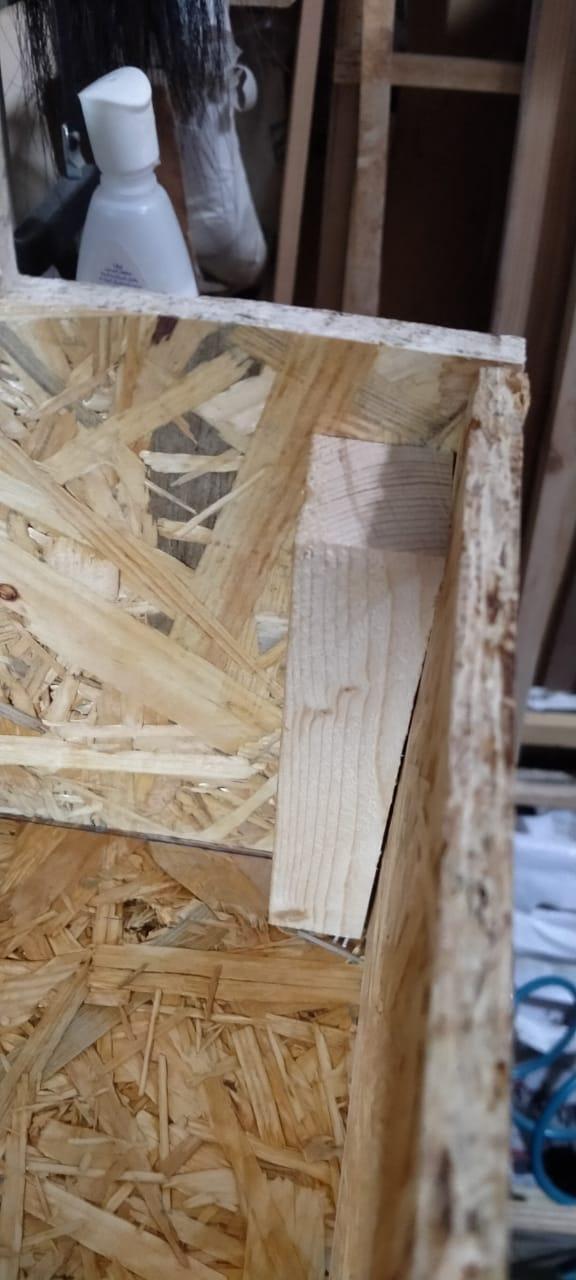

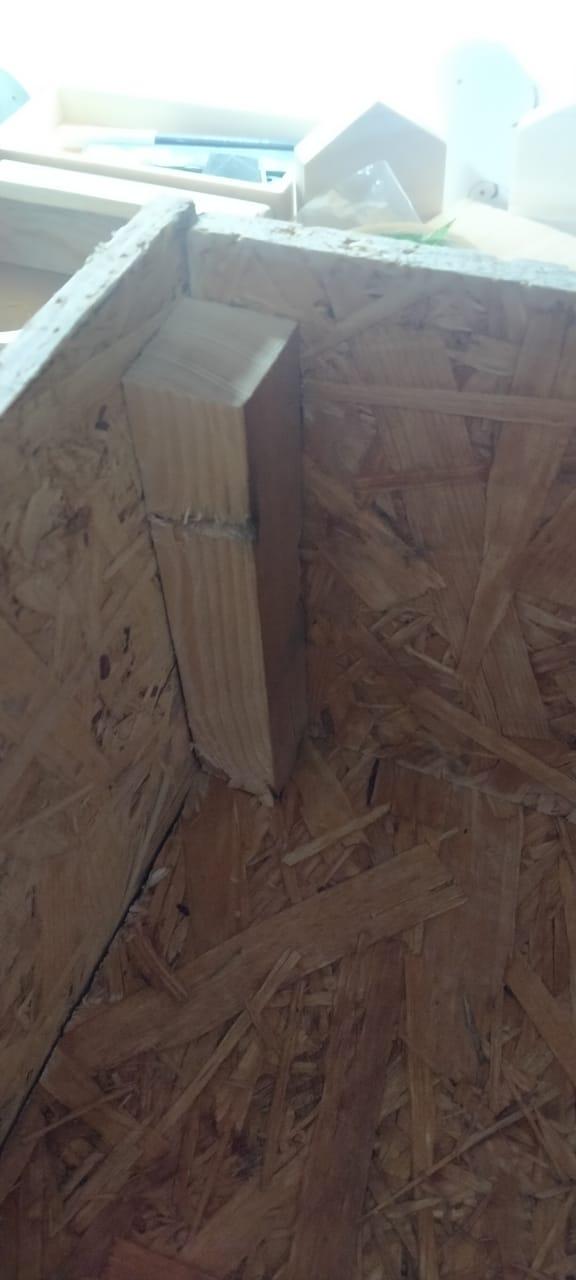

I joint a bar of wood on corners to support sides

Finish

WhatsApp Image 2023-01-22 at 2.16.19 PM (1).jpeg
WhatsApp Image 2023-01-22 at 2.16.19 PM (2).jpeg
WhatsApp Image 2023-01-22 at 2.16.19 PM.jpeg

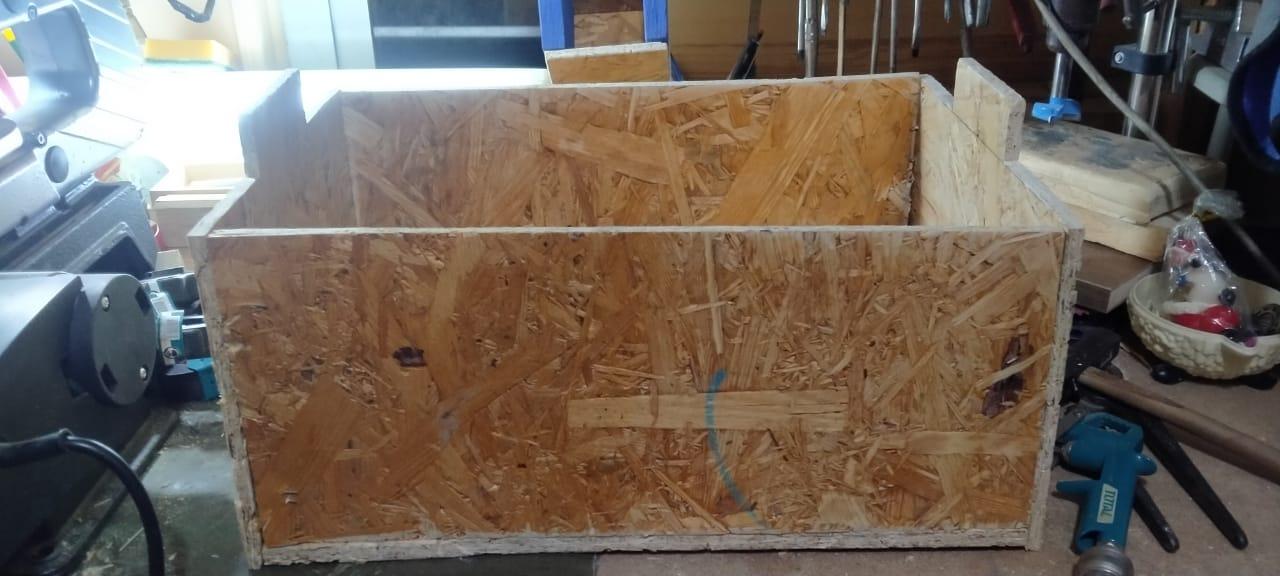

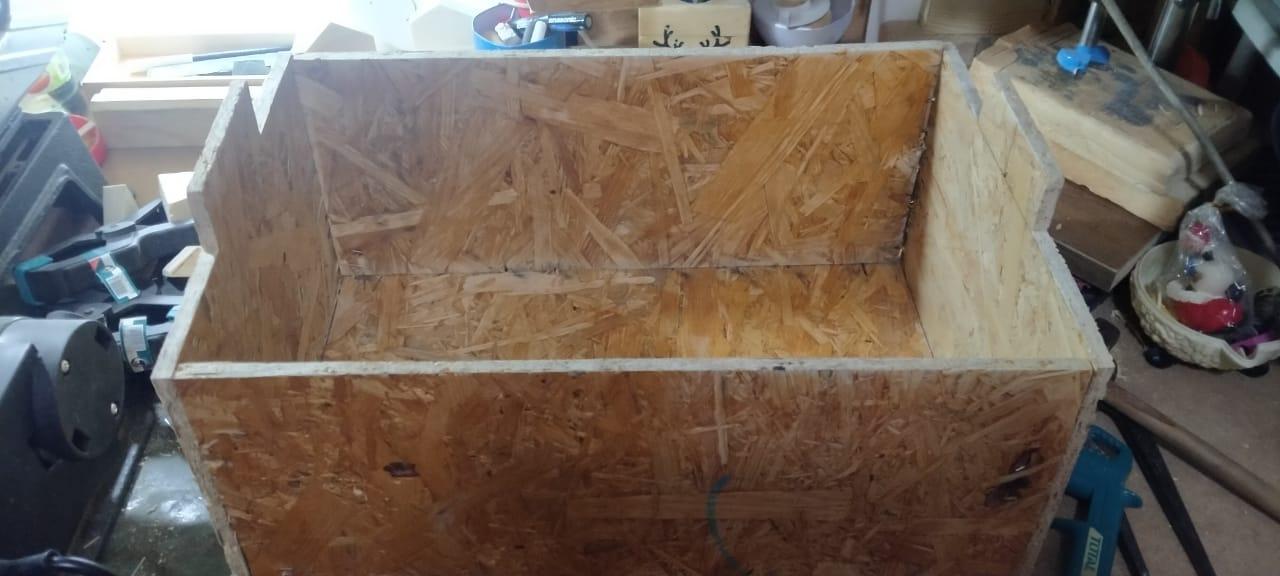

I finished it, hope you all like it.
