Tom the Tortoise Thief

I had 8 small and really old servos, as well as an ESP32 that was soldered onto a copper stripboard. I therefore decided to make a walking quadruped that would have something sticky on it's stomach, allowing it to pick things up secretly when it belly flopped, (Like a card).

Because I only had 8 servos I could not use the normal 3 servos per leg that quadrupeds and hexapods use, I would be stuck using only 2 per leg. This combined with quadrupeds having a much harder time balancing than hexapods due to the gait, meant that it was destined to be slow from the start. (On the flipside, no-one ever expects a tortoise to run off with their credit card, so it always gets away).

In addition, most ESP32s have wifi, so we can control the bot from a PC. A lithium ion battery is best to power the ESP32 for this use because it won't be limited by the range of a cable. I was planning on using a 3.7V lithium ion battery combined with a boost converter, however the converter I had was not operational. I was therefore forced to use a cable to power the ESP32.

I contolled it by running a webserver on the ESP32, then sending instructions from a PC using Python. The project was a weekend project, so some bits are rushed and could be optimised.

• 8 small servos, I used TGY-90s, these are old and were bought in 2014

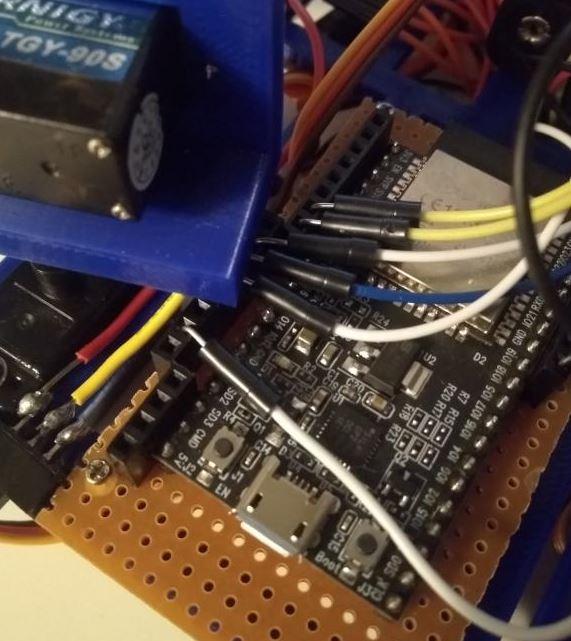

• ESP32 devkitC (Must have wifi), mine was soldered onto a copper stripboard before I got it.
• 4 AA batteries or a lithium ion battery with a buck/boost converter for the servos
• Either a lithium ion battery with converter, 4 AAs, or a cable to power the ESP32
• 2x8pin and 2x6 pin headers
• Lots of small screws, I used 7mm long and 1.45mm diameter screws. In hindsight these were too thin and had a tendancy for the head to snap off.
• A sticky thing to go on the bottom, I just used 3M brown packaging tape folded on itself.
• Double sided tape
• Normal tape
• Hot glue/ Super glue
• Thin grippy rubber
• Lots of small wires
• Lots of zip ties
• A switch
• A 3D printer, or access to one
• Paper to make the shell

The last image is the servo. From this we can see that we have two mounting holes at the base of the servo, in addition we have a plastic piece on top of the servo that we will attach to.

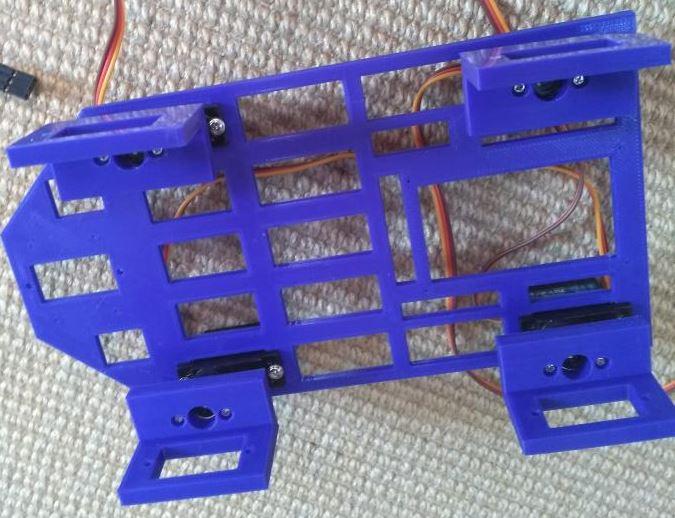

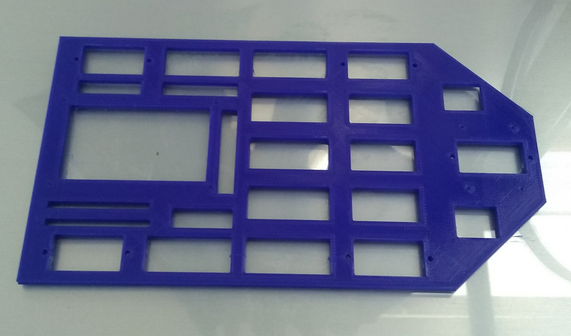

The base plate has 4 servo mount holes at the edges, with one at the front. I originally added this front hole as a way of either attaching a servo for a head, or as another leg. Another leg would improve the stability of the bot, but I did not have enough servos for this. The holes for the screws here are 2mm, that being the correct size for the screws that came with the servos.

At the back there is one big hole where the ESP32 will be mounted, there are small holes at all 4 corners of this hole where the copper board will be mounted using small screws. These holes are 1mm, but would work better as 1.5mm in hindsight, this is because the plastic expansion from the print made the hole smaller than the designed hole.

The parts were printed on a creality CR-10. The legs and feet took about 50 minutes each, the hip part took about 28 minutes each and the main body took just under 3 hours. On the hip and leg you can see the plastic piece that fits on top of the servos.
I screwed the foot and the leg together. I then added some double sided tape to the bottom, allowing me to add some rubber which should help with the grip on smooth surfaces.

I apologise for the horrible soldering in advanced. This really could be improved, and adding a shrinkwrap over the top would prevent any shorts in the circuit.

In this step I soldered an 8 pin header and a 6 pin header together to make a 14 pin rail. I did this once again to make 2 rails. The rails let me connect all the servos to the batteries by connecting the battery to the rail, then the servos to the rail. This is repeated for the ground, the only difference is that the ground also attaches to the ESP32s ground as well as the battery ground.

Assembling the bot was done in this order:

1. Place the servos into the body of the bot and screw them in
2. Place the ESP32 mounted on a copper stripboard onto the bot, this was then screwed in
3. 4 AA batteries were zip tied to the frame of the bot. These will power the servos.
4. The rails were zip tied on the side of the bot
5. The servos were then connected into both rails, then after that, the GPIO pins of the ESP32. I stuck with the pins between 13 and 33. This is because 0-12 are used for specfic things, like outputting PWM signals on boot. The Pins 34-39 are input only, so you can't use them.

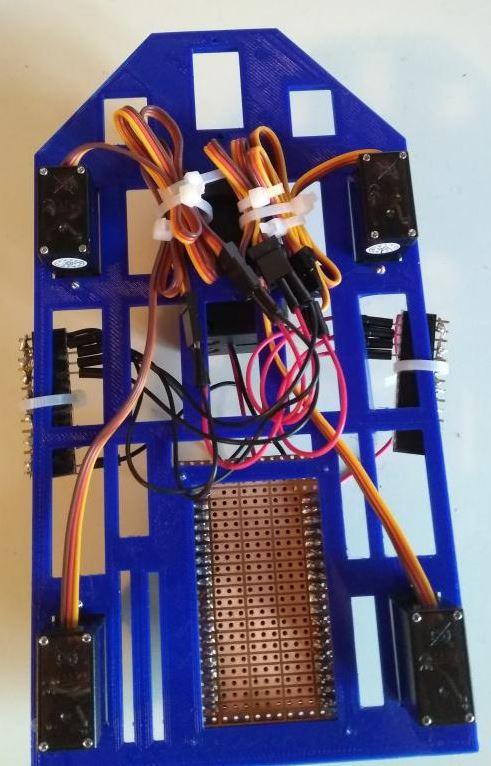

6. I ziptied the cables onto the bottom of the bot, this is pretty ugly, but the servo cables are long, sothere isn't a nice way to do this.

You can see the holes I added to the bot have come in useful, we can run cables from the bottom to the top side of the bot. We can also zip tie stuff like the battery to the bot.

The last steps in assembling the bot are:

1. Attach the hips, these are the pieces that sit on the servo that is in the main body
2. Place a servo in the hips and screw it in
3. Place the leg into this servo on the hips
4. I added a switch to the bot. This was wired between the battery positive and the positive rail, this let me control whether the servos were on or off. This was done using super glue in my case.
5. The last image shows an oversight with the design. When the back left leg moves, it goes over the ESP32 and blocks some pins. I fixed this by bending the pins, but a better solution would be making the body wider so the hip doesn't go over the esp32

The hardest bit about this step is making sure that the legs are all connect to the same degree on each servo. This means that you could attach them looking straight, but if the servos are at different positions you will need to remove them and remount them on properly.

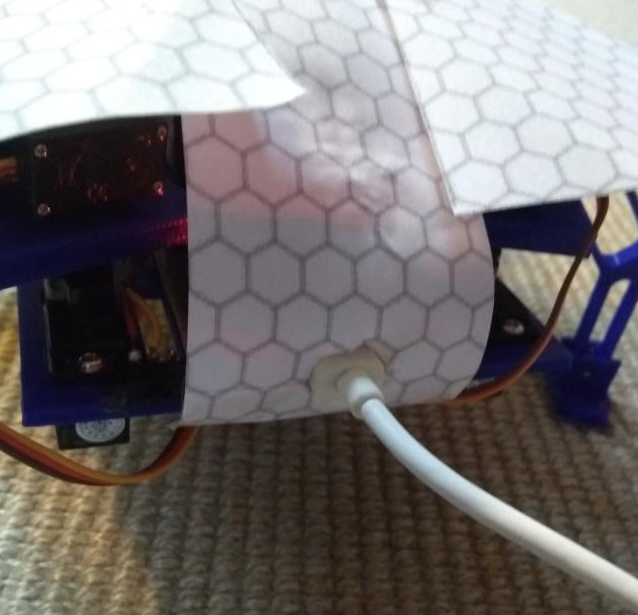

I just chose 3M scotch packaging tape, I just cut a section off and wrapped it around until I had DIY double sided sticky tape.

All we need to do is belly flop the bot to pick things up and run off with. So this solution works great for us.

Gaits are very hard for quadrupeds, this is because unlike hexapods when they lift a leg they are unstable. Quadrupeds normally lift diagonal limbs, balancing on the other two limbs. However my bot only has two servos per leg, meaning that there is less control than a normal quadruped. Therefore we will only move one leg per time, this means the bot needs to be able to balance when only one leg is lifted.

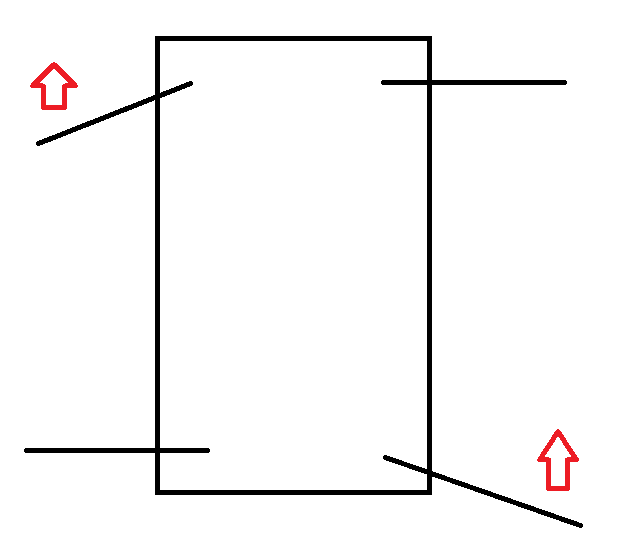

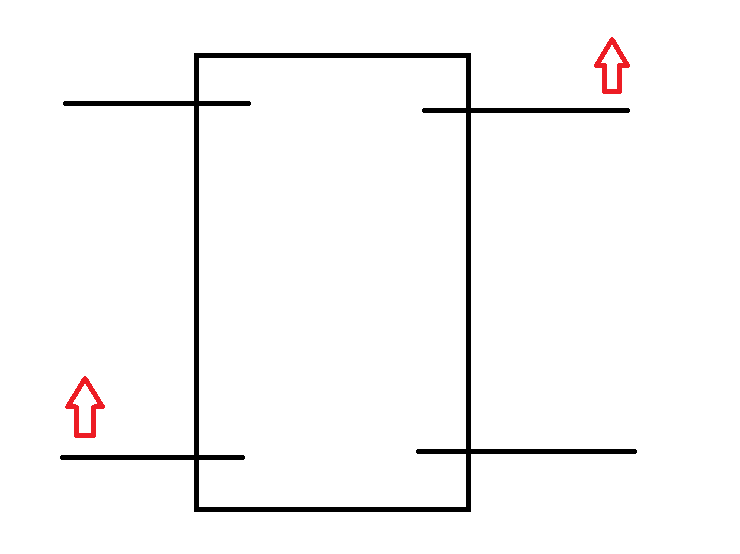

The images show the gait the quadruped will use:

1. It will move a diagonal pair of legs (Not at the same time).
2. It will move all legs back, pushing the whole body forward. The first pair have returned to their starting position.
3. It will reset the other diagonal leg pair which have moved back.
4. It has now reset to the starting position

The reason we move the first pair is because if we don't, the bot is too front heavy when it moves all the legs back and cannot reset the legs. Therefore, the best way to maintain stability is to try and make sure at least one opposite pair is in the starting position.

This same procedure is followed for turning the bot. The only difference is that in the opposite pair, we move one leg forward and one leg back. Afterwards we turn the servos on one side one direction, and the servos on the otherside the other direction. This results in the bot turning it's body.

We now start the ESP32 code. (I did notice I named the servos, "motors" many times in the code, this doesn't affect the output). If you haven't already, you can follow a guide like this: https://randomnerdtutorials.com/installing-the-es...

This guide will show you how to setup the arduino IDE to use the ESP32, mine came preloaded with arduino, so not flashing was required.

The imports are shown below:

#include <Servo.h>
#include "WiFi.h"
#include "ESPAsyncWebServer.h"

We use the default servo library, and the wifi library. In addition we import the WebServer library for the ESP.

const char* ssid = "Test";
const char* password =  "Test1234";

Next we set the name of the wifi and the password for the wifi. This will tell the ESP what wifi to join.

IPAddress local_IP(192, 168, 137, 100);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 0, 0);

These next three variables allow us to set IPAddresses that we want to use. This lets the ESP to have a static IP, very useful so you know the IP when you want to connect to it.

AsyncWebServer server(80);
AsyncWebSocket ws("/test");

These two lines sets the port (80 is the default http port) and the location. In this case just "/test".

char receivedChar;
boolean newData = false;

The receivedChar variable lets us store the most recent character that has been received by the ESP, in addition the newData lets us check whether anything was recieved since we last checked.

Servo servos[8];

int servo_pins[8] = {13, 14, 26, 27, 19, 32, 21, 33};
int servo_offset[8] = {0, 0, 20, 0, 0, 5, 10, 0};
int current_motor_position[8] = {60, 60, 60, 60, 120, 120, 120, 120};

These lines define 8 servo objects, the servo pins, the current position of the servos, and the offset for the servos. I had to add offset because these were cheap servos and didn't all have the same positions for the same values.

int servo_move_speed = 5;
int body_move_speed = 7;

These two values are millisecond delays. The first being how many milliseconds the ESP should wait between each degree of movement of the legs. The second value is the same as the first, but only applies when the 4 body servos are moving, we want to go slower here to maintain grip on surfaces.

void setup() {
  Serial.begin(115200);
  for(int i = 0; i < 8; i++){
    servos[i].attach(servo_pins[i]);
    delay(50);
  }
  reset_servos();

  if (!WiFi.config(local_IP, gateway, subnet)) {
    Serial.println("STA Failed to configure");
  }

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi..");
  }

  Serial.println(WiFi.localIP());

  ws.onEvent(onWsEvent);
  server.addHandler(&ws);

  server.begin();
}

This is the setup. It opens a serial for debugging, and initialises and resets the servo positions to their starting postions.

It then configures the wifi and tries to connect to the wifi hotspot. It will only continues on if it manages to connect.

void onWsEvent(AsyncWebSocket * server, AsyncWebSocketClient * client, AwsEventType type, void * arg, uint8_t *data, size_t len){
  if(type == WS_EVT_CONNECT){
    Serial.println("Websocket client connection received");
  } else if(type == WS_EVT_DISCONNECT){
    Serial.println("Client disconnected");
  } else if(type == WS_EVT_DATA){
    Serial.println("Data received: ");
    receivedChar = data[len-1];
    Serial.println(receivedChar);
    newData=true;
    Serial.println();
  }
}

This function is an asynchronous handler for the wifi, this lets use recieve signals even when a delay() is currently udnergoing. This stops instructions being missed. If it recieves data it sets it to the most recent character, and sets the "newData" bool to true.

void loop() {
  parse_new_instructions();
}

void parse_new_instructions() {
  if (newData == true) {
    if(receivedChar =='w'){
      move_forward();
    }
    if(receivedChar =='a'){
      turn_left();
    }
    if(receivedChar =='d'){
      turn_right();
    }
    if(receivedChar =='k'){
      slam();
    }
    newData = false;
  }
}

The loop just calls the function, "parse_new_instructions". In this function it checks if the "newData" bool is true, if it is, it checks what it is and calls the corresponding action function.

void move_motor(int motor, int new_position, int delay_time){
  current_motor_position[motor] = new_position;
  if(motor<=1 || (motor>=4 && motor<=5)){
    new_position = 90 + (90-new_position);
  }
  servos[motor].write(new_position+servo_offset[motor]);
  delay(delay_time);
}

This is the simplest way to move a servo, and the servo goes straight to the end position with no delay. It does check that if the servo is mounted the opposite way, to flip the end position. This is because 60 degrees means the opposite direction depending if the servo is on the left or right side of the bot. It just flips them so 60 degrees means the same on both sides.

void move_motor_delay(int motor, int new_position){
  int difference = new_position - current_motor_position[motor];
  for(int i = 0; i<abs(difference); i++){
    int current_position = current_motor_position[motor];
    if(difference>0){
      current_position = current_position + i;
    } else{
      current_position = current_position - i;
    }
    if(motor<=1 || (motor>=4 && motor<=5)){
      current_position = 90 + (90-current_position);
    }
    servos[motor].write(current_position+servo_offset[motor]);
    delay(servo_move_speed);
  }
  current_motor_position[motor] = new_position;
}

This function does the same as before, but allows the bot to put a delay inbetween each degree of movement. This slows down the movement of the servos, stopping whiplash through the bot which may unbalance it.

void move_motors(int end_positions[], int delay_time){
  int counters[4] = {0, 0, 0, 0};
  int difference[4];
  int start_positions[4];
  int highest_difference = 0;
  for(int motor =0; motor<4; motor++){
    start_positions[motor] = current_motor_position[motor];
    difference[motor] = end_positions[motor] - start_positions[motor];
    if(abs(difference[motor])>highest_difference){
      highest_difference = abs(difference[motor]);
    }
    current_motor_position[motor] = end_positions[motor];
  }
  for(int i = 0; i<highest_difference; i++){
    for(int motor =0; motor<4; motor++){
      if(counters[motor] <= abs(difference[motor])){
        int current_position = start_positions[motor];
        if(difference[motor]>0){
          current_position = current_position + i;
        } else{
          current_position = current_position - i;
        }
        if(motor<=1){
          current_position = 90 + (90-current_position);
        }
        servos[motor].write(current_position+servo_offset[motor]);
        counters[motor] += 1;
      }

    }
    delay(delay_time);
  }
}

This last way to move the bot moves the four servos in the body at the same time. This is great for when we want to push the bot forward. This is hardwired for only controlling the servos in the body, and you must supplying positions for each of them. This could easily be expanded for the servos in the hips as well, but I didn't feel the need for this.

void reset_servos(){
  move_motor(0, 60, 50);
  move_motor(1, 60, 50);
  move_motor(2, 60, 50);
  move_motor(3, 60, 50);
  move_motor(4, 120, 50);
  move_motor(5, 120, 50);
  move_motor(6, 120, 50);
  move_motor(7, 120, 50);
}

To reset the bot, we just set the servos back to their starting positions.

void move_forward(){
  Serial.println("Moving Forward");

  //Move right front leg forward
  move_motor_delay(4, 160);
  move_motor_delay(0, 20);
  move_motor_delay(4, 120);

  //Move back left leg forward
  move_motor_delay(7, 160);
  move_motor_delay(3, 20);
  move_motor_delay(7, 120);

  //Move all legs
  int end_pos[4] = {60, 100, 100, 60};
  move_motors(end_pos, body_move_speed);

  //Move front left leg forward
  move_motor_delay(6, 160);
  move_motor_delay(2, 60);
  move_motor_delay(6, 120);

  //Move back right leg forward
  move_motor_delay(5, 160);
  move_motor_delay(1, 60);
  move_motor_delay(5, 120);

  reset_servos();
}

void turn_right(){
  Serial.println("Turn right");
  //Move right front leg back
  move_motor_delay(4, 160);
  move_motor_delay(0, 100);
  move_motor_delay(4, 120);

  //Move back left leg forward
  move_motor_delay(7, 160);
  move_motor_delay(3, 20);
  move_motor_delay(7, 120);

  //Move all legs
  int end_pos[4] = {60, 20, 100, 60};
  move_motors(end_pos, body_move_speed);

  //Move front left leg forward
  move_motor_delay(6, 160);
  move_motor_delay(2, 60);
  move_motor_delay(6, 120);

  //Move back right leg forward
  move_motor_delay(5, 160);
  move_motor_delay(1, 60);
  move_motor_delay(5, 120);

  reset_servos();
}

void turn_left(){
  Serial.println("Turn left");
  //Move right front leg back
  move_motor_delay(4, 160);
  move_motor_delay(0, 20);
  move_motor_delay(4, 120);

  //Move back left leg forward
  move_motor_delay(7, 160);
  move_motor_delay(3, 100);
  move_motor_delay(7, 120);

  //Move all legs
  int end_pos[4] = {60, 100, 20, 60};
  move_motors(end_pos, body_move_speed);

  //Move front left leg forward
  move_motor_delay(6, 160);
  move_motor_delay(2, 60);
  move_motor_delay(6, 120);

  //Move back right leg forward
  move_motor_delay(5, 160);
  move_motor_delay(1, 60);
  move_motor_delay(5, 120);

  reset_servos();
}

void slam(){
  Serial.println("Slamming!");

  move_motor(4, 160, 50);
  move_motor(5, 160, 50);
  move_motor(6, 160, 50);
  move_motor(7, 160, 50);

  delay(1000);

  move_motor(4, 120, 50);
  move_motor(5, 120, 50);
  move_motor(6, 120, 50);
  move_motor(7, 120, 50);
}

These last four functions are actually just telling the servos how and when to move. At the end of each one I reset the servos, just to be sure that everything has reset correctly.

If you want to read more about the wifi or webserver, you can find information here: https://techtutorialsx.com/2018/08/14/esp32-async-...

The python code is a lot simpler than the ESP code, I used python 3.7.4. I did install a library called pynput which allows me to detect keypresses from the PC. First the imports:

import websocket;
from pynput.keyboard import Key, Listener

Here we import the websocket and key detection libraries. If you don't have these you can use the commands below in a command prompt:

pip install websocket-client
pip install pynput

These will install the libraries you require, you just have to make sure that you install "websocket-client" and not "websocket".

ip = input("Please enter IP[Defaults to 192.168.137.100]:") or "192.168.137.100";
location = input("Please enter location[Defaults to test]:") or "test";

Here we give the option of setting the ip and the location of the webserver, if you just press enter it defaults to the given values.

ws = websocket.WebSocket();

def connect_to_drone():
    try:
        ws.connect(f"ws://{ip}/{location}");
        print("Success connecting to drone");
    except Exception as e:
        print("Error opening location");

connect_to_drone();

Next we set up a websocket and try to connect to the location given by the previous code.

def on_press(key):
    try:
        if(key == Key.space):
            ws.send('k');
            return;
        if(key == Key.esc):
            ws.close();
            return;
    except Exception as E:
        print("Error with special keys");
    try:
        if(key.char == 'w'):
            ws.send('w');
            return;
        if(key.char == 'a'):
            ws.send('a');
            return;
        if(key.char == 'd'):
            ws.send('d');
            return;
        if(key.char == 'o'):
            print("Attempting to connnect to drone");
            connect_to_drone();
            return;
    except Exception as E:
        print("Error with normal keys");



def on_release(key):
    pass;


with Listener(
        on_press=on_press,
        on_release=on_release) as listener:
    listener.join()

This section of code setups a listener and listens for keypresses. If any keypresses are dectected it sends either the corresponding character, or closes or opens the connection to the bot.

These are tests of the bot moving forward and rotating. Just to confirm our code works. We just have to add a body now and we are done!

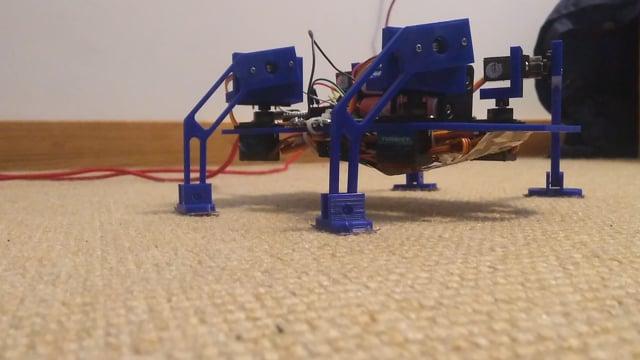

The last video shows that the bot isn't resting on the servos when it moves forward.

The head was simple to make. I just cut out the shape from the first image and folded along the lines until it looked like image two. Then I stuck the top and bottom triangles together on each side, before sticking the middle panel back. This made some ears. Then I drew a face onto the head, making him look pretty happy!

The body was made using two strips of paper, both 5cm x 26cm. In addition it used 4 7cm x 7cm squares. I chose a hex pattern, but any pattern would work.

I then taped the strips across the body and along the body, before taping the squares onto each corner of the bot. These squares were done like this so they didn't stop the movement of the legs. I also added a hole at the back so I could still connect the data cable.

The final step is to have a look at the bot picking up the paper with the body attached. This is the final product, it can move, albeit slowly and pick things up using it's sticky stomach!
