Toggle Switch With Relay Using Arduino

Trying to make things easier and clear for school students I made this little project.
The obove schematic shows the connections
Parts:
1 - relay
2 - resistors 330Ohm
1- transistor NPN 2N2222
1- diode 1N4148
1 - pushbutton.
1 - LED

The button is connetcted internally with pullup resistor.
The diode is needed to stop the voltage (sometimes more then 4 times when the current is stopped from the coil) coming back from the coil of the relay. This is known as a "flywheel diode".

How it works: Here I used one button working as a toggle switch, which turns on and off instead of two buttons.
For a load on the relay I used just a single Led and a resistor.

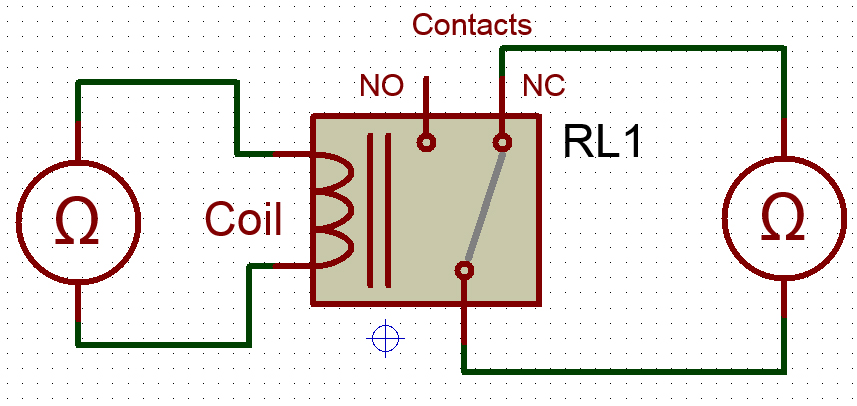

This part for most simular projects is neglected. Take you Ohmmeter and find where the coil terminals are. It will have a value more or less then 100Ohm. Find where the contacts without voltage on the coil are closed NC (normally closed) ~0Ohm. Do the same with the other contacts NO (normally open) open circuit resistance

Looking at the picture and according to the schematic connect properly the transistor according
E (emitter), B (base), C (collector)

/*********************
Simple toggle switch
Created by: P.Agiakatsikas
*********************/
int button = 8;
int led = 13
int status = false;
void setup(){
pinMode(led, OUTPUT);
pinMode(button, INPUT_PULLUP); // set the internal pull up resistor, unpressed button is HIGH
}
void loop(){
 //a) if the button is not pressed the false status is reversed by !status and the LED turns on
//b) if the button is pressed the true status is reveresed by !status and the LED turns off

if (digitalRead(button) == true) {
status = !status;
digitalWrite(led, status);
} while(digitalRead(button) == true);
delay(50); // keeps a small delay
}

If you are using Proteus here is the file.

A very simple version of the toggle switch was in my previous post here
