Toe Tac Tic (Visually Impaired Edition)

Hey I'm Ray! And I'm showing you one of my favorite classic games Tic Tac Toe which is also accessible to blind people! :)

To create this game, we used Autodesk Fusion 3D to design our model and to create a 3D model of it!

The intention was to find a game that was efficient and produces less filament for our printing stage, so we picked Tic Tac Toe! Instead of printing out a hashtag, we added slats to the game board so the pieces can be interlocked on a 150mm 1by 150mm scale.

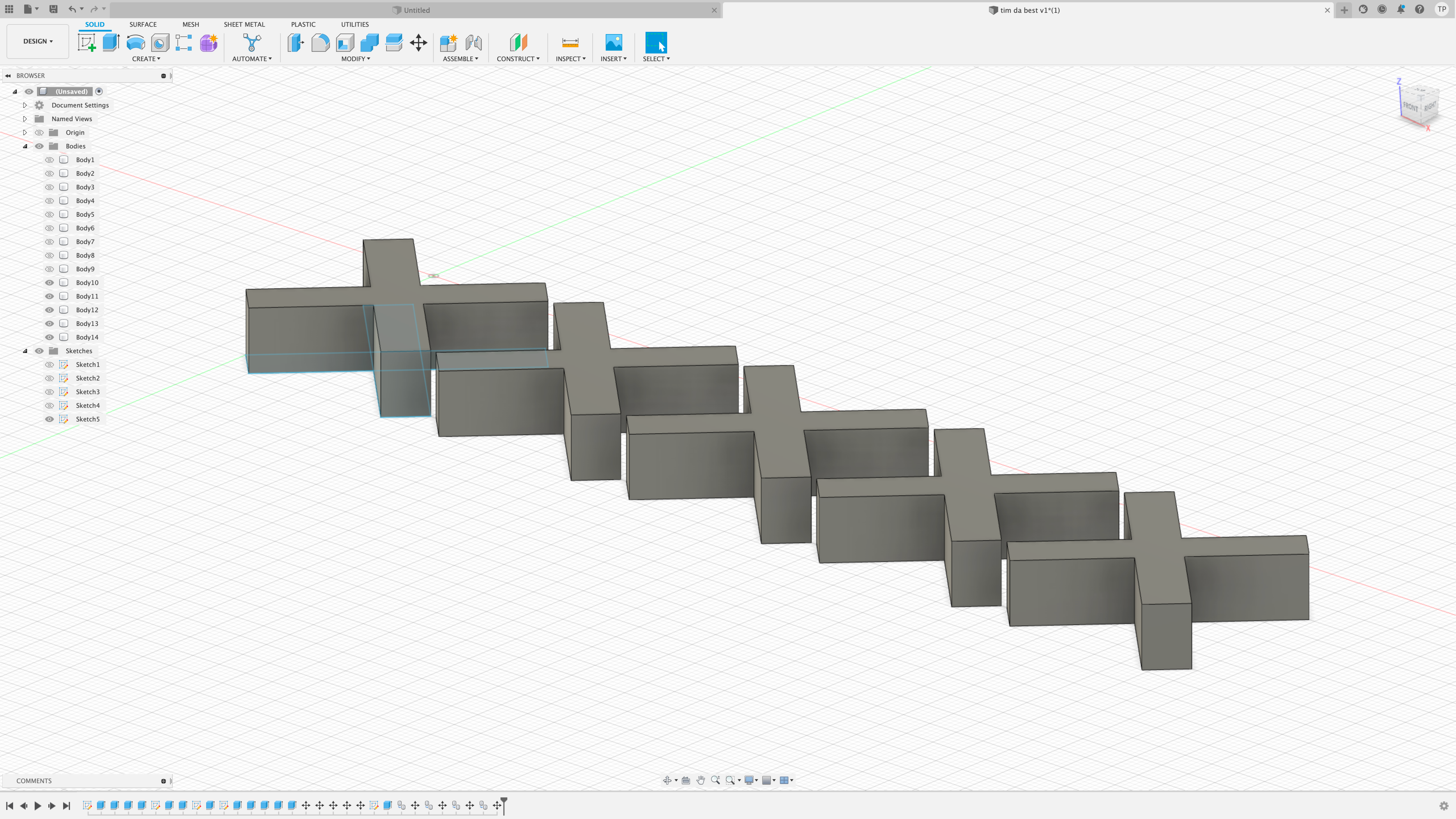

Starting off, we created sketches of our ideal game board which had 50mm by 10mm wide rods, then we extruded those rods to create a rectangular prism. With those rods we carved a 5mm square in them, (alternating between sides so they can interlock).

A similar process to the board, we started out with.a sketch of X's and O's, then extruded them until they were big enough to fit the board and be identified.

After getting all the pieces together, you gotta print your game!
