Socializing machine project TiwlaTiny

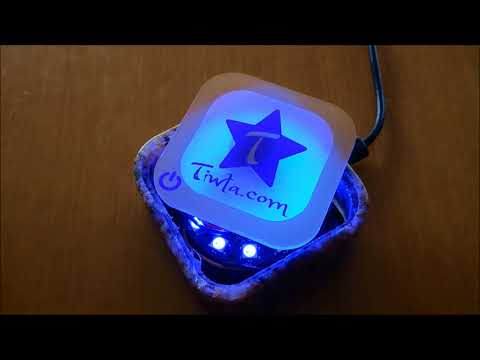

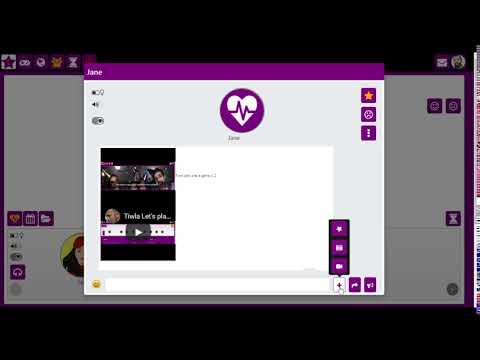

This is IOT family member of Tiwla.com.Socializing machine organize spiritual feeling with your friends.TiwlaTiny is a machine works with tiwla.com. It gives a response from site using RGB led ring when users receive notification.User also can send spiritual feeling Color to friends. It also one touch button to give a response back and on and off RGB ring.This device is connect securily to internet directy using WIFI. It wait realtime notification response from site www.tiwla.com

Supplies

1×NodeMCU V3 Lua esp8266 development board

1×RGB LED ring using WS2812Rgb Led

1×TTP223 Capacitor type Single Channel Switch Sensor

Body frame Make part using Epoxy Resins and beach sand

Front Plexiglass transparent logo print on using UV printer.

Back Plexiglass black one.

TiwlaTiny Body 3d Print and Mold Prepation With RTV2 for Epoxy Resin

01.FirstShape (Large).JPG

www.onshape.com for desing 3d model.

Print 3d model using 3d Plus Ronin V4 3 with PLA

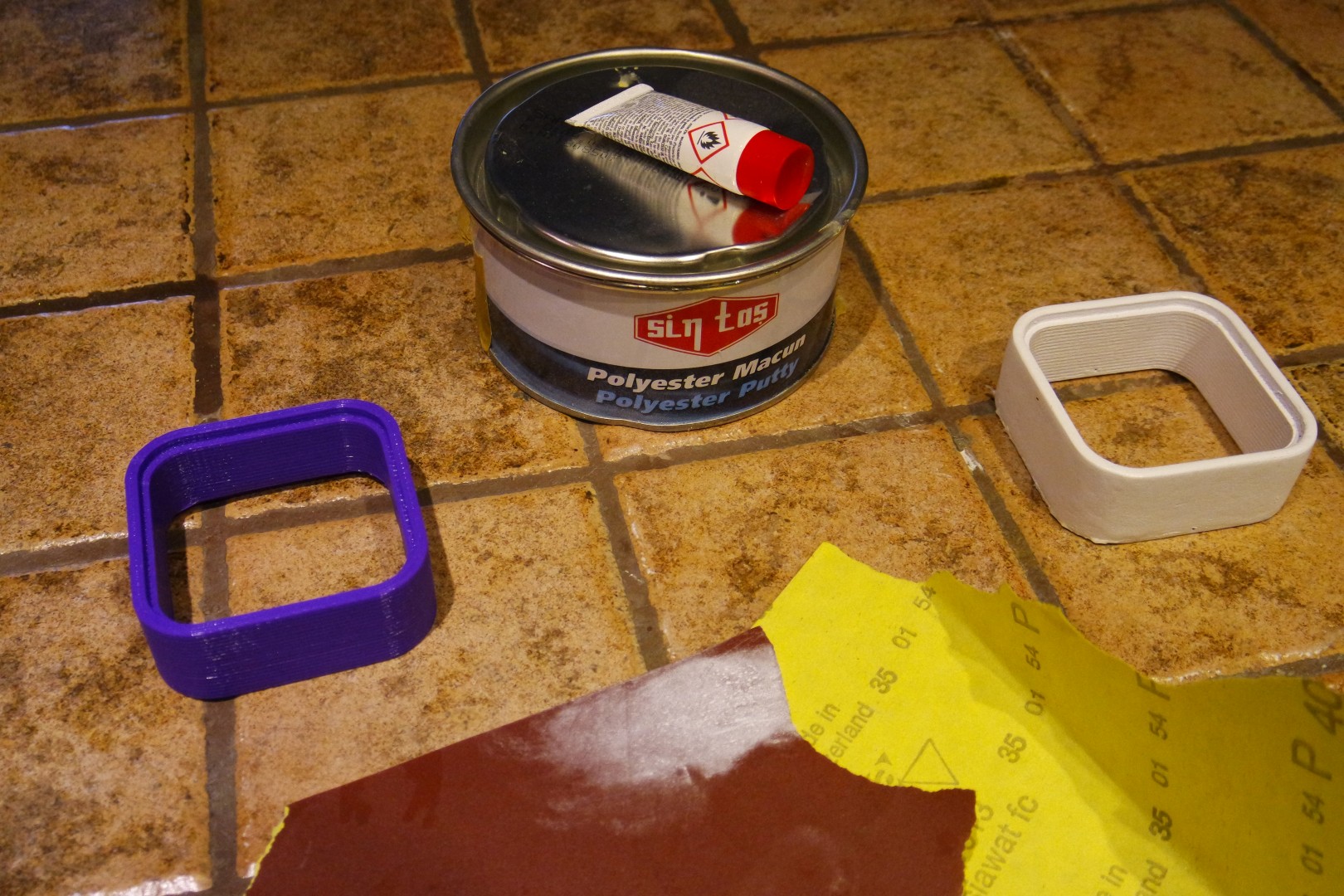

TiwlaTiny Body Prepare Parts Surface Using Polyester Putty and Emery. Acrylic Spray Paint for Finishing.

02.MakeUpForGoodSurface (Large).JPG

TiwlaTiny Make Mold Using RTV2 Silicone.

04.SiliconeMoldMade (Large).JPG
03.SiliconeMoldPrep (Large).JPG

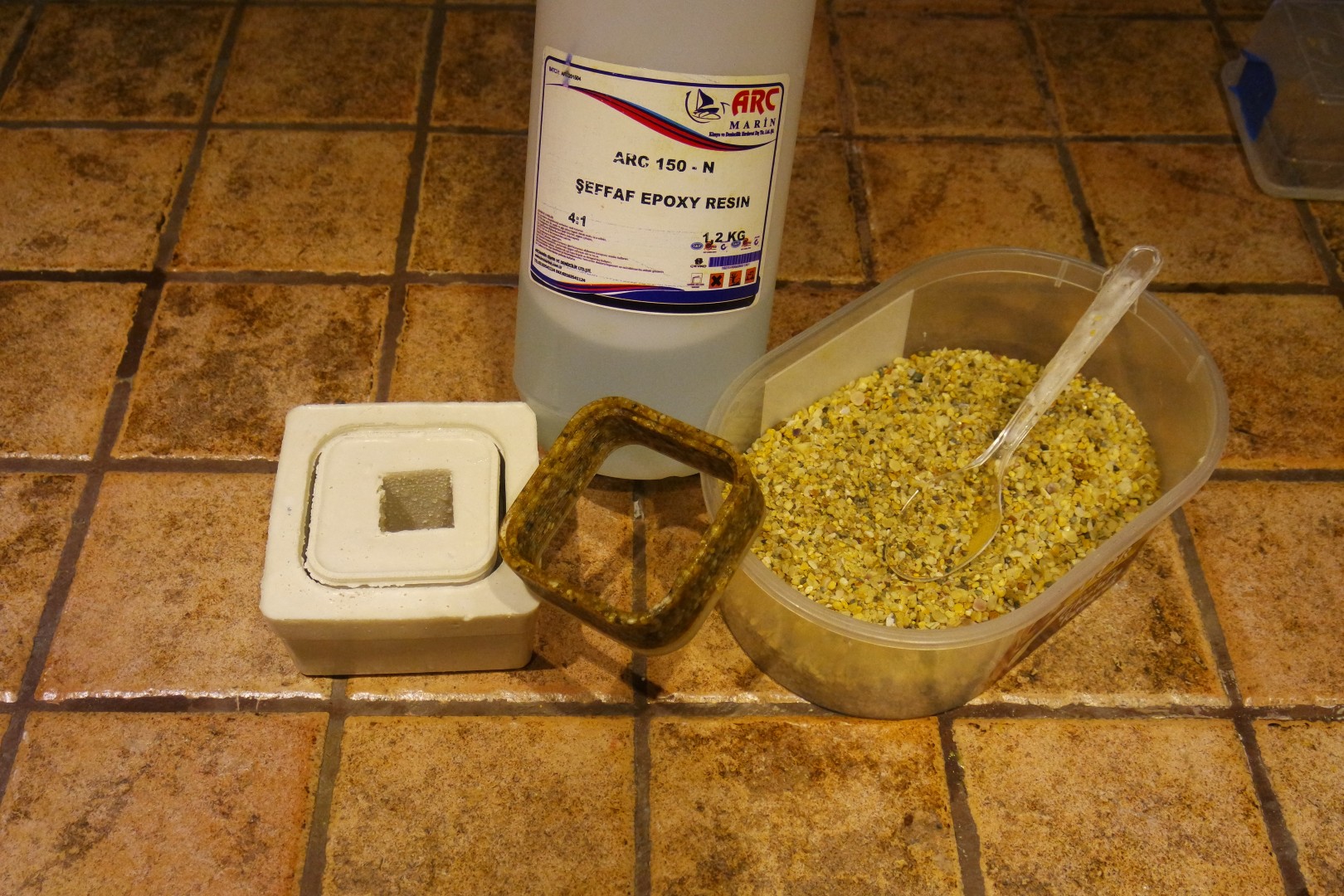

TiwlaTiny Make Part Using Epoxy Resins and Beach Sand

05.MakeEpoxyPart (Large).JPG
06.EpoxyPartCoverAcrylic (Large).JPG

TiwlaTiny Electronic Parts

071.Parts_2 (Large).JPG

TiwlaTiny Touch Switch Sensor for Power on Off and Response Back to Host.

072.Parts_3 (Large).JPG
073.Parts_4 (Large).JPG

QRcode sticker back on TiwlaTiny for setup WIFI setting.
