Tiva C Projects: Interfacing LCD With Tiva C
by EslamG11 in Circuits > Microcontrollers
3019 Views, 0 Favorites, 0 Comments
Tiva C Projects: Interfacing LCD With Tiva C
![FYF2XJ7KX39FJBU.jpeg](/proxy/?url=https://content.instructables.com/FF0/BPM6/KXKEP2P8/FF0BPM6KXKEP2P8.jpg&filename=FYF2XJ7KX39FJBU.jpeg)
How to interface an LCD with Tiva C
Let`s do it
Watch the Video

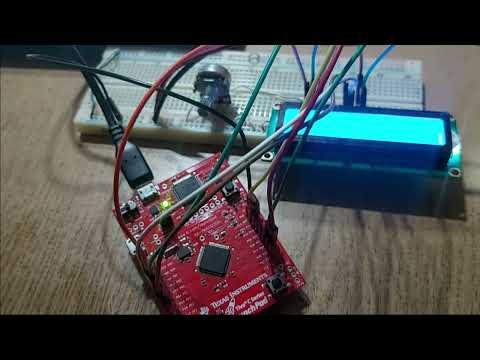

![Tiva C Projects: Interfacing an LCD with Tiva C LaunchPad](/proxy/?url=https://content.instructables.com/FBF/5PHG/KY4EUA6S/FBF5PHGKY4EUA6S.jpg&filename=Tiva C Projects: Interfacing an LCD with Tiva C LaunchPad)
Hardware Components
![13995348110_2.jpg](/proxy/?url=https://content.instructables.com/F2L/2SNU/KY4EUA7N/F2L2SNUKY4EUA7N.jpg&filename=13995348110_2.jpg)
![FYF2XJ7KX39FJBU.jpeg](/proxy/?url=https://content.instructables.com/FF0/BPM6/KXKEP2P8/FF0BPM6KXKEP2P8.jpg&filename=FYF2XJ7KX39FJBU.jpeg)
- Tiva C LaunchPad (TM4C123)
- 16x2 LCD Display
- 1x1K Potentiometer
- 5v Power Supply
- Jumpers
- Breadboard
Schematic of the Circuit
![LCD.jpg](/proxy/?url=https://content.instructables.com/F8X/MJRQ/KY4EUA8I/F8XMJRQKY4EUA8I.jpg&filename=LCD.jpg)
Let`s Write the Code
Downloads
Notes
- volatile keyword should be included in your code with variable value can be changed any time such as the counter of for loop
- 5v Power supply is important for LCD display (without it, your LCD does not work correctly)
- Adjust the potentiometer if LCD does not display any data.
