Tiny Smart Robot With Cardboard_part_5

1) easy.

2) AA batt .

3) simple.

4) smart robot (not a model).

5) programable toy.

6) homemade.

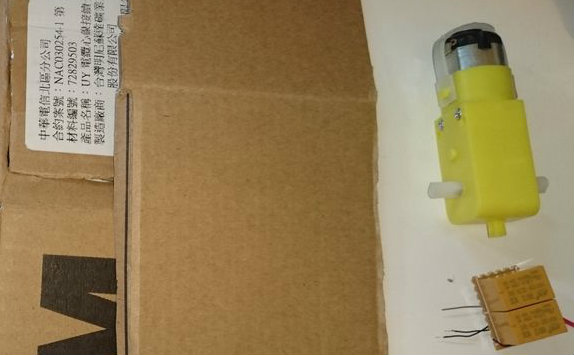

big paper roller. *1

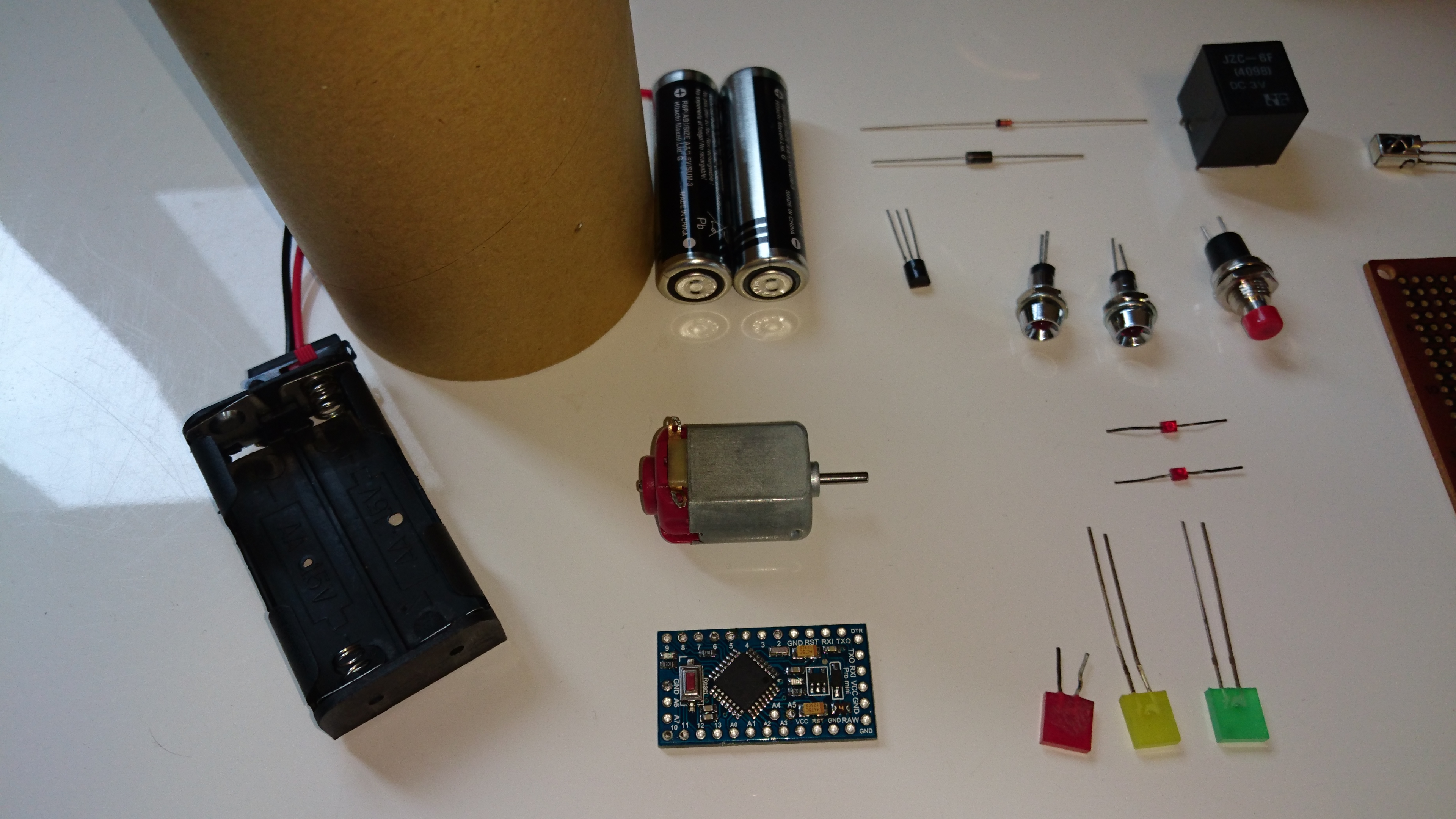

cardboard * 4

relay 3 v * 4

dc-motor gear * 2

BBQ stick * 1

arduino UNO(mini) * 1

D IN 4007 * 1

D IN 4148 * 5

TR 2N 3904 * 2

R 20 K OHM * 3

R 1K OHM * 6

button SW * 3

red LED * 5

yellow LED * 1

green LED * 1

AA battery * 2

battery holder * 2

breadboard * 1 (for prototype use)

screw * 4

PCB * 1

TOOLS :
cutter * 1

soldering iron * 1

hot glue gun * 1

screw driver * 1

hand drill *1

white glue * some

i use a marker signature pen draw down the

footer robot and colorize on cardboard......

and pasted it on a big paper roller which

as the robot body with some white glue .

make the mechanic legs with motor gear boxes.

and make the mechanic feet with 2 cola caps.

fixed the two legs with the BBQ stick.

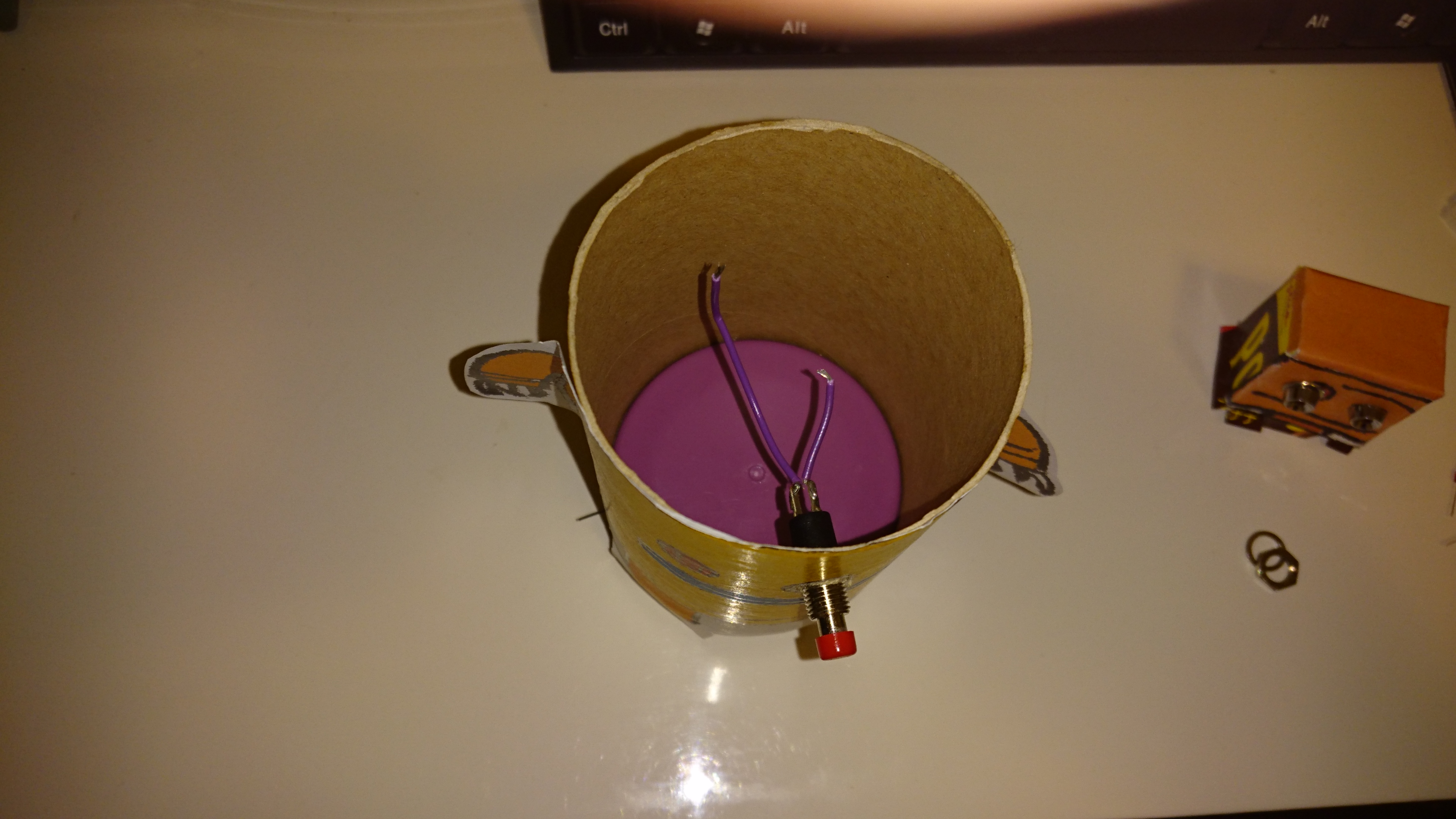

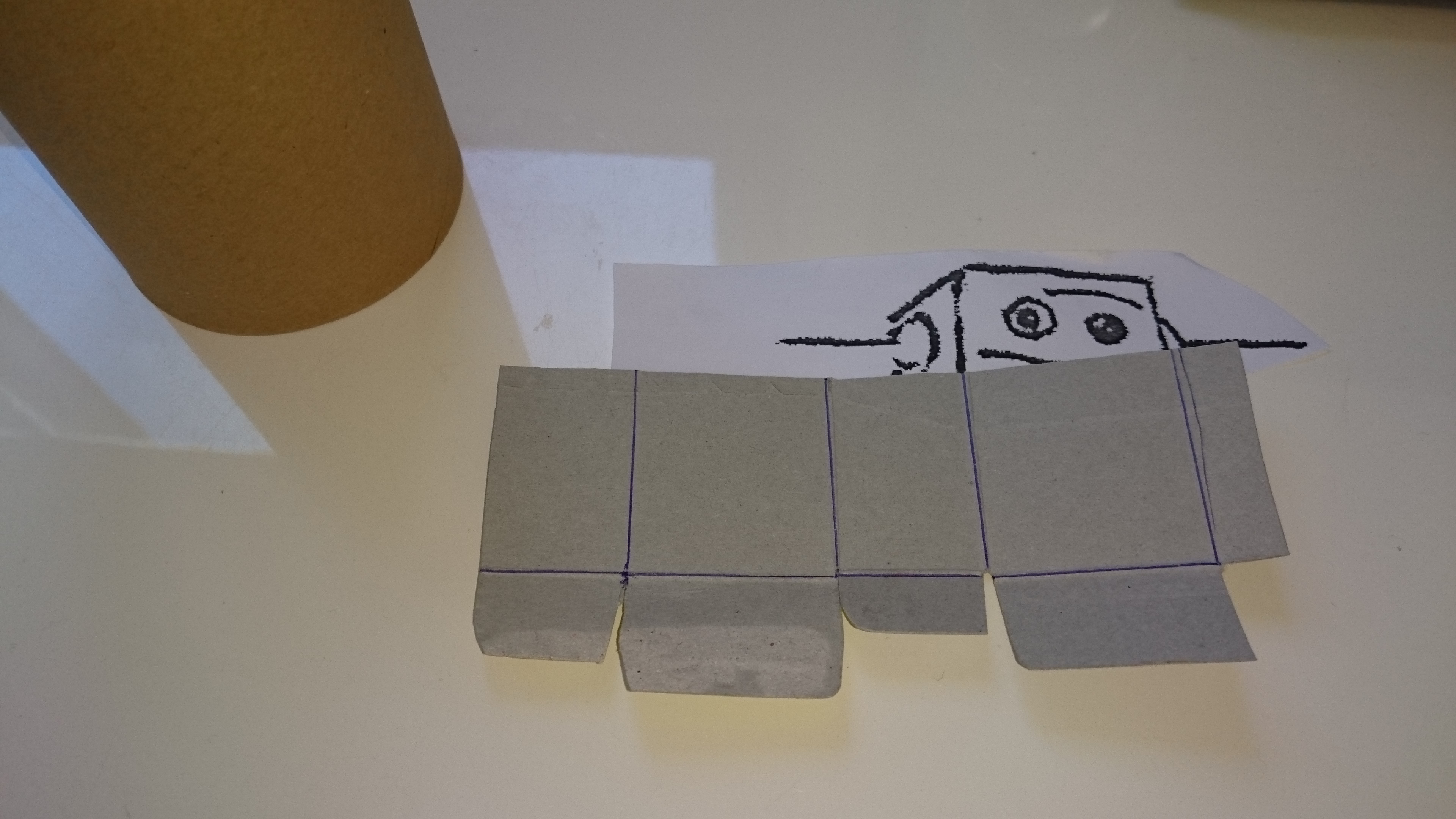

1) i use one of the cardboard to cut it into PHOTO1.

2) and fold it into a box with white glue.

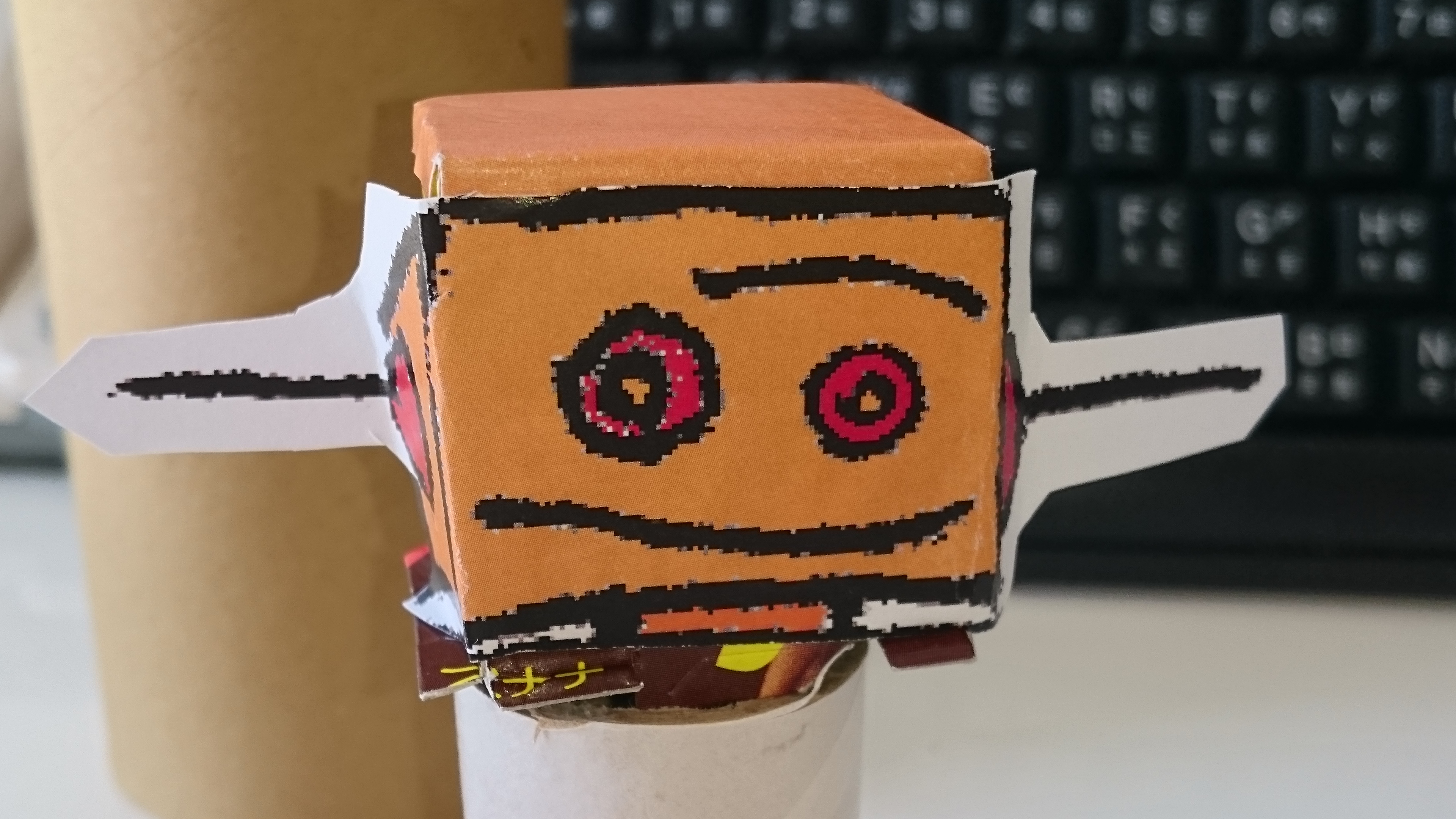

3) paste the colored footer_bot's head on the box.

4) make the eyes with red LED(s).

5)make the ears with small red LED(s).

i paste the 2 cardboard on the big roller which have been

colored, with white glue.

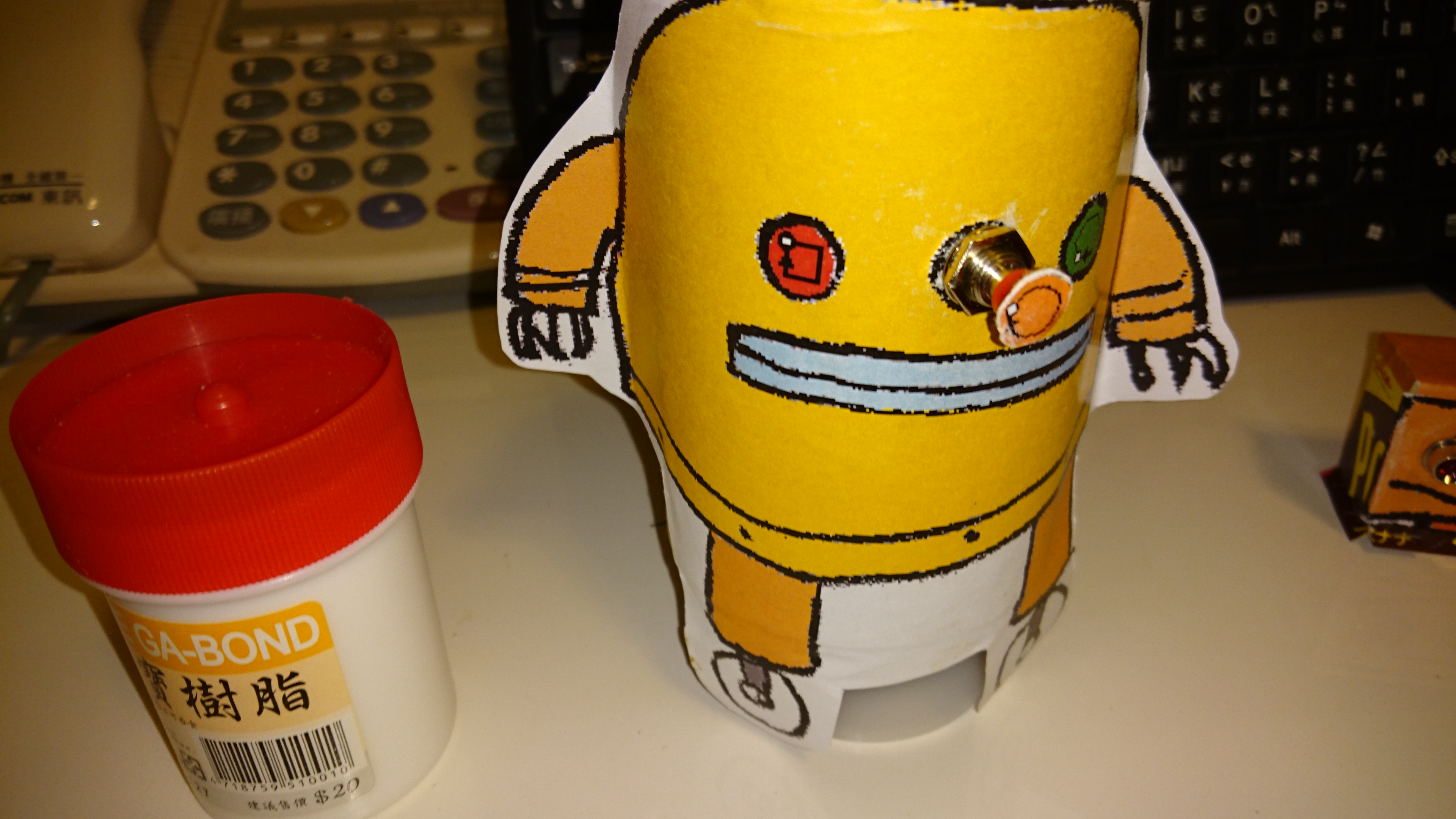

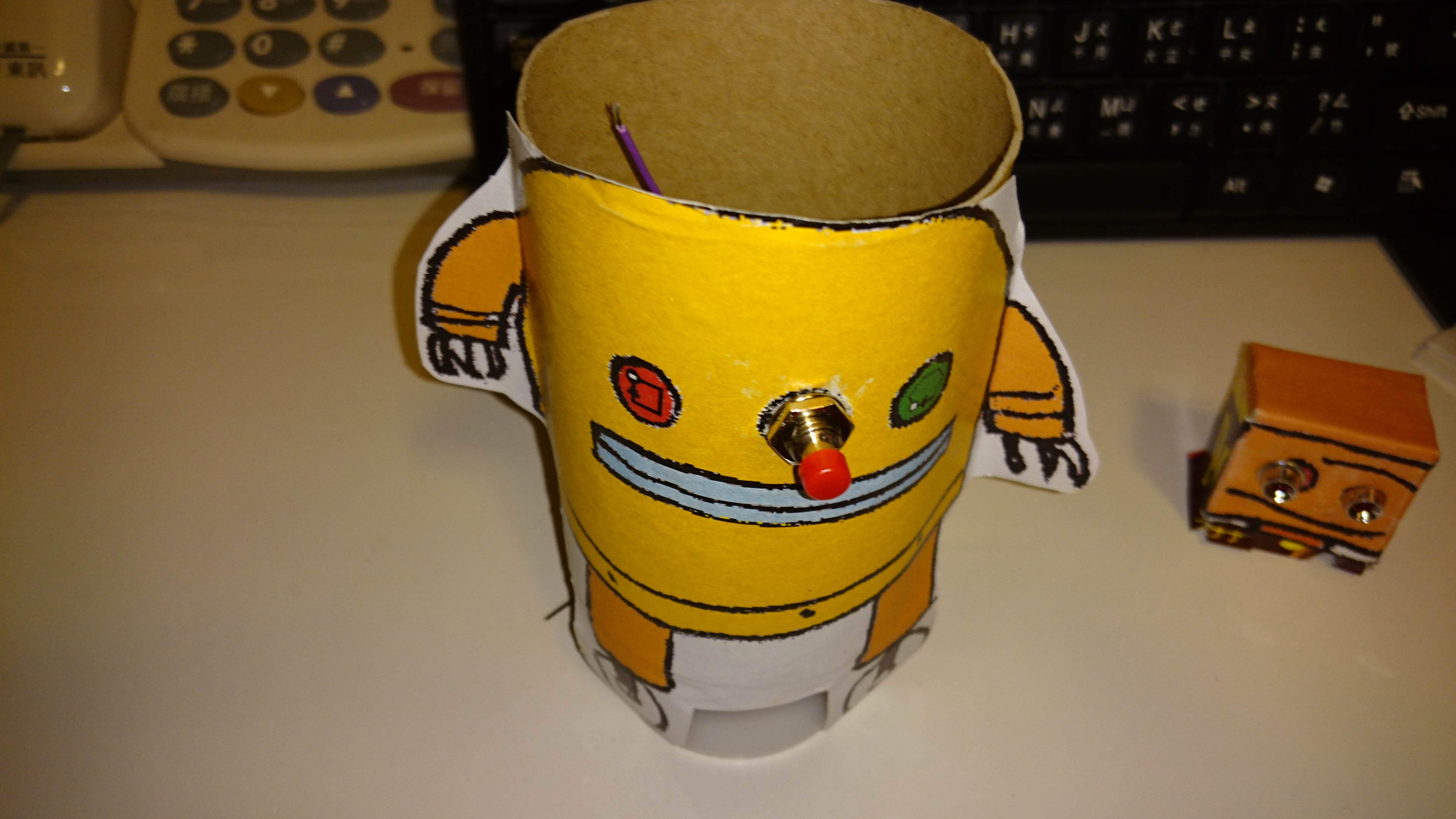

and cutout three holes in order to embed the three buttons.

and paste the colored pad on each button with white glue.

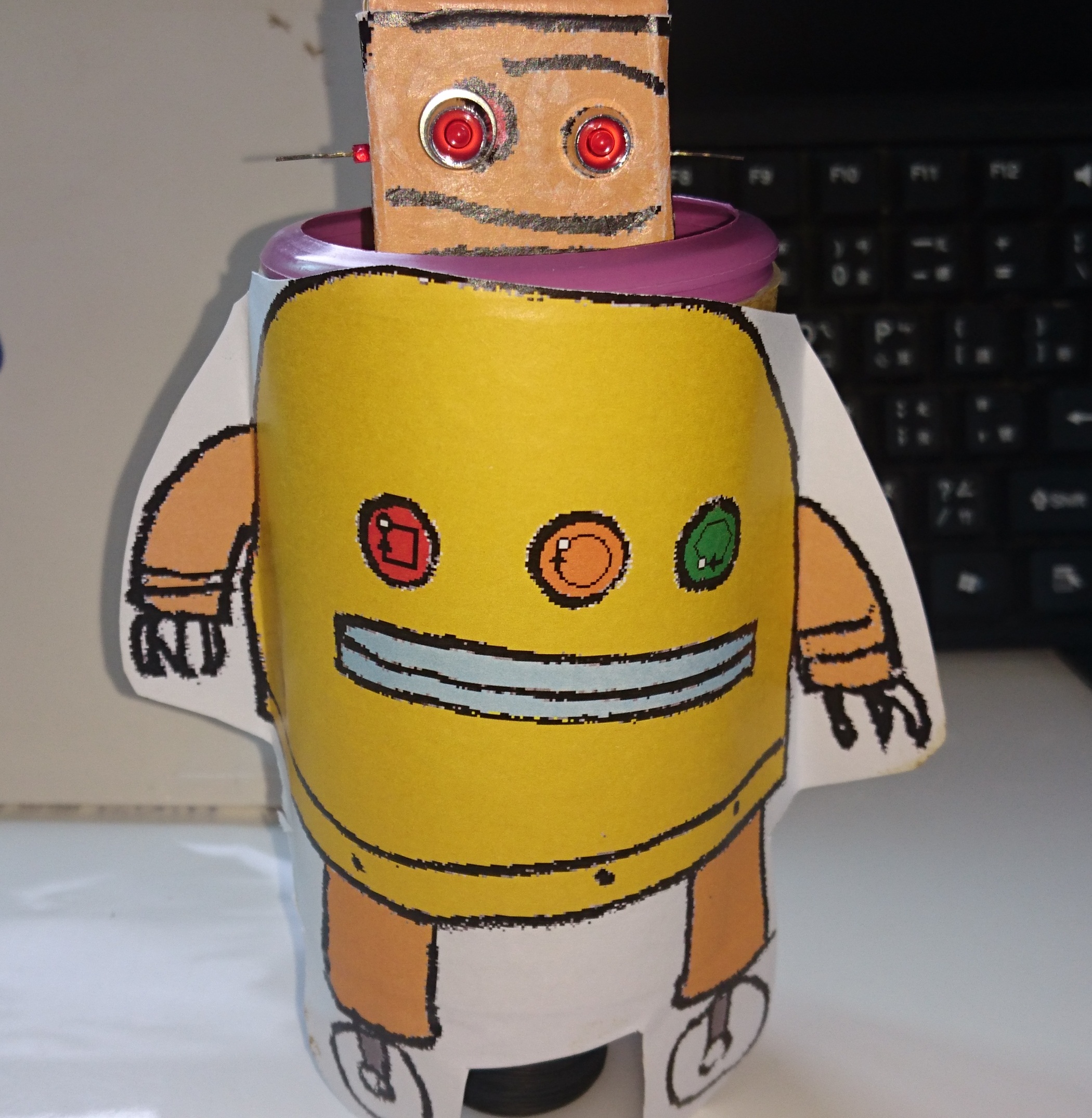

and then connect the legs to the robot body.

the thing what i am wondering about is

the robot platform with this coding of part_5 and

merge the part_4 robot at the same time.

becomes the robot which someone is not operating

from the remoter and the arduino platform

will while handling over to " running by it's own ! "

(tiny robot platform part_6)

i have pressed the yellow button

and the robot walking in a circle once.
